INTEGRITY Yacht for Sale

• Cruising Speed: 12 kn
• Maximum Speed: 24 kn
• Beam: 23' 0''
• Hull Material: Fiberglass
• Max Draft: 6' 0''
• Fuel Tank: 1 x 5500|gallon
• Fresh Water: 1 x 1074|gallon
• Cabins: 7
• Heads: 5

MAIN DINING:
The main salon and dining area is open plan, which offers a spacious feel while keeping the area comfortable and safe with a relaxing atmosphere.

GALLEY:

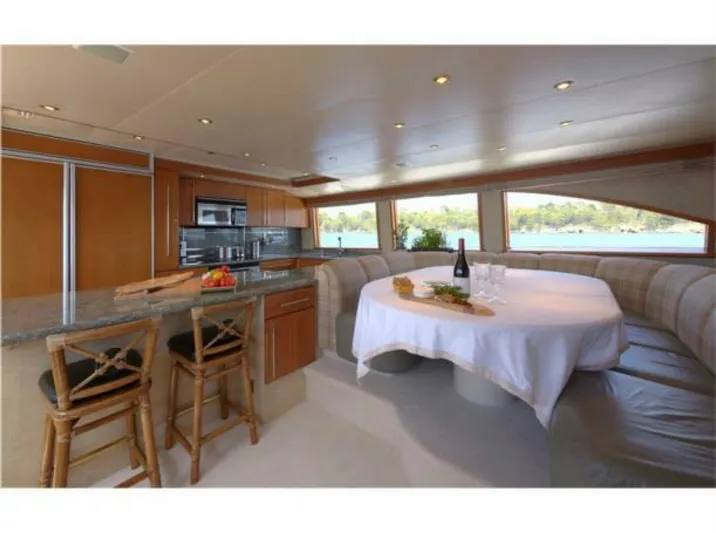

The galley/dinette area is a country kitchen arrangement, forward on the main deck.
A low counter separates the dinette from the galley. Large U-shaped dinette with seating for approximately 8 along with two stools at the counter.
Leading aft from the galley on the starboard side is a marble passageway with side deck door, stairs up to the raised pilothouse, a door to the crawlspace beneath the pilothouse, and a door to the day head.
To port is a second marble passageway with side deck door, stairs up to the pilothouse, and stairs down to the master and guest accommodations.

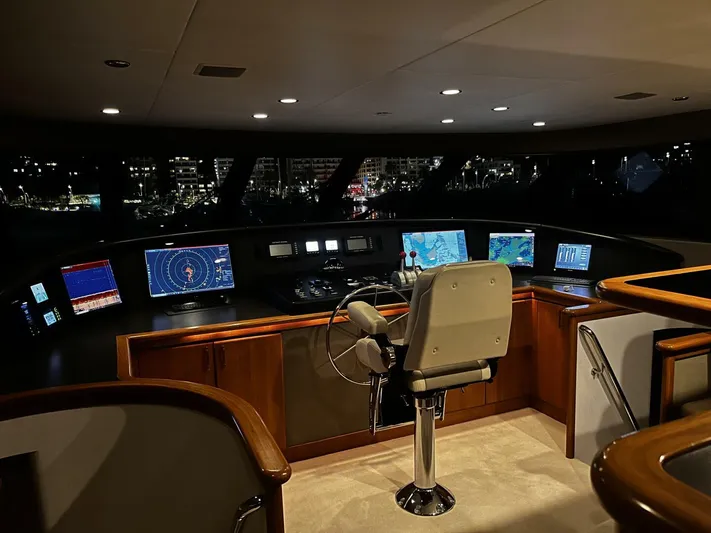

PILOTHOUSE:
The raised pilothouse has a 5-panel windshield with three washer and wipers and three fixed windows on each side. It has a single pedestal mount Stidd helm chair. There is a raised lounge area with table aft. Across the front is a console with screens for monitors/electronics, gauges and switches, and steering.

ACCOMMODATIONS:
Features 4 cabins with 8 guest berths and 5 heads.

MASTER CABIN:
This cabin has a centerline King size bed with walk-in cedar lined wardrobe and plenty of storage space. Vanity dresser with settee and safe underneath. There are 4 port holes which allow lots of natural light into the cabin. The entertainment system consists of TV and CD/DVD player.
The head consists of 2 sinks with shared large glass enclosed shower and separate Jacuzzi tub. There is marble throughout the bathroom with brass fittings and accents.

VIP STATEROOM:
Starting on the forward lower level is the VIP stateroom. This cabin features a centerline Queen size bed with walk-in cedar lined wardrobe. To starboard there is a small settee and large hatch for light and 2 small book shelves. Entertainment system consists of TV and CD/DVD player as well as a multi-function phone.
The head has a toilet, shower, and sink. There are mirrored ceilings and marble throughout.

GUEST CABIN 1:
Centerline Queen size bed with entertainment system. The head consists of a toilet, enclosed shower, and wash basin with marble throughout.

GUEST CABIN 2:
Twin single berths with entertainment system. The head consists of a toilet, enclosed shower, and wash basin with marble throughout.

CREW QUARTERS:
The crew quarters are located aft of the engine room with access from a door and stairs on the starboard aft deck, or through the watertight transom door. There is a small crew mess with dinette and galley.
The captain’s cabin has a double bed, small desk, and lockbox in the closet. There is also a TV and CD player. This cabin has its own head with toilet, shower, and wash basin.
The Junior cabin has twin bunks and a single bunk with TV in the Engineer’s cabin. Both cabins share a head with a toilet, sink, and enclosed shower.

•    (2) New Kohler 55 kW generators, 3 hrs. 05/15/24

•    Stabilizers: CMC HS60 Stabilis Electra stabilizers, 2019. 3610 hrs. - 05 15 24
•    Bow thruster: Wesmar V1-16H, 60 hp.
•    Watermaker: (2) Sea Recovery, 1200 gallons/day
•    (4) Steering stations: flybridge, pilothouse, (2) wing
•    Type of Linkage: hydraulic Jastram Power System c/w wheel at main bridge and flybridge

•    (3) Frigomar CU70VFD chillers with Aqua Air air handling units throughout

•    Fuel: 5500 gallons
•    (2) Fresh water: 603 gallons forward; 535 gallons aft
•    (2) Grey water: 13.5 gallons forward; 80 gallons aft
•    Black water: 457 gallons
•    Hamman Treatment: Engine Room – 50 gallons

•    (6) Headhunter and (2) Galley Maid toilets
•    Vanguard 6E016, 120-gallon hot water boilers
•    Hamman grey and black treatment plant
•    Wavebright grey water treatment
•    (2) AC Rule / Jabsco bilge pumps
•    (8) Rule 2001 bilge pumps
•    Dockwater Octo Marine water softener

•    Honda 3.6 hp portable fire pump
•    FM200 Remote operated fire suppression system, engine room
•    Seatouch monitored smoke, heat, and carbon monoxide detectors

•    120V / 220V, 60 Hz
•    (2) Kohler 55 kW alternators
•    Vectec modular frequency converter, serviced 2021; 50 / Hz 200-480VAC
•    Seatouch by Attest vessel control and monitoring system; networked 2021 / updated 2024

•    (4) Main Engine start – 24VDC batteries, 12V 1100AH, new May 2024
•    (2) Generator start 12VDC batteries, 12C 1200AH, new May 2024
•    (4) Service 24VDC, 12V 1100AH, new May 2024
•    (2) Service 12 VDC, 12V 1100AH, new May 2024
BATTERY CHARGERS:
•    Generator: ProSport 12 PFC, 110V-240 – 12A@12VDC
•    Main Engine: Victron Orion-Tr DC-DC 24-24VDC, new May 2024
•    Service 12VSC: Victron Centaur charger – 12/100(3) 120-240V, new May 2024
•    Service 24VDC: Victron Centaur charger – 24/160(3) 120-240V, new May 2024

•    E.S. Ritchie compass, 2002
•    Furuno SX20 satellite compass/GPS, networked 2021
•    Airmar log/depth/water temp, networked 2021
•    Furuno BBDS1 depth sonder, networked 2021
•    Raymarine depth sounder (Capt/Aft)
•    Airmar wind instruments, networked 2021
•    Furuno DRS6A-X radar, networked 2019
•    (2) Furuno DRS12A-X radars, networked 2021
•    Furuno TZT19F chart plotters - FB
•    Furuno TimeZero3-PC chart plotters – TZ, networked 2021
•    Furuno 711C autopilot, networked 2021
•    (2) Furuno GP-39 GPS’s, networked 2016
•    (3) Vesper GPS’s, networked 2021
•    Furuno FM-4850 VHF, networked 2021
•    (2) Vesper Cortex HP-1 VHF X (2) handsets, networked 2021
•    Vesper Cortex AIS, networked 2021
•    Sailor SATCOM
•    Starlink Maritime, networked 2024
•    Axis viewing/ security camera’s, networked 2021
•    Panasonic Telephone PABX throughout

•    Sharp Aquos Quattron 3D TV, salon, 2013
•    Bose lifestyle V25 audio, 2013
•    Sonos throughout vessel, networked 2021
•    Apple TV throughout vessel, networked 2021
•    PC/NAS, networked 2021

•    Liebherr SBSes-8773 refrigerator/freezer, new 2023
•    Thermador PODS301W/09 oven (steam), 2020
•    Thermador PODS301W/09 stove (induction top), 2020
•    Thermador DWHD870WFMUP dishwasher, 2021
•    Kitchen Air extractor, 2021
•    InSinkErator
•    Garbage compactor
•    Marvel 61WC wine cooler, salon
•    Whirlpool GI15NDXTS2 icemaker, salon bar
•    ITV icemaker, flybridge
•    Custom bar fridge, flybridge, 2023
•    Galley water purifier

•    Microwave
•    Sub-Zero UC-24R refrigerator, 2013
•    (2) Summit freezers
•    (2) Miele WXF660 WCS Tdos USA washing machines, 2024
•    (2) Miele TXI680 Eco and Steam USA dryers, 2024

•    Anchor and chain: (1) 350lb. galvanized Forfjord stockless with 120 X 16mm galvanized chain and 2 x 100mm, 18mm Spectra lines
•    (1) Fortress FX125
•    Passerelle: Folding carbon fiber passerelle with extension
•    Boarding ladder – side
•    Bathing Ladder: stainless with teak steps
•    Deck Wash: Zero TDS – wash n Go, 2016
•    Windlass: Maxwell VWC 4500 hydraulic windlass, 2023; 2 x 2200 Maxwell 24V electric for aft deck lines
•    Crane: Nautical Structures EZ-2000-EX. Lifting capacity 2,000 lbs.

•    Tender: Novurania 18’ with Yamaha 2018 115 OB
•    Color: white with grey trim
•    Fuel capacity: 26 gal/98L
•    Water capacity: 9 gal/34L

•    Liferaft: Zodiac 16-man Xtrem liferaft SOLAS A, 2023, serviced 2024
•    EPIRB: Serviced 05/2024
•    PLB
•    (10) Flares, replaced 05/2024
•    (2) Life buoys
•    (20) Life jackets, serviced 04/2024
•    (18) Fire extinguishers, serviced 04/2024

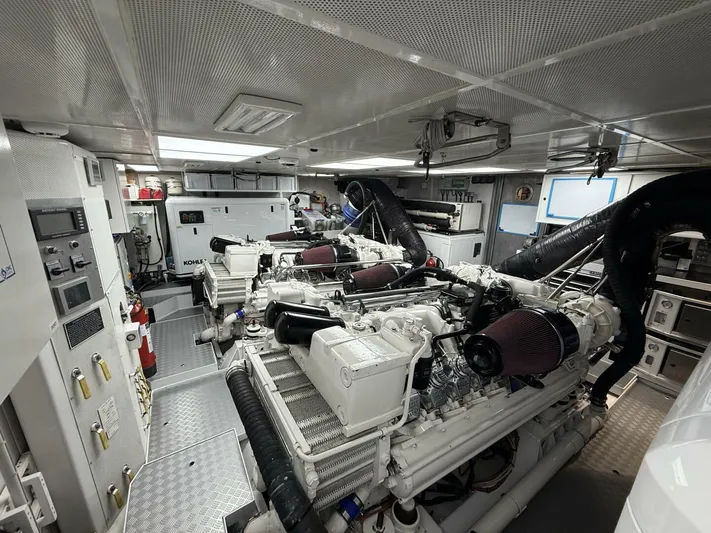

•    Engines: Twin Detroit MTU Diesel Series 2000 V16, 1850 HP
•    Engine Hours: 1973 hours to date (6/24) since W6 in 2016. 8,600 total hours.
•    Gear Boxes: Twin Disc
•    Propeller type: 5-Blade Michigan Federal CX500
•    Max speed: 23 kts.
•    Cruise speed: 12 kts.
•    Consumption: 120 Liters per hour
•    Range: 2500 nm @ 12 kts.

2016:
•    Full MTU W6 and gear box rebuild

2021/22:
•    Interior refit including interior ceiling linings, wall hangings, carpets, and flooring
•    New LED lighting and controls throughout
•    New galley equipment
•    New pilothouse bridge electronics package
•    New flybridge electronics package
•    New vessel management Seatouch monitor/control package

2023:
•    New galley fridge/freezer
•    New air conditioning plant

2024:
•    New generators
•    Starlink Marine installed

•    Hull & Superstructure: Snow White Alex Seal
•    Decks: Teak and non-skid white
