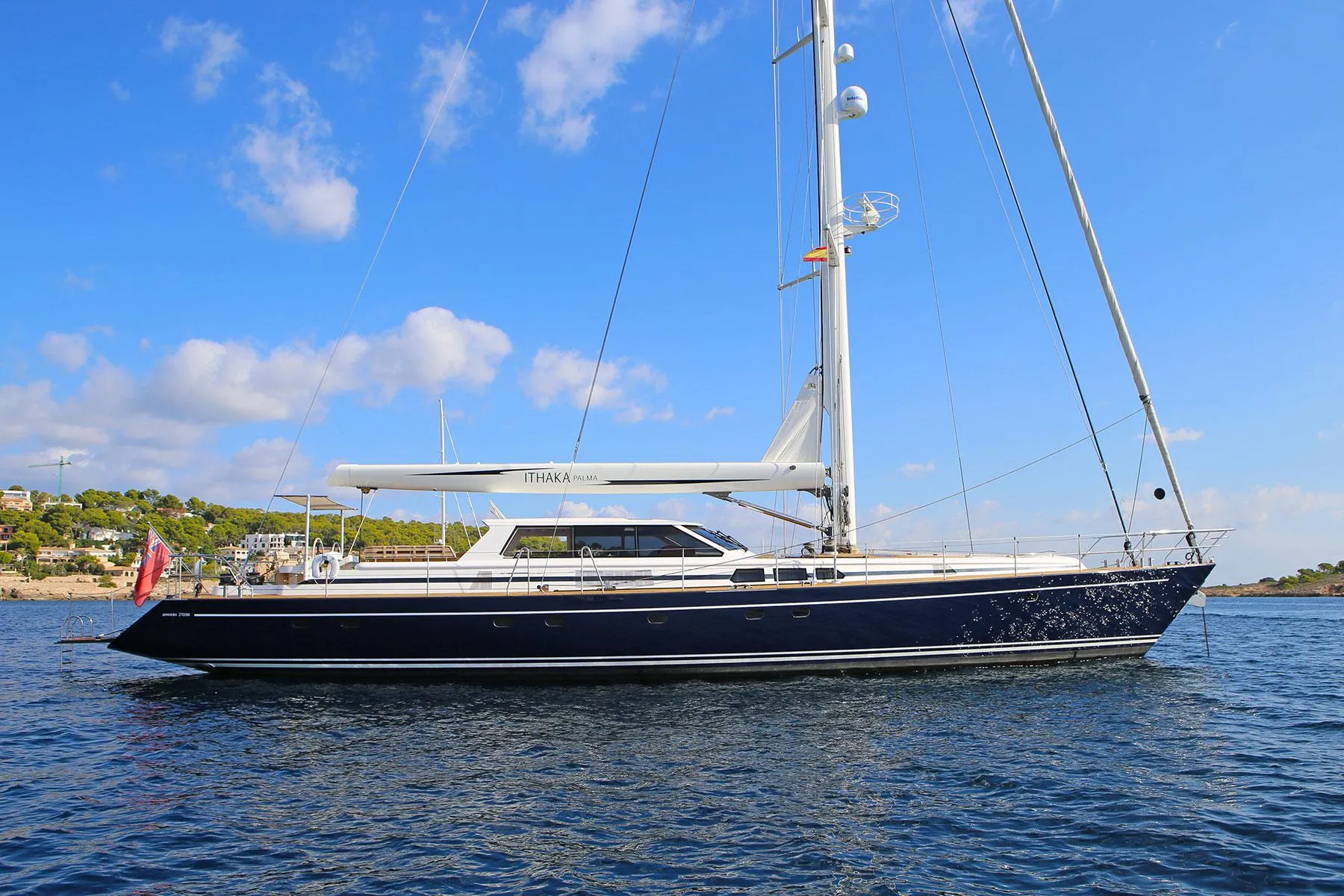

ITHAKA Yacht for Sale

• Cruising Speed: 10 kn
• Maximum Speed: 8 kn
• Beam: 21' 7''
• Hull Material: Aluminum
• Max Draft: 10' 0''
• Displacement: 165,346.7 lb
• Cabins: 5
• Heads: 4

Model: Jongert 2700M
Shipyard: Jongert BV, Netherlands
Naval Architect: Doug Peterson
Int. Designer: Jongert Design Team
Year: 2007
Registry: London UK
Hull material: Aluminium
Superstructure: Aluminium
Length O. A.: 27.30 m (89.57 ft)
Length W. L.: 22.14 m (72.64 ft)
Beam: 6.58 m (21.59 ft)
Draft: 3.05 m (10 ft)
Displacement: 78.5 tons at half load
Engine: 1x 257 Hp/189 kW Scania
Accommodation:
6 guests in 3 cabins
3 crew in 2 cabins

GENERAL SPECIFICATION

LOA.: 27.30 m
Length hull: 26.70 m
LOD: 25.24m
LWL: 22.14 m
Beam: 6.58 m
Draft (min): 3.05 m
Air draft (max): 38.50 m
Displacement: 75 tons (50% load)
Net Register tonnage:83 tons
Gross tonnage: 24 tons
Fuel: 5’000 Litres
Fresh water: 3’000 Litres
Grey/Black water: 500 Litres

CLASSIFICATION

Hull certificate Lloyd's 100A1, SSC, YACHT, G6 JONGERT

CONSTRUCTION

BUILDER
Hull: Jongert – The Netherlands.
Interior: Jongert – The Netherlands.
Installations: Jongert – The Netherlands
Building NR 424 Builders identification plate nearby engine room.

ARCHITECT
Construction: Doug Peterson, naval architect.
Keel + rudder: Van Oossanen – The Netherlands
Exterior design: Jongert Design Team
Interior design: Jongert / Jernberg & Ageet Gotink - NL

HULL
Medium displacement round bilged, negative stern construction, with integrated bath platform, raked bow and special performance designed wing keel and elliptical balance/spade rudder by Van Oossanen hydro specialist naval architects offer ‘high aspect’ sailing.
Built in ALmG 4.5 Mn 8- and 6-mm aluminium.
Hull construction (below waterline) bow to engine room extra transverse framing each 50cm.
Under crew accommodation + forepeak extra longitudinal stiffeners.
Aftship frames each 100 cm + longitudinal stiffeners each 50cm under lazarette and owner’s cabin.

5 watertight compartments by 4 bulkheads, of which 1 has watertight (engine room entrance) doors.
One 6 mm aluminium balance/spade rudder. Performance design.
Ballast lead in keel 17 tons. Special performance design.

DECK
Main deck covered with 15 mm teak in a bedding compound.

SUPERSTRUCTURE
Built in ALmG 4.5 Mn 5 mm aluminium.

RIGGING
Both mast and boom in carbon fiber.
Nirvana boom and hydraulic boom furling system
Hall spare mast 38.5m
In 01/2021 the mast was un-stepped; all standing rigging was renewed except backstay that was checked and re-headed.
In 02/2021 the mast was re-stepped, checked & serviced and tuned.

OTHERS
Nirvana Spars flushdeck aluminium hatches in fore deck, owner’s cabin (teak finished/escape) and lazarette (teak finished).
Nirvana Spars aluminium hatches, flushdeck in salon, galley and dinette with blinds and integrated Ocean air insect screens.
Deckhouse hatches (opposite opening for optimal fresh air+ blinds)
Stainless steel fittings and hardware, hand and sea railings (90 cm), with bow- and stern pulpit, fairleads /bollards (including flushdeck models) mooring lines protection strips, bow protection / intractable anchor bow launch and storage system.
Deck locker (seats/hatches) with air cylinder hatch levers.

WINDOWS
15 mm sun tinted, laminated double, hard glass windows of which the aft deck house windows can be lowered electr. /Hydr. fitted in the aluminium construction.
3 Prisma model deck build in deck lights
3 heavy-duty wind shield wipers with interval and freshwater wash

PORTHOLES
Of 15 mm hard glass. Throughout accommodation including salon/dining. All with blinds.
3x opening models in owners’ cabin and owner’s bathroom with insect screens and storm shutters.
4 Lewmar opening portholes of which 2 below each cockpit bench and 2 below each wheelhouse bench + insect screens.

PAINT SYSTEM
Superstructure painted 2016 in Awlgrip high gloss, colour off white
Hull painted in 2016 in Awlgrip high gloss Colour Colour Majestic blue
Mast and boom painted in 2016 in Awlgrip high gloss, colour off white
Underwater hull antifouling painted January 2021. System International Trilux-self polishing. Colour black.

INSULATION
Thermal: Hull down to waterline and Superstructure insulated by foam.
Hull inside applied with anti-condensation and -noise layer and paint.

Acoustic: Noise & vibrations reductions following Jongert standards. Hull inside at various places amongst above the propshaft treated with noise & vibrations reducing applications. Complete interior joinery flexible mounted. The floors are installed on ’Silomer’ silencing.
Engine room anti-noise insulation down to waterline, perforated aluminium sheeting. ‘Bondal’ (alu/lead/alu) insulation between Engine room ceiling and salon floor.
Installations in engine room where required installed on rubber mounts.
Noxudol insulation material in area above propeller.
Water separators on main engine and generators further reduce the noise level inside and especially outside of the yacht.

MACHINERY & PROPULSION

MAIN ENGINE Single Scania D/9 93M IFCN 6 cylinders diesel engine, built 2007.

Continuous rating ± 257 Hp (189 kW) at 1900 rpm.

Engine hours app. 6000h in 05/24.

Engine with turbo charger, inter cooling system with water injected insulated GRP silencer and water-exhaust gas separator. Hydro pto.

Raw water intake manifold with dual exchangeable filters. One handle seacock.

Piping in aluminium steel, ABS and PVC.

Service:

In 05/2017 heat exchanger for main engine was taken off, serviced, pressure checked and reinstalled. Sea water pump taken off, serviced and reinstalled.

In 03/2019 heat exchanger for main engine was taken off, serviced, pressure checked and reinstalled. Sea water pump taken off, serviced and reinstalled.

In 02/2020 raw water pump taken off, serviced incl. mechanical seal replacement and reinstalled.

In 01/2021 raw water pump taken o, serviced and reinstalled. 2x Alternators were taken off, serviced (new bearings and brushes) and reinstalled.

Normal oil changes every 250hrs on main engine.

In 04/2023 Main engine service by Waterline Palma de Mallorca:

Interchange service, ultrasonic cleaning, changed O-rings and gasket. Oil cooler serviced, Ultrasonic cleaning, changed O-rings and pressure tested in shop. Replaced turbo, cooling pump, coolant, thermostats, oil including all ail filters and fuel filters. Full service on salt water pump including seals, bearings cover and gaskets.

Injectors serviced, injector washers renewed and checked pressure.

Tube from expansion tank to cooling pump renewed.

Separate (environment friendly) bilge under main engine.

1 x 24V 120 Amp Alternator for service batteries.

1 x 24V 55 Amp Alternator for start batteries.

Separate external oil cooler, 3 x in line for main engine, gearbox, hydraulic oil.

Arrangements are made in the yacht’s construction to lift the entire main engine and generator through the superstructure rooftop.

MONITORING By analogue meters engine room.

By integrated computer system with touch screens (large dual Mermaid screens in wheelhouse and Exter 70 screens in wheelhouse, messroom, captain cabin and at each extern steering station), including full main engine control, tankage levels, bilge alarms, automatic stop/ water oil/overload alarm, burglary alarm etc. and automatic alert to home base (I-phone). See Management System.

Start and stop + acoustic alarms at in- and SB outside steering station with emergency start + stop + control in engine room.

Exhaust temp. meter main engine.

CONTROL SYSTEM Twin Disc (SSE) electronic control system in wheelhouse and SB outside steering.

GENERATORS 1 x 27 kW / 36 hp (at 1’500 rpm)

Gen. hours app. 7’200hrs in 05/24.

Kohler generator in sound shield box.

Exhaust with Aqualift silencer and separator + hydro pto.

1 x 24V 55 Amp Alternator for start batteries.

Consumption 8/9 l/hr

Service:

In 03/2019 the injectors taken out, serviced & nozzles replaced and reinstalled.

Heat exchanger taken out, serviced and reinstalled. Coolant replaced. Raw water pump serviced including yearly change of anodes.

In 02/2020 all sensors and electric panel replaced. Old panel read 5’800hrs, new panel reads now 1’400hrs. Fuel injection pump taken out, sent to manufacturer for service and reinstalled. Heat exchanger taken out, serviced, tested and reinstalled. Raw water pump taken out, serviced and reinstalled. Fan belts replaced and two new spare belts installed. Coupling for PTO replaced. Stop solenoid replaced.

In 01/2021 raw water pump taken out, serviced and reinstalled. Heat exchanger replaced. New air filters, new starter motor.

In 04/23 general service by Waterline Palma de Mallorca including:

Oil, oil filter, fuel filter and racor filter changed, raw water pump replaced including belt and Zinc anodes. Output power checked.

1 x 11.5 kW / 15.4 hp (at 1500 rpm)

Gen. hours app. 5’800 hrs in 05/24.

Kohler generator in sound shield box.

Exhaust with Aqualift silencer and separator.

Consumption 4/5 L/hr

Service:

In 03/2019 raw water pump taken off, serviced and reinstalled. Fan belts replaced, injectors taken out and serviced.

In 03/2020 installed new raw water pump, general service

In 04/2023 general service by Waterline Palma de Mallorca including:

Oil, oil filter, fuel filter, racor filter, sea water pump, belt coolant pump, thermostats, rubber tubes, drain valve crank shaft seal belt changed. Output power checked.

Start and stop controls in wheelhouse, engine room, lazarette.

Automatic stop when water / oil/ overload alarm, both generators.

At low level alarm of service batteries by system notification to crew phone, main generator can be distance started through communication PC.

GEARBOX Twin Disc hydraulic gearbox with flexible coupling.

Service:

05/2017 heat exchanger was taken off, checked & cleaned, pressure checked and re-installed.

03/2019 heat exchanger was taken off, checked & cleaned, pressure checked and re-installed.

01/2019 gearbox was taken out, all moving parts were completely renewed and gearbox re-installed.

Trolling valve system for maneuvering at very low speed.

In 04/2023 oil and Zincs changed.

BOW THRUSTER The bow- and stern-thruster can be used vis two different systems:

1. from PTO on main engine (engine’s rpm is raised from 700 to 900rpm)

2. from PTO on generator

PROP SHAFT Hydromar water type propeller shaft.

70 mm diam. steel/ stainless steel type 316 shaft.

Automatic shaft greasing system. Water and Oil bath.

3 blade J-Prop bronze 900 mm diam. Mechanical variable pitch / vane model propeller.

Service:

In 02/2019 Propeller shaft was taken out and checked, the cutlass bearing replaced on

P-bracket and on shaft.

The propeller bearings and lip seals replaced and reinstalled as well as the oil changed in the system.

TANKAGE

Fuel: 2 x 1’900 liters aluminium wing tanks with inspection manholes and cross over pipe + valve.

Tanks amidships in engine room, opened, inspected & cleaned in 2018

Day tank of 1’050 liters, opened, inspected & cleaned in 2018

Electronic capacity meter by monitoring system + dipstick.

Fresh water: 2 x 1’500 liters aluminium double bottom tanks with inspection manholes/ and cross over pipe + valve electronic capacity meter by monitoring system.

Tanks are installed aft amidships to enable most ideal ships trim. Tanks inner site painted in epoxy Intergard.

Grey/Black water: 1 x 750 liters aluminium double bottom tank with inspection manhole. Electric level alarm.

Tank is installed forward amidships under galley for ideal ships trim. Vent by mast at 5 m. above deck + salt water shower tank cleaning system. In 2011 tank sandblasted + new inner coating. Each year emptied, opened and cleaned by professional company each year.

Lubrication oil: Aluminium double bottom wing tank on SB. Manual pump filling of Main engine + gearbox and main generator.

Waste oil: Aluminium double bottom wing tank on Port. Waste oil pump to discharge oil of main engine, gearbox and generator to tank or Ship-shore for Main engine, gearbox and main generator.

Filling / emptying: Deck integrated provisions in SB and Port deck. Fuel/Water/Waste water/BB-deckwash/SB freshwater.

PERFORMANCE

Under sail: Cruising speed: 8/9 knots at 13/14 knots windspeed

Max speed: 12/13 knots average

Under power: Max. speed: 10 knots @ 2500 rpm

Cruising speed: 8 knots @ 1500 rpm

Range: at cruising speed 2100 Nm

Consumption: at 8 knots / 1500 rpm - 17 l/hr

AUXILIARY EQUIPMENT

AIR-CONDITIONING/ Climma, capacity 83.000 BTU

HEATING Two compressor reverse cycle system containing: Hot/ Cold water circulation system with individual Climma Vega MKII digital thermostat-controlled accommodation fan coils. Hot water circulation by boiler.

System calculated that at an outside temp of + 37° C an inside temp. of + 22° C can be achieved, at seawater temp. of + 28° C.

Service:

General Service every year: Check pressure flushing both compressors. Change anodes and check glycol level.

3x Air coil units taken out and serviced incl. change of bearings and re-installed

In 03/2013 cleaning of Marine condensers, descaling and neutralizing. Change of 4 Zinc

anodes

Check state of antifreeze liquid in loop system and top to right consistency.

HYDR. POWER PACK Make Hydromar, installed in the engine room for bow- and stern thruster, anchor winch, sail winches, sail furls and driven by pto hydro pumps installed on the main engine and main generator and by electric pumps over service battery group (without engine/generator for silent sail mode). Alarm system/Emergency stop (3x in wheelhouse/+ each outside steering station)

Service:

In 01/2021 change of all filters and oil in system

BOWTHRUSTER Hydromar HBT-DP-35, 47 Hp/35 kW

Hydraulic folding / retractable by cockpit proportional control

STERNTHRUSTER Hydromar HBT-DP-20, 27 Hp/20kW.

Hydraulic folding/retractable by cockpit proportional control.

STEERING GEAR Lewmar (Whitlock) mechanical/electric system with 2 carbon wheels finished with soft white leather.

Emergency tiller.

DIVING GEAR 2x emergency Pony bottles

VENTILATION Engine room: Bosa heavy duty mechanical ventilation system with manual fire shutters from wheelhouse steering station.

Accommodation: Mechanical + natural air ventilation throughout the yacht + by air-conditioning fan coils.

SYSTEMS

FUEL SYSTEM Double Racor type fuel filters for main engine and generator.

Double Racor 75/900 fuel separator filters for main engine and double Racor 75/600 fuel separator filter for generator.

Fuel-Mac bacterial filter before Racor filters.

Service:

All filters changed in regular intervals.

WATER SYSTEM Fresh water; Viscomat 70/90, 24V hydrophore. 50 litres pressure tank with Sihi AOHA 1102 electric pump.

System with HEM UV sterilization and carbon filter aft hydrophore.

Hotwater system by 120 liters Daaldrop Mono 3 calorifier, electric heating system.

Ship-shore fresh water connection + 2x filter in lazarette Hot/Cold water shower at bathing platform.

Watermaker; HEM 25-1200 capacity 225 l/h - 5400 l/day (approx. 2’300 hours 10/2021)

Service:

UV-bulbs changed every year, filters regularly changed.

In 08/2018 membranes replaced and high-pressure pump taken out, serviced and re-installed.

In 02/2021 raw water pump taken out, serviced and re-installed.

In 11/2020 high pressure pump taken off, valves replaced and normal service with filters etc.

In 02/2023 High pressure pump removed and serviced including valve replacement with C-317 valve kit, seals replaced with C317 seal kit, belt and oil changed.

Removed 3 membranes, check working salinity and replaced seals and end caps.

UV-Bulb and cylinder in the water purification system changed.

SEWAGE SYSTEM Grey/Black water; Hamann Super Mini L frame, treatment system. In approximately 30 minutes the 500 Ltr. tank content is treated and environmentally friendly emptied.

Sealand heavy duty electr. 10 min direct overboard discharge pump or ship-shore by discharge connection in SB deck. Waterflush 2003 vacuum/electric fresh water flush toilets.

Discharge bathrooms and galley by 3 x 24V Rheinstrom 3509 shower sump pumps systems.

Service:

In 3/2023 complete service of Hamann system by Precision Marine in their workshop including: Service of Macerator pump, mechanical seal replacement, O-ring replacement, bearing replacement, rubber stator replacement, service chlorine mechanism and renewal of chlorine. Tank level indicator removed for tank and checked. Electricals, timer and breakers checked. Rotor, gear box body, rubber joints and clamps replaced and re-installed on board.

BILGE SYSTEM One Sterling Fluid 400V electric heavy-duty bilge pump, manual and electrical controlled by monitoring screen in wheelhouse and crew messroom. Alarm panel in captain cabin. One Steimel heavy-duty pump driven by main engine. Manifold for bilge compartments, direct overboard/ grey water tank discharge/ exchangeable by-pass back-up system with deckwash/ firefighting pump.

DECKWASH SYSTEM Freshwater tap point at SB deck filling station. Deck wash hose.

FIRE FIGHTING SYSTEM 1 x salt water tap at Port deck filling station.

ELECTRICAL SYSTEM

Professional electrical installation built by Doctronics (Multibridge) and Jongert.

Monitoring of electrical system by touch screens at doghouse steering, outside steering and messroom. AC and DC main switch panels including automatic circuit-breakers and control lamps in engine room. Earth failure alarm on monitoring screens.

Voltage/ Ampere/ meters and low voltage alarm, charge and discharge display by PC management system.

230V + 1 x 24V recepticals. Automatic shore/generator supply take over.

One generator running for approx. 4 hr is sufficient for 24 hr of electric power and silent ship condition in easy /sail mode.

11.5 Kw (silent) generator suits for when under sail or in anchor mode incl. airco / fridges, cooking.

Automatic generator activation by energy management system.

VOLTAGE 24V DC. 230/400V-50Hz AC.

BATTERIES Start set main engine: 2 x 12V in series traction closed maintenance free batteries of 280 Ah.

Seaworthy stowed in boxes in engine room. In 04/2023 main engine start batteries renewed.

Start set 27Kw generator: 2 x 12V traction closed maintenance free batteries new in 04/2023.

Seaworthy stowed in boxes in/engine room.

Start set 11.5Kw generator: 1 x 12V traction closed maintenance free battery Year 2012

Seaworthy stowed in boxes in lazarette. Replaced 10/2020

Service set: 1 x 24V, consisting of 24 x 2V traction closed maintenance free Mastervolt batteries of totally 1500 Ah. Seaworthy stowed in boxes under owner’s cabin.

All service batteries replaced in 2017.

Other (maintenance free) batteries;

2 x 12V/24V Monitor set

2 x 12V/24V Hydropack

1 x 12V Alarm

1 x 12V VHF emergency

Emergency/ batteries By-pass/ switch for starting generator and main engine.

GENERATORS 1 x 27 kW (at 1500 rpm) Köhler generator in sound shield box in engine room.

1 x 11.5 kW (at 1500 rpm) Köhler (2009) generator in sound shield box in lazarette.

CHARGERS 3 x 24V- 100Amp Victory Energy Mass 24/100 automatic chargers for service battery bank.

1 x 24V – 15 Amp Mastervolt for 27Kw generator and main engine batteries.

1 x 12V – 10 Amp Mastervolt for 11,5Kw generator battery, renewed in 3/2023.

Main engine alternator 24V/ 55 Amp and extra of 24V/110 Amp for start battery and service bank.

Provisions to run one charger at 60Hz. (USA)

INVERTERS 2 x 24V - 230V – of 5000 Watt each. Victory Energy for galley/ salon/ wheelhouse plugs/ and emergency lighting and modest consumption for cruising mode when under sail / silent ship.

SHORE POWER Shore power intake 400V (3-phase through automatic relay) in lazarette complete with cable. Wezeman 18.6 kW / 50Hz ship shore transformer/splitter in aft peak.

Ship shore cable of 30m with waterproof plug.

LIGHTING Interior lights 24V including led dim spots, indirect cove and flood lighting, lighting, courtesy red night lights in deck house and white step lights.

TL-lamps 24V in engine room.

Deck lights 24V halogen spots in spreaders and boom and hidden indirect teak caprail built in gentle glow (glassfibre/halogen) flood deck lights. + integrated lights in passarelle.

Mast spreader sail-up led lights.

SAILPLAN / RIG

SAILPLAN Masthead cutter rigged sloop.

MAST and BOOM Hall Spars carbon fiber main mast with 4 spreaders. Mast keel stepped. Spreader deck and up-sail lights.

Nirvana Spars, carbon fiber mainsail in-boom furling.

painted in color white, with integrated led lights.

STANDING RIGGING Stainless steel rodrigging Ø 25mm - Ø 7.5mm with stainless steel turnbuckles.

Surveyed and replaced where required 2012.

Furling systems for Mainsail, Staysail, Genoa.

Hydromar stainless steel hydraulic backstay tensioner and boomvang. Hydraulic halyard tensioners, for genoa and staysail.

RUNNING RIGGING

Halyards

Mainsail: Dyneema Ø 18 mm white

Genoa: Vectran Ø 18 mm yellow

Staysail: Vectran Ø 16 mm yellow

MPS: 2x Titan Ø 14 mm grey, port

MPS halyard replaced 2019

Boom topping lift: Dyneema Ø 14 mm white

Boom preventer: Dyneema Ø 14 mm white

Sheets

Mainsail: Helios T Ø 18 mm dark grey

Genoa: Helios T Ø 18 mm dark grey

Staysail: Helios T Ø 16 mm dark grey

MPS: Dyn. SK78 Ø 18 mm red/green

MPS tackline: Gemini Ø 18 mm white

Runners: Helios T Ø 16/18 mm, Dyneema SK 78 T Ø 14 mm

Sheets and halyards cockpit, aft deck and mast controlled.

Genoa and Staysail sheets go underneath decks to aft deck winches.

BLOCKS Modern make Harken. Ball bearing.

FITTINGS & HARDWARE Stainless steel / Aluminium fittings and hardware / rope jammers. Most make Harken.

DECK GEAR Aluminium/Stainless-steel make Harken.

Deck integrated traveler for mainsail.

SAIL WINCHES Make Harken.

Halyards: 1 x Hydromar captive hydraulic for mainsail

2 x Harken 990 STAD, 2 speed / Port = hydr. / SB= manual in combination for halyards and others.

2 x hydraulic halyard tensioners mounted at each side mast.

Sheets: 2 x Lewmar 1110.3 STADHY hydr/push button, 3 speed.

2 x Lewmar 990 STADHY hydr/push button, 3 speed.

Extra low/highspeed function.

Antal make deck push buttons with prevention lid.

1 x Hydromar captive hydraulic for main sail.

All winches yearly serviced and sacrificial parts renewed.

2 x Lewmar 10” winch handles with double grip.

2 x Lewmar 10” winch handles with single grip.

FURLING SAILS for Mainsail: Nirvana Spars boom-in furling hydraulic by joy stick

for Genoa: Reckmann RF 90-5 hydraulic push button control

for Stay sail: Reckmann RF 90-4 hydraulic push button control

both with manual back-up.

SAILS 1x Main Sail Laminated - North Sails 3DL – 189 m²

1x Genoa Spectra/dyn - North Sails Tri-Rad (Spector Gatorback) 212 m²

DECK EQUIPMENT

ANCHOR WINCH 1 x Single Hydromar HVW 6000 hydraulic vertical capstan model with stainless steel chain stopper, chain tensioner, chain counter.

Controlled by remote control and deck built-in push button.

Service: In 01/2021 anchor winch taken out and serviced. Seals replaced and reinstalled.

In 11/2021 hydraulic motor is replaced with new one.

One 80 KG galvanized steel anchor, type Bruce, seaworthy stowed in retractable bow-shell pocket with anchor roller. One Fortress FX-125 spare anchor.

110 m galvanized anchor chain of 13 mm, new galvanized + anchor 2012. Chain stowed in separate GRP chain locker. Spare Danforth aluminium anchor + nylon anchor line of 100 m/ 30 mm / with 10 m chain, stowed in lazarette.

CAPSTANS Vertical on anchor winch. Remote control.

For aft deck see sail winches. Deck push buttons

TENDER CRANE By halyard.

COVERS & CUSHIONS

Sunawning Canvas, over main boom colour crème. Aft end deckhouse.

Bimini Over outside steering with stainless steel frame.

Tarpaulins For tender / winches / wheels / outer steering stations.

Sailcover For main sail.

Pockets In cockpit for sheets.

Cushions For outside sofa seats, deckhouse sofa seats and lounge, changed in 2015

OTHERS Fenders: 11 x various models

Mooring lines: various as present

NAVIGATION EQUIPMENT

NAVIGATION LIGHTS Certified led type as per international rules. Red over green mast head lights. Steam light and Masthead red light (bulbs). Up lights in mast spreader for lighting sails.

COMPASS B&G Precision 9 gyro compass with repeaters at steering stations, messroom, pilot-house and interfaced to GPS autopilot, radar and chart plotter.

1 x handheld liquid compass

LOG Electronic make B&G type Hydra 2000 and 2 x repeater. Log read out by GPS and chart plotter

DEPTH SOUNDER Electronic Furuno GP 7000 F multifunctional unit (plotter + GPS) Color video sounder/fish-finder

WINDMETERS Electronic B&G Hydra 2000 indicating wind-speed and wind-direction / wind-angle / clause hold. Digital display including air temp. Conventional ‘Windex’ wind direction.

NAVTEX Furuno NX-300 nautical message receiver.

RADAR Furuno FAR 2117 black box with 4 ft antenna and 15” Mermaid color display in pilot-house and Seabook M12 radar display at SB outside steering station. Range 115nm daylight or color preference set-up. Arpa system integrated in radar and chart plotter.

CHARTPLOTTER Max-Sea Chart plotter T 2 with 15” display in pilot-house interfaced to GPS / AIS / Radar,

new in 2/2021.

Map cartridges for Mediterranean + see Furuno GP 7000 F

POSITIONING GPS Furuno Navigator GP 107 (Depth sounder + plotter) + 2x Handheld GPS.

AIS Furuno FA-150 Automatic Identification (and location) System of vessels position and track. Linked to Radar/ chart plotter

AUTO PILOT Segatron in pilothouse with repeater at PS outside steering + off-course alarm.

Joystick control in pilot-house.

WIND STEERING SYSTEM by B&G Hydra 2000 windvane.

RUDDER INDICATOR B&G.

SEARCHLIGHT 24V handheld electric

HORN Air compressor type

MANAGEMENT SYSTEM Multibridge with touch screens at port navigation desk pilothouse, SB and PORT outside steering stations, messroom (with iPod plug in) and captain cabin.

Yacht management system offers amongst: monitoring and control of / navigation lights / main generator controls/ start-stop /alarms/ bilge / tank level / electrical / /earth failure/ systems, passarelle and others.

Failure alert system to shore base and diverse functionality by log-in from shore base.

SEA CHARTS Admiralty paper charts of Mediterranean / Caribbean / Croatia and Italy.

NAUTICAL BOOKS Pilot books included.

OTHERS Barometer/ Barograph/ Clock

Water temp and inclination by Hydra 2000.

COMMUNICATION

VHF Sailor S.P. Radio RT-5022 with GMDSS distress button + repeater at SB outside steering

station. 2 x Handheld make Icom (floating and waterproof)

COMPUTER / 1 x Nexcom, new in 2/2021 with Windows 10, connected via IP-Address to:

COMMUNICATION Pepwave Wifi-Router on board with 2x SIM Slots, connected to ANT (B & G Processor), to Intellan-TV Dome, Monitoring System and hydraulic System.

BOARD TELEPHONE System with telephones in each cabin + 3 x wireless.

TELEVISION RECEIVER Intellian T 9 global TV receiver and decoder.

ACCOMMODATION & LAYOUT

DECK The flush deck hatches optimize safety and comfort on deck and maximize sundeck facilities, while the efficient and logic deck gear requires a minimum of crew for sail handling.

Sea railing with 90 cm high stainless-steel stanchions with 2 wires to ensure maximum safety.

Teak unvarnished caprail with design integrated deck lights.

OUTSIDE STEERING Dual stations with each yacht’s control panel. Professional instruments set-up for easy STATIONS readability. Luxury helmsman seats and bimini.

OUTSIDE Twin large L-shaped sofa seats in teak with side tables.

SEATING AREA 2x tables, cushions, removable sun awning over boom, speakers

DECKHOUSE Spacious semi open relax, observation or sheltered dining area with electr. /Hydr. opening lowerable windows. Perfect 360° view.

Deck-house entrance comfort hatch. Headroom ± 195 cm.

Most comfortable and multifunctional area with two large U-shaped lockers integrated sofa seats and large teak grating tables. SB table electr. lowerable and convertible into king size lounge bed.

Canvas + windows windshield aft of deck-house.

2x tables teak grating, with smart fixing system, cushions, speakers

In 01/2023: hydraulic system for deckhouse opening was completely serviced including:

Removal and service of triple hydraulic valve block, pressure testing, painting and re-

Installation. Reset of pressure settings.

INSIDE NAV. STATIONS Forward in semi enclosed deck salon. 2 x navigation desk/ helmsman seat.

Professional instruments and monitoring set-up for easy readability and yacht's control. Locker space for manuals/ sea-charts + others incl. safety.

Flash lights, binoculars, link to Bose audio system, iPod plug-in

INTERIOR LAYOUT

Although this yacht has never been chartered, her layout would be ideal.

Most spacious and luxurious accommodation for 2 owners and 4 guests in 3 cabins

Comfortable crew quarters. The set-up with crew quarters forward and efficient galley location and separation offers a maximum of privacy for owners and guests.

Ventilation/escape hatches and portholes throughout accommodation with integrated ‘ocean air’ insect screens/blinds.

INTERIOR MATERIALS

The interior is excellently built-in pear wood with titanium finishing touch by Jongert in the renown Dutch contemporary/modern style and tonneau shape. The woodwork is satin varnished.

Teak deck in deck-house.

Carpets in salon, cabins and aft corridor.

Stainless steel fittings and hardware.

Corian worktops and sinks in bathrooms.

Grohe luxury chromium plated taps.

Mattresses (Neptune) on slatted berths bases.

Blinds (luxaflex type) in salon/dining/cabins and integrated blinds in hatches.

LOWER SALON The wide stairway and integrated teak sliding door give access from the deckhouse to the lower salon.

Comfortable and luxury stylish set up. Full headroom up to 200 cm.

Starboard side: salon area with comfortable L-shape sofa of fine white fabrics.

Salon table with integrated electr. lifting mini bar. Cupboards for glass and china + plenty of further lockers space incl. cassettes for cutlery.

Portside: comfortable U-shaped dining sofa, offering formal dining area for 6 up to 8 people. Separate teak chairs.

Glasswork (Schott – Zwiesel), China (Itala), cutlery in cassettes, built-in Sharp TV + Topfield Decoder TF4000PVR, HiFi/cinema sound system Bose + CD + iPod plug-in - multifunctional/user system for all accommodations + deck by own remote wireless control, Pioneer DVD DV-393/Dolby system, Internet wifi.

OWNER CABIN Cabin with headroom up to 195 cm.

King-size berth of 200 cm length. Mattress inclination adjustable.

Lockers, drawers, wardrobes, dressing table, sofa seat. Carpet and hatches give access under the floor.

Spacious and luxury en-suite bathroom with electric fresh water flush toilet, bidet and a separate shower. Epoxy bathroom floor and walls.

Built-in Sharp TV, link to Bose audio system, iPod plug-in, Pioneer DVD, internet wifi

GUESTS CABINS Two spacious cabins for 4 guests with headroom up to 195 cm.

Each with twin berths of 200 cm length.

Lockers, drawers. Carpet and hatches give access under the floor.

En-suite bathrooms with separate shower and electric fresh water flush toilet. Epoxy bathroom floor and walls.

Link to Bose audio system, Internet wifi

CREW CABINS Two cabins, offering berths for a total of 3 crew.

Both cabins with headroom up to 195 cm.

1 x single berth, 1 x 2 bunk berths (of which the lower berth can be extended into two persons berth). Berths of 200 cm length

Separate combined bathroom with shower and electric fresh water flush toilet.

Link to Bose audio system, iPod plug-in, internet wifi

MESS ROOM Mess room opposite to the galley. Full headroom up to 200 cm

Separate entrance possibility by deck hatch.

Link to Bose audio system, iPod plug-in, internet wifi

Monitoring/management system by Exter 70 screen

B&G Hydra 2000 repeater

Kohler 11.5 KW remote control

Smart TV Screen with Navigation info and internet

ANT – Master Processor for B & G System to integrate all electronic navigation equipment

GALLEY Located between salon and crew accommodation for optimized privacy. A smart sliding hatch offers open (family) communication between salon and galley and easy hand-out.

Full headroom up to 200 cm

Good cupboard, locker, drawer space, fitted out for seaworthy stowing, incl. under the floor. Corian worktop with plenty and with deep integrated sink.

Seaworthy lay-out and provisions amongst raised water locking edges.

Pots & pans, crockery, glasswork, cutlery

STORAGE Extra storage throughout accommodation below the floors.

Including wine cooler under owner’s floor.

ENGINE ROOM Professional, clean and spacious walk-around set-up.

Entrance by interior watertight door

First-class installations and materials and flexible mounted where required.

All installations very well accessible. Headroom up to 125 / 195cm

First class piping of aluminium, steel, ABS/PVC with liquid/and flow/ indication and labelled installations / valves.

Aluminium/ anti-slip profile removable floor-plating.

FOREPEAK Accessible by twin watertight deck hatches. Offering storage space for fenders, anchor

chain/lines and mooring lines. Mechanical air ventilation / Wooden slat protection lining.

LAZARETTE Accessible by hydr. opening watertight transom integrated hatch and deck hatch.

Storage space for deck gear, bicycles, small tender and toys and so on.

Access to steering gear, 220V ship-shore plug/cable and transformer. Natural air ventilation.

BATHING By transom integrated hatch hydr. opening hatch transforming into a teak laid bathing platform with stainless steel/teak removable ladder. Hot/cold water shower in lazarette.

Bezenzoni stainless steel removable side swimming ladder.

BOARDING Hydromar stern built in hydraulic intractable aluminium passarelle with lighting, railing and teak grating.

Control in lazarette and 3x by wireless remote controls + by monitor/control system.

DOMESTICS

REFRIGERATORS 2 x Bosch stainless steel 200 lt. each. Front load model, new in 2/2020.

1 x Frigoboat mini fridge, top load model integrated between deck-house and outer deck. Compressor new 2019.

FREEZERS 2 x Bosch stainless steel ±100 lt. each. Front load model, new in 2/2020

COOKER/STOVE 4 ring Miele KM490 induction. Stainless steel fiddle (pan-holder) semi cardanic

OVEN Electric Miele type: H 4280B hot air circulation, with Grill Page 24/30

GRILL/MICROWAVE Electric Miele M8151

COOKER HOOD Miele

COFFEE MACHINE Miele Nespresso CA 3660. (2013)

DISHWASHER Miele professional G 7856, new in 3/2023

Professional model 20 minutes wash and dry

WASHING MACHINE Miele W2663. Serviced in 2019 by Miele

DRYER Miele T4323. Serviced in 2019 by Miele

VACUUM CLEANER Rowenta Cityspace.

SECURITY & SAFETY

LIFE SAVING AIDS 2 x Avon life rafts, 1 x 8 persons and 1 x 6 persons. In containers. Serviced 2019.

1 x in Lazarette, 1 x in SB outer lockers seat. In 3/2023 serviced and certified.

1 x Life ring horseshoe model with autom. Flashlight, new in 3/2023.

1 x John Buoy MK4 man overboard with flashlight inflatable type.

8 x Bolero 150N life jackets with tethers stowed in deck-house, serviced 2021. In combi with 8x harnesses with life lines. Distress flares several in container. Serviced in 01/2021

In 03/2023 life vests serviced and certified.

FIRE FIGHTING 14 x portable fire-extinguishers, serviced in 01/2021

Fire Pro 1200 C, automatic fire-fighting system with smoke detector and one portable CO2 fire-extinguisher in engine room, new in 2021. In 3/2023 complete system tested and certified.

In 03/2023 all fire extinguishers tested and certified.

Manual extern engine room ventilation in-take shut-off (at pilot-house) and firefighting system activation.

Smoke detection system with 5 smoke detectors throughout accommodation + technical areas with acoustical/ visual alarm.

Fire blanket in galley/ engine room pilot-house.

BURGLARY ALARM Visonic system with infrared sensors and approach sensors. throughout interior/ entrance sliding door/ deck hatches. Alarm signal in mast and crew area and flash-light in mast. Home base alert system.

ALARM CONTROL For bilges on monitoring system in wheelhouse, messroom and captain’s cabin + alert to

PANELS home base.

GMDSS VHF. Upon press button/the system automatically alerts coastguard with Yacht's name and position.

EPIRB Mc Murdo Hand-held, serviced in 01/2021. In box with hydrostatic release at aft railing.

World-wide satellite emergency beacon. In 3/2023 testeed and hydrostatic release replaced and certified.

SAFE Two electronic built-in model, owners’ cabin and captain cabin.

CAMERA 1 x from mast spreader to aft deck, monitored in crew mess.

1 x engine room, monitored from deck house

OTHER Set of international code/ nation guests/ flags

TENDER & TOYS

DINGHY Novurama 4.20 m inflatable/rigid bottom equipped with nav. lights, First Aid kit, fire

Extinguisher

Outboard: Yamaha 50Hp 4-stroke. In 1/2023 general service, oil change, oil and fuel filter

Change, impeller change and renewal of zinc anodes. A computer analysis was carried out to

Check the engine. Timing belt was changed as per every 1000 hours.

Storage forward mast, in deck integrated, multifunctional as deck bath for kids

Note: it takes for two persons 3 min. to place the tender in water.

TOYS 1x Wakeboard

Bikes: Di-Blasio electric bike, folding model

Snorkeling equipment for 6 persons

ADDITIONAL

MANUALS Most detailed usual for Jongert, includes:

General ships-plan / Tank- Piping plan/ Electricity plan/ various / construction drawings/ original building specification.

Manuals for most equipment in Dutch/English/language.

Ships computer with relevant data + maintenance service + parts information.

SPARE PARTS Various

TOOLS Several in toolbox and in workbench/+ electric drill

OTHER MAINTENANCE WORKS

SPRING 2023 Bathroom ventilation in all cabins serviced and where necessary replaced.

The monitoring system and PLC’s backup battery replaced, earthleak issue resolved, breakers for main battery chargers replaced.

Rigg inspection by A+ Rigging Palma de Mallorca with report.

________________________________________________
