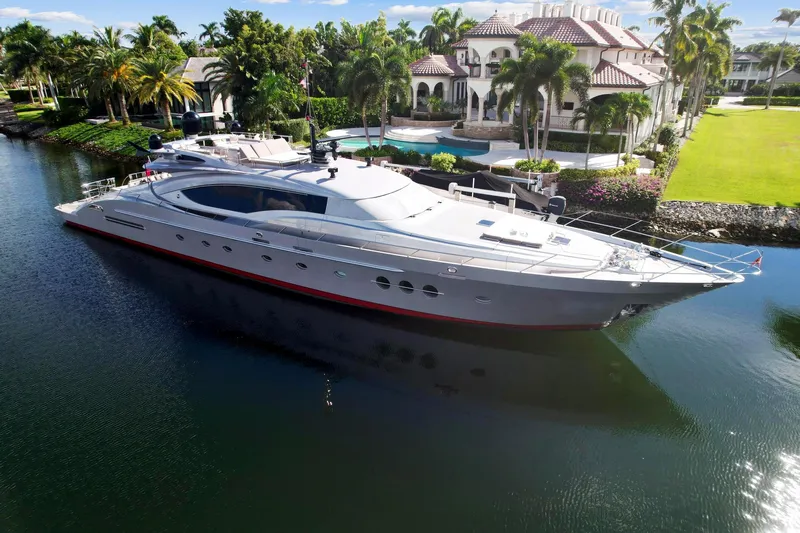

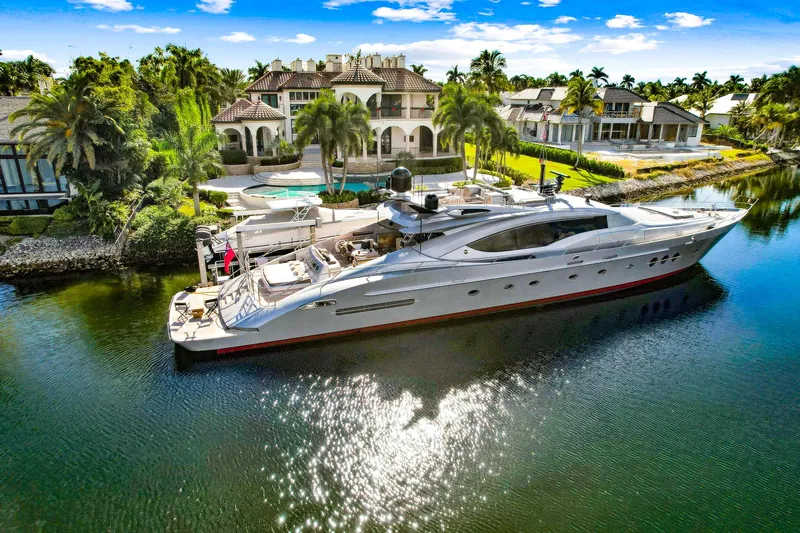

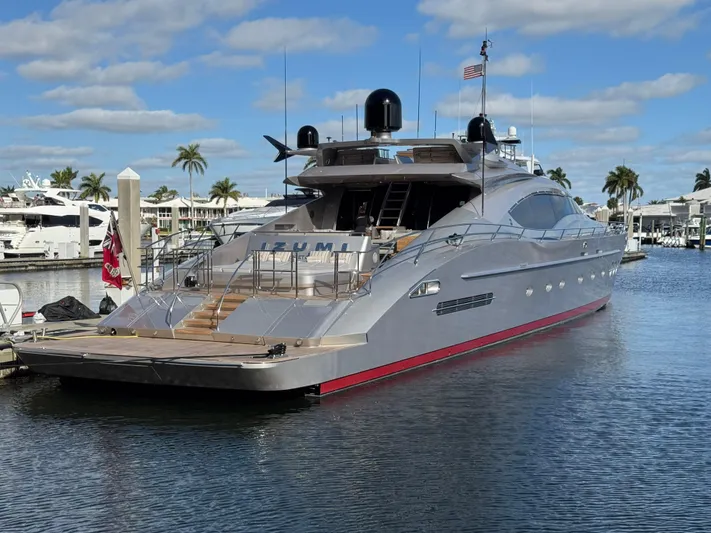

IZUMI Yacht for Sale

• Cruising Speed: 24 kn
• Maximum Speed: 29 kn
• Beam: 24' 0''
• Hull Material: Aluminum
• Max Draft: 6' 6''
• Fuel Tank: 1 x 7680|gallon
• Fresh Water: 1 x 937|gallon
• Cabins: 7
• Heads: 6

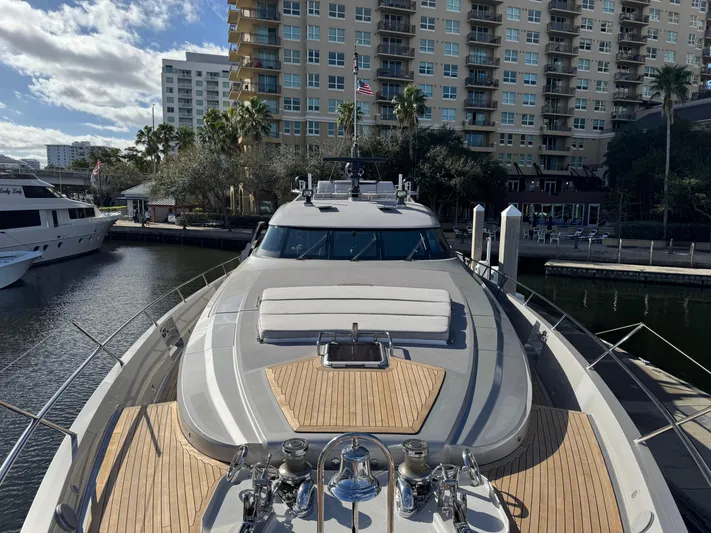

Foredeck

• 2 x Maxwell VWC 6000 vertical windlasses, hydraulic, with capstan,
  band brake, tethered pendant controller
• 2 x Maxwell chain stoppers
• 2 x Ray, polished stainless steel anchors, stem mounted
• Anchor chain, chain wash
• 4 x Deck mounted bollards
• 2 x Stainless steel fairleads
• Freeing ports
• Forward tender garage with hydraulic operated cover, 1,000 kg capacity davit
• Ships bell
• Watertight hatch to chain locker
• Port / Starboard weather tight storage lockers
• Jack staff and socket
• Life rail, welded 316L stainless steel

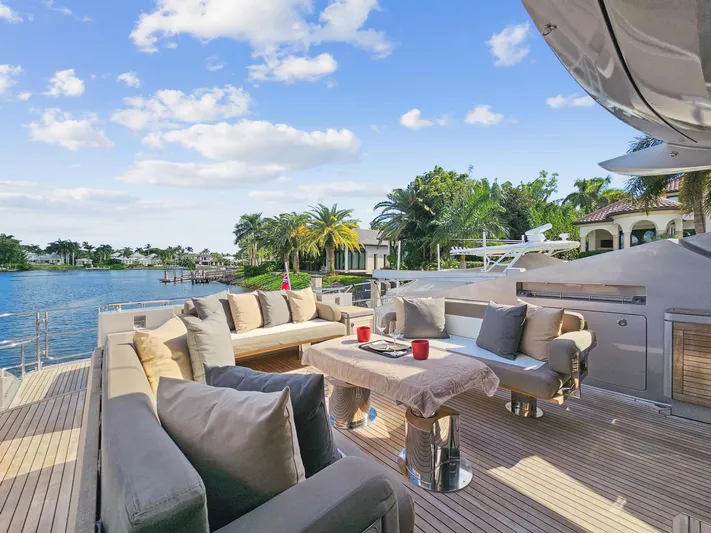

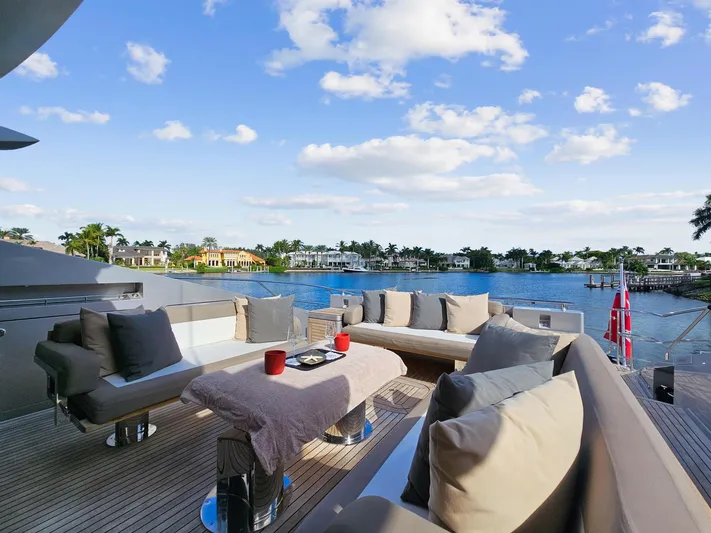

Aft Main Deck

• Teak decking and stair treads
• Seating arrangement with sofas, upholstered cushions, and table

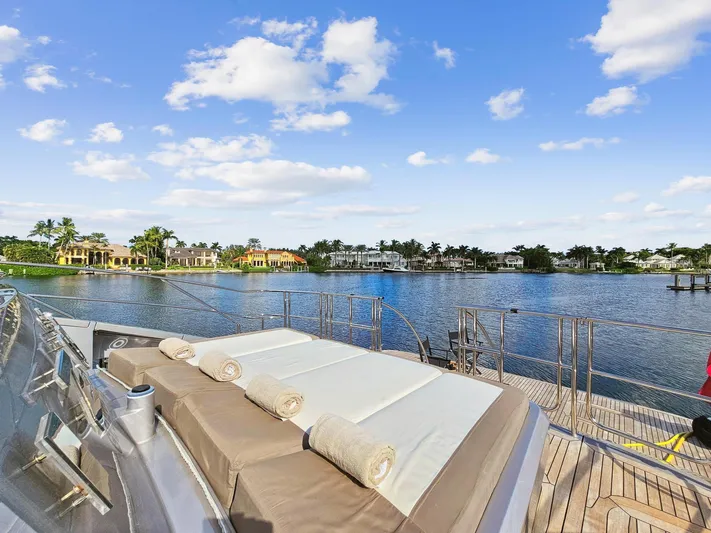

• Sun pad with cushion
• Ladder to fly bridge concealed in overhead, automatically deploys and retracts for privacy on sundeck
• Passerelle, 5.5m
• Custom covering door for passerelle
• Tender garage, hydraulically powered
• Tender davit, 500 kg capacity, installed inside garage
• Custom swim platform with self deploying swim ladder, port and starboard stowage lockers
• Capstans Maxwell 4000, deck mounted mooring bollards port and starboard
• 2 x Stainless steel corner chocks
• Polished 316L stainless-steel liferails
• Lazarette access hatch, engine room escape hatch
• Service connections for fuel, water
• Shore power cable reel
• Polished Stainless Steel nameplate with backlighting
• 2 x Eight-man life raft in white canister, hydrostatic release
• Flag staff

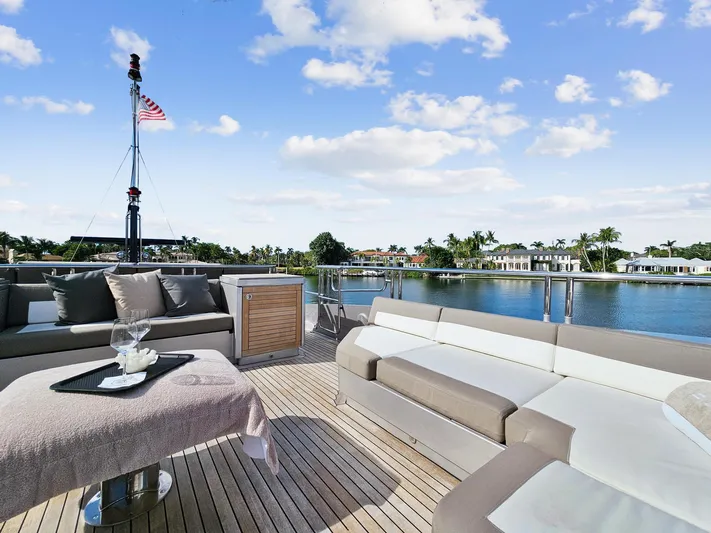

Flybridge

• Teak decking
• T3 x built-in seating arrangements, sunpad and coffee table Cabinets with icemaker and refrigerator
• Arch with electronics equipment
• Navigation mast on the housetop with radar, searchlight, and air horn
• 1 x Six-man life raft in white canister, hydrostatic release

Other

• 12 x Fenders
• Fender hooks
• 6 x Mooring lines
• 2 x Boat hooks

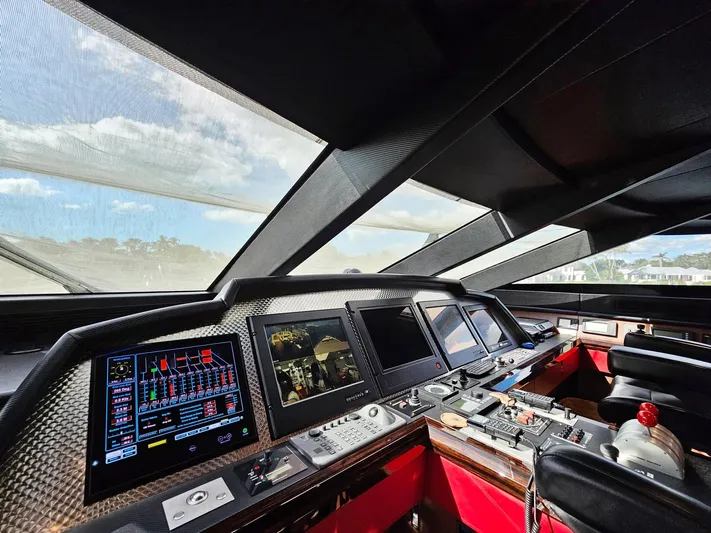

• Helm with hooded dash for instrumentation, controls and electronics
• 2 x Stidd Deluxe Admiral helm chairs with polished stainless steel bases, and upholstered with two colours of leather in racing style
• Steering wheel is custom fabricated of stainless steel and aluminium, with wood or leather trim
• Raised settee with cushions upholstered in two colors of leather of to match the pilot chairs
• Privacy doors and electro-sensitive privacy glass partition between the pilothouse and salon
• Navigation station
• Powered pantograph doors to the side decks

Magnetic Compass: 1 x 4.5 magnetic compass

Automatic Pilot: 1 x Autopilot w/gyro

Radar: 1 x Furuno Radar

Sonar: 1 x Furuno Sonar

Charts: 1 x Chart plotter System

Wind Instruments: 1 x Instrument package

Searchlights: Navigation lights w/ control panel, 24V, includes N.U.C. lights, Aqua Signal Fixtures

Displays: Features a helm console w/ flat screen displays, operator selected Daylight monitors

Camera: 4 x CCTV cameras, monitoring

Windshield:

• Windshield mullions wrapped with technical upholstery
• Windshield wipers with fresh water sprayer, windshield defrosters

SATCOM:

• Satellite communication and WiFi capability
• Satellite television

VHF: 1 x VHF receiver

GMDSS: 2 x Icom portable GMDSS radios

UHF: 5 x Kenwood handheld UHF radio

Other:

• 1 x EPIRB
• 1 x SART

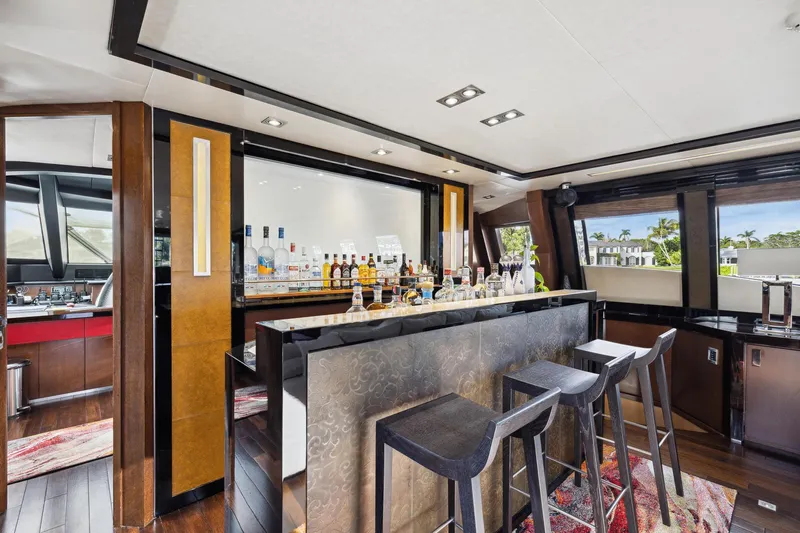

General Owner & Guests Interior

• The interior features a selected veneer with accents of a contrasting wood (Lacewood/Ebony/Wenge)
• Overheads are finished in distinctive, textured upholstery
• Flooring includes Wenge wood, carpet, and other high quality treatment
• Showers enclosure walls include marble accents
• Faucets and bathroom accessories are from the innovative Dornbracht MEM series
• Hardware is high quality, Fusital and similar
• Lighting is controlled by conveniently located switches
• Light fixtures are Cantalupi or similar, and include rope light, recessed down lights, art lights, accent lights, and reading lights.
• Decorative table lamps and wall sconces in special interest locations
• Window treatments are Roman shades of fine fabric

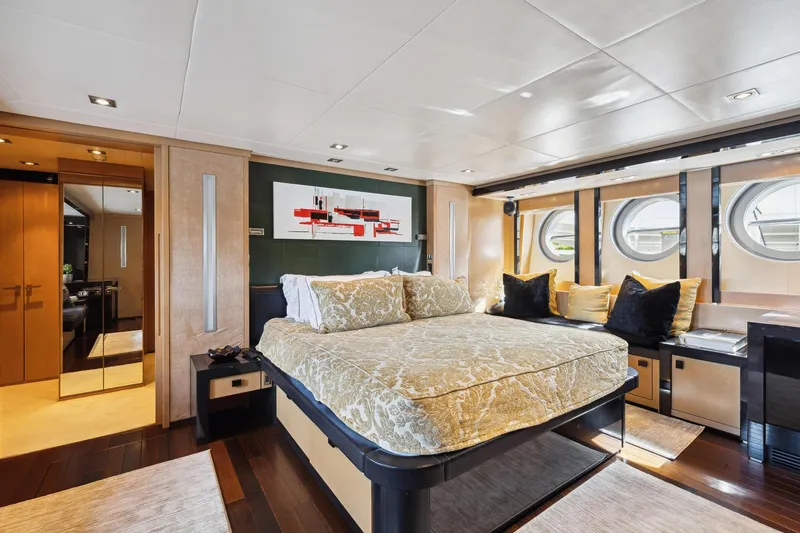

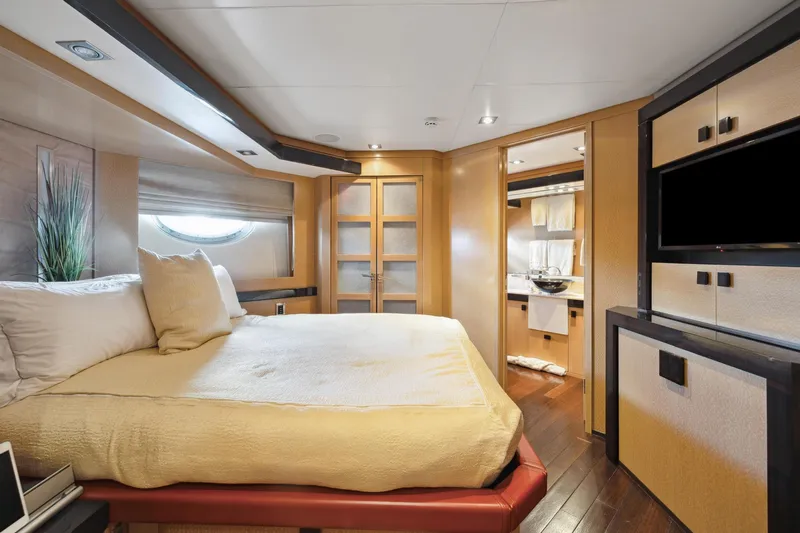

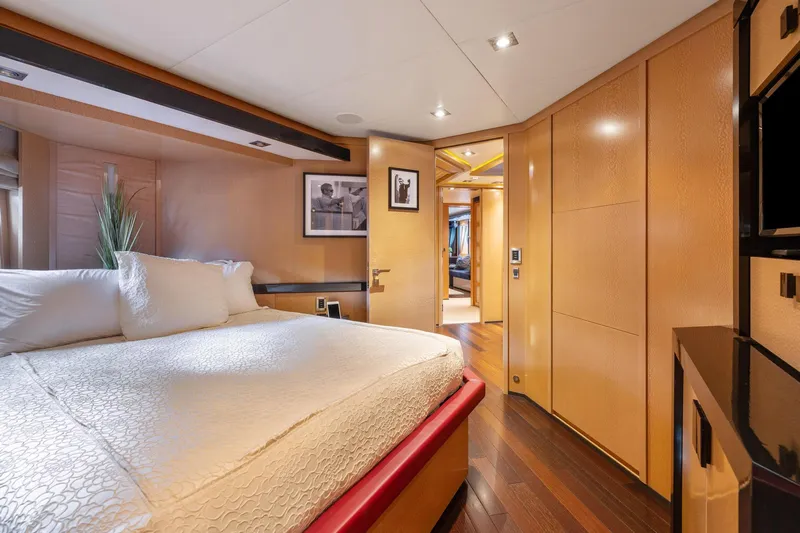

Master Stateroom

The Master Cabin is located forward and 2 VIP cabins are located aft. A day room can also be converted to an additional berth. The layout is versatile.

• Located Forward
• Walk around bed with storage below
• King-size coil spring mattress
• Upholstered headboard of fine Rubelli fabric or leather
• Nightstands have Bronzed Glass, premium marble or mirror
• Desk / vanity has flip-up mirror
• Entertainment cabinet features a flat screen TV and media storage
• High-gloss cross-grained wood accents on bunk, desk, and cabinet tops
• Built-in sofa with cushions and throw pillows upholstered in fine fabrics
• Walk-in dressing room

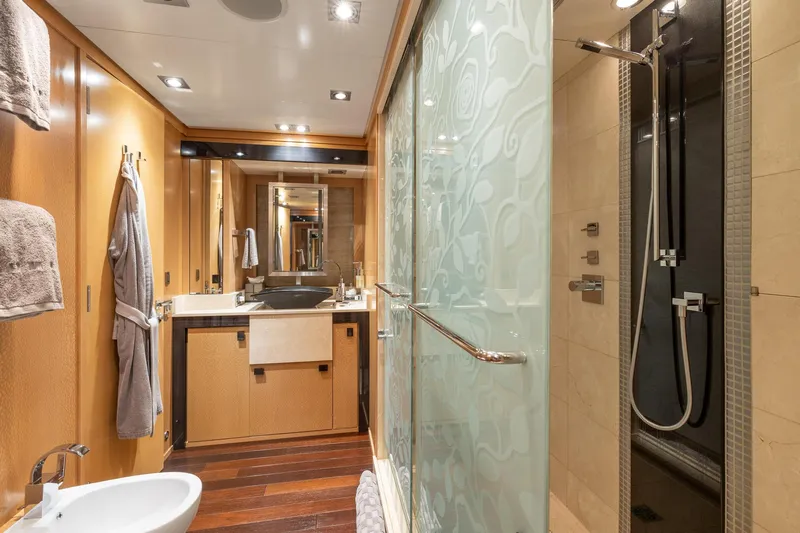

Owner’s En Suite Head (His & Hers)

• Vanity countertops are premium marble, and feature showpiece sinks of glass or marble
• Soles are premium marble, accentuated with marble inlays
• The large-sized shower enclosure walls compliment the vanities, with marble accents and seats
• Shower doors are frameless with clear glass
• Accessories include mirror, towel bars, robe hooks, soap dishes, toilet paper holder
• 2 x Upper vanity cabinets
• Bidet with Zuchetti fixture

Guest Staterooms

• 2x VIP cabins
• 1 x Convertible cabin which acts as a day room (1 x Single Bed)
• Built-in berths with drawers, and additional storage below
• Mattresses are coil spring type
• Nightstands have wood cabinet top inset with marble, glass, or mirror
• Fine leather or Rubelli fabric upholstered headboards
• Entertainment cabinet
• Cedar lined hanging lockers
• Shelving, storages per plans
• Distinctive upholstered panel overhead

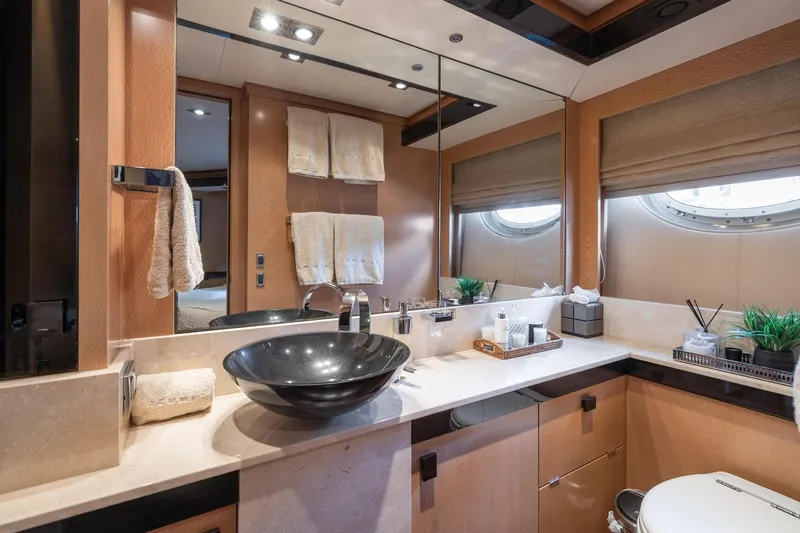

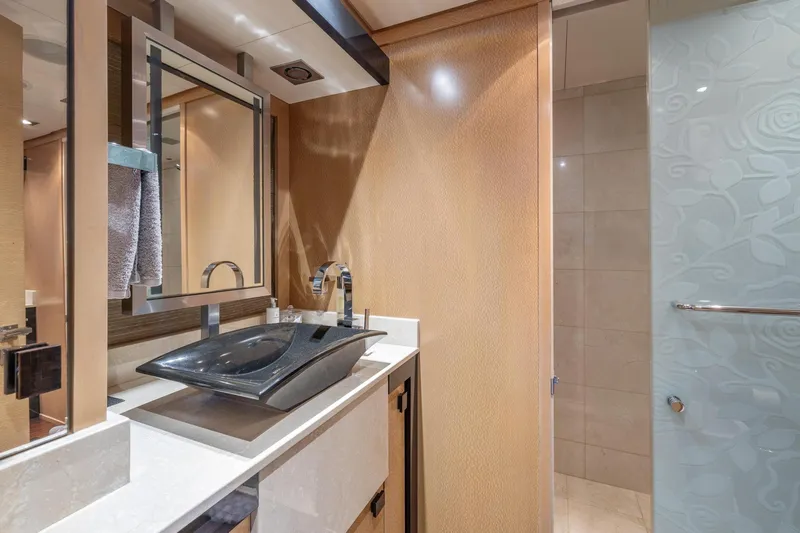

En Suites

• Vanity countertops are premium marble or glass, and feature glass or marble sink
• Showers have marble accents and frameless glass shower doors
• Bath accessories include mirror, towel bars, robe hooks, soap dishes, toilet paper holder
• Upper vanity cabinets

• 2 x Satellite receivers, distributed signal
• Theater systems with flat screen monitors for the salon and owner's stateroom.
• Entertainment systems with flat screen monitors for the guest and crew areas
• Exterior decks with music source selections and marine speakers
• Lantic System throughout the vessel
• Bang & Olufssen Audio system

Master Stateroom

• 1 x Samsung Flatscreen TV Bang & Olufssen Audio System

VIP Staterooms

• 1 x LG Flatscreen TV in each room

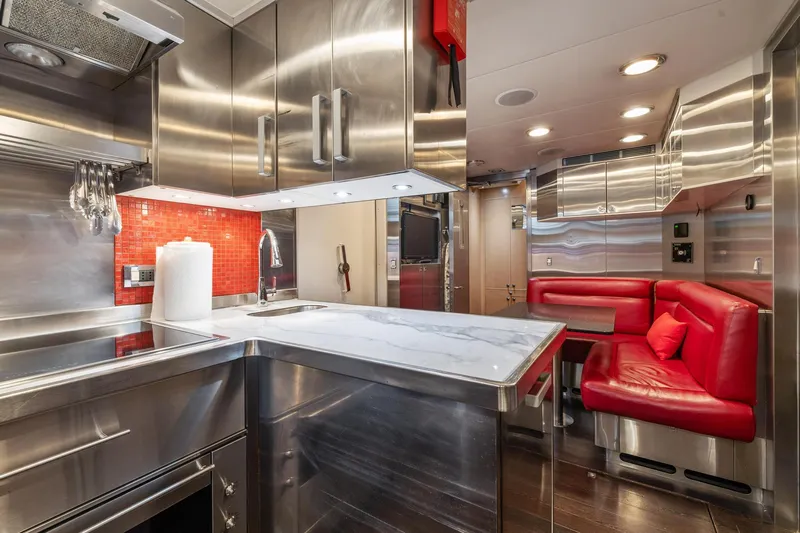

• Cooktop: 4 x Miele Burner induction type, stainless steel trim
• Convection oven: Stainless steel trim
• Microwave: 1 x Gaggenau Microwave oven stainless steel trim
• Refrigerator: Stainless steel front panel
• Freezer(s): Stainless steel front panel
• Dishwasher: 1 x Miele stainless steel trim
• Trash Compactor: Black
• Sink fixture: Grohe Europlus with sprayer
• Wine cooler: Subzero
• Microwave: Gaggenau
• Other: Heat Lamps
• Range hood: Stainless Steel Trim
• Sink disposal
• Custom cabinetry, stainless steel countertop

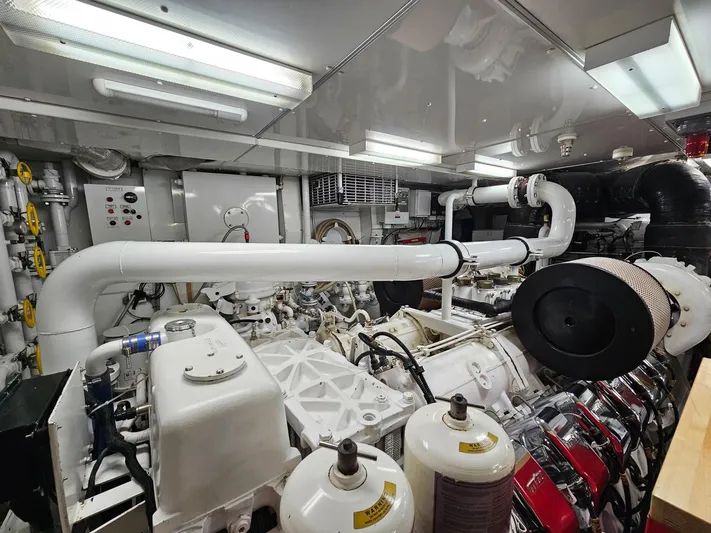

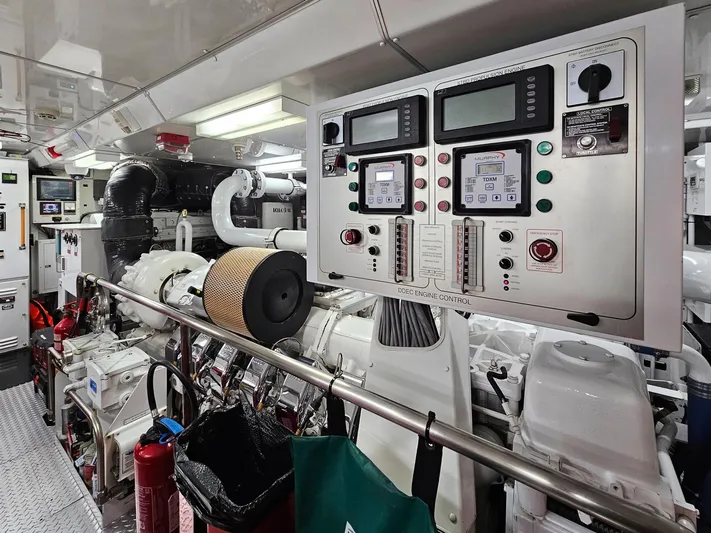

Engines:

• 2 x MTU 12V4000 DDEC M90 marine diesels, 2,750 bhp @ 2,100 rpm
• MTU/DDEC engine controls and monitoring
• Diesel fuel fill and transfer manifold

Flow meter: Fuel flowmeter and totalizer

Engine Hours: Port: 3996 hours; Stbd: 3819 hours (Sept 2023)

Steering:

• Steering, electro-hydraulic with dual engine driven pumps.
• Fly by wire at helm and docking/wing stations
• Emergency steering system

Propellers:

• Propellers NiBrAl, 5 blade, fixed pitch
• Shaft type driveline w/seals, bearings

Stabilisers: TRAC Stabilizer system, dual fin type

Bowthruster:

• Bow thruster, tunnel type, proportional control
• Bow thruster grill/guard with sacrificial zinc

Generators & Electricity: 2 x Kilo Pack 62 KW generators with instrument panels

Generator Hours: Port: 8602 hours; Stbd: 8602 hours (Sept 2023)

Electricity: 50Hz system with three phase and single phase voltages

Shore Power:

• Shore power converter, 60 KVA
• 1 x Glendenning CM-8 cable reel, with 75 ft of 100 amp shore power cable

Alternators:

• 2 x Main engine driven alternators
• 2 x Generator driven alternators

Batteries: Batteries are maintenance free type

-Main Engine & Generators: 2 x 24V starting battery banks

-Service: 1 x 24V service battery bank

-Chargers: Mastervolt constant voltage battery chargers

-Emergency:

• 1 x 24V emergency battery bank in foredeck locker
• 1 x 24V emergency communications battery bank in Foredeck Locker

Electrical System:

• Main switchboard, Power Management System, seamless transfer, circuit breakers, metering, ground fault indication
• Electrical distribution panels, GFCI protection at outlets
• Coded wiring system
• Vimar wall switches for guest, crew areas

Hydraulics: Integrated hydraulic system

Air Conditioning: Reverse Cycle air conditioning system, 16 tons (192,000 btu), digital room controls

Water Maker: 1 x Watermaker, with ultraviolet sterilizer

Water System:

• 1 x G & R GRUPPO 2 JET 518 fresh water pressure set
• 2 x 30 gallons water heaters, electric elements
• Ring type hot water system w/circulation pump
• Seawater piping of copper nickel [CuNi]
• 1 x Dockside fresh water connection with pressure reducing valve
• Sea chests with sea strainers on engine and generator seawater supplies

Filters: Water filter, with sediment, taste/odour cartridges

Toilet System:

• TECMA
• Sewage System Hamann Marine Sanitation Device

Fuel Centrifuge/Separator:

• Alfa-Laval oil/water separator
• Separ fuel filters w/ gauge, water sensor, priming pump

Fuel Transfer Pump: Oberdorfer 1100

Air Compressor:

• Ships air compressor, reservoir
• Compressed air fitting in the engine room, garages, foredeck and boat deck
• Delta T engine room ventilation system
• Fresh make-up air system

Lighting System:

• Emergency lighting system
• Exterior lighting system

Bilge: Bilge and fire system manifold

Pumps:

• 1 x Bilge pump, One fire pump, self priming
• Lube oil pumps- one new, one used

Tanks:

• Integral tanks, fuel, potable water, holding, new lube oil, used lube oil
• New lube oil tank, waste lube oil tank

Exhaust system:

• Main engine exhaust system
• Generator exhaust system

Gearsets: Remote mounted gear sets, with trailing pumps and trolling valves

Alarm system with monitors in pilothouse, crew lounge and engine room (monitors bilge, fire and tank capacities)

• 4 x CCTV cameras, monitoring
• Deluge fire system for the garages
• Engine room fire system, NOVEC type
• Fire dampers on engine room intake, exhaust vents
• Safety Plan
• 4 x Life rings
• Flare kit with 6 rocket flares
• Adult and Child life jackets
• Portable fire extinguishers
• Line throwing device

Captain's Cabin

• 1 x Large Single bed
• Berth with lockers beneath Cedar lined hanging locker

Captain's Head

• Vanity cabinet with stone top
• Faucets, shower mixer & head are American Standard SEVA, or equal
• Bathroom accessories include mirror, medicine cabinet, towel bar, soap dish, robe hook, toilet paper holder
• Shower doors with clear glass door

Crew Area

• Sail White Formica covered bulkheads and partitions, with White Oak cabin doors, cabinets, and accent trim
• Durable Amtico Stripwood floor throughout
• Upholstered panel overheads

Crew's Stateroom

• 1 x Twin bunks located aft
• 1 x Twin bunks located foward Berths with storage beneath
• Cedar lined closet

Crew's Head

• Vanity cabinet with stone top
• Faucets, shower mixer & head are American Standard SEVA or equal
• Bathroom accessories include mirrors, medicine cabinets, towel bars, soap dishes, robe hooks, toilet paper holders
• Shower doors with clear glass door Exhaust duct

Tenders

• 1 x 3.30m Avon 320 jet 104 Hp
• 1 x 4.45m Castoldi Jet 110 Hp

Water Sports

• 2 x Yamaha Stand up Jet Ski
• Air service hose/Water service hose Water Sports

• Descaling of all sea water pipes
• New Shaft housings, bearings, shaft seals
• Props repitched
• New Software on stabilizers
• All teak decks sanded
• New Outside cushions
• New Hydraulic Pump
• New Raw water pump for generators
• 1 New AC chiller and 2 ne Air handlers
• New TV Antenna
• New Amp for AV system
• New Direct TV
• Rebuilt 1 icemaker
• Refinished all the interior wood
• Refinished all interior leather
