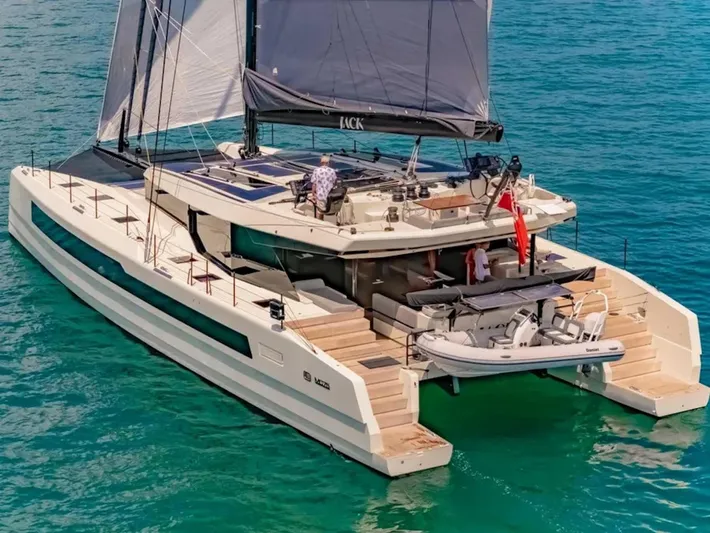

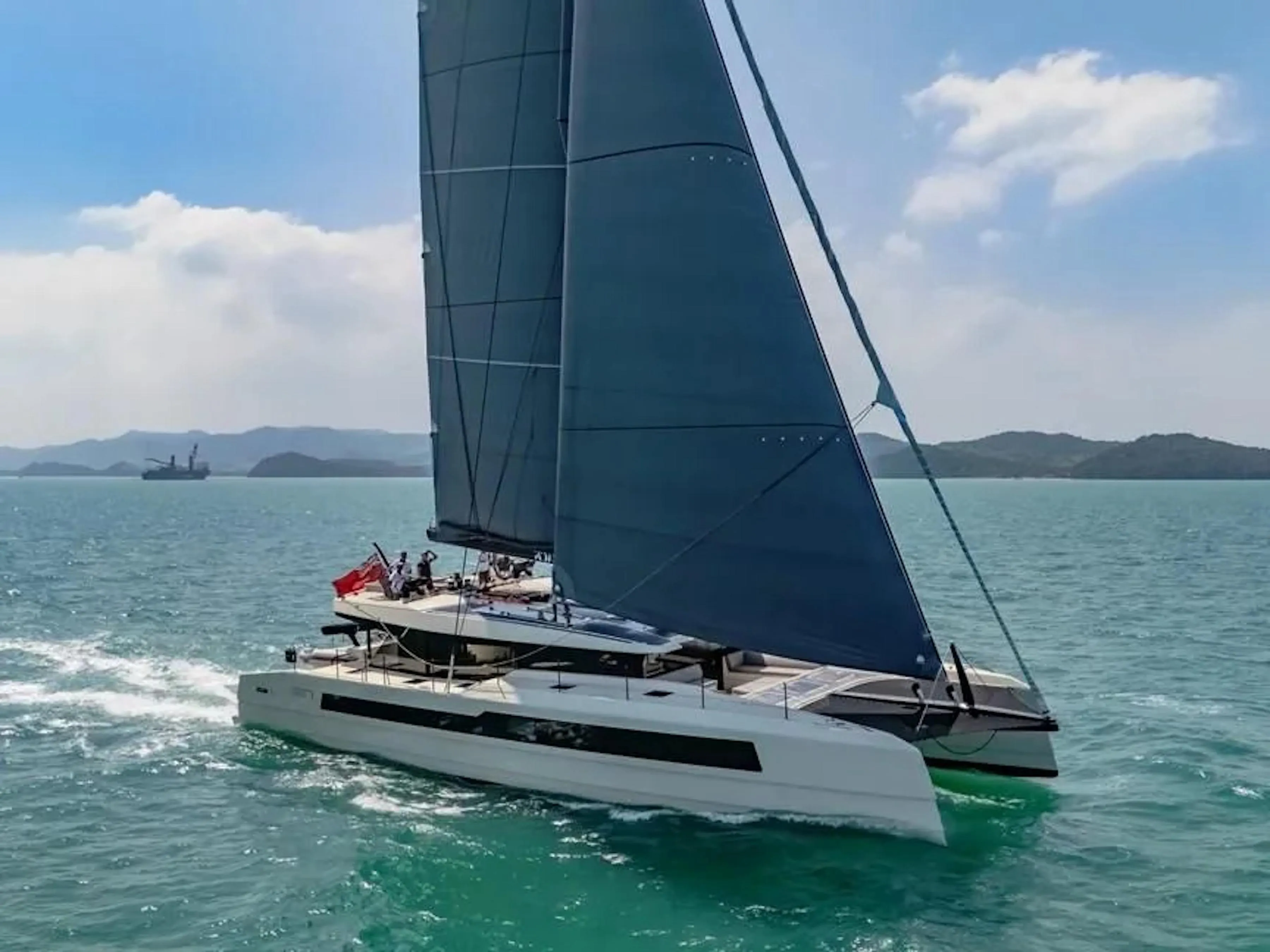

JACK Yacht for Sale

• Cruising Speed: 10 kn
• Maximum Speed: 20 kn
• Beam: 32' 1''
• Hull Material: Composite
• Max Draft: 14' 9''
• Fuel Tank: 1 x 792|gallon
• Fresh Water: 1 x 845|gallon
• Holding: 1 x 132|gallon
• Cabins: 5
• Heads: 5

Builder: McConaghy
Model: MC75
Year: 2023
Naval Architect: Ker Yacht Design
Interior Designer: M2Atelier
LOA: 23.3 m/76.4 ft
Beam: 9.8 m/32.1 ft
Draft: 4.5 m/ 14.7 ft with daggerboard down 2.7 m/8.8 ft fully up. (Rudder depth)
Displacement: Light (design weight) 34.54 kg/51 t
Engines: Twin Yanmar 150 hp with V-drives gearbox
Cruising Speed: 10 knots at 2,500 rpm
Generator: Onan 27 kW
Fuel Tank: 3,000 liters/792 gallons
Freshwater: 3,200 liters/845 gallons
Black Water Holding Tanks: (2) 250 liters/66 gallons each (500 liters/132 gallons total)
Staterooms: 5 Double cabins with ensuite heads
Crew: 2 Crew cabins with ensuite heads, sleeps 4 crew

• Painted hull in Oyster White (Dupont)
• Hull- E-glass/epoxy/foam sandwich with carbon fiber structural elements
• Coppercoat antifoul
• Hydraulic centerboards

• Teak deck
• Ultra Anchor - Lewmar 80 kg
  (2) Mooring warps with chains and springs
• (6) Mooring warps
• Boarding ladder rebated in aft deck and carbon fiber dive ladder
• (3) Deck showers (one fixed rain forest shower)
• (1) Fendertex fenders with black covers, (2) White Zodiac fenders
• Custom carbon passerelle and boarding stairs

• Cockpit warping winches, (4) Harken CLR 1200 popup winch
• Winches: (7) Harken, (2) 80.3 S, (3) 70.3 STHP, (2) 60.3 STHP

• (22) 800 mm high with 3rd lifeline in black carbon

• Hydraulic davits

Doyle, Performance Cruise Stratis 1100 in CT:

• Squaretop Mainsail, 3 reefs, carbon battens 192.01 sqm - 2:1 Main Halyard
• Furling Genoa with luff UV vertical battens 140 sqm - Jib Halyard 1:1/2:1 Jib Halyard Tail
• Staysail with UV luff 71 sqm 2:1 Staysail Halyard Tail
• A-Sail cableless, uses a carbon luff for furling 387 sqm
• Storm Jib 35 sqm - 2:1 Storm Jib Halyard

• Hallspars carbon mast and boom
• Sydney Rigging Dyneema cored running rigging
• Rod Rigging with stay quiets (4) fitted
• FLIR camera M232 on spreader
• B&G Halo20+ Radar
• Iridium C700 Certus receiver
• SS 2m flagpole on masthead with Sertec lightening repelling unit

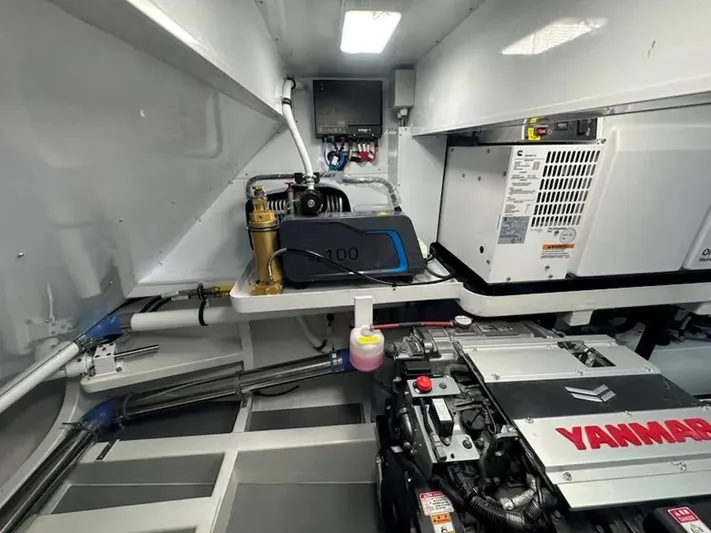

• Twin Yanmar 150 hp engines with V-drives gearbox
• Twin electronic throttle controls with manual controls in engine room

• Propeller: Brunton 4-blade folding props with shaft shark rope cutters
• Bowthruster: Lewmar hydraulic bowthruster 300VRTTH 30CC 450-stroke
• Spares: Spares for the water maker, Onan genset, Yanmar engines, Racor fuel filter, propellers for bowthruster. Misc spares for dive compressor, winches, loos, float switches, light switches, plumbing, hinges, electrics

• (10) 48V DC battery MLI Ultra 24/5500
• (1) 48V DC distribution
• (5) 48V DC control
• (4) 48V DC charger
• (2) Victron combi interverter chargers
• (3) Solar arrays 3.2 kW optimal
• (2) 9 kW Integral generators fitted to engines

• Multi sockets and USB A&C throughout
• 12V sockets at helm, aft deck and in dinghy

• (1) Custom navigation panel
• (1) Mastervolt Mac Plus DCDC converter
• (2) Mastervolt AGM 12/130Ah battery
• (2) Mastervolt AGM 12/130Ah battery
• Emergency 12V navigation batteries (20 hours)

• (2) Engine AGM 12/130Ah battery, new June 2024
• (1) Generator AGM 12/130Ah battery, new June 2024
• (3) Mastervolt Easy Charger
• Parallel switch

• Air conditioning (Termodynamica reverse cycle heat/cool & fan) for 6 cabins and saloon. Each cabin with 30,000 BTU, saloon 35,000 BTU
• Stand-alone Dometic air conditioning for electrical (batteries and inverters) space with forced air fan. Temp alarm fitting
• (1) Custom ACMI main switchboard
• (1) Czone touch 10:display
• Each cabin has remote control over its air handler unit

• Victron mass Combi Ultra 48/3500-50 inverter charger
• Autotransformer 120/240 VAC-100A

• (2) Cyclops Load Cell Pins on shrouds

DISPLAY

• (2) 16" Zeus chartplotters/MFDs for flybridge helm stations
• (1) 16" Zeus chartplotters/MFD for salon helm station
• (2) Triton displays for wind, speed, depth, etc. at flybridge helms

AUTOPILOT

• Precision-9 compass, WR10 remote control + remote base, (1) H5000 pilot controller, RF300 feedback unit
• Controls on all Zeus MFD and on 3 B&G pilot controllers in saloon and helms and via B&G app on iPhones and (1) remote pendant controller

NAVIGATION

• NAIS -400S system + NSPL - 400 VHF antenna spliter. (3) B&G V100 handsets. AIS B transponder
• (1) B&G broadband 4G radar scanner
• ZG100 GPS antenna
• FLIR camera
• (2) Steering compasses
• B&G vertical wind sensor
• Windex
• Barometer
• Airmar speed and (2) depth transducers. Forward Scan and Xsonic speed/temp transducers

BILGE PUMPS

• (2) Rule 3700 (220 LPM) bilge pumps- one auto-connected to float level switch  to start/stop automatically, one manual standby
• (1) High-level alarm switch have been installed for each of the 6 bilge wells
• Engine simp bilge connected to filter in each E/R

• Water maker 110 LPH - Spectra Newport 700 cc
• (2) Sani Split for gray water - Model 600
• Groco electric remote seacocks for black and gray water system
• Hot water circulation system (2) 75-liter/19-gallon Isotherm hot water tanks

• 49" Sony Bravia TV recessed in dining table
• Fusion speakers waterproof IP6.5/4
• Additional Fusion speakers- (2) in flybridge, (2) in foredeck, (2) in salon, (2) aft deck
• Fusion Apollo Digital receiver and (2) amps. Inputs: optical (from TV) Bluetooth, Airplay, HDMI, FM & AM

• WiFi network consolidator, booster and 4G SIM antenna
• Pepwave WiFi mesh network
• Starlink
• Iridium Go Exec
• B&G H5000 Hydra - CPU
• H90 VHF handset & speaker (3) + (1) antenna VA-S
• (4) Icom waterproof floating handheld VHFs

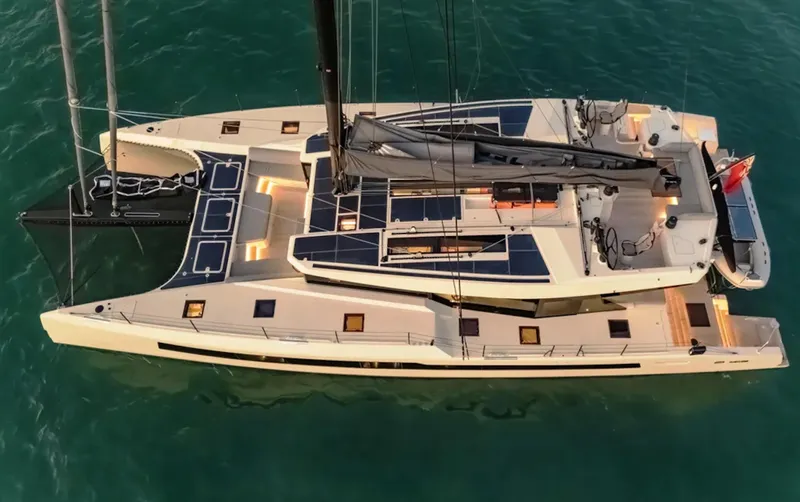

• Solar panels on outside roof of coachroof, non-slip, davits and fore deck. 3.2 kW 3200 wp

LIFERAFT

• (2) Viking Solas B life rafts in hard cases to be mounted on weather decks port and starboard

SAFETY EQUIPMENT TO CAT 2/ARC STANDARD INCLUDING:

• (8) 1 kg powder fire extinguisher
• (2) In saloon- 5 kg fire extinguisher
• (1) Fire blanket
• (2) Seafire engine bay automatic fire suppression system
• Ocean Safety Offshore First Aid Kit (MCA cat 2 compliant)
• (14) Spinlock Solas Duro+ with light, sprayhoods lifejackets
• Sertec lightening protection
• Flare pack to cat 2 standard
• (2) Jonbouys, (1) Rescue sling
• (2) Horseshoe buoys (with light, whistle, drogues)
• (2) 80 m throw lines
• Jacklines in all deck areas and flybridge

• Highfield 4.6 m aluminum RIB with Yamaha 70 hp, A-frame for waterskiing
• Epic Surfski V6 kayak
• Waterskis, wakeboard, donut
• (2) Paddleboards
• Fliteboard
• Beach Smartkat, an inflatable fast two person sailing cat
• (2) Stromer electric bikes (45 khp)
• (2) Folding bikes
• (2) SUPs

DIVE GEAR (6 SETS)

• PE100T compressor
• (6) Beuchat Master Lift vests, MK11/C370 Regulator, RO95 Octo
• (6) Suunto Cobra 3 dive computer
• (6) Scubapro Sport 3 mm wetsuit
• (6) Tusa Splendive mask & snorkle set
• (6) Scubapro Jet Club full foot fins
• (4) 11.1L aluminum cylinder

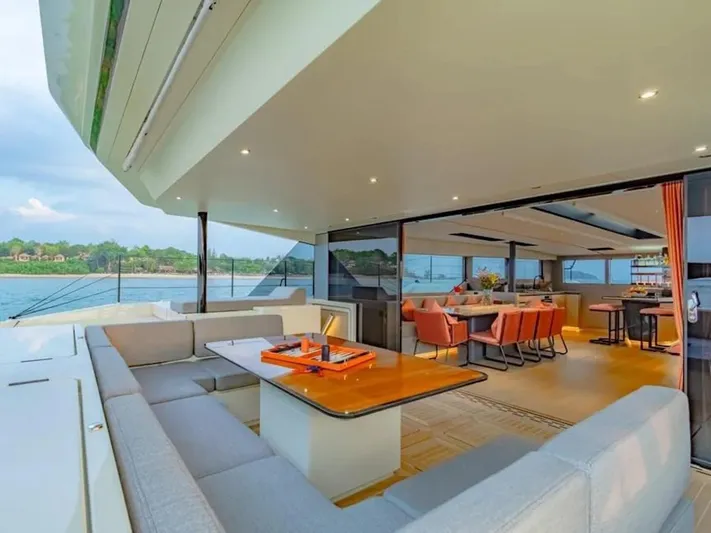

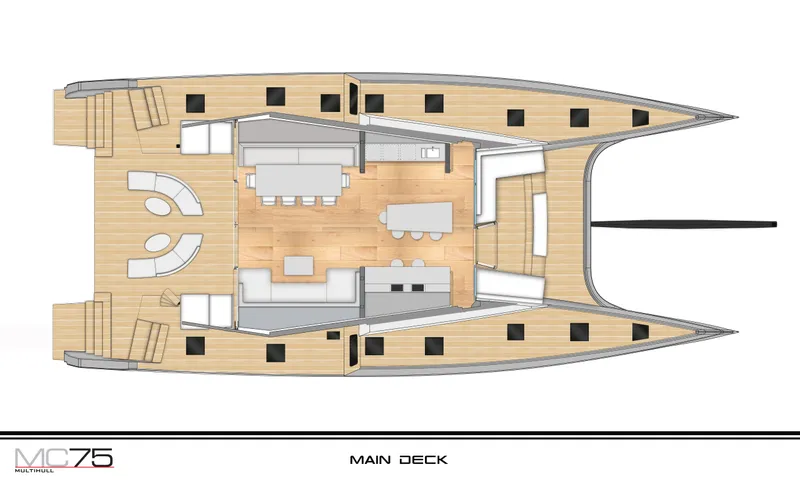

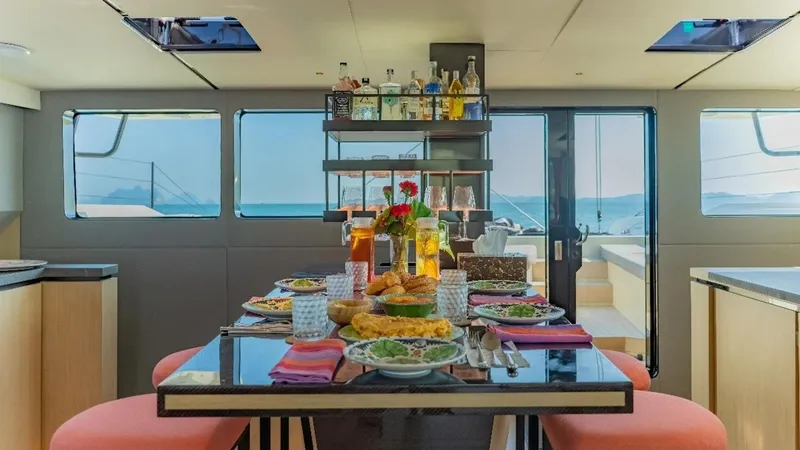

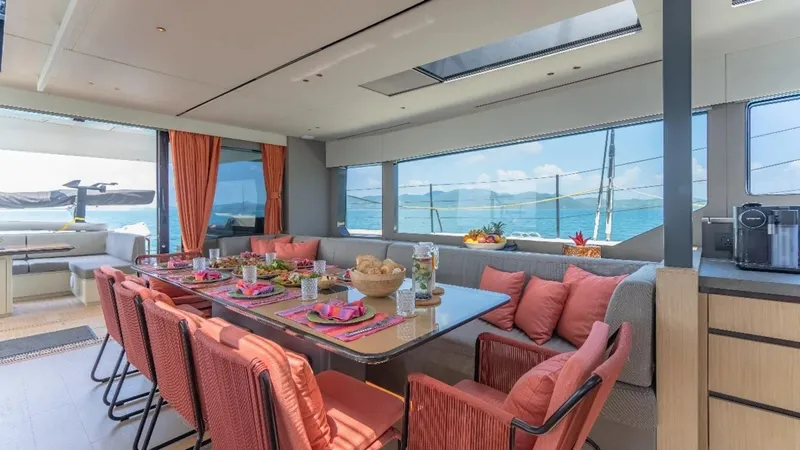

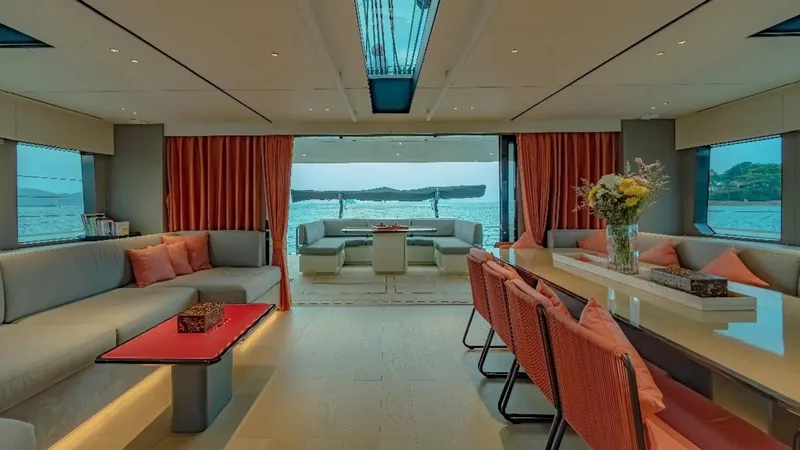

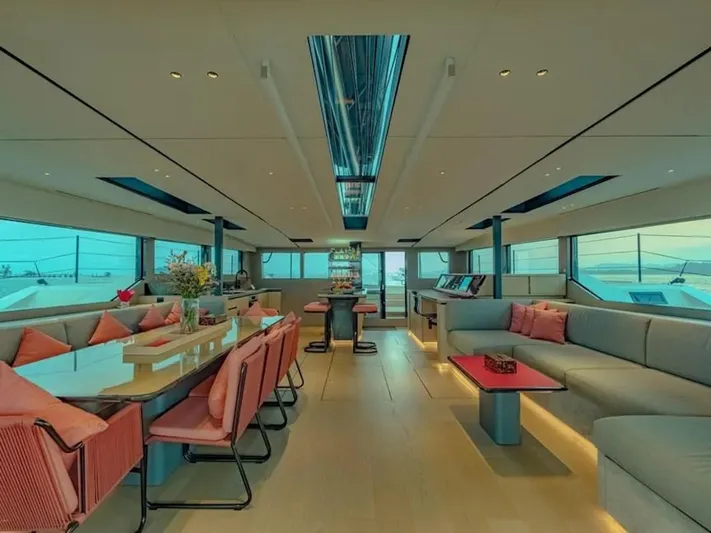

• Large saloon with dining table to seat 12 and sofa on the other side
• Walkaround bar with (4) stools and custom glass and bottle cabinet

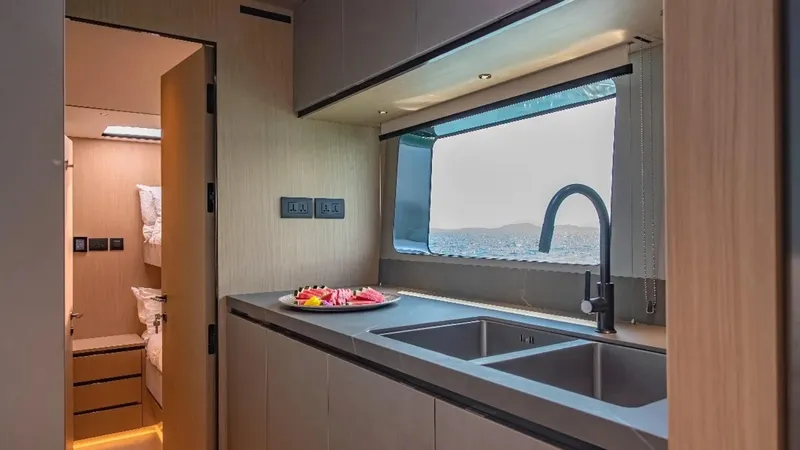

• Fully equipped open plan galley

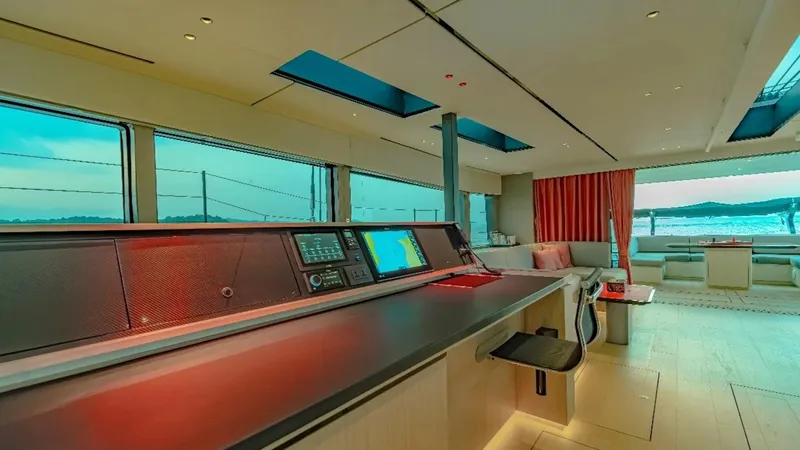

• Navigation station
• Midship pantry adjacent to crew cabins
• Fully retractable windows and floor-to-ceiling glass
• Aft deck dining to seat 8
• Forward Bimini and trampoline
• Flybridge seating area for 8

• Bosch microwave- Model TM820HUBF 800W
• Siemens dishwasher- Model SN73HX01CZ 12 sets
• Quooker boiler & tap
• Siemens washer/dryer- Model WN44A2X0HK
• Bosch Oven- Model HR5B60F0
• Bora S Pure induction hob with integrated extractor down fan
• Russell Hobbs 4-slice toaster- Model 23520-56
• Nespresso Gran Lattissima coffee machine- EN650
• Isotherm 23L ice maker
• (2) Isotherm fridge-freezers
• Obleis trash compactor OB100
• Isotherm wine fridge- Model DIVINO23
• Isotherm 23L fridge in aft cockpit
• Sony Bravia 49" TV
• (16) Wine and whiskey glasses, crockery & cutlery sets of 12
• Soda stream
• 12-person rice cooker
• Bosch blender

• Blinds and screens pack (all side windows and overhead hatches, excluding forward facing windows in saloon. Saloon door curtains). Includes mosquito netting for all opening hatches
• (18) Interior/exterior scatter cushions- Sunbrella Rojo Red
• Sunbrella and Weathermax foam cushions/sunbed for aft portside cockpit
• (4) Table covers- all using Sunbrella SJA 5453 137 Canvas for saloon dining, saloon coffee, flybridge table and aft deck table
• (6) Dining chairs- four without arms, two with arms
• (6) Director's chairs

TOWELS & BED LINEN (ENOUGH FOR TWO COMPLETE SETS)

• (20) Bath towels
• (20) Hand towels
• (20) Pool towels
• (20) Single fitted sheets
• (10) Single mattresses protectors
• (20) Single duvet covers
• (40) Pillow cases

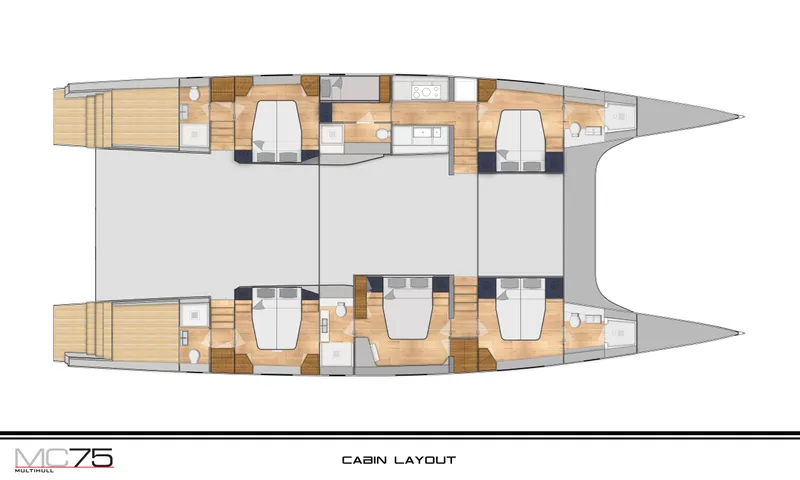

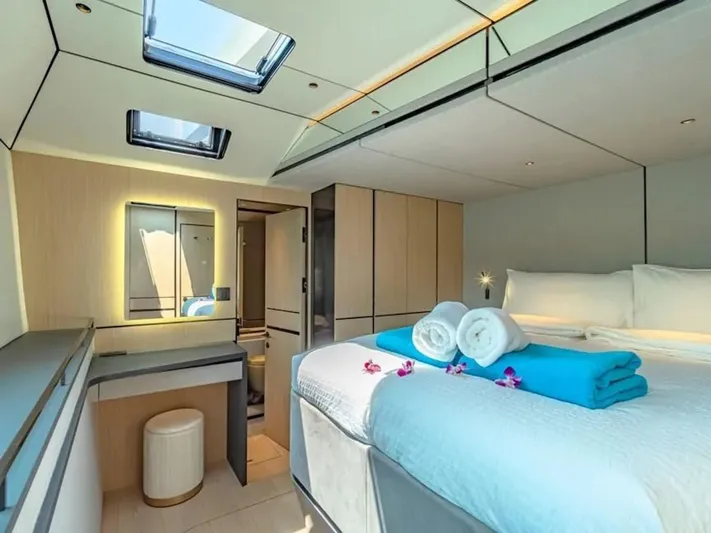

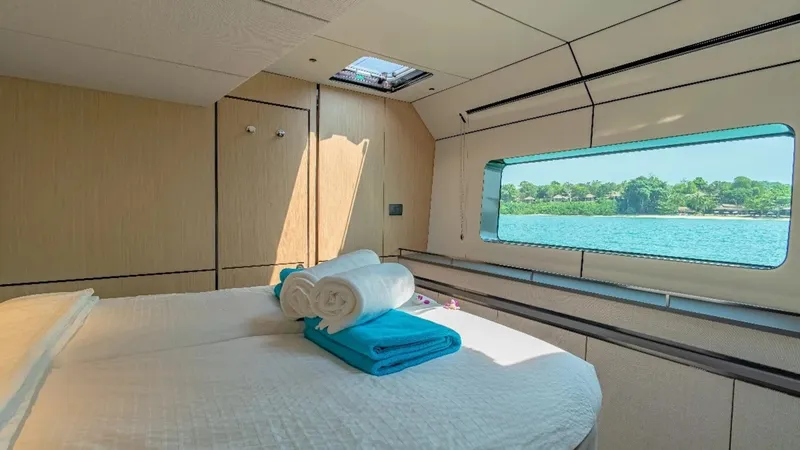

• (4) Double cabins facing outboard with large seaview window and freshwater ensuite heads with quality shower fittings and sinks with cabinet and mixer tap, Corian sole

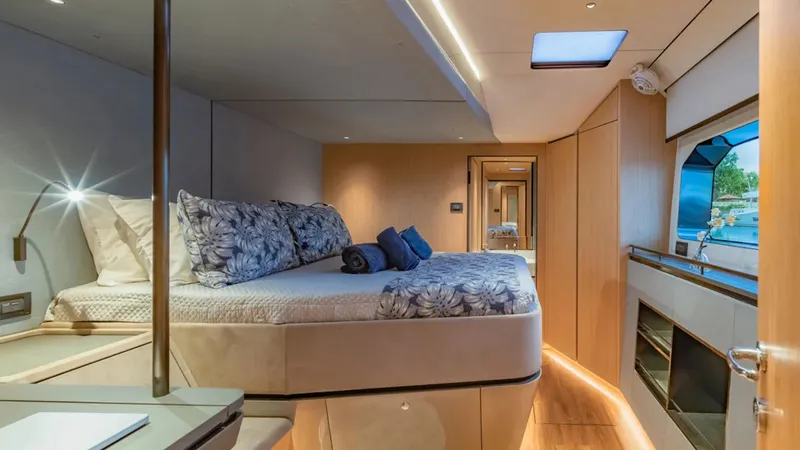

• Master cabin starboard mid position
• All cabins have overhead and floor level recessed courtesy lights and reading lamps
• All beds can be split into two singles by a central divider
• All cabins have separate air conditioning

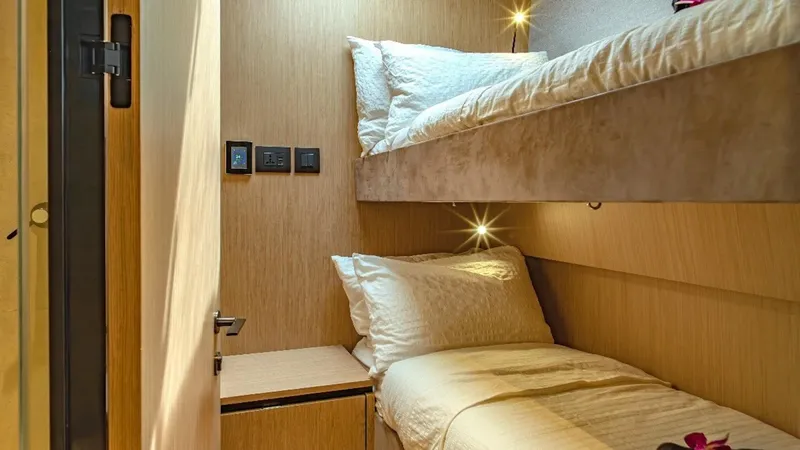

• (2) Double crew cabins port side forward and mid with ensuite heads

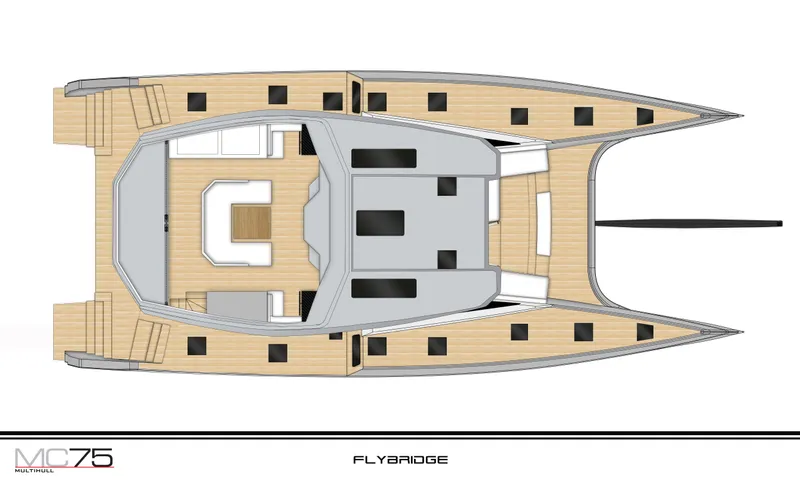

• Flybridge with seating for 6, helm stations, sail controls

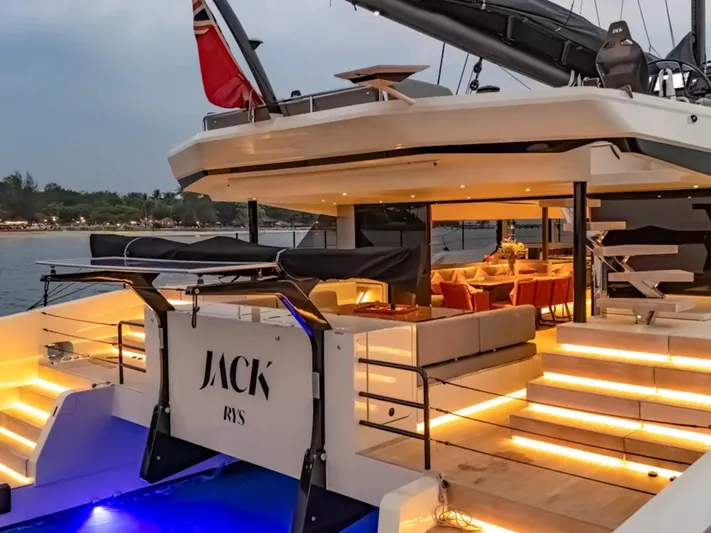

• Spacious aft deck with sofas and al fresco dining space for 8
• Trampoline and forward cockpit with bimini and cushioned rebated seating area reached from the saloon via watertight double door
• Red waterproof exterior fabric on all sofas, etc.
