JACKPOT Yacht for Sale

• Cruising Speed: 14 kn
• Maximum Speed: 16 kn
• Beam: 29' 0''
• Hull Material: Fiberglass
• Max Draft: 8' 0''
• Fuel Tank: 1 x 16500|gallon
• Fresh Water: 1 x 3600|gallon
• Cabins: 6
• Heads: 6

Fiberglass hull and superstructure (Vacuum infused FRP-foam core sandwich composite), with teak decks

General

Length Overall (L.O.A.): 164.00 feet (49.90 meters)

Length at Waterline (L.W.L.): 145.50 feet (44.30 meters)

Beam (molded): 29.00 feet ( 8.80 meters)

Draft (loaded): 8.00 feet ( 2.40 meters)

Tonnage: 499 gross tons

Capacities

Fuel Capacity: 16,500 US Gallons (62,460 liters)

Water Capacity: 3,600 US Gallons (13,600 liters)

Lube Oil: 300 US Gallons ( 1,136 liters)

Waste Oil: 300 US Gallons ( 1,136 liters)

Speed

Maximum: 16.0 knots

Cruising: 14.0 knots

Main Engines
Engine Type:

• (2) MTU 12V4000 diesels @ 1,810 Hp each

Gearboxes for Main Engines:

• (2) ZF Model 5055A, 8° down-angle, 3.04:1 ratio with trailing pumps and trolling valves

Propellers:

• (2) VEEM - 5 Blades, NiBrAI, CNC machining

Generators & Electricity
Output:

• 208 Volts, 3 phase, 60Hz

Generators:

• (2) Kohler 99 KW / (1) Kohler 65 KW

Main Switchboard:

• Hyak Electroworks - Integrated shore power Conditioning & conversion system with full auto-paralleling control system. Converts any input voltage & frequency from shore power

DC Electrical System:

• (2) 24 VDC Battery Banks with battery chargers

Air Conditioning
Type:

• Christensen chilled water HVAC system with 40-ton Chiller with 45-Kw electric heater & Network interface

Other Machinery
Watermakers:

• (2) FCI dual-pass systems, producing 20 PPM Purified water @ 2400 GPD, per unit

Trim Tabs/Stabilizers:

• Quantum QC-1800, with two (2) custom Stainless steel, high-lift, 4.5 m2 retractable/extending fins

Bow Thruster:

• ABT TRAC-24” dual-prop tunnel thruster with with 86-KW AC electric motor

Steering System:

• (2) Jastram electro-hydraulic power packs with Emergency manual help pump

Fuel Separator & Filtration:

• (2) MTU Primary & Secondary filtration systems
• (3) Racor model 804MA30 filters for gensets
• (1) Fuel Filter/Water Separator, Henek Fluid System 30-GPM flow rate

Sewage System:

• Tecnicomar, model “ECOmar 16”, IMO MEPC- 159(55) certified – treating both “black & gray” water systems

Fresh Water System:

• (2) FCI – 2400 GPD, per unit - Fresh Water RO System, with silver-iron and UV sterilizer

Bilge Water Filtration:

• Recovered Energy Inc., model BOSS2TY-107,USCG Certified, ABS Type Approved & IMO MEPC-07(49) compliant

Communication Systems
SATcom:

• Sailor 100

Telephone System:

• Panasonic with 24 extension ports for Wired & wireless extensions with intercom & Paging capabilities

VHF:

• (3) Garmin 300 VHF

Cellular Phone System:

• (2) Telular SX5E GSM Cellular Phone

Loud hailer:

• (1) Garmin

Network Access:

• Great Circle System NAS 3000 automatically Searches all network sources for the most cost-effective route for internet traffic

Wireless Network:

• Cisco 802.11g wireless network covering all decks

Navigation Systems
Radar:

• (1) Furuno FAR2137BB, 30-KW, S-Band
• (1) Garmin 2526 X-Band, Garmin Fantom 6
• (1) Garmin GMR Fantom 6

Magnetic Compass:

• (1) Richie SY-600LL Super Yacht Compass

Auto Pilot:

• (2) GHP Reactor

Sonar/Sounders:

• (1) Garmin GSD 25 Advanced Sonar
• (1) Garmin GSD 26 CHIRP Sonar

GPS:

• (2) Garmin GPSMAP 942 with charts
• (4) Garmin GPSMAP 8616 with BlueCart G3 coastal and LakeVu G3 inland maps

Night Vision Camera:

• (1) FLIR Thermo Voyager

Entertainment System:
a. Audio/Video Equipment

• (2) SeaTel 100TVHD Sat TV antennas; Functional control of the entire A/V system is through touch panels located in every room. Each room has autonomous control of the DVD movie library and the CD music library, as well as U.S., Caribbean, and European satellite television. All receiver equipment is located in a central A/V room and networked throughout the yacht.

b. Monitoring System

• Hyak Electroworks the programmable logic-based system, with (6) 12” color touch-screens installed throughout. A SIMnet integration and monitoring network connects the vessel’s system to allow remote monitoring, data logging, power management, and diagnostics.

Main Galley Equipment
Cooking Equipment:

• (2) 4-Burner Professional Cooktop
• (1) Extraction hood with independent fixed Fire-extinguishing system
• (2) Convection Ovens
• (1) Microwave Oven
• (2) Warming drawers

Refrigeration/Freezer:

• (1) Sub-Zero Refrigerators/Freezers
• (1) Manitowoc Ice Maker – in Pantry
• (1) Sub-Zero Ice Maker

Dishwasher:

• (2) Miele model G7856

Trash Compactor:

• (2) KitchenAid model

Crew Galley/Mess Equipment
Cooking Equipment:

• (1) Microwave
• (1) 4-Burner electric cooktop

Refrigeration/Freezer:

• (1) Walk-In Cooler/Freezer with (2) Condensing Units
• (1) Upright Refrigerator / Freezer

Dishwasher:

• (1) GE model GSD6900JWW

Trash Compactor:

• KitchenAid model KUCS30CTWH

Laundry Equipment
Main Laundry Equipment

• (3) Commercial Duty Washers
• (3) Commercial Duty Dryers

Tenders:

• (1) Tender – TBD
• (2) Wave Runners - TBD

Dive Gear:

• TBD

Anchor Windlass System:

• (2) Maxwell SY-26 windlasses, 15KW electric

Aft Warping Capstans:

• (6) Maxwell VC-6000 Electric

Anchors:

• (2) 360KG “Pool N” type, balanced, electro-polished stainless steel

Anchor Chain:

• (2) 600 feet of 22mm grade-2 stud-link

Boat Crane and Davits:

• (1) 5000 lbs (2,270 kg) capacity– main crane
• (1) 1200 lbs (1,588 kg) capacity – bow davit

Passerelle:

• (1) 20’ (6 meter) hydraulic telescoping extension with swivel platform

Security Equipment
CCTV System:

• Networked through the A/V control system

Cameras:

• (10) Sony Network Color Camera with pan-tilt-Zoom

Monitors:

• Cameras can be viewed from any TV or fixed Monitor

Fire Fighting Equipment
Fire Control System:

• Novenco XFlow water mist system in all living spaces
• FM-200 fixed fire extinguishing system in the Engine Room

Fire Extinguishers:

• Provided throughout as required by ABS & MCA

Alarms:

• Consilium Salwico CS4000, with smoke, heat and flame detectors where necessary

Safety Equipment
Life Rafts:

• (4) Zodiac 16 person USCG and SOLAS approved

Life Rings:

• (4) SOLAS approved type

EPIRBS:

• ACR 2742 (CAT 1, with GPS)

Flares:

• Per MCA requirements

GENERAL

The vessel has accommodations for sixteen guests in (6) staterooms and eleven crew in (6) cabins.

OWNER

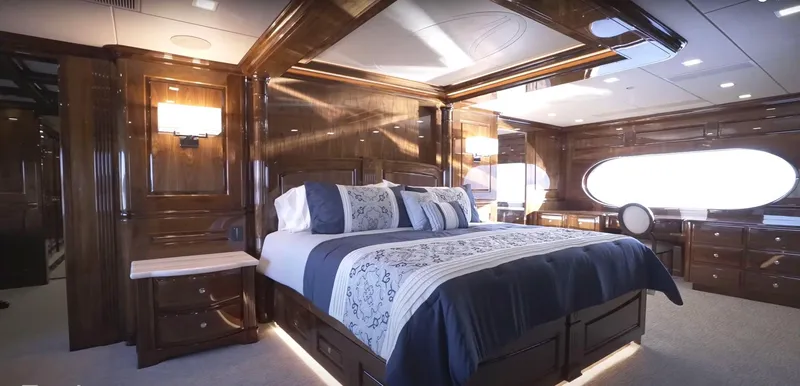

The Owner’s full-width suite is located on the main deck. The owner’s office is to starboard upon entering the master suite hallway, which then leads forward into the master suite. This is a huge master comprising two large walk-in closets, vanity and his/her en suite bathrooms. The room is an elegant mix of fabric panels and satin-finished wainscot.

GUESTS

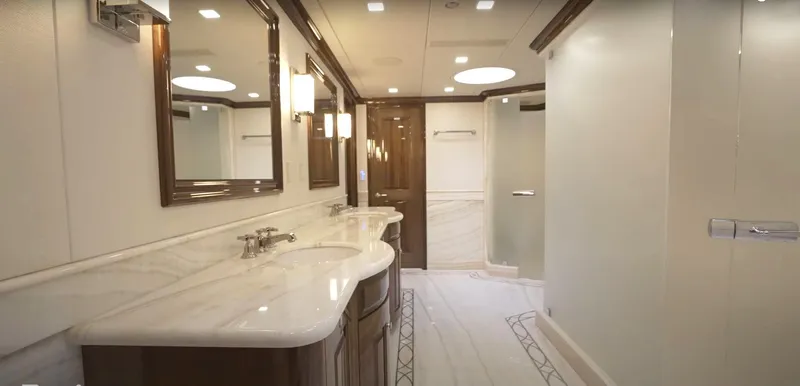

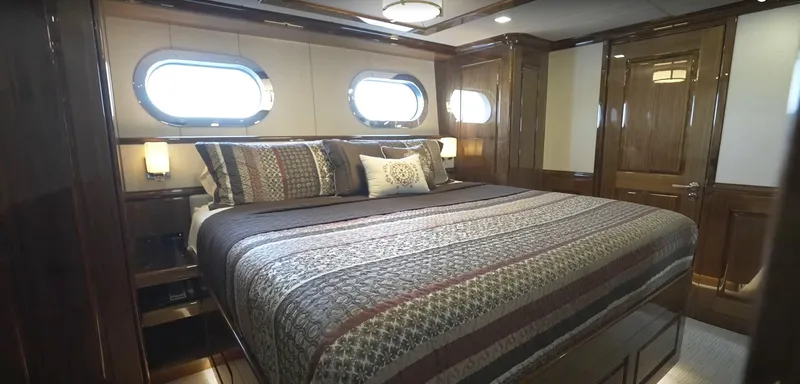

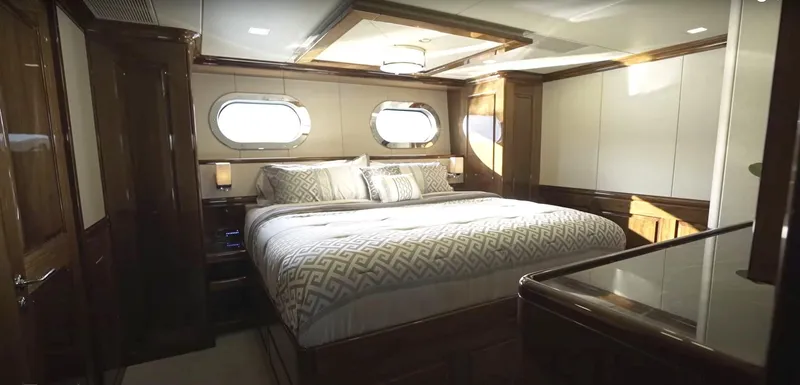

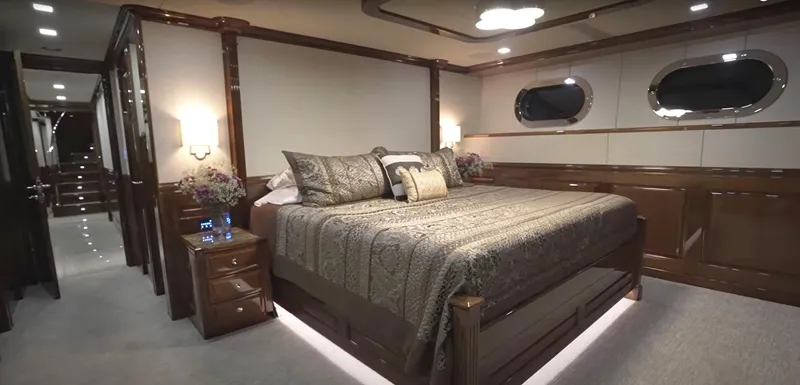

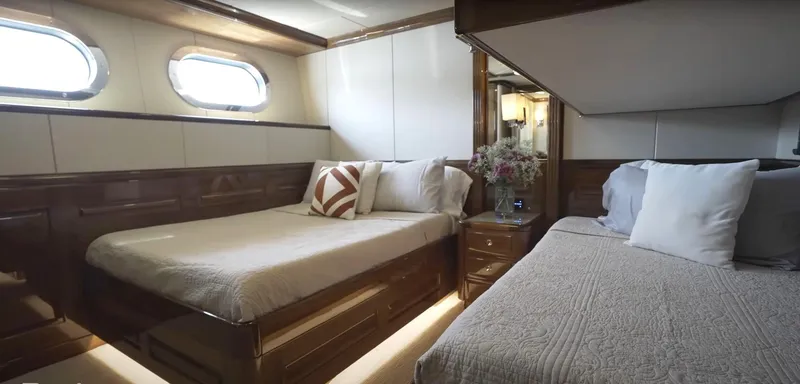

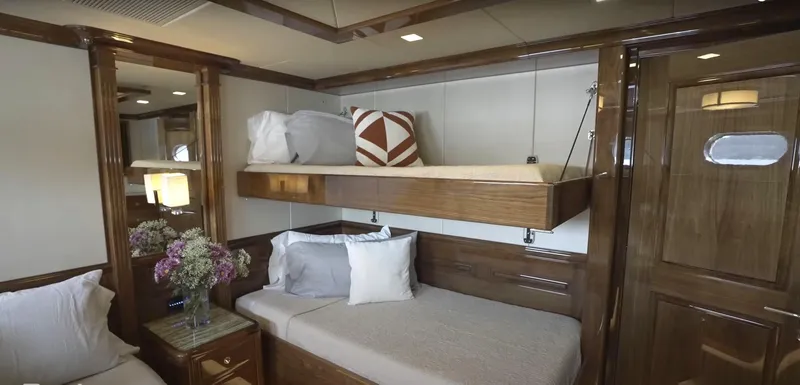

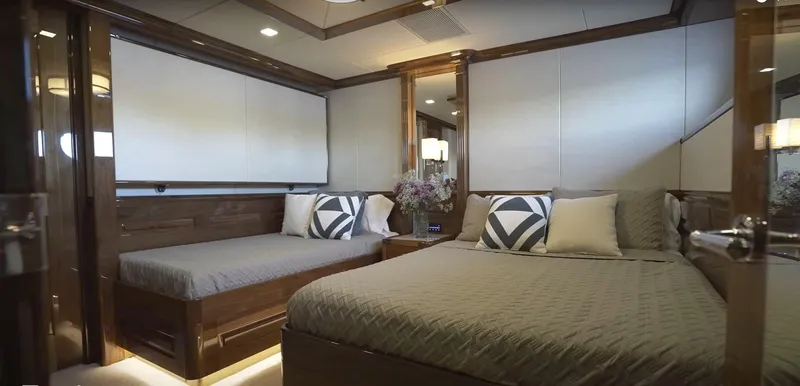

There are (4) large guest cabins located on the lower deck along with a full-beam VIP suite. All (5) cabins have en suite bathrooms with spacious marble showers; the VIP also has a large Jacuzzi tub. Additionally, the (2) forward guest cabins have Pullman berths.

CREW

There are (4) upper/lower crew cabins forward of the spacious crew’s quarters on the lower deck, plus a large captain’s cabin aft of the wheelhouse and a single engineer’s cabin in the lazarette area all with en suite bathrooms. Crew access to all decks is via a dedicated crew stairway.

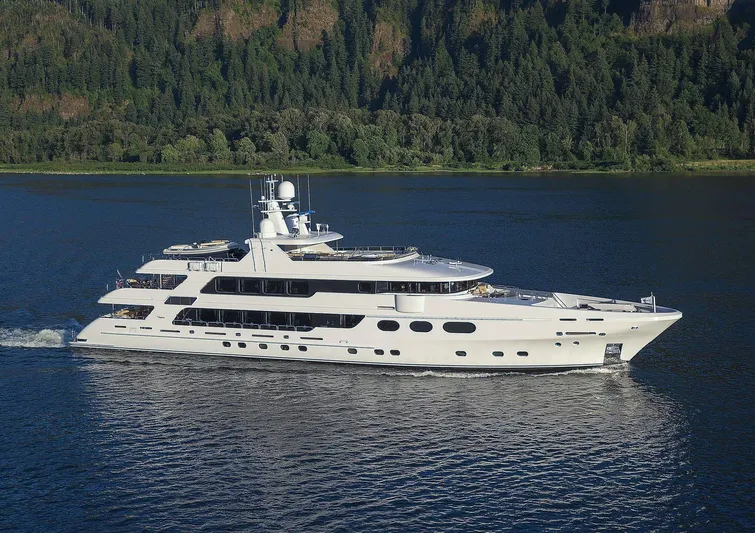

Hull #038 by Christensen Yachts offers the unique opportunity to purchase & personalize a new yacht with full warranties in time for the Spring, 2020. This large volume yacht features Christensen’s latest design & engineering unmatched by her predecessors. Her custom interior décor features accommodations for up to 16 guests in 6 staterooms with a voluminous master suite located on the main deck, complemented by a full-width VIP suite and four equally impressive guest staterooms on the lower deck.

• World Class Pedigree Fiberglass Motor Yacht available Spring, 2020
• Fresh new wide-body design with classic interior
• Accommodations for up to 16 guests in 6 staterooms incl. on deck master suite & full-width VIP on the lower deck
• Elevator provides unlimited access to all decks including the sundeck
• Dayhead on Sundeck
• Touch and Go Heli-pad on Sundeck
• Emergency Generator on Sundeck
• Bulbous Bow
• MTU 12V4000 series main engines provide 14-knot cruising & global cruising capabilities ABS Classification
