Specifications
-
Beam:
23' 3''
-
Hull Material:
Fiberglass
-
Max Draft:
6' 1''
-
Displacement:
135 lb
- Fuel Tank: 1 x
4000|gallon
-
Fresh Water:
1 x
400|gallon
-
Holding:
1 x
200|gallon
-
Cabins:
5
-
Heads:
7

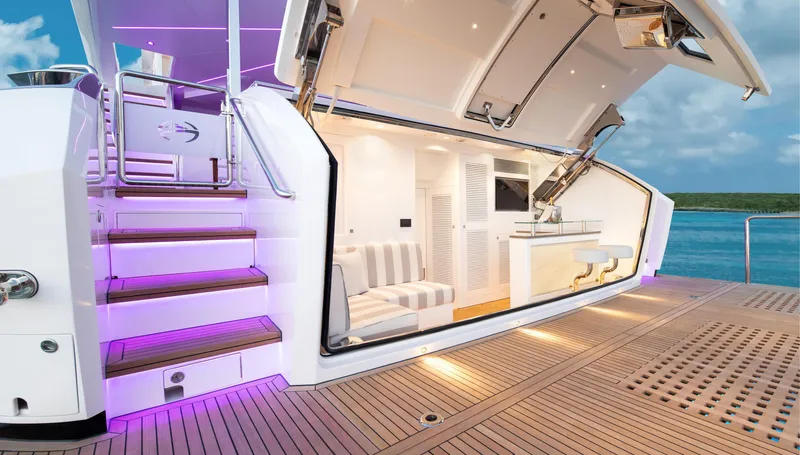

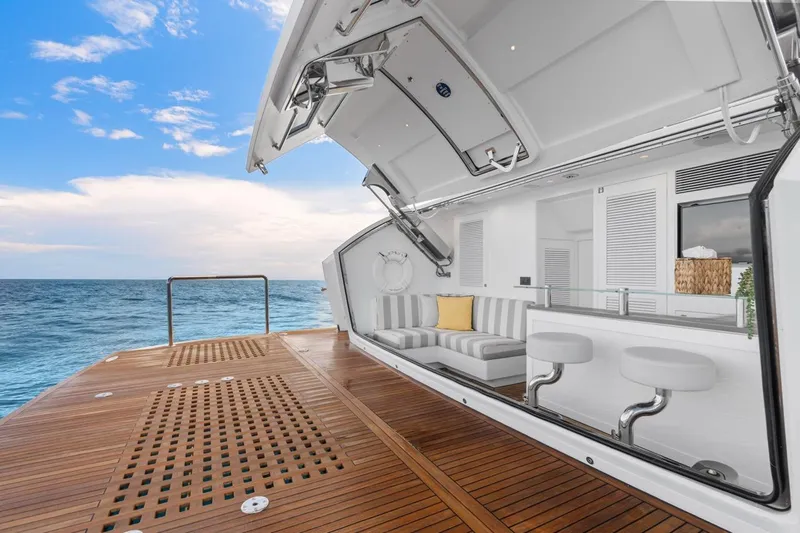

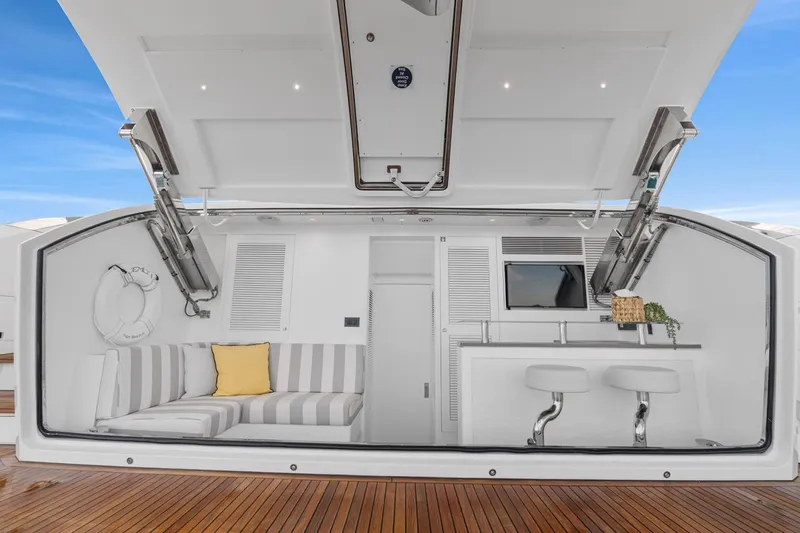

Beach Club
- Hydraulic door with pantograph door in the middle
- Sofa seat w/ table
- Bar with S/S bar stools, sink, refrigerator, and icemaker
- Eskimo ice box under settee
- Flexiteak flooring

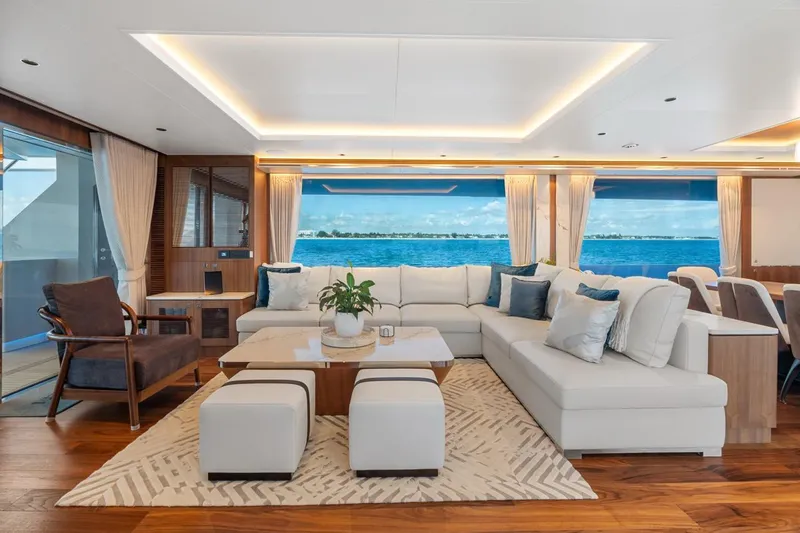

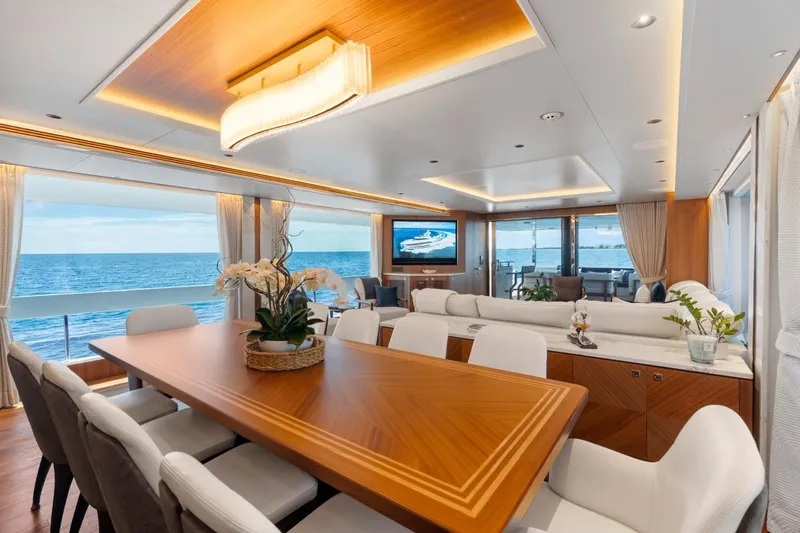

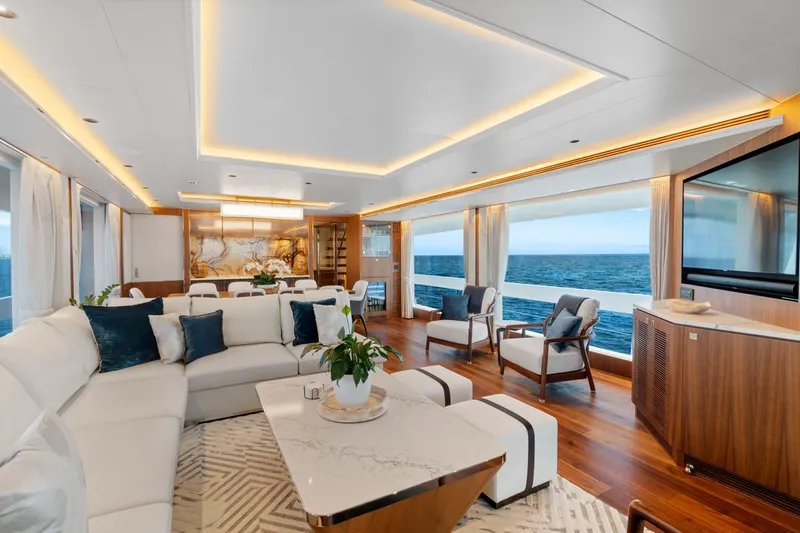

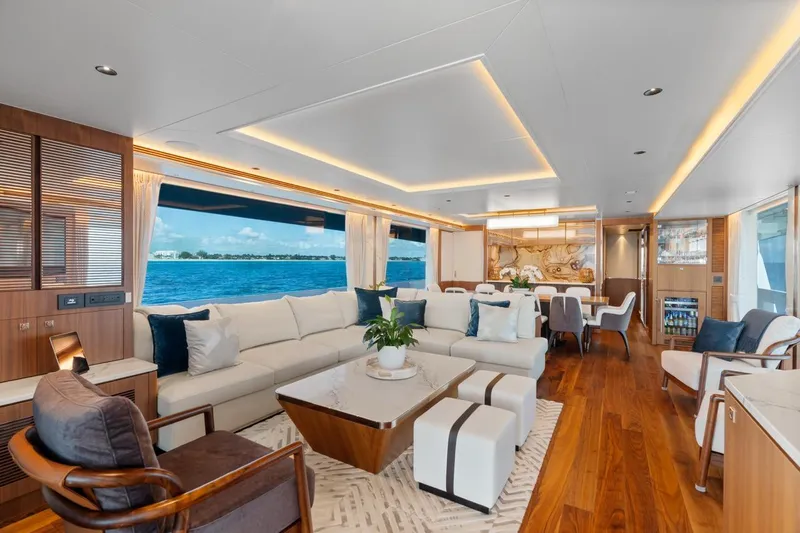

Salon
- Electrical sliding door
- Dayhead w/interior & exterior access
- 55" LED TV
- Drink cooler under glass locker
- Electric blinds
- Glass holders in cabinets
- Fixed wood finish dining room table with seating for 10

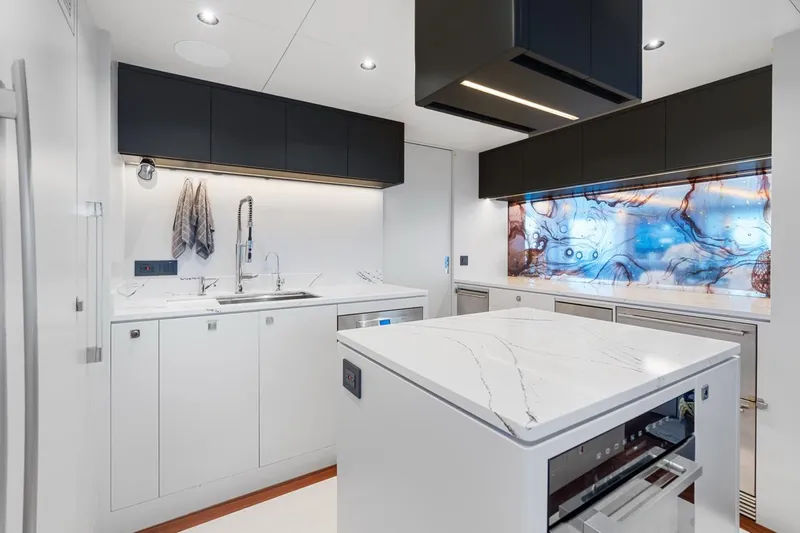

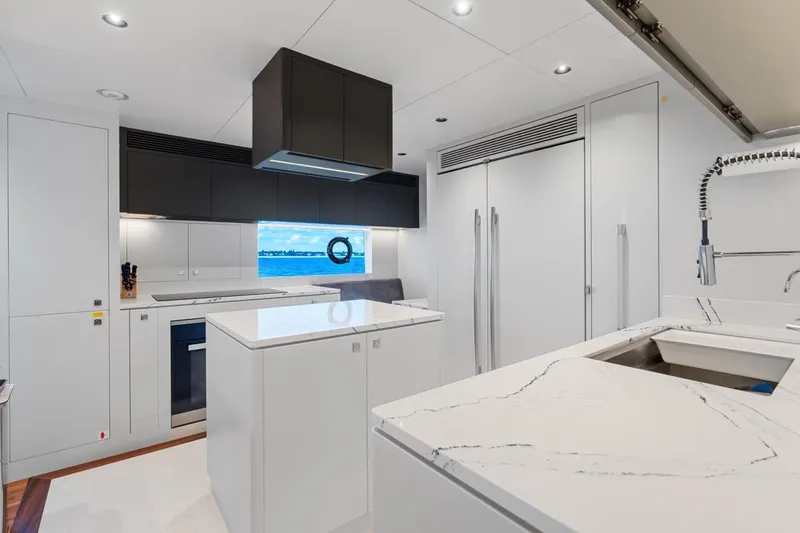

Galley
- Hi-lo screen between galley and salon
- Under counter Scotsman ice maker
- Under counter wine cooler
- Garbage disposal
- SubZero refrigerator
- Miele hood & Wolf microwave
- 5 burner cooktop
- Miele dishwasher
- Miele oven
- Trash compactor

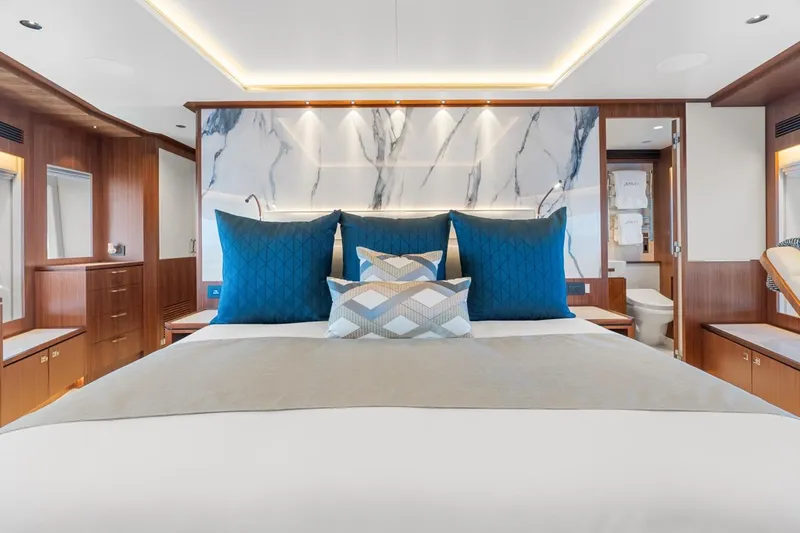

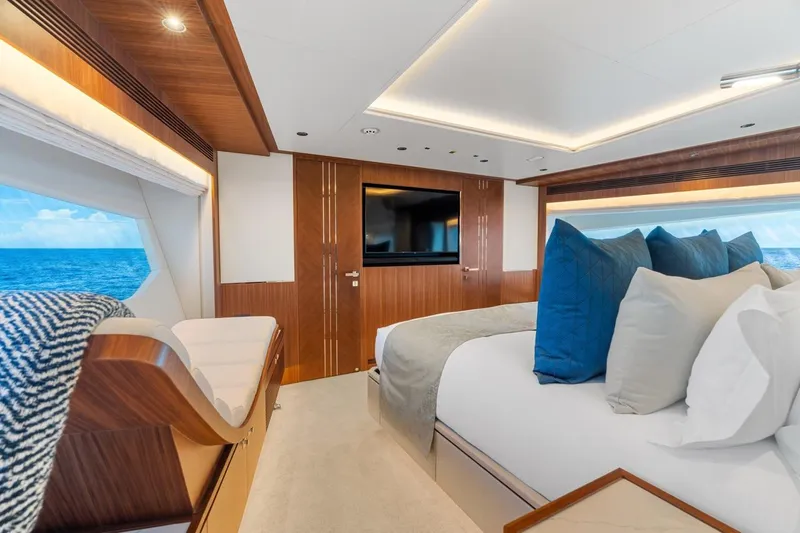

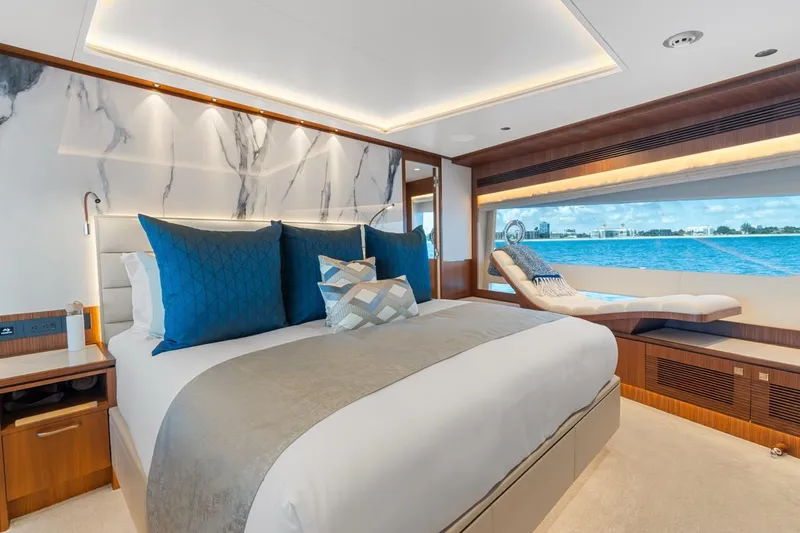

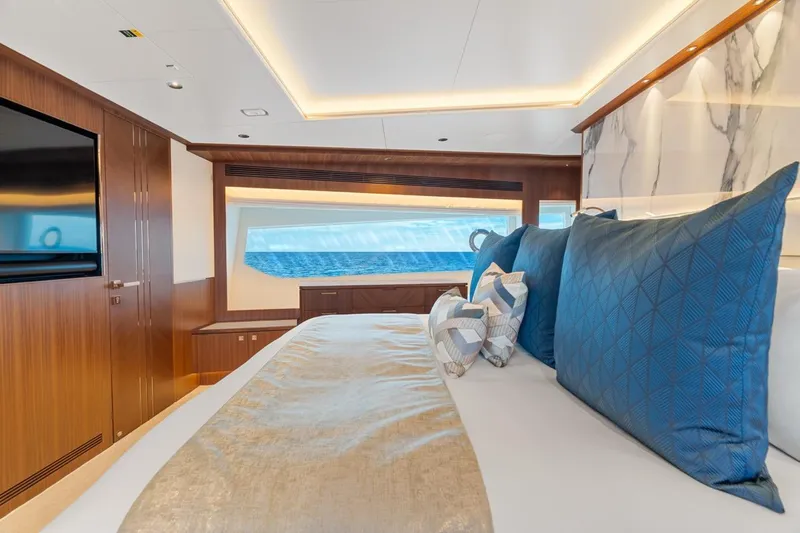

Master Stateroom Main Deck
- King berth with marble wall behind headboard
- Port side lounge seating
- Pop-up vanity w/drawers to starboard
- Hidden gun box w/lock in master STBD closet
- Electric blinds

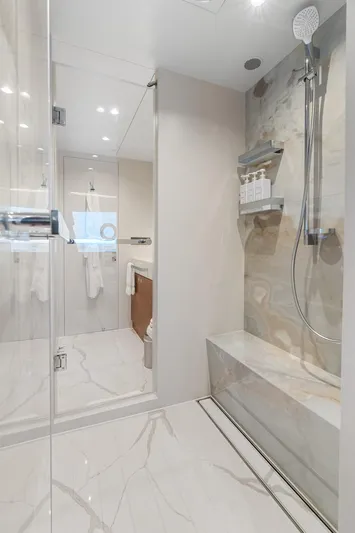

- Rain shower in head
- Toto bidet seat
- Heated towel rack in head (2 units)
- Heated floor in head except shower room

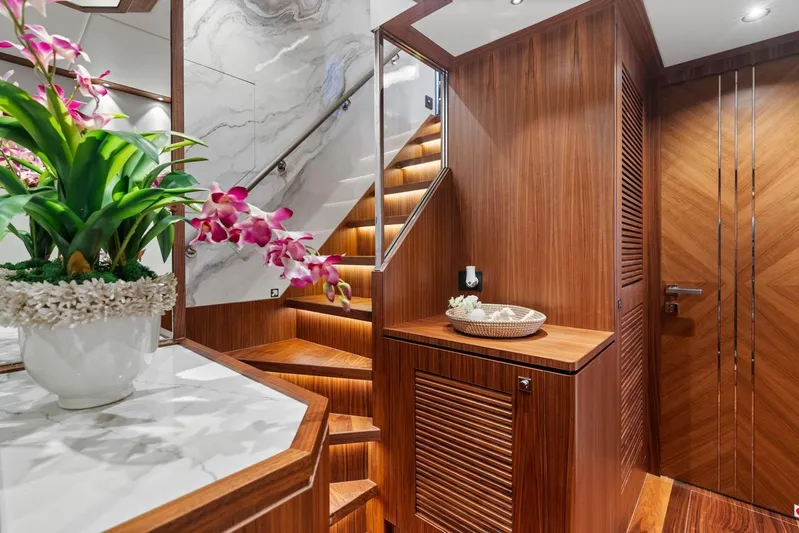

Guest Companionway
- Miele stacked washer/dryer

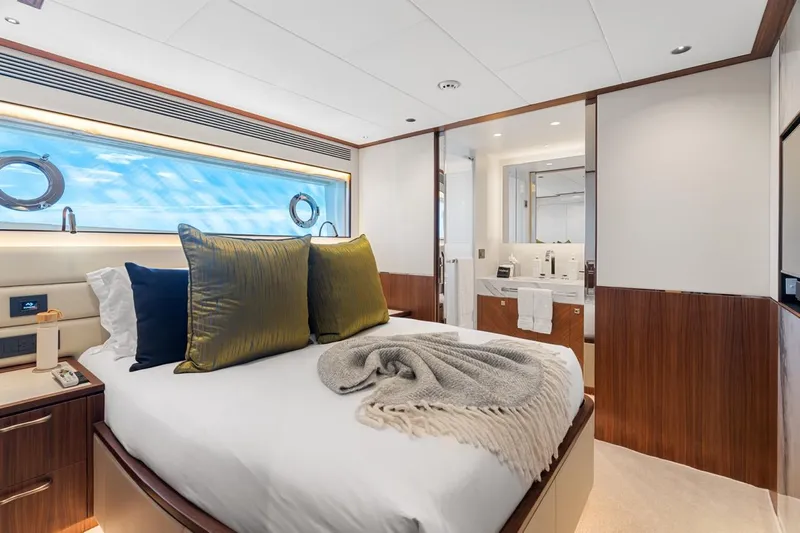

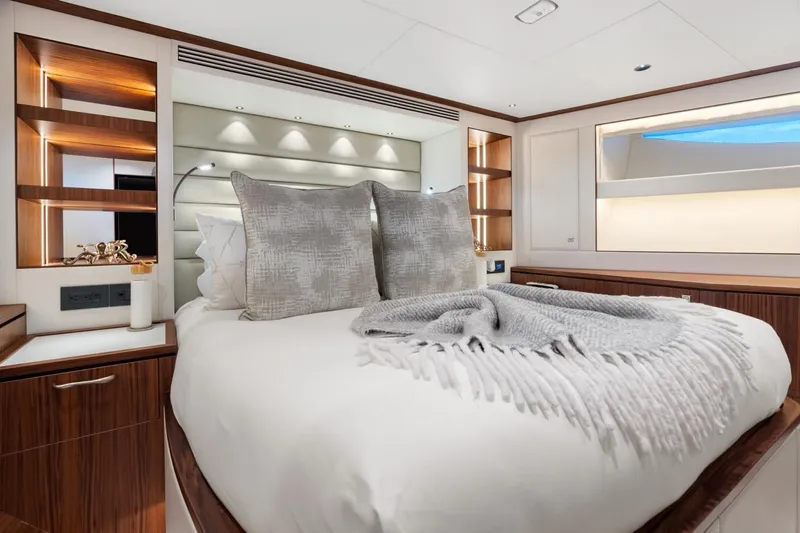

Guest Staterooms

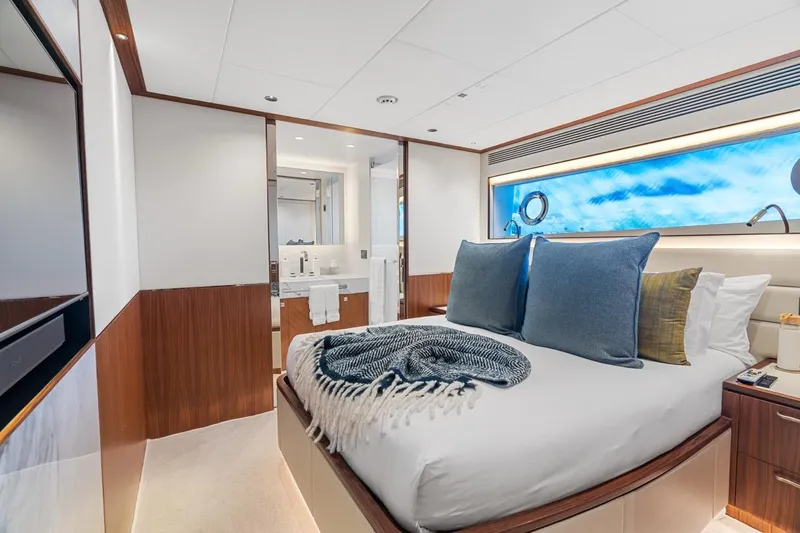

- (3) Ensuite VIP staterooms

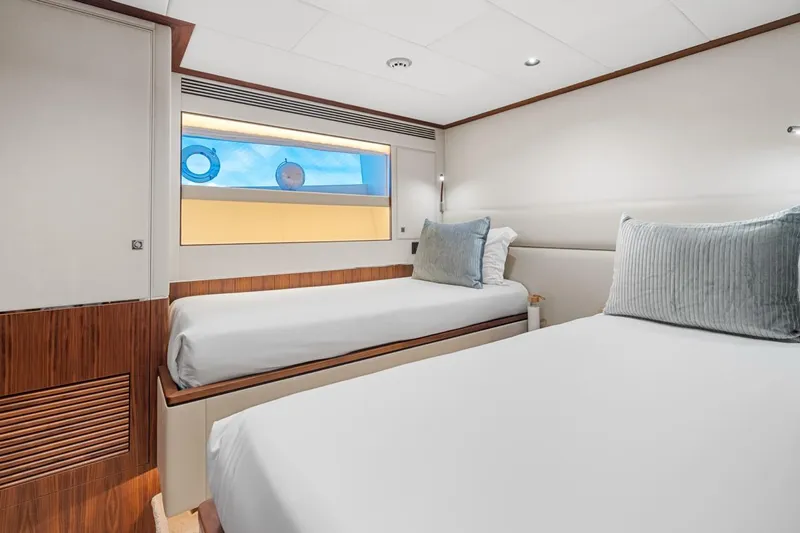

- (1) Ensuite Twin stateroom w/sliding berth

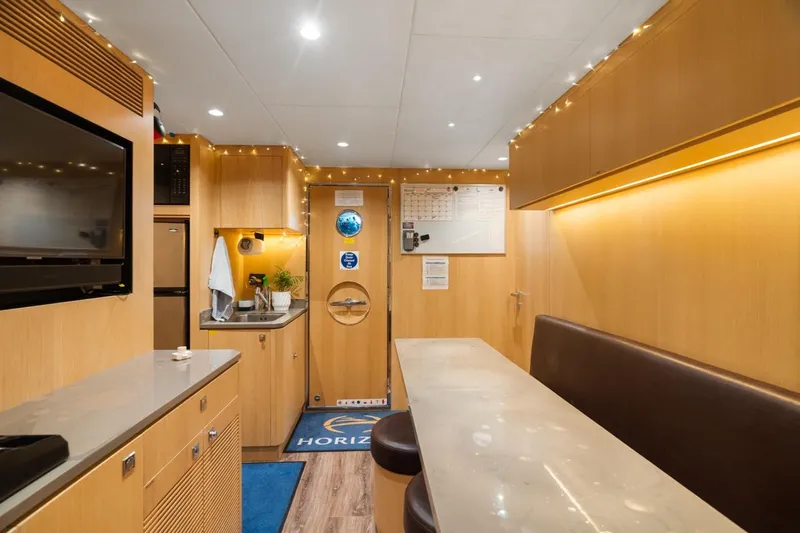

Crew Quarters
- Located aft

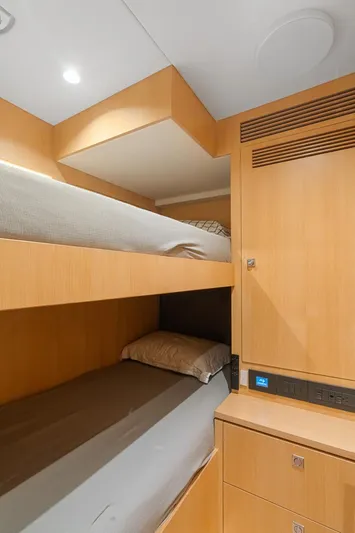

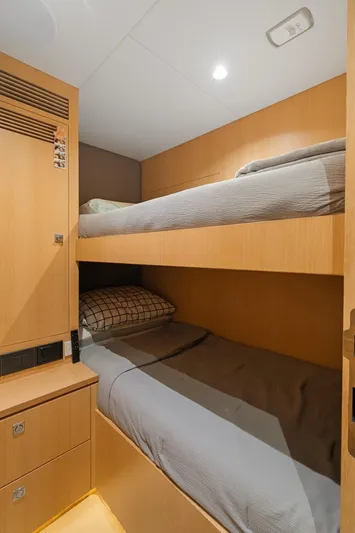

- Two cabins with (2) bunks each and head
- Captain's cabin with own head
- Satin finish wood on walls, vinyl ceiling
- Crew mess equipped with two-burner cook top, microwave, sink,
undercounter refrigerator
- 32" TV
- Miele stacked washer/dryer
- Storage lockers
- Storage closet w/additional refrigeration
- Fire extinguisher

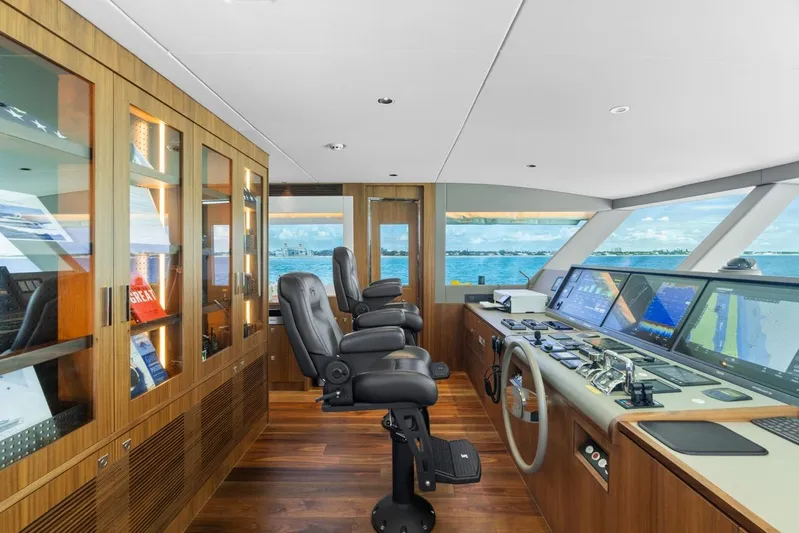

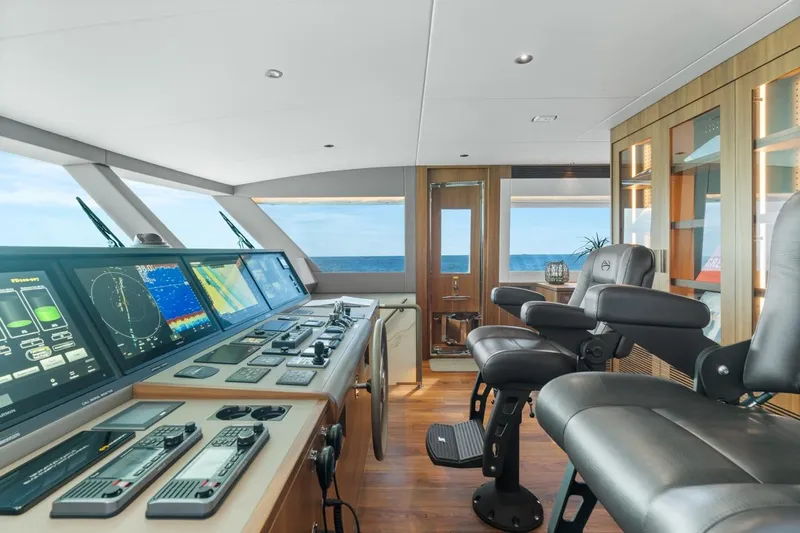

Pilothouse
- Stidd pilot chairs
- Integrated instrument panel on helm station
- Day head
- Sofa seat w/table
- Heavy-duty Speich S/S wipers w/ wiper wash system
- Standard black mesh for windshield
- International LED navigation lights (incl. anchor, mast, stern, port
side and starboard side light, total 5 units)
- Full set of engine gauges at helm
- Electric fuel and water level gauges
- Octoplex/Maretron monitoring
- Monitoring system for importation equipment (bilge pumps, blowers,
navigation lights)
- Chain counter (one per windlass)
- Surveillance camera system (PTZ cameras at aft deck and engine
room)
- USB charger
Navigation System
CHARTPLOTTERS:
GARMIN: GPSMAP 8624 Glass Bridge MFD w/g3 Charts
GARMIN: Twin SD Card Reader, USB, GPSMap 8xxx
GARMIN: GRID 20 MFD Remote, Vertical
TIME ZERO NOBELTEC:
TIMEZERO NAVIGATOR Nobeltec TZ-100
TIMEZERO Furuno Radar Module
HP EliteDesk 800 G6 Desktop Mini PC - Installed in Doghouse
8-Port Gigabit Ethernet Unmanaged Switch
Logitech - K400 Plus TKL Wireless Membrane Keyboard with Built-in Touchpad
SOUNDER:
GARMIN: GSD 25 Premium Sonar Module
AIRMAR: Xdcr, CHIRP-LH, 1 KW, In-Hull, 12 pin
GARMIN: Panoptix PS51-TH Thru-Hull Transducer, Adds FrontVu Forward-Looking Sonar
GARMIN RADAR:
GARMIN: Radar, GMR™ 1224 xHD2 12kw w/ 4 ft. Array
FURUNO RADAR- FAR1523:
FURUNO: Antenna, 6 Foot Open Array
FURUNO: Radar, Black Box, 25KW, 24VDC
Includes: Processor, control unit, and pedestal
AUTOPILOT:
SIMRAD: AP70 MK2 Basic Pack, Contains AP70 MK2 Controller, AC70 Computer, And RF300 Rudder Feedback
SIMRAD: Precision-9 Compass
COMPASS:
GARMIN: MSC 10 Marine Satellite Compass
VHF:
Icom M605 VHF Without AIS, Fixed Mount Radio, 25W Output Power
ICOM: CommandMic IV With White Backlight- Installed in Crew
ICOM: Microphone Cable- For front mount mics at helm
AIS:
GARMIN: AIS Class B, AIS 800, w/Splitter
GARMIN: GA 38 GPS/GLONASS Antenna
FLIR:
FLIR M-364C
GARMIN: Marine Network PoE Isolation Coupler
CAMERAS:
GARMIN:
GC 200 Marine IP Camera
3 in engine room, 1 center fwd wall facing aft, 1 in each aft corner facing forward
2 outside salon door in center facing aft corners
1 aft deck center facing aft for tender
SIRIUSXM WEATHER:
GARMIN: GXM 54 SiriusXM Sat WX/Audio Recevier- Audio out to SONOS
INSTRUMENTS:
GARMIN: gWind Wired Transducer
Airmar UST850 Smart - NMEA 2000 - Bronze Housing
GARMIN: GMI 20 Digital Marine Instrument Display
CREW MFD:
GARMIN: GPSMAP 8610 MFD, g3 US+Can+Bahamas
SHIPS INTRANET WIFI ROUTER:
Cisco Router- 2.4GHz & 5GHz- Installed in dog house
A/V rack
Ubiquiti UniFi 802.11ac PoE+ Access Point 2.4ghz &
5ghz- Master, VIP. Skylounge, Aft Cockpit, & Salon
Ubiquiti UniFi Ethernet Switch 8-Port POE- Installed in
dog house
Ubiquiti UniFi Controller Cloud Key
Ethernet Switch; Multi-WAN Router, Enables Networks To
Switch Easily Between Multiple Internet Sources.
Cisco 48-Port Gigabit Unmanaged Switch- Installed in
doghouse
INTERNET SOURCE #1- WiFi:
AIGEAN High Power Dual Band WiFi extender
kit,-2.4GHz & 5GHz
INTERNET SOURCE #2- CELL:
MoFi Cellular Device- Integrated Broadband Router
Shakespeare: Wide Band Cell Ant. with Mount, white
INTERNET SOURCE #3- VSAT:
TracVision HD11/TV10 Empty Dome/Baseplate; Complete
Assembly; No Labels
TracPhone V30; 2-axis Ku-band Antenna with stabilized
SKU & Integrated Modem- To be install in empty HD11
dome
HD TV:
TracVision HD11 with IP Antenna Control Unit (IPACU); Universal World Ka/Ku/Ka-band Linear/Circular Quad-output LNB, No Labels

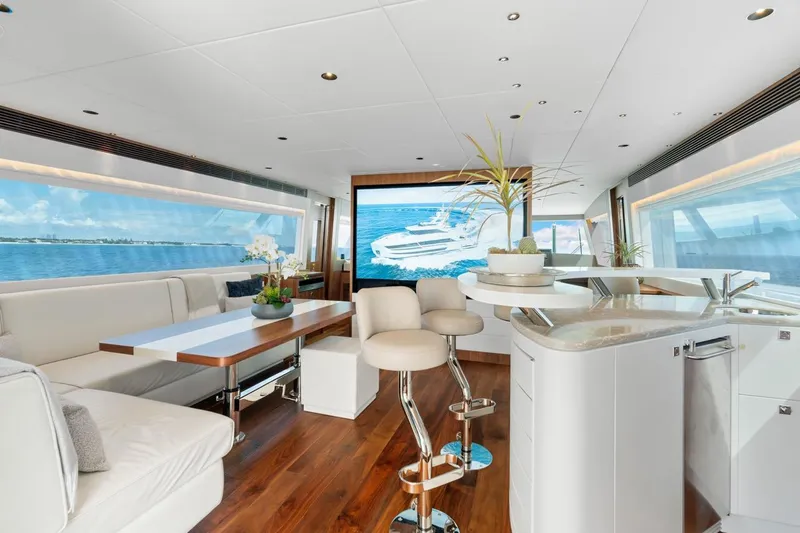

Skylounge
- Helm station with carbon fiber dash board panel
- Lounge sofa to port
- Day head w/access door to outside

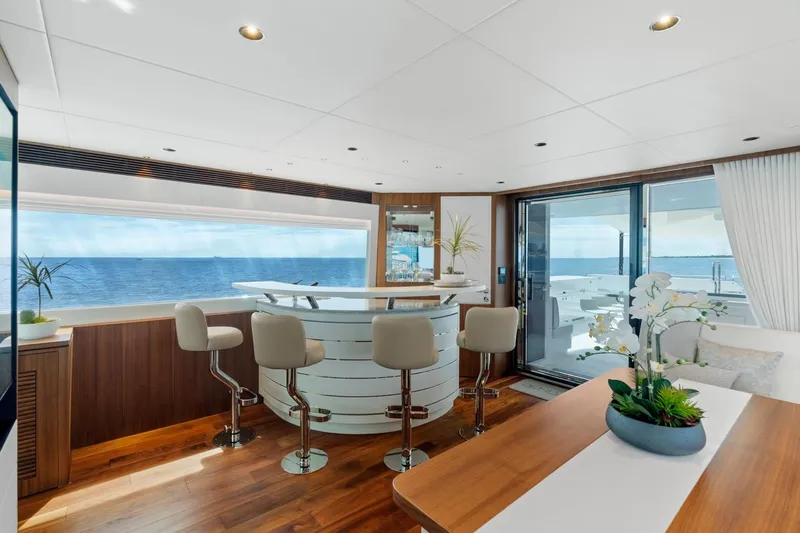

- Custom two-level bar with S/S bar stools, sink, refrigerator, and
icemaker, bottle storage
- Manual sliding door to boat deck with self lock
- 85" Samsung TV w/sound bar and stereo below

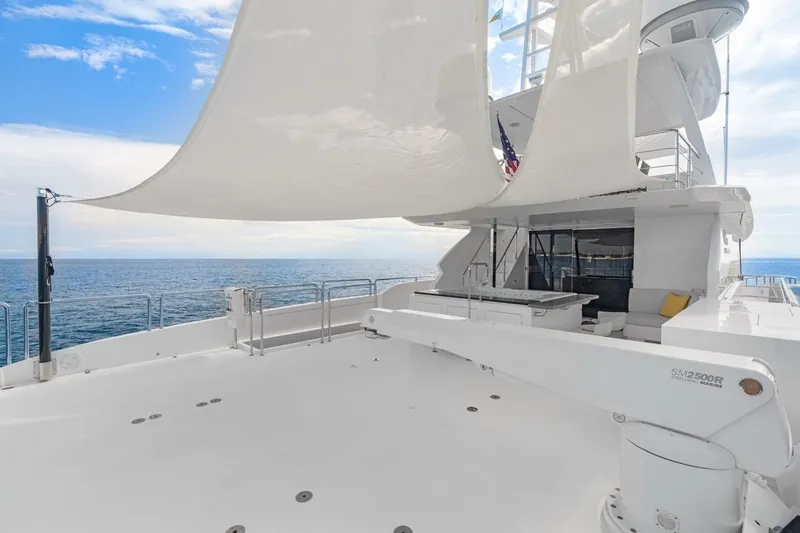

Boat Deck/upper Deck
- Non-skid upper deck

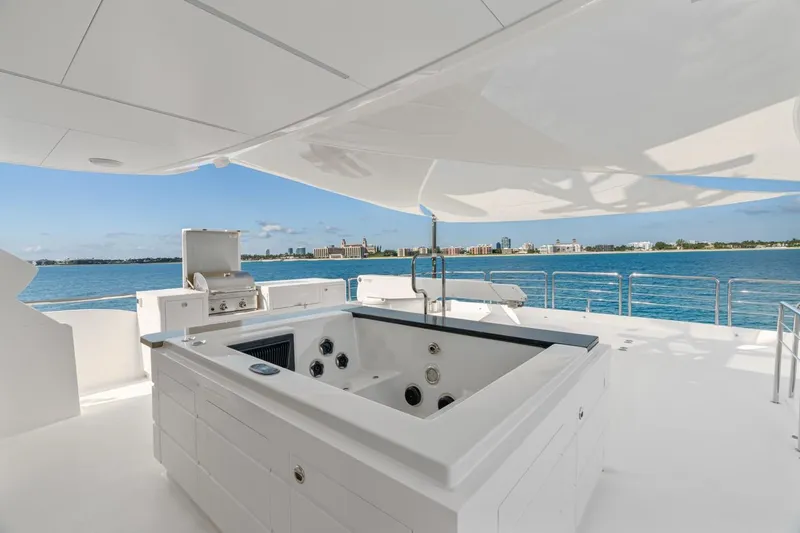

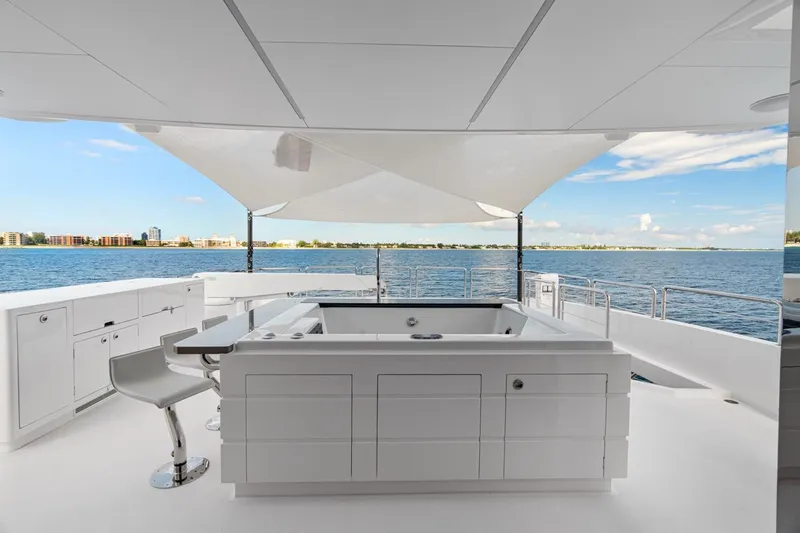

- Jacuzzi with heating
- Propane barbecue
- Scotsman ice maker
- Oversize drains w/ strainers on each corner of upper deck and internal
overboard drains
- Tokai Sanshin LED search light
- Chrome plated Buell air horns top of radar arch
- Hydraulic Steelhead davit 2500lb.

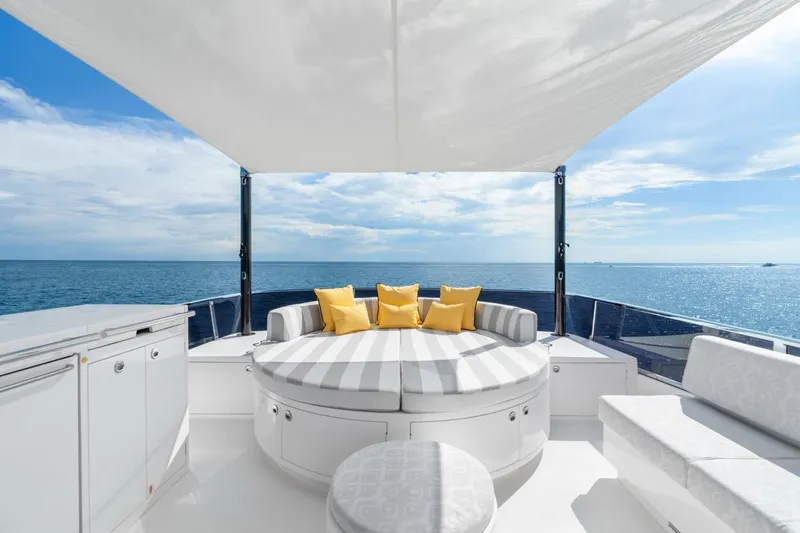

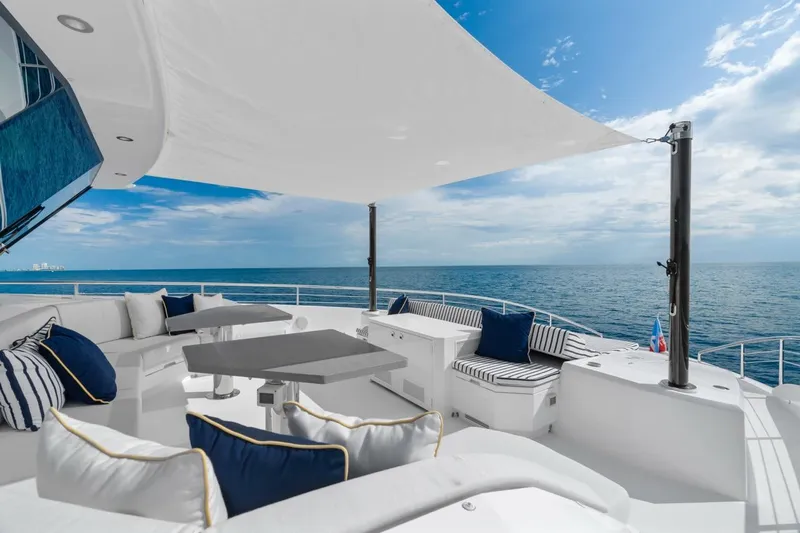

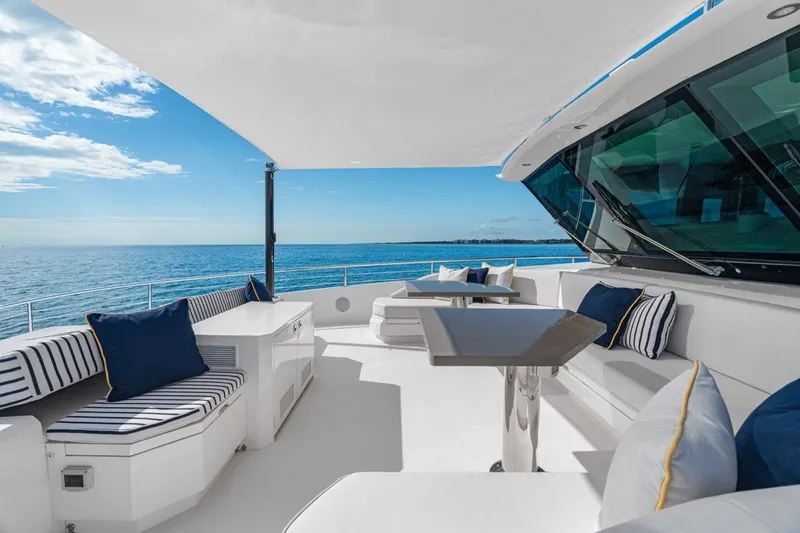

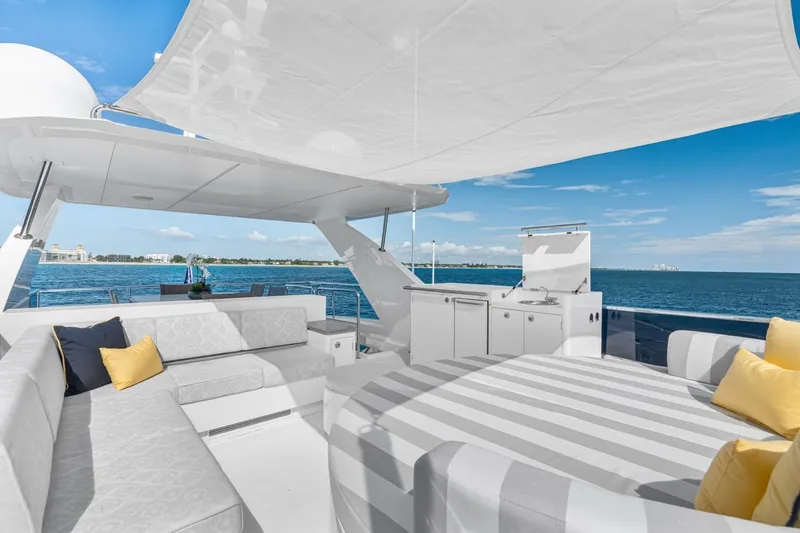

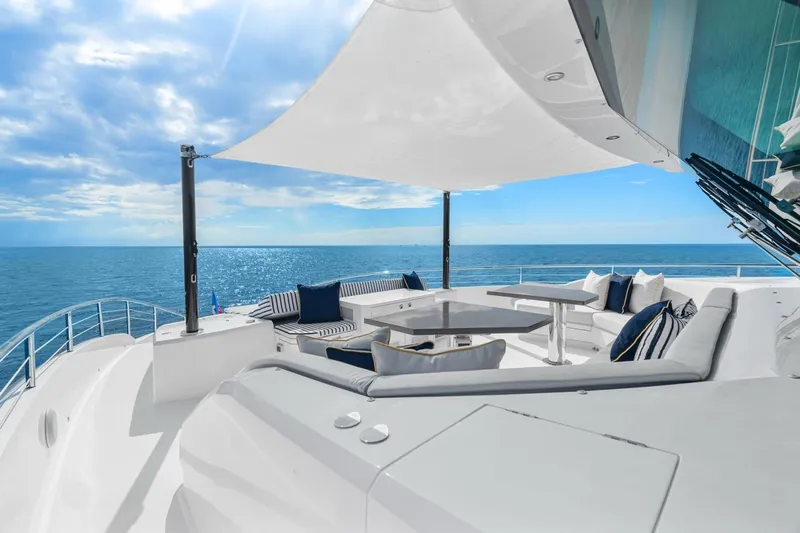

Open Flybridge
- No helm station
- Radar arch w/ antenna bracket
- Non-skid flybridge deck on entire deck area
- Windshield with S/S frame and S/S rails around forward flybridge

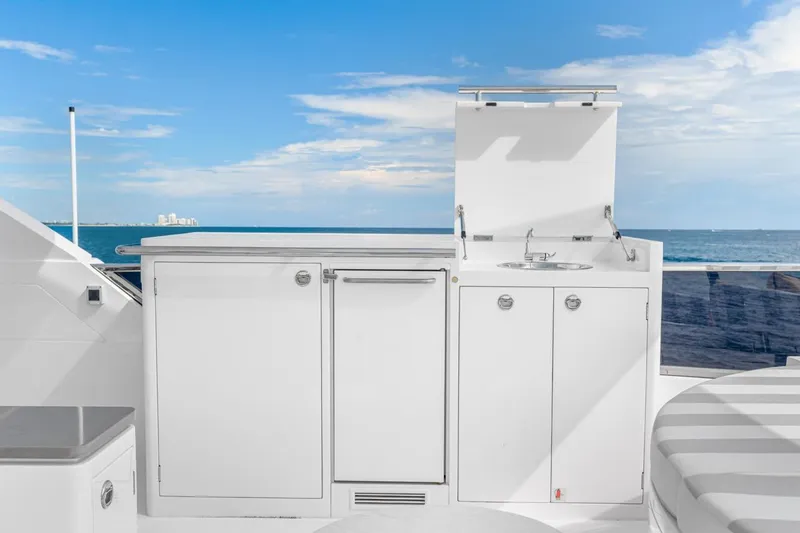

- FRP seat with table and FRP cabinet (with sink,refrigerator, and ice
maker)
- Round sunpad
- 10-person folding dining table w/chairs - movable w/anchors
- Buffet style countertop
- Oversize drainage with strainers on each corner of flybridge deck and
internal overboard drainages

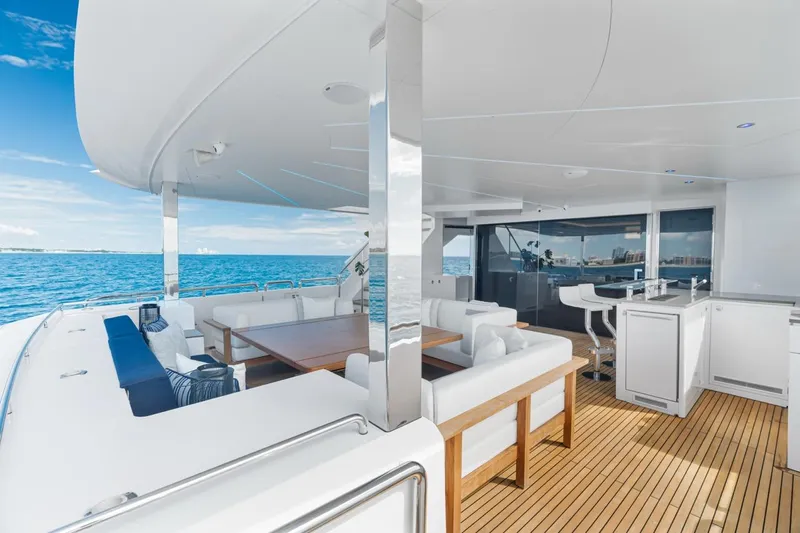

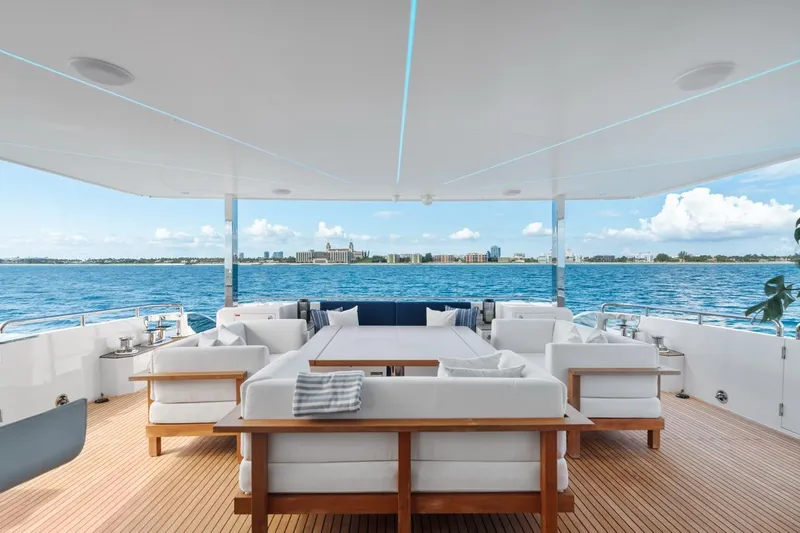

Decks And Equipment
- Teak aft deck, teak swim platform and teak steps to boat deck and
swim platform. Non-skid for the remaining
- (2) hidden designed flip-up wing stations
- YACHTPRO 100 compressor YP100SF-D 3hp dive compressor
- Aft deck sliding hi-lo table with 2 leafs
- (4) rod holders on aft deck behind aft deck FRP seat
- Besenzoni custom made 6m long hydraulic gangway
- Marquipt 8-step side boarding sea stair
- Marquipt 7-step carbon fiber side boarding sea stair
- Maxwell VWC500 vertical hydraulic anchor winch (x2) w/ local foot
switches and remote
- Maxwell VC2500 electrical rope capstan on aft deck (x2) and bow
deck (x1)
- 300ft high tensile 1/2” anchor chain (x2)
- 100Kg S/S anchor (x2)
- S/S rollers (x2) and chain stopper
- Heavy-duty 316 S/S cleats and fairlead w/rollers
- Freshwater/sea water anchor chain washdown system by manual
operation
- 1-3/4” handrail with 1-1/2² S/S stanchions and steel cable around
entire boat
- S/S flag pole at bow
- Standard lines and Pro-stock fenders

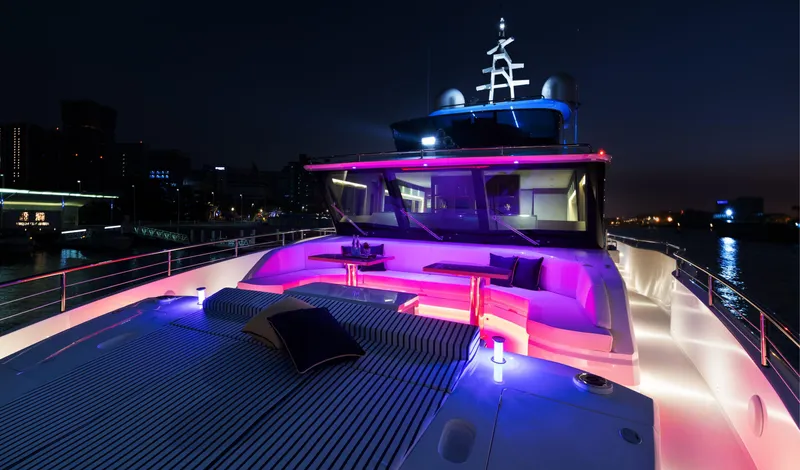

- Portuguese bridge with sofa seats
- Foredeck sunpads with fold-up back rests w/drink holders
- Sun awnings (3 sets), Tri-deck, Fwd bridge and boat deck w/carbon
posts
- Pop up lights each side of sunpad

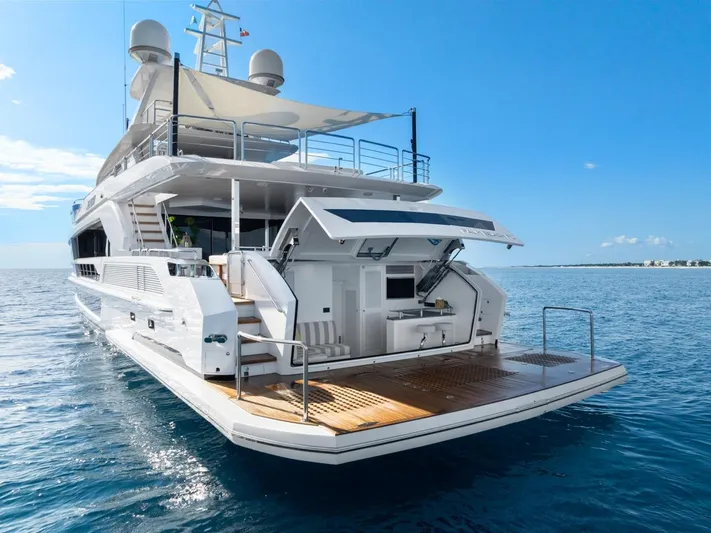

- Hydraulic Hi/Lo swim platform with function as tender lift up to max
2500lbs
- Upgraded aft deck cleats with 16,000lb towing capacity at slow speed
- Built-in shower with hot/cold water above swim platform
- One extractable swim ladder
- Removable corner rails on swim platform
- Wind doors each side of aft deck
- 65" flipdown LED TV aft deck
- Underwater lights, Lumishore EOS Interchangeable thru-hull
- 5 Cameras
Hull And Main Structure
- ABS/DNV type approved fiber/resin & sandwich core
- White gelcoat finish on hull above water line, exterior decks
- One piece hull SCRIMP/TM with the patented
6D infusion technology, incl. skeg and longitudinal girders
- Hull, deck & superstructure are built with licensed process SCRIMP
TM for improved strength and less weight
- High-density foam cored hull bottom
- High-density Divinycell foam cored hull sides, decks,
and superstructure
- Stringers with high density foam coring
- Interior structural components all properly bonded to hull
- Strong collision bulkhead structure for extra safety
- International anti-fouling bottom paint w/anti-osmosis treatment
- PropSpeed/PropGold metal paint
- Tunnels for reduced draft
- High Performance Piercing Bow (HPPB) with S/S protection plates
- Upper deck with bump out design at PORT and STBD side
Propulsion And Steering
- Twin CAT C32A 1900hp diesel engines w/reduction gears
- S/S shafts Aqualoy 22 HS
- High performance S class 5 blade propellers in NiAlBr
- Bronze struts w/ backing plates
- Shaft and rudder packing glands with dripless seals
- ZF Mathers engine controls with chrome control heads or at helm
station
- ONE remote handheld control (with throttles, gears, and thrusters) and
and TWO locations for “plug-in” receptacle (one at aft deck and one
in pilothouse)
- FRP foil balanced blade rudder with S/S rudder stock
- S/S emergency tiller in rudder cabin.
- Custom steering wheel at helm station.
- Underwater exhaust system for engines w/ bypass mufflers
- ABT Zero Speed Stabilizer Model 440/20X
- ABT hydraulic bow and stern thrusters, 65hp
- Bennett heavy-duty trim tabs with indicators
- Anti-noise treatment to exhaust system

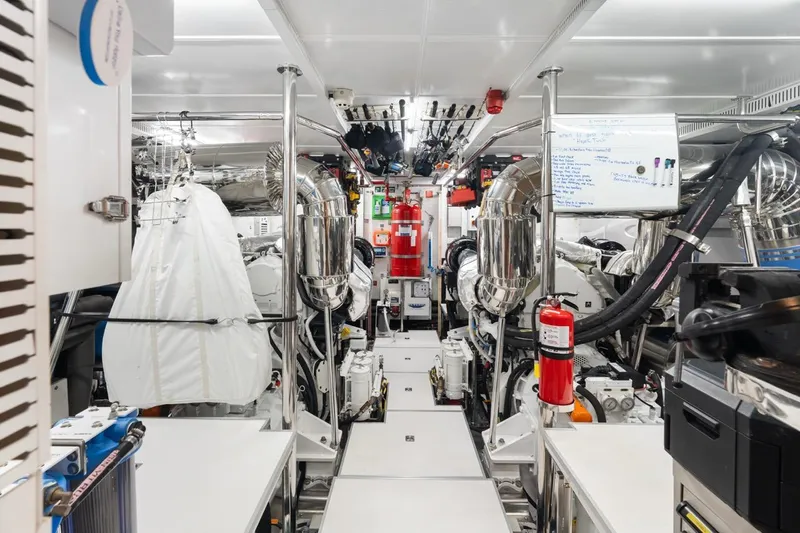

Engine Room And Equipment
- Twin Caterpillar C32A 1900hp. Hours 9/2024: 470/470
- Engine room designed with lightweight honeycomb floor
- Heavy-duty insulated engine room door
- S/S overhead grab rail on each side of engine
- Delta T engine room demisters
- Engine alarm system
- Air compressor
- Marine Air chilled water A/C - (4) chillers + ER handler
- Air handlers for interior
- Back up sea water cooling pump and A/C circulation pump
- Headhunter Sanitary Treatment System
Main Power System
- Onan generators (2x) 40kW (60Hz) with sound shield
Hours as of 9/2024: 1242 Port / 1227 Strbd
- 17. 255 Ah AGM start batteries (4x) for engines/generators with
battery chargers (2x)
- 210 Ah AGM batteries(x8) for ship‘s DC 24V service power with
combined inverter/chargers (2x)
- 210 Ah emergency batteries(2x) above main deck w/ independent
battery charger (1x)
- Ignition protected battery switch
- Octoplex multiplexing power distribution system
- Maretron monitoring and control system
Fuel Oil System
- Fuel tanks w/ sight & electric gauges
- ISO grade fuel hose through entire system
- Dual Racor 75/1000 MA fuel filters/water separator, each engine
- Racor 500 MA fuel filters (x2), one on each generator
- Electric fuel transfer pumps (x2)
- Oil change pump system for engines, gears, and generators (2) 40
gallon tanks
- Reverso FPS210 fuel polishing system (x1)
Electrical Systems
- (2) ASEA Frequency Converters
- Color-coded wiring for easy identification
- AC & DC Main electric panel with circuit breakers
- Sub-panel design with circuit breakers in each zone for electrical
distribution
- Emergency power package & lighting system
- AC volt receptacles located throughout including engine room
- GFI protection for all AC outlets in exterior, heads, galley, and engine
room
- Fiberglass water/exhaust separator for generator
- Electrolysis bonding system
- Cathodic protection with zinc anodes for shafts, struts
- Indirect lighting under valance in saloon, staterooms, skylounge, and
galley
- Dimmer system for LED ceiling lights in aft deck and skylounge
- Dimmer system for LED ceiling lights in saloon, master, and VIP
staterooms
- Italian Vimar switches for lighting system
- Motion detection light at guest foyer close to staircase
Shore Power
- Glendinning shore power Cablemasters (x2) 100Amp w/ 75’ power
cable each
- Shore power connection w/ 100Amp ISO boost transformers which will
be wired as polarization transformers (x2)
- Shore power plugs (x2), 100amp
Av / Phones / Stereo
- TV antenna on top of radar arch
- 4G Cellular router System with Wi-Fi on board
- Open Flybridge with Fusion Marine stereo (x1) and speakers (x2)
- Skylounge 32” LED TV with Fusion Marine Stereo (x1) and speakers
(x2)
- Boat deck Fusion Marine Stereo and speakers (x2) from skylounge
Fusion Stereo
- Salon 46" LED TV with Bose home entertainment system and
separate BluRay disc player
- Aft deck Fusion Marine Stereo (x1) and speakers (x2)
- Master stateroom 40" LED TV with Bose home entertainment system
and separate Blu-ray disc player
- VIP stateroom 32" LED TV with Fusion Marine Stereo (x1) and
speakers (x2)
- Guest stateroom 22” LED TV with Fusion Marine Stereo (x1) and
speakers (x2)
- Crew mess 22” LED TV with Fusion Marine Stereo (x1) and speakers
(x2)
- Panasonic PBX Telephones (x5) with intercom features in saloon,
skylounge, master stateroom, VIP stateroom, and crew mess
- Exterior connector for shore phone and cable TV
Fresh Water Systems
- FRP water tank
- Marine grade pipe lines for hot & cold water system
- 30 gal water heaters (x2)
- High-volume Headhunter AC fresh water pressure pump
and one DC pump for back up
- Spot Zero/Watermaker combination unit 2200130
- Fresh water outlet & hose for filling engine and generator expansion
tank
- Charcoal filters are plumbed into the fresh water line: shore water
inlet, galley, and crew galley
- Hot water circulation pump
Sanitary System
- 200 gal holding tank with Y-valve and deck fitting for dockside pump
out
- 100 gal sump tank with pump for each shower & washer drainage area
- Headhunter toilet system
- Electric level indicators for holding tank and sump tank
Bilge Water System
- Electric Rule bilge pumps
- Custom bilge vacuum system - Willy Vacr Bilge wet vac system
- Manual bilge pumps (x2) in engine room and forward staterooms
- (2) Engine driven JABSCO emergency bilge pumps
- High water level bilge alarm
- Bilge exhaust ventilation fans
Fire And Safety System
- Fire insulation in engine room
- Fire resistant treatment for pipe penetrations
- Fixed fire extinguisher FM200
- Automatic/manual shutdown system
- Automatic fire damper system
- Portable fire extinguishers (x5)
- Integrated fire alarm system in pilothouse, with smoke detector in
each cabin
Additional Units Included
English
Español
Français
Italiano
APPLY FOR A LOAN
GET AN INSURANCE QUOTE
TRADE YOUR YACHT
PREPARE DOCUMENTATION
