- Maximum Speed: 22 kn
- Beam: 24' 0''
- Hull Material: Fiberglass
- Displacement: 218,000 lb
- Fuel Tank: 1 x 3434|gallon
- Fresh Water: 1 x 475|gallon
- Holding: 1 x 150|gallon
- Cabins: 7
1802 views
Please note, this is an unbuilt new construction project which has not yet been started. Completion time is approximately 14 months depending on other yard projects.
Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete!
**OPTIONS UPON REQUEST**
**ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE **
Price FOB Taiwan and includes U.S. Duty and Pre-Delivery Commissioning
COMMENT:

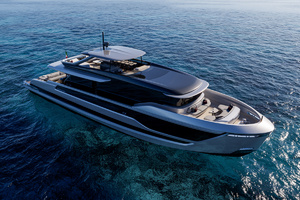

Since this is a new build offering, all photos are of previous projects. Exact layout, wood and stone selection are buyer's choice.
This listing is courtesy of the BoatWizard MLS and may be centrally listed withanother broker. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey representation of a particular vessel.
Denison Yacht Sales offers the details of this yacht in good faith but can’t guarantee the accuracy of this information nor warrant the condition of this boat for sale. This yacht for sale is offered subject to prior sale, price change, or withdrawal from that yacht market without notice. She is offered as a convenience by this yacht broker to its clients and is not intended to convey direct representation of a specific yacht for sale.
1. MAIN DECK-TEAK 14MM
2. HIGH BULWARK W/FLUSH MOUNTED LED DECK LIGHTS, TWO REAR BULWARK SIDE DOORS FOR BOARDING (ONE BOARDING GATE ON EACH SIDE)
3. STAINLESS STEEL INTEGRAL ROLLERS & CHAIN STOPPER FOR DUAL ANCHOR CHAIN
4. VERTICAL ELECTRIC ANCHOR WINCHES x 2:
MAXWELL VWC6000C/HYD.
VERTICAL HYDRAULIC WINDLASS, DUAL DIRECTION, CHROMED, MATCHED PAIR, WITH CHAIN WHEEL C1=3182/016 (1/2”HT) AND PARTS:
2 x AA560 ROPE/CHAIN COUNTER/REMOTE CONTROL
1 x BAND BRAKE
1 x CHAIN ROLLER STOPPER TENSIONER
1 x HAND HELD REMOTE CONTROL
5. AFT DECK MOORING CAPSTAN x 2 SETS:
MAXWELL VC2200W/D
VERTICAL ELECTRIC CAPSTAN, WIDE DRUM SINGLE DIRECTION, 24VDC, CHROMED, AND PARTS:
1 x FOOT SWITCH W/COVER
1 x 80 AMP BREAKER PANEL
1 x REVERSING SOLENOID PACKS, 24VDC
6. STAINLESS STEEL 250 LB ANCHOR x 2
7. HIGH TENSILE GALVANIZED ANCHOR CHAIN x 2:
LEFT: 300 FEET (5/8”)
RIGHT: 300 FEET (5/8”)
8. FRESH WATER ANCHOR CHAIN WASH DOWN
9. HEAVY DUTY S/S 3” OVAL HANDRAIL WITH 1 1/2” STANCHIONS
10. S/S FLAGPOLE ON BOW RAIL
11. BOW STORAGE LOCKER FOR FENDERS AND ANCHOR CHAINS
12. HEAVY DUTY 316# STAINLESS STEEL TWIN CLEATS AND FAIRLEADS WITH ROLLERS
13. BLACK TEMPERED SAFETY GLASS
14. STAINLESS STEEL PNEUMATIC SALOON SLIDING DOOR WITH BUTTON AND SAFETY SENSOR DEVICE
15. TWO PANTOGRAPH SIDE DOORS (PORT SIDE & STARBOARD SIDE) IN DECK HOUSE
16. STAINLESS STEEL PORTHOLES ALL WITH BLACKOUT SHIELDS/ ROUND PORT LIGHTS ON DECK HOUSE
17. BUILT-IN HOT & COLD WATER SHOWER – SWIM PLATFORM:
SSI 48300000 STOWAWAY SHOWER UNIT WHITE x 1
18. LARGE TEAK INLAY SWIM PLATFORM WITH STAIRWAYS TO AFT DECK
19. FRP “U” SHAPE SEATING ON AFT DECK WITH CUSHION AND COVERS
20. AFT DECK CUSTOM SLIDING HIGH-LOW TABLE WITH COMPASS INLAY x 2
21. TENDER GARAGE
22. ANTI-FOULING BOTTOM PAINT:
SEA HAWK PRIMER SYSTEMS TUFF STUFF 1284 GREY OR 1285 WHITE
SEA HAWK SELF-POLISHING CO POLYMER ANTI-FOULING CUKOTE 3445 BLACK OR 3430 DARK BLUE
23. SINGLE BOOT STRIPE COLOR: BLACK
24. S/S HANDRAILS ON AFT DECK STAIRS WITH TWO INTERMEDIATE RAILS
25. LED FLOOD LIGHT ON THE END OF AFT DECK CEILING x 2
26. EXTERIOR STEP LIGHTS:
IMTRA KODIAK BLUE LED S/S 24V
27. RUB RAIL WITH S/S CAP ON LOWER AFT HULL SIDES
28. SOLID STAINLESS STEEL RUB RAIL AROUND HULL/DECK JOINT
29. ZINC ANODES ON TRANSOM, SHAFT AND BOW AND STERN THRUSTER
30. FRESH WATER WASH DOWN SPIGOTS ON THE BOW AND AFT DECK:
SCANDVIK 10187 S/S
31. AFT DECK REFRIGERATOR:
ISOTHERM CRUISE 90 FREEZER INOX 110V/60HZ
32. DECK WASHDOWN, SALT WATER:
FLOJET 4325-343L WATER PUMP 24V W/NOZZLE x 1
33. HYDRAULIC SWIMMING PLATFORM (BESENZONI PL850 OR EQUIVALENT W/ 1873 LBS LIFTING CAPACITY)
34. WATER FILL DECK FITTING x 2
35. DIESEL FILL DECK FITTING x 2
1. TEAK FLOOR
2. FRP RADAR ARCH AND MAST
3. AIR HORN:
BUELL S/S AIR HORN COMPRISING:
1 X 5444-3 24V TANK MOUNTED COMPRESSOR
1 X 1062 12” STROMBOS AIR HORN
1 X 1063 15” STROMBOS AIR HORN
1 X 1064 18” STROMBOS AIR HORN
4. INTERNATIONAL NAVIGATION LIGHTS & CONTROLLER ALL LED AQUA-SIGNAL ONE SET (5):
3532-003 #55 MASTHEAD LIGHT 24V
3535-103 #55 STARBOARD LIGHT 24V
3534-203 #55 PORT LIGHT 24V
3533-703 #55 STERN LIGHT 24V
3531-703 #55 ALL-AROUND LIGHT 24V
5. CUSTOM WALK BEHIND WET BAR:
REGRIGERATOR/ICEMAKER: U-LINE CO29BTP-20 110V/60 HZ
FAUCET: GROHE
SINK
3 X BAR STOOLS
GRANITE TOP
6. FRP SETTEE WITH REMOVABLE CUSHIONS, STORAGE BELOW AND COVER
7. HELM STATION:
HELM SEAT - BESENZONI P217 HELM SEAT x 1
SEARCH LIGHT -ACR RCL-100 24V
"AT REST" STABILIZER CONTROL AND MONITORING DISPLAY
BOW & STERN THRUSTER CONTROL PANEL
DANFORTH 5” MAGNETIC COMPASS
FUEL GAUGE HEADHUNTER TS-3000 SERIES
RUDDER INDICATOR
CCTV SYSTEM:
FLIR DNR118 NETWORK VIDEO RECORDER LIR DNR118
FLIR N338FH IP DOME CAMERA x 3 (2 ON AFT DECK, AND 1 ON FOREDECK FACING WINCH)
FLIR AX8 MARINE THERMAL MONITORING CAMERA x 2 FOR ENGINE ROOM
GARMIN NAVIGATION SYSTEM:
I. FLYBRIDGE HELM & LOWER PILOTHOUSE:
GPSMAP® 8624 FULLY-INTERGRATED MULTI-TOUCH MFD x 3
GRID™ - GARMIN REMOTE INPUT DEVICE x 1
GARMIN CARD READER x 1
VHF 200 MARINE RADIO x 2
AIS™ 600 CLASS B BLACK BOX TRANSCEIVER x 1
GMS 10 NETWORK PORT EXPANDER x 2
II. CREW’S MESS:
GPSMAP® 7608 FULLY-INTERGRATED MULTI-TOUCH MFD x 1
GHS 10™ 10 WIRED VHF HANDSET x 1
III. AUTOPILOTING:
GHP REACTOR, HYDRAULIC W/SMARTPUMP COREPACK x 1
GRF 10 RUDDER FEEDBACK SENSOR x 1
IV. MAST/HARDTOP/RADAR ARCH:
GMR™ 2526 X HD2 OPEN ARRAY RADAR AND PEDESTAL (25KW/6FT/96NM) x 1
GMR FANTOM™ 6 OPEN ARRAY RADAR AND PEDESTAL (40W/6FT/72 NM) x 1
GPS 19X NMEA 2000 x 2
GXM™ 52 SIRIUS XM® MARINE RECEIVER x 1
V. SOUNDER & TRANSDUCER:
GSD™ 25 PREMIUM SONAR MODULE x 1
AIRMAR 1KW B265LH BRONZE THRU-HULL TRANSDUCER x 1
GARMIN GT51M-THP –S/S THRU-HULL PAIR DOWNVU/SIDEVU x 1
AIRMAR DST800 SMART SENSOR DEPTH, SPEE, TEMP, NMEA 2000 x 1
8. JACUZZI AT BRIDGE DECK AFT
9. S/S FLAG STAFF ON REAR OF FLYBRIDGE
10. S/S HATCH ON BRIDGE DECK STEP OPENING
11. LOW LEVEL COURTESY LED LIGHTS 24V
12. OVERHEAD LED LIGHTS
13. INTERLOCKING HEADLINER
1. ENGINE:
CAT C-32 ACERT 1925 HP X 2 GEARBOX
ZF2070A MARINE GEAR RATIO 2.467: 1 x 2
2. SOUNDOWN ENGINES MOUNTS TO REDUCE VIBRATION
3. CAT ELECTRONIC ENGINE CONTROL SYSTEM, INCLUDING REMOTE STATION CONTROL & BACK-UP SYSTEM:
FIXED STATIONS x 1 AT PILOTHOUSE; REMOTE CONTROL STATION x 1 IN THE AFT DECK PORT SIDE
4. ENGINE FUEL FILTERS: RACOR 75/1000MAX2 W/ALARM x 2
5. GENERATOR FUEL FILTERS: RACOR 75/500MAX2 W/ALARM x 2
6. S/S SHAFTS:
AQUATECH 22 HIGH STRENGTH DIAMETER 4” x 2
7. HIGH PERFORMANCE 5–BLADE PROPELLERS: HUNG SHEN NIBRAL PROPS x 2
8. MAIN & INTERMEDIATE BRONZE SHAFT STRUTS WITH BACKING PLATES
9. SHAFT & RUDDER PACKING GLANDS WITH MAINTENANCE FREE TIDE STRONG SEALS:
TIDES MARINE RUDDER SEAL DIAMETER 3-1/2” & SHAFT SEAL DIAMETER 4”
10. HYNAUTIC POWER STEERING SYSTEM WITH PTO ON BOTH ENGINES:
PSC-2252-21-2 DUAL STATION W/COOLING WATER FLOW DETECTOR
11. SEA WATER STRAINERS FOR ENGINE, GENERATORS, AIR CON AND WATER MAKER
12. SEA COCKS ON ALL UNDERWATER FITTINGS
13. S/S EMERGENCY TILLER
14. S/S RUDDERS:
DIAMETER 3-1/2”
15. HEAVY DUTY S/S WIPERS WITH VARIABLE SPEED CONTROLS & SCREEN WASHER SYSTEM EXALTO 24V X 4
16. HYDRAULIC BOW AND STERN THRUSTERS WITH CENTRAL HYDRAULIC SYSTEM
17. "AT REST" STABILIZER SYSTEM
18. STEERING WHEELS AT P/H & F/B:
S/S 22” DIAMETER x 2
19. DEANGELO EXHAUST SYSTEM W/ BYPASS
1. WELL PLANNED, SPACIOUS E/R WITH REMOVABLE NIDA-CORE DECK PLATES
2. PYROTEK NOISE CONTROL DESIGN SOUND INSULATED MATERIALS
3. WATER TIGHT BULKHEAD UP TO ENTRANCE DOOR
4. FULL LENGTH S/S GRAB RAIL ON EACH SIDE OF ENGINE
5. E/R AC LED LIGHTS & DC LED DOME LIGHTS
6. ENGINE COMPARTMENT BLOWER & MOISTURE ELIMINATOR:
DELTA “T” BLOWERS WITH 600-P/T4 CONTROL SYSTEM, ADJUSTABLE SPEED DRIVE AND COLOR TOUCH SCREEN:
500-219183-45/8 INTAKE FAN W/DAMPER, AXIAL. 21 IN. x 2 SETS
500-215363-30/8 EXHAUST FAN W/DAMPER, AXIAL. 15 IN. x 2 SETS
7. AUTOMATIC FIRE EXTINGUISHING SYSTEM W/AUTOMATIC ENGINES & VENTILATION SHUTDOWN:
SEA-FIRE FM-200 24V
SEA-FIRE FIRE DETECTION & MONITORING SYSTEM THROUGHOUT THE BOAT
8. ENGINE ALARM SYSTEM FOR LOW OIL PRESSURE & HIGH WATER TEMPERATURE
9. HIGH VOLUME AC FRESH WATER PRESSURE PUMP & ONE DC PUMP FOR BACK UP:
HEADHUNTER XR-124 12-24VDC x 1
HEADHUNTER M5-230 MACH 5 230VAC x 2
10. CHILLED WATER AIR CONDITIONING UNITS LOCATED IN ENGINE ROOM:
CRUISAIR CHILLED WATER AIR CONDITIONING 230V/60HZ W/SMXHT DIGITAL CONTROL
AIR COMPRESSOR:
TWCX60 (60000 BTU) x 4
AIR HANDLER:
SALOON: 24000 BTU/HR x 1, 18000 BTU/HR x 1
GALLEY: 18000 BTU/HR x 1
KITCHEN: 24000 BTU/HR x 1
PILOTHOUSE: 18000 BTU/HR x 1
CARDROOM: 24000 BTU/HR x 1
MASTER STATEROOM: 24000 BTU/HR x 1, 18000 BTU/HR x 1
MASTER BATHROOM: 18000 BTU/HR x 1
PORT FWD GUEST CABIN/BATHROOM: 18000 BTU/HR x 1
PORT AFT GUEST CABIN/BATHROOM: 18000 /HR x 1
STBD FWD GUEST CABIN/BATHROOM: 18000 /HR x 1
STBD AFT GUEST CABIN/BATHROOM: 18000 /HR x 1
CAPTAIN CABIN: 9000 BTU/HR x 1
PORT CREW CABIN: 9000 BTU/HR x 1
STBD CREW CABIN: 9000 BTU/HR x 1
CREW MESS: 12000 BTU/HR x 1
11. FRP FUEL TANKS W/ HEADHUNTER FUEL GAUGE: 3434 GAL FUEL TANK x 1
12. OIL CHANGE PUMP SYSTEM FOR ENGINES, GENERATORS AND CLUTCHES:
REVERSO OP-704 24V x 1
13. HEAVY DUTY ENGINE ROOM DOOR WITH VIEWING WINDOW
14. MANUAL BILGE PUMP: HENDERSON MK5 UNIVERSAL MOUNT PUMP x 1
15. FUEL TRANSFER PUMP W/ MECHANICAL FLOW METER:
TUTHILL FR2410C 24V 1/4HP x 2
TUTHILL 901-1 x 2
16. S/S COVER OUTSIDE ENGINE EXHAUST
17. FRESH-WATER HOSE FOR FILLING ENGINE AND GENERATOR AND EXPANSION TANK IN ENGINE ROOM:
BASIN: LP-7000 x 1
TAP: SCANDVIK 10477 COMPACT MIXER WHITE x 1
SHOWER DRAIN: RULE 98 800GHP 24V x 1
18. WATER MAKER:
SEA RECOVERY 1400GPD (ONE) COMPLETE PRE-FILTER, OIL/WATER SEPARATOR, CARBON FILTER, SRC FWF/AW AUTOMATICALLY RINSES WITH FRESH WATER
19. WORK BENCH OVER THE ENGINE X 2
1. OCTOPLEX DISTRIBUTED POWER CONTROL AND MONITORING SYSTEM OF ALL MAIN SHIP SYSTEM INCLUDING BUT NOT LIMITED TO, TANK LEVEL ALARMS AND MONITORING, PUMP CONTROL, BILGE STATUS AND ALL ELECTRICAL LOAD MANAGEMENT
2. 110/220 VOLT ELECTRICAL SUPPLY FROM GENERATOR OR SHORE POWER
3. SHORE POWER INLET W/ RADIO REMOTE CONTROL IN THE TRANSOM:
GLENDINNING CABLE MASTER CM-8 100AMP 24V WITH 120’ CABLE x 2 SETS
GLENDINNING RADIO REMOTE CONTROL 04155 (2 TRANSMITTERS) x 1 SET
4. INVERTERS:
VICTRON QUATTRO 48/500/70-100/100
5. COLOR-CODED WIRING FOR EASY IDENTIFICATION
6. GENERATOR:
ONAN MARINE DIESEL GENERATORS 55 KW 3 PHASE,(60HZ); 110V/220V 60HZ x 2 INCLUDING STANDARD EQUIPMENT(CONTROL PANEL): SOUND SHIELD, WET EXHAUST MUFFLER, GAS/WATER SEPARATOR
7. AUTOMATIC BATTERY CHARGER:
DOLPHIN 80 AMP 24V 115-230V 50/60HZ x 2 FOR SERVICE BATTERIES
PROTECH 12V 30AMP x 1 FOR GENERATOR BATTERIES
8. BATTERY SWITCH (VAPOR PROOF):
BEP 701-MDO x 3
9. 225 AMP/HR GEL CELL SEALED BATTERIES FOR SERVICE/ENGINES/GENSETS:
SERVICE LIFELINE GPL-8DL 255AMP x 4
ENGINE LIFELINE GPL-8DL 255AMP x 4
GENSETS LIFELINE GPL-8DL 255AMP x 2
10. ALL BATTERIES ENCLOSED WITH FIBERGLASS BOXES AND COVERS
11. AC VOLT DUPLEX RECEPTACLES LOCATED THROUGHOUT INCLUDING ENGINE ROOM
12. GFI PROTECTION FOR AC REQUIRED OUTLETS:
VIMAR 16511.16B 120V~60HZ
13. AUTOMATIC ISOLATION & BOOSTING TRANSFORMER:
CHARLES 93-ISOBOST 100 AMP x 2
14. INDIRECT LED LIGHTING UNDER VALANCE IN SALOON, STATEROOMS, PILOTHOUSE, HAND RAILS, AND GALLEY
15. COMPLETE ANTI ELECTROLYSIS BONDING SYSTEM VIA 2” COPPER STRAP AND HULL ANODES
16. SHORE TELEPHONE INLET:
HUBBELL PH6594TV x 1
1. FWD 150 GALLON HOLDING TANK WITH MACERATOR PUMP & AFT 50 GALLON TANK WITH MACERATOR.
2. WASTE TREATMENT SYSTEM IN E/R:
HEADHUNTER TW-HMX-512 1200GPD
3. SUMP PUMPS FOR SHOWERS:
RULE 12 24V/2000GPH x 3
4. BILGE PUMPS:
RULE 16A 24V/3700GPH x 7
5. FLOAT SWITCH:
LOW-SUREBAIL 382251 x 6
HIGH-SUREBAIL 382251 x 9
6. MARINE GRADE LINES FOR FRESH WATER SYSTEM
7. WATER HEATERS W/HOT WATER CIRCULATING PUMP:
WATER HEATER: TORRID MV40S 120V 1500W S/S 40 GALLONS x 2
HOT WATER CIRCULATING PUMP: GRUNDFOS UP10-16B5/ATLC 115V/60HZ x 1
8. 475 GAL S/S WATER TANKS W/ HEADHUNTER TS-3001B ELECTRIC WATER GAUGE
9. PRESSURE STORAGE TANKS:
HEADHUNTER AVF-4 4 GAL x 2
GROCO PST-1 1 GAL x 1
10. MANIFOLD FOR OVERBOARD DISCHARGES TO MINIMIZE NUMBER OF THRU-HULL FITTINGS, IN BRONZE WITH BALL VALVES
11. HIGH WATER BILGE ALARM SYSTEM - 7 AREAS
12. DOCKSIDE FRESH WATER INLET:
PAR JABSCO 44410-1001 x 1
13. COLOR CODED PIPING SYSTEM FOR EASY IDENTIFICATION
14. BRONZE INTAKE VALVES (BALL). ALL THRU-HULL FITTINGS ARE BRONZE
15. 2HP AC FIRE PUMP WITH ON-DECK FIRE HOSE
16. BILGE EXHAUST VENTILATION:
PAR 35740-0013 24V 3” FLANGE MOUNT BLOWER
1. HIGH QUALITY FABRIC SOFAS
2. INTERLOCKING VINYL CEILING PANELS THROUGHOUT
3. HIGH QUALITY DOOR LOCK SETS THROUGHOUT
4. LED LIGHTING SYSTEM THROUGHOUT:
CHROME TRIM & WHITE COLOR
5. ITALIAN SWITCH & OUTLETS THROUGHOUT:
VIMAR / CHROME TRIM
6. CHOICE OF FABRICS FOR BEDDING & CURTAINS
7. INDIRECT LED WARM WHITE LIGHTING SYSTEM THROUGHOUT, UNDER SOFAS, BEDS & CURTAIN VALANCES
8. INTERIOR STAIRWAYS WITH SAFETY LED LIGHT SYSTEM
9. CEDAR LINED HANGING LOCKER CABINET W/LED LIGHT IN EACH CABIN
10. PYROTEK NOISE CONTROL DESIGN OF SOUND INSULATION IN WALLS BETWEEN CABINS
11. CENTRAL VACUUM SYSTEM W/ OUTLETS:
NUTONE 110V/60 HZ x 1
12. CHROME COLOR BATHROOM FIXTURE THROUGHOUT
13. FROSTED GLASS FOR SHOWER DOORS
14. SALOON:
HIGH QUALITY CUSTOM BUILT UPHOLSTERED SOFA x 4
INTERLOCKING VINYL CEILING PANELS THROUGHOUT
S/S HIGH POLISH ELECTRICAL OPERATED DOOR
CUSTOM DESIGN DINING TABLE (FOR 8 PEOPLE)
CUSTOM DESIGN CEILING SOFFIT
CUSTOM DESIGN TV CABINET
NUVO WHOLE ZONE AUDIO SYSTEM
SHAPE LC-58U30 58” TV
PIONEER BLU-RAY DISC PLAYER
APPLE TV
18. MASTER CABIN:
INTERLOCKING VINYL CEILING PANELS
KING SIZE BED
CUSTOM DESIGN HEADBOARD
CUSTOM STORAGE CABINETS
POWER CURTAINS
VANITY LIGHT
CEDAR LINED WALKING CLOSET
READING LIGHTS:
SHAPE LC-50U30 50” TV
PIONEER BLU-RAY DISC PLAYER
NUVO WHOLE ZONE AUDIO SYSTEM
APPLE TV
19. PORT FWD GUEST CABIN:
INTERLOCKING VINYL CEILING PANELS
QUEEN SIZE BED
CUSTOM DESIGN HEADBOARD AND CEILING
CUSTOM STORAGE CABINETS
VANITY LIGHT: QUICK QB-COMPASS/CHROMED x 1
CEDAR LINED CLOSET
READING LIGHTS: QUICK ISABELLA 15-25 /CHROMED/SHADE LINEN/ B15D LED x 2
SHAPE LC-32LE275 32” TV
NUVO WHOLE ZONE AUDIO SYSTEM
APPLE TV
20. PORT AFT GUEST CABIN:
INTERLOCKING VINYL CEILING PANELS
QUEEN SIZE BED
CUSTOM DESIGN HEADBOARD AND CEILING
CUSTOM STORAGE CABINETS
VANITY LIGHT: QUICK QB-COMPASS/CHROMED x 1
CEDAR LINED CLOSET
READING LIGHTS: QUICK ISABELLA 15-25 /CHROMED/SHADE LINEN/ B15D LED x 2
SHAPE LC-32LE275 32” TV
NUVO WHOLE ZONE AUDIO SYSTEM
APPLE TV
21. STBD FWD GUEST CABIN:
INTERLOCKING VINYL CEILING PANELS
QUEEN SIZE BED
CUSTOM DESIGN HEADBOARD AND CEILING
CUSTOM STORAGE CABINETS
VANITY LIGHT: QUICK QB-COMPASS/CHROMED x 1
CEDAR LINED CLOSET
READING LIGHTS: QUICK ISABELLA 15-25 /CHROMED/SHADE LINEN/ B15D LED x 2
SHAPE LC-32LE275 32” TV
NUVO WHOLE ZONE AUDIO SYSTEM
APPLE TV
22. STBD AFT GUEST CABIN:
INTERLOCKING VINYL CEILING PANELS
QUEEN SIZE BED
CUSTOM DESIGN HEADBOARD AND CEILING
CUSTOM STORAGE CABINETS
VANITY LIGHT: QUICK QB-COMPASS/CHROMED x 1
CEDAR LINED CLOSET
READING LIGHTS: QUICK ISABELLA 15-25 /CHROMED/SHADE LINEN/ B15D LED x 2
SHAPE LC-32LE275 32” TV
NUVO WHOLE ZONE AUDIO SYSTEM
APPLE TV
23. CAPTAIN’S CABIN:
TEAK & HOLLY FLOORS
HANGING LOCKER
DOUBLE BED
DESK & READING LIGHTS
SHAPE LC-32LE275 32” TV
NUVO WHOLE ZONE AUDIO SYSTEM
APPLE TV
24. STBD CREW & PORT CREW QUARTERS:
TWIN BEDS
READING LIGHTS
NUVO WHOLE ZONE AUDIO SYSTEM
25. CREW MESS AREA:
SOFA SEATING AREA
DINNING TABLE
SHAPE LC-32LE275 32” TV
NUVO WHOLE ZONE AUDIO SYSTEM
APPLE TV
GARMIN GPSMAP® 7608 FULLY-INTERGRATED MULTI-TOUCH MFD x 1
GHS 10™ 10 WIRED VHF HANDSET x 1
1. TRASH COMPACTOR:
BROAN # 15SSEXF S/S
2. STONE WORKTOPS
3. TWIN BOWL SINK WITH TA
4. CABINETS AND TOP-BOX LOCKERS
5. COOKTOP:
GE LATEST MODEL
6. ICEMAKER:
GE LATEST MODEL
7. DOWNDRAFT VENTILATOR GE LATEST MODEL W/ LIGHT
8. DISHWASHER:
GE LATEST MODEL
9. OVEN:
GE BUILT IN LATEST MODEL
10. FULL HEIGHT REFRIGERATOR:
GE LATEST MODELS
11. FULL HEIGHT FREEZER:
GE LATEST MODELS
12. MICROWAVE:
GE LATEST MODEL
Please note, this is an unbuilt new construction project which has not yet been started. Completion time is approximately 14 months depending on other yard projects.
Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete!
**OPTIONS UPON REQUEST**
**ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE"
COMMENT:
Since this is a new build offering, all photos are of previous projects. Exact layout, wood and stone selection
are buyer's choice.
1. MARBLE COUNTER TOP AND LACQUER FINISH IN ALL HEADS
2. SEAMLESS POLYURETHANE FINISH IN ALL HEADS
3. NON-SLIDE MARBLE FLOORING SELECTED BY THE OWNER WITH HONEYCOMB BACKING
4. HEADHUNTER VACUUM TOILET SYSTEM IN EACH HEAD
5. EXHAUST FANS IN EACH HEAD
6. MIRROR CEILING WITH WOOD BORDERS IN EACH HEAD
7. SINKS WITH GROHE FAUCETS
Contact our team to schedule a private showing.
Love this yacht? Get notified on price reductions and other related updates.
Stay informed on all things yachting, including notable sales, industry updates, events, and boating tips with our newsletters.
Read the latest motoryachts news and stay up to date on related events.
