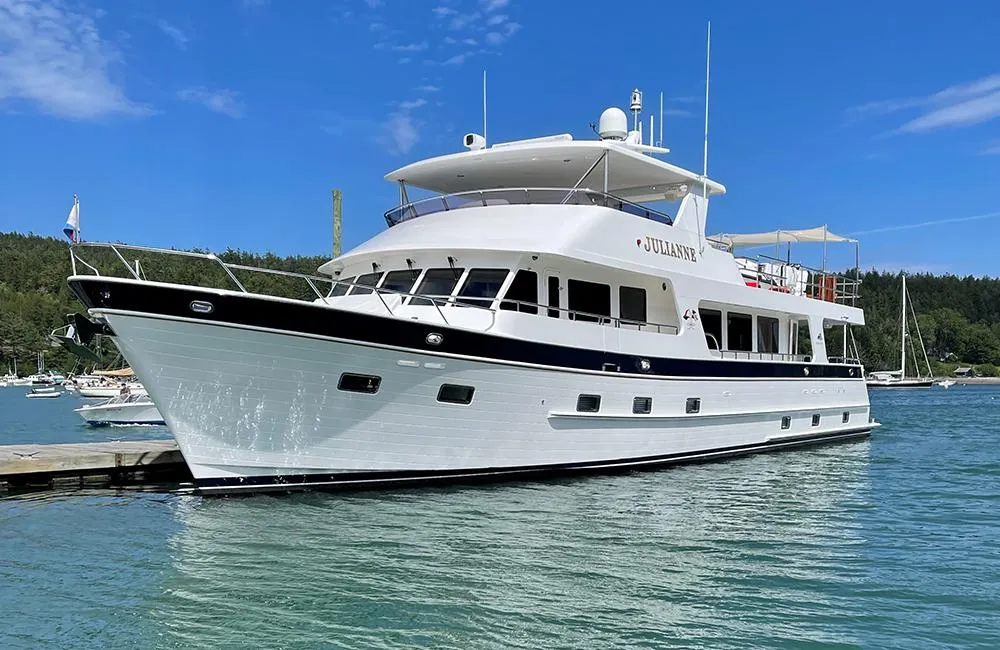

JULIANNE (NAME RESERVED) Yacht for Sale

• Cruising Speed: 10 kn
• Maximum Speed: 15 kn
• Beam: 21' 0''
• Hull Material: Fiberglass
• Max Draft: 5' 9''
• Displacement: 207,000 lb
• Fuel Tank: 1 x 3500|gallon
• Fresh Water: 1 x 600|gallon
• Holding: 1 x 350|gallon
• Cabins: 6
• Heads: 7

The current owners of JULIANNE, who were previously owners of a 90’ Burger Motoryacht and a 81’ Northern Marine, along with the Outer Reef team consulted with the most experienced representative of Soundown Corporation to ensure their new 90’ Outer Reef Motoryacht would set the bar in terms of premium sound insulation. After a $130,000 investment these owners have ensured this technology has created the quietest, vibration-free engine room, in conjunction with the advanced enclosed shaft SeaTorque System. Additionally, throughout the entire yacht, there is no transmission of sound from showers running water, sinks, toilet flushings, or even door closings. During extensive sea trials post-installation, Outer Reef’s electronics technician, who is well-known within the industry and services many other new builds, found that while the yacht was at full load on the engines, and standing on the aft deck, JULIANNE surpassed any previous vessel in terms of her quietness in all circumstances and while underway.

JULIANNE is equipped with a large, comfortable aft deck table that has both perimeter and built in seating for eight, around a custom designed teak table for Alfresco dining. Stepping into the interior, the very spacious salon, galley, and main deck pilothouse connect within an inviting, spacious and bright living and entertainment space. An electrically operated, beautifully appointed rising wall can easily separate the pilothouse for privacy and night running. A main deck day head with outside access adds convenience to owners and guests as well. The two interior staircases, as well as the aft deck to boat deck staircase, have added steps for additional safety and conform more to home-style staircases.

Stairs starboard of the helm lead down to the owner and guest cabins, which offer more accommodation space than any previous Outer Reef built to date. The VIP cabin is forward with queen size berth and ensuite head. The port guest cabin has twin lower berths with ensuite head, and the starboard cabin has a queen berth with ensuite head. The Master is midship with a king berth, and a very large head with spacious storage and full-size laundry washer and dryer. The ensuite head has a separate toilet compartment. The hand selected custom furnishings, natural stone choices, and Silestone counters provide a warm, comfortable and rich environment throughout the yacht.

An aft staircase in the salon leads to the largest crew quarters ever provided on an Outer Reef. Finished to the same level as the rest of the yacht, this area is furnished with a full galley, dinette, two-drawer refrigerator, freezer, dishwasher, large pantry, a full-size convection microwave, and an additional full-size laundry center. To starboard is a king berth Captain’s cabin with an ensuite head, and to port a transverse twin berth crew cabin with an ensuite head. Forward of the crew area, through a watertight door, is an air-conditioned full-height engine room, with excellent access to the engines, generators, hydraulic and other systems that also includes a Headhunter waste treatment center.

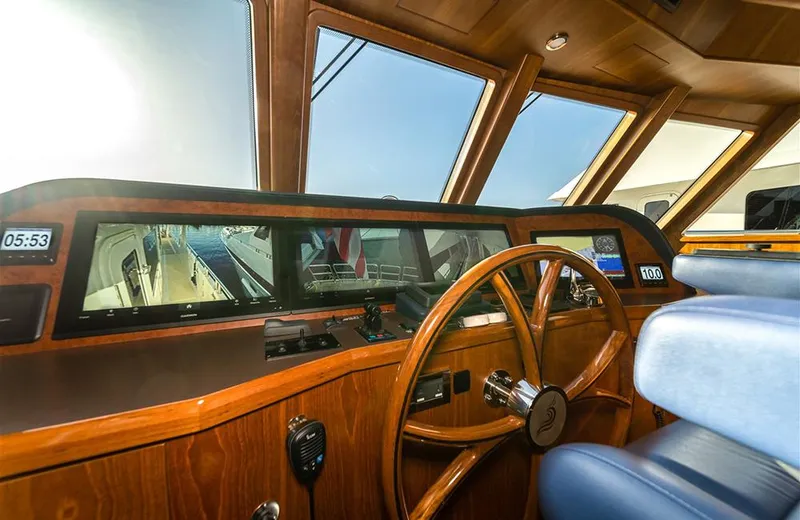

Two stairways lead to the flybridge helm, equipped with state-of-the-art Garmin electronics, three electric Stidd seats, wing controls port and starboard, port and starboard L-shaped seating areas with Silestone tables, a large bar with three deck mounted stools, oversized grill, storage, refrigerator and an icemaker – all weather protected by the hardtop. The huge boat deck easily handles a tender with an overall length of almost 19’ feet, effortlessly maneuvered by the 2600lb davit.

The owners of JULIANNE, having previously increased the standard size of the stainless railings on their previous 70’ Outer Reef, chose to also invest in the installation of larger-than-standard sized stainless rails throughout the entire 90’ yacht, from 1 inch to 1 1/2 inches. This also included any horizontal raise and their vertical supports. In addition, the rail height was also increased by 5 inches over any previous build for added safety at sea.

• Hand laid-up FRP hull with PVC core sandwich construction above water line
• Solid laminate, commensurate for hull size, made in female mold
• Vinylester barrier lamination for osmosis protection
• Simulated planked hull
• Full length longitudinal engine stringers and athwartship stringers
• Gel coated finish above waterline
• Two (2) coats of black antifouling paint over five (5) coats of epoxy primer below waterline (Hauled out August 2024. All running gear inspected as well as the thrusters, stabilizer fins, and rudders. Hull below waterline was sanded, primed and Sea Hawk Biocop was reapplied. All running gear and rudders have Prop-Speed. Renewed all zinc anodes on the vessel)
• Integrally molded rub rails with stainless steel capping
• Full length keel extends below running gear
• Stainless steel rudders and struts with two (2) Seatorque enclosed drive shaft systems (Inspected August 2024)
• CE-approved stainless steel portlights
• Boat construction from only 3 major molds
• Divinycell PVC cored construction with cook gelcoat
• All deck and hull area hardware attachments are finished with solid lamination – no coring
• Bilge area finished smooth and coated with bright white epoxy paint
• Windows with 3/8” tempered safety glass in salon and ½’ tempered safety glass in pilothouse
• Quiet Roll™ integrated spray rail system
• WheelHouse™ Technologies, Inc Marine Maintenance System
• Flag Blue fashion hull stripe with gold accent

• Aft deck with teak decking
• Built-in 6' extended swim platform with teak decking (includes a 3' addition)
• Stainless steel removable swim ladder on swim platform
• Upgrades 2.5” 316 stainless steel removable safety rails on swim platform
• Three (3) additional sockets on swim platform for rail storage
• 20" bollards port and starboard
• Stairway built-in to port and starboard side from swim platform to aft deck with FRP gate doors
• Aft deck FRP bench seating with storage beneath
• Five (5) Westminster Teak chairs with a Superyacht Finish with cushions
• Sliding teak aft deck table with custom holly and wenge compass design and stainless steel bases
• Port side Silestone-topped bar cabinet with sink, refrigerator and a separate Vitrifrigo ice maker
• FRP sliding door to salon with glass window top and bottom
• FRP weather tight door on transom
• Transom shower in recessed box with hot and cold water supply
• Fresh water wash down outlet
• Shorepower inlets for 110v/220v 60hz
• Two (2) Glendinning 100 amp cable masters, each with 100’ of cable, on transom
• Glendinning electronic engine and bow/stern thruster controls via hand-held remote
• Glendinning plug-in receptacle
• Maxwell VC2500 capstans port and starboard
• 316 Stainless steel heavy duty cleats secured to stainless steel backing plates inside bulwarks
• Deck scuppers piped out through transom at boot stripe
• 316 Stainless steel handrail to and from aft deck, upgraded from 1" to 1.5"
• Built-in FRP stairs from aft deck to boat deck with hatch and 316 stainless steel rails, upgraded from 1" to 1.5"
• Stairway has extra steps added, closer to home standards of building, which makes it less steep and safer
• Pull-out trash can under the stairs
• Two (2) corner hawse holes with rollers
• Wing doors port and starboard
• Two (2) LED working lights on aft deck overhang to light swim platform
• Socket for a 50" Samsung TV (stowed in the salon settee)
• Large towed tender whips and bulwark saddles (Installed January 2024)

• 316 stainless steel handrails alongside decks, upgraded from 1" to 1.5" and raised an additional 5" for added safety
• Molded with beige non-skid surface
• Marquipt 5-step boarding stairs with teak treads, with recessed storage on the starboard side deck
• Life ring recessed into starboard house wall
• Weather-tight doors opening into pilothouse port and starboard
• House side fixed windows with tinted tempered glass
• Five (5) 316 stainless steel hawser holes with stainless steel cleats per side recessed in bulwarks
• Fuel fill fittings for tanks recessed into house side
• 316 stainless steel overhead safety rails at side steps, upgraded from 1" to 1.5"
• Portuguese bridge molded with beige non-skid surface
• Locker doors in aft face of Portuguese bridge
• 316 stainless steel handrails on top of Portuguese bridge, upgraded from 1" to 1.5" and raised an additional 5" for added safety
• Glendinning plug-in receptacle
• Hinged door through Portuguese bridge to foredeck
• Three (3) stainless steel Exalto dual speed (intermittent) self-parking windshield wipers with wash down system
• ½” Clear tempered glass in forward facing windshields
• Windows are fixed with FRP recessed frames - no FRP trim around for easy removal and installation of glass

• Foredeck with beige non-skid surface
• Seating with a sunbed extension
• 316 Stainless steel CE-approved skylight/emergency hatch from the VIP stateroom below
• 316 Stainless steel rail on bulwarks increasing in width going forward, upgraded from 1" to 1.5" and raised an additional 5" for added safety
• 316 Stainless steel stanchions to support handrail, upgraded from 1" to 1.5"
• Deck lockers forward either side of anchor platform finished in white epoxy paint
• 316 Stainless steel anchor chute/roller at bow
• 176lb Ultra anchor with swivel and 400' of 5/8" chain
• Anchor snubber bridle
• Maxwell VWC-4000 Hydraulic vertical windlass with foot switches and remote controls for dual stations
• 20" bollards port and starboard
• Salt water wash down pump with outlet
• Fresh water wash down with outlet
• Deck drains plumbed to boot-stripe to prevent black streaks
• Glendinning plug-in receptacle

• Full-beam width deck with beige non-skid surface and ample storage space
• 316 stainless steel safety rails, upgraded from 1" to 1.5" and raised an additional 5" for added safety
• Venturi windscreen with 316 stainless steel rails, rails upgraded from 1" to 1.5"

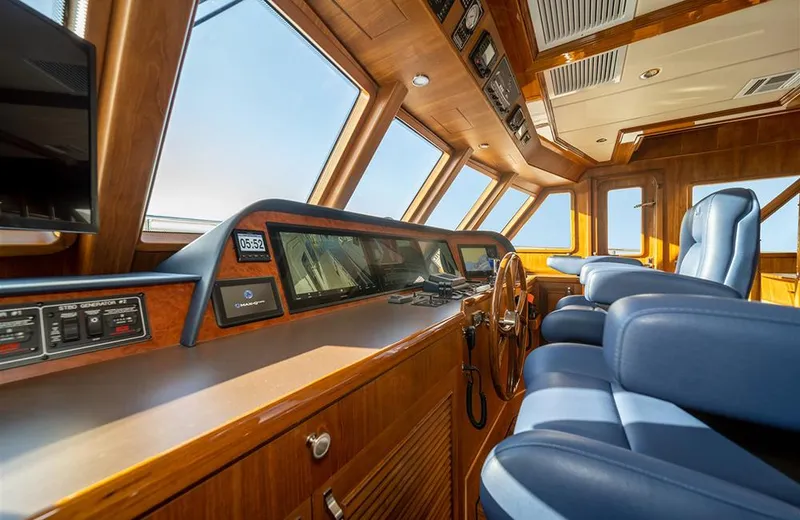

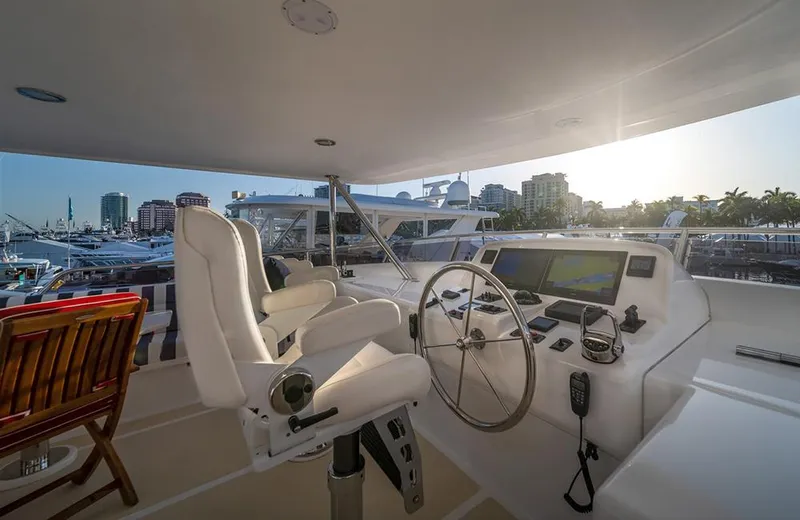

• Molded FRP steering console with engine controls
• Electronics console
• Glendinning electronic engine controls
• 5” magnetic compass
• Teleflex hydraulic power assist steering system (steering hoses inspected, filter changed and oil replaced in 2024)
• 316 stainless steel destroyer steering wheel, upgraded from 1" to 1.5"
• Three (3) low-back electric Stidd helm seats with Ultraleather and deluxe chrome bases
• Carlile and Finch 200w Xenon high powered searchlight with dual station controls
• Fire system repeater alarm
• Two (2) L-shaped settees port and starboard
• Two Silestone (2) tables with double pedestals
• Five (5) Aquasignal navigation lights in accordance with appropriate collision regulations
• Kahlenberg T-1 triple trumpet air horn ith compressor
• Kahlenberg for signal timer/horn control
• Upgraded night vision
• Socket for a 32" Samsung portable Smart TV (stowed in the salon settee)
• FRP radar mast

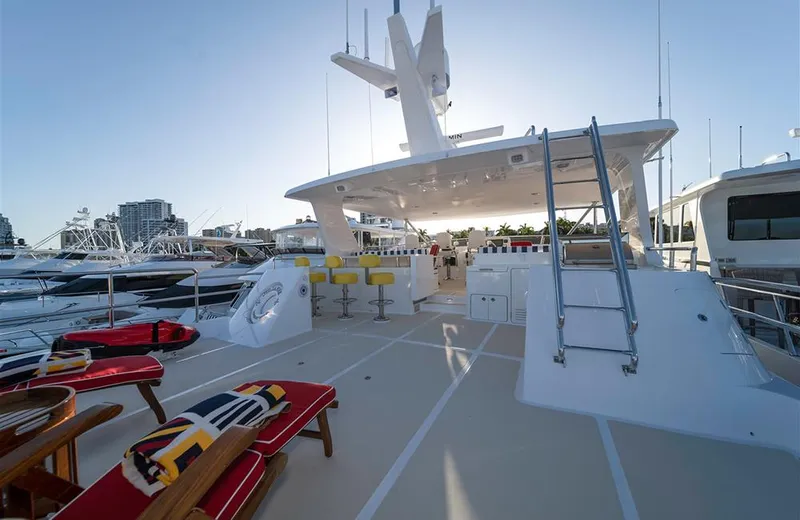

• Hard top over flybridge
• 316 Stainless steel mast with bow and anchor lights
• 316 Stainless steel sliding hatch and stairs starboard side down to pilothouse (handrails upgraded from 1" to 1.5")
• Gate door to boat deck

• Deck with beige non-skid surface
• 316 stainless steel hand rails, upgraded from 1" to 1.5" and raised an additional 5" for added safety
• Life ring recessed to port

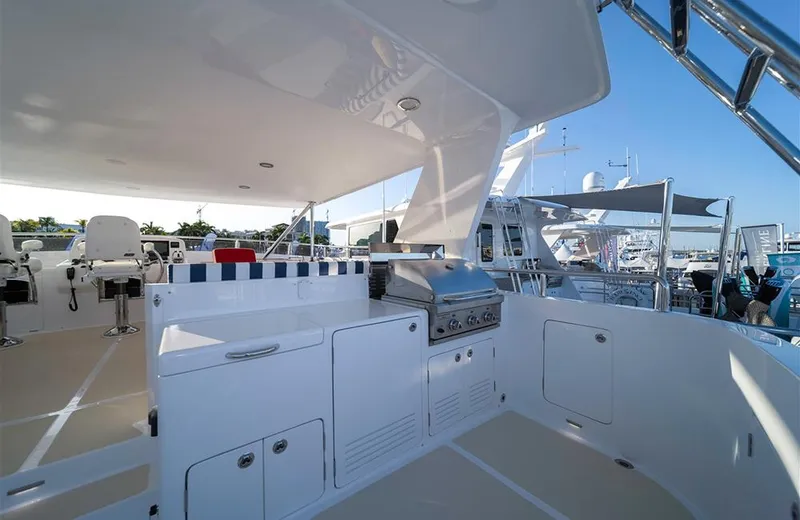

• Cabinet behind starboard settee with a sink, Vitrifrigo ice maker and 30" SeaStar built-in gas BBQ grill
• Cabinet with Silestone bar top to port with a Vitrifrigo fridge and storage underneath, and three fixed yellow marine-grade vinyl bar stools
• 1200KGS/2600lb aluminum painted davit with 4-way hydraulic control with rotating base, luff, lift, pendant switch and a 13.7’ telescoping arm (2024 - davit inspected as was the cable - oil replaced in reservoir)
• Five (5) triangle shade sails with adjustable stainless steel removable posts (post storage port and starboard)
• Removable upgraded (from 1" to 1.5") 316 stainless steel ladder from boat deck to hardtop
• Two (2) LED working lights on radar arch
• Glendinning plug-in receptacle
• Two (2) Ocean ISO 8-man liferafts mounted into port and starboard side railing (rafts service due May 2025)
• 19' 525 Walker Bay fully equipped tender with 115 Evinrude ETEC motor
• Two (2) SeaBobs with deck storage cradles and chargers
• Custom extra-large sunbed at the end of the deck with gas struts for hatches and side storage lockers port and starboard

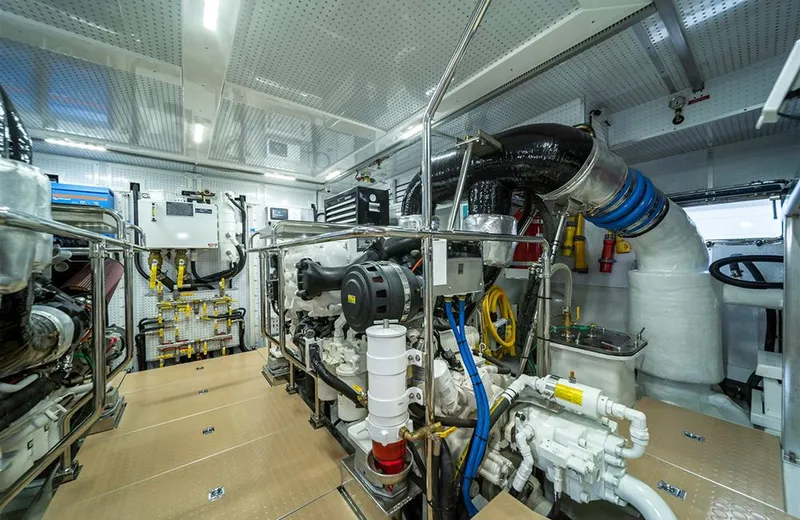

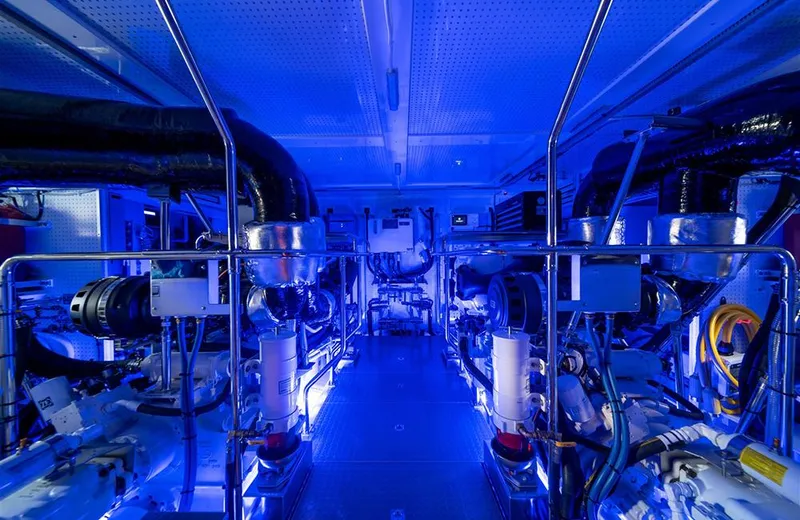

• Acoustically insulated stand-up engine room lined with Soundown sound and vibration absorbing material
• Edura beige coin dot flooring
• Twin Caterpillar C-18 Acert (1001 bhp) diesel engines with ZF transmissions and electronic instruments for dual stations (approximately 1770 hours - units were serviced and inspected at 1688 hrs)
• Two (2) Seatorque enclosed drive shaft systems and two (2) Nibral propellers (Inspected and serviced by Seatorque, November 2022. Propellers retuned and balanced by Stuart Propellers, November 2022)
• Stainless steel removable work benches over the engines
• Fiberglass drip pans under engines
• Blue strip LED lighting at the engine beds
• Twin Northern Lights 38k (60hz) generators with sound shields (P: 1704 hrs, S: 1546 hrs -  both units borescoped at the yard, had new injectors installed as well as all valve lashing adjusted. New oil pressure sensors installed)
• Upgraded ABT Trac 55hp hydraulic bow and stern thrusters (substantial upgrade)
• Upgraded ABT Trac 250 stabilizers with 9 sq. ft. fins (2024 - hoses inspected as was the actuators and fins. New Zincs on the fins. Oil reservoir filter replaced)
• 25 gallon waste tank installed in 2022, with two 16 gallon fresh lube tanks
• Northern Lights uplift water separator exhaust
• Underwater exhaust system with bypass and FRP mufflers
• Copper bonding system to all underwater fittings with zinc anodes
• Rigid fresh water pipes and color-coded copper fuel lines
• Stainless steel struts with bearings
• Headhunter 24v DC and Mach-5 115v AC fresh water pumps with accumulator tanks
• Two (2) 24v DC automatic shower sump systems with external pump
• Accessible wiring raceway throughout
• MarineAir chilled water air conditioning system (two 48,000 btu compressors and 12 air handlers - AC compressors were serviced in 2024 and both are in good shape)
• Additional separate engine room air conditioning system
• Back-up raw water cooling pump for the AC system
• Two (2) raised sea chests
• Ball-valve bronze seacocks on all through-hulls below waterline located in sea chests
• Reverso oil change system for engines, generators and transmissions (fresh and waste oil tanks added Fall 2022 to the system)
• Two (2) 100amp isolation transformers
• Two (2) prop shaft brushes
• 4 kw inverter/charger (24v DC to 115v AC 60Hz)
• 4 kw inverter/charger (115v AC to 230v AC 60Hz)
• Asea power converter 36k VA / 1/3ph input 1ph output, can convert from 100 amp 3-phase to 100 amp single-phase (serviced in the spring of 2024 - new fans, power modules were cleaned)
• $63,000 in upgrades to shore power and electrical system, upgraded to 100 amp 3-phase power
• Two (2) Racor 75/1000 max dual fuel filters with gauges for main engines
• Two (2) Racor 75/1000 max single fuel filters for generators
• Racor fuel polishing system
• Fuel management system
• Fireboy fire suppression system including both intake and outlet air shutdown system with aluminum louvers
• Four (4) automatic bilge pumps 24v DC and emergency bilge suction on engine
• Fire system and bilge high-water alarm system with warning panel
• Fresh water hose bibb
• AGM (Absorbed Glass Matt) batteries in FRP boxes:
• Two (2) engine banks with two (2) 8D batteries for each bank
• One (1) house bank with eight (8) 8D batteries with a total 1020 amp-hours (24VDC)
• Two (2) generator banks with one (1) battery each
• One (1) 24v and one (1) 12v battery charger
• Two (2) battery isolators
• Three (3) 20-gallon water heaters with heat exchangers
• Grundfos 115v circulation pump for the hot water system
• FCI Watermakers 1,800 gpd water maker (376 hours of operation - unit shows NO degradation of water quality or quantity)
• Dock-Mate 1004 10 X 30" water softening system including a whole boat carbon filter system and a VH410 UV sterilizer
• Headhunter X-Caliber (24v DC) back-up pump for fresh water
• Headhunter MX waste treatment system ($68,000 upgrade - installed by Headhunter in the US - salt water pump replacedin August 2024)
• Four (4) 24v DC blowers
• 316 stainless steel safety rails around engines, upgraded from 1" to 1.5"
• Work bench space
• Two watertight bulkheads
• Watertight aluminum engine room door with a sight window

• One (1) holding tank with a max capacity of 350 US gallons with two (2) macerator/discharge pumps. One (1) is wired and plumbed for backup redundancy
• One (1) stainless steel water tank with a max capacity of 600 US gallons
• Three (3) aluminum fuel tanks with a total capacity of 3,500 US gallons
• All fuel tanks, water tank, and waste tank were cleaned August 2024
• Fresh lube (2 16-gallon tanks)
• Waste lube (1 25-gallon tank)
• Lexan sight gauges on fuel tanks
• Inspection and cleaning ports on all tanks
• Fuel fills built into house sides in FRP cabinet

• High gloss bullnose and details throughout
• Beautiful high gloss teak star and monkey tail details throughout
• Sound deadening Soundown throughout - in all the walls, all the floors and ceilings in every stateroom and all around the engine room, creating the quietest and most vibration-free Outer Reef built-to-date
• LED lighting throughout entire vessel
• Power shades in salon, galley, port guest, starboard guest and master staterooms
• Custom finish cabin door hardware
• Upgraded alternate hardware on interior cabinetry
• Security safe

• Sliding door entrance from aft deck
• Entire length of the salon has an extra-thick layer of Soundown sound and vibration absorbing material, overlaid by an extra-thick pad and carpeting
• Staircase with Bolon inlay leading to the crew area
• Fixed windows in house sides with medium 3/8” tinted tempered safety glass
• Teak valance over windows with LED rope lighting
• Wall sconces
• Reading lights
• Vinyl headliner
• Coffer ceiling detail in high gloss
• Entertainment center cabinet starboard with additional storage cabinets
• Custom-built mahjong dining table with four chairs, all with Superyacht high gloss finish
• Custom-built sofa, side table, and two custom-made ottomans to port
• Two custom chairs to starboard
• Glass-front stemware/barware storage cabinet
• Air conditioning control panel
• Teak cabinetry and lockers
• Carpeted floor
• Teak wall paneling with satin finish

• Open galley layout with island
• An electric privacy partition wall (aft side has an underwater photograph by a Florida photographer, forward side with five star holly and wenge inlay design)
• Opening window
• Silestone countertops with a subway tile backsplash and a stainless steel under-mount Elkay sink
• Drawer for soap and sponges in front of the sink
• Teak wall paneling with satin finish
• Teak flooring
• GE Monogram 36” counter-depth side x side refrigerator
• GE Monogram 24” dishwasher with stainless interior
• GE Monogram 30” built-in microwave
• GE Monogram 30” electric cooktop
• GE Monogram 30” built-in oven
• Echelon Wine Captain 15” wine cooler
• Garbage disposal with switch
• Two-bin garbage
• Pull-out spice rack
• Large floor-to-ceiling pantry with 6 pull-out bins
• Custom-built emergency locker for two fire extinguishers and an emergency flashlight
• Air conditioning control panel

• Silestone countertop with sink
• Custom raised decorative glass backsplash
• Teak framed mirror with high gloss finish
• Storage cabinet under sink
• Wallcovering above chair rail with teak paneling below
• Headhunter 24v electric white toilet with sanitary hose for all discharge plumbing
• Ventilator blower
• Teak flooring
• Watertight exterior door

• U-shaped settee on raised platform
• Granite table with 316 stainless steel pedestals
• LED red and white bridge lights
• Reading lights
• Two (2) low-back electric Stidd helm seats with Ultraleather and deluxe chrome bases
• Binocular box
• Custom hand-crafted 1.5" teak Outer Reef steering wheel at pilothouse helm
• Burl console face
• Teleflex power steering system
• Engine display screens
• Overhead electronics console
• Wiring routes to facilitate equipment installation
• Main electrical distribution panels with gauges and circuit breakers for AC and DC
• Outer Reef alarm and advisory panel
• Headhunter sewage treatment system control and monitoring panel
• Transom doors on AC, DC and advisory panels
• AC system remote monitor panel
• Glendinning electronic engine controls with backup gear and throttle with synchronizer
• 5” magnetic compass
• Vinyl headliner
• Control for bow and stern thruster
• Air conditioning control panel
• Generator digital control panel
• 24v DC to 12v DC converter
• Windlass up/down switch and control circuit breaker
• Bilge pump control on advisory panel
• Equipment running advisory panel
• Socket for a 32" Samsung portable Smart TV (stowed in the salon settee)
• Pull-out printer tray
• Teak wall paneling with satin finish
• Weathertight doors opening out to port and starboard
• Teak stairway with Bolon inlay to flybridge to starboard (upgraded with a push-button hydraulic lift system for storage under the steps)
• Curved teak stairway with Bolon inlay leading to accommodations (upgraded with a push-button hydraulic lift system for storage under the steps)
• Both stairways have extra steps added, closer to home standards of building, which makes them less steep and safer
• Teak flooring

• High gloss chair rail with applied moldings, with wallcovering above
• Access doors to staterooms
• Teak flooring with a custom compass rose inlay design

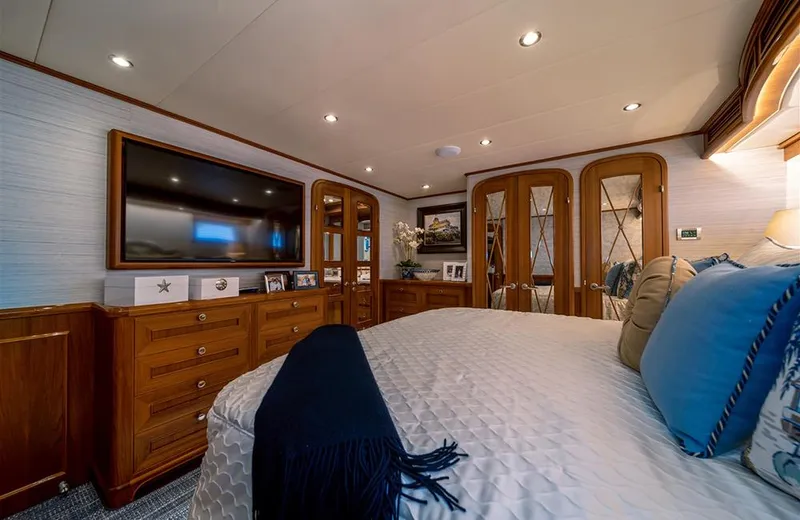

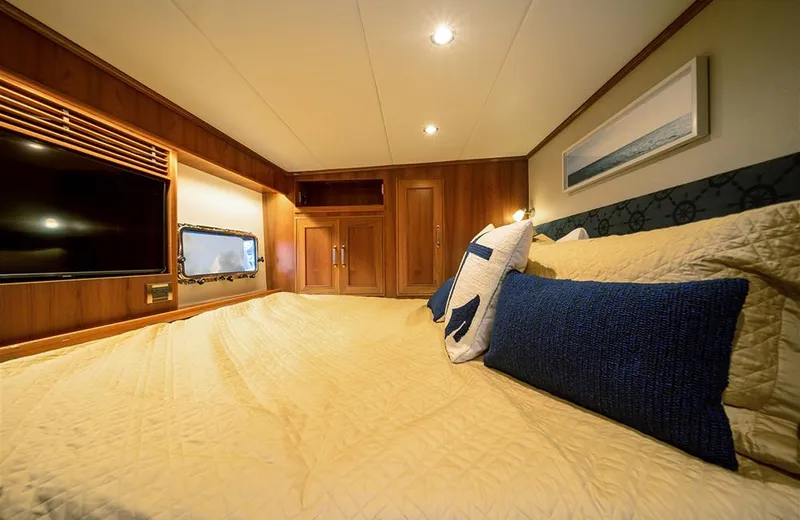

• King-size berth with a custom headboard and drawer storage under
• All custom Scalamandré fabrics
• Cedar-lined closets and chests of drawers
• Automatic interior lights in lockers
• High gloss chair rail with applied moldings, with wallcovering above
• Swing-arm sconces
• Reading lights
• CE-approved portlights with removable insect screens and covers for safety
• Air conditioning control panel
• Nightstand teak tables
• Mirror on the back of the door
• Carpeted floor
• Additional Soundown insulation under the carpeting
• Coin dot floor under stateroom sole with hinges and pneumatic lifting system
• Dyson V8 Absolute vacuum cleaner
• Large Garmin display

• Ensuite head with shower
• French beveled glass doors

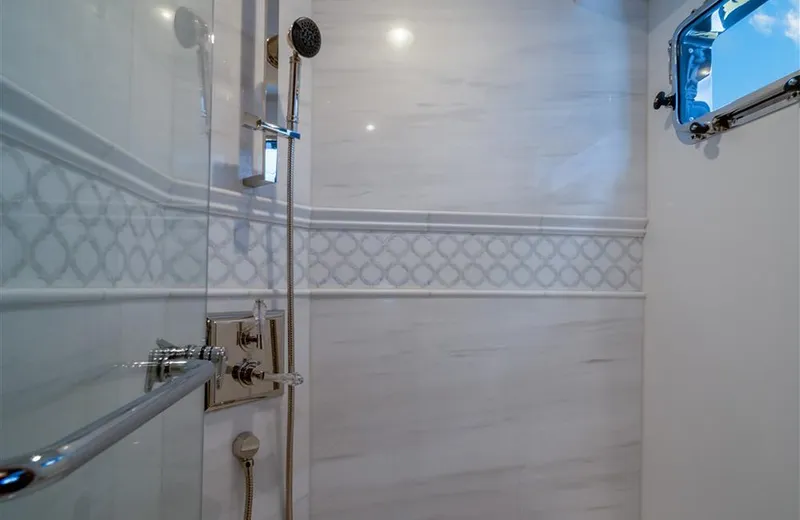

• Bianco Dolomiti marble shower with floor tile made of Tassos marble
• Silestone countertop with one (1) Toto sink
• Teak framed mirrors with two (2) medicine chests
• Additional vanity lights over the sink
• Storage cabinetry
• Wallcovering above chair rail with teak paneling below
• GE Monogram full-size side-by-side washer and dryer
• Separate compartmented toilet area with marble floor
• Headhunter 24v electric white toilet with sanitary hose for all discharge plumbing
• 24v DC ventilator blower
• Head floor is mosaic tile made of Tassos and Calacatta Gold marble

• 316 Stainless steel CE-approved skylight
• Tapered queen-size berth
• Teak storage drawers under the berth
• Two (2) cedar-lined hanging lockers
• Automatic interior lights in lockers
• Teak wall paneling with satin finish
• Book shelves on hull sides
• Two (2) sconces
• Mirror on the back of the door
• Air conditioning control panel
• Teak flooring

• Ensuite head with shower
• Molded white FRP shower with hexagon white Tassos tile floor
• 24v DC ventilator blower
• Silestone countertop with under-mount sink
• Teak framed mirror with medicine chest
• Storage cabinet under sink
• Wallcovering above chair rail with teak paneling below
• Headhunter 24v electric white toilet with sanitary hose for all discharge plumbing
• Silestone flooring

• CE-approved portlights with removable insect screens and covers for safety

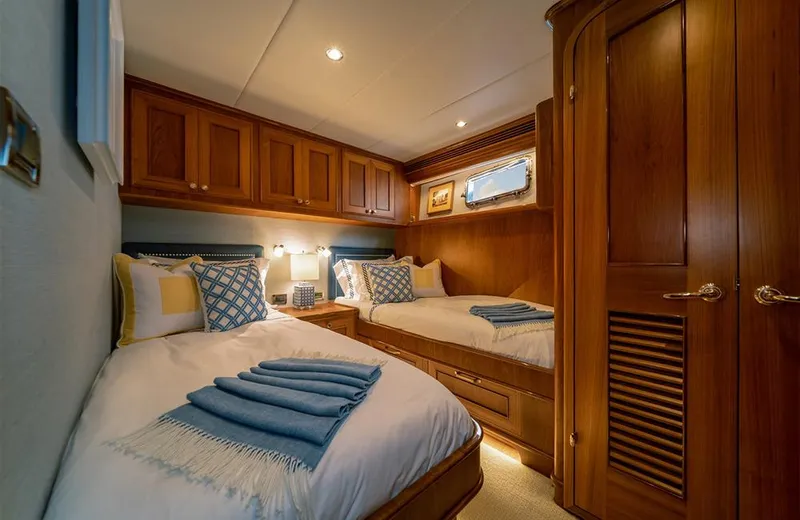

• Two (2) extra-wide twin berths with storage drawers underneath
• Built-in nightstand
• One (1) cedar-lined hanging locker with teak-faced doors
• Automatic interior light in locker
• Wallcovering above chair rail with teak paneling below
• Air conditioning control panel
• Two (2) reading lights
• Mirror on the back of the door
• Carpeted floor
• Additional Soundown insulation under the carpeting

• Ensuite head with shower
• Molded white FRP shower with hexagon white Tassos tile floor
• 24v DC ventilator blower
• Silestone countertop with under-mount sink
• Teak framed mirror with medicine chest
• Storage cabinet under sink
• Wallcovering above chair rail with teak paneling below
• Headhunter 24v electric white toilet with sanitary hose for all discharge plumbing
• Silestone flooring

• CE-approved portlights with removable insect screens and covers for safety
• Queen berth with storage drawers underneath
• Built-in nightstand
• One (1) cedar-lined hanging locker with teak-faced door
• Custom luggage locker with a curved door, with access to plumbing
• Automatic interior light in locker
• Wallcovering above chair rail with teak paneling below
• Air conditioning control panel
• Two (2) reading lights
• Mirror on the back of the door
• Carpeted floor
• Additional Soundown insulation under the carpeting

• Ensuite head with shower
• Molded white FRP shower with hexagon white Tassos tile floor
• 24v DC ventilator blower
• Silestone countertop with under-mount sink
• Teak framed mirror with medicine chest
• Storage cabinet under sink
• Wallcovering above chair rail with teak paneling below
• Headhunter 24v electric white toilet with sanitary hose for all discharge plumbing
• Silestone flooring

• Stairway with Bolon inlay from the salon, with a housekeeping (vacuum, etc) custom-built storage locker halfway up the steps on the starboard side
• CE-approved portlights with removable insect screens and covers for safety

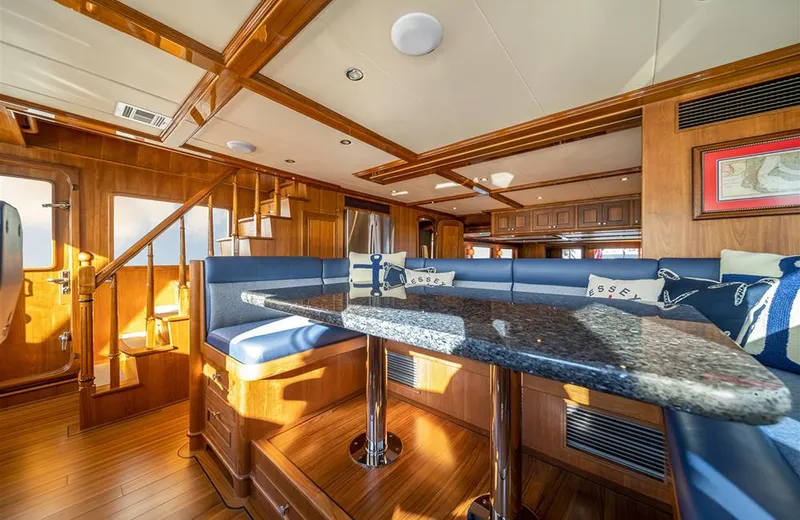

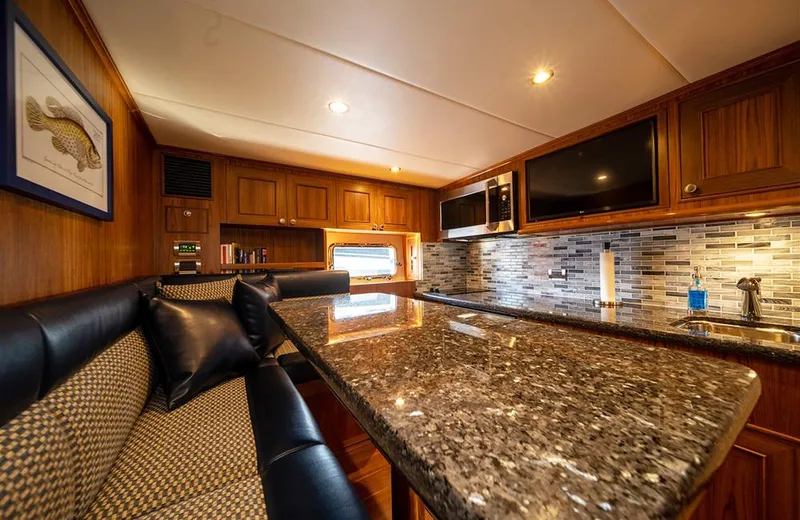

• L-shaped settee on raised platform
• Granite table with single 316 stainless steel pedestal
• Granite countertop with glass tile backsplash and a stainless steel under-mount sink
• Teak wall paneling with satin finish
• Teak flooring

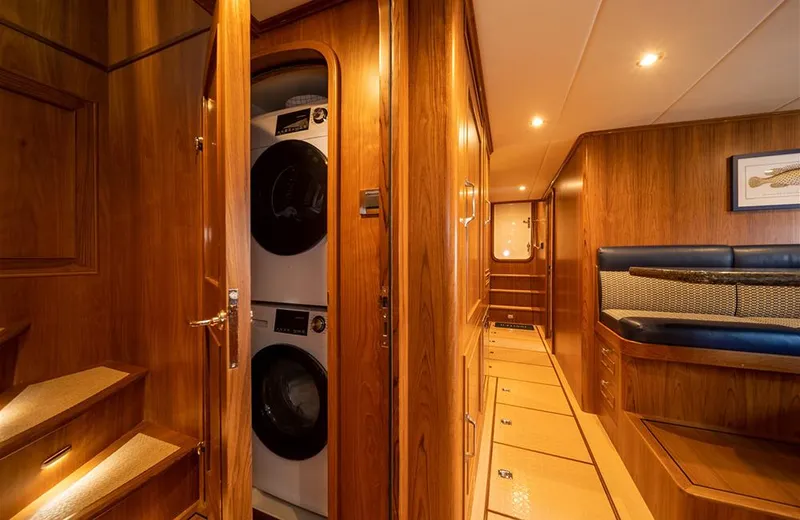

• Full-size stackable washer and dryer
• Undercounter two-drawer refrigerator
• Electric cooktop
• Built-in convection microwave
• Dishwasher
• Freezer
• Abundant pantry locker
• Air conditioning control panel
• Large hanging locker on the starboard side, forward of the steps from the transom, with 4 large pull-out drawers just forward of that

• Starboard cabin with a king berth, with an ensuite head
• CE-approved portlight with removable insect screen and cover for safety
• Hanging locker with automatic interior lights
• Teak wall paneling with satin finish
• Air conditioning control panel
• Mirror on the back of the door
• Carpeted floor

• Port cabin with two (2) extra-wide twin transverse bunk berths with an ensuite head
• CE-approved portlight with removable insect screen and cover for safety
• Hanging locker with automatic interior lights
• Teak wall paneling with satin finish
• Air conditioning control panel
• Mirror on the back of the door
• Carpeted floor

• Port and starboard ensuite heads with shower
• Molded white FRP shower with hexagon white Tassos tile floor
• 24v DC ventilator blower
• Silestone countertop with under-mount sink
• Teak framed mirror with medicine chest in starboard cabin and a mirror in port cabin
• Storage cabinet under sink
• Wallcovering above chair rail with teak paneling below
• Headhunter 24v electric white toilet with sanitary hose for all discharge plumbing
• Silestone flooring

NAVIGATION (FLYBRIDGE / UPPER HELM)

• GPSMAP 8617, U.S and Canada G2 + LakeVu HD (2)
• GMI 20 digital marine instrument display (2)
• GHC™ 20 marine autopilot control unit
• iCom HM195B VHF command mic IV (2)
• AIS™ 800 Class B transceiver

NAVIGATION (PILOTHOUSE /LOWER HELM)

• GPSMAP 8617, U.S and Canada G2 + LakeVu HD
• GPSMAP 8622, U.S and Canada G2 + LakeVu HD (3)
• GMI 20 digital marine instrument display (2)
• GHC™ 20 marine autopilot control unit
• Garmin USB card reader
• GRID™ 20 Garmin remote input device
• iCom M506 VHF radio with rear-mount mic (2)

NAVIGATION (MASTER STATEROOM AND CREW CAPTAIN STATEROOM)

• GPSMAP® 742 plus (navigation PC integrated into Garmin screens for 2nd ECS unit. Nobeltec Time Zero with US East Coast and Bahamas chart system installed)

NAVIGATION (AFT DECK DOCKING)

• GMI 20

AUTOPILOT

• GHP Reactor, hydraulic with Smartpump V2 corepack, with GHC™ 20
• GRF 10 rudder feedback sensor

ROOF AND RADAR ARCH

• GMR™ 2526 xHD2 open array radar and pedestal (25kw/6-foot/96nm)
• GMR Fantom™ 126 Solid-state open array and pedestal
• 16' 10dB VHF antenna (2) and a 4' 4.5db AIS antenna
• 5"x8" 15 watt hailer horn (2)
• gWind™ wired
• GPS 19x NMEA 2000 (2)
• GA™ 38 GPS/GLONASS antenna
• GXM™ 54 SiriusXM® marine receiver

SOUNDER AND TRANSDUCER

• GSD™ 25 Premium sonar module
• AIRMAR 1kW B260, bronze, thru-hull, fairing, depth/temp
• AIRMAR 1kW B265LH,12-pin thru-hull, CHIRP 42-65 kHz & 130-210 kHz

CAMERAS

• Cameras (6) integrated into the Garmin network: 2 engine room cameras (fixed), 3 260-degree pan and tilt cameras for aft and side decks, and 1 FLIR camera on mast
• Secondary Arlo Camera System available aboard for wireless security of the yacht

The entertainment system aboard was recently updated to Roku TV (all TV's) through the Starlink on the yacht.

STARLINK

• Starlink Maritime Mobile antenna

SATELLITE TV

• 24" dome for DirecTV
• 4 directional Wifi Antennas linked to the Pepwave internet wireless receiver in the salon
• TracVision UHD7, standard size
• 16-tuner SWM expander kit

SHIP-TO-SHORE TV

• Ship-to-Shore TV socket

TVS AND BOSE ENTERTAINMENT SYSTEM

• Teak-framed TVs in salon, master stateroom, VIP stateroom, port guest stateroom, starboard guest stateroom, port and starboard crew staterooms, crew galley and a portable TV (9 total)
• Crew area TV has storage behind it
• New 32" portable Samsung Smart TV, with stands on aft deck, flybridge and in pilothouse
• Roku TV and accessories in salon
• Denon entertainment system with surround sound speakers

FLYBRIDGE AND BOAT DECK

• MS-NRX300, NMEA 2000 wired remote (2)
• Apollo RA770 marine stereo
• JLM6-770X-C-GwGw 7.7" marine coaxial speakers (3)

PILOTHOUSE

• MS-NRX300, NMEA 2000 wired remote
• Apollo RA770 marine stereo
• Signature Series, 6.5" classic white speakers

SALON

• MS-NRX300, NMEA 2000 wired remote
• Signature Series, 6.5" classic white speakers
• DIRECTV HR24 HD receiver box

FORE DECK

• MS-NRX300, NMEA 2000 wired remote
• JLM6-770X-C-GwGw 7.7" marine coaxial speakers

AFT DECK

• MS-NRX300, NMEA 2000 wired remote
• JLM6-770X-C-GwGw 7.7" marine coaxial speakers

MASTER STATEROOM

• DIRECTV H25 HD receiver box
• MS-NRX300, NMEA 2000 wired remote
• Signature Series, 6.5" classic white speakers

VIP / PORT GUEST / STARBOARD GUEST / BOTH CREW / CREW GALLEY

• DIRECTV H25 HD receiver box

OTHER ACCESSORIES

• UPS, 120V 1.5kVA in the pilothouse and 900VA in the salon (for all H25)

• The vessel was hauled out in July by Thunderbolt Marine. The hull was sanded and re-primed in key locations. Antifoulant (Sea Hawk Biocop TF in black coated on hull with 2nd coat at bellyband). All zincs replaced. All running gear was cleaned up and coated with Prop-speed
• Rudders were checked - no leaks and no wobble / play in them
• The anchor gear was all inspected, and the capstan was serviced and greased
• The winches aft were also inspected and serviced
• New sealed pans built for the starboard salon and galley air handlers to prevent any condensation from shifting belowdecks

• Heavy-duty Stamoid covers for BBQ, windlass, Portuguese, flybridge and aft deck seating, flybridge Stidds and helm
• Webblon covers for pilothouse windows
• Phantom screens for port and starboard pilothouse and aft doors

• Artwork
• Two (2) teak steamer lounge chairs with Superyacht finish and cushions on boat deck, and side tables
• Two (2) Westminster Teak chairs with a Superyacht finish with cushions on flybridge
• All items branded with the name "JULIANNE"
• Number of gifted décor accessories
• Clothes and owners' personal effects

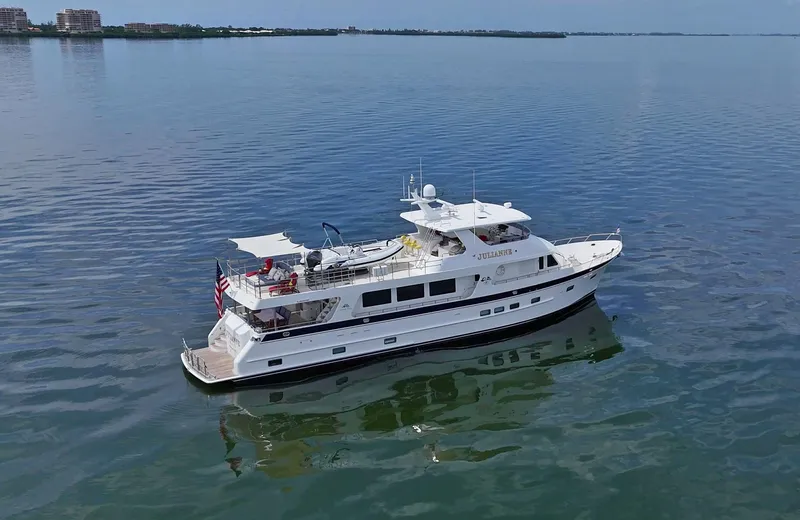

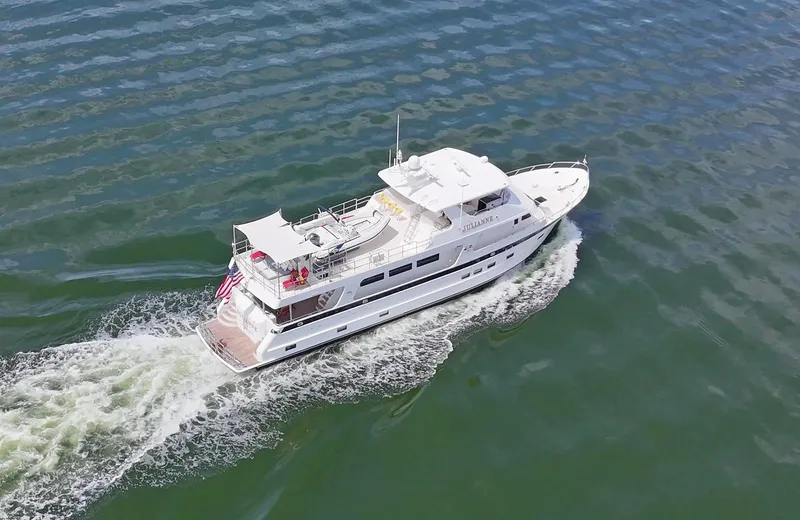

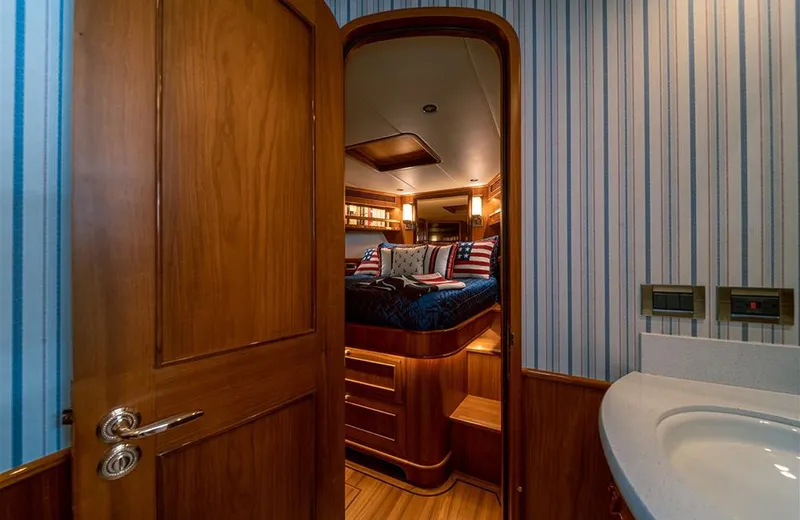

For many reasons, JULIANNE sets new standards within the long-range motoryacht class. More ample than any other Outer Reef built to date, her accommodation plan for owners and guests is smart, efficient, and welcoming, with four owner and guest cabins forward, and an additional two guest/crew cabins aft - all with ensuite heads with showers. Hundreds of hours of custom drawings and exhaustive research resulted in this truly exceptional long-range 90’ motoryacht. Once introduced and christened at the March 2022 Palm Beach Boat Show, several sistership 90’ Outer Reefs were ordered for future delivery. JULIANNE shows in-better-than-new condition, with a very experienced Captain given unlimited funds to maintain the yacht.
