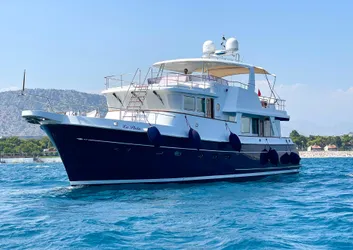

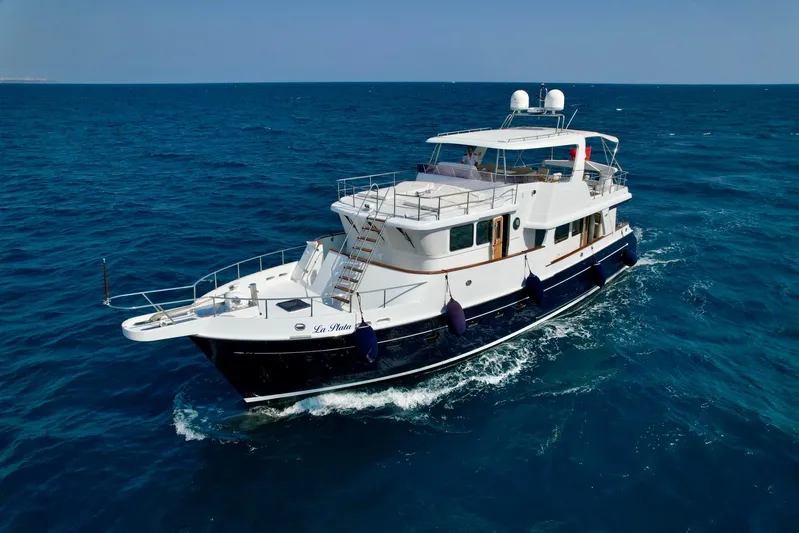

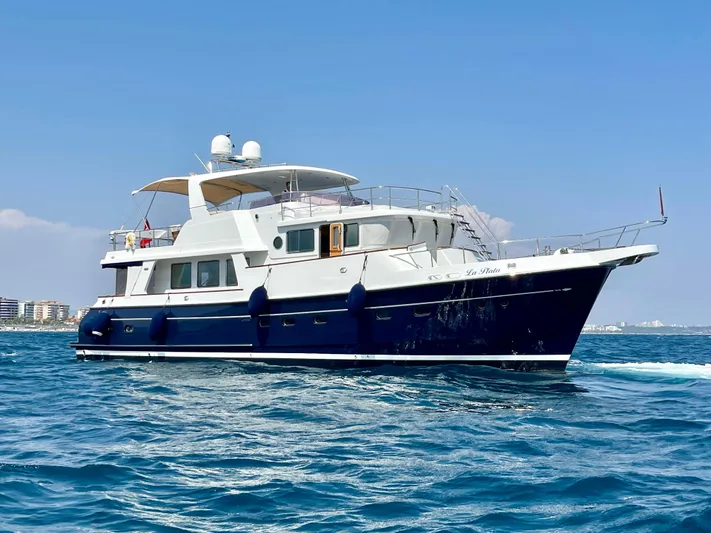

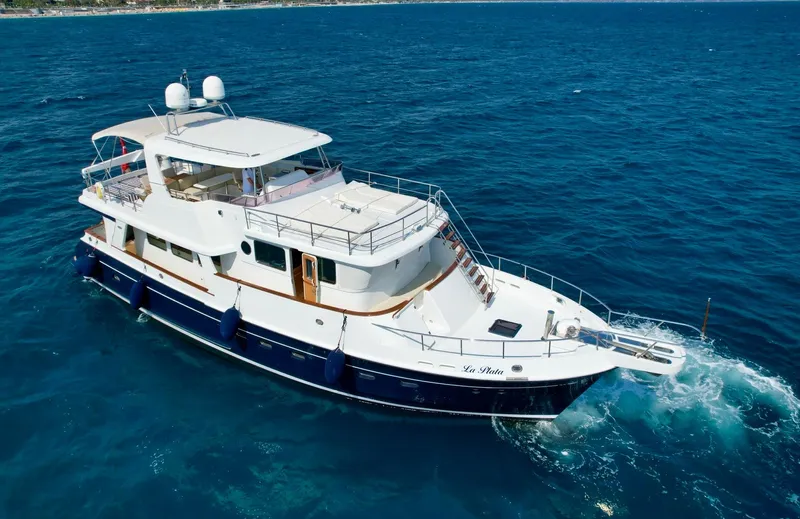

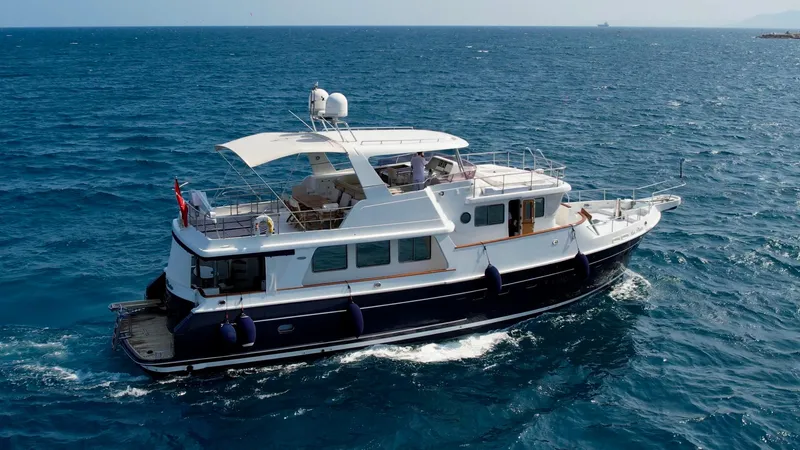

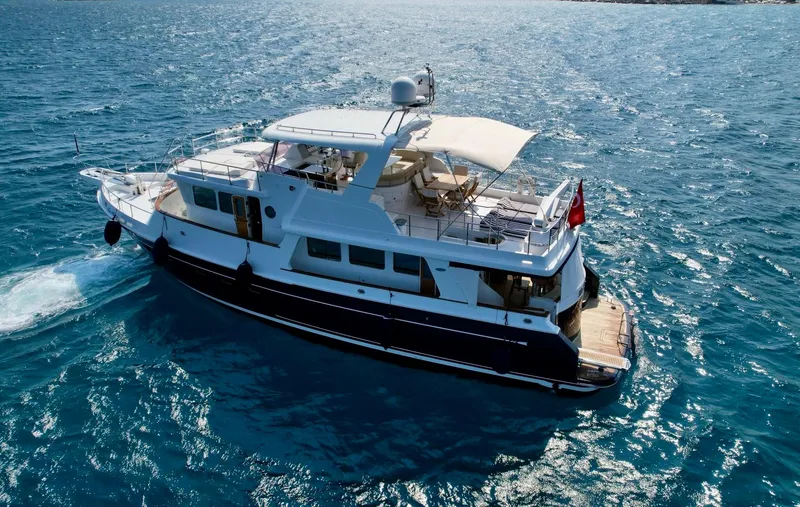

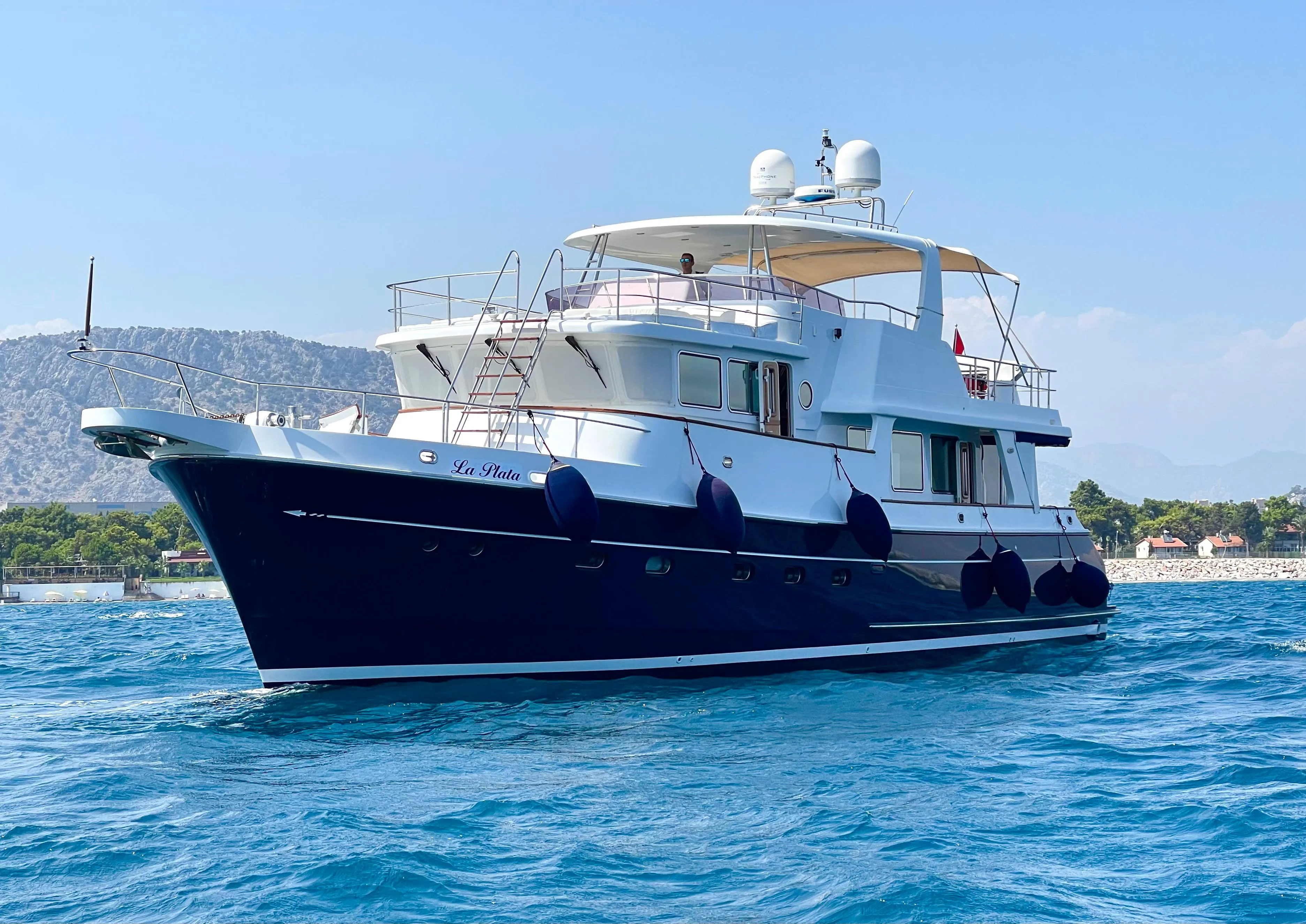

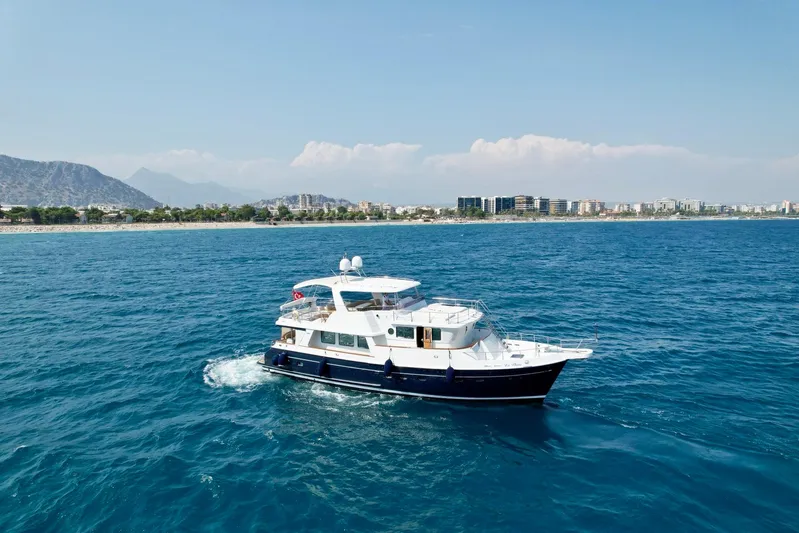

LA PLATA Yacht for Sale

• Cruising Speed: 10 kn
• Maximum Speed: 12.5 kn
• Beam: 18' 8''
• Hull Material: Fiberglass
• Max Draft: 6' 5''
• Displacement: 143,300.47 lb
• Fuel Tank: 2 x 5000|liter
• Fresh Water: 2 x 1200|liter
• Holding: 1 x 760|liter
• Cabins: 4
• Heads: 4

SELENE 62’ STANDARD EUROPEAN SPECIFICATION

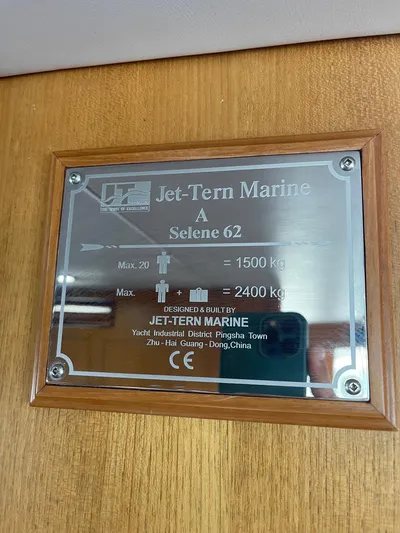

Certified and built to European CE Category A “Oceangoing”.

PRINCIPAL DIMENSIONS

• L.O.A.: 68'-10" (20.98 M)
• L.O.H.: 64'-7" (19.69M)
• L.O.D.: 60'-10" (18.54 M)
• L.W.L.: 60'-1" (18.32 M)
• Beam(overallw/rubrail):18'-8"(5.69M)
• Max Draft ( to keel bottom ): 6'-4" ( 1.93 M )
• Displacement: ( Full load ): 143,400 Lbs ( 64.9 Tons )
• Ballast: ( Single Engine ) 3,750 Lbs ( 1,700 Kgs)
• Fuel Capacity: 2,600 USG ( 9,842 Liters )
• Water Capacity: 610 USG ( 2,321 Liters )
• Holding Tank Capacity: 200 USG ( 760.6 Liters )
• Top Speed:12.5 Kts
• Cruising Speed: 10 Kts

CONSTRUCTION

• Cook gelcoat for hull, deck, superstructure & non-skid
• Vinylester resin Cook gelcoat for hull, deck & non-skid
• International bottom paint
• Cymax bi-axis uni-direction stitched roving, Taiwan Glass chopped strand mat
• Vacuum bagged pressed Divinycell core sandwich side shell & deck
• First 5 layers by Vinylester Resin
• Hand laid F.R.P. single skin hull bottom
• Longitudinal stringers & transverse frames system
• 5 watertight compartments ( chain locker, accommodation, engine room, crew cabin, lazarette
• Bolted & glue sealed hull and deck join

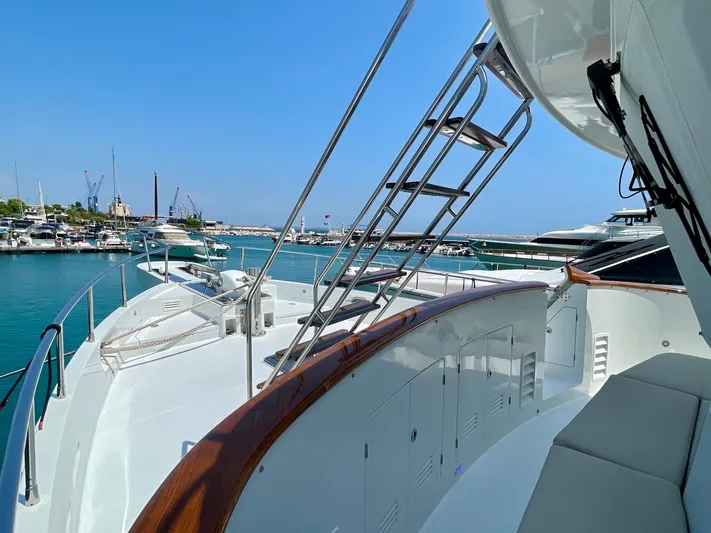

EXTERIOR HARDWARE

• Manship S/S #316 opening port hole
• Manship S/S #316 hatches for pilot house, fwd. cabin & fly bridge access
• Oceania screen
• Diamond Seaglaze Dutch doors for pilot house ( P & S ), and the saloon entrance
• Taco solid D section S/S #316 upper & lower twin fender rails
• Aritex S/S #316 oval hand rail fore deck, dinghy deck
• Aritex S/S #316 anchor roller assembly
• Aritex S/S #316 folding swim ladder inside FRP box
• Teak cap rail on the coaming of Portuguese bridge, side & after deck
• S/S #316 Sampson post
• S/S #316 hawse hole w/ cleat engraved “ SELENE ” logo
• S/S #316 dia 2-1/2” aft. deck overhang support posts
• Teak burgee & flag staffs with “ SELENE ” logo metal head
• Freeing port for fore, side & aft. deck, with FRP flap
• Integral swim platform w/ building swim ladder box
• Teak deck on swim platform
• Gibco Flex-Mold molded inlay pattern non-skid to fore, main & fly bridge decks
• Scuppers for fore deck, side deck & aft. deck self-drain
• SELENE logo step plates for transom, port & stbd. access gates
• Power coated aluminum window frames
• Portuguese bridge access gate to fore deck
• Hinged side gate swing portside & starboard side
• Hinged transom gate swing portside & starboard side
• Storage lockers w/ teak grating inside Portuguese bridge
• Teak coaming for aft. & side bulwark
• Taco “ T ” latches
• Cantalupi exterior dome lights
• Cantalupi exterior courtesy lights
• Fender clamps 10 pc
• 2 helm seat on F/B

INTERIOR

• Toseva light teak or cherry veneer ( straight grain or mountain grain )
• Schwepper door locks & handles for interior doors
• Lamp push bottom for all lockers doors & drawers
• Train drawer slider
• Teak & holly sole
• Fiberglass “ I ” shaped floor beam
• Ceiling lining by San Feng vinyl & EVA foam panels
• Cantalupi interior dome lights
• Cantalupi chart light
• Cabin Ocean reading lights
• Bamboo blind for saloon
• Drapery for Fwd. guest & master stateroom

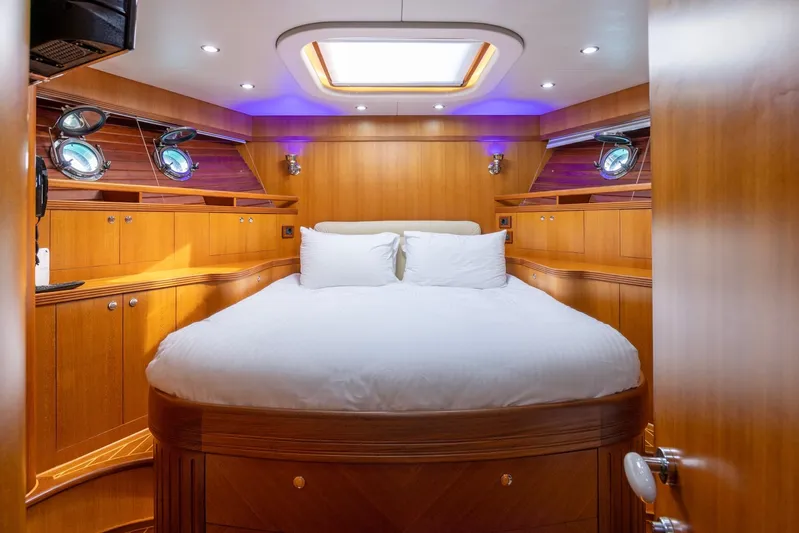

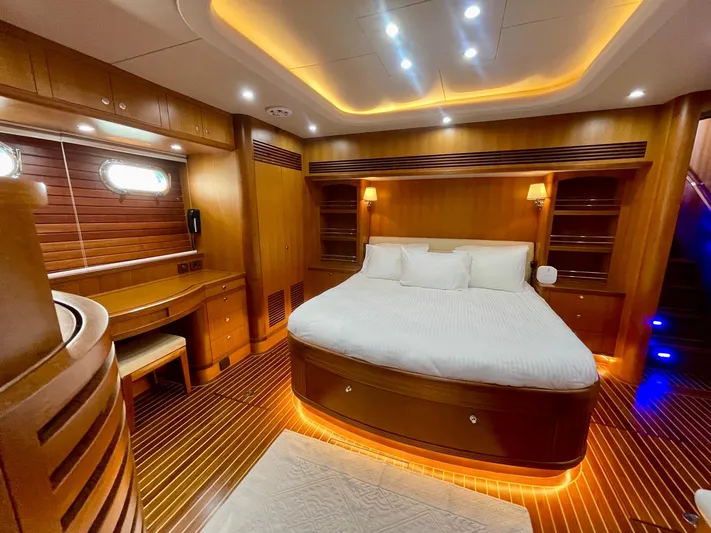

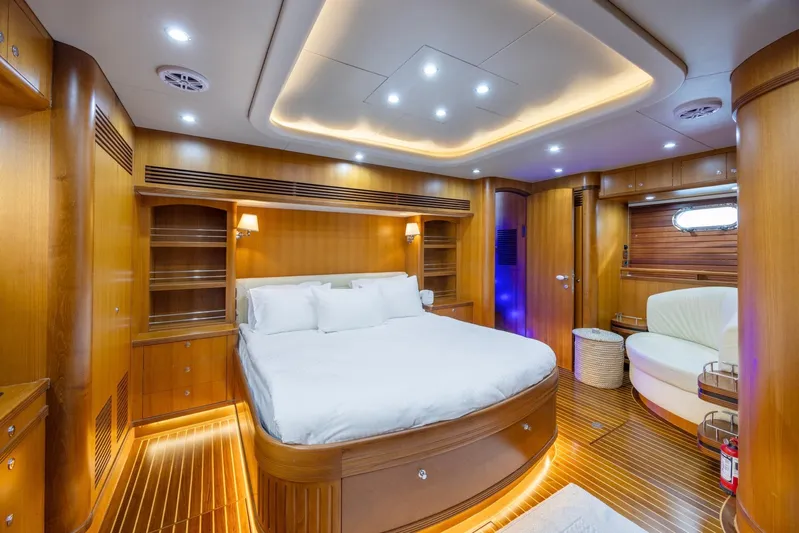

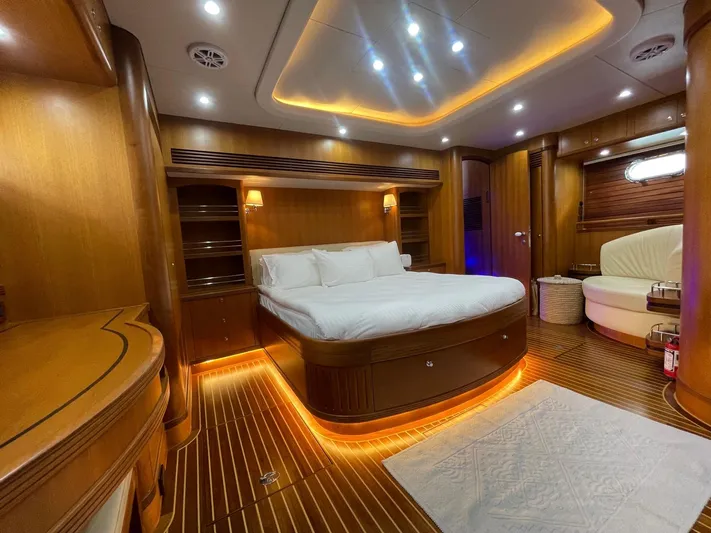

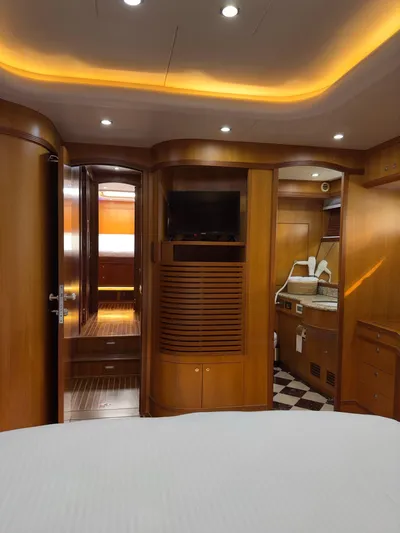

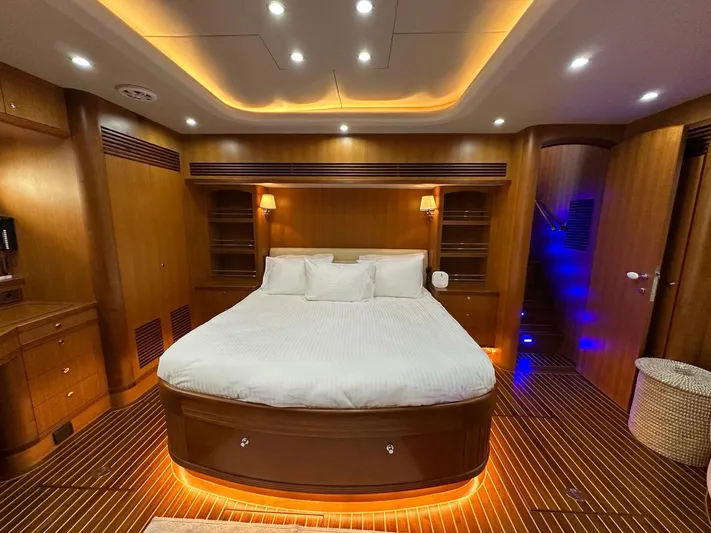

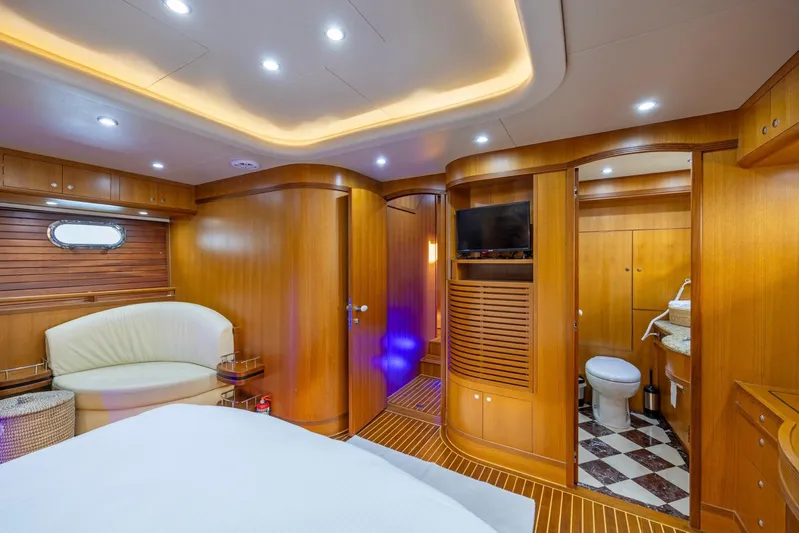

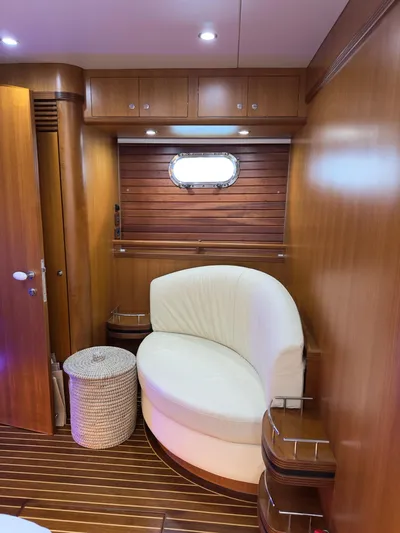

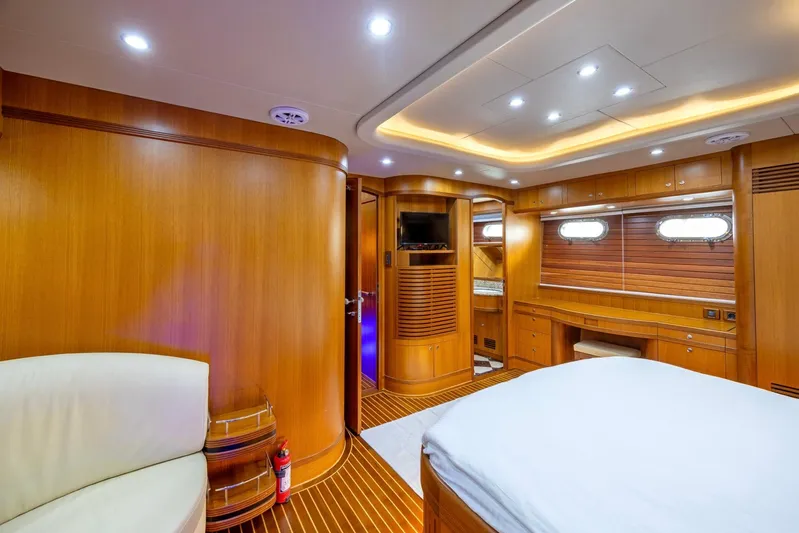

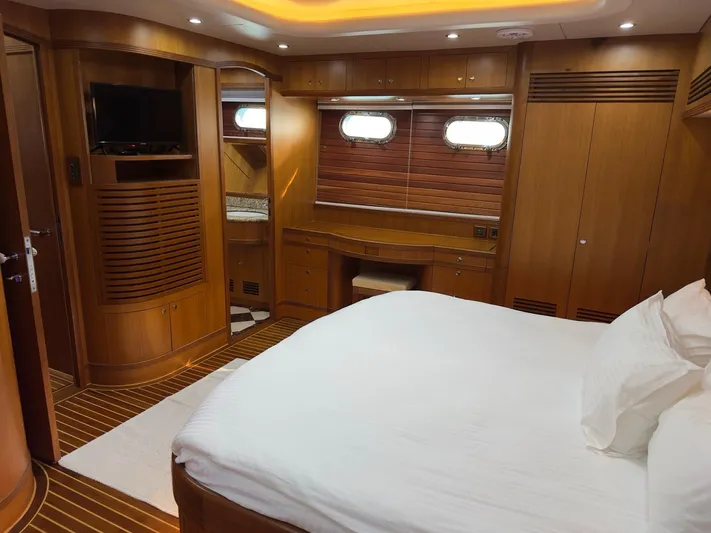

MASTER STATEROOM

• Front & side cabinets
• Queen-size berth w/ 6” foam mattres“ L ” shaped sofa
• Drawer bureau
• Wardrobe w/ auto-light & aromatic cedar liner
• TV cabinet
• Teak or Cherry veneer countertops ( or Cedar Burl veneer )
• Cantalupi reading lights
• Cantalupi ceiling lights
• Manship S/S #316 hatch
• Manship S/S #316 opening port holes
• Ceiling lining by San Feng vinyl & EVA foam panels w/ exposed wood cap

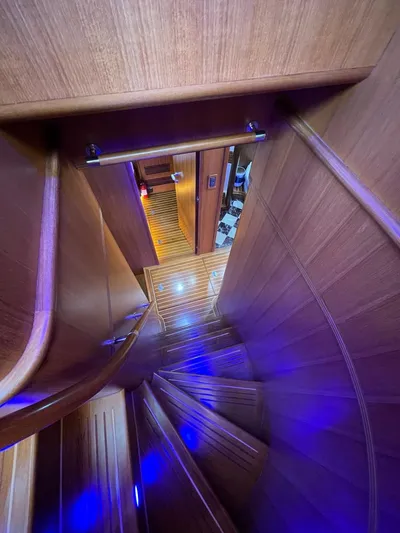

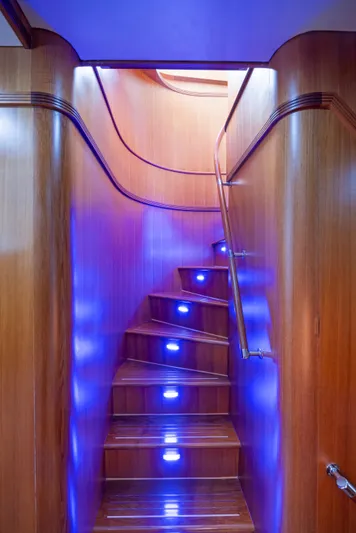

• Dedicated teak wood stairway to saloon

OFFICE AREA

• Cabin Ocean reading light
• Manship S/S #316 opening port hole Desk & seat
• Cabinet bureau
• Book shelf
• Overhead locker

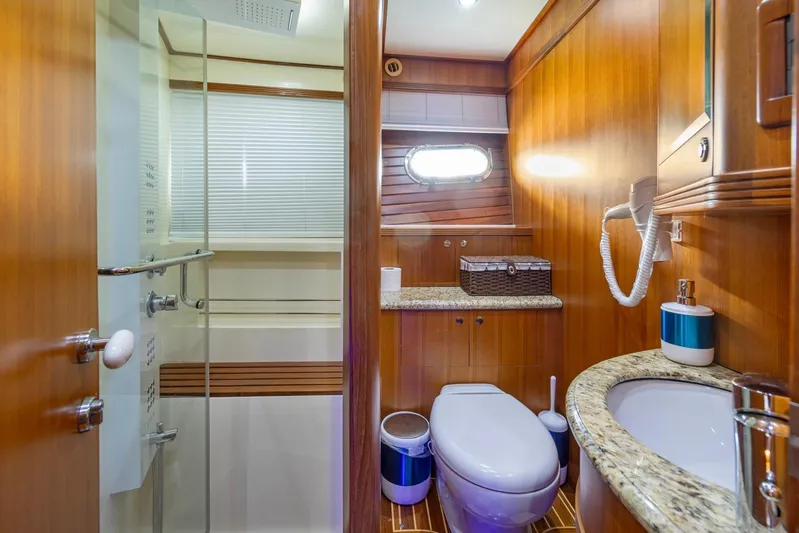

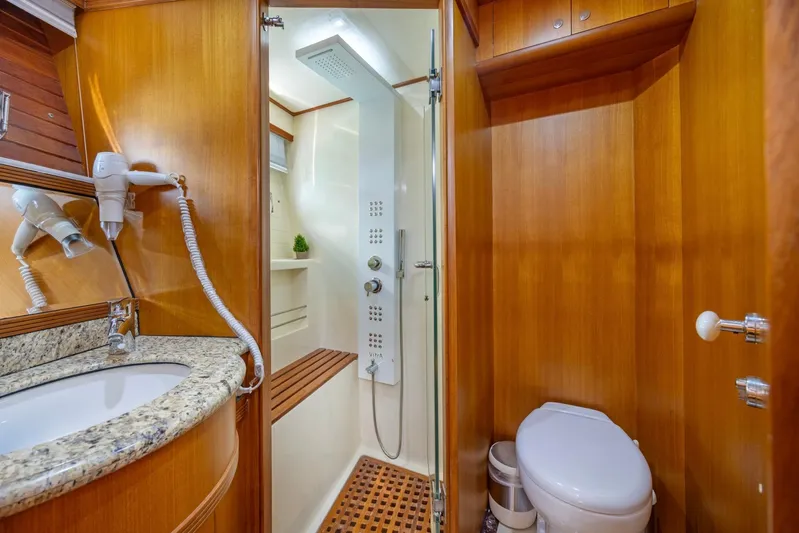

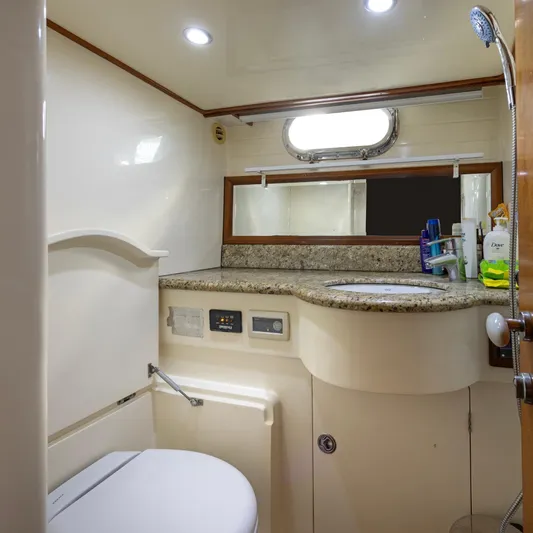

MASTER ENSUITE

• Tecma 24Vdc electric Silence Short toilet ( fresh water )
• Jabsco 24Vdc 3”exhaust fan
• Cantalupi dome lights
• Formica © finish head lining & FRP bulkhead
• Corian © or equivalent counter top & splash back
• Frankie soap disperiser
• Vanity unit w/ integrated wash basin
• ITAI aluminum shower door w/ teak grating panel
• Manship S/S #316 opening port holes
• Single lever hot / cold water shower faucet
• Medicine cabinet w/ mirror door
• Vanity mirror w/ teak frame
• Granite floor w/ stainless steel divider ( or teak & holly floor )
• Teak grating for shower room

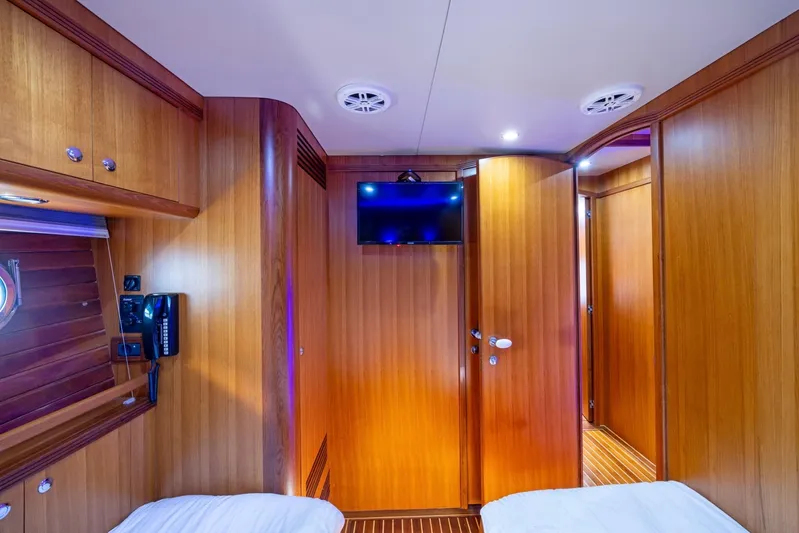

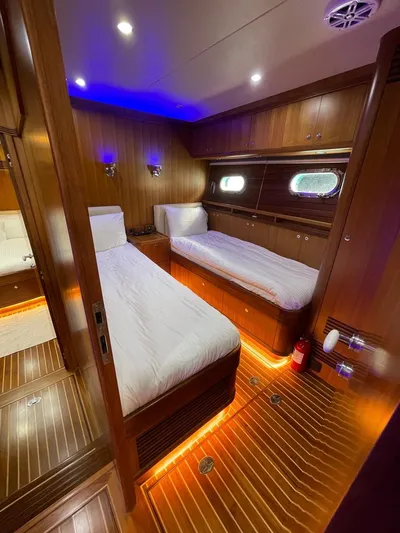

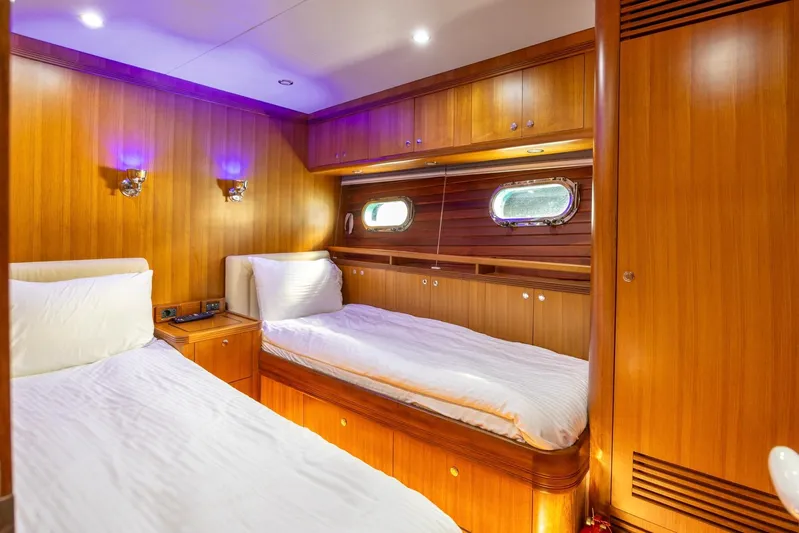

GUEST CABIN

• Teak battens with book shelves
• Fixed twin berth w/ drawer underneath
• 4” foam mattress for each berth
• Hanging locker w/ auto light
• Book shelves
• Overhead cabinet
• Cabin Ocean reading lights
• Vanity bureau w/ chair
• Vanity mirror w/ teak frame
• MANSHIP S/S #316 opening port holes
• Side locker

DAY HEAD

• Tecma 24Vdc electric Silence Short toilet ( fresh water )
• Jabsco 24Vdc 3” exhaust fan
• Formica © finish ceiling lining & FRP bulkhead
• Corian © (or equivalent) counter top & splash back
• Cantalupi dome lights
• ITAI aluminum sliding shower door
• Manship S/S #316 opening port holes
• Teak grating for shower room
• Vanity unit w/ mirror
• Medicine cabinet w/ mirror door
• Integrated wash basin w/ single lever cold / hot water faucet
• Fiberglass shower base w/ teak grating panel
• Single lever hot / cold water shower faucet
• Granite floor w/ stainless steel divider ( or teak & holly floor )

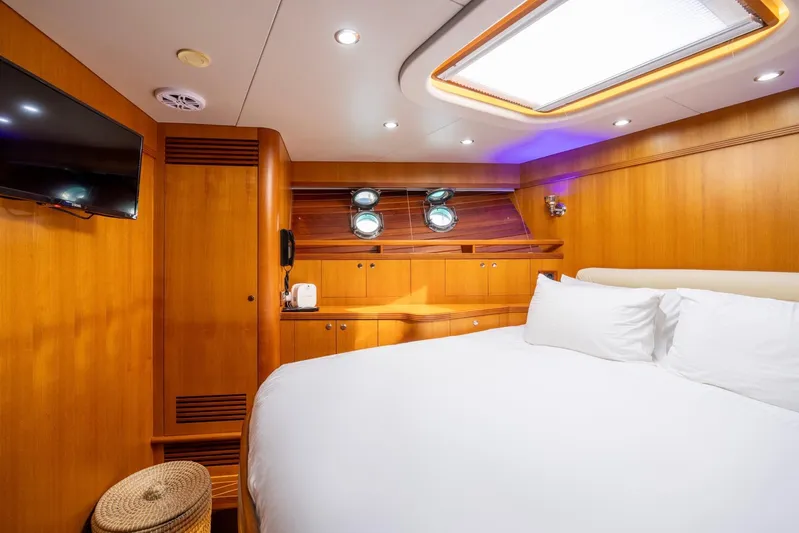

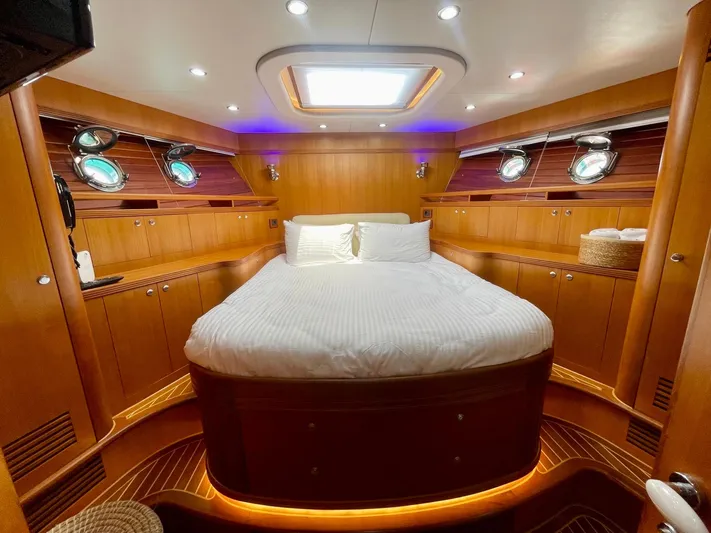

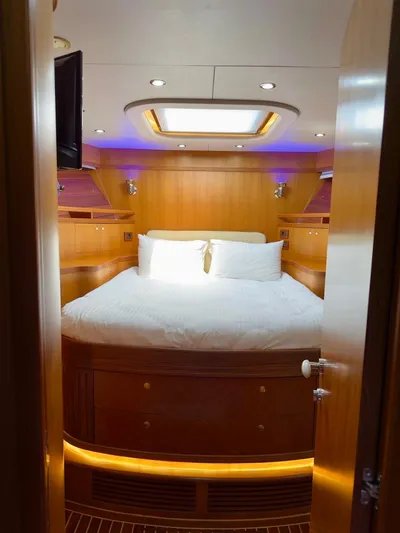

FORWARD CABIN

• Queen-size berth w/ 5” foam mattress
• Side cabinets & drawer bureaus
• Wardrobe w/ auto-light, aromatic cedar for the liner
• TV cabinet
• Teak or Cherry straight grain veneer countertops ( or Cedar Burl veneer )
• Cabin Ocean reading lights
• Cantalupi ceiling lights
• Manship escape hatch
• Manship S/S #316 opening port hole
• Ceiling lining by San Feng vinyl & EVA foam panels w/ exposed wood cap

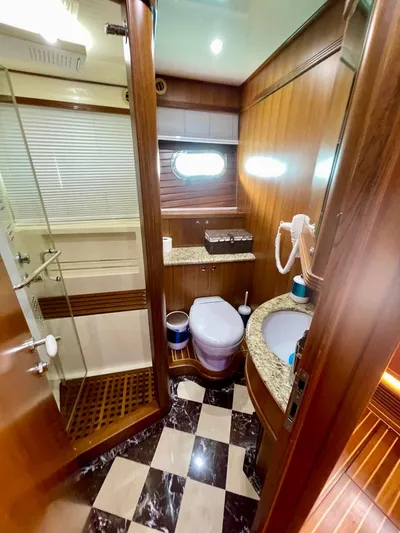

FORWARD CABIN ENSUITE

• Tecma 24Vdc Silence Short fresh water toilet
• Jabsco 24Vdc 3” exhaust fan
• Formica © finish ceiling lining & FRP bulkhead
• Corian © (or GRANITE ) counter top & splash back
• Cantalupi dome lights
• ITAI aluminum sliding shower door
• Manship S/S #316 opening port holes
• Bcc Teak grating for shower room
• Vanity unit w/ mirror
• Medicine cabinet w/ mirror door
• Integrated wash basin w/ single lever cold / hot water faucet
• Fiberglass shower base w/ teak grating panel
• Single lever hot / cold water shower faucet
• Granite floor w/ stainless steel divider ( or teak & holly floor )

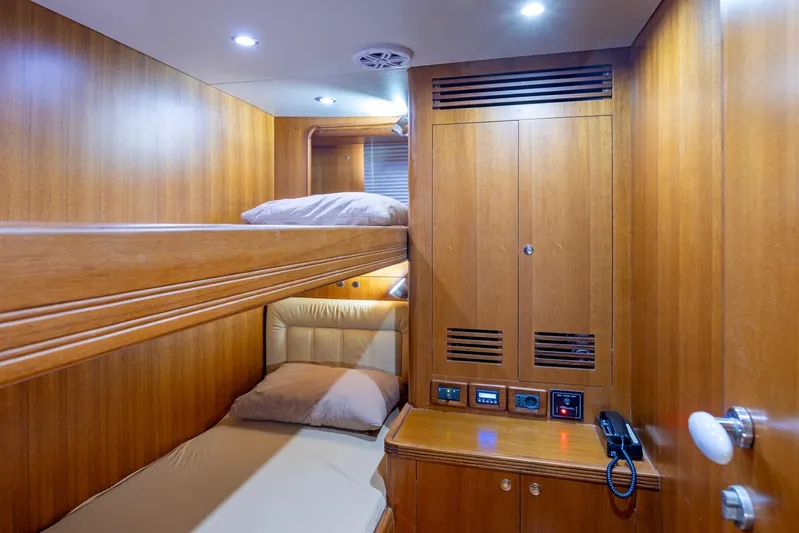

CREW CABIN / LAZARETTE

• Dedicated access to crew cabin
• Bunk w/ 4” foam mattress & drawer underneath
• Hanging locker w/ auto light & aromatic cedar liner
• Cabin Ocean reading lights
• Desk & seat
• Book shelves
• Overhead locker

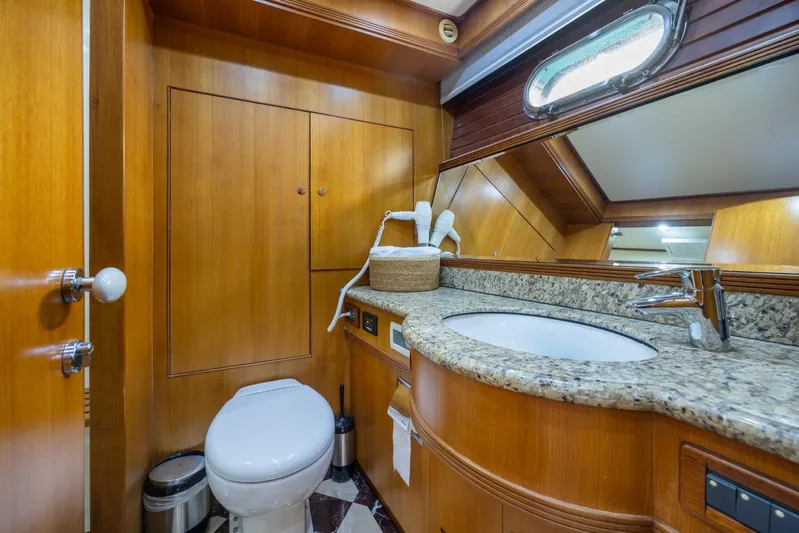

CREW CABIN HEAD

• Tecma 24vdc Silence Short fresh water toilet
• Jabsco 24Vdc 3” exhaust fan
• Formica © finish ceiling lining & FRP bulkhead
• Corian © ( or Granite) counter top & splash back
• Cantalupi dome lights
• Vanity w/ mirror
• Single level hot / cold water shower faucet
• Teak grating for shower room

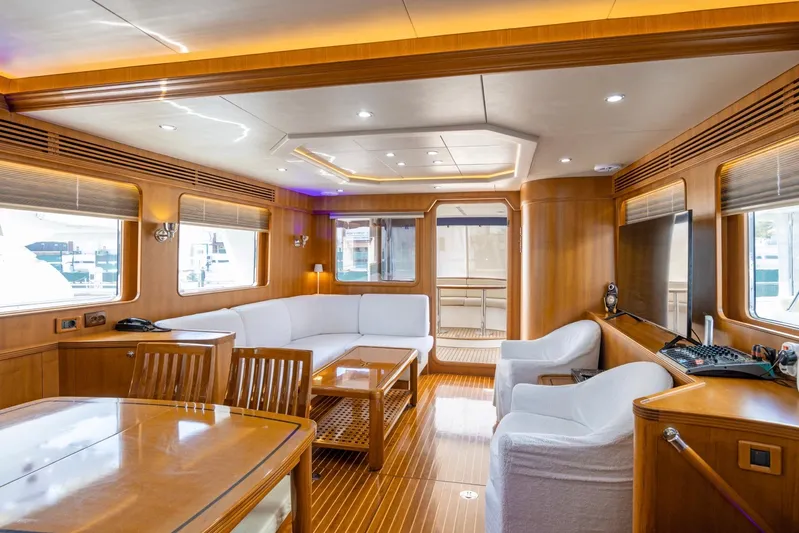

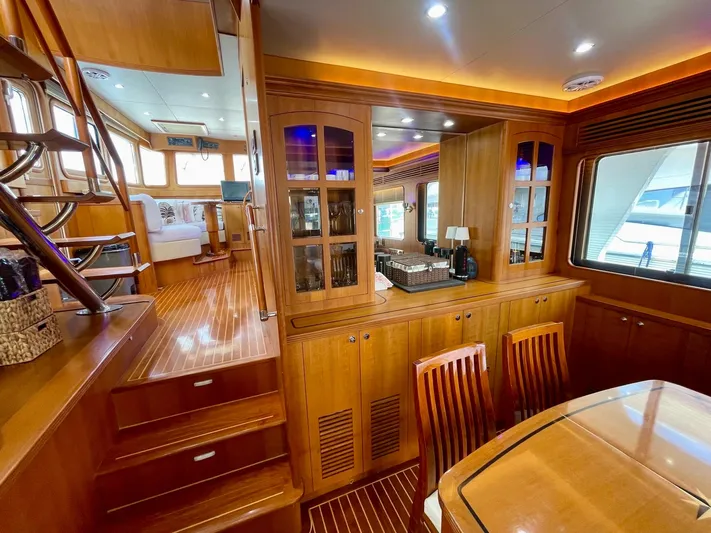

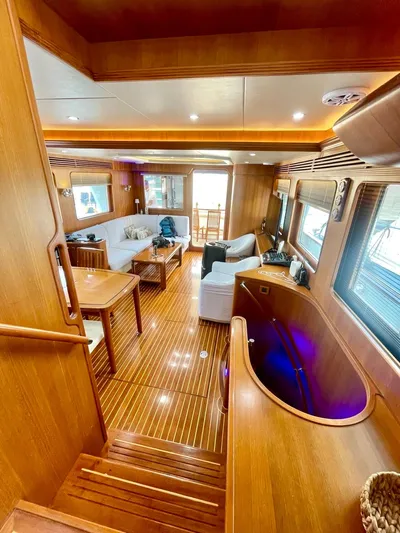

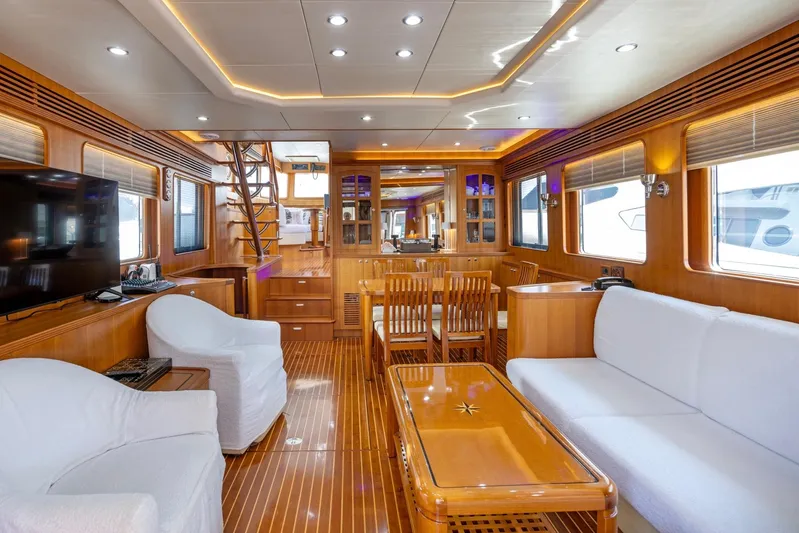

SALOON

• U-shaped sofa w/ 5”cushion set
• Storage underneath the sofa
• Table & corner tables
• Entertainment center w/ TV cabinet
• Ceiling lining by SAN FENG vinyl & EVA foam panels w/ exposed wood cap
• Cantalupi dome lights
• Cabin Ocean reading light
• Bamboo blinds
• Diamond Seaglaze Dutch door for entrance
• Emergency hatch to engine room
• Corian © ( or Granite ) bar counter top
• Aritex S/S #316 swivel bar stools
• Teak or cherry wood swivel chairs w/ 2” cushion

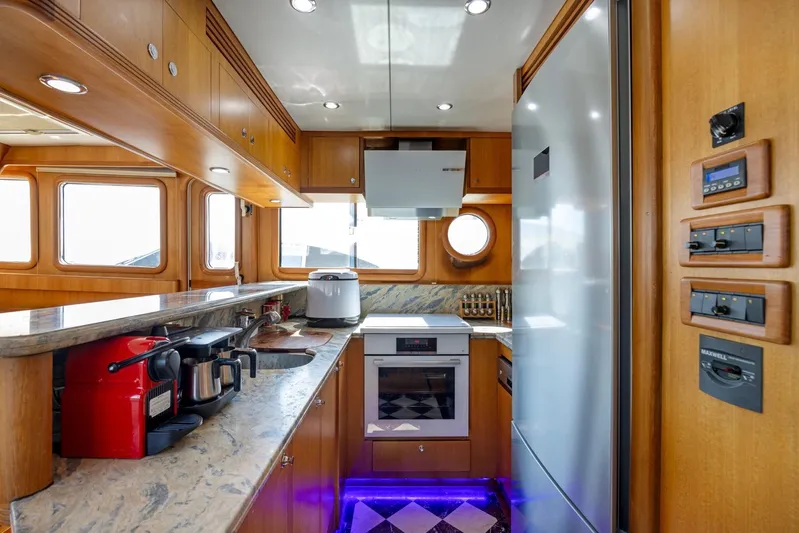

GALLEY

• Port side galley w/ an integral breakfast bar
• Corian (or GRANITE ) counter top & splash back
• Sub-Zero upright refrigerator
• Jabsco 12Vdc electric exhaust fan above stove
• Force 10 4-burner propane stove w/ oven & alarm monitor panel set
• GE microwave
• Frankie S/S sink
• Frankie single lever swivel type faucet
• Overhead cabinets
• Drawers & lockers w/ shelves under counter
• Dry storage w/ hinged lid at corner
• Trash bin w/ lid
• Teak & holly sole
• A raised bar counter integrated with galley

LAUNDRY

• Asko washer / dryer
• Laundry lockers w/ louvered door

LAZARETTE

• Grunert holding plate freezer
• Hynautic hydraulic steering system
• S/S #316 ladder w/ teak step
• Storage locker w/ 12 Vdc dome light
• FRP flooring

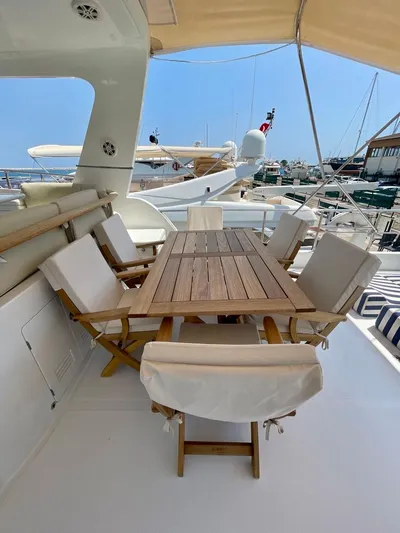

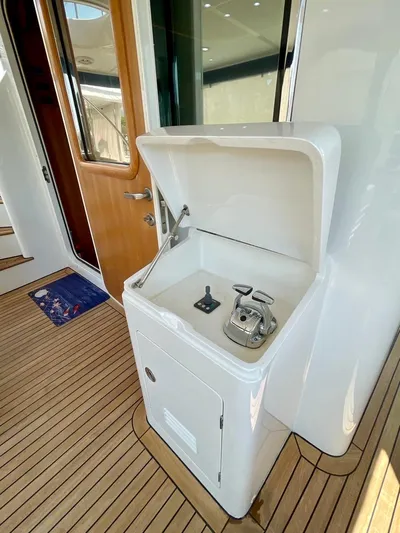

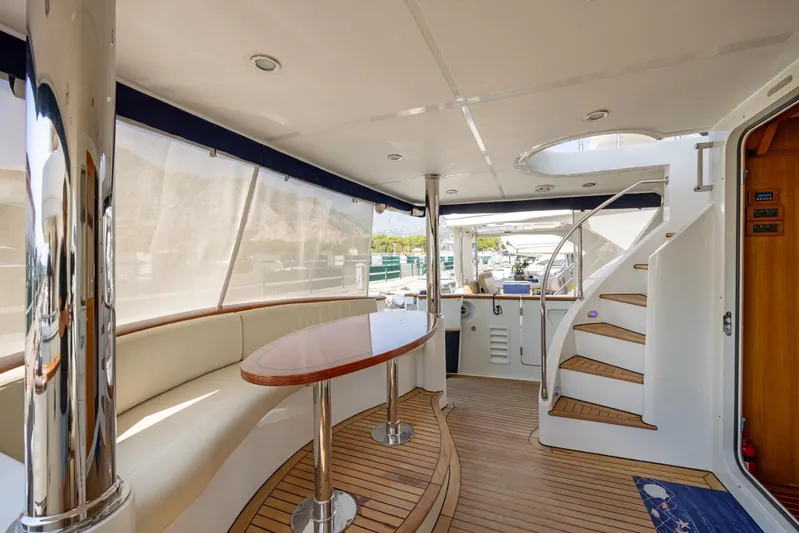

AFT DECK

• FRP settee w/ 2” cushion
• Teak table w/ S/S #316 table pedestal
• Flojet saltwater wash down pump
• Transom door to swim platform
• Transom shower
• Storage w/ latch

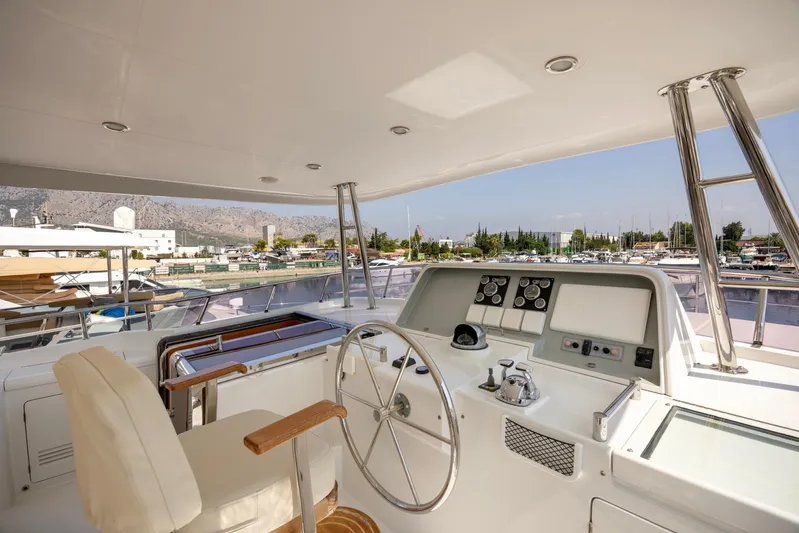

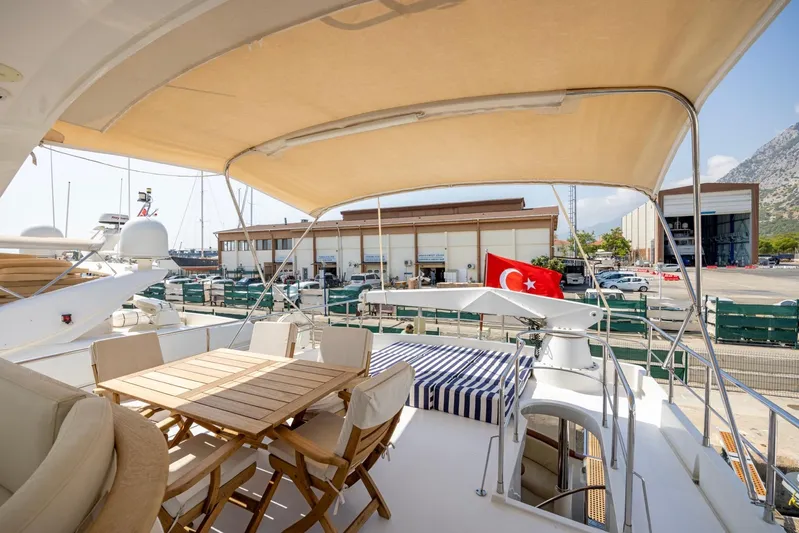

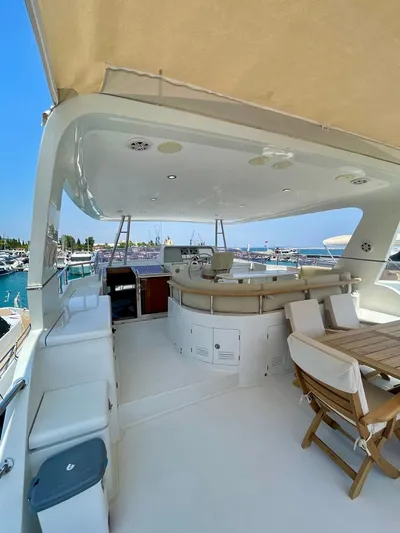

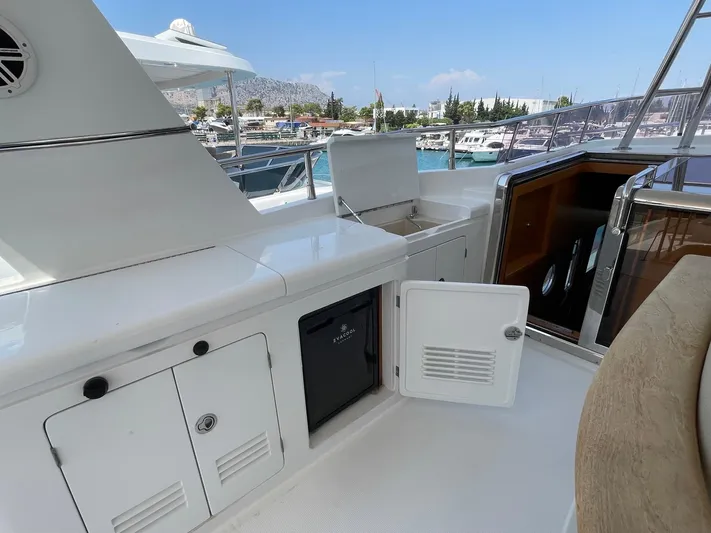

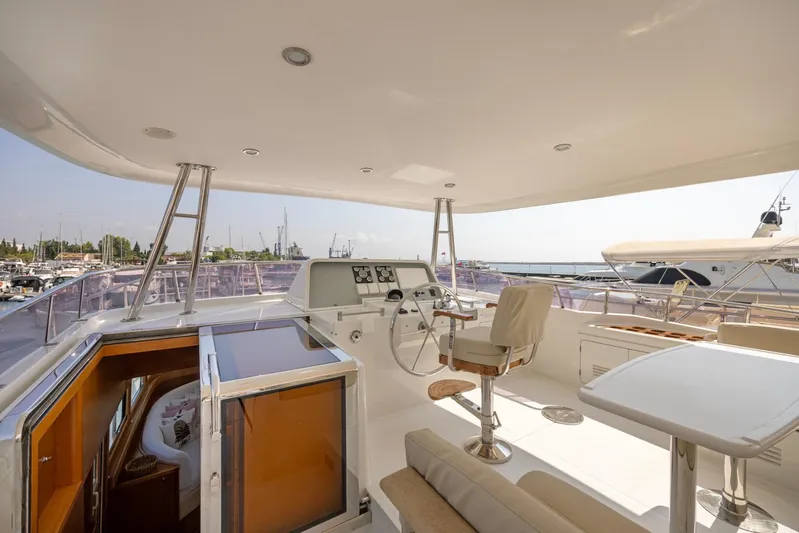

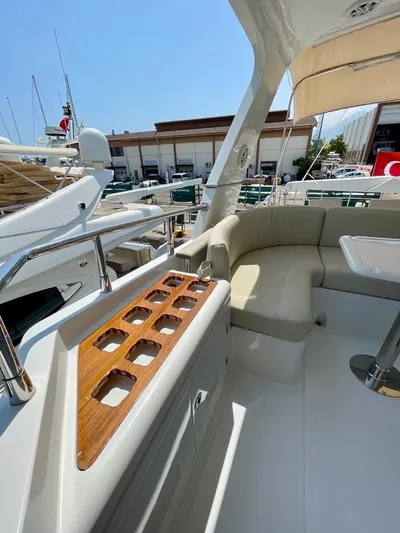

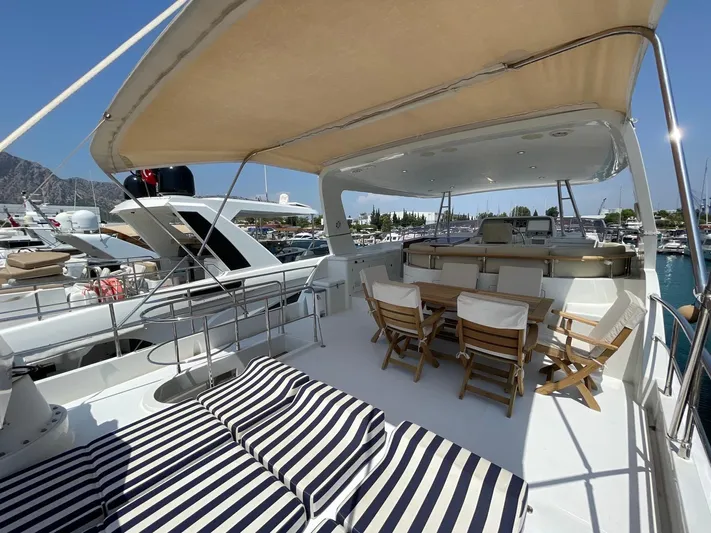

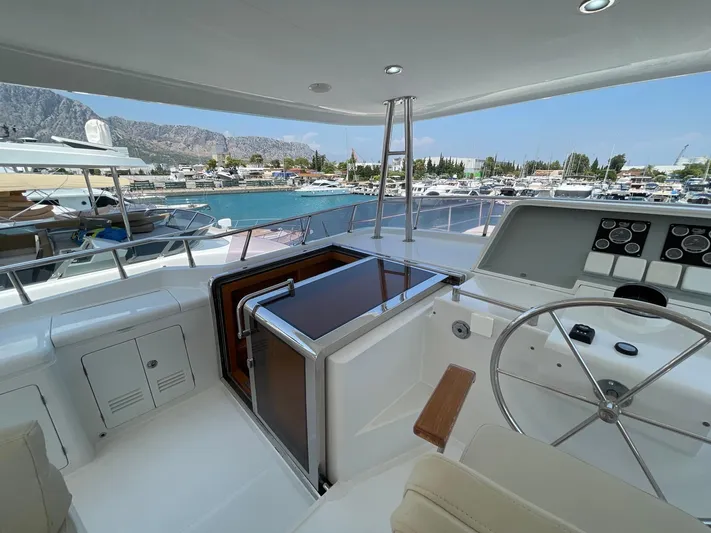

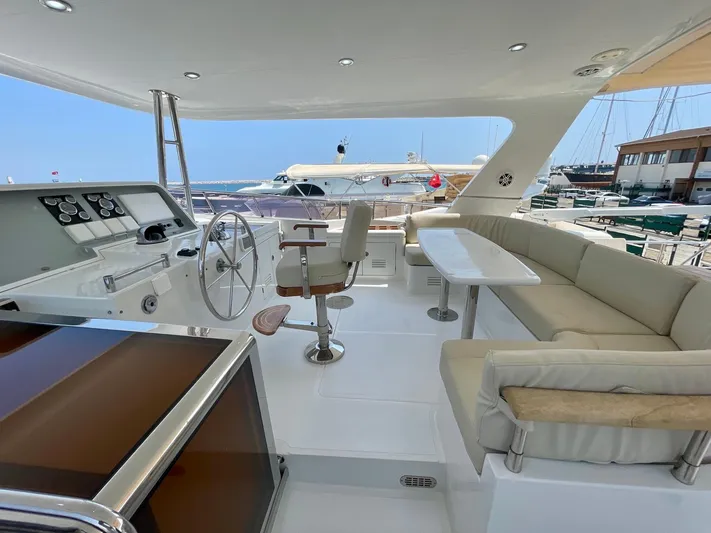

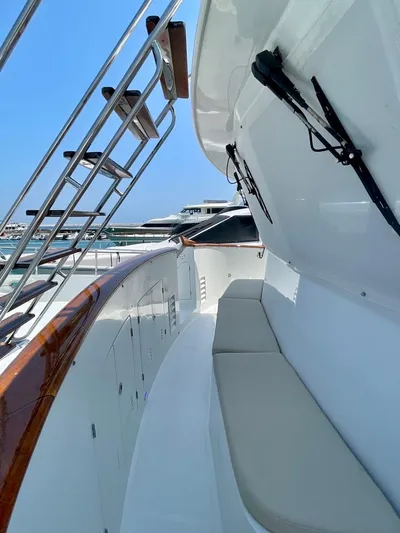

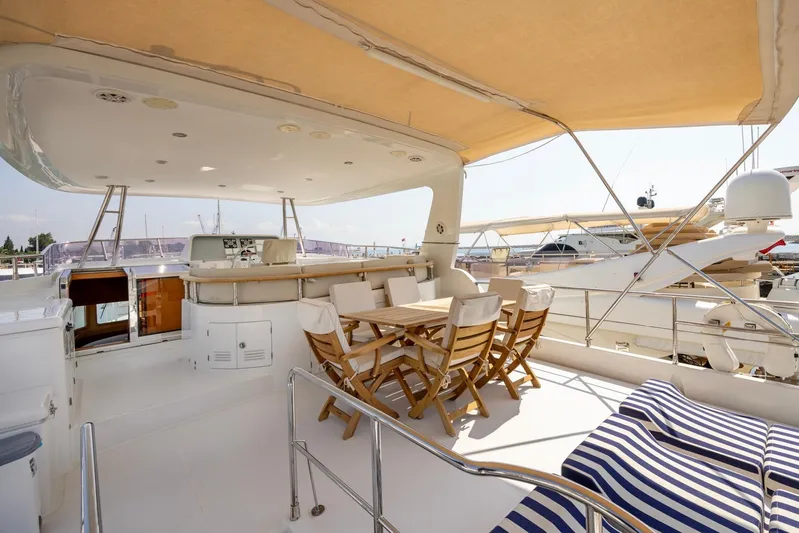

FLYBRIDGE

• Helm station in centre w/ console box and cover
• S/S #316 hand railing “ Dog-Leg ” open type or “ Enclosed ” type
• S/S #316 dia.28” destroyer type steering wheel
• S/S #316 grab rail

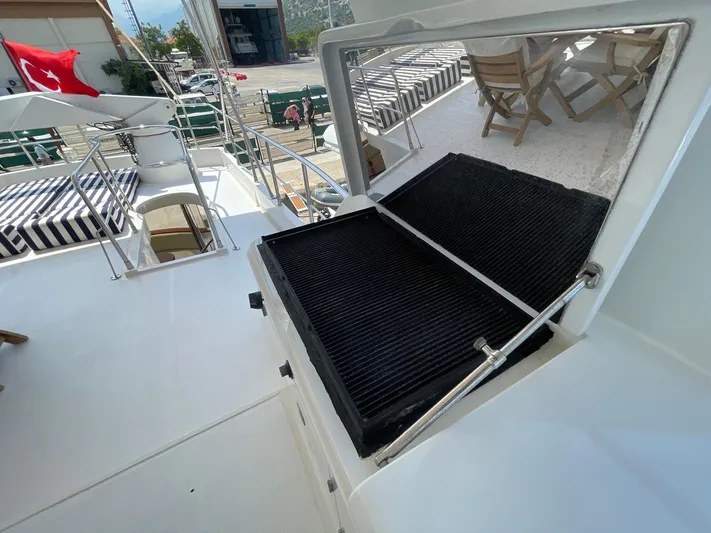

• FRP barbeque box ( Barbeque is an option )
• Polar wash basin
• Todd ( or equivalent ) helm seat ( 1 unit )
• Gibco-Flex moulded inlay pattern non-skid deck
• AFI 12Vdc outlet for accessory
• Chart countertop w/ glass cover
• FRP sink & lid
• Tinted Plexiglas windscreen

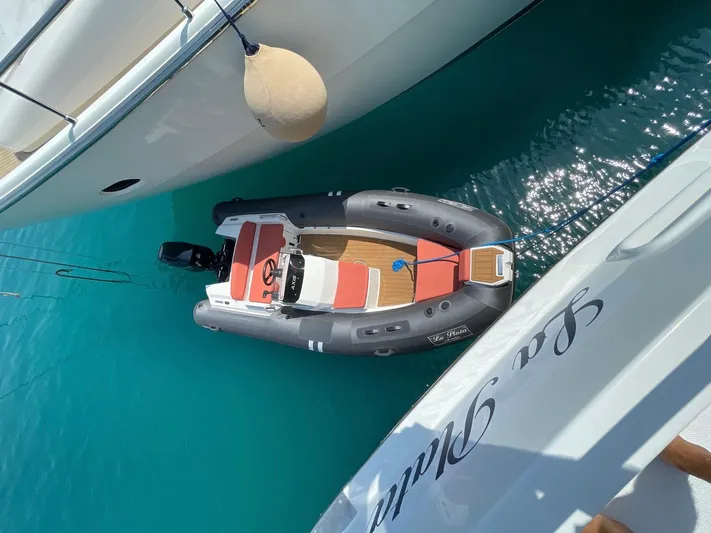

• Dinghy space on the fly bridge deck
• L-shaped FRP weather sealed door from fly bridge to pilot house
• FRP U-shaped settee

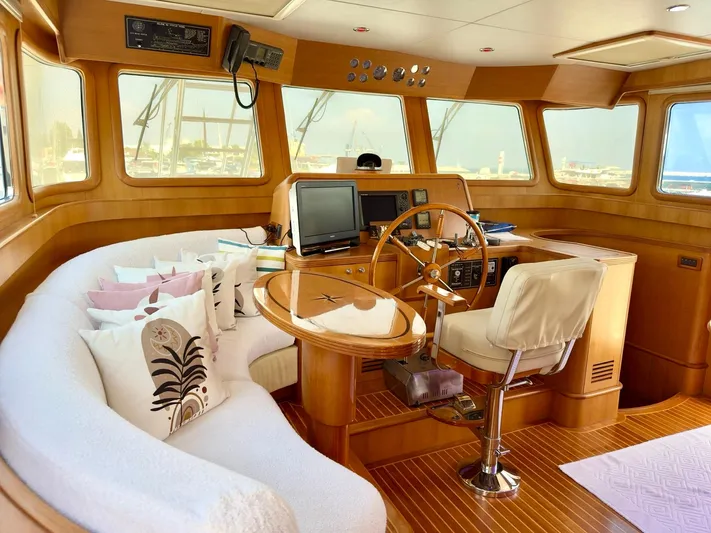

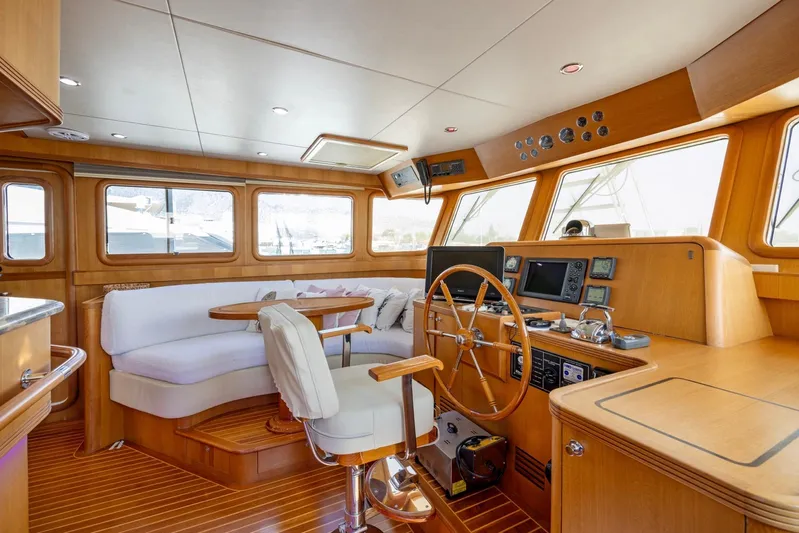

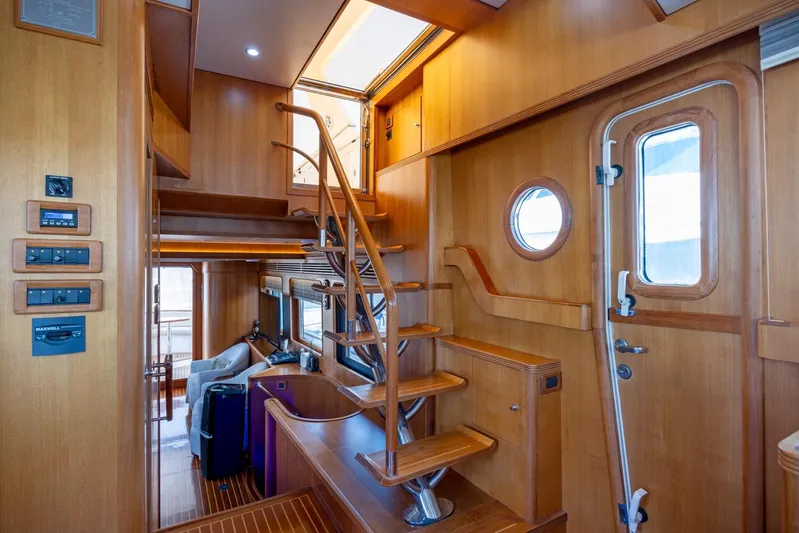

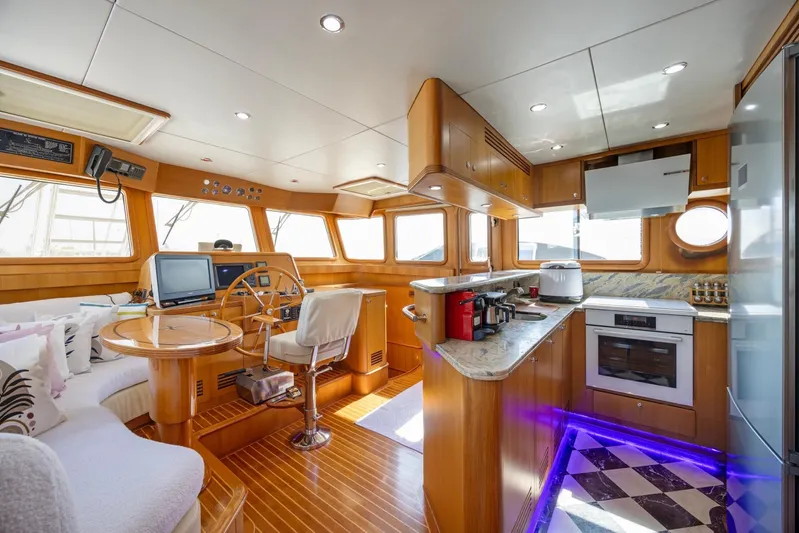

RAISED PILOT HOUSE

• Cantalupi step lights
• Cantalupi dome lights
• Cabin Ocean chart & reading light
• Diamond Seaglaze Dutch doors for port & stbd. Side
• Twin Disc Electronic engine control
• Helm station w/ instrument panels
• Raised seat w/ foot rest
• Sliding watch berth behind raised seat
• Sliding chart table w/ drawer
• Inside access to the fly bridge via dedicated starboard side steps
• Console panel above steering station
• Teak overhead grab rails

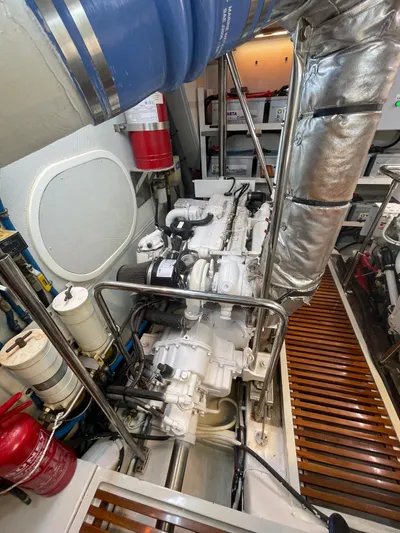

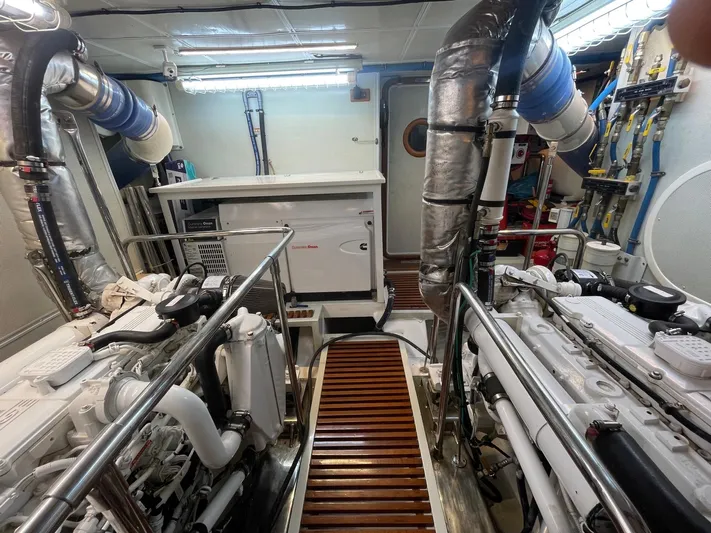

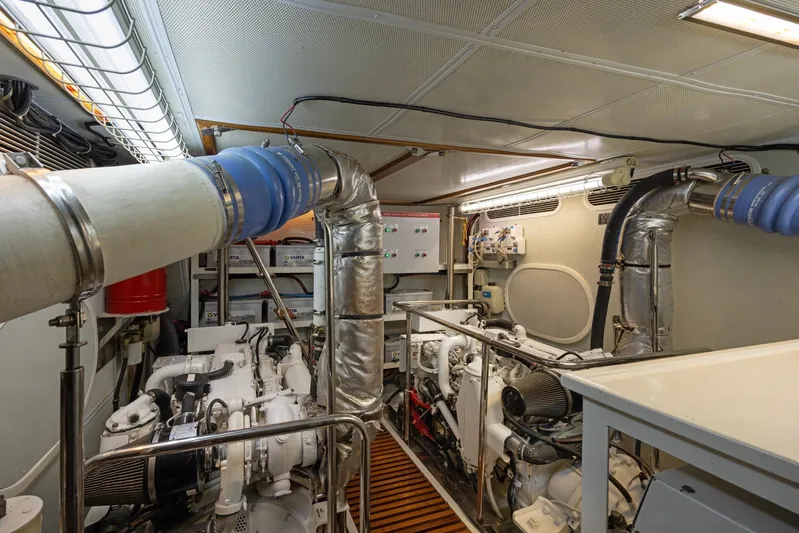

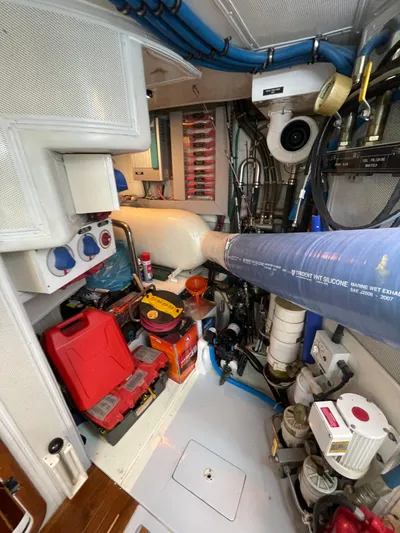

PROPULSION

• Twin Cummins QSL 9 410HP Marine Diesel @ 2100 rpm
• Reverso OP700 gear driven oil change pump
• Engine overheat & low oil pressure alarm
• FRP drip pan under engine
• Hydraulift wet box muffler in FRP
• PYI dripless stern gland for engine shaft
• Faster NIBRAL 5-blade propeller
• Aqualoy #22 propeller shaft 3” diameter
• Twin Disc electronic engine control system at each helm station
• Jabsco 4” 24Vdc engine room blowers
• Deluxe engine panel w/ complete instrumentation & alarms
• Full protected FRP rudder w/ S/S #316 dia. 2” shaft
• S/S #316 pillars in engine room
• Water tight access door to engine room

GENERATOR

• One Onan 50 Kw. 120 Vac / 60Hz or 240Vac / 50Hz. Generator w/ sound shield, muffler and remote start switch panel located in P/H, includes dedicated 120 Amp / H starting battery in FRP box with lid

NOISE CONTROL

• Dual 1” core water bulkhead w/ Soundown damping tile & 3” insulation lead foam w/ perforated aluminum plate
• Soundown damping tile above propeller rotation plane
• Ceiling & fwd bulk 3” lead foam insulation inboard

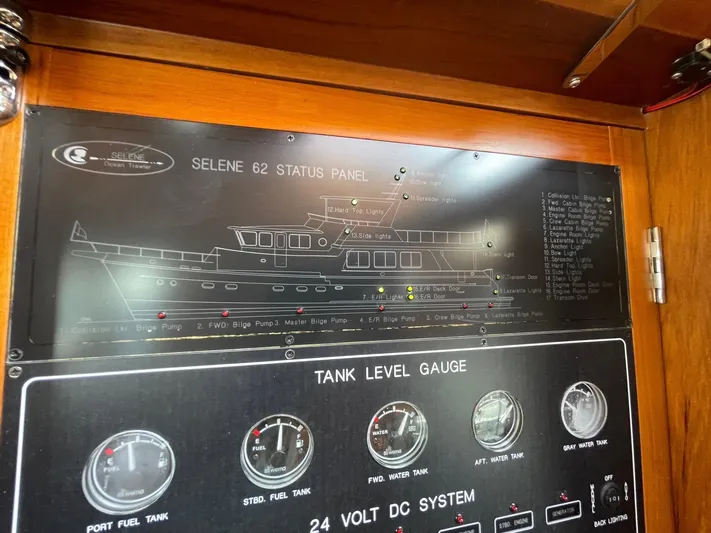

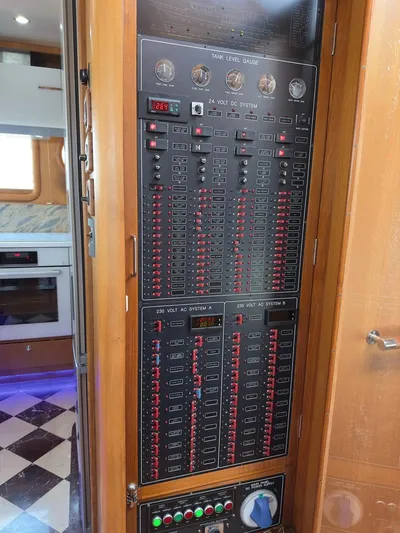

ELECTRICAL SYSTEM

• Delco 130 Amp engine alternator
• Mastervolt inverter 5Kw
• Maxwell windlass w/ up/down switches at foredeck & each helm stations

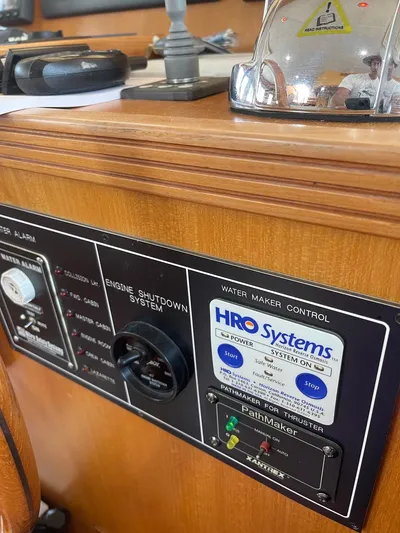

• Heart Pathmaker emergency parallel switch
• Mastervolt l 3-bank 120V or 240V AC battery charger unit 7
• Aquasignal navigation lights
• Kahlenberg air horn
• Exalto 24Vdc electric wipers for 3 front windshields including fresh water wash
• Rule 24Vdc sump pumps w/ FRP basin & automatic float switches
• Marinco shore power inlets
• Marinco SS TV / TV & Tel inlet
• Evergreen maintenances free batteries
• Hubbell AC outlets throughout the boat
• Intercom
• Professional integrated galvanic isolator
• One AC/DC control panel w/ polarity indicator lights, appropriate switches, meters & breakers
• Cantalupi 12Vdc accommodation ceiling lights
• 24Vdc step lights for interior & exterior
• Stereo speakers in saloon w/ wiring to cabinet
• Copper bonding strap w/ ground cable attachment for each fitting
• Spare circuit breaker for optional Auto pilot system

FUEL SYSTEM

• Total capacity 2,600 US gallons, two FRP fuel tanks w/ internal baffles, sumps, balancing lines, inspection plates
• Racor dual duplex fuel filter / water separator for main engine
• Racor fuel filter / water separator for generator
• Trident fuel hoses
• Electric fuel gauge
• ESI CLEAN ECS1000RE Fuel Polishing and management system
• Fuel certified reinforced rubber fuel lines

FRESH WATER SYSTEM

• Two S/S #316 water tanks w/ shut off valve, total capacity 610 gallons
• Electric water gauge
• Torrid S/S 30 gallons 120Vac or 240Vac dual heating source hot water heater
• Groco Paragon Senior 12Vdc. fresh water pump
• ITT shore water inlet

SEA WATER SYSTEM

• Sea cocks on all through hull fittings with double hose clamps
• Bronze basket type internal sea water strainer for main engine

STEERING SYSTEM

• Hynautic hydraulic steering system for two station
• Emergency steering tiller

BILGE SYSTEM

• Rule 2000 GPH electric bilge pumps
• Rule 3700 GPH electric bilge pumps
• Whale manual bilge pump w/ manual engine
• Status panel w/ warning signal in helm station to warn of bilge pump operation

MISCELLANEOUS

• 100 gallons polyethylene holding tank w/ Y-valve located in engine room w/ Sealand macerator pump, deck discharge outlet & remote full display panel in master head
• 2” sound insulation lead foam W/ aluminum perforated plate in E/R
• Selected sliding windows w/ tea- color glass
• Anti-fouled paint bottom paint
