Lionheart Yacht for Sale | 44 Hinckley Yachts Stuart, FL

HULL & DECK:

(2022) Land Rover Green Awlgrip topsides
(2022) Faux wood transom
Light Cream gelcoat deck and cabin top with molded-in side and foredeck covered in teak decking.
(2022) Single Cream Awlgrip Boot Top
Red bottom paint.

Construction:

DualGuard™ Composite Construction and SCRIMP® process. Hinckley's DualGuard™ construction has a skin coat of chopped E-glass mat in low shrink vinylester resin, an outer skin of Kevlar/E-glass, a core of end grain resin-sealed aircraft grade balsa and high-density foam, and an inner skin of carbon fiber.

Marelon ball-valve type seacocks installed flush with the hull.
Rub rail has stainless steel half-round on solid PVC molding.
Flybridge is through-bolted to the pilothouse.

Swim platform - with teak inserts and stainless steel half round with a stainless steel telescoping 3-step swim ladder under swim platform. There is custom gunwale guard on the aft face of the swim platform.

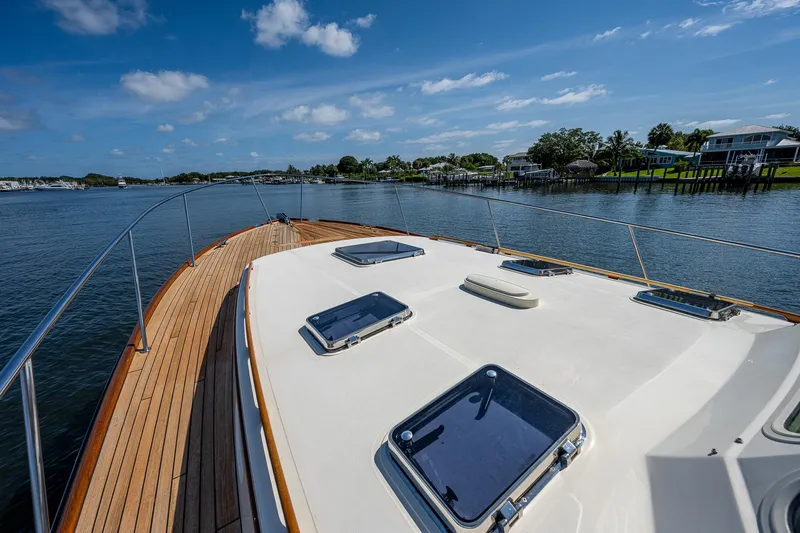

DECK:

Flybridge with surround coaming, aft stainless steel pulpit with custom safety gate, and flybridge mast
Stainless steel custom bow rail
All handrails are varnished teak.
Handrails - mounted on flybridge sides and pilothouse side - port and starboard.

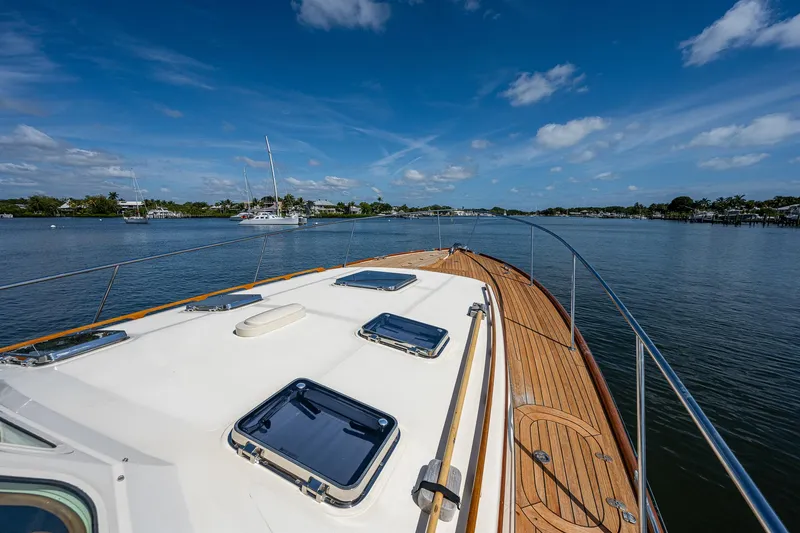

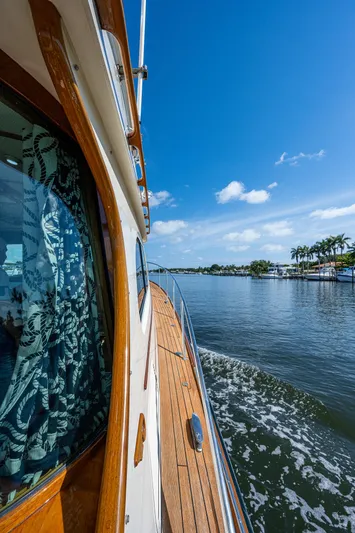

Teak deck exterior walkways, stern and foredeck areas, deck step and seating and ladder base areas.

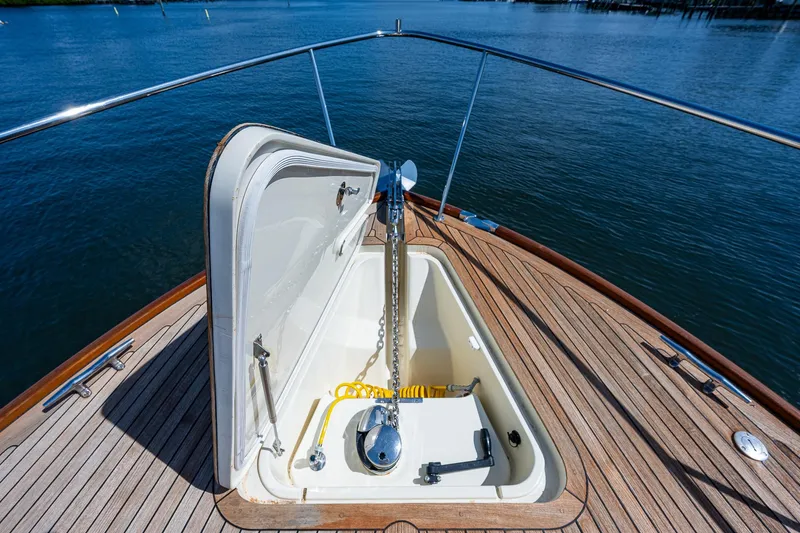

Anchor locker is molded into foredeck locker with hinged gas spring assisted hatch. Remote control for anchor windlass as well as control at helm. Anchor also can be pinned in place or pivoted back into the locker for a clean look. A salt water deck wash is in this foredeck locker.
Tapered varnished teak toe rail with Hinckley profile, stripped and re varnished in 2022
Varnished teak eyebrow around cabin top, stripped and re varnished in 2022
(2017) (5) Stainless Steel deck hatches with smoke gray Lexan.
(6) Elliptical trunk cabin opening port lights with removable screens.
Stainless steel chocks and mooring cleats, with pull-up cleats for spring lines.
Outboard mid-deck locker.
Stainless steel deck scuppers.
Multiple fender pad eyes with stainless steel half-round chafe strips on toe rail
Aft transom handle – painted to match hull
Custom housetop hold-downs for Shaw and Tenney boat hook

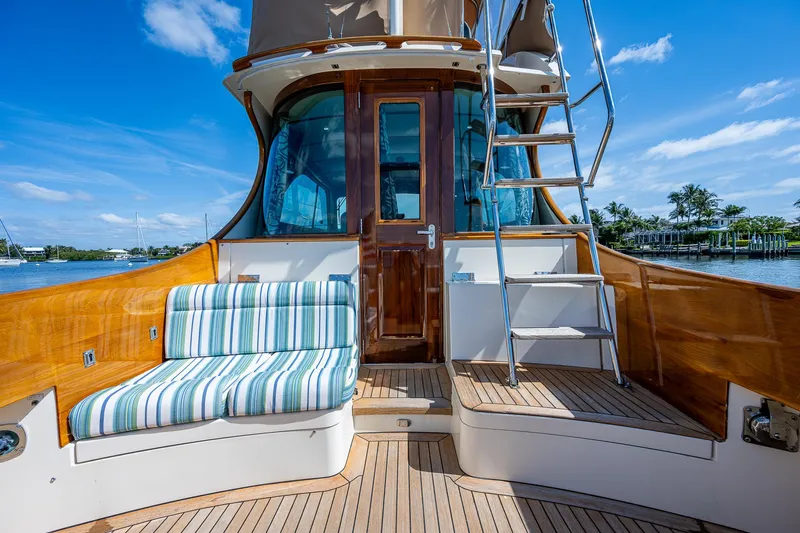

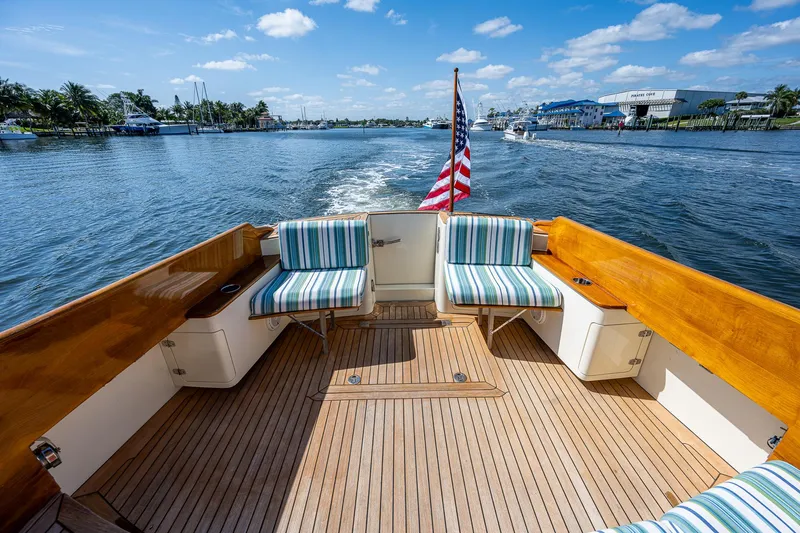

COCKPIT:

Entry to the boat is either from the side or through the transom.

A centerline transom door with stainless steel clasps opens from the swim platform.
Removable stainless steel with teak tread boarding steps - mounted aft of engine boxes - port or starboard.

Features include:

Teak cockpit sole
Stamoid cockpit cover – attaches to pilothouse top
Aft-facing settee portside.
Custom port and starboard transom seats - has a removable center section at transom door.
(2021) Cockpit cushions Perennials Beachcomber / Neptune stripe
Port cockpit table - can be attached to port coaming and can be used from stern or engine box seat. Table stores in port stern storage box
Cockpit courtesy lighting on dimmers
Bose 131 cockpit speaker pair with volume control.
Cockpit shower with mixing valve near transom door opening.
Glendinning shore power cord deploy/retract system with wireless remote
Custom stainless steel arm for holding shore power cord fits in fishing rod holder.
Custom port and stbd storage lockers in cockpit aft corners. Port locker houses storage for custom cockpit table. Stbd locker offers storage for cleaning supplies. Each includes a varnished teak cover with drink holders.
Storage is available in insulated and drained cooler/fish box locker on the aft deck and cockpit sole hatch.
Aft rod holders
Shore water inlet – port forward – with regulator valve

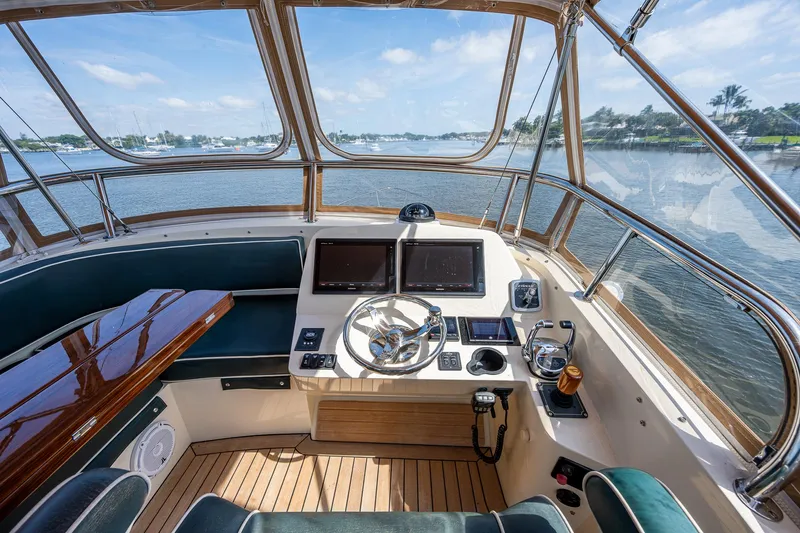

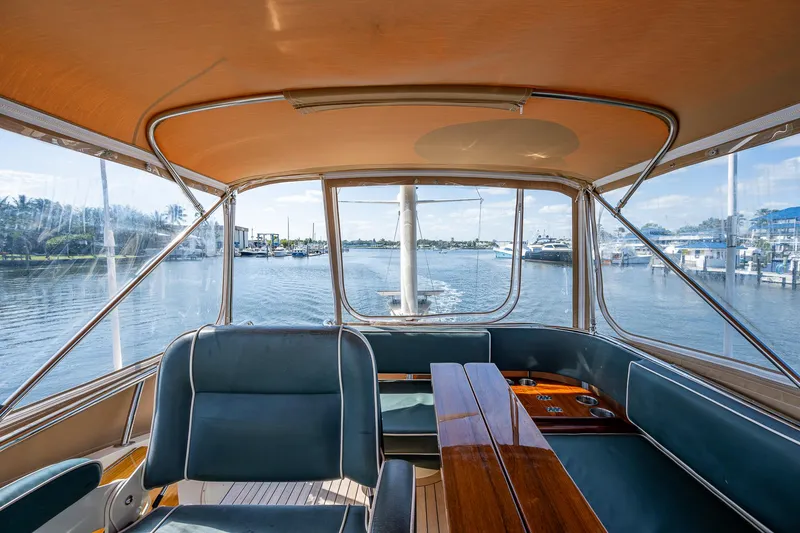

FLYBRIDGE:

The custom Nautilus 14-gauge 1.25” stainless steel ladder with teak treads leads up to the flybridge area. This ladder can fold out of the way when not in use. The molded three-sided flybridge has sides that curve downward and has a molded in nonskid sole.

Aft stainless steel stern pulpit wraps around forward port and starboard. There is a custom stern pulpit safety gate of contrasting color.

Forward is a wrap-around venturi windshield.
Flybridge mast - also includes flag halyard and KVH satellite receiver.
L-Shaped settee to port and aft of helm seat has cushions finished in Holly Ultraleather Plus with cushion storage and sun pad storage inside.
Table - A removable, varnished teak flybridge table stores in the port settee locker in a custom padded bag.
Custom corner table built into settee with insulated ice tub and recessed drink holders, hinged teak lid.
Custom bimini top and full Eisenglass enclosure.
Varnished lightboards on flybridge sides
Aft seats store 6-man liferaft with Stamoid cover
Custom Stamoid deck hatch covers - with owner’s signal

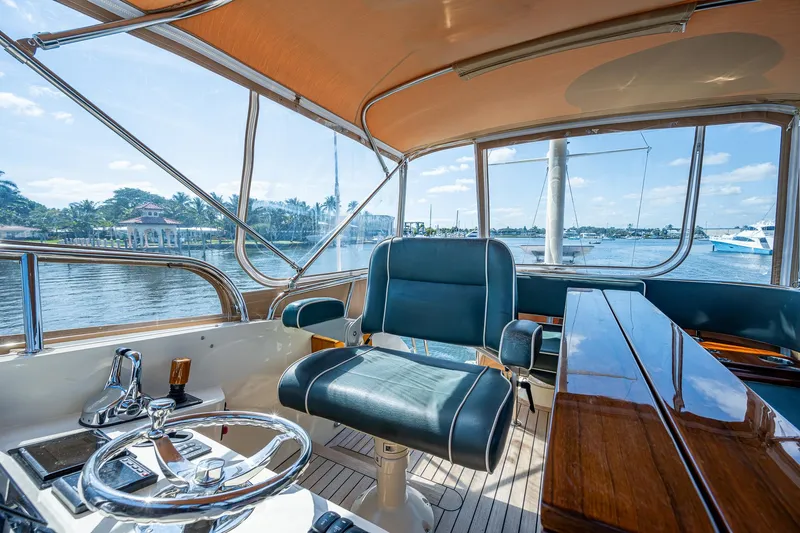

Helm:

Forward is a molded helm with a custom varnished teak steering steel wheel, JetStick® II, complete engine instrumentation, (2017) Garmin 7612 XSV C MFD Chartplotter, Radar, GPS and Command mic for lower helm VHF, and mounted Danforth Constellation compass. There is also built-in mug holders.

Custom manual 1.5 Stidd helm seat that pivots and covered in Spinneybeck Leather: RA1806 with VO-944 piping.
Table - Custom removable table with two folding leaves, two aluminum pedestals – located at the port settee.
Air horn – custom hidden-mounted
Bose 131 speaker pair with volume control.
Stamoid covers for flybridge seat, settee seatback, and helm pod

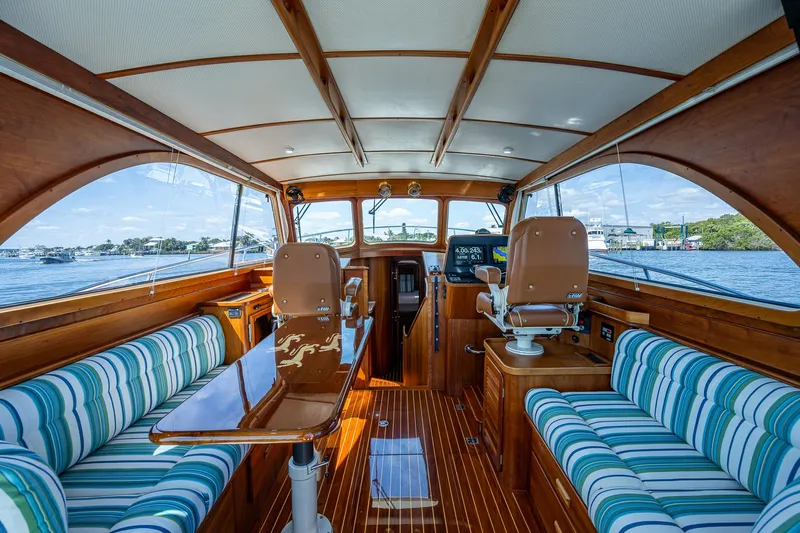

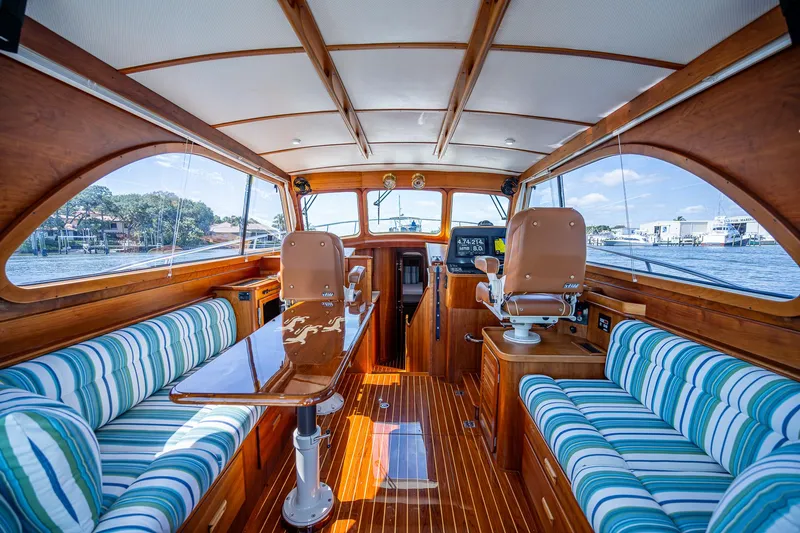

PILOTHOUSE (Amidship):

The Pilothouse is entered through a varnished teak door that has an opening window with screen and faux painted window frame.

The Pilothouse features:

Varnished teak cherry veneer on exposed FRP surfaces except seatbacks.
Varnished teak dash and coaming.
3-Forward tempered-glass, green-tinted, fixed windows with windshield wipers & washers. The pilothouse side windows slide open giving the helmsmen additional ventilation.
White noise-absorbent overhead
Chelsea clock-strike clock and barometer custom mounted in center valence face

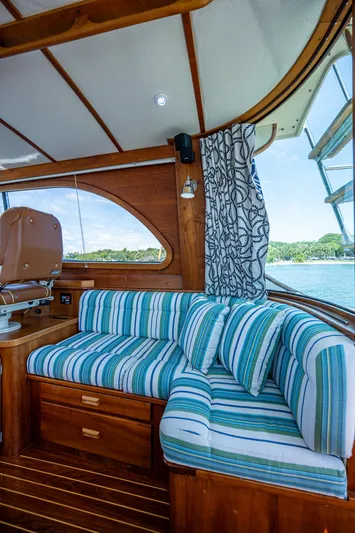

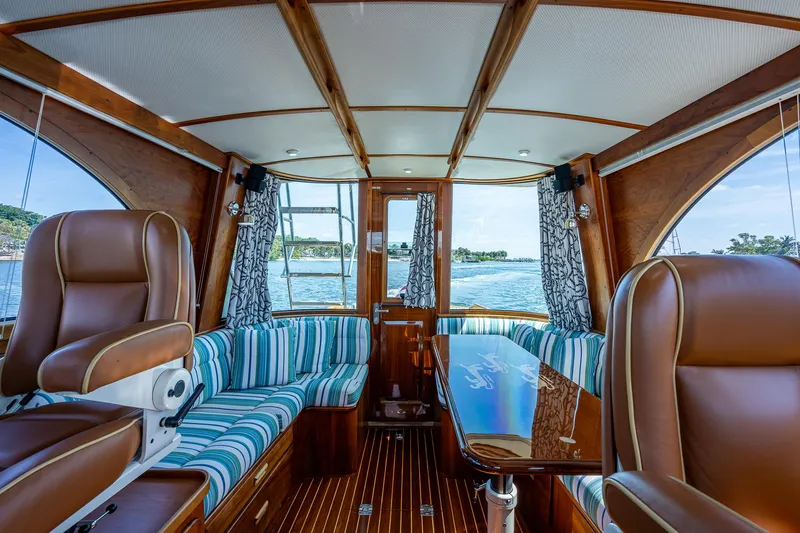

Pilothouse Layout:

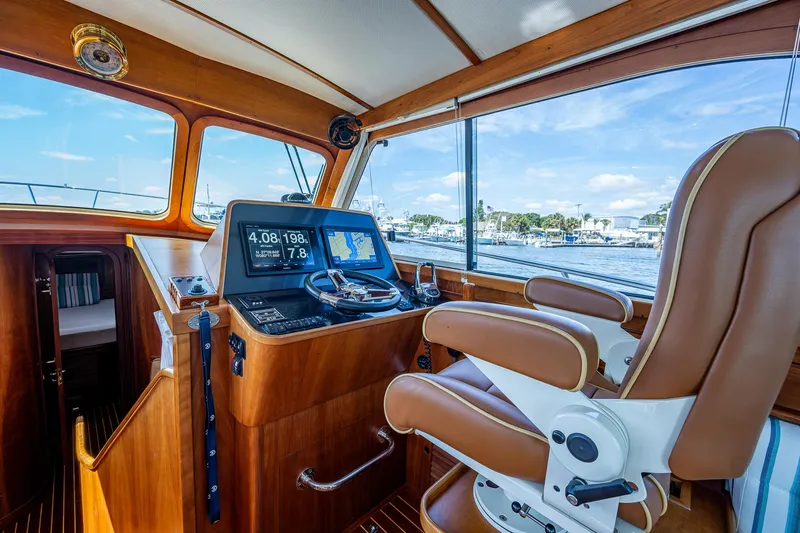

Forward, to starboard are the Helm station and a chart table with hidden custom, push button liquor locker is to port. Aft is the salon area with L-shaped settees port and starboard and much more:

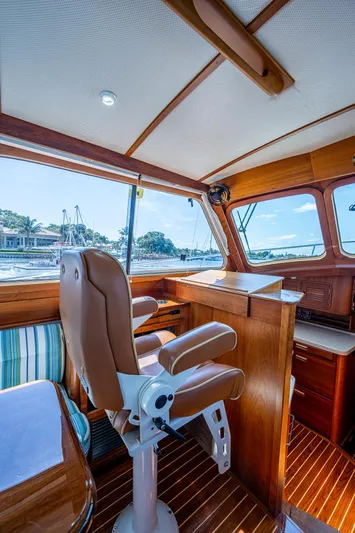

Stidd 500N helm seat is manually operated is covered in Spinneybeck Leather: RA1806 with VO-944 piping
The port settees have two varnished cherry-faced drawers below. The port forward drawer is wine bottle storage. The aft drawer is custom glass storage
The starboard settee has a hinged flip-out to the bottom to create a berth. Starboard large single-drawer for custom glasses. This settee includes storage for two chart kits.

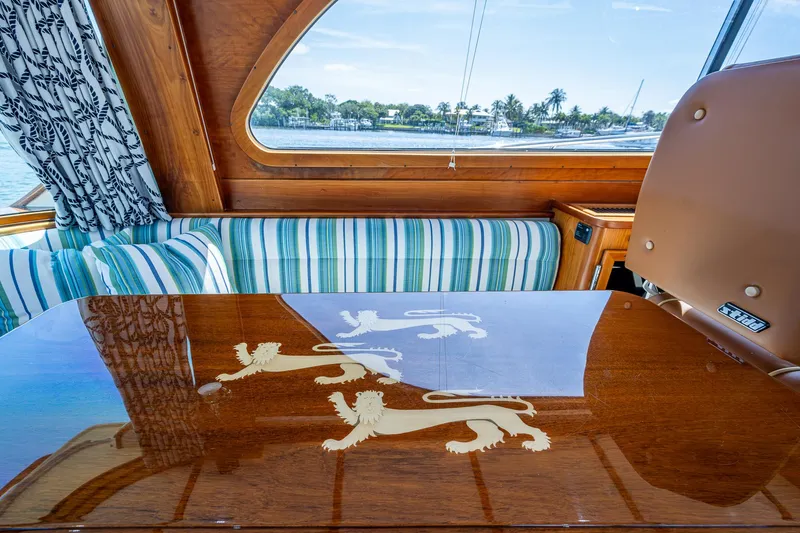

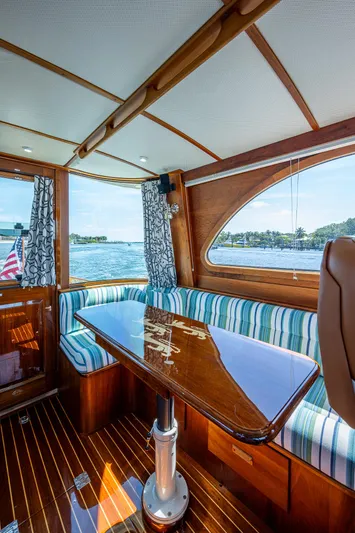

At the port settee, a varnished custom owner’s signal inlay teak table with folding inboard leaf and a padded protective cover is mounted on a manual Stidd powder-counted pedestal that can lower down and form an additional bunk with cushion.

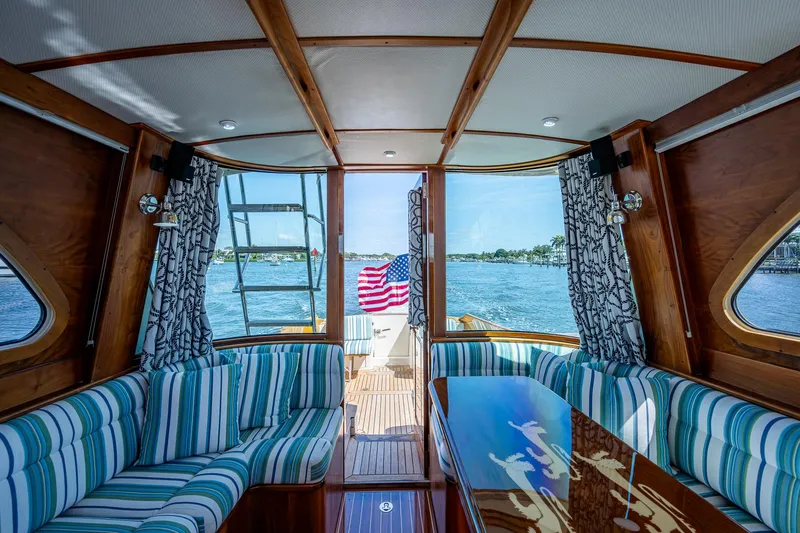

(2022) Aft settee cushions are upholstered with Spinneybeck Leather RA-1806 with VO-944 covered seatbacks and Ultraleather seat bottoms.
Skysol shades in the pilothouse
Reverse-cycle Marineair air conditioning duct.
Varnished teak overhead handrails port and starboard
Overhead recessed halogen lamps on dimmers provide lighting.
(2) Hella removable fans in the pilothouse
Dual 110-volt AC outlet
Custom concealed, lighted, push-button liquor cabinet is located beneath the chart table, forward to port. It raises from the aft galley on a custom motorized lift and has a mirrored back and a fold-down prep shelf

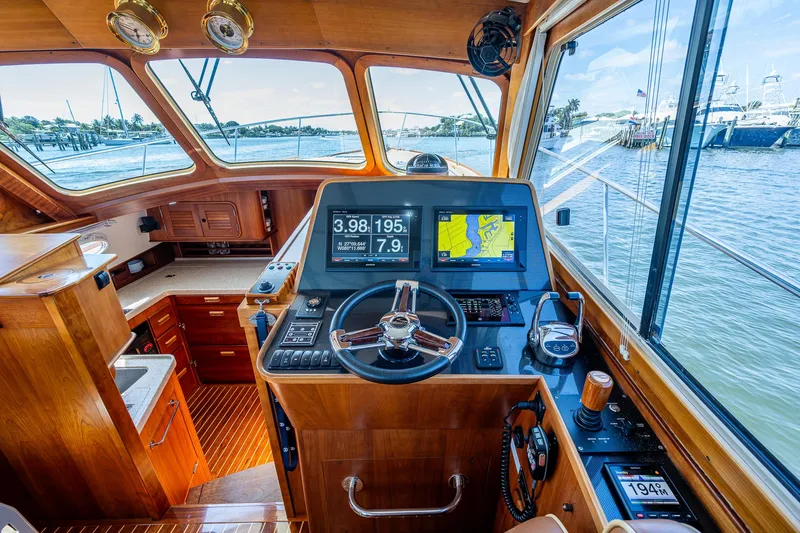

HELM AREA:

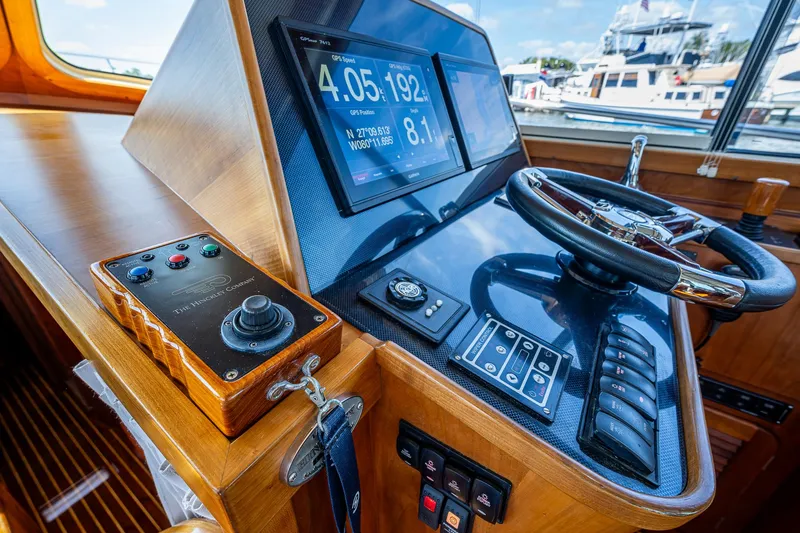

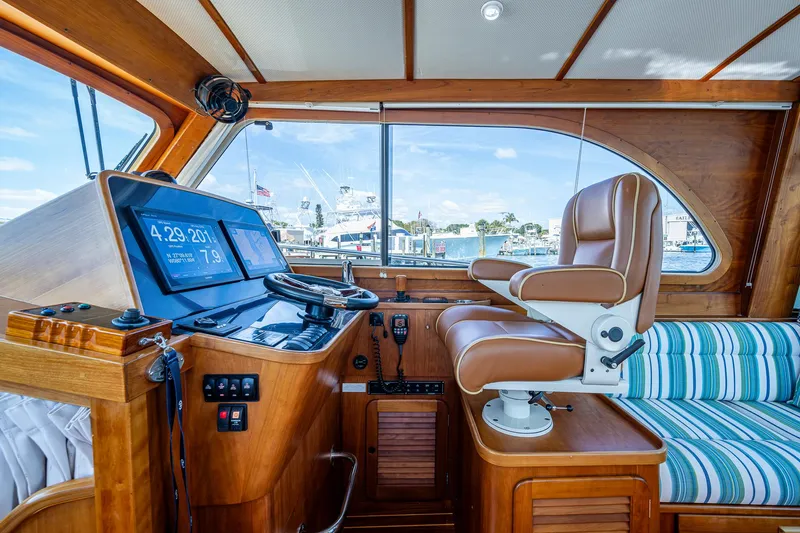

The Helm has a satin-varnished teak dash with Hinckley JetStick® II, engine controls, nav instruments and gauges. The Stidd 500N helm seat slides forward and aft, and pivots. Forward of the helm seat is a custom built-in helm step with lift-out storage. A louvered teak door provides access to the custom storage in the helm seat base. Outboard of the helm seat there is a varnished teak shelf with fiddle which houses the Hinckley JetStick® and a cup holder. A 12-volt outlet is near the key switch. Gooseneck chartlight.

Electronics and Navigation Equipment

(2017) Two Garmin 7612 XSV MFD Chartplotter, Radar, GPS units - (2) Pilothouse displays and (1) Flybridge
(2017) Garmin sounder
Standard Horizon VHF radio – Command mike at pilothouse and loud hailer and Ram mike at flybridge
(2017) Garmin Autopilot, Shadow Drive system new in 2023
(2017) Garmin AIS
(2017) FLIR Night Vision Camera
(2) Ritchie "Constellation" compasses - 2nd at flybridge.

Boat Entertainment Electronics:

(2023) 32" TV
Alpine AM/FM/CD stereo system with integrated 6-CD changer.
Alpine DVA-5210 DVD/CD/Video CD player with IR remote.
Two (2) Alpine MRP-F240 4/3/2 channel power amplifiers
(2023) Starlink system hardwired to mast
KVH satellite receiver, mast-mounted, to 2 separate zones, each with their own satellite receiver and flat-screen TV. Zone 1 is the forward stateroom, Zone 2 is dinette and pilothouse.

Bose 48 Stereo System:

Two MB Quart 6” diameter speakers covered by cherry trim rings – outboard in forward cabin. Faux paint the cloth to match surrounding cherry.
Bose Acoustimass® module & four Jewel Cube® speaker arrays for surround sound system - in Dinette.
Pilothouse Acoustimass 5 system - with 2 cube-array speakers mounted aft corners. Acoustimass behind the A/C return, outboard electrical panel.
Four Bose 131 speakers - 2 in cockpit, 2 in the flybridge.
Jack to receive iPod audio output.
Volume controls for the speakers in the forward cabin, pilothouse, cockpit and flybridge.

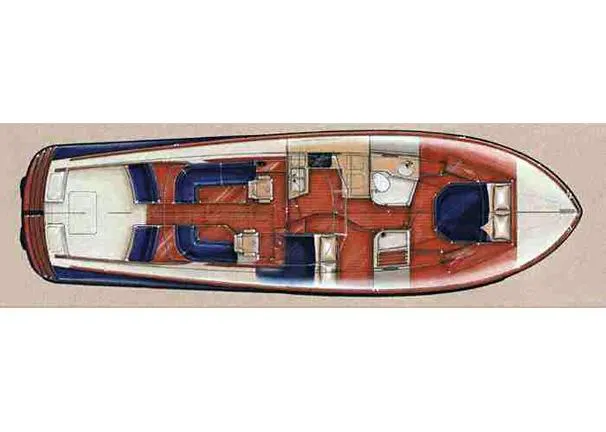

INTERIOR ACCOMMODATIONS & LAYOUT:

Sleeping accommodations for five. Forward, below deck, are a Master Stateroom, Head, Shower, Galley, and Dining Salon areas. The Interior is finished in satin-varnished cherry with gloss highlights with white fabric overheads with varnished cherry battens. From the pilothouse companionway is the main cabin that includes the U-shaped Dinette to starboard and Galley to port.

Two large overhead opening hatches add extra light and ventilation to this full-beam area.
Opening ports with screens.
Reverse-cycle heat/air conditioning offers additional comfort in all conditions.
All Frigast reading lights have dimmers
Custom interior switches have light bars
Custom sheets, bed covers, pillows and pillow shams

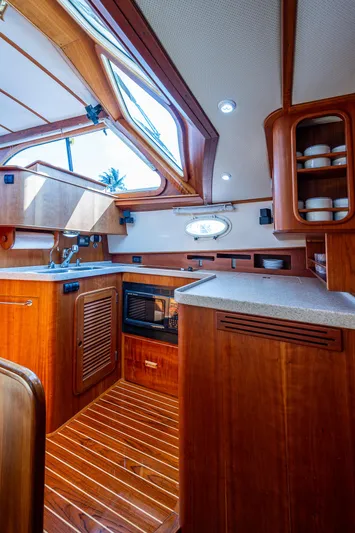

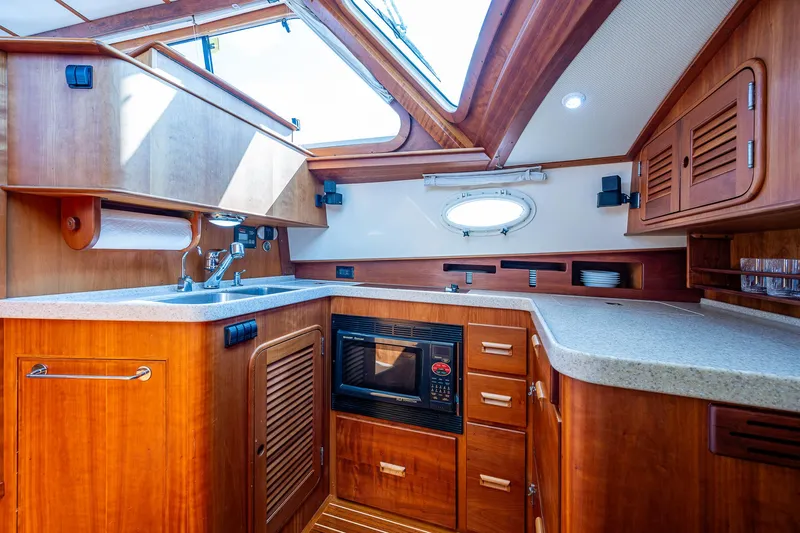

GALLEY (Port):

To port is the U-shaped Galley finished in satin-varnished cherry cabinetry with louvered locker doors and a Corian countertop. Over the sink are two louvered doors to storage space that hinge up. A dome light is under the locker and a second light provides extra light to the sink work area. Varnished cherry-sheathed alcove storage is directly outboard with storage lockers forward and aft.

Sahara Corian countertop.
Double Sink - Satin stainless steel with pull-out faucet/sprayer fixture.
Hot and cold pressure fresh water system.
(2) Smooth electric cooktops – One single-burner and one double-burner – both with remote control knobs. Singe unit operates from inverter while the double unit operates from shore power or generator.
Microwave/convection oven – under the countertop.
Trash receptacle under counter, with lift-top access
Three drawers customized for flatware, etc.
Customized countertop Corian drain board
Custom varnished cherry glass rack
Custom storage and mug rack cabinet over refrigerator – inboard
Custom varnished cherry locker with removable top over the galley with custom mug storage and louvered doors.
Water-cooled U-Line 2175 DWR drawer refrigerator and freezer - with separate thermostats.
Hella fan.
Dual 110-volt AC outlet.
AC vent.
Custom knife rack in Corian countertop
Custom under-mounted soap dispensers
Custom wood paper towel holder
Custom plate and serving tray storage
Custom tilt-stored companionway trash can
Custom pot/pan, toaster and coffee maker storage under the sink

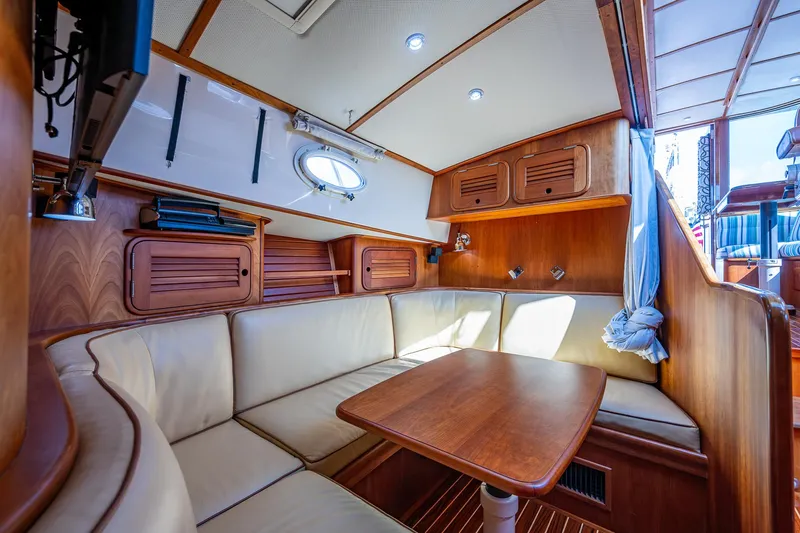

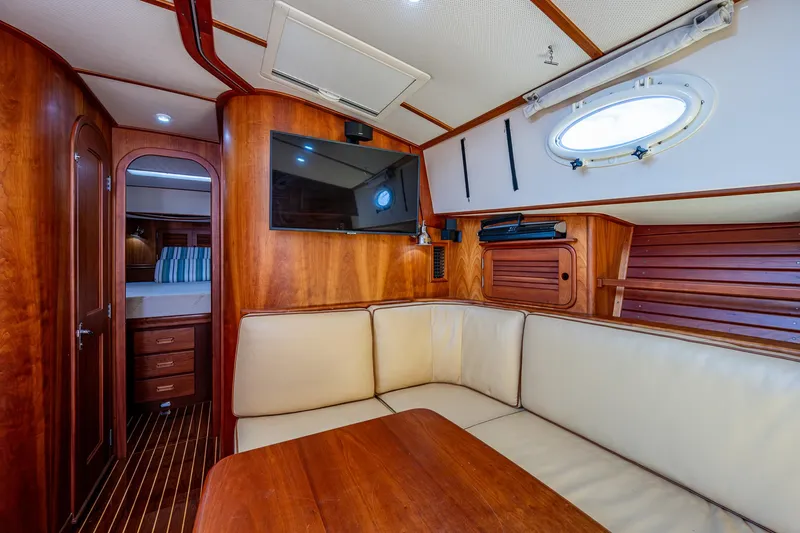

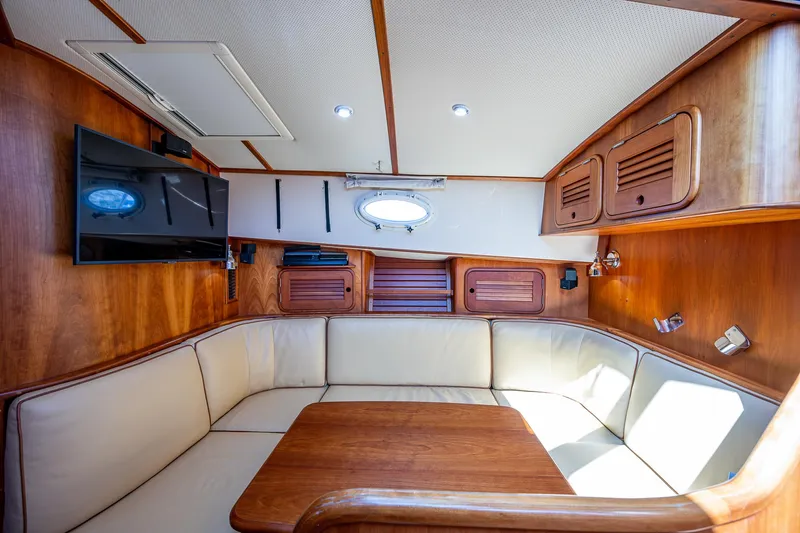

To Starboard: DINING SALON

Custom wrap-around cushioned dining seating finished in Spinneybeck Leather VO-944 seat bottoms in Spinneybeck Leather VO944. There is a custom drawer in the forward settee. A varnished cherry dining table with padded cover is on a Stidd powder-coated stainless pedestal that manually slides up and down and allows the table to form an extra or a double berth. There is a tie-back privacy curtain on a track that separates this area. Filler cushions and privacy curtain stow in lockers under dinette settee.

Outboard are forward and aft louvered door cherry lockers, a center alcove bookshelf with removable bookrail and stereo speakers.
Custom plate/bowl and custom glasses storage locker in aft bulkhead and has binocular storage
Custom divided silverware drawer
Opening portlight outboard.
AC vent
Additional lighting is provided by two Frigast stainless steel lamps with dimmers.
Custom satin-varnished cherry iPod cradle in forward dinette locker

Dinette Entertainment System

(2023) 32” TV with a cherry frame mounted on the forward bulkhead.
Stereo head unit and the DVD player - in the forward Dinette locker
Stereo speakers are located outboard
Bose sub-woofer unit in aft storage locker

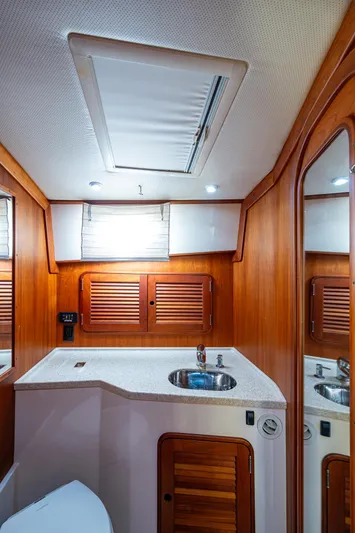

HEAD AREAS:

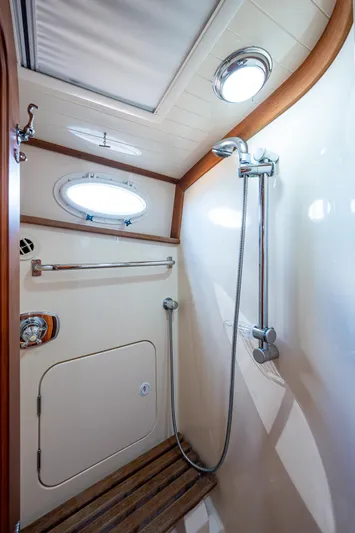

Next forward, the Shower area is located to starboard. The port side Head has a private door to the Forward Cabin. Each area has cream-colored fiberglass sole with molded-in nonskid and the bulkheads are satin-varnished cherry. There are opening ports and opening deck hatches in both head and shower. Each also has a solid door that leads to the rest of the accommodations.

Sahara Corian vanity with sink, handheld shower, Vacuflush head, and hot and cold pressure water, mirror, stainless steel towel bars, robe hooks and watertight storage areas.
The head has a full-length mirror on the inside of the door.
Custom towel storage area in shower
Electric Vacuflush marine head - plumbed directly to the 43-gallon holding tank and overboard discharge.
Reverse-cycle air conditioning ducts.
Custom under-mounted soap dispensers
Dual 110-volt AC outlet

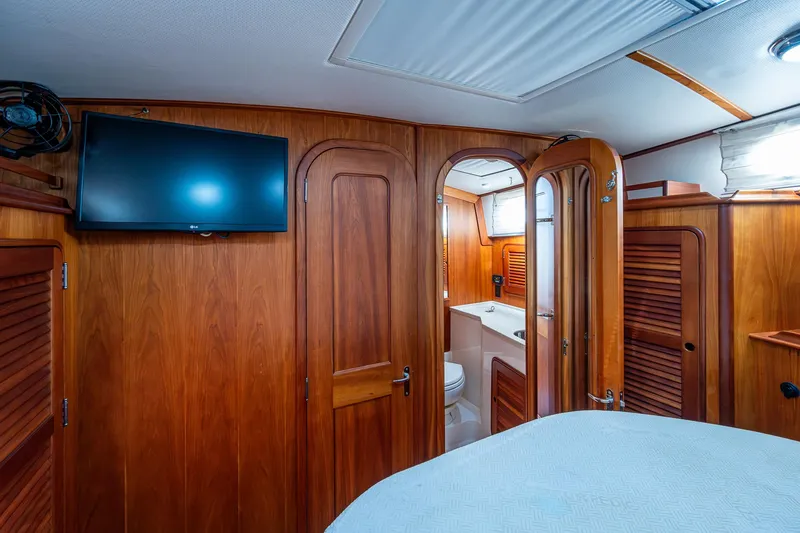

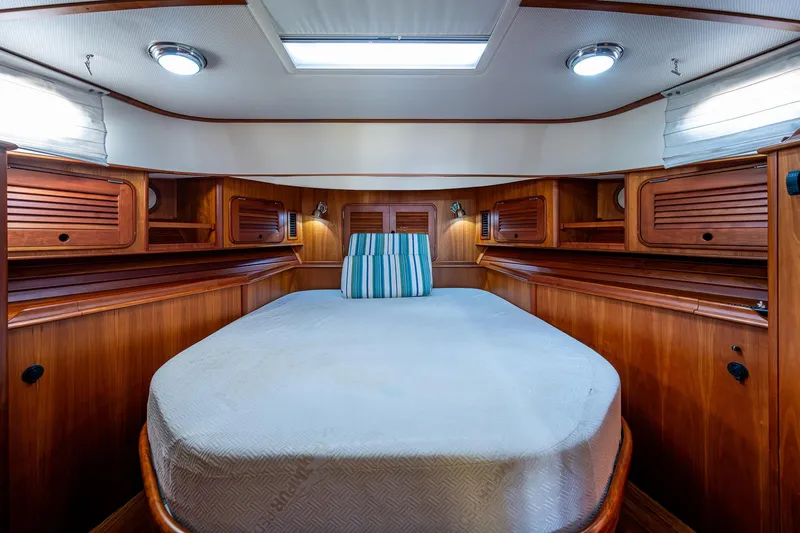

MASTER STATEROOM (Forward)

Centerline entrance opens to a centerline queen bunk with a Tempurpedic mattress, custom fitted sheets, duvet/cover, embroidered euro pillow shams. Stateroom is satin-varnished with cherry sheathing, paneled cherry doors and louvered cherry locker doors.

Stateroom cushions in Sunbrella Sailcloth Shore.
(3) Storage drawers below berth
Outboard, port and starboard of the centerline bunk are storage compartments with spring hold-up tops.
Aft of the centerline bunk are port and starboard hanging lockers with a louvered door and dome lights.
Custom bookshelves over port and starboard hanging lockers
Overhead dome lights, as well as Frigast lamps mounted on the forward bulkhead.
(2) Hella fans - bulkhead mounted, aft outboard of berth
Custom sealed, insulated bulkhead forward, separating the chain/rope locker, which has a cage-protected light.
The forward cabin has a large centerline deck hatch and there are oval opening ports starboard and port.
Air conditioning duct for either cooling or reverse-cycle heat.
Speaker pair with remote IR receiver.

ELECTRICAL SYSTEM:

Separate 12-volt DC starting and accessories systems:

(2022) (2) Start battery bank – main engine & generator start
(2023) Eight AGM GPL-4C DC batteries rated at 440-amp hours total and Vanner equalizer to supply both 24-VDC and 12-VDC house loads.
12-volt 80-amp alternator on both engines charge start batteries
24-volt DC 80-amp alternator on both engines charge ships service batteries
35-amp alternator on generator for starting battery charging.
Heavy-duty battery switches for both port and starboard engine starting.
Heavy-duty parallel battery switch

120-volt and 240-volt AC systems from shore power and generator:

(2020) NEW Onan 12-volt 13.5 Kw generator (379 hours)
(2022) Raw water hoses for generator
12-volt DC distribution panel - with thermal-magnetic breakers; volt and amp meters
Custom Bass 120-volt AC electrical circuit panel
50-amp shore power inlet, 110/220-volts AC
Glendinning Cablemaster cord reel system
Mastervolt 3.0 50-Amp 24-VDC Inverter/battery charger for house batteries
Charles 30-amp 12-VDC battery charger for start batteries
12-volt (cigarette lighter-style) - at DC panel and flybridge
110 volt outlets – Galley, head, engine room, and pilothouse
Grounding buss system and sacrificial zinc anode
GFI protected circuits in galley, engine room and head.
Generator is sound shield mounted and is complete with DC voltmeter, water temperature gauge, oil pressure gauge, hour meter, control switch, shutdown bypass switch and pre-heat.

MECHANICAL EQUIPMENT & ENGINE DETAILS:

(2017) Two Cummins QSC 8.3 600-HP Common-rail diesel engines with twin Hamilton 322 waterjet drives
(2023) Cummins 1,000 hour service completed including coolers, aftercoolers, heat exchangers, gear/fuel coolers
(2023) New Turbos
(2023) New water pumps for main engines
(2023) PTOs and Drive Shafts painted
(2017) Transmissions
(2023) Bucket feedback sensors
(2022) Cutlass bearings on Hamilton Jets
(2022) Vessel view displays
Reverso oil change system (Labeled, 2022)
Aqua Drive CV shaft system
(2017) Hinckley JetStick® II with Heading Hold & H-Lock
(2019) Heading sensor
(2017) Hydraulic Thruster – control at the steering station with the Hinckley JetStick®.
(2021) Main engine seacocks and thru hulls

Two-inch foam/lead fully-insulated, lighted engine room and flexible engine mounts provide quiet, vibration-free cruising. Electric lift is on both engine boxes. The engine room has a 12-volt DC forced air blower, 110-volt AC outlet, caged 12-volt lights and courtesy lighting at cockpit entry.

Racor LG100 in-line fuel/air separator for main engines on each fuel tank vent line
Racor fuel filter/water separator with water sensors, drain petcocks and vacuum gauges
Engine tachometer with hour meter gauge
Gauges: Engine oil pressure, engine cooling water temperature, jet nozzle indicator and fuel gauges
Alarms: Low oil pressure, high cooling water temperature, seawater flow and jet high pressure (hydraulic)
Oil transfer pump for engines, transmissions, and generator
Dual cylinder stainless steel trim tabs
Par saltwater deck wash pump – spigot and hose mounted in forward anchor locker
Flojet 12-VDC freshwater pump with accumulator tank
17-gallon stainless steel water heater – heated electrically or by transfer of engine heat
12-volt DC sump pump with automatic float switch for shower and air conditioning condensate
Bilge pump high water alarm system with Ultimate Senior switches
(3) 3700-gph 12-volt DC automatic bilge pumps
Whale manual emergency bilge pump
Manual hydraulic steering pump
Automatic fire extinguisher system: For main engines, with automatic engine shut-down
Fire extinguishers
(2) Fuel transfer pumps with switch at helm
Fuel tanks – 500-gal total – 2@150-g and 1@ 200-g - Fuel whistles on all three fuel tanks
Electrical and mechanical spare parts kit.
42,000 BTU Marineair reverse-cycle air conditioner services pilothouse, galley, dinettes, head, shower, and forward cabin: *18,000-btu to interior accommodations below; *24,000-btu to pilothouse

EQUIPMENT:

Ground Tackle:

Muir 1200A 24-volt DC electric windlass and custom folding polished SS anchor roller, mounted in custom anchor well.
35# custom polished, stainless steel anchor with 25' x 3/8" stainless steel chain + 200' x 5/8" nylon rode.

Equipment:
