Specifications
-
Cruising Speed:
8 kn
-
Beam:
17' 0''
-
Hull Material:
Fiberglass
-
Max Draft:
6' 1''
- Fuel Tank: 1 x
119|gallon
-
Fresh Water:
1 x
225|gallon
-
Cabins:
3
-
Heads:
3
Interior Arrangement And Layout
Inside, the main salon radiates sophistication with its bright, open layout and refined teak and holly flooring. The L-shaped settee and adjacent breakfast bar create an inviting area for dining and socializing, seamlessly connected to a well-appointed galley to starboard. Here, you’ll find double stainless-steel sinks, two stainless-steel Vitrifrigo refrigerators one with a freezer, an induction stove top, a combo convection oven/microwave, and an ice maker—everything needed for effortless meal preparation and long voyages. Ample storage and a Little Wonder 12V DC water-maker ensure convenience and efficiency. Forward is the master stateroom, a serene haven with a centerline queen berth, a plush dressing settee, and abundant storage. The ensuite head adds a touch of luxury with its vanity, full-size marine freshwater toilet, and separate stall shower. For guests, the two aft cabins offer comfort and ample storage, with ensuite access to the guest heads. The Beneteau 523 Oceanis boasts a spacious and thoughtfully designed interior, combining luxurious comfort with practical features for an exceptional cruising experience.
Interior Styling And Additional Features
Rich wood, elegant teak flooring with a luxurious and timeless appeal. Large windows for ample natural light with an expansive and comfortable open layout. L-shaped settee and convertible dinette with high-quality fabrics complement the sophisticated look. U-shaped galley with double stainless-steel sinks Two Vitrifrigo with freezer Induction stove top Combo convection oven/microwave Ice maker Ample storage and counter space Centerline queen berth with a plush dressing settee Stylish overhead spotlights and abundant storage Clean lines and practical fixtures with high-quality materials and finishes. Comfortable forward cabins and additional guest cabins with well-considered layouts.

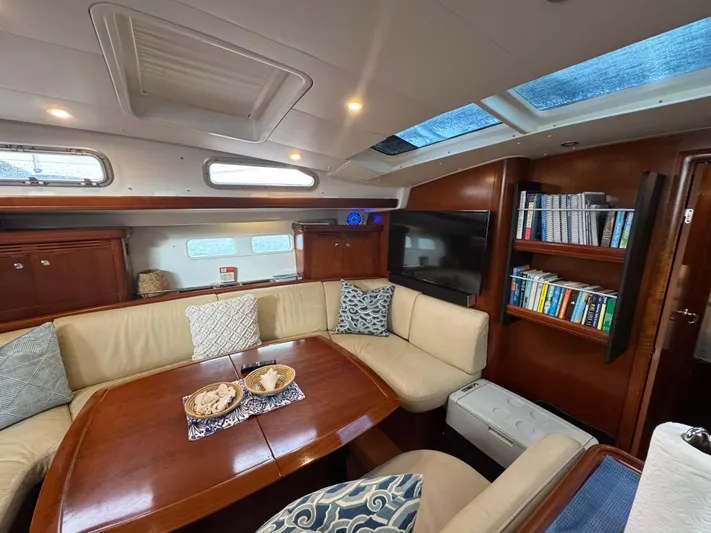

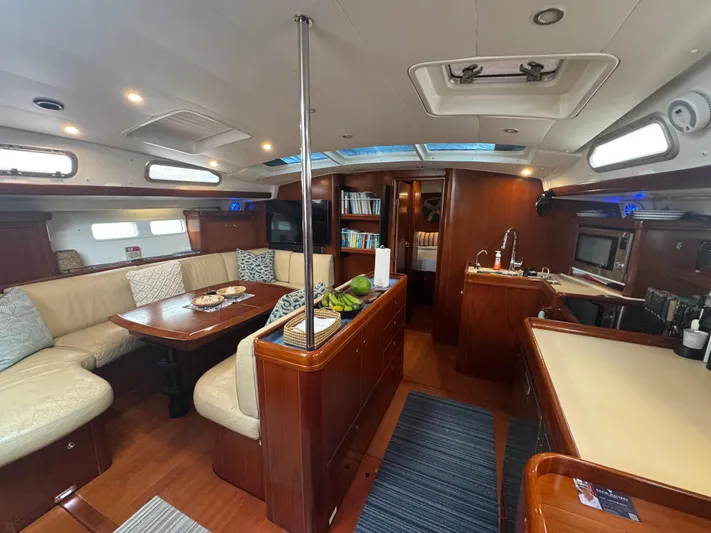

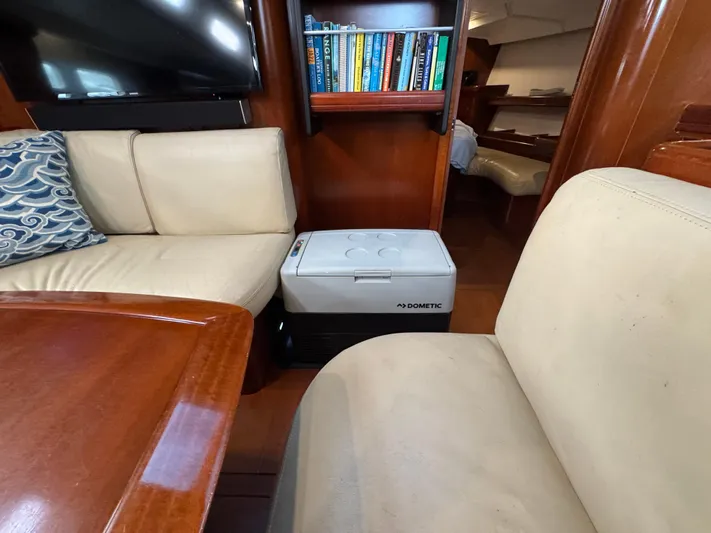

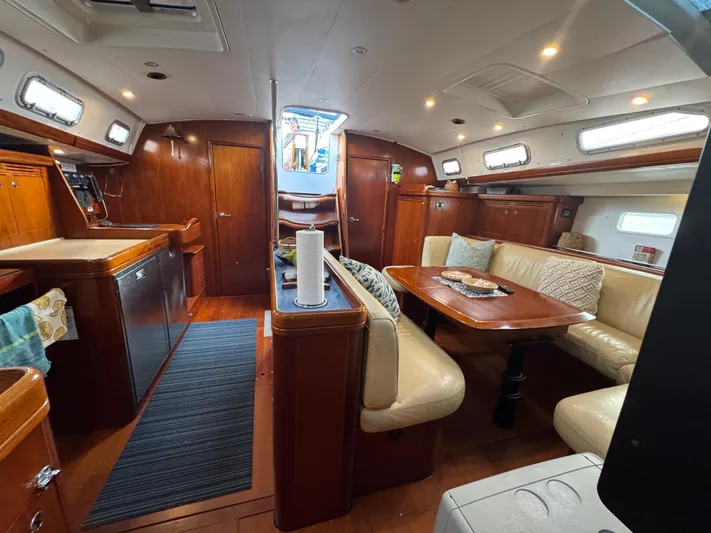

Main Salon

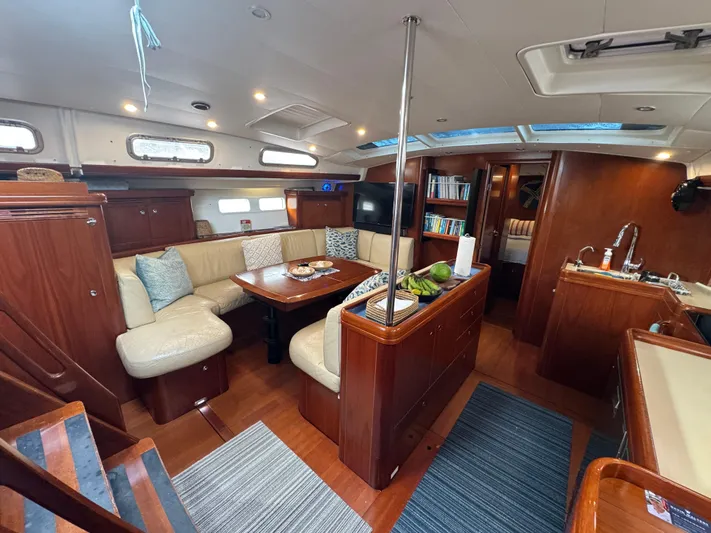

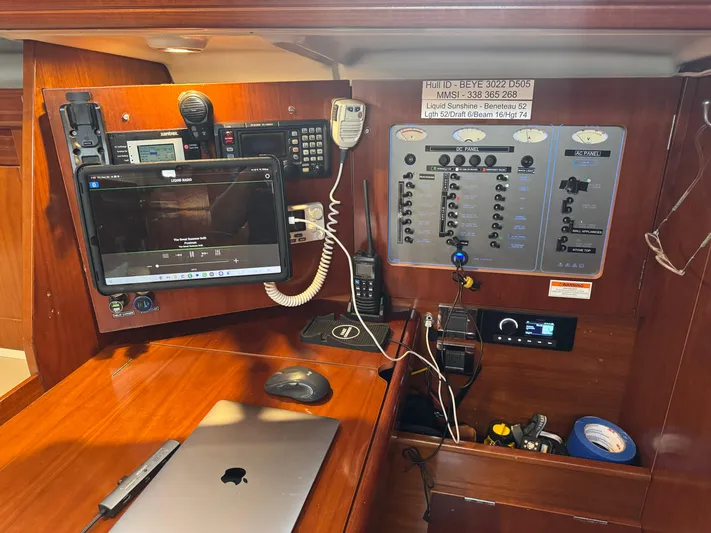

The area features a cozy warm atmosphere with smooth wooden flooring, large windows for natural light, and 360-degree seating to port with the dining table lower to provide an additional berth. The port side is complemented by a breakfast bar leading to the U-shaped galley. The salon is also equipped with a navigation station and ample storage.
Galley

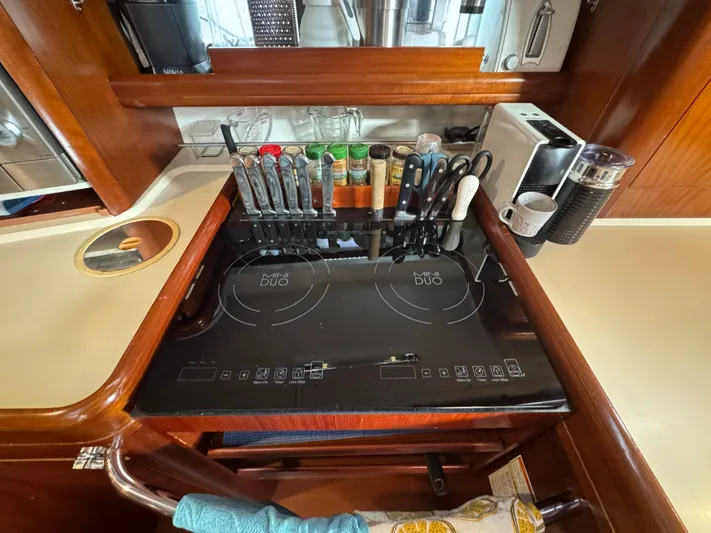

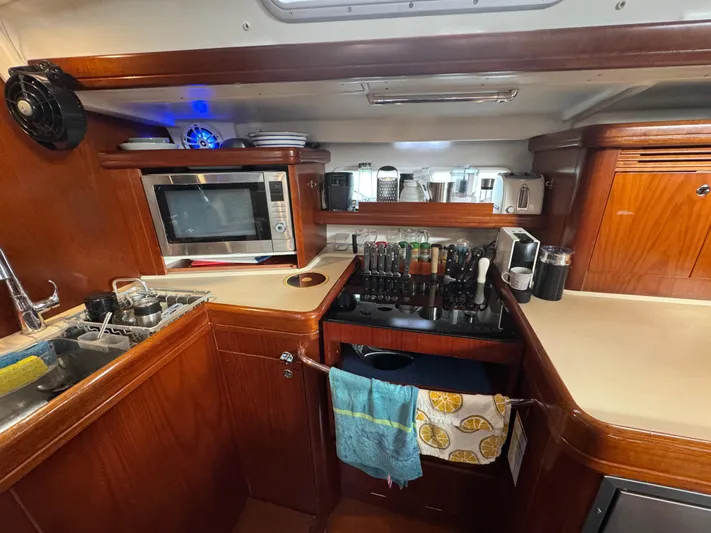

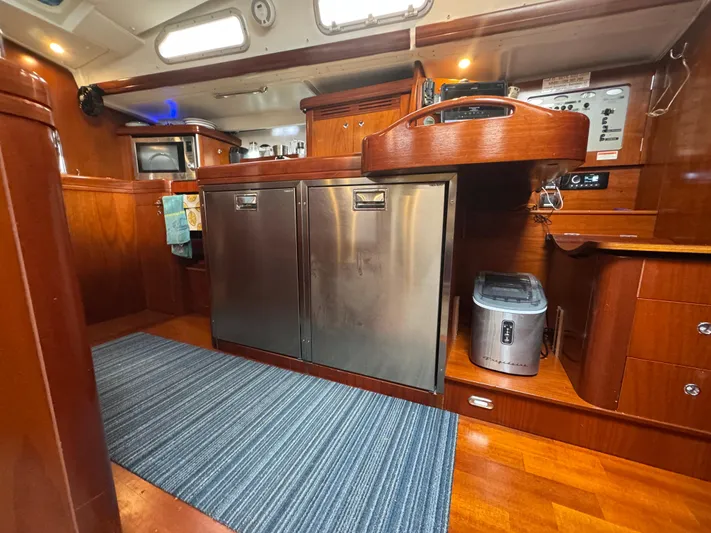

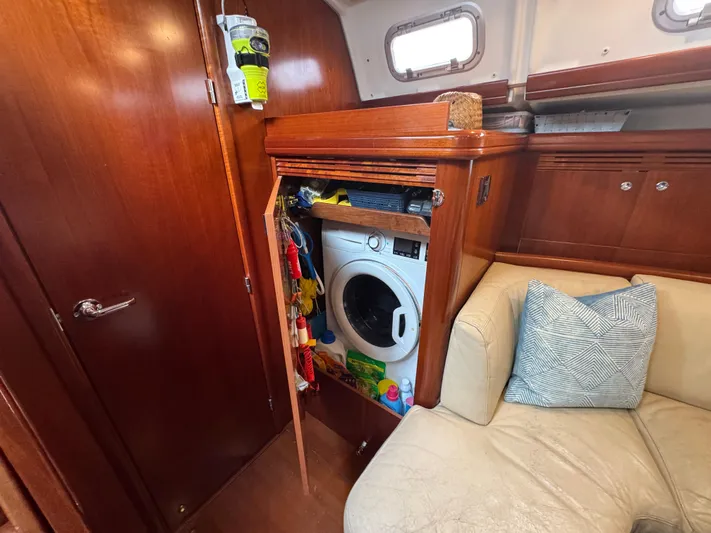

The U-shaped galley is located one step down from the companionway and is designed for efficiency and convenience. It includes large double stainless-steel sinks, a True Induction Mini Duo cool-top stove, and an ice maker. The galley also features a Little Wonder 12V DC 5 gal/hr watermaker and extensive storage. Large double stainless-steel sink Ample refrigerator and freezer capacity Abundant storage and cabinet space Plenty of counter prep area True Induction Mini Duo cool top stove, installed (June 2020) 4.7 cu ft Refrigerator (Installed September 2022) 3.8 cu ft Refrigerator/ Freezer (Installed September 2022) Cooler/Freezer CF 50 (Installed June 2020) Panasonic 4-in-1 microwave/convection oven (Added October 2021) Splendide washer/dryer Model WDC7200XCD (Installed October 2021) Little Wonder 12V DC 5 gal/hr water-maker (less than 40 hours) Insulated ice chest and dockside water fill 15 Gallon hot water system Water filtration system at galley sink with 0.5-micron filter.

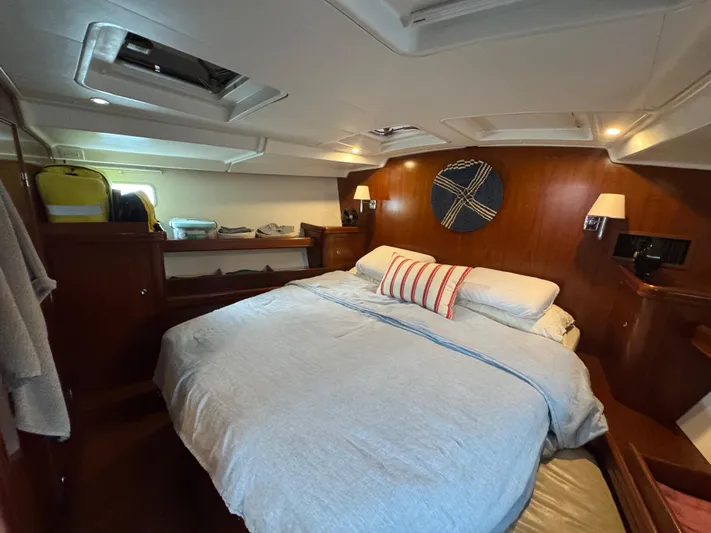

Accommodations

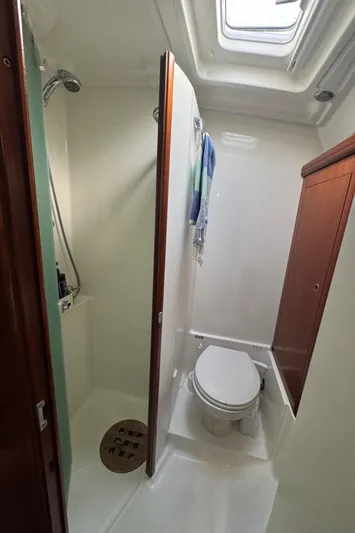

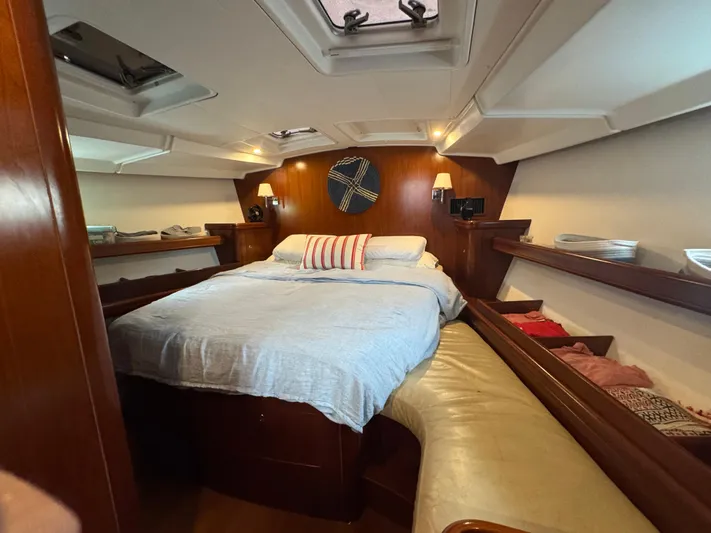

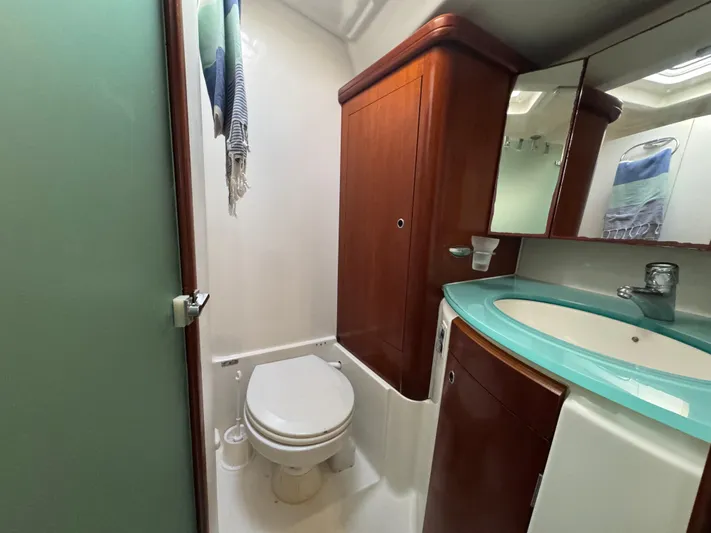

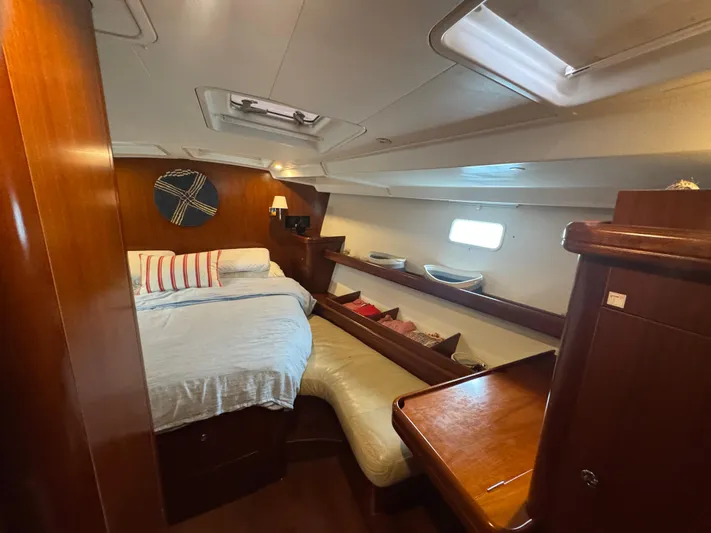

Master StateroomThe master stateroom, located forward of the galley, is a luxurious retreat with a centerline queen berth, an L-shaped dressing settee, and ample storage options. It also includes a private ensuite head with a vanity and freshwater electric toilet. Comfortable centerline queen berth L-shaped dressing settee with aft-bulkhead mirror and reading lights. Plenty of storage in drawers, hanging closets, lockers, and shelves Master Head The master head in the 2005 Beneteau 523 Oceanis combines functionality with elegant design to create a comfortable and practical space. Features a well-designed vanity with a modern sink Counter space around the sink provides convenient areas for personal items Equipped with a separate shower stall for added privacy and comfort The shower area includes a durable, easy-to-clean surface with a handheld shower head Includes a freshwater electric marine toilet positioned for ease of use and accessibility Cabinets and shelves offer ample storage for toiletries and other essentials Well-organized space to keep the head tidy and clutter-free Overhead lighting ensures the space is well-lit Opening port-light or hatch for natural light and ventilation Adequate ventilation system to prevent moisture buildup and ensure a fresh environment High-quality materials are used throughout, including durable countertops and stylish fittings Modern finishes that complement the vessel’s overall interior design. Aft Guest Cabins The guest cabins on the Beneteau 523 Oceanis offer comfort, practicality, and style, ensuring a pleasant and functional space for all guests on board. Two comfortable berths in each forward cabin, are designed to accommodate guests with ease. Ample storage solutions include lockers, shelves, and under-berth drawers to organize personal items. Large opening port lights or hatches provide natural light and ventilation, creating a bright and airy environment. Each cabin is separated by a partition for added privacy, ensuring a cozy and secure space for guests. Rich wood finishes, such as teak, and high-quality fabrics, reflect the same elegance throughout the vessel. The clean and uncluttered design offers a modern yet warm atmosphere. Guest Cabin Heads Includes a practical vanity with a well-integrated sink. Adequate counter space around the sink for toiletries and personal items. Features a combined shower and toilet areas with a durable, easy-to-clean surface. Equipped with a handheld showerhead for versatility. Marine freshwater electric toilets for reliability and ease of maintenance. Located conveniently within the head for ease of access. Includes cabinets and shelves for storing toiletries and cleaning supplies, keeping the space organized. Overhead lighting ensures the space is well-lit. An opening portlight or hatch provides natural light and ventilation, preventing moisture buildup and maintaining a fresh environment. Built with high-quality materials, modern finishes are used throughout, providing durability and a cohesive look with the vessel’s overall design.
Navigation And Electronics And Helm Station.

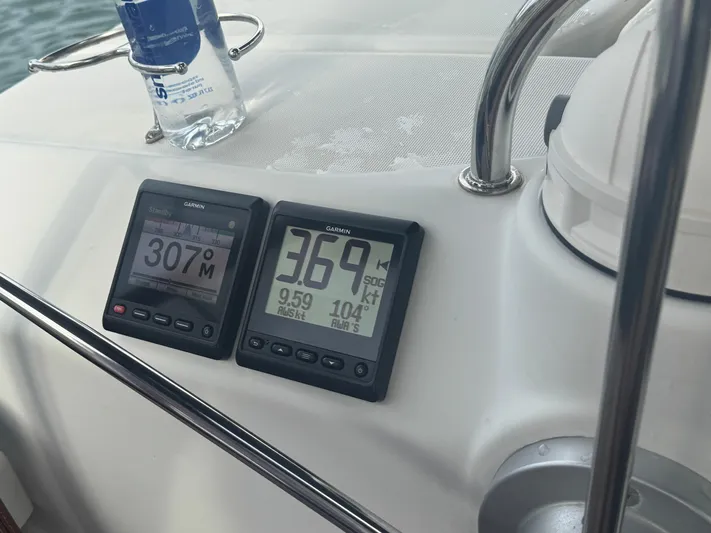

The 2005 Beneteau 523 Oceanis features a robust navigation setup. Garmin 4200 Chartplotter and 36 Mile Radar provide comprehensive navigation and visibility. Raymarine ST 607 Wind Instrument and Smartpilot ST6002 Autopilot, along with the Autohelm 7000 Autopilot, ensure precise control and ease of navigation. Communication is facilitated by the Icom Command Mic III and R.A.M. VHF I-Com Radios. Garmin GPS Map 545 and AIS Receiver enhance situational awareness, making this vessel well-equipped for secure and efficient cruising. Garmin 1242xsv GPS/Color Chartplotter Garmin GPS 24xd heading sensor Garmin Autopilot controls at chartplotter and both helms. Hydraulic drive by Lecomble & Schmitt. Garmin Radar 18xHD Garmin AIS 700 receiver/transmitter Horizon Ram III VHF Radio with independent AIS Fusion MS-RA670 3 zone Head Unit at the navigation station and controls integrated with Garmin chartplotter Garmin Passive AIS

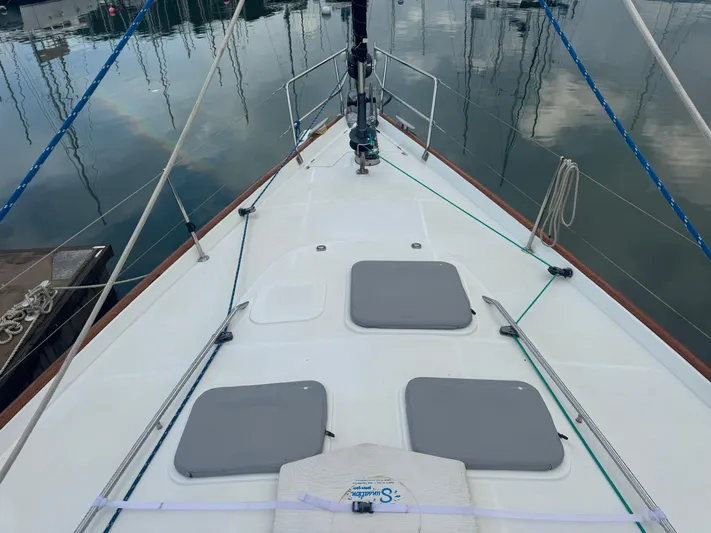

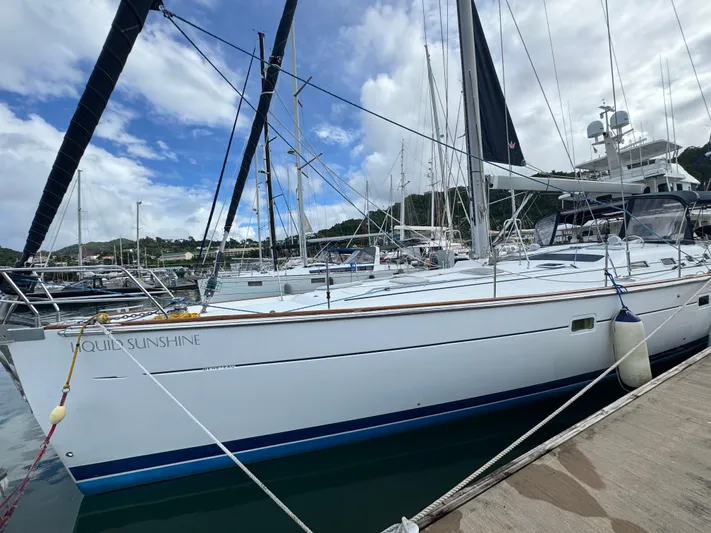

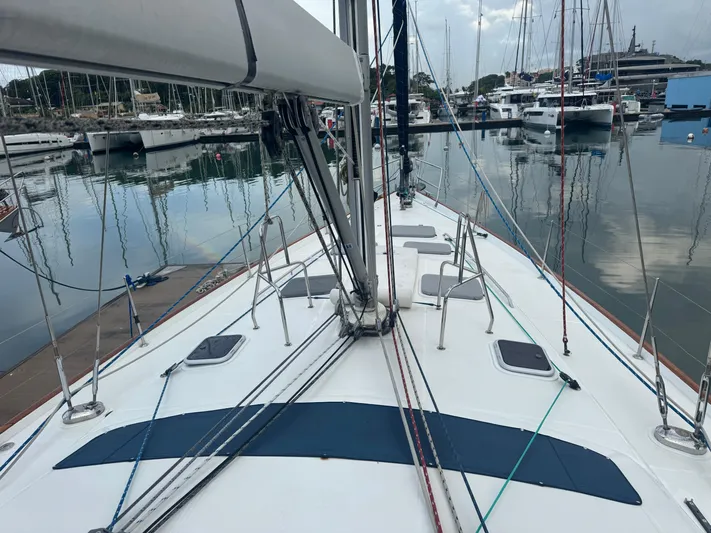

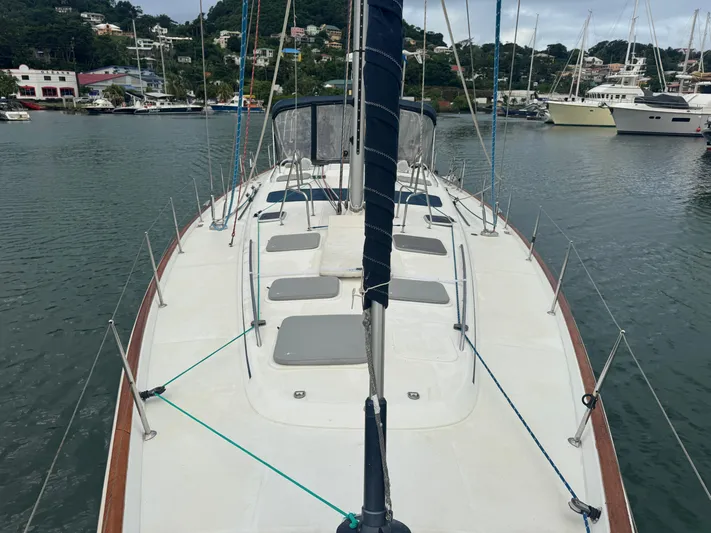

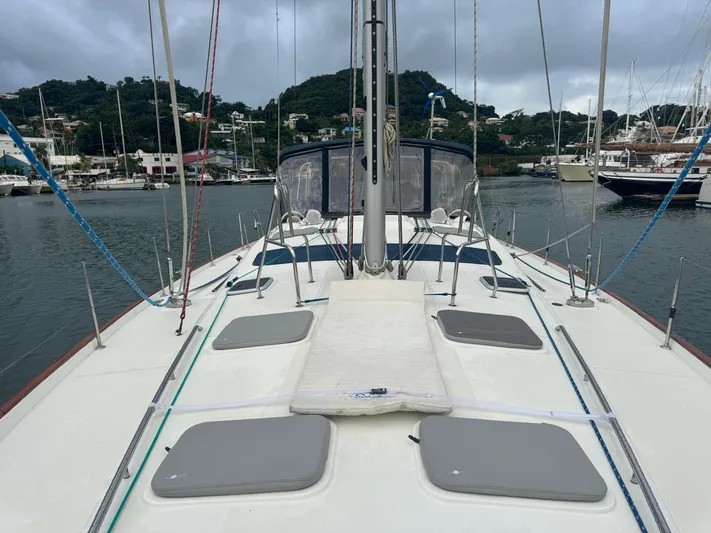

Deck And Hull Overview

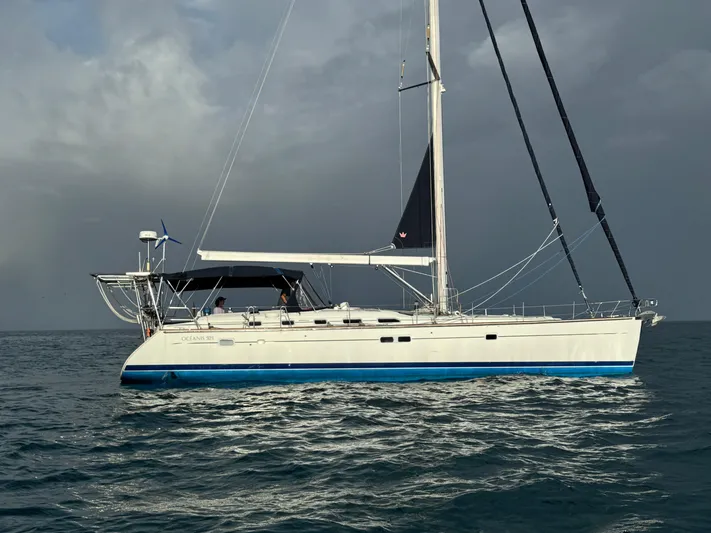

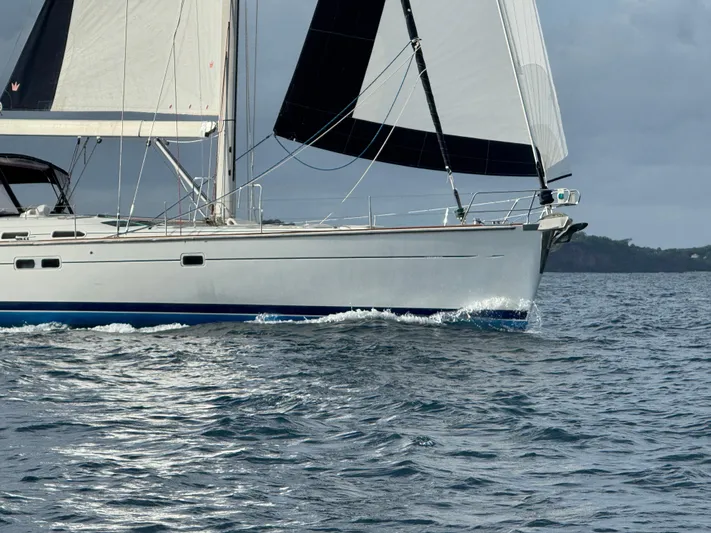

Hull Construction and Features The Beneteau 523 Oceanis's hull is constructed from fiberglass, known for its strength and durability. The sleek and modern design contributes to excellent sailing performance and stability. The deep and beamy shape enhances comfort and stability on the water, making it well-suited for extended cruising. The vessel features a shoal draft keel, which offers a balance between performance and accessibility. The shoal draft design allows the boat to access shallower waters while providing good stability and performance under sail. White gel coat offers a clean, bright appearance and complements a dark blue strip above the waterline. Blue Bottom Paint. The FRP hull is constructed with various core materials and plywood bulkheads showing no post-manufacture damage or distortion. Surveyed testing revealed no voids, moisture, or delamination. Deck Construction and Features The Beneteau 523 Oceanis features a thoughtfully designed deck layout that emphasizes safety and comfort. Wide side decks with 4” high bulwark provide secure and easy movement around the vessel. The large swim platform ensures convenient access to the water for swimming or boarding. The deck is equipped with a range of high-quality features and equipment to enhance functionality, comfort, and safety for its crew. Life raft for emergencies Two large deck boxes for organized storage of deck equipment Custom solar arch for additional energy efficiency Stanchions re-bedded in 2020 for enhanced stability and safety Wide side decks to ensure safe and easy movement around the vessel 1-inch stainless steel tubing around the stern and bow for added safety Stainless steel lifelines for secure movement around the deck Multiple deck hatches for natural light and ventilation Portlights and windows in the main salon and cabins enhance airflow and light Rub Rail to provide additional protection to the hull against impacts Tender Davits
Ground Tackle And Mooring
Primary Rocna anchor with 300 feet of 7/16” anchor chain (New 2024) New windlass MUIR STORM (3500) for efficient anchor deployment and retrieval Secondary Lewmar Horizon Claw anchor. Maxwell windlass remote control (also controls bow thruster) Multiple dock lines for secure mooring. Several large fenders to protect the hull when docked. Sturdy cleats positioned around the deck for secure line attachment.

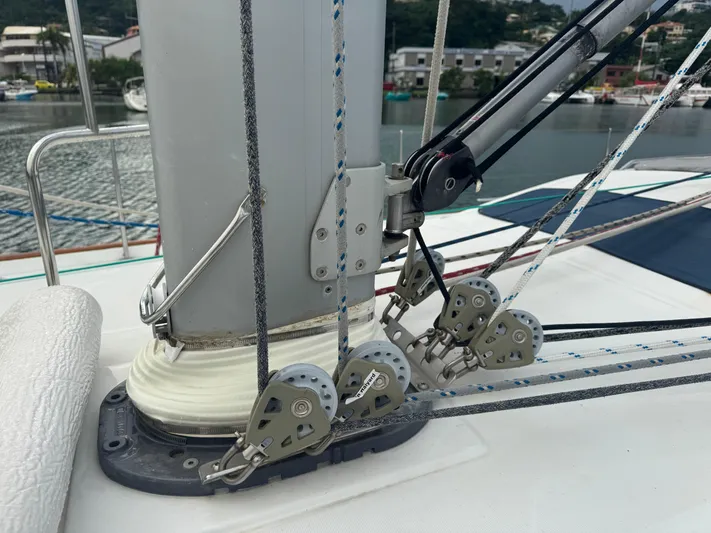

Mast And Rigging
Sparcraft Mast & Boom Sparcraft Boom Vang was replaced in September 2021. Harken Genoa Furler, installed in October 2020 Facnor LS180 Storm Sail Furler with Elvstrom sail installed 2022. Rolly Tasker Asymmetrical Fitting and Kato, installed October 2021. Lewmar STC 44 Winches (Port Electric, Stbd Manual) Lewmar Genoa Winches STC 66 (Electric) Standing rigging replaced by Annapolis rigging 2020
Sails
Elvstrom ProRadial 394 MainSail by Dimension fabrics, installed in 2020. Asymmetrical Rolly Tasker Sail. Small Elvstrom Storm Jib, installed 2022. Elvstrom Genoa 140%, expected October 2024.

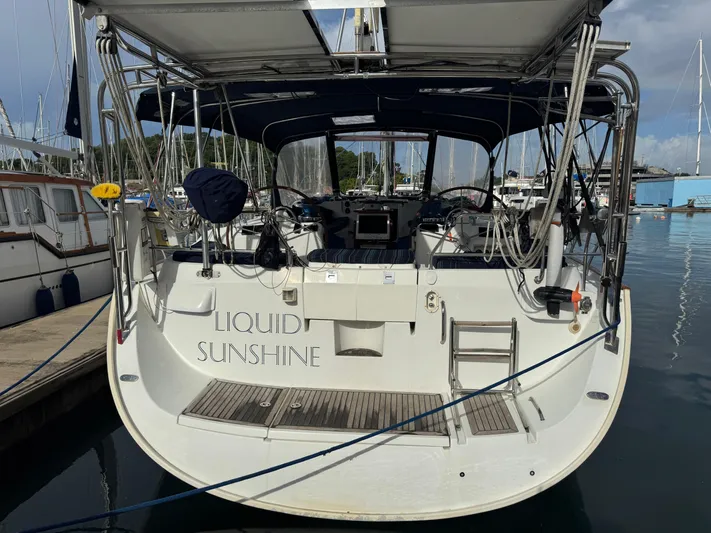

Cockpit

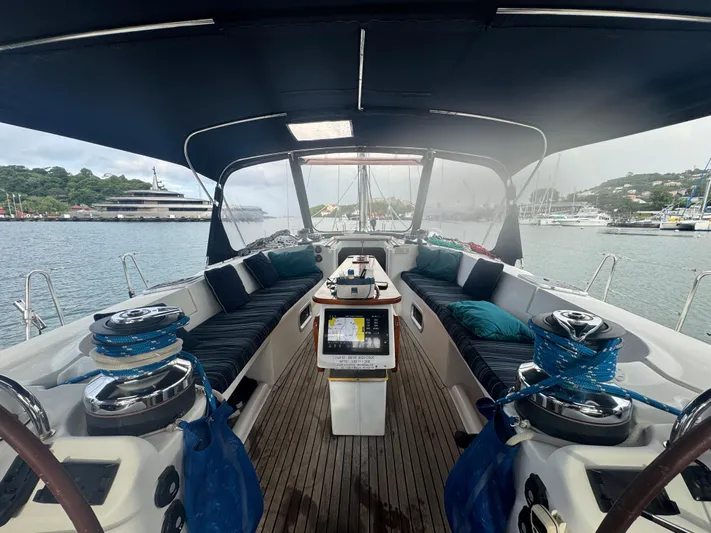

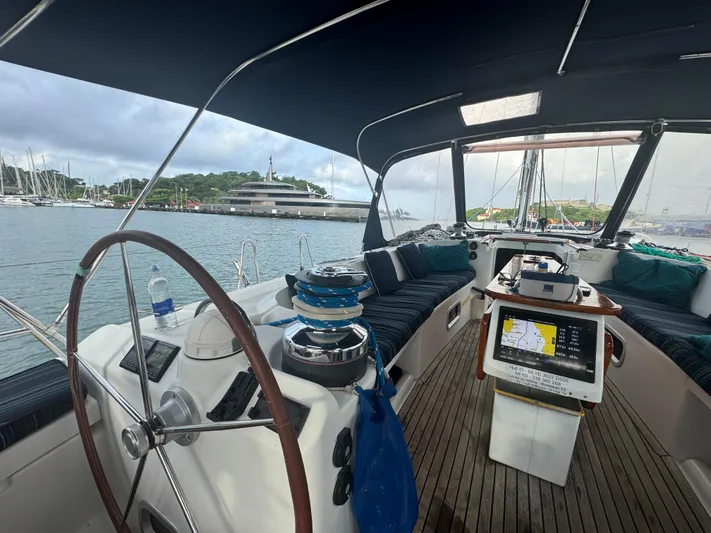

The cockpit of "Liquid Sunshine" is designed for maximum comfort and functionality. It features dual helm stations with full navigation and engine controls for optimal maneuverability. The teak seating and sole are in excellent condition, offering style and durability. Equipped with a bimini top and dodger for weather protection, the cockpit also includes secure davits for easy tender access and an arch-supporting radar, solar panels, and a wind generator. With its practical layout and well-maintained components, this cockpit is perfect for relaxed cruising and active sailing.
Additional Features
Dual helm setup located aft for optimal visibility and control during docking and maneuvering. Each helm station is equipped with fully operational navigation instruments and autopilot control. The engine controls are at the starboard helm. Comfortable seating with classic teak trim, designed for relaxation and functionality. Ample storage under seating, providing access to lazarette and essential systems. Navigation and communication electronics include displays for wind, speed, and depth. Integrated Chart-plotter and VHF radio ensure efficient navigation, with easy access to controls from both helm stations. The Canvas Bimini top and dodger are in good condition. They offer shade and protection from the elements, and their robust design ensures comfort in various weather conditions. Convenient access to tender with secure davits installed aft. Arch supports radar, solar panels, wind generator, and antennas, all securely fastened and in excellent condition. Secure handholds and lifelines around the cockpit for safe movement. All controls are easily accessible, ensuring safety and convenience while underway.
Engine

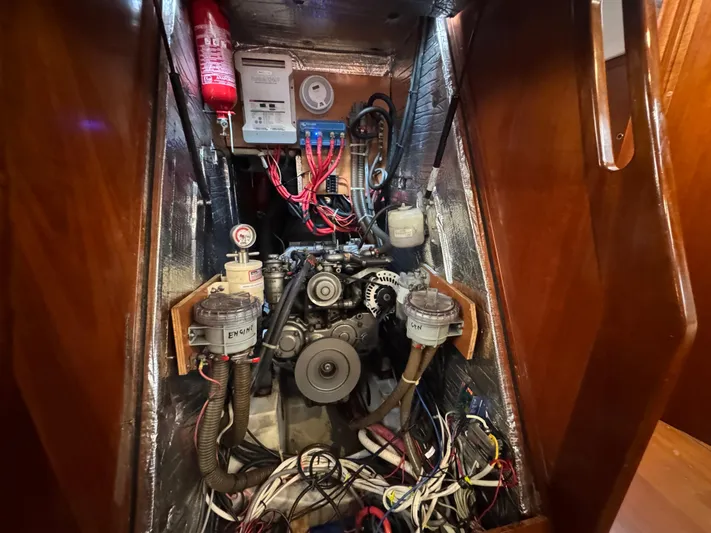

The engine room on "Liquid Sunshine" is neatly organized for efficient operation and maintenance. It is accessible through the cockpit sole and features well-arranged components for easy access. Yanmar 4-cylinder 100 hp turbocharged diesel engine, freshwater cooled, direct fuel injection with 2800 hrs. Recent Upgrades: New turbo, prop shaft replaced, and Flexofold 3 blade prop - 2020 Regularly serviced with normal maintenance practices upheld The engine starts easily and runs smoothly without smoking Max power series bow thruster 100 DUO Series 51427 with new carbon fiber blades (Installed June 2020.)
Generator
Auxiliary Onan electric start diesel generator, 120/240V (Single Phase), freshwater cooled, 4-cycle, 3-cylinder, 60Hz, 11kW with 1500 hrs. Fully enclosed and insulated in a sound shield. Professionally installed, using best industry practices Regularly serviced with good ongoing maintenance practices upheld Remote start/stop control panel with indicators Air Breeze Deluxe marine wind generator with a 12V Stern 9' Mount Kit for renewable generation Air Breeze e-10 control panel and 1 Silent Wind Blue blade set WGS70752A (Installed in June 2020)
Tankage
Fresh Water Tanks - Capacity 225 gallons, molded into hull and located Midships, starboard, and port side. Fuel Tank - Capacity: 119 gallons, made from molded poly construction and located starboard midships Primary Filter - Racor canister style Secondary Filter - Spin-on style Waste Water Holding Tank - Capacity 40 gallons at each head LPG Tanks - Dual cylinders, located at aft locker Emergency Pump 4000gph - Manual pump located in Cockpit Bilge Pump System - Primary Bilge Pump, 1200 GPH Rule dewatering pump with bilge water level alarm
Batteries
Gen (Optima Bluetop D31 x 2 ( Replaced on June 2020) New bow thruster batteries 2 New engine "Marine Start" batteries (in parallel) CRB/LG-N100CS-10 12V, CCA 860; MCA1065; Group 31 (Replaced on January 2024) House batteries - BB10012 - Battle Born 12V 100Ah x 8 (Replaced one in 2020 under warranty until 2022)
Safety Equipment
6 New B1/AB Fire Extinguishers, serviceable. 6 Personal Flotation Devices (PFDs), serviceable. 2 Type III PFDs, serviceable 406 MHz (EPIRB) Valid until 2030 Lifesling System Danbouy Throwable Device Revere Liferaft (inspection required) The emergency Pump located in the Cockpit is good and tested Flare Kit is valid until 2025. First Aid Kit. Boat Hook Discharge Plaques

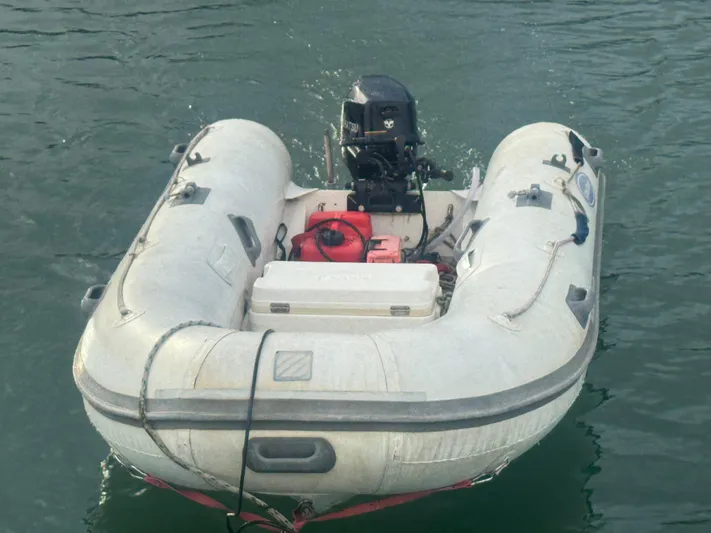

Tender

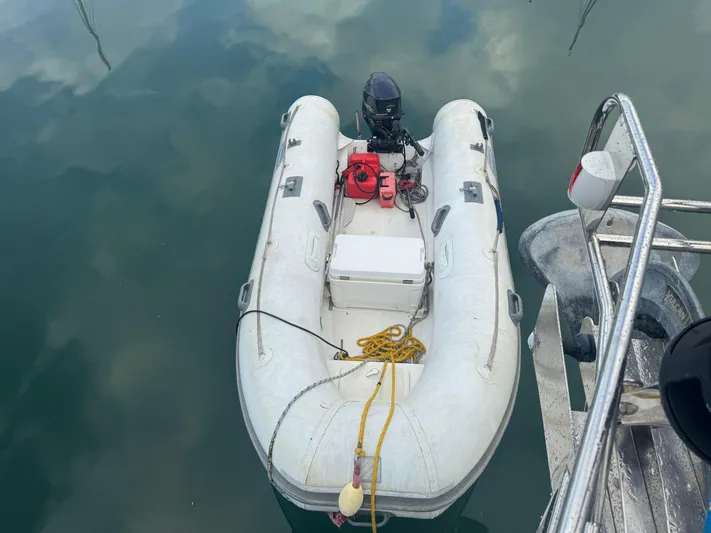

10ft West Marine RIB with Tohatsu 20hp four-stroke engine. Good Condition
