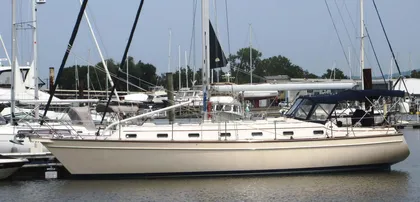

LIVIN 2 Boat for Sale

• Cruising Speed: 7 kn
• Maximum Speed: 8 kn
• Beam: 14' 3''
• Hull Material: Fiberglass
• Max Draft: 5' 0''
• Displacement: 30,000 lb
• Fuel Tank: 1 x 160|gallon
• Fresh Water: 2 x 125|gallon
• Holding: 1 x 60|gallon
• Cabins: 2
• Heads: 2

ISLAND PACKET YACHTS (and the IP 420, of course) were produced to the standards to qualify for the European "CE" Rating: Category "A" - Ocean". This is the highest level achievable and facilitates getting insurance for possible "offshore" voyaging as well.

Hull

The ISLAND PACKET 420 was produced with the Company's proprietary "FULL FOIL KEEL" that provides enhanced directional stability, reduced draft, a reduced angle of heel and protection for the yacht's underbody, the rudder and the drive train. The "cutaway" underbody's spade rudder provides good control for the yacht and the reduced wetted
surface does reduce parasitic drag as well. The LIVIN 2's bottom was stripped & expoxy barrier-coated in 2015.

• LIGHT IVORY Gelcoat finish
• Hand laid-up fiberglass hull w/ proprietary pressure-fed resin infusion & triaxial laminates with integral interior grid support structure
• Rub Rail, extruded VINYL molding w/ stainless steel striker plate

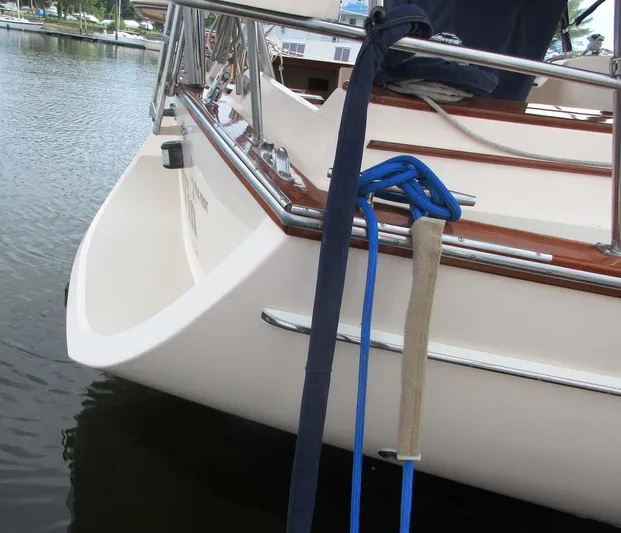

• "Scoop" Transom
• A "Full-Run" keel aka the proprietary ISLAND PACKET "Full Foil keel" w/ encapsulated interior lead ballast
• Spade rudder w/ steel support for lower section that extends from the "Full Foil Keel" assembly (note: also assists with the prevention of any lines fouling the drive train & rudder)
• DARK BLUE Boot-top
• BLACK Bottom paint
• Bottom stripped & epoxy barrier-coated (note: 2015)

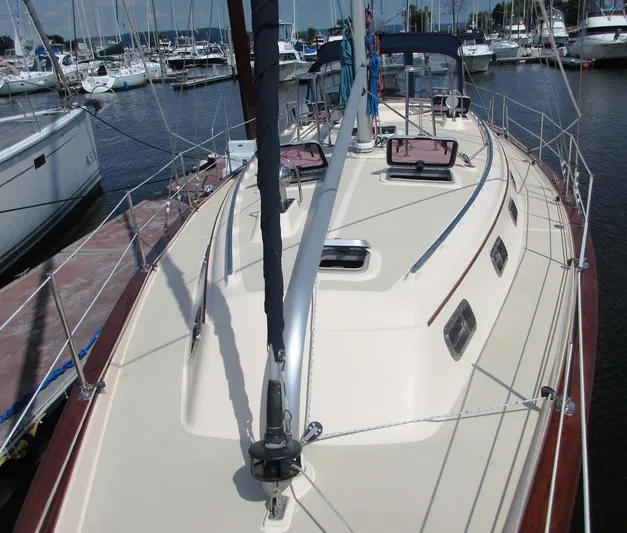

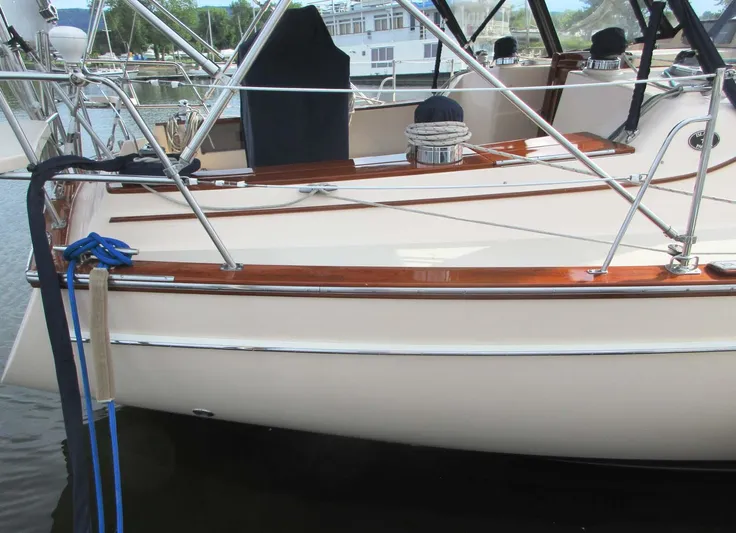

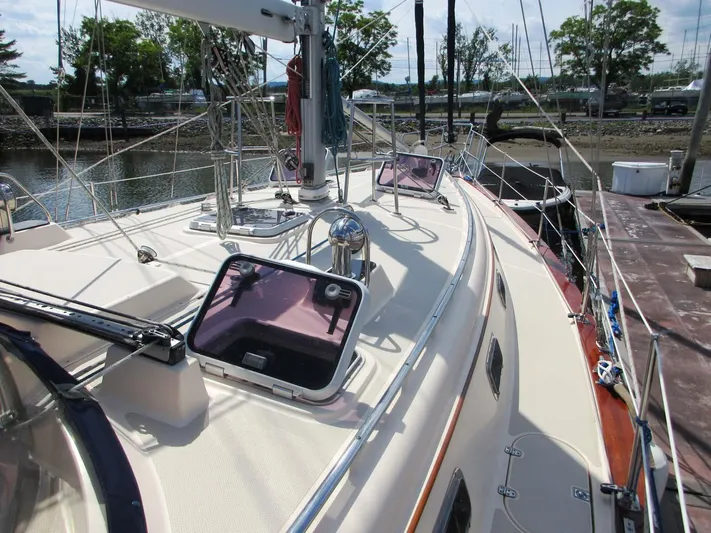

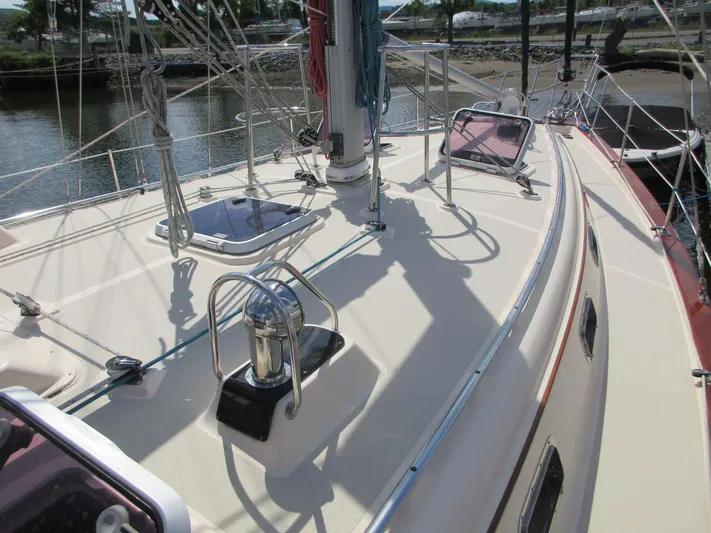

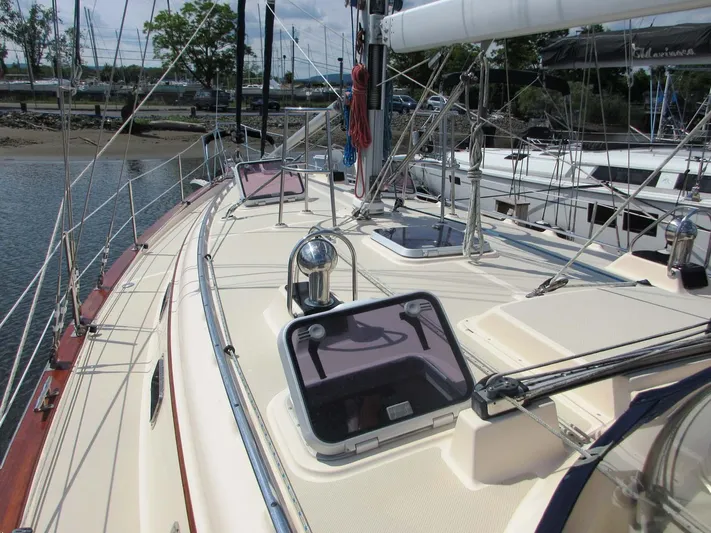

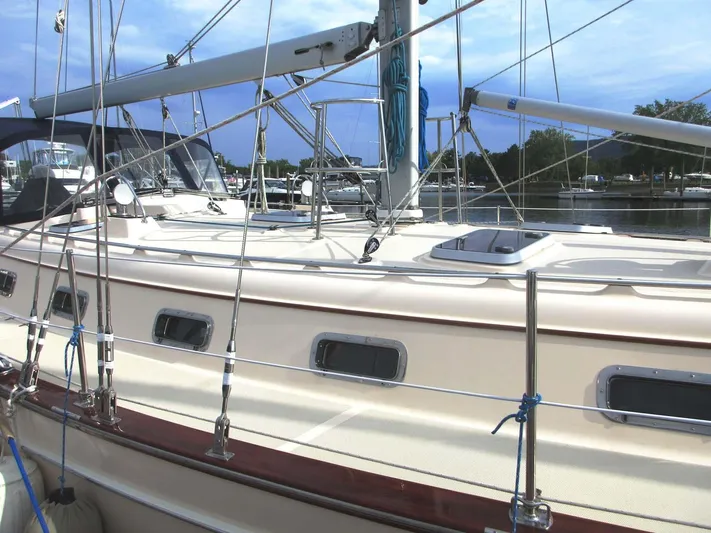

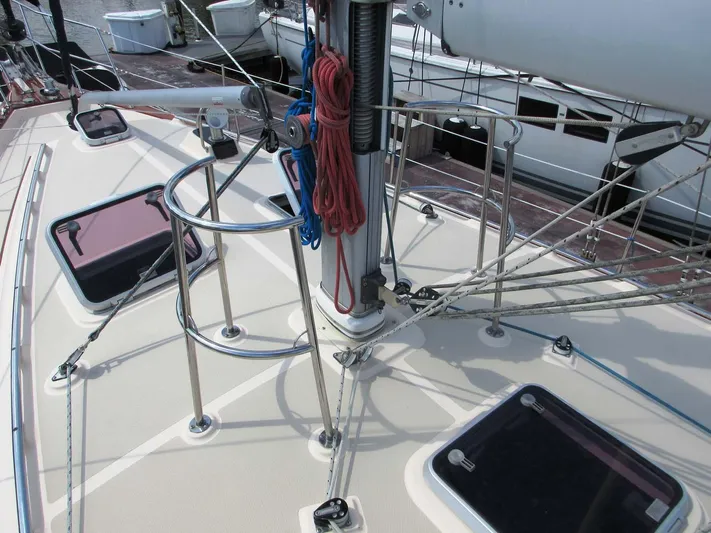

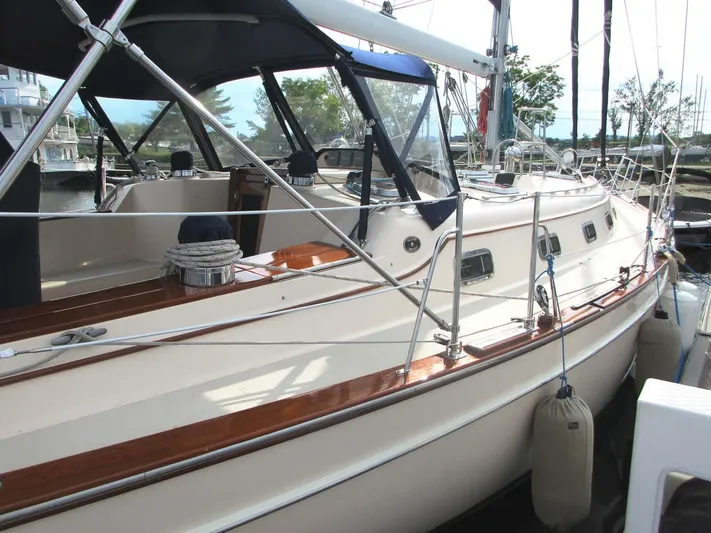

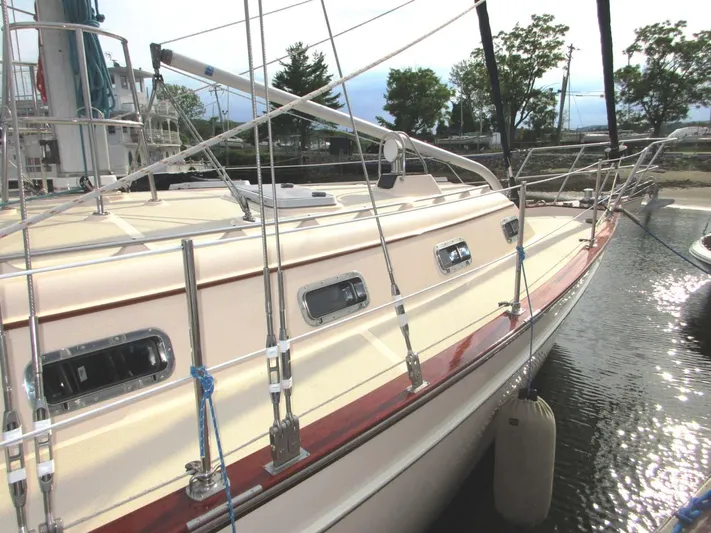

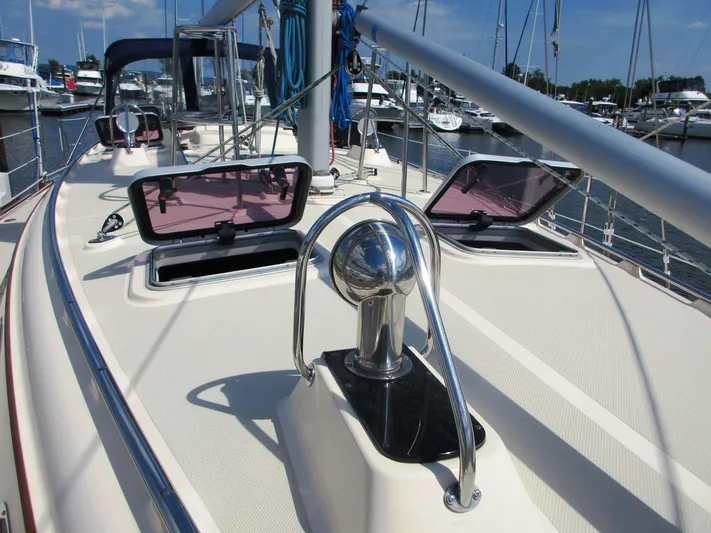

Deck

• LIGHT IVORY Gelcoat finish
• Contrasting non-skid deck, Light Ivory & Light Tan gelcoat finishes and w/ the proprietary DURASHIELD Gelcoat system (note: also for hull topsides & interior)
• "Diamond" molded non-skid pattern for enhanced non-slip effectiveness
• Deck laminate cored with the proprietary POLYCORE (note: resin & microsphere matrix)
• Toe & Cap rails, teak (note: finished with 10 coats of varnish, Spring, 2022)
• (12) Chafe plates, stainless steel, on toe rails for dock lines at cleat locations
• Teak step plates at Cockpit entrance, varnished (note: line boxes underneath for Coachroof lines)
• Bow pulpit, double-rail, stainless steel
• Life lines, plastic-coated
• Stanchions, stainless steel
• (2) Boarding gates, port & starboard w/ single upper gate line
• Boarding gate, aft w/ single upper line
• (2) Body / Safety rails (note: at the mast area)
• (3) Dorade vents, stainless steel w/ guards, stainless steel (note: Factory Option for upgrade to stainless vis standard)
• (8) LEWMAR Ocean Series deck hatches w/ screens
• (6) Deck cleats for dock / mooring lines, 12". stainless steel
• (14) Opening ports w/ safety glass inserts, stainless steel
• (2) Grab/ Safety rails, stainless steel (note: run the full length of the Coachroof)
• Deck hardware through-bolted w/ aluminum backing plates

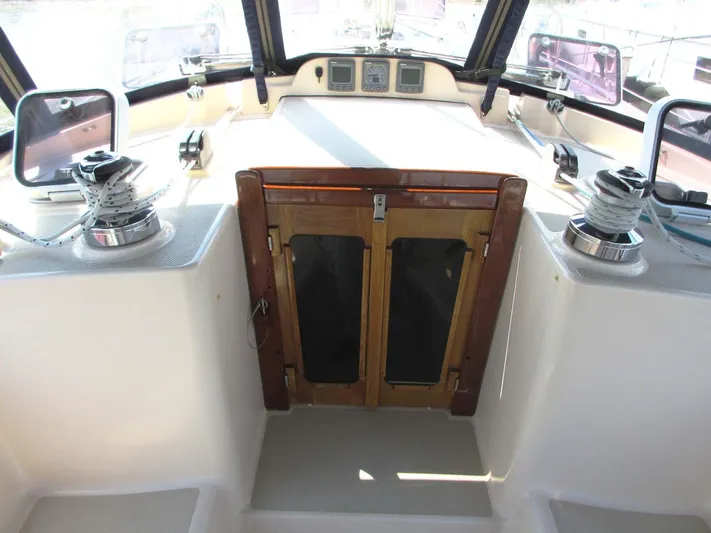

• Sea Hood, molded fiberglass & sliding Companionway PLEXI hatch
• (3) Section Companionway drop boards, teak (note: custom teak rack storage aft under the Companionway entrance0

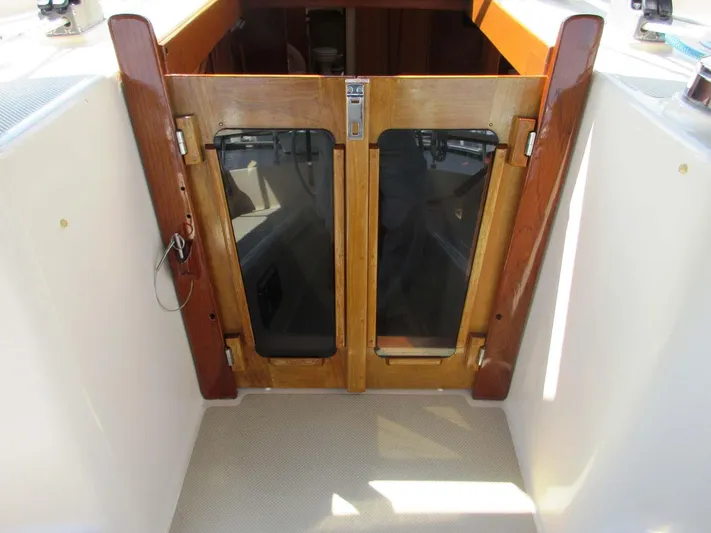

• Custom Companionway doors w/ screens, (2) pieces, hinged

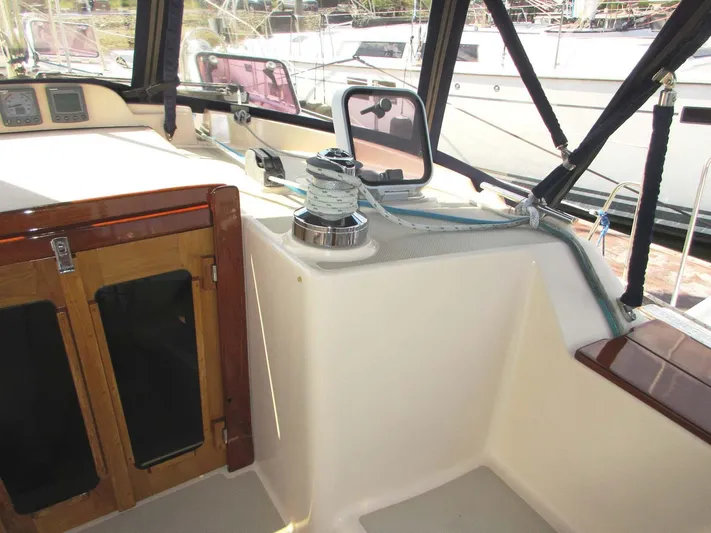

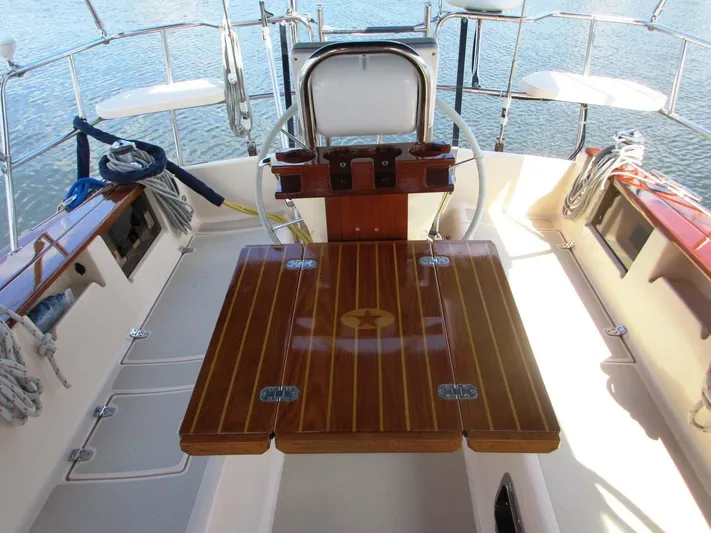

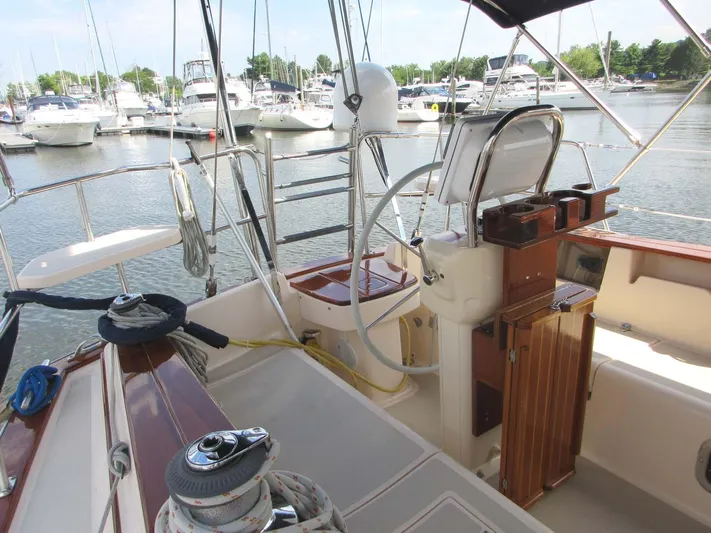

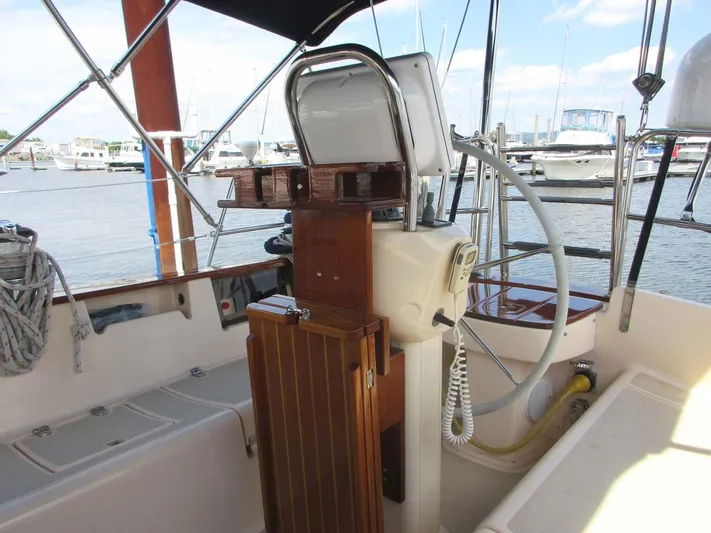

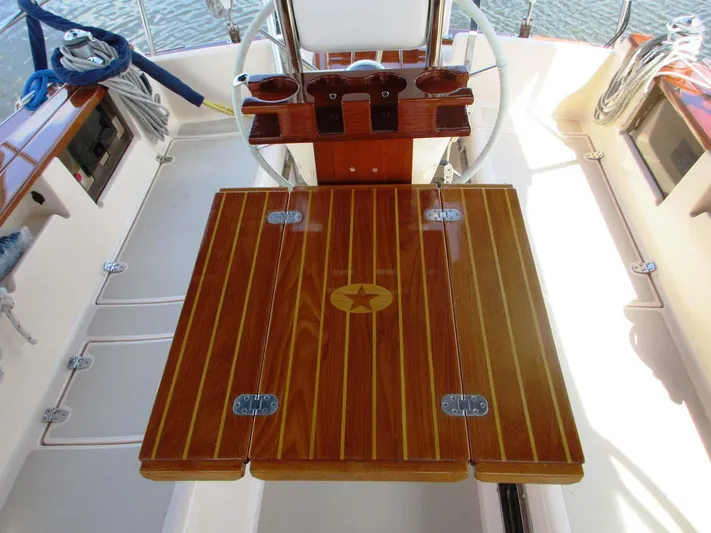

Cockpit

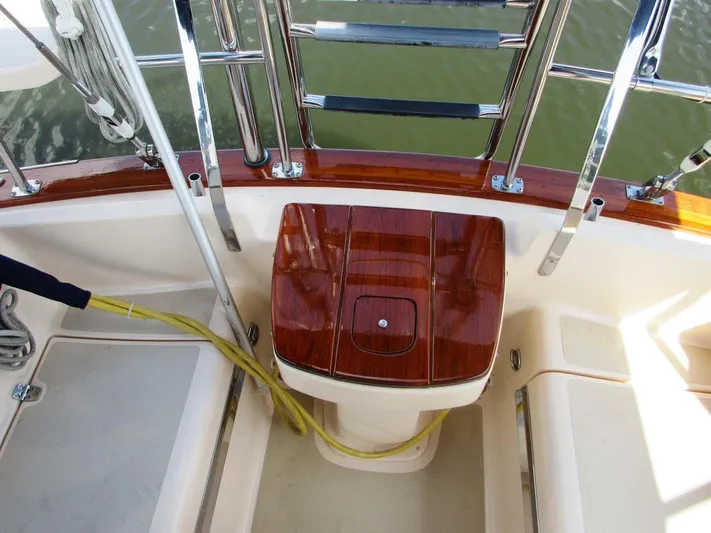

• Helm Station w/ custom teak seating, varnished (note: also provides access to the Emergency Tiller installation)
• Backrest & seat cushions
• Binnacle unit, fiberglass
• RICHIE Compass, 5"w/ cover
• WHITLOCK "Monarch" Wheel Steering System (note: geared assembly, no wire cables)
• Elkhide wrap for wheel (note: Factory Option)
• IMTRA Remote control for the MUIR Windlass
• SLEIPNER "SidePower" bow thruster control unit
• (1) Opening port, stainless steel (note: for Aft Cabin ventilation, port side aft)
• (2) Perch seats aft, port & starboard (note: w/ fiberglass seats)
• Stern rail w/ boarding gate, double-rail, stainless steel
• Control Panels: to starboard, for the YANMAR diesel & to starboard, for the FISCHER PANDA generator
• (2) Large Cockpit seat lockers, port & starboard
• (2) Cockpit scupper drains,
• (4) Life line safety attachment points, stainless steel

Rig

The ISLAND PACKET 420 is a cutter-rigged yacht and is equipped with a SPARCRAFT USA / CHARLESTON SPAR anodized aluminum roller-furling mainsail mast. The spar is keel-stepped w/ double spreaders, fore & aft lower shrouds, double backstays & internal halyards. There is a self-tending HOYT boom for the staysail.

• Mast Wedge for properly supporting the spar as it passes through the deck mast collar (note: by ISLAND PACKET)

Sailplan Data

• Air Draft: 59' from DWL to masthead (note: no antennas included)
• Sail Area (100% fore & aft triangles): 924.05 Sq/Ft
• Measure: I=55.00', P=47.50', J=18.92' & E=17.00'
• Air Draft (DWL to MH): 61' (note: approximate & does not include antennas & so forth)

  Rigging

• HARKEN Roller-furling for the mainsail, genoa and staysail (note: all control lines are lead aft)
• Standing rigging; 1x19 wire, stainless steel
• Dual backstays
• WICHARD Boom vang, block & tackle
• WICHARD hardware for vang & blocks
• (2) Flag halyards (note: one to each lower spreader, port & starboard)
• HARKEN Mainsheet Traveler System w/ 4:1 power & cross-hauls (note: mounted on the Coachroof forward of the Dodger
• Running rigging (color-coded): (4) halyards (2x main, genoa & staysail), genoa sheets & staysail sheet, boom vang, mainsheet, traveler system cross-haul control lines, boom topping lift

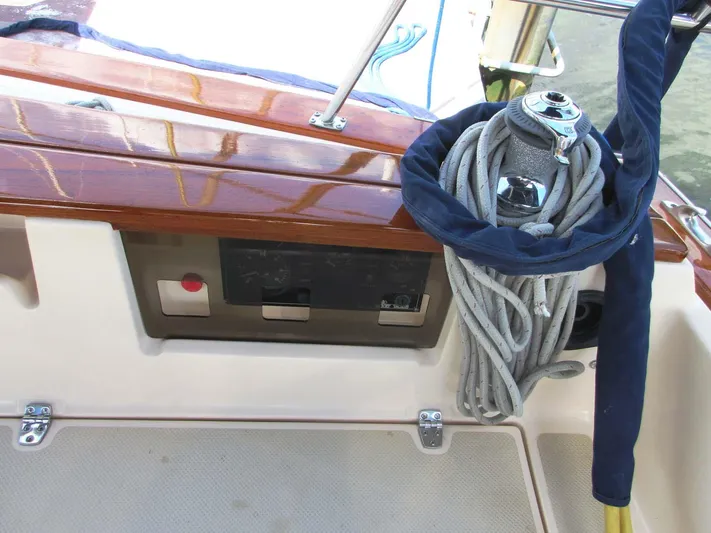

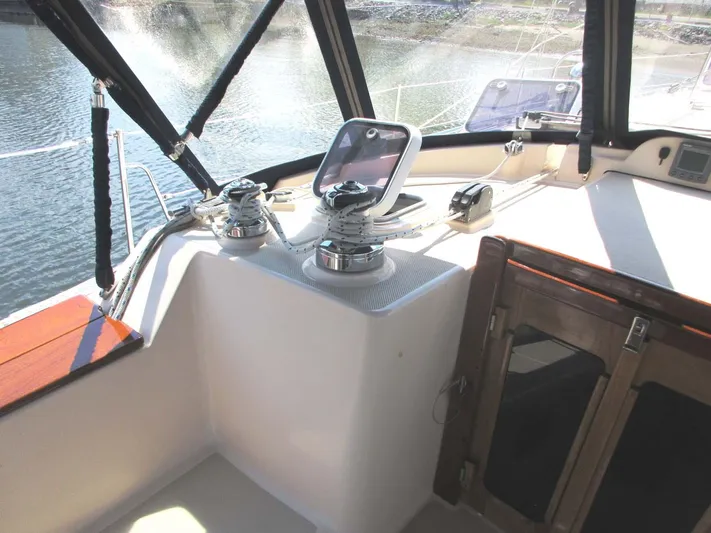

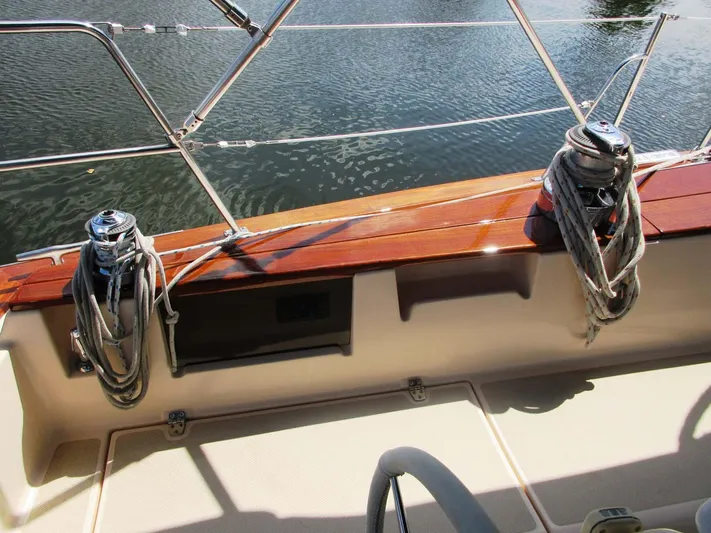

  Winches (LEWMAR Ocean Series)

• (2) L-54 CST (2) speed self-tailing Primaries / genoa sheets
• (2) L-16 CST (2) speed self-tailing for genoa & staysail roller-furling lines (note: mounted aft on Cockpit coaming caps)
• (2) L-44 CST (2) speed self-tailing for sail controls (note: mounted on Coachroof aft)
• (2) L-24 CST (2) speed self-tailing for main & jib halyards (note: mounted on mast)
• (2) L-16 CST (2) speed self-tailing for lines (note: mounted on Coachroof aft)
• (1) L-8C single-speed (note: mounted on the mast for staysail halyard)
• Winch handles, 10" (note: numerous HARKEN & LEWMAR)
• WINCHRITE Electric winch handle, 12VDC w/ charger

Sails (DOYLE SAILMAKERS)

The sails were purchased "new" in 2012 & first bent on in 2013. They are professionally stored & serviced every year. The sails are in exceptionally good condition given the yacht's light usage overall.

• Mainsail (note: w/ Dark Blue Tabling cover, SUNBRELLA)
• Genoa, 110% (note: w/ Dark Blue Tabling cover, SUNBRELLA)
• Staysail (note: w/ Dark Blue Tabling cover, SUNBRELLA)

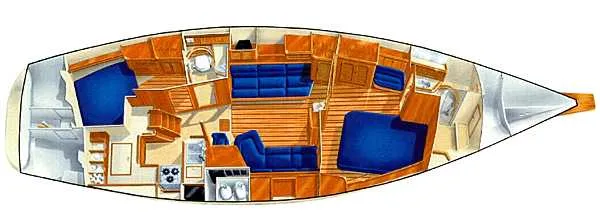

The ISLAND PACKET 420 interior is finished with varnished teak furniture and the trademark Ivory Gelcoat application for the fiberglass surfaces. The interior furniture has just been detailed over the past Winter of 2022-2023 & early Spring, 2024

• Headroom: 6'5"
• Teak interior furniture, varnished
• Cabin sole, teak & holly veneer, varnished
• Cabin sole at Companionway entrance, Galley & Aft Head areas: fiberglass
• ULTRALEATHER Light Beige for upholstery through the Salon (note: Factory Option w/ 5" dual density foam inserts)
• Cedar-lined hanging lockers throughout

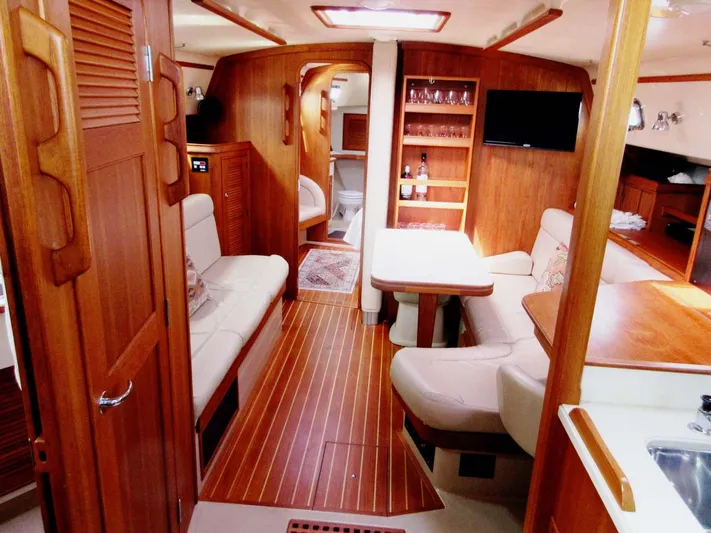

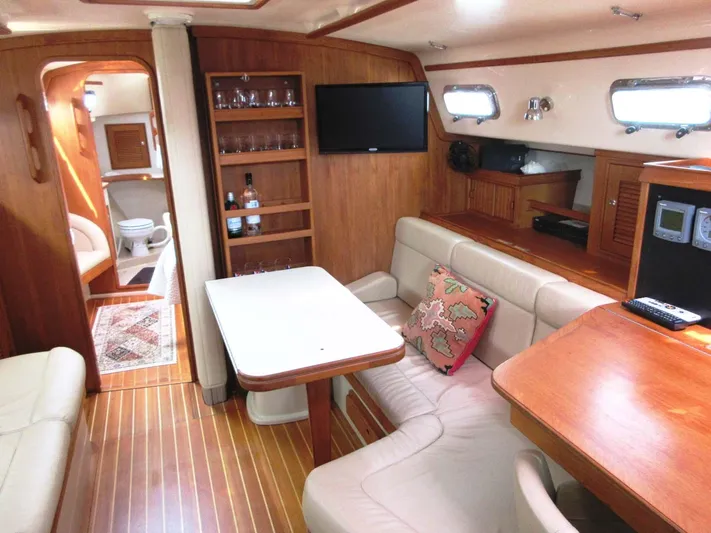

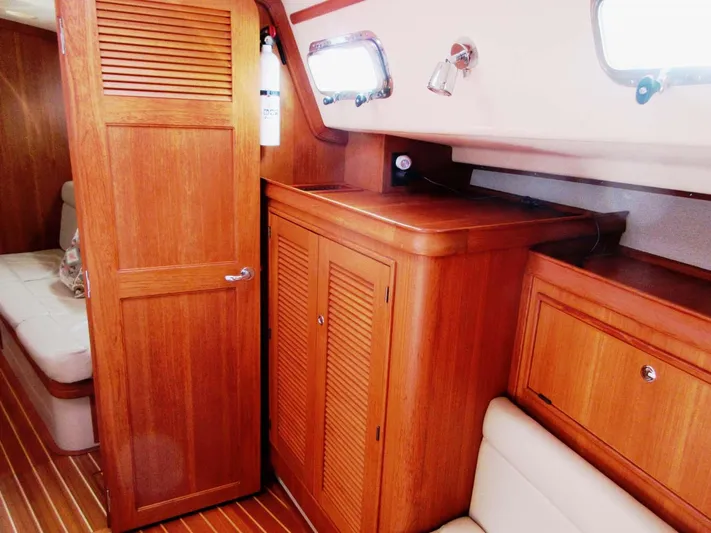

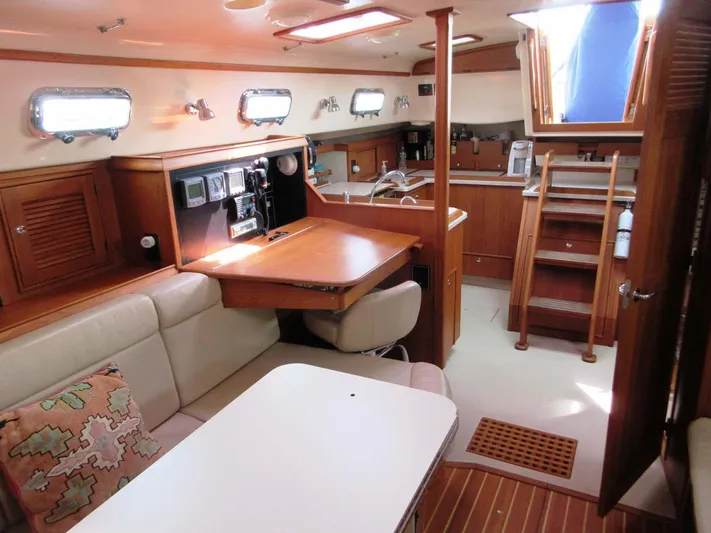

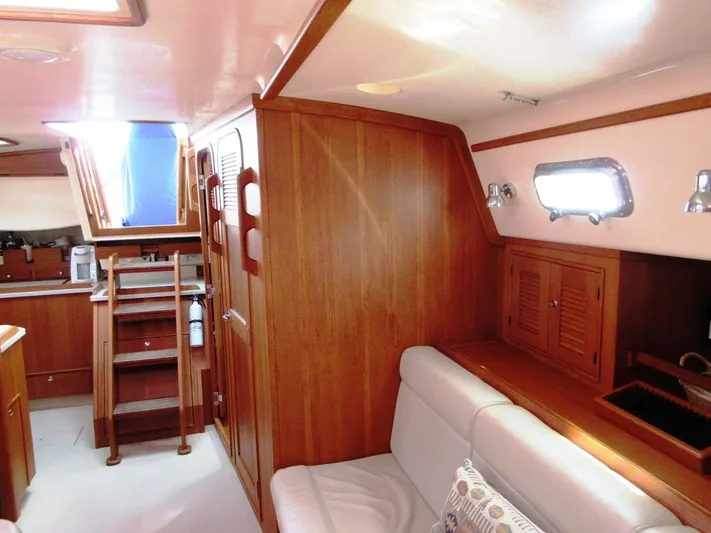

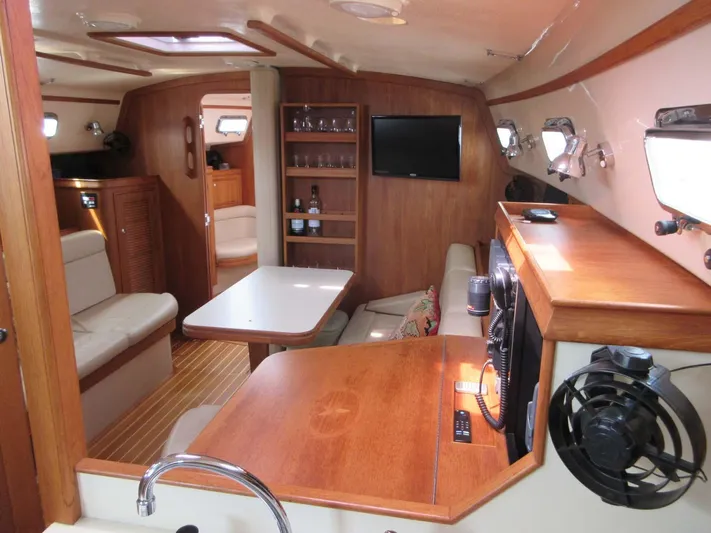

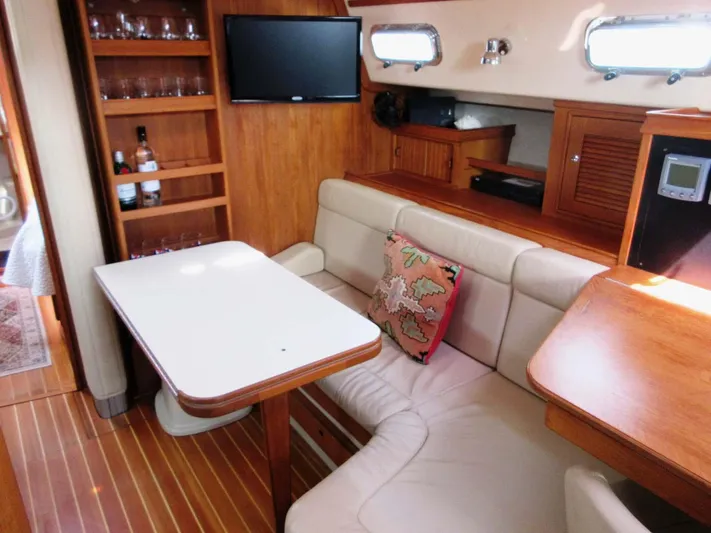

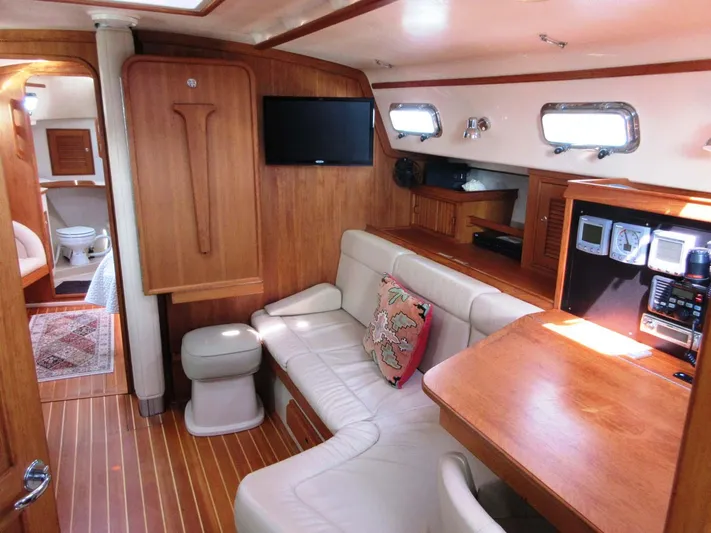

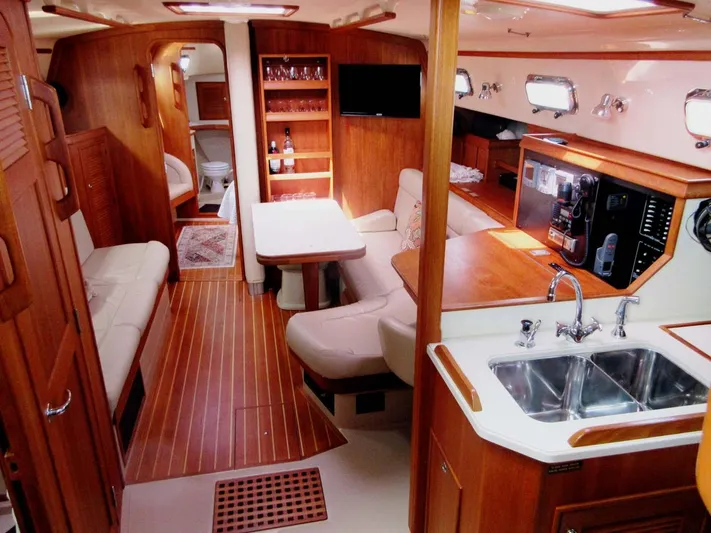

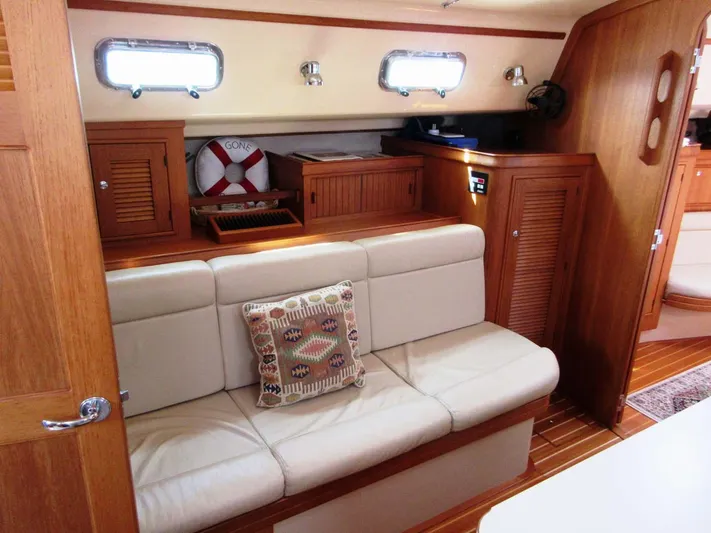

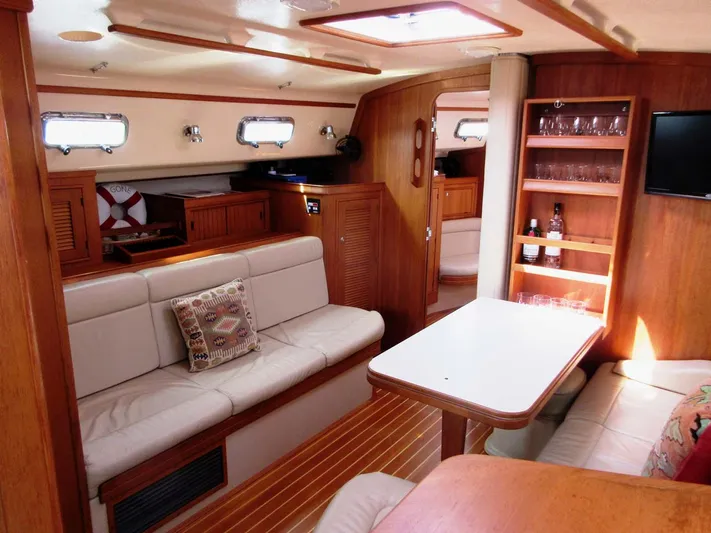

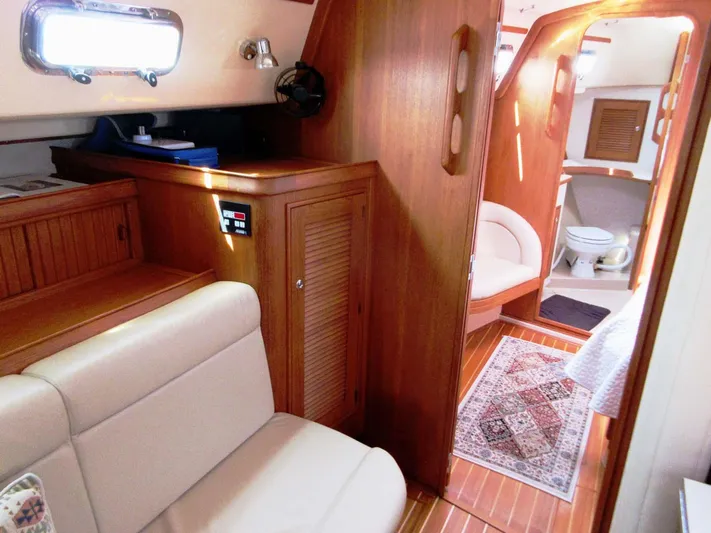

Salon

The Salon is accessed via the Companionway entrance via a removable teak step assembly for engine room access aft. The Galley is located at the base of the Companionway, starboard side & aft. The Nav Station is just forward and
also to starboard. There is a "L" Settee and a Stool / Hassock to provide seating the large fold-up table that's mounted forward on the main transverse bulkhead, starboard side. It has a folding leaf to extend the table. There is a bookcase behind the table on the bulkhead. To port & opposite the Galley, is the Aft Head and just aft of that, the entrance to the Aft Cabin. There is a settee area just forward of the Aft Head.

• Teak & Holly sole forward of the Galley area
• Dust bin, w/ varnished teak veneer panel, removable, in fiberglass cabin sole
• "L" Shaped settee to starboard (note: converts to a double berth)

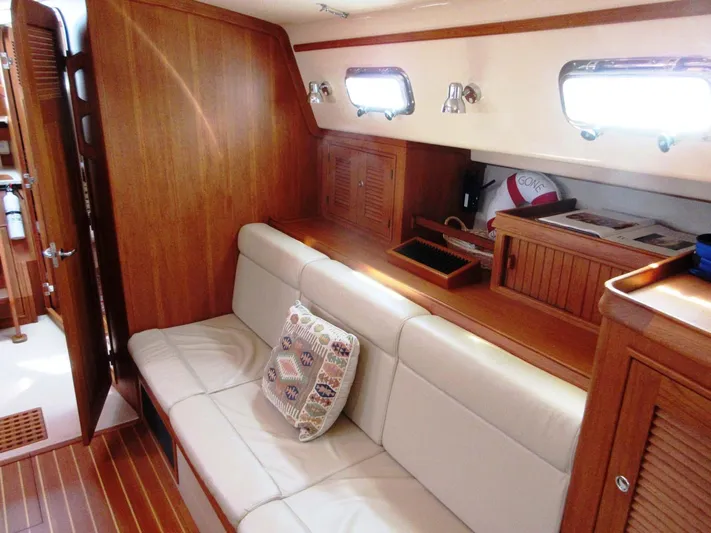

• Bench settee to port
• Bulkhead-mount table, teak, folding with a single leaf (note: bookcase behind the table)
• Berth Dimensions: Port side: Width 45" & Length 76" & Starboard side: Width 45" & Length 76" (note: dimensions with berth filler / backrest cushions in-place)

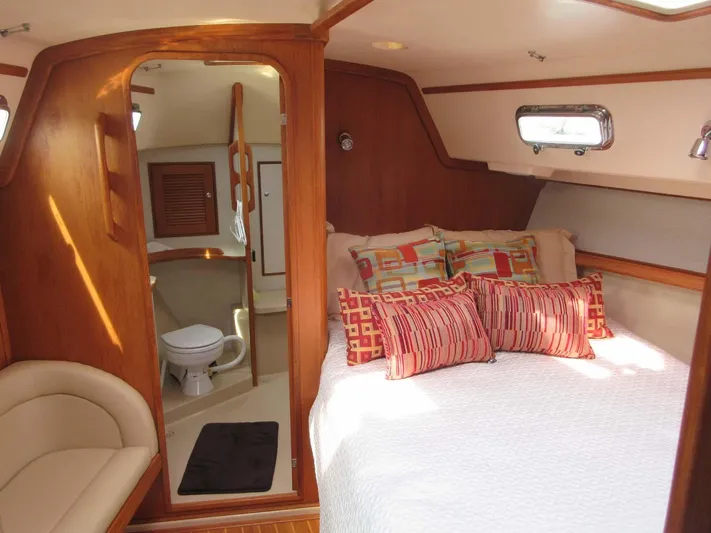

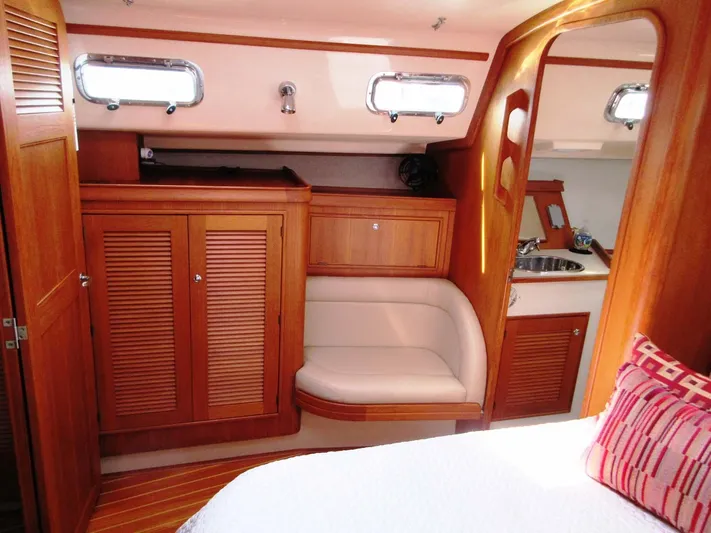

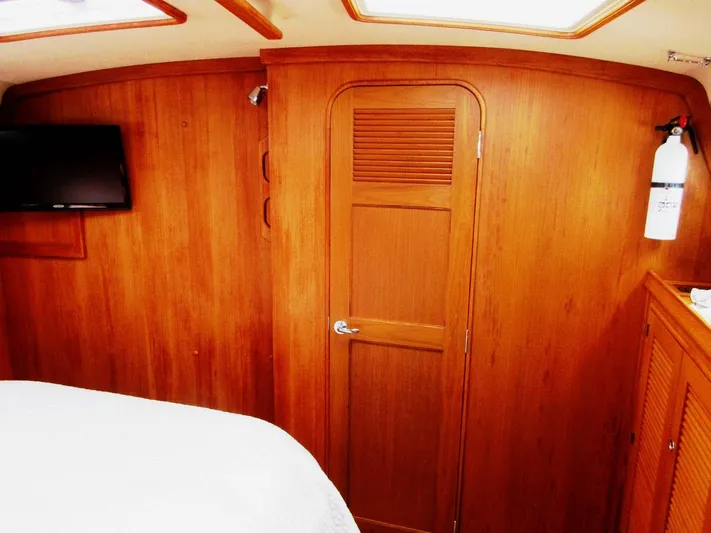

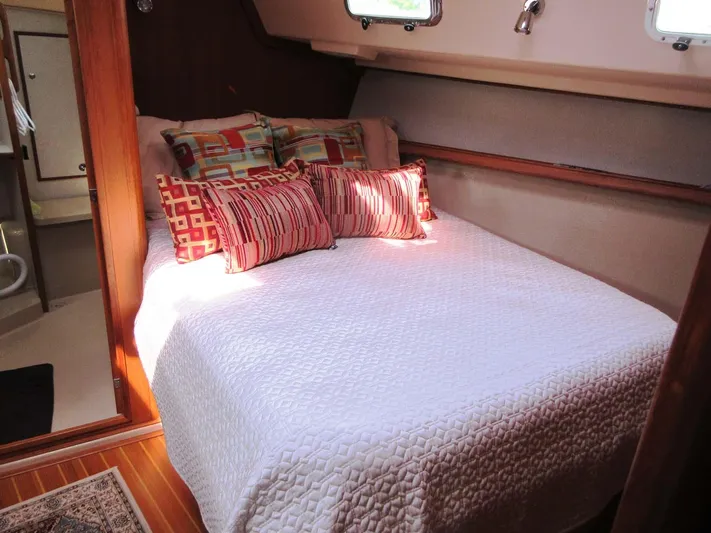

Fore / Master Cabin

Located forward; the large double berth is on the starboard side. It is accessible from both sides for ease of entry.

• There are lockers aft on both the port & starboard sides.
• Custom bedding to include BAMBOO Mattress by CARILOHA w/ 10" memory foam, linens & coverlets
• Berth Dimensions: Width 56" & Length 76"

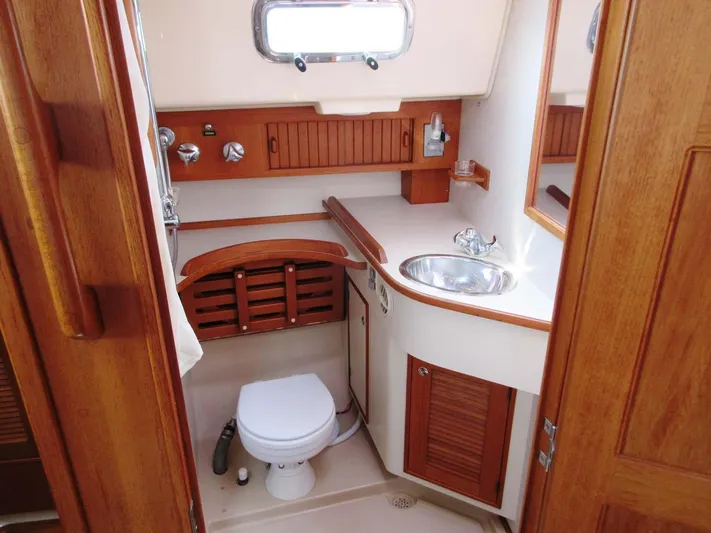

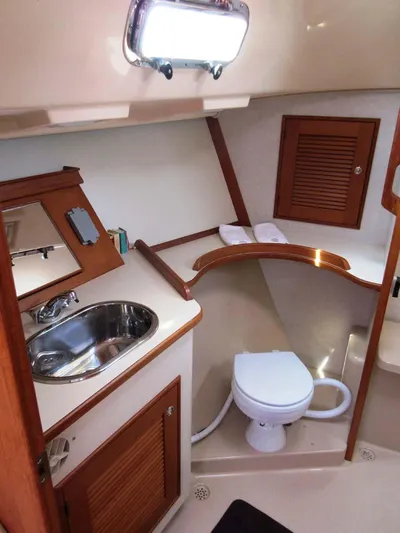

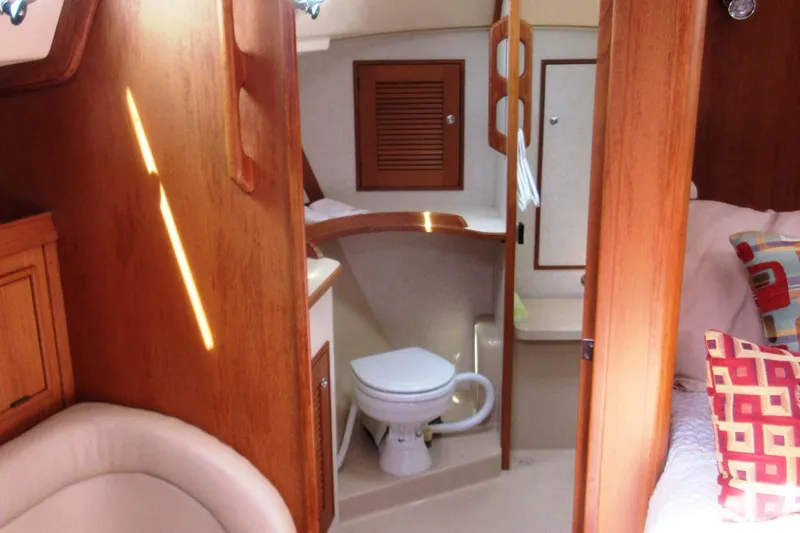

Forward Head

The Head is ensuite and to starboard. There is a separate shower area.

Forepeak


On the forward transverse bulkhead for the Head, there is an entry hatch / door to access the Forepeak anchor locker and the windlass motor. There is ample storage space for the spare anchor & rode and other related gear.

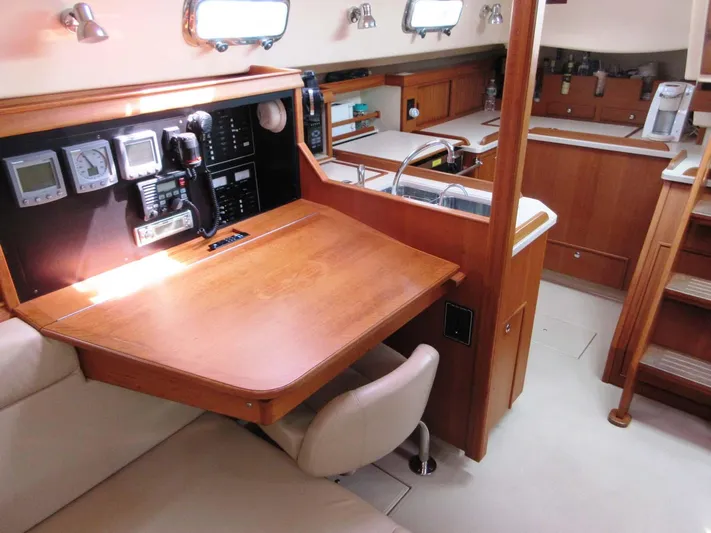

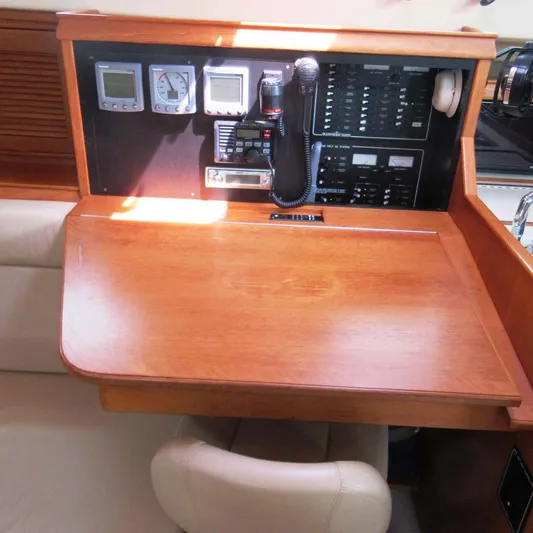

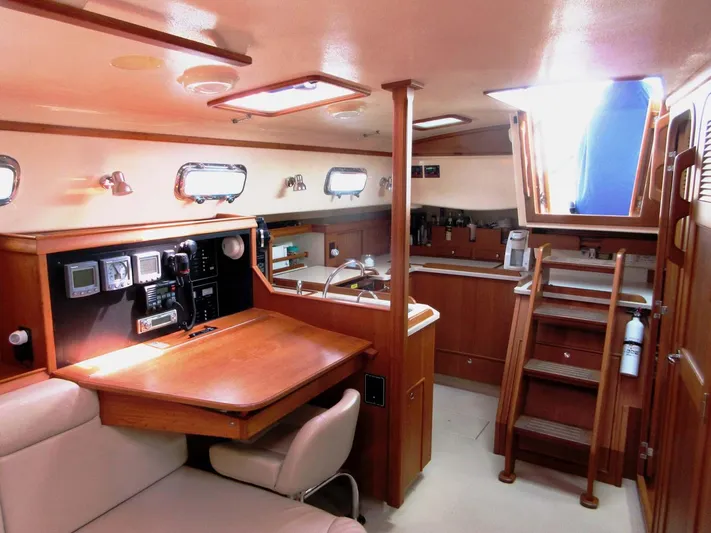

Nav Station

• Full chart size Nav table, adjustable
• Nav Station chair, adjustable, electric (note: control panel to starboard of the chair)
• ICOM VHF
• Navigator's Flex Light
• PANASONIC Stereo
• Repeaters for RAYMARINE electronics: Graphics, AWI / WS & TriData
• Electrical Panel w/ AC &DC functions & breakers

Galley Details (see "Galley" section)

Head Details (see "Heads" section)\

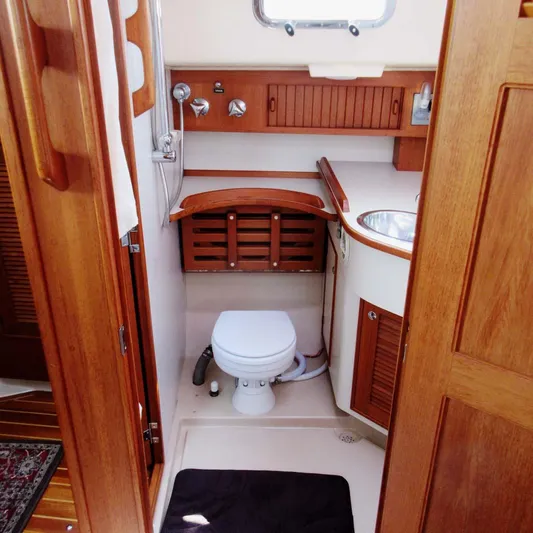

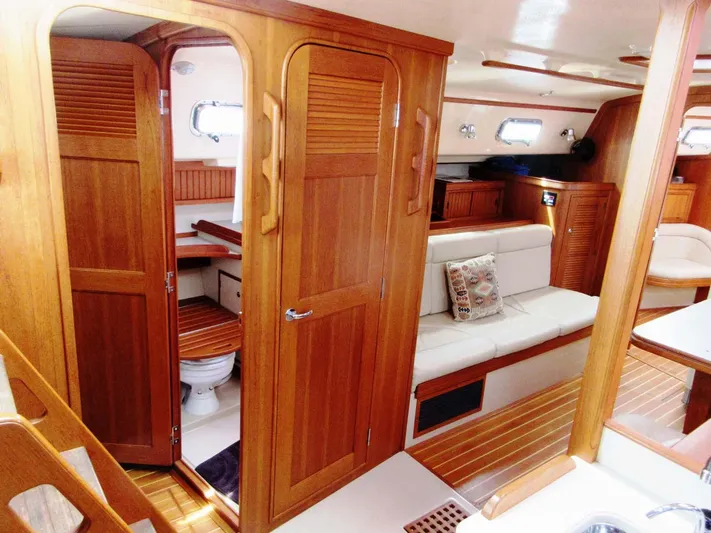

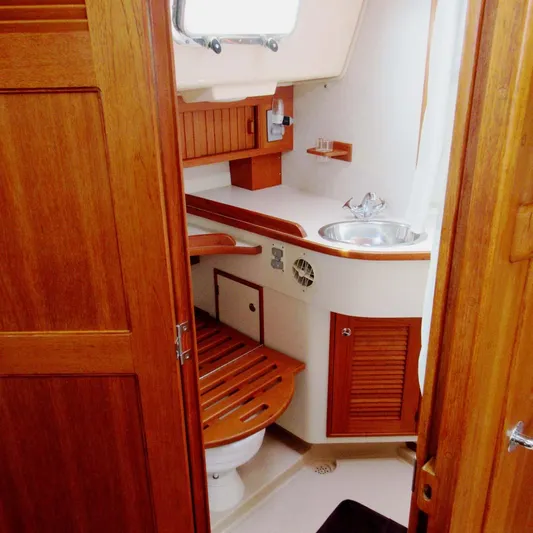

 Aft Head

 It is located aft and to port of the Companionway entrance. The Head may be accessed via the Aft Cabin or the Salon.

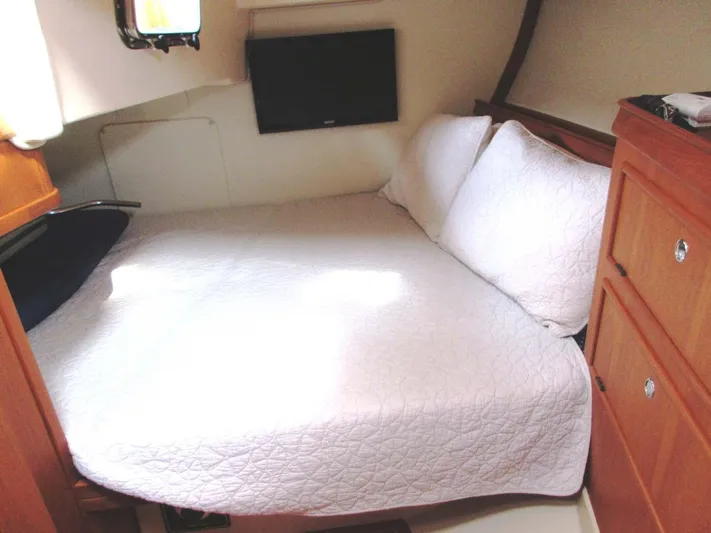

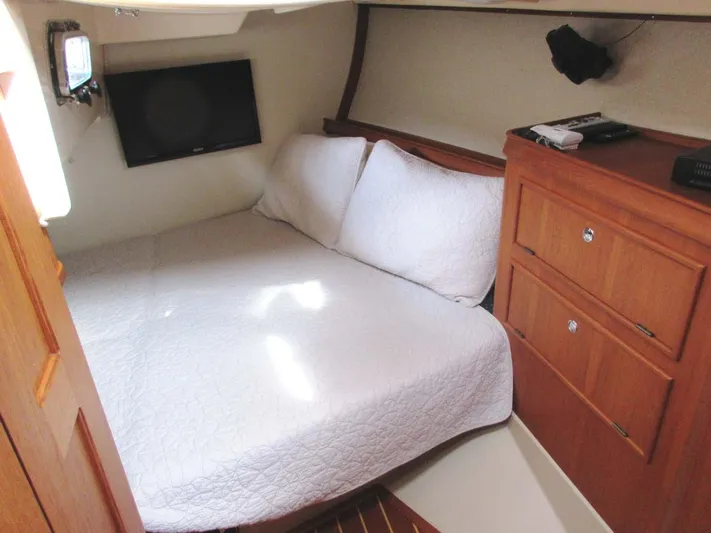

Aft Cabin

It is located just aft of the Aft Head. The entrance is via a separate door that is to port. The large Pullman-style berth is located further aft & is athwartships. The cabin is ventilated by an opening port and a 12VDC HELLA fan. There are drawers & storage lockers.

• Berth Dimensions: Width 56" & Length 76"

Engine Room

The YANMAR diesel is located under the Cockpit and the Companionway area. It is accessible via the Galley panel, by removing the Companionway steps and via a separate hatch in the Aft Cabin itself.

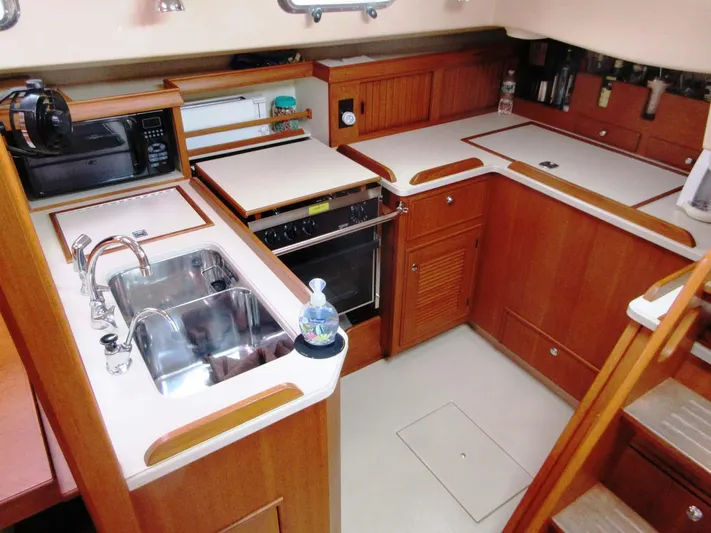

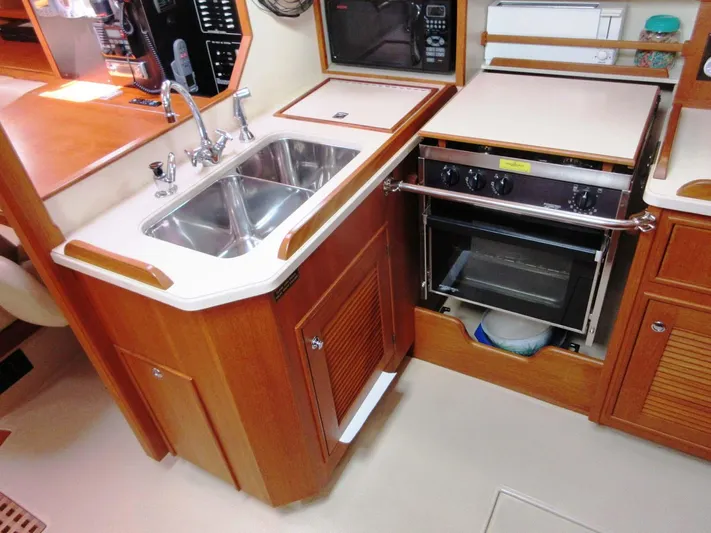

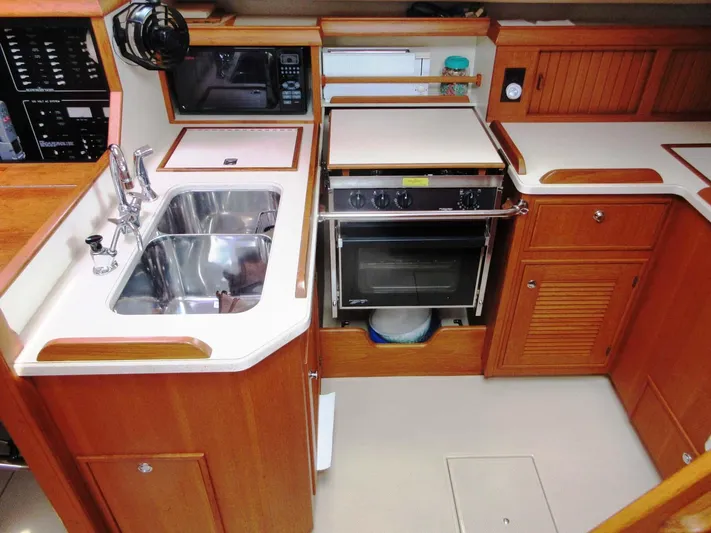

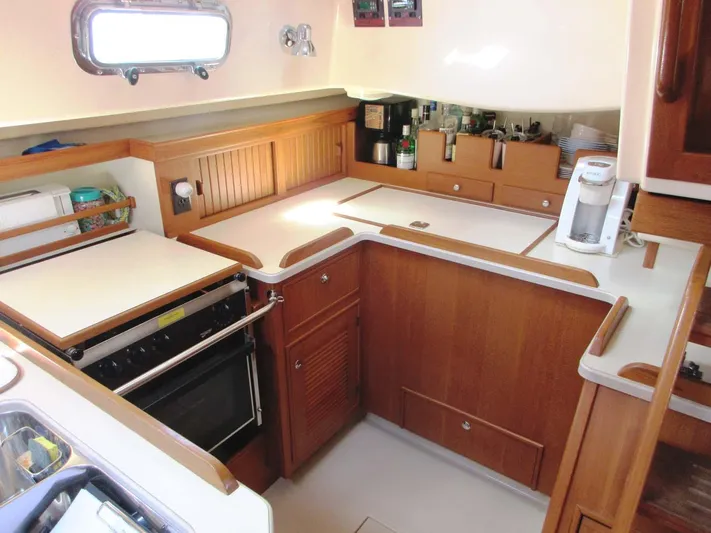

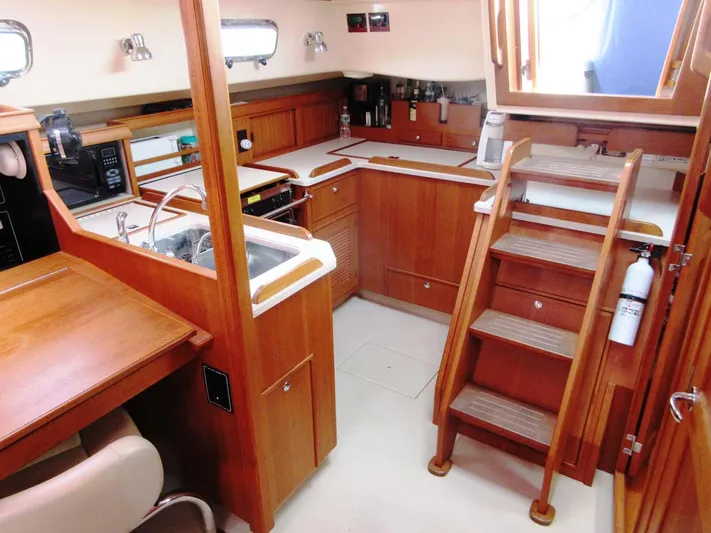

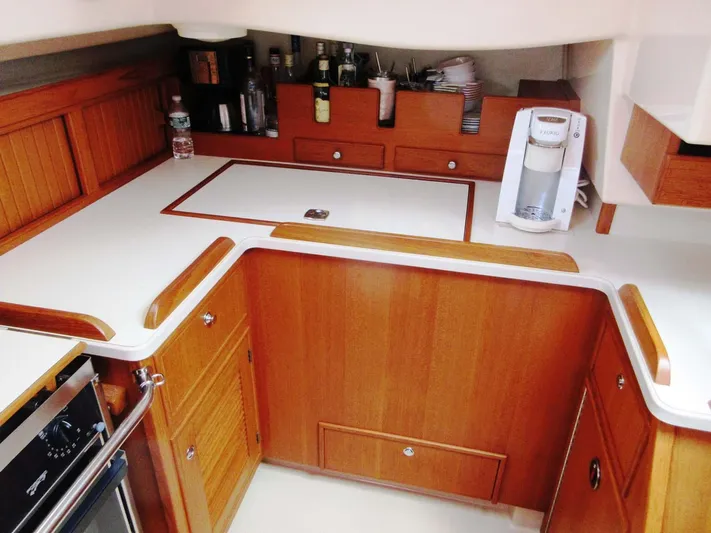

The Galley is located in the Salon, starboard side and at the base of the Companionway.

• FORCE 10 Stove / Oven, (3) burner, gimbaled, propane, stainless steel Safety bar for stove / oven, stainless steel
• Propane tank, 10# aluminum & installed on the side deck locker, starboard side amidships (note: provision for 2nd tank in locker)
• Remote propane gas shut-off solenoid switch
• ORIGO Microwave
• SEA-FROST Refrigeration, 12VDC & 110VAC
• MR. COFFEE coffee maker
• KRUPS Toaster
• Hot & cold pressure water service
• Sprayer unit at sinks
• Manual pump for fresh water
• Sink, double w/ high-polish stainless steel
• Galleyware (note: all new, 2020)
• Large access lid for ice-chest / refrig area w/ hydraulic lift
• Electric drain pump for ice-chest
•  Safety bar for stove / oven w/ safety belt attachment points, stainless steel
• Dish rack & cutlery drawers
• Trash bin, sliding in-out

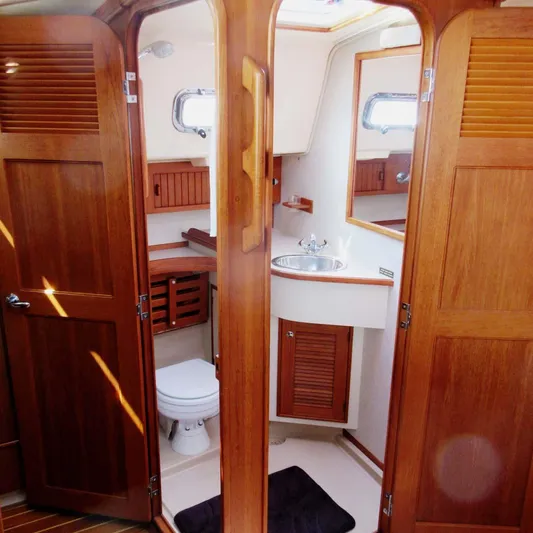

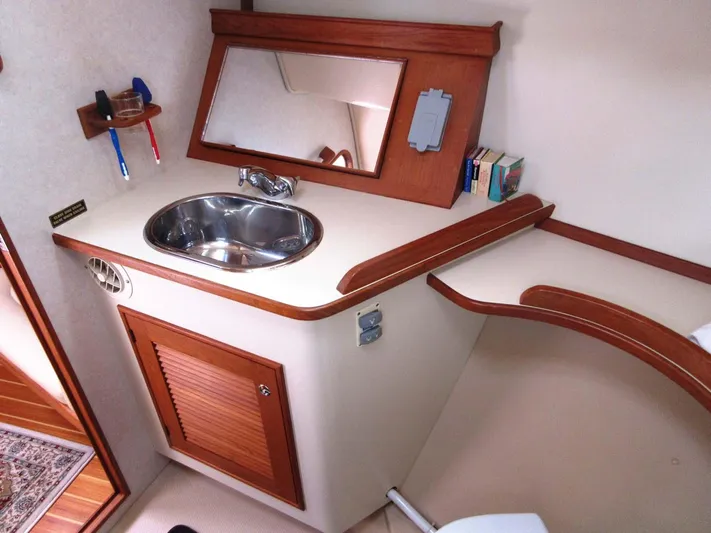

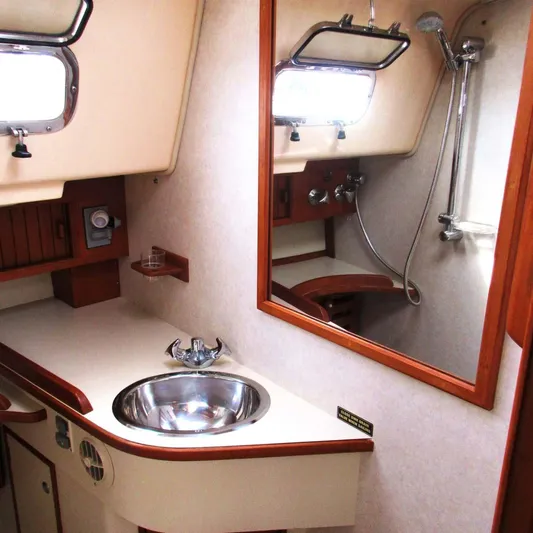

The ISLAND PACKET 420 has (2 Heads, (1) for each Stateroom. Both are with ensuite access. The Fore Cabin / Master Head has a separate shower stall. The Aft Head has a hand-held shower unit w/ a curtain enclosure.

• (2) JABSCO "VacuFlush" Marine heads, electric (note: both Heads installed shortly after yacht purchase)
• Fresh-water flush for both Heads (note: feature installed after yacht purchase)
• Holding Tank: (60) USG (note: services both Heads)
• (2) "Y" valves for overboard discharge (note: where permissible)
• Macerator pump (note: Factory Option)
• Showers w (2) "Gray Water" boxes w/ float-activated electric pumps for discharge
• Vanities w/ "deep polish" stainless steel sinks
• Drawers
• Opening ports (note: one for each Head)
• Deck hatches (note: one for each Head)
• Teak seat, folding for Aft Head
• Seat for Forward Head shower
• ACRYLIC Door for the Forward Head Shower area
• Shower curtain for the Aft Head
• Fiberglass soles w/ teak gratings & drains for both Heads

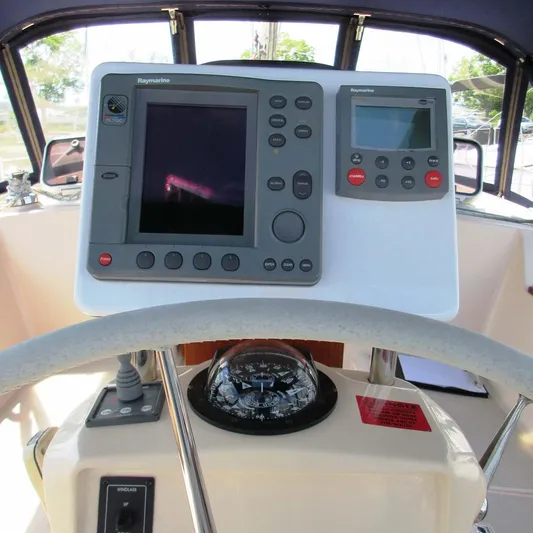

There are (3) RAYMARINE Displays mounted in the console at the Companionway entrance: Speed / Log & Apparent Wind / Wind Speed & Depth Sounder. The Helm Station has the following installations:

• ICOM VHF
• RAYMARINE Radar / Chartplotter & TriData displays

• ICOM VHF
• RAYMARINE Graphic, AWI / WS & TriData displays.

• VHF; ICOM MC-502 (note: unit at Nav Station & remote mic at Helm Station)
• AIS (Automatic Identification System)

• RAYMARINE ST-60+ Speed / Log

• RAYMARINE ST-60+ AWI / WS
• RAYMARINE ST-60+ Depth Sounder
• RAYMARINE ST-60+ TriData (Depth / Speed / Trip)
• RAYMARINE RL-700 Radar & ChartPlotter (note: a) the software was updated several years ago to provide "color" vis "black & white" displays & b) the upgrade for a NAVTECH interface for a "plug & play" feature for a Laptop was also installed)

• RAYMARINE ST-6001 w/ Remote Control

• PANASONIC Stereo (note: 2x interior & 2x Cockpit speakers)
• (3) JENSEN Flat Screen SMART TV's (note: (1) for each Stateroom & Salon and all new, 2022)
• Direct TV

Electrical

The ISLAND PACKET 420 has both a 12VDC Ship's Service and 115VAC Shore Power Systems.

• Batteries, 12VDC; (4) Group 27 AGM sealed House / Utility, (1) Group 27 AGM Engine Start & (1) Group 27
• Generator Start (note: batteries all new, 2019)
• Battery Charger, CHARLES 5000 Series 40 AH (3) step charger
• Alternator, BALMAR 110 AH dual fan
• Inverter
• PROMARINER Galvanic Isolator
• Shore power w/ (2) 30 AH hook-ups, (2) 50' 30 AH cords
• Reverse-polarity indicator (note: at Nav Station panel)
• Electrical Panel at Nav Station for all 12VDC & 110VAC functions

Generator

As of early September, 2023, the generator had just been rebuilt and itwas reinstalled on the LIVIN 2 in the Spring of 2024.

• FISCHER PANDA 6kW genset w/ sound shield
• Hours: 10-15 (note: approximate & since rebuild in 2023 & reinstallation, Spring, 2024)

  HVAC

• MARINEAIRE Reverse-Cycle heat & air conditioning, (2) zones (note: total 28,000 BTU's)
• (4) HELLA fans, 12VDC (note: installed in Salon & each Stateroom)

  Bow Thruster

• SLEIPNER "SidePower" bow thruster, (7.5) HP (note: a) new / replacement in 2023, b) Factory Option w/
• Joystick control mounted at the Helm Station binnacle & c) separate (2) Battery System 12VDC and with dedicated GUEST battery charger)

  Plumbing

• Fresh Water Capacity: 250 USG in (2) tanks
• SPOTLESS Filters at at the water fill; (1) filter & (1) softener (note: good for 5,000 US Gallons per filter charge)
• Cockpit shower w/ cold pressure water service (note: located in Cockpit, port side aft)

  Pumps

• Pressure water pump
• (2) Shower sump pumps
• (1) Ice-chest drainage pump
• Bilge pumps: (1) manual bilge pump (note: counted in the Cockpit), (1) electric / automatic bilge pump, electric

  Lighting, Interior

• Courtesy lights (note: switch at the Companionway entrance)
• (12) Reading lights throughout, silver finish, bulkhead-mounted
• Lights for Aft & Forward Heads
• Overhead lights for Galley, Salon, Aft & Forward Stateroom

  Lighting, Exterior

• AQUASIGNAL Nav lights
• Steaming light
• Masthead light
• Foredeck light

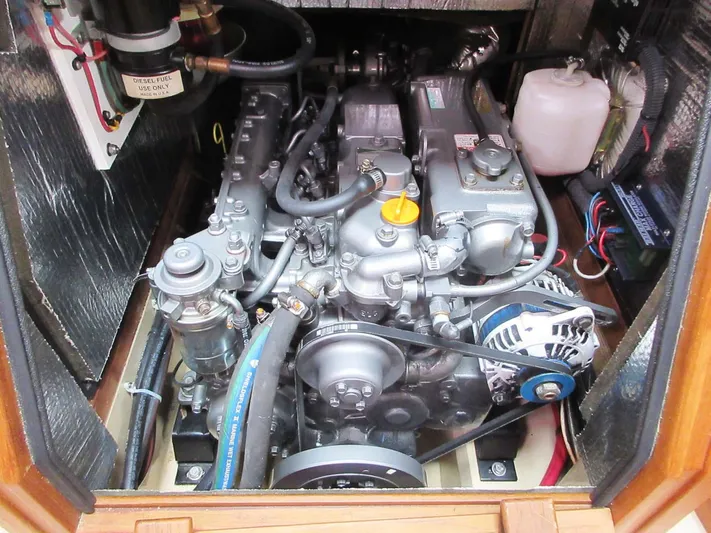

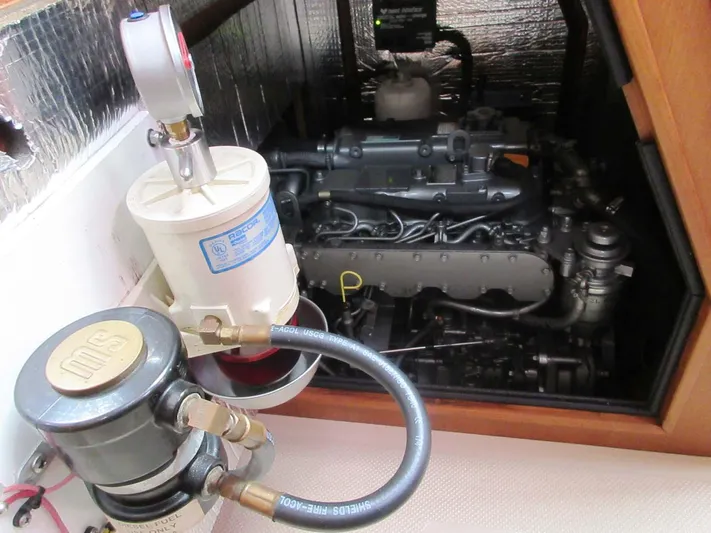

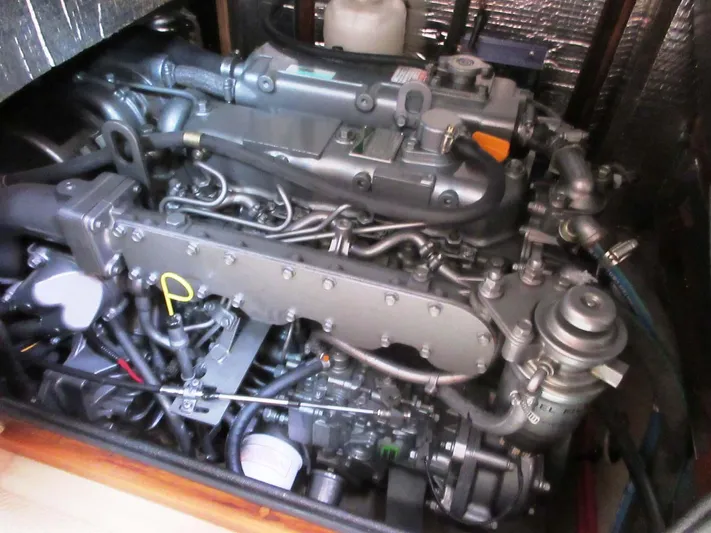

The ISLAND PACKET 420 is powered by a YANMAR 4JH3-TE Turbo (4) cylinder fwc (fresh-water cooled) marine diesel that is rated at 75 HP at 3,800 RPM's.

• Engine Hours: 500 (note: Summer, 2024)
• Fuel Capacity: 160 USG
• KANZAKI Transmission
• Propeller, MAXPROP (3) blade, feathering, bronze (note: purchased & installed shortly after yacht purchase)
• Spare propeller, (3) blade, bronze (note: original prop & stored in Fore Peak locker)
• Propeller shaft, stainless steel
• RACOR Fuel filter
• Cockpit Control Panel: gauges for RPM, engine temperature, alternator charge indicator, oil pressure, Circuit Breaker, Battery Parallel Indicator
• Single-Lever control for throttle & shift
• Engine room insulation, lead-lined foam

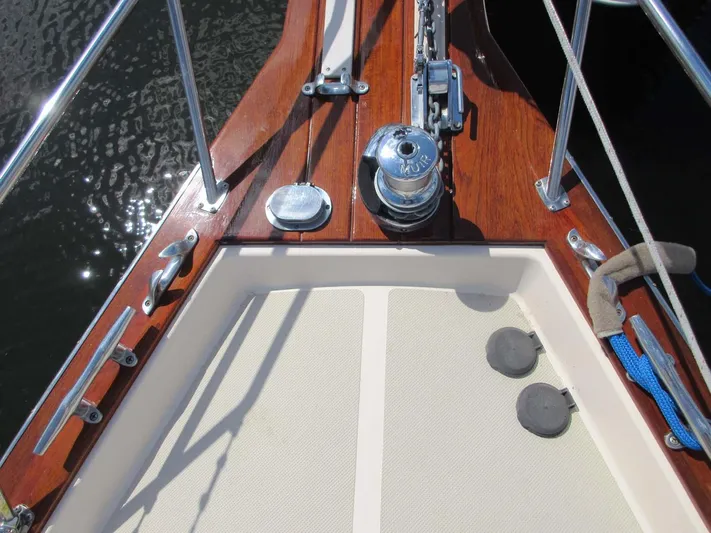

Ground Tackle

• MUIR Anchor windlass, electric / mechanical (note: foot switches @ "up" & "down" functions and hand-held remote control)
• CQR Plow anchor, 45# w/ 20' chain & 200' rode (note: custom stainless steel rode swivel included)
• Bow Anchor platform w/ SEASAFE double bow rollers, stainless steel
• DANFORTH Anchor w/ rode

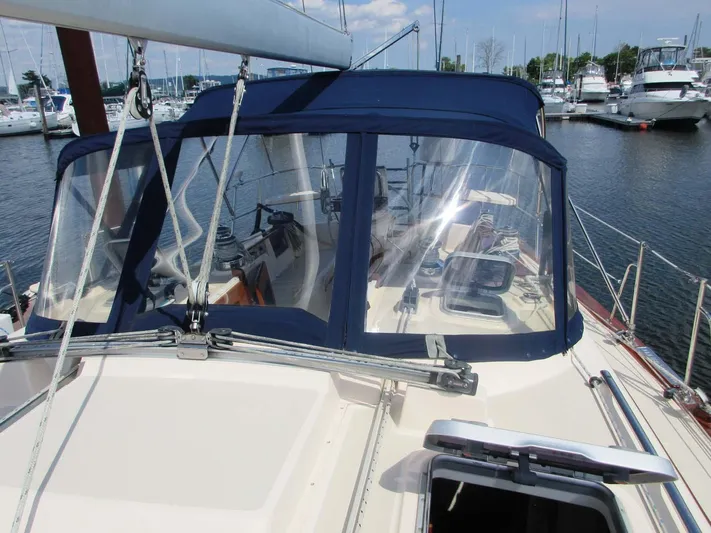

• Full Cockpit Enclosure, Blue SUNBRELLA w/ STRATAGLASS heavy-duty panels (note: stainless steel frame w/ vertical support covers, Blue SUNBRELLA)
• Pedestal / Binnacle / Wheel cover, Blue SUNBRELLA
• Winch covers, Blue SUNBRELLA

• (2) FIRST ALERT CO2 monitors
• USCG Gear (note: include PFD's)
• Fire extinguishers
• (4) Cockpit line tether attachment points, stainless steel (note: for personal safety line attachments)
• Emergency Tiller

• Boat hook
• Dock lines & fenders
• Cleaning gear
• FAIRCLOUGH Winter Cover & frame
• KATO MARINE hoist, stainless steel w/ block & tackle (note: mounted at transom)
• Outboard motor mount (note: installed on stern rail)
• (2) Cockpit lights, 12VDC (note: mounted on stainless steel Dodger frame aft)
• Cockpit table, custom folding w/ (2) leaves, teak, varnished
• Drink holder, teak, varnished
• ISLAND PACKET Cockpit cushions, TEXALENE covers w/ 2" closed cell foam (note: Factory Option)

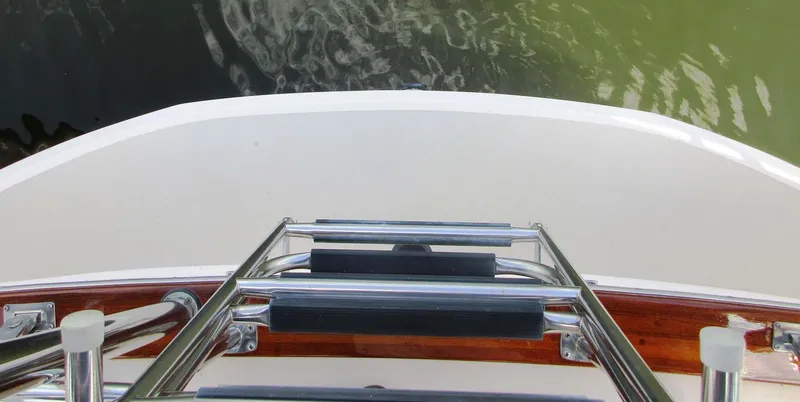

• Swim ladder, folding w/ rubber treads, stainless steel
• Yacht Ensign w/ stainless steel jackstaff
• MAGNA Barbeque

Achilles Tender/Dinghy Seller's Personal Belongings.
