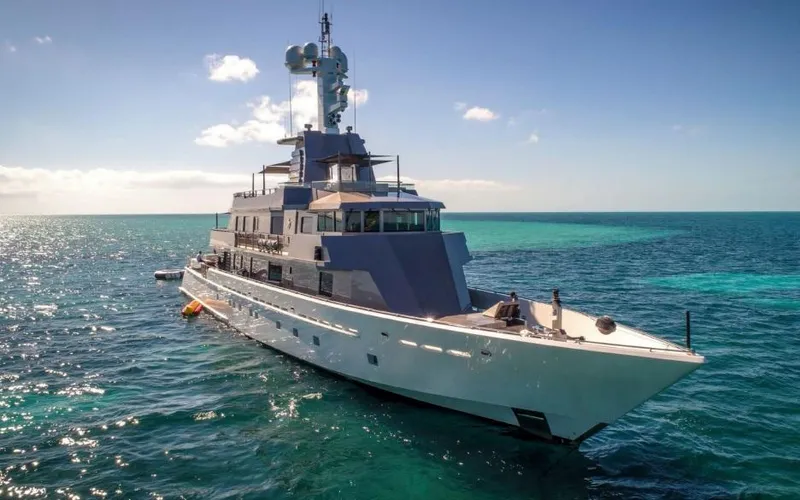

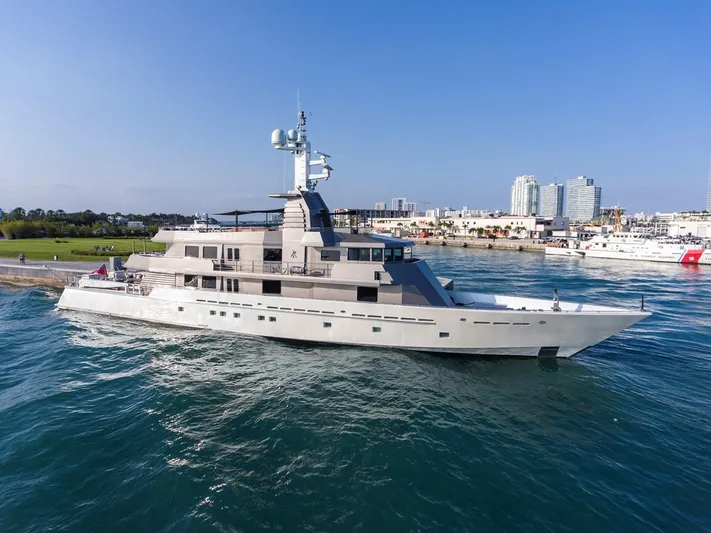

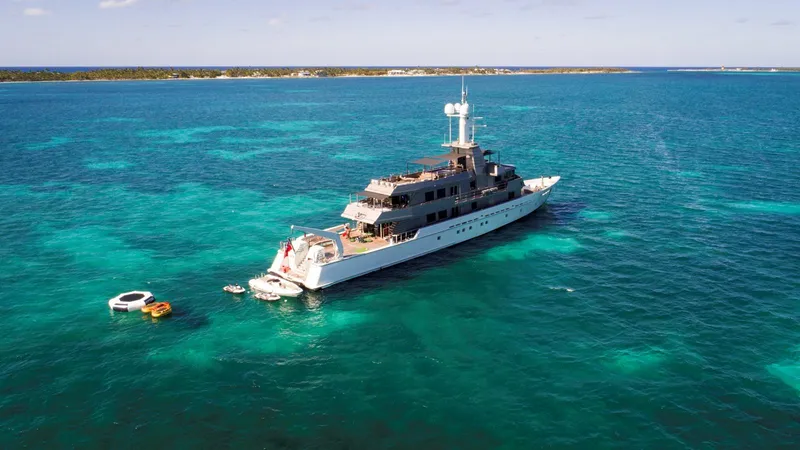

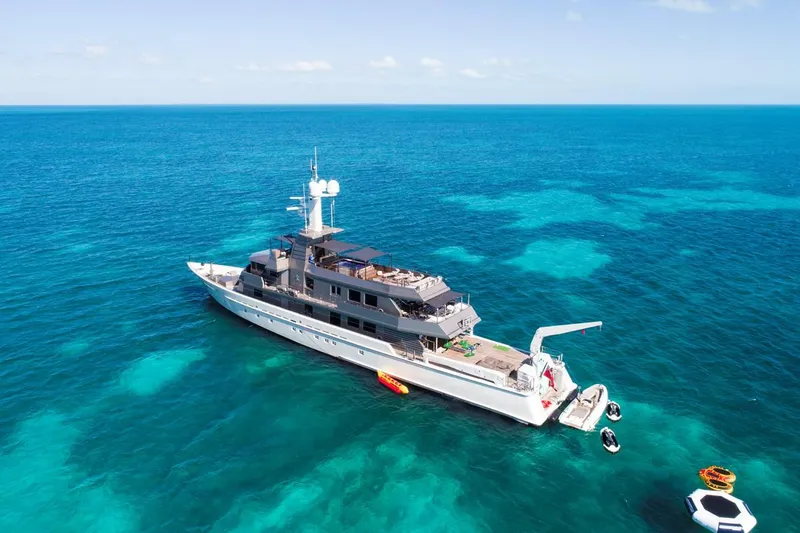

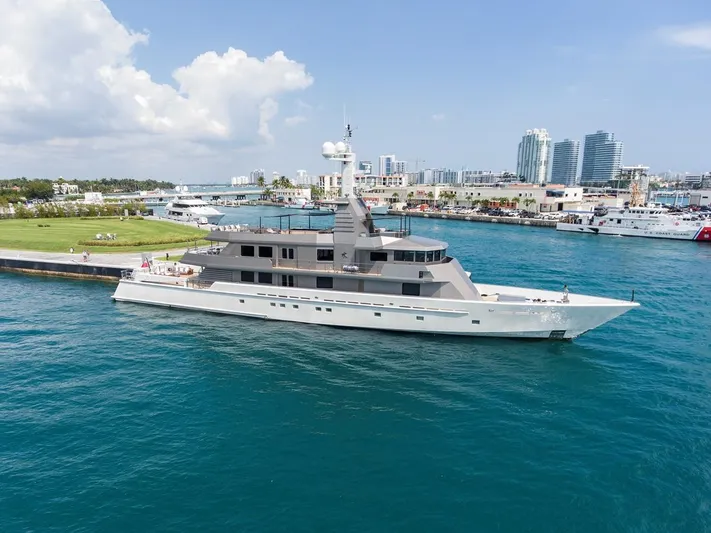

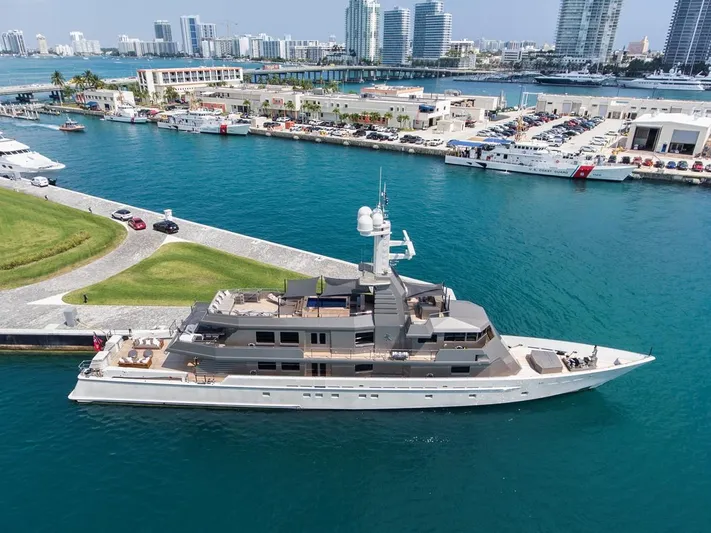

MIZU - OCEANFAST MOTOR YACHT Yacht for Sale

• Cruising Speed: 20 kn
• Maximum Speed: 27 kn
• Beam: 29' 0''
• Hull Material: Aluminum
• Max Draft: 8' 2''
• Fuel Tank: 1 x 22000|gallon
• Fresh Water: 1 x 3807|gallon
• Holding: 1 x 1500|gallon
• Cabins: 5
• Heads: 7

Highlights and Key Features:

• Full refits completed in 2016 and 2023
• Incredibly unique and head turning design
• Bureau Vertitas / commercial registry
• Remarkable cruising ability provides transpacific and transatlantic range
• Capable of reaching speeds of up to 28 knots
• Dedicated Owner’s deck

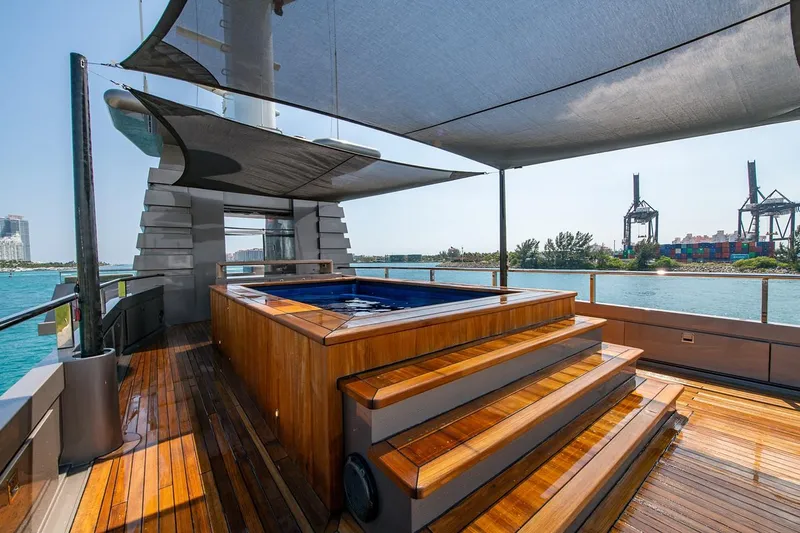

• Impressive sun deck with 14-person Jacuzzi pool, bar & sun loungers
• Storage for two 25′ tenders on the aft deck
• Extremely quiet underway
• Expansive exterior decks for entertaining
• Oversized windows throughout
• Asian inspired Modern-Deco interior design
• Upper deck home theatre with AV/IT throughout

Aluminum hull and superstructure, teak decks. All three decks are teak. Awlgrip paint system.

General
Length Overall (L.O.A.):

• 174.00 feet
• 53.03 meters

Beam (molded):

• 29.00 feet
• 8.84 meters

Draft (loaded):

• 8.20 feet
• 2.50 meters

Tonnage:

• 498 gross
• 295 light displacement tons
• 149 net tons

Classification:

• Built to Germanischer Lloyds Spec., MCA Compliant

Flag:

• Cayman Islands

Capacities
Fuel Capacity:

• 22,000 US Gallons
• 83,270 liters

Water Capacity:

• 3,807 US Gallons
• 14,409 liters

Watermakers:

• 3,000 US Gallons
• 11,340 liters

Lube Oil:

• 528 US Gallons
• 2,000 liters

Waste Oil:

• 528 US Gallons
• 2,000 liters

Grey Water:

• 1,500 US Gallons
• 5,676 liters

Speed / Consumption per hours / Range  / RPM
Maximum:

• Up to 28.0 knots
• 330 Consumption per hour
• 2,150 RPM

Cruising:

• 20.0 knots
• 261 Consumption per hour
• 1,800 RPM

Full load slow:

• 17.5 knots
• 190 Consumption per hour
• 1,550 RPM

Economical:

• 11.0 knots
• 64 Consumption per hour
• 900 RPM

*Calculated based on 20% reserve fuel

Main Engines
Engine Type:

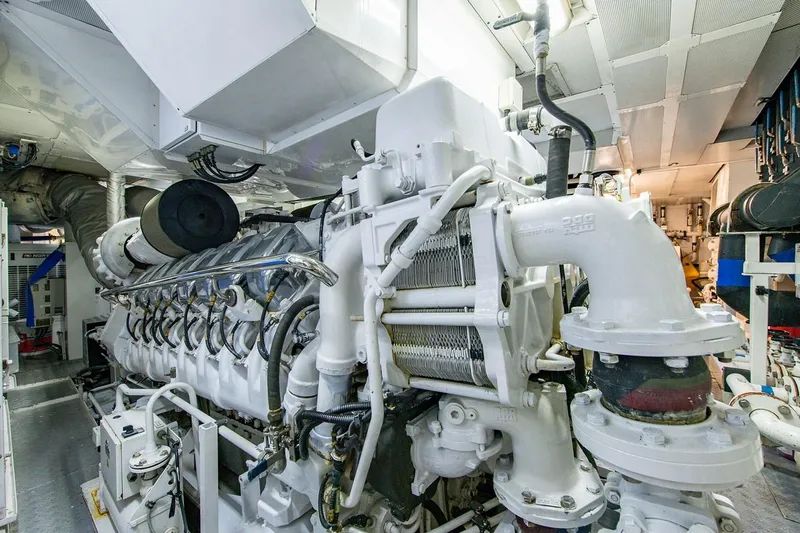

• 2 MTU 16V4000 diesels @ 3,750 Hp each

Drive:

• 5-blade fixed pitch propellers plus spare set

Generators & Electricity
Output:

• 120/208/440V/60 Hz

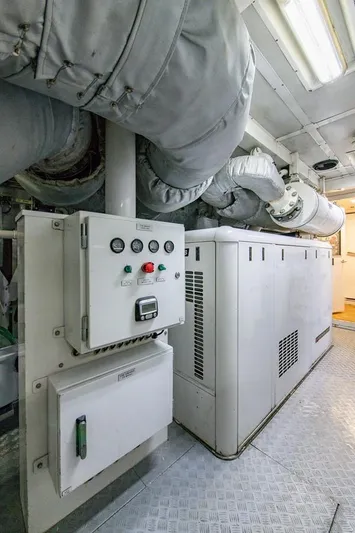

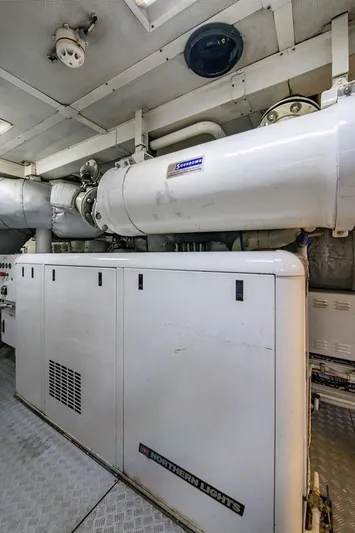

Generators:

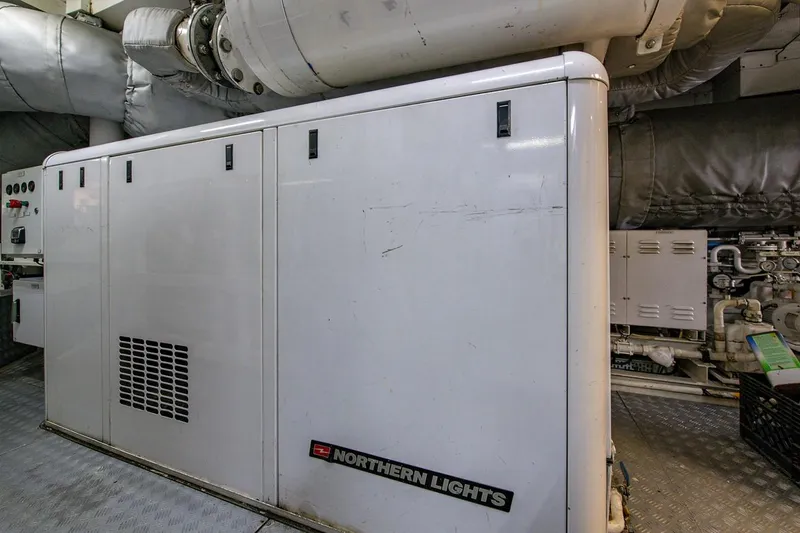

• 2 150 kW Northern Lights

Generator Fuel Consumption:

• 8 Gallons per hour

Shore Power:

• Atlas 125 kW

Air Conditioning:
Type:

• N.R. Koeling ducted on main and owner’s deck Fan coils in guest and crew staterooms

Other Machinery
Watermakers:

• 2 HEM 5,000 gallons per day total

Trim Tabs/Stabilizers:

• SeaState ride control system, underway only

Bow Thruster:

• Quantum hydraulic propeller

Fuel Separator & Filtration:

• Alfa Laval

Sewage System:

• Hamann Wassertechnic

Bilge Water Filtration:

• DVZ

Soot Cleaners:

• “Idquo Soot Sinkers” for generator exhausts

Load Bank:

• Sephco

Toilets:

• Evac VT90 silent

Tank Tests:

• AMC Institute, Tasmania

Communication Systems
SATcom:

• 1 Nera F77
• 2 Furuno Felcom 15 Sat Com C
• Nera Worldphone Mini M Sat Com M

Telephone System:

• Panasonic

SSB:

• 1 Furuno FS 2570 SSB watch receiver

VHF:

• 2 Furuno FM 8500
• 7 Icom IC602

Cellular Phone System:

• GSM 2 Telular

Intercom:

• Panasonic

Navigation Systems
Radar:

• 1 X-Band Furuno FR 2125-B
• 1 S-Band Furuno FR 2135-S-B

Gyrocompass:

• C Plath digital

Magnetic Compass:

• C Plath and Plastimo

Auto Pilot:

• C Plath Navipilot V HSC

Depth Sounder:

• Furuno FE 700 and Furuno 1200L

GPS:

• 2 Northstar 952X
• Furuno Navigator GP80
• Furuno Satellite Compass

Electronic Charts:

• Transas with world charts

Weather:

• Bon Voyage

Ships Computer:

• Dell PC with HP fax/copier/printer

Wind/Speed Log:

• B&G Hydra with Furuno navigator GP80 log

Navtex:

• Furuno NX500

Loud Hailer:

• Imcos

AIS:

• Furuno

Entertainment System:

• Sea Tel Worldwide Satellite TV system
• 3 42” Sony Flat screen plasma TV’s
• 32” Samsung Flat screen
• 5 Regular TV’s
• All public areas and staterooms are equipped with complete sound systems,
• DVD/CD players and VCR’s
• Separate sound systems in galley, engine room and outside deck areas

IT Equipment:

• Central ship’s server
• Wireless network throughout the vessel for wireless laptop use
• High speed data network through Sat Com B at 56 kps

Main Galley Equipment
Cooking Equipment:

• Vulcan 6-burner with oven
• 2 Hobart steam/convection ovens
• Miele fryer and Amana microwave oven

Refrigeration/Freezer:

• N.R. Koeling

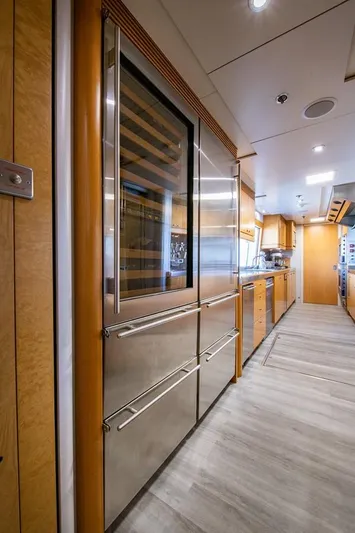

• Sub Zero fridge with drawers and Sub Zero wine cooler

Dishwasher:

• Hobart

Other:

• Kitchen Aid sink grinder
• Scotsman icemaker and GE compactor

Crew Galley/Mess Equipment
Cooking Equipment:

• Frigidaire microwave oven
• 1 ISE instant hot

Refrigeration/Freezer:

• Frigidaire

Other:

• 1 Frigidaire dishwasher

Additional Galley Equipment
Other:

• Miele dishwasher
• Scotsman icemaker
• Miele coffee maker
• ISE instant hot in Steward’s Pantry

Bars:

• Located in salon, upper salon, sundeck, Owner’s outside dining, all with refrigerators and ice makers

Laundry Equipment:
Main Laundry Equipment

• 2 Whirlpool Duet large capacity washing machines
• 2 Whirlpool Duet large capacity tumble dryers
• 1 Miele roller iron

Tender Cranes:

• Nautical structures 5,500 lb SWL (port side)

Rescue Tender Crane:

• Nautical structures 5,500 lb SWL (stbd side)

Anchor Winch:

• 2 Muir hydraulic

Aft Warping Capstans:

• 2 Muir 2-speed hydraulic

Anchors:

• Pool HHP

Anchor Chain:

• 2 550’

Passerelle:

• Hydraulic with teak treads

Boarding Ladder:

• 2 Marquipt split

Tender Whips:

• Swim platform, port, and starboard sides

Security Equipment:
CCTV System:

• Pelco

Cameras:

• 8 Pelco cameras

Fire Fighting Equipment:
Fire Control System:

• Engine room CO2 system

Fire Detection:

• Consillium

Alarms:

• Semco alarms and alarm panels

Safety Equipment
Life Rafts:

• 4 16-person RFD Commercial

Life Rings:

• 8

EPIRBS:

• 1 ACR

Hi Fog:

• Semco

Searchlight:

• 2 San Shin SD

Horn:

• Kahlenberg Trumpet 5 tone

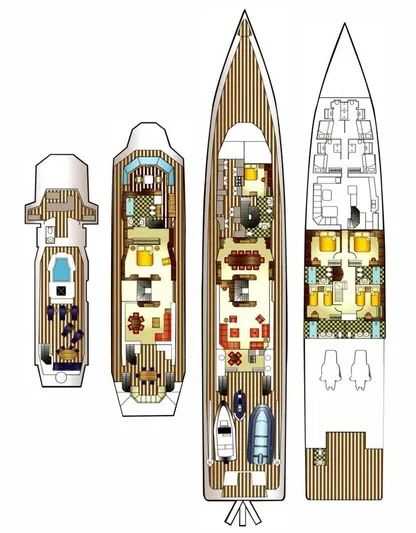

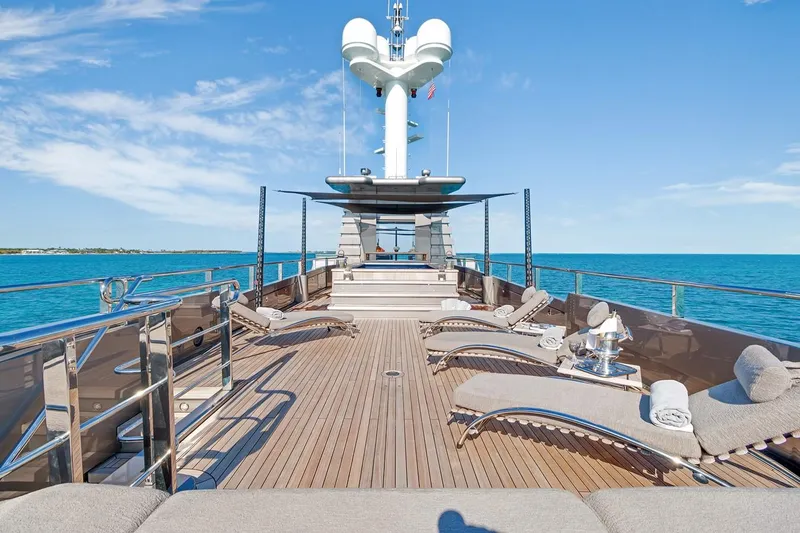

SUN DECK

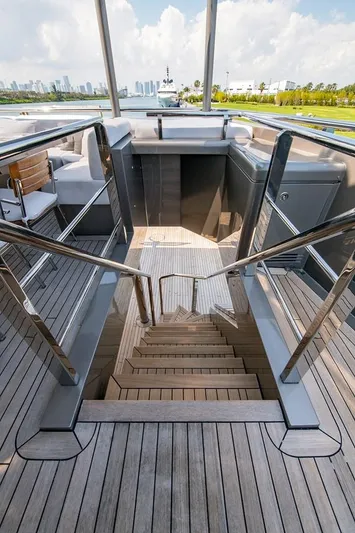

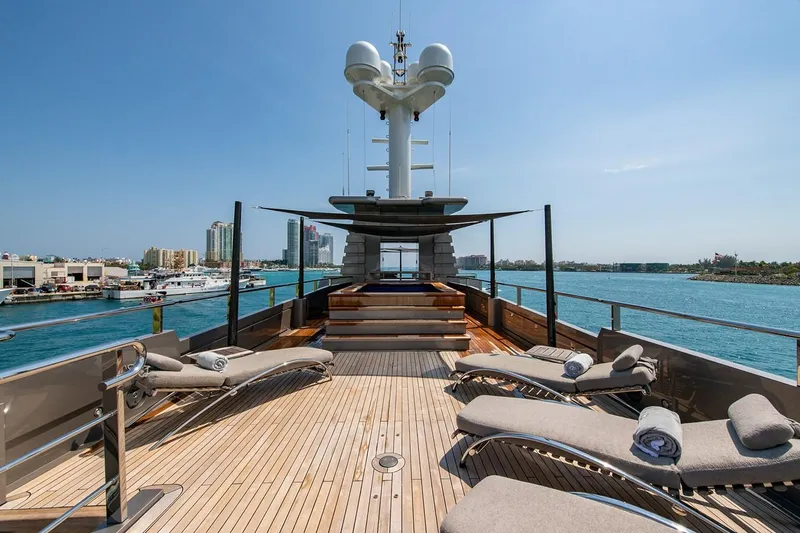

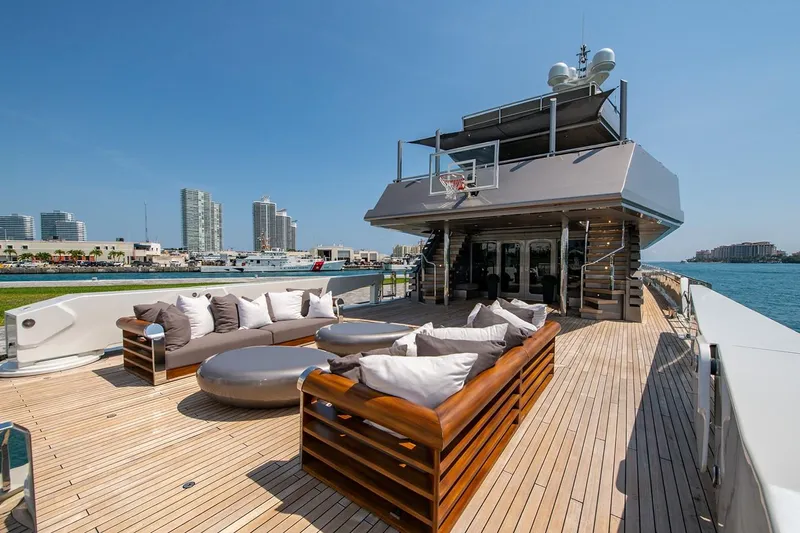

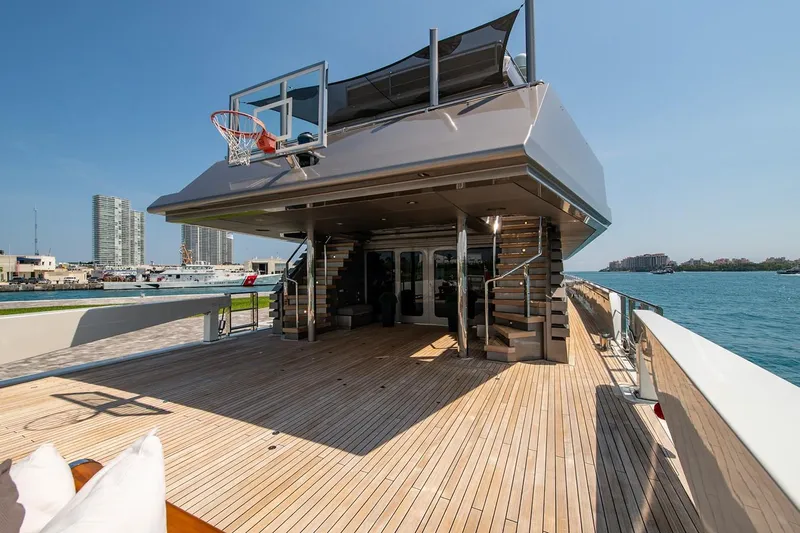

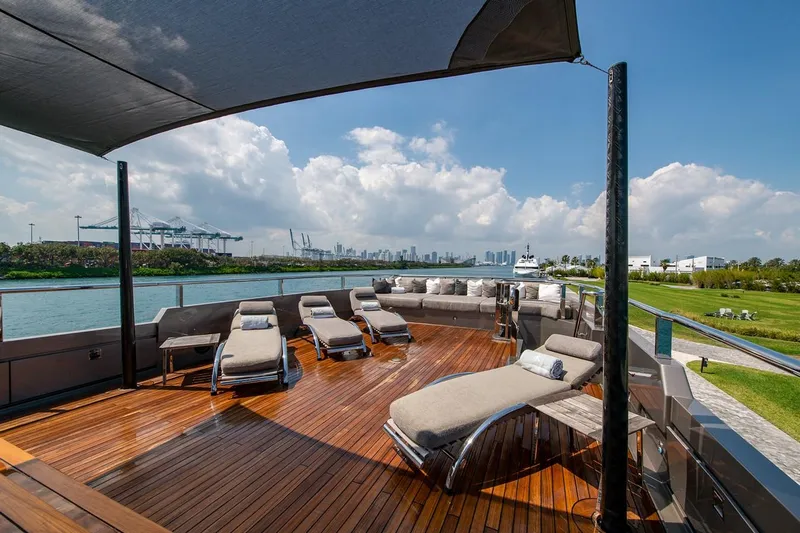

The exceptionally spacious sundeck has a control station forward with 2 place seat adjacent and a dumbwaiter for food delivery to this deck. Further aft under the arch is an outside shower with bathroom outboard to port and large storage locker to starboard. There are 2 place settees at observation wings either side of the sundeck forward of the arch - an ideal place to sit while cruising. The sundeck can be covered by a semi fixed awning back to the Jacuzzi area.

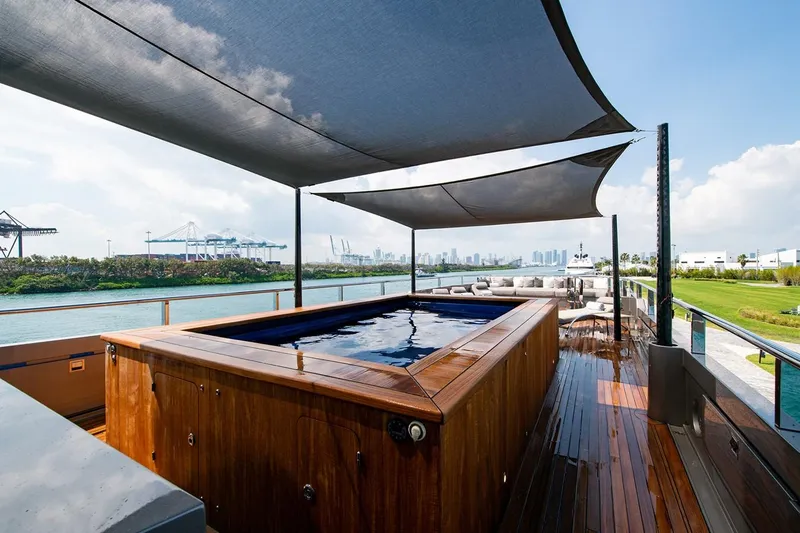

A central Jacuzzi is further aft on the sun deck with settees either side, a sky light that lights all the way to the lower deck, and a wet bar with barbeque behind. There is built in seating all the way aft on the sundeck and staircase access down to the next deck.

OWNER’S DECK/BRIDGE DECK

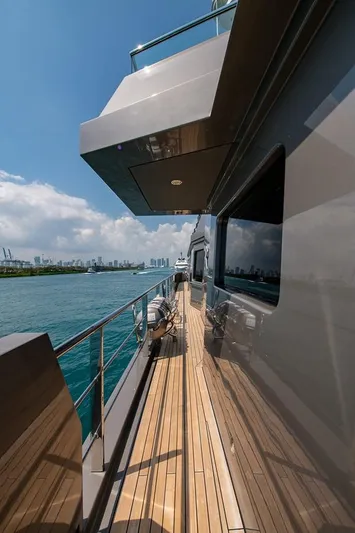

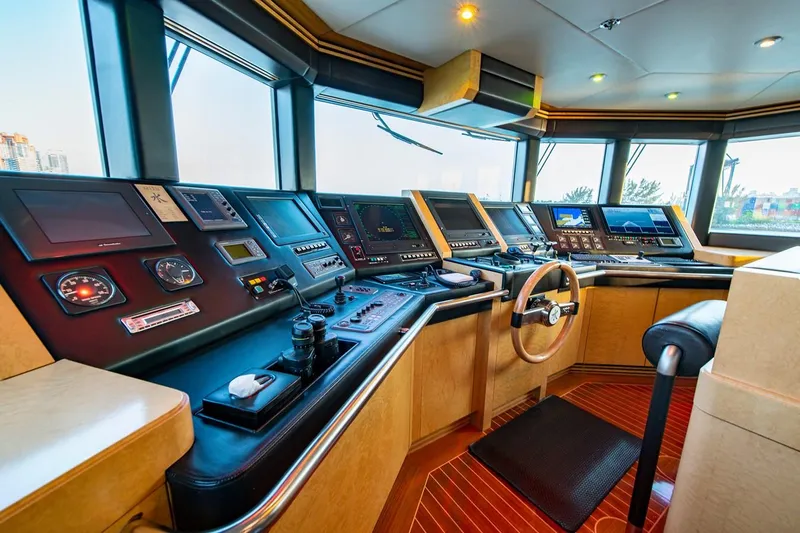

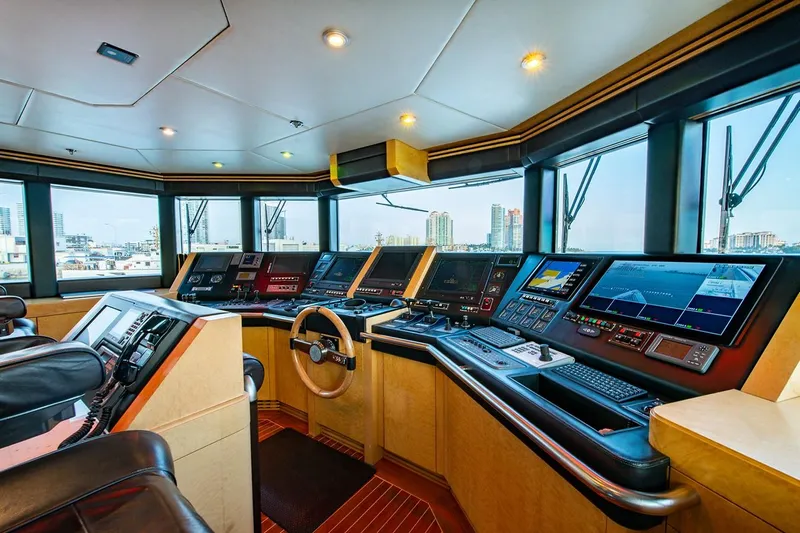

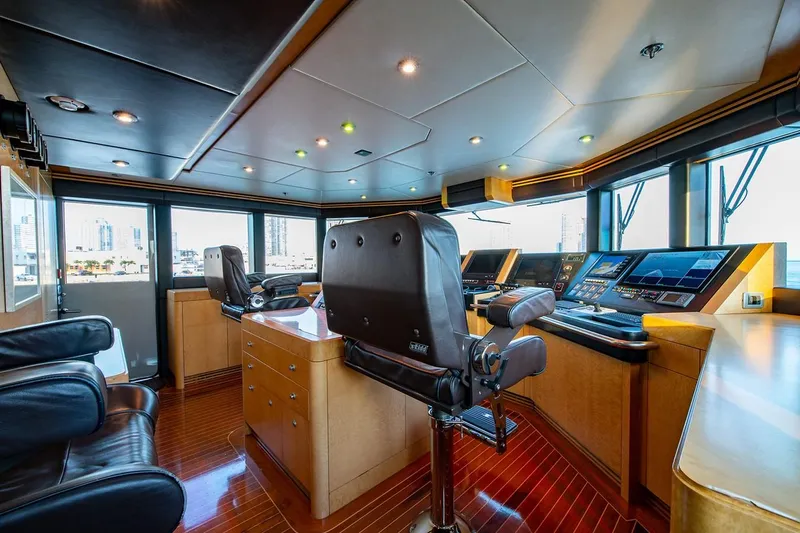

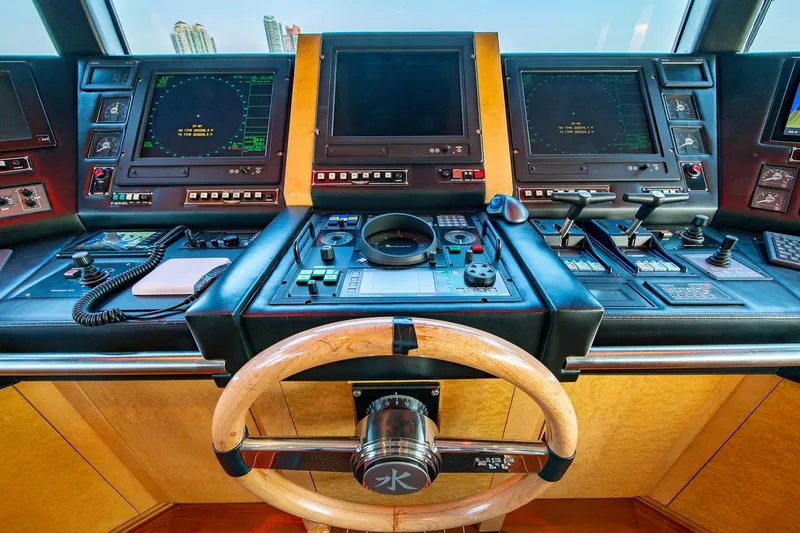

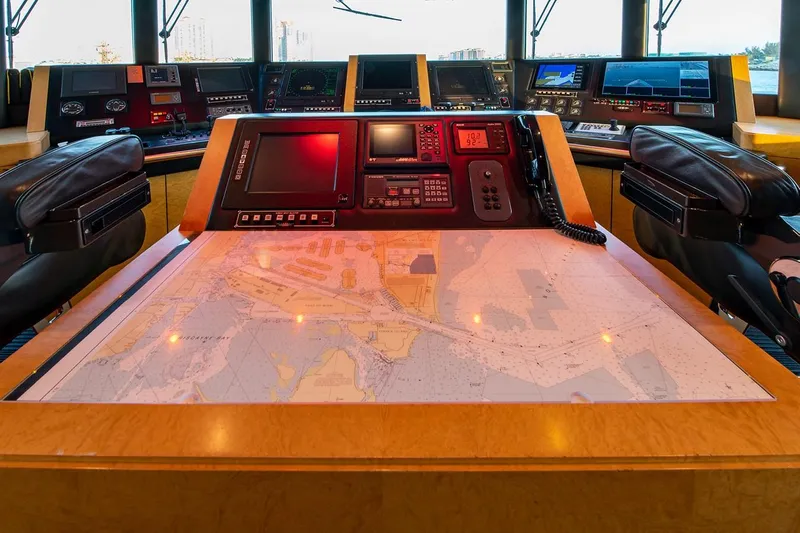

The wheelhouse is forward with walk around decks outside. The “Idquo glass” bridge is superbly laid out with central chart table looking forward, 2 helm chairs either side and one behind, and a Captain’s leaning post. There is a refrigerator under the console and easy access to all the electronics underneath.

Further aft is the Radio Room with desk outboard and dumbwaiter access forward. A separate crew stair is further aft going down to the main deck galley and crew access area.

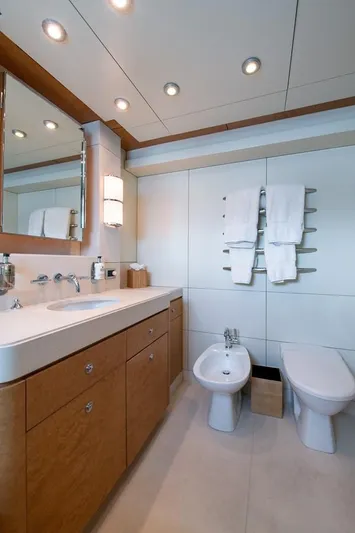

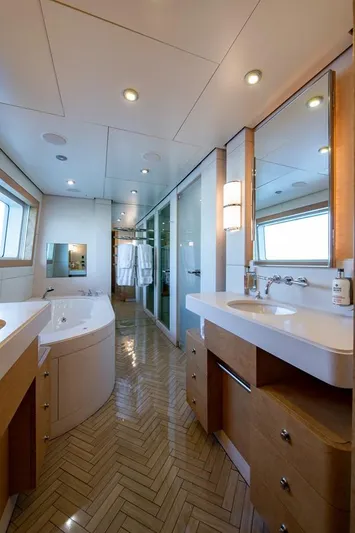

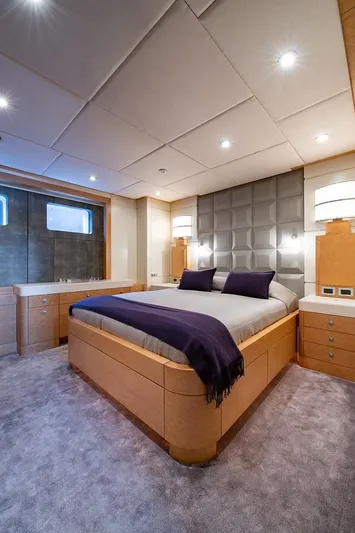

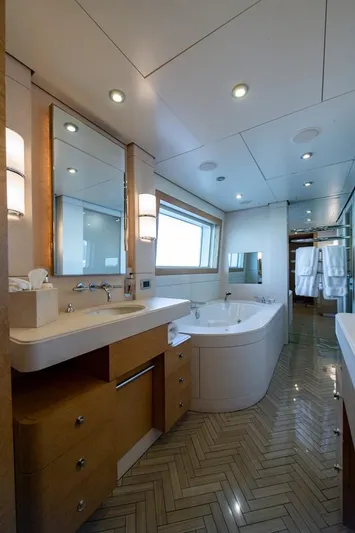

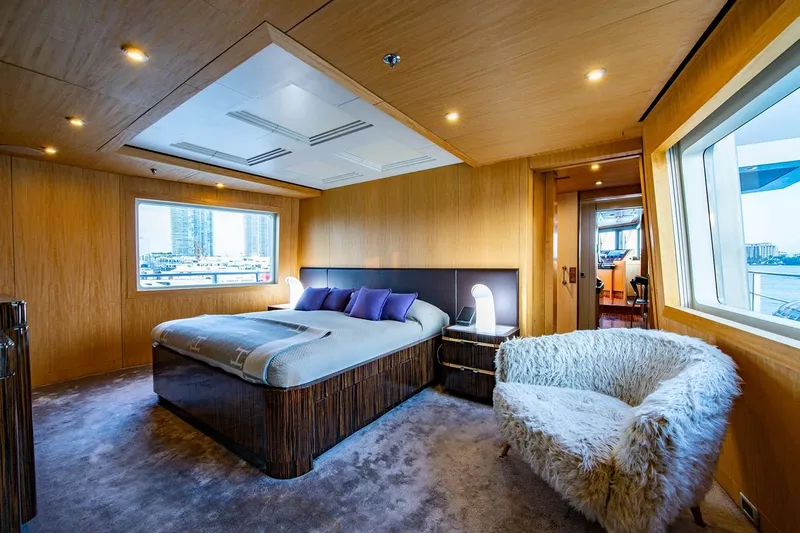

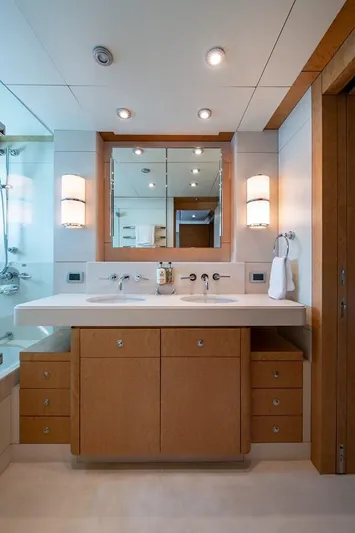

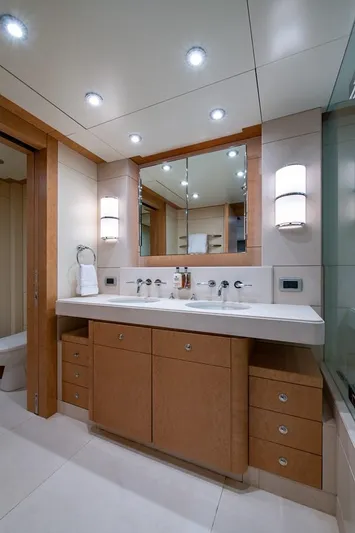

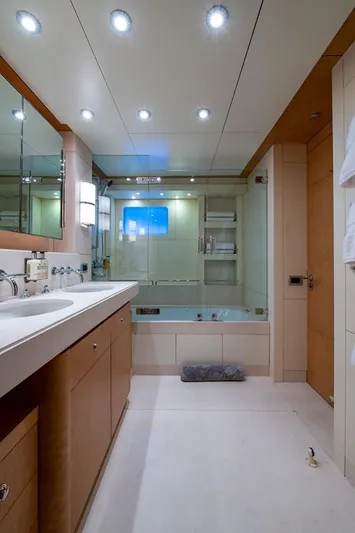

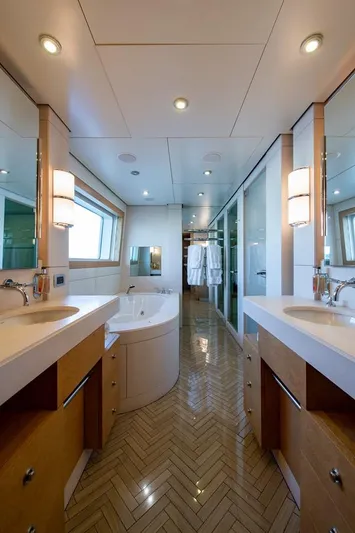

The master suite is located on the upper or bridge deck and as such has exceptional views and light, and excellent privacy. The owner’s bathroom is forward to port with Jacuzzi tub

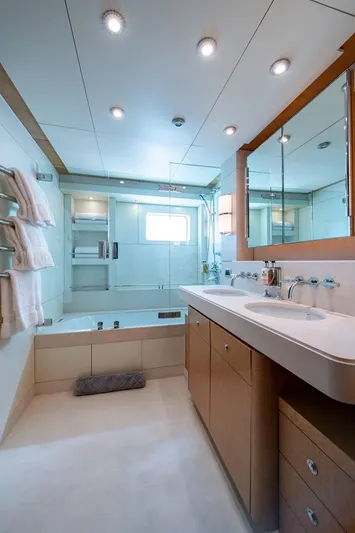

and steam shower, TV, heated towel bars and his and her sinks and toilet and bidet in a separate room. Extensive closet space is further aft and the owner’s stateroom is aft of that. A centerline king size berth has nightstands either side, there is an armoire to port, a built-in refrigerator adjacent to a large stuffed chair with ottoman are outboard to starboard.

Aft on the starboard side through the owner’s lobby, there are two doors out to the starboard deck and access to the central staircase and atrium skylight through the entire yacht.

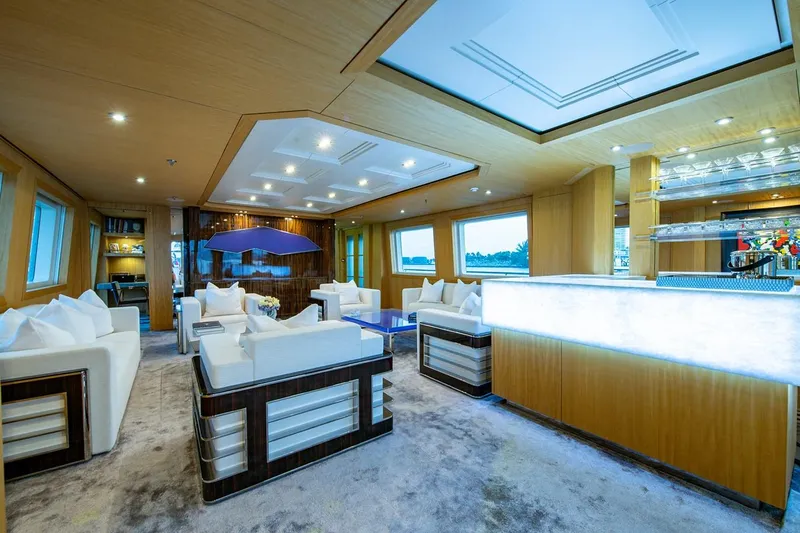

The upper deck salon, owner’s salon or sky lounge is further aft with flat screen TV and entertainment center with book shelves on the forward bulkhead, wet bar with refrigerator, icemaker and sink outboard to port, a game/dining table to port and a settee to starboard.

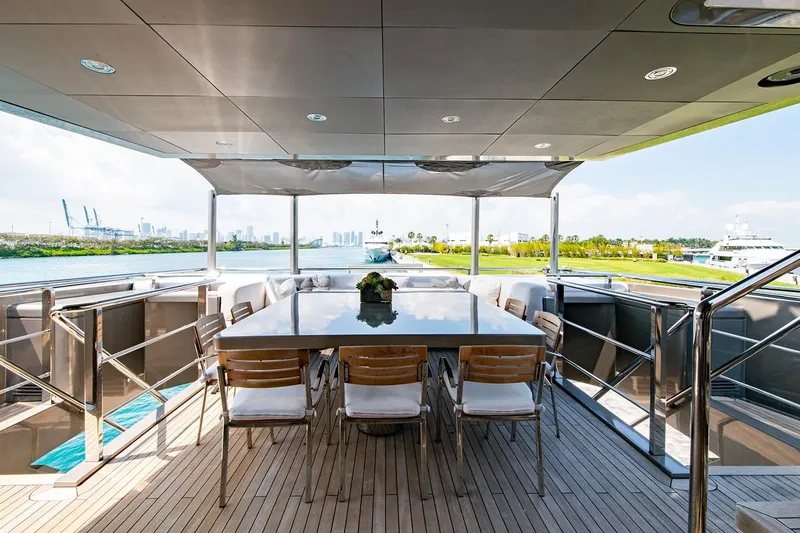

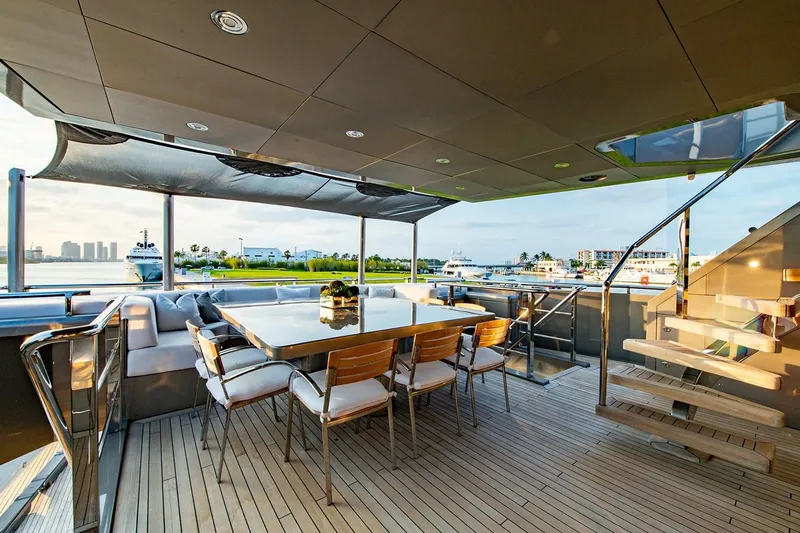

Out through double doors to the outside dining deck area, mainly shaded from the sun deck overhead. There is a storage locker to port under the stairs up to the sun deck, a TV and wet bar opposite, a central teak dining table with summit chairs and built in U-shaped seating all the way aft. Dual staircases access the main deck below.

MAIN DECK

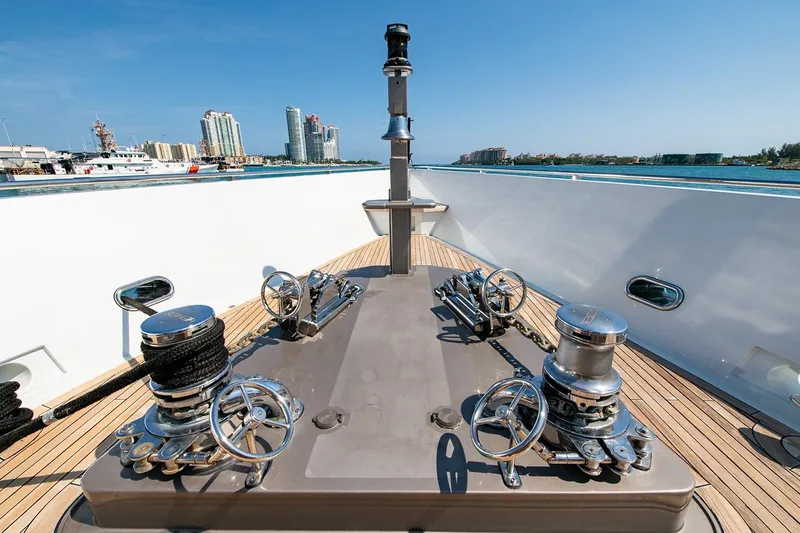

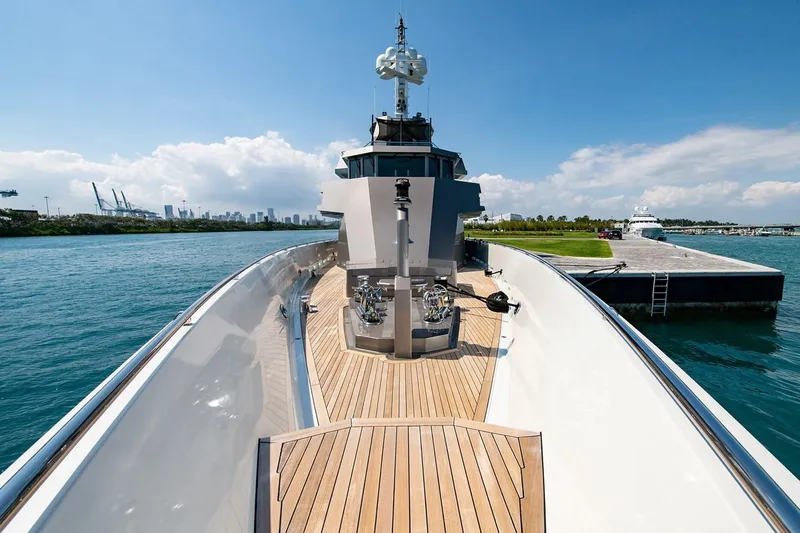

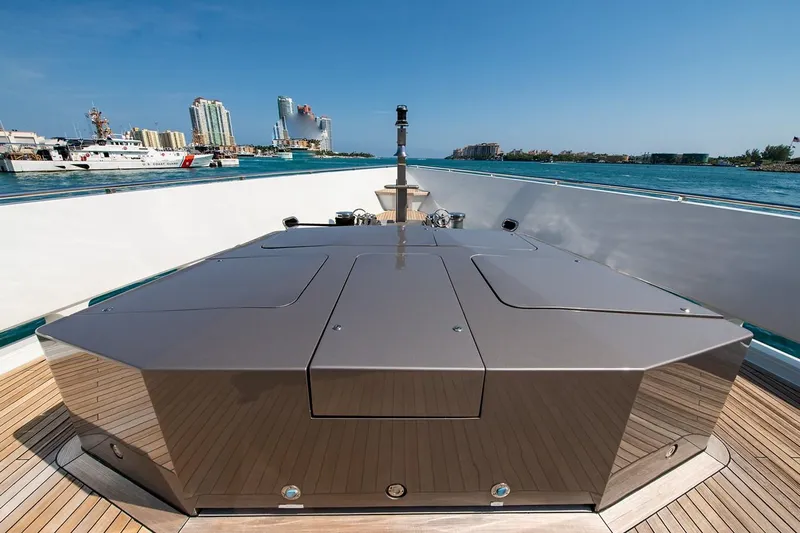

Anchoring and anchoring mast are all the way forward, bosun’s locker aft and crew escape hatch nearby.

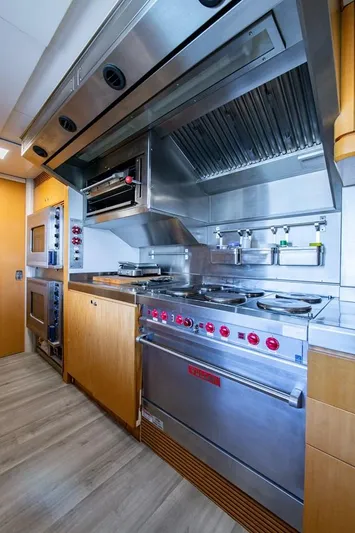

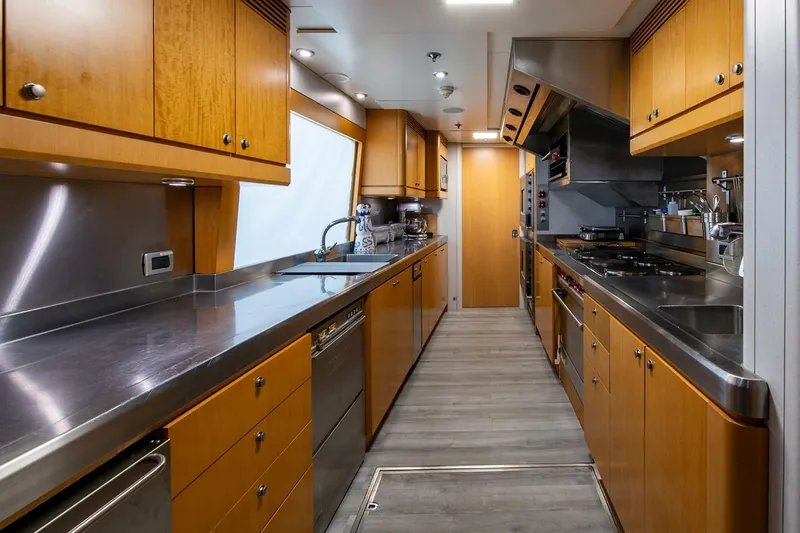

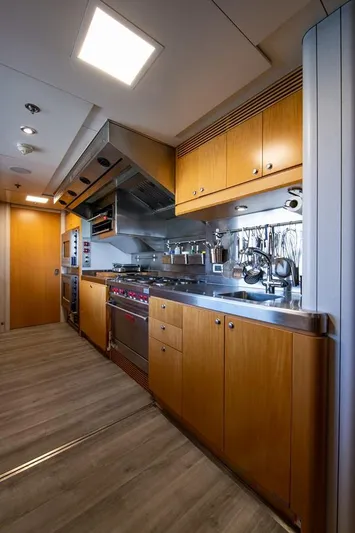

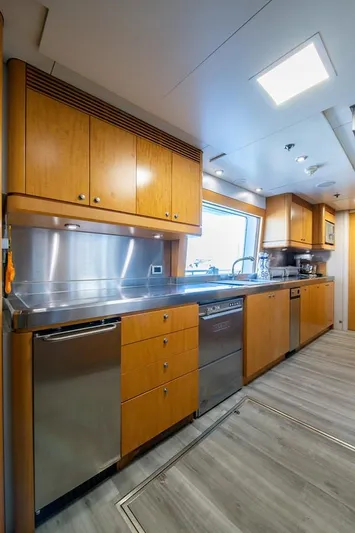

The main galley is on the deck forward to port with large dry store room forward and walk-in freezer and refrigerator rooms opposite. The main galley has great windows and a serving pantry further aft with crew access to the port side deck.

The Captain’s Cabin is on the main deck, fitted with a queen berth, desk under the windows and adjoining bathroom with shower.

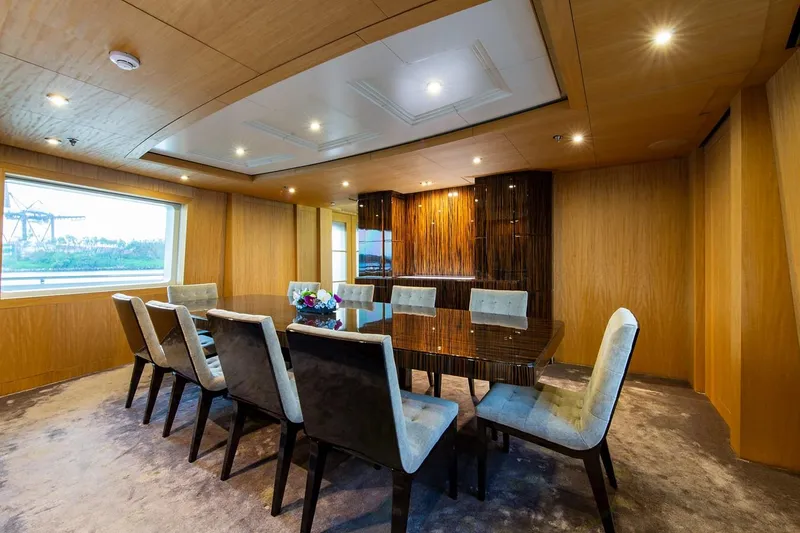

Aft of the pantry on the port side is the dining salon, again with great windows, dining table and chairs for ten, and extensive storage cabinets aft and outboard.

In a lobby area ahead of the dining room is the on deck powder room.

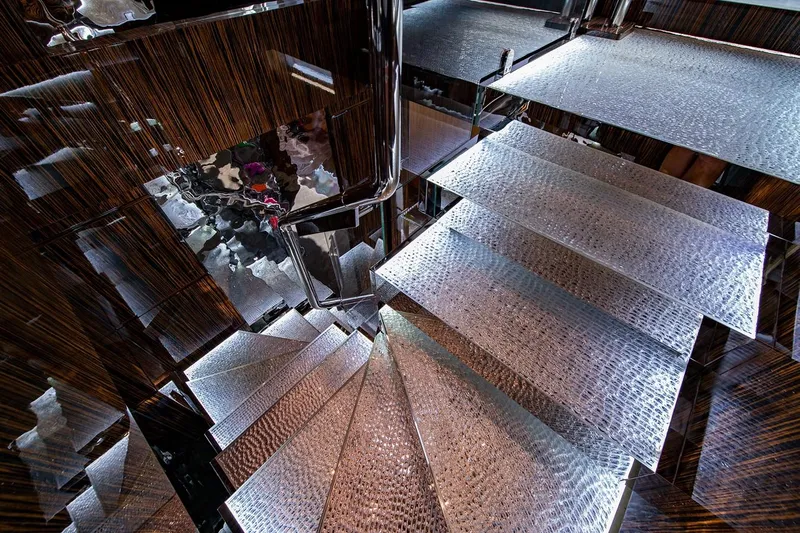

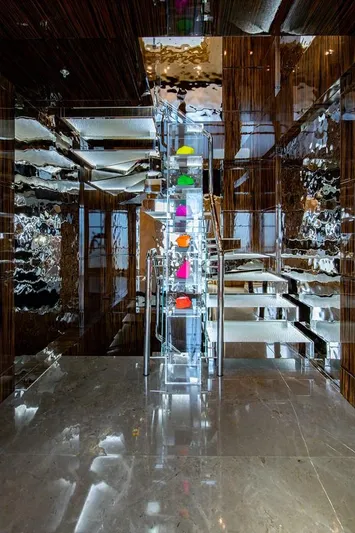

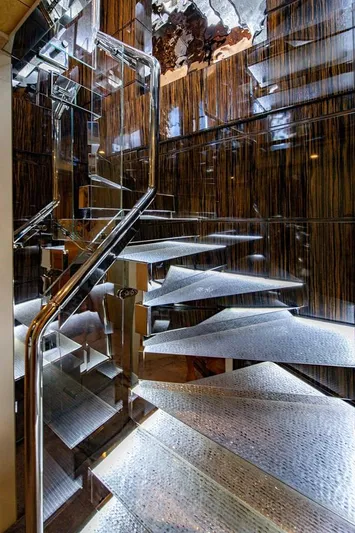

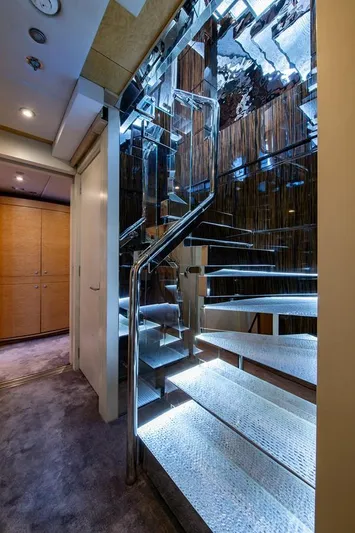

The central staircase with skylight and atrium effect is a beautiful feature of MIZU at the lobby area, which has double doors out to the wide side decks.

The owner’s office/study is outboard to port of the staircase and again has exceptional windows and a sliding door to the main salon.

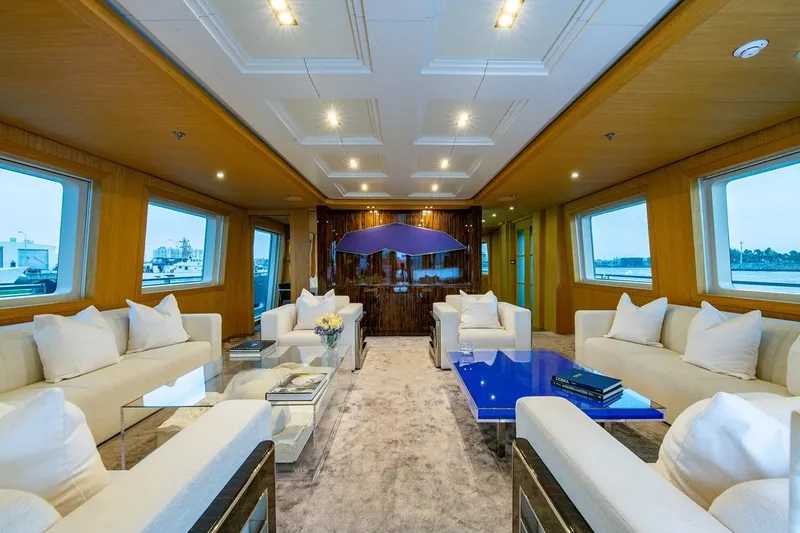

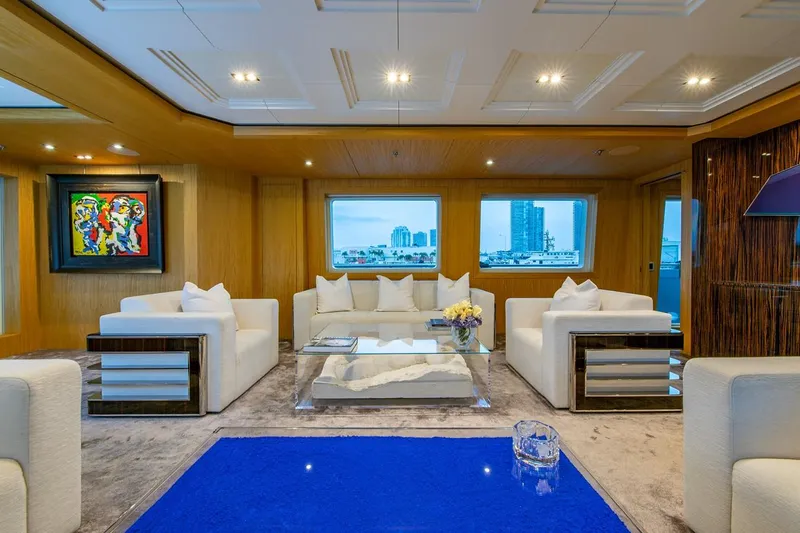

The main salon is further aft with flat screen entertainment center centrally forward, settees both sides, a game table aft to port and a full stand up bar to starboard.

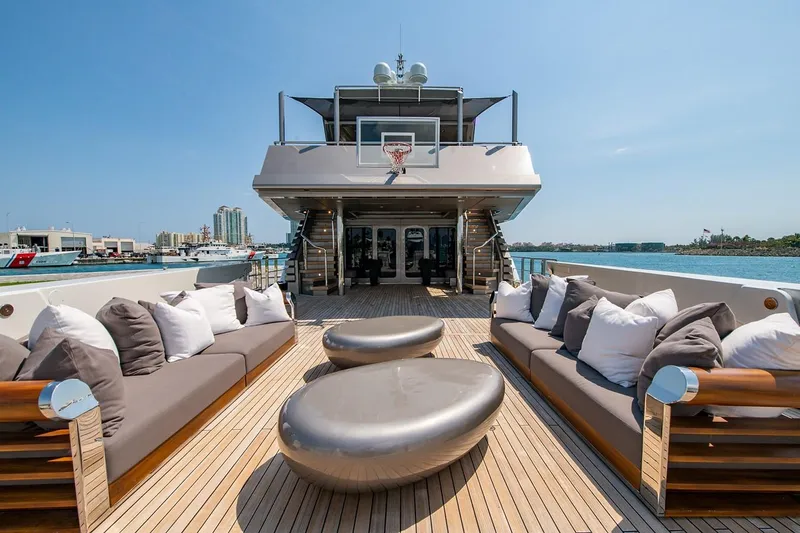

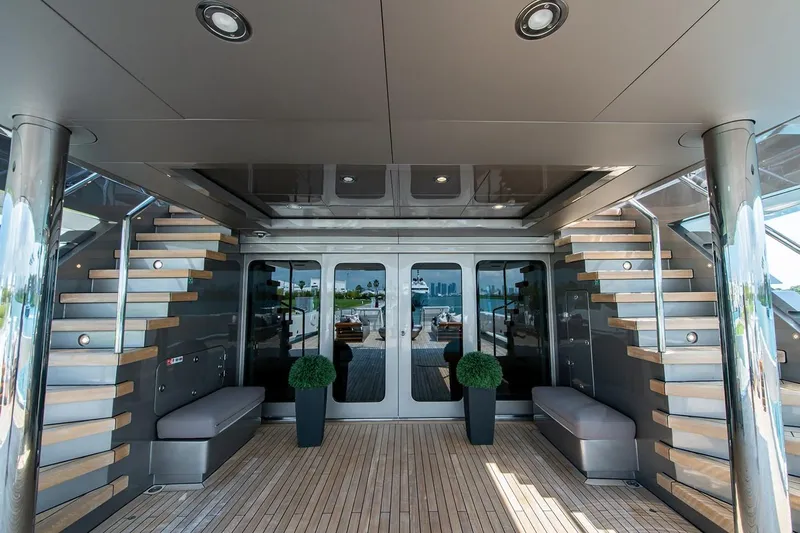

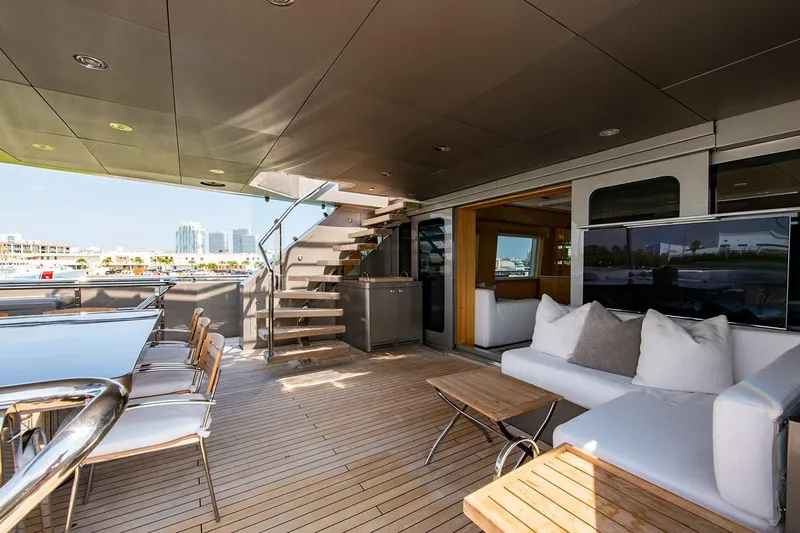

Out double glass doors to the main aft deck, there is exceptional sunning space on this teak

deck where the tenders are also stored when running. They are launched by cranes either side. Access to the swim platform is down a central staircase which also houses the passarelle. There is engine room access to starboard and fuel storage lockers to port.

LOWER DECK

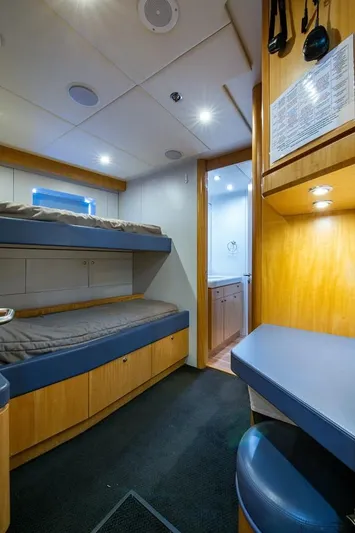

All the way forward are two exceptional crew cabins each with upper and lower berths, en-suite bathrooms and great storage.

Two larger crew cabins are further aft each with upper and lower berths and en-suite bathrooms and great storage.

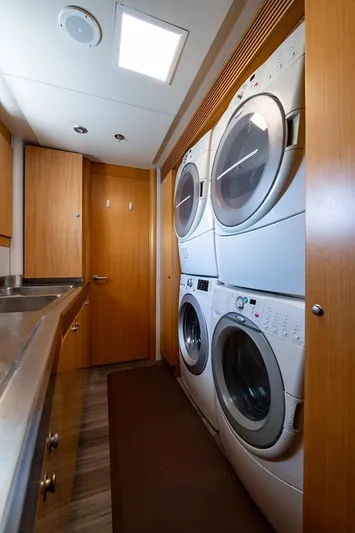

Further aft to starboard, the laundry is a good size with linen closet built in, sink, roller iron and double washers and dryers.

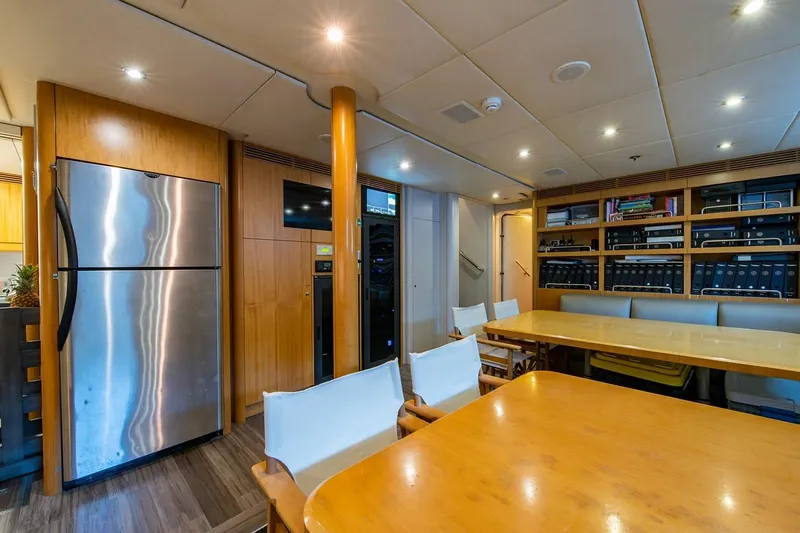

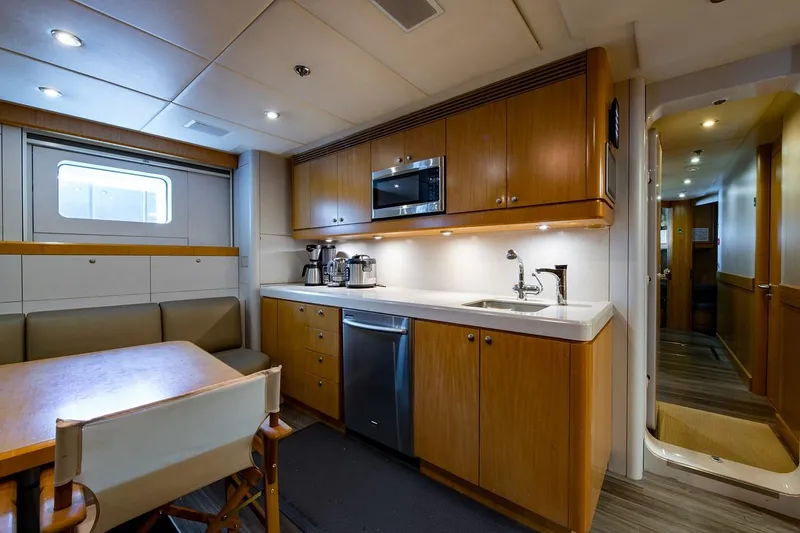

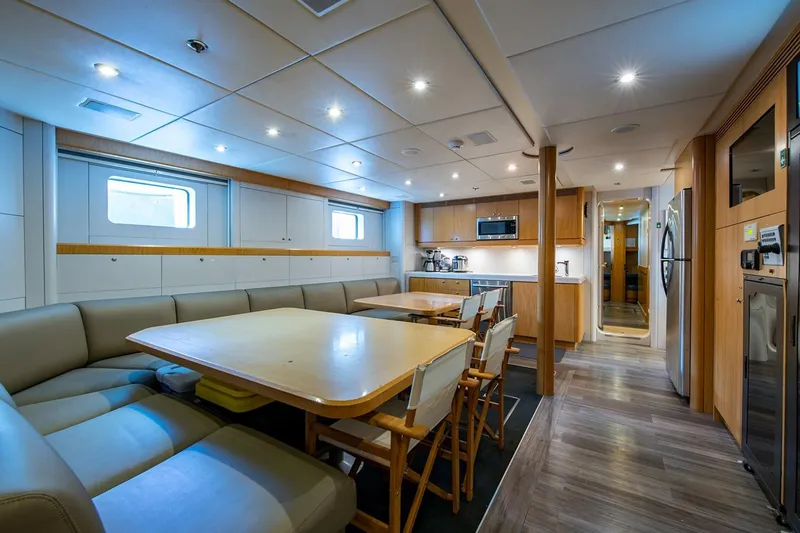

The exceptional crew mess is opposite with L-shaped seating around two dining tables and a crew galley forward, entertainment and security center adjacent.

There is access from the crew quarters to the four guest suites further aft making crew service of the guest cabins very easy and private.

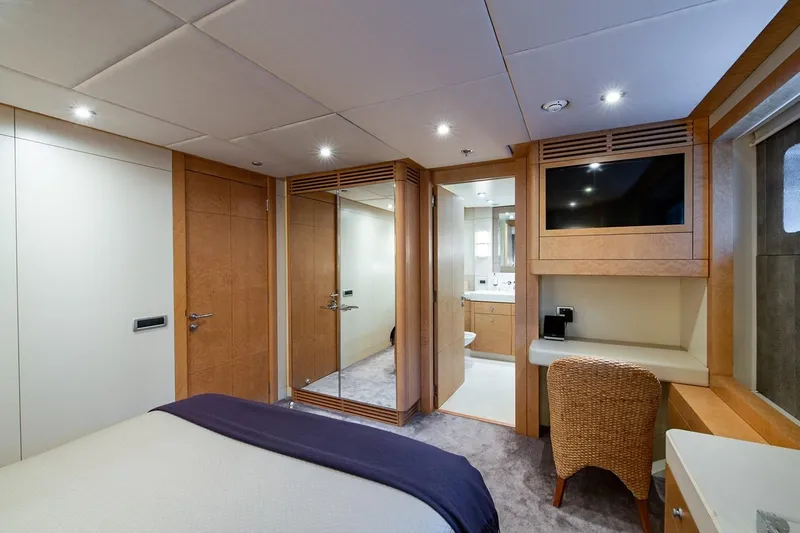

There are four guest suites located amidships in the vessel for comfort.

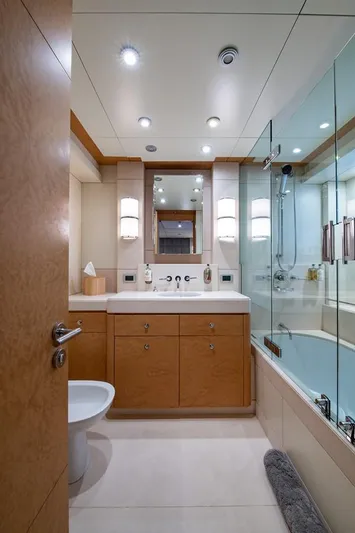

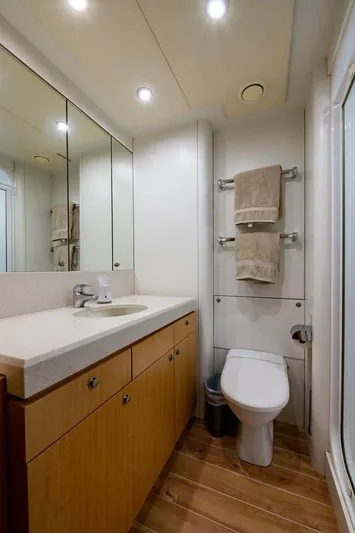

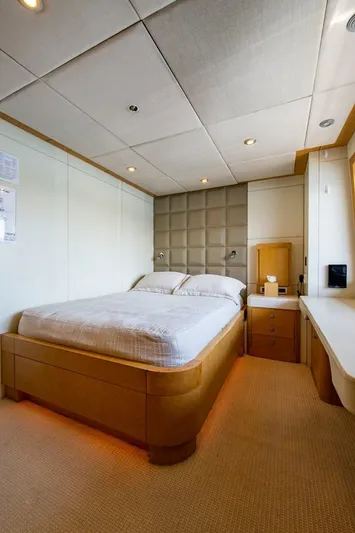

The two forward guest suites have queen berths, vanity desks, and en-suite bathrooms each with heated towel bars, tub and shower.

In the guest lobby area there is a small wet bar, linen locker and access to the central staircase.

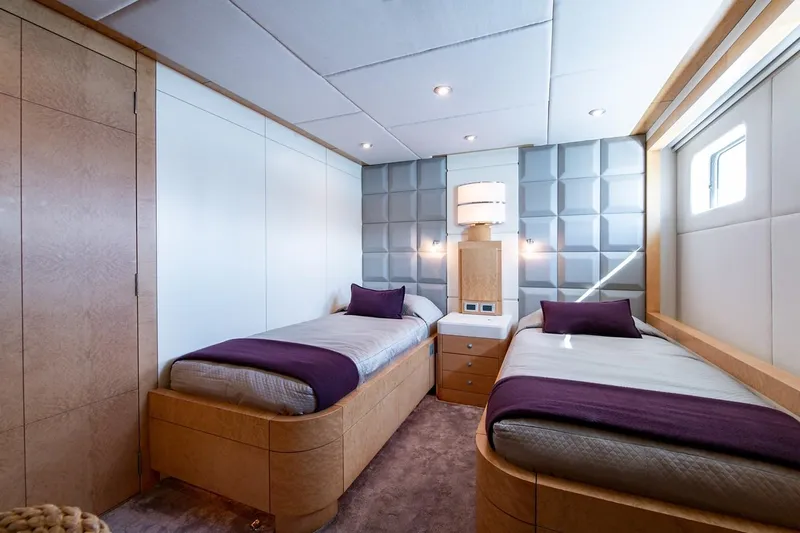

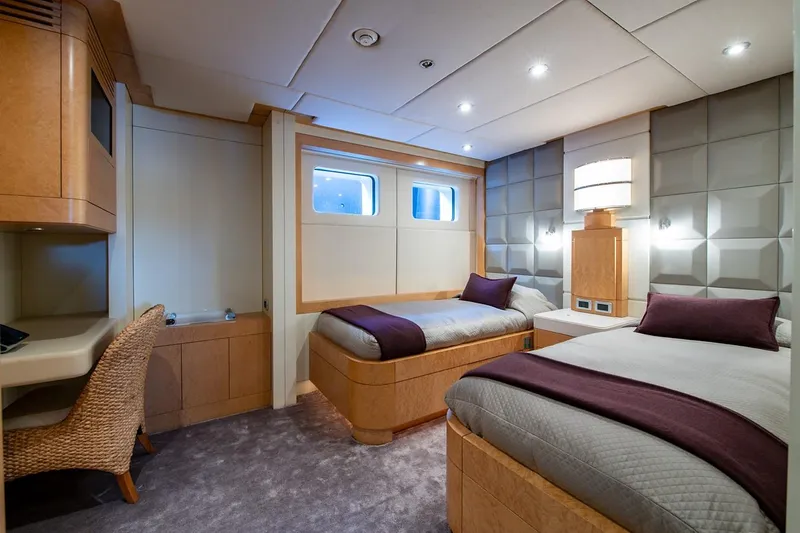

The two aft guest suites each have twin berths, vanity desks and en-suite bathrooms each with heated towel bars, two sinks and tubs with showers. Toilets are in separate rooms.

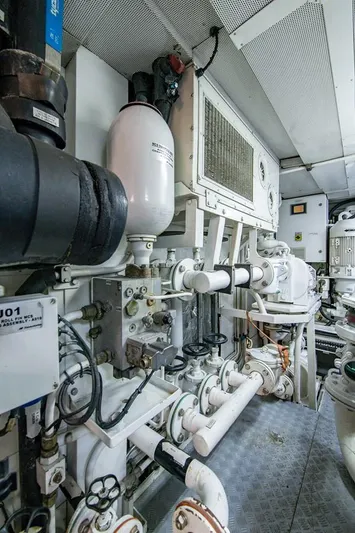

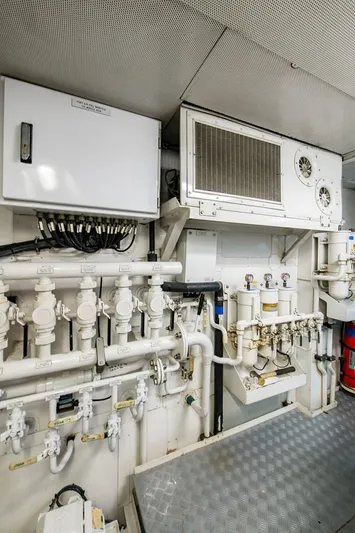

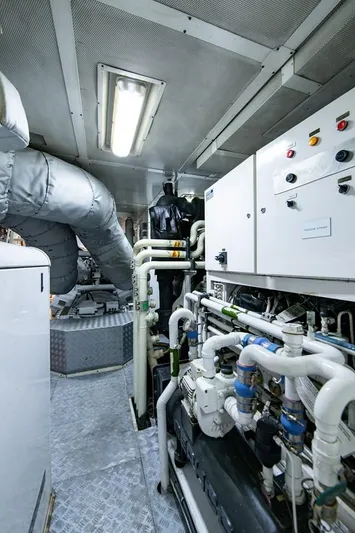

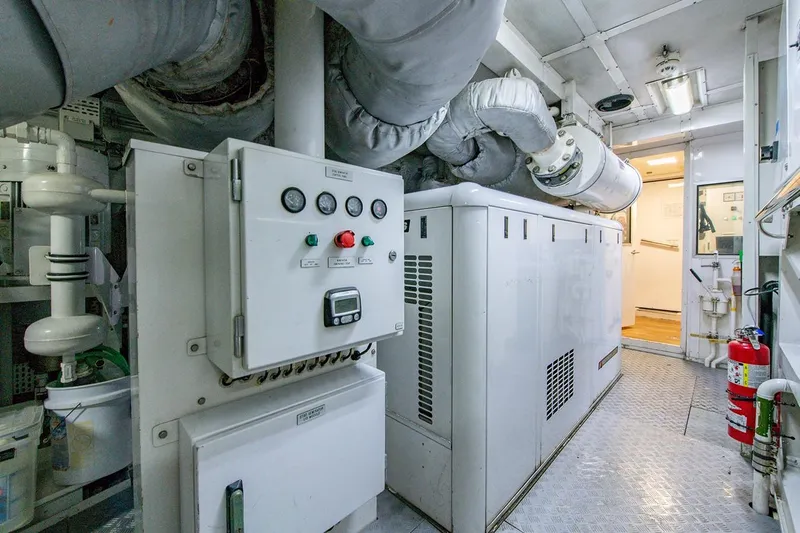

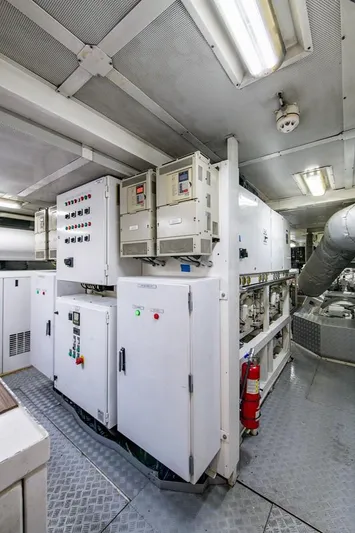

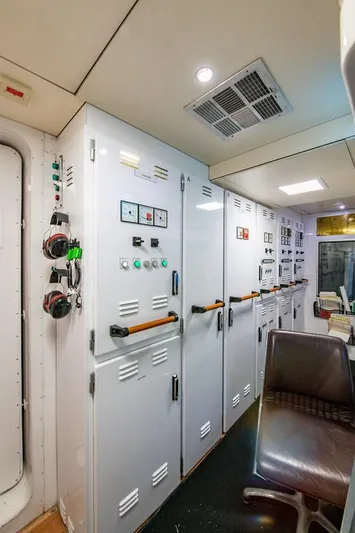

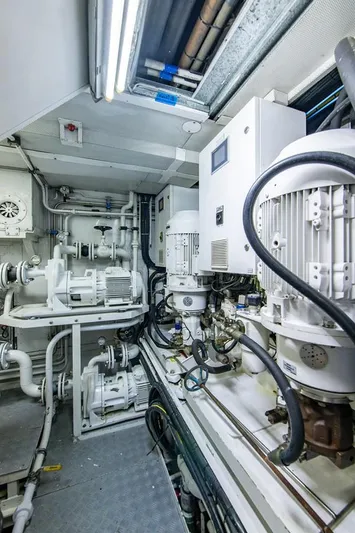

The engine room is further aft and the engine control room is aft of the main engine room.

The lazarette is well laid out with bathroom to port, Atlas shore power convertor on the centerline, a refrigerated garbage room to port, storage for water toys and access to the swim platform.

In Japanese philosophy there are five elements, of which Mizu or water is one. It represents all things fluid and flowing but also relates to adaptability, flexibility and magnetism.  The 53m Mizu represents many characteristics attributed to her name. Her striking and almost military exterior exudes character and adventure. Her contemporary interior spaces are calm yet vibrant and an impressive range of entertainment features, including an on deck jacuzzi and basketball court, invoke guest interaction and energy. With an exhilarating top speed of up to 28 knots and an impressive long range cruising capability, this ocean-going yacht lives up to her name.

Highlights and Key Features:

• Full refits completed in 2016 and 2023
• Incredibly unique and head turning design
• Bureau Vertitas / commercial registry
• Remarkable cruising ability provides transpacific and transatlantic range
• Capable of reaching speeds of up to 28 knots
• Dedicated Owner’s deck
• Impressive sun deck with 14-person Jacuzzi pool, bar & sun loungers
• Storage for two 25′ tenders on the aft deck
• Extremely quiet underway
• Expansive exterior decks for entertaining
• Oversized windows throughout
• Asian inspired Modern-Deco interior design
• Upper deck home theatre with AV/IT throughout

- Exclusions include all of Owner's personal effects -
"All speeds, capacities, consumption, etc. are approximate or estimated; measurements can also be approximate. Specifications are provided for information only and particulars herein obtained from sources believed to be correct, but are not guaranteed. Buyer should instruct his agent and/or surveyor to check all details for accuracy. Offered subject to prior sale, price and/or inventory change, or withdrawal from the market without notification."

Main Engines

• Compete Service
• Lube oil, filters & coolant
• Major overhaul of (2) Seawater pumps
• Installed (2) freshwater pumps
• Valve clearance checked & adjustment
• Gear box coolers – cleaned & flushed

Diesel Generators

• Major mechanical overhaul of port & starboard generators Sea Water & bilge system
• All sea chest & overboard valves overhauled and/or replaced
• Bilge pump overboard piping replaced
• Auxiliary sea water suction piping replaced

Main Engines Exhaust System

• Replaced starboard side compensator
• Replacement of port and starboard sections of wet exhaust system as required

Deck Machinery
Major Overhaul of:

• Port and starboard boat deck cranes
• Port and starboard anchor windlasses (gearbox and hydraulic motors
• Port and starboard capstans (gearbox and hydraulic motors)
• Aft boarding passerelle
• Port & starboard cranes load test performed as per Bureau Veritas requirements

Hydraulic System
Major Overhaul of:

• Two (2) PTO pumps
• One (1) electrical driven pump
• Emergency power pack 24v
• Bow thruster
• One (1) electrical driven pump replaced stabilizers
• Full overhaul of (4) hydraulic cylinders

Flaps

• Full overhaul of (2) hydraulic cylinders
• Steering Gear
• Full overhaul of (2) hydraulic cylinders
• Diesel generators exhaust system
• Port and starboard side wet section exhaust pipes replaced

Air Conditioning & Refrigeration System

• Full service of (4) compressors incl. oil & freon replacement condenser cleaning
• Full overhaul of (4) seawater pumps
• Fresh water pump replaced
• All fan coils cleaned
• Full overhaul of all supply incl. installation of new filters
• Installation of a new compressor for the deep freezer chamber

Main Engines & Diesel Generators Exhaust Insulation

• Removed & inspected with partial replacement as required

Sewage system

• Full overhaul of Hamman & vacuum pump

Watermaker

• Chemical cleaning & flush system
• Replacement of sand filter
• Major overhaul of two (2) high pressure pumps & motors

Hull Bottom

• Aluminum shell plates replacement as required
• Zinc Anodes replaced
• Antifouling application

Batteries

• Replacement of all service and emergency batteries

Hull

• Hull paint touch up with complete polish

Monitoring System

• Installation of new vessel monitoring system (as per Bureau Veritas)

Various Electrical Inspections & Tests

• Megger test
• Emergency lighting system repair & test
• Bilge alarm & float switches test
• Fire alarm system repaired & test
• Fire and bilge pumps
• Test doors indication test

Wheelhouse

• Radar replaced with new NMEA
• Buffer installation
• ECDIS installation
• Display Hatteland VGA replaced with new starboard side wing station
• Tiller control repair
• Starboard side wing station maneuvering controller repaired

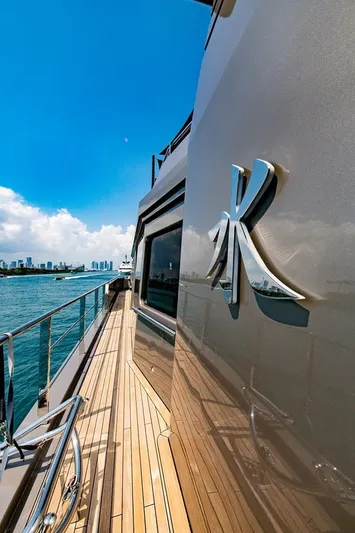

Teak Deck

• Sun Deck teak replacement
• Main & Sun Deck sanded
• Cathodic protection system
• Cathodic protection serviced

Sliding Electric Doors

• Installation of new ball bearings & nylon guide sliding electric doors

CCTV System

• System restored
• Installation of 2 new cameras in the Engine Room

Tanks

• All tanks cleaned & inspected
