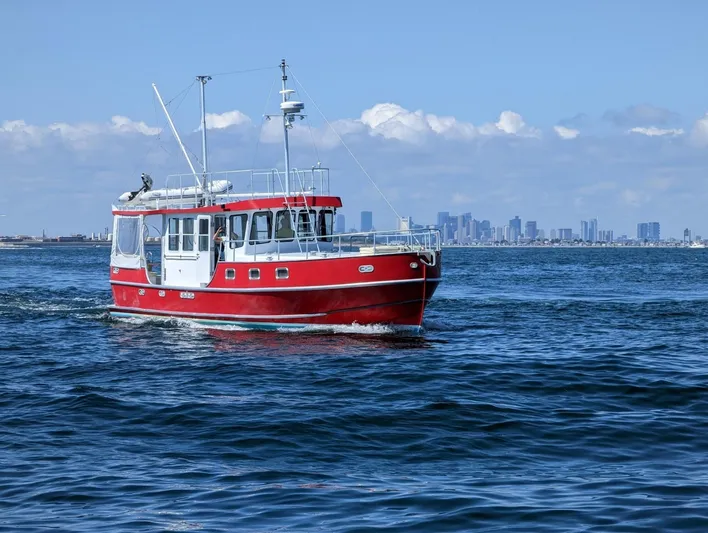

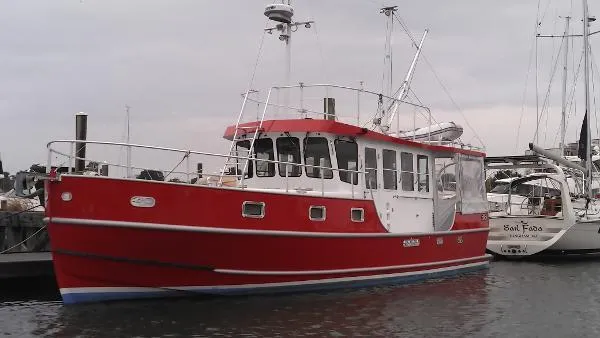

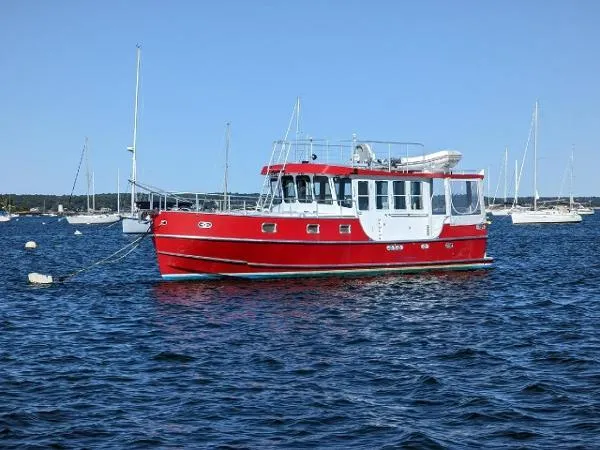

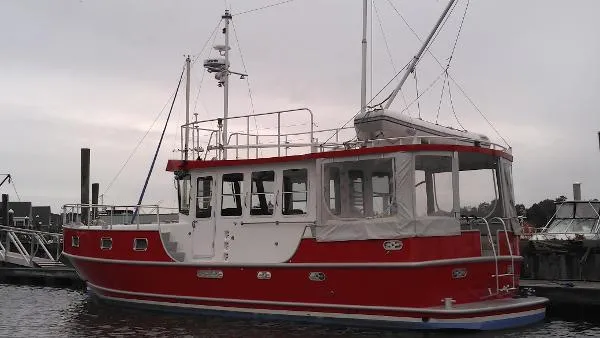

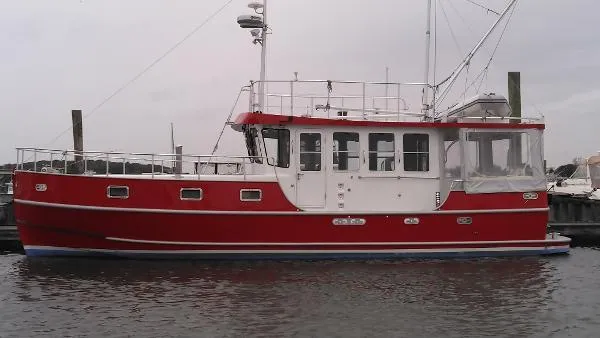

MOONDANCE Boat for Sale

• Beam: 13' 6''
• Hull Material: Aluminum
• Max Draft: 3' 6''
• Displacement: 22,000 lb
• Fuel Tank: 1 x 400|gallon
• Fresh Water: 2 x 50|gallon
• Holding: 2 x 50|gallon
• Cabins: 2

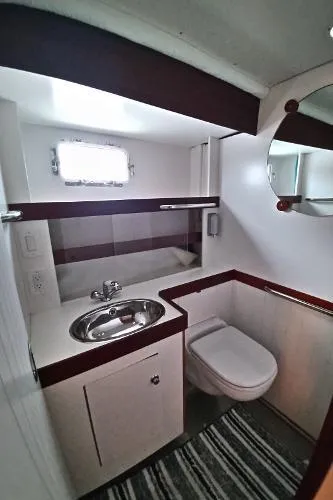

• Heads: 2

Equipment and Specifications

LOA                 42.5’

Beam               13.5’

Draft                3.5’

NW                  11 ton

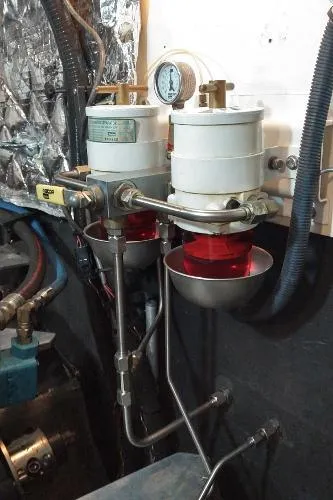

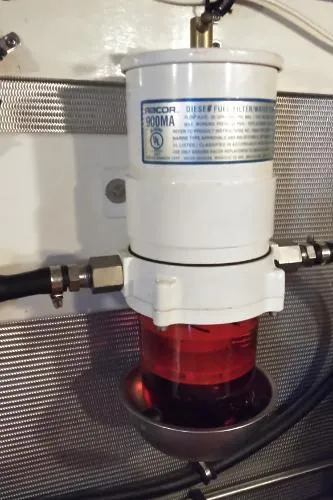

Fuel                 350+ gal. diesel, fill from either side, polishing filter/pump, selectable dual filters to engine with vacuum gauge at helm and on filters.

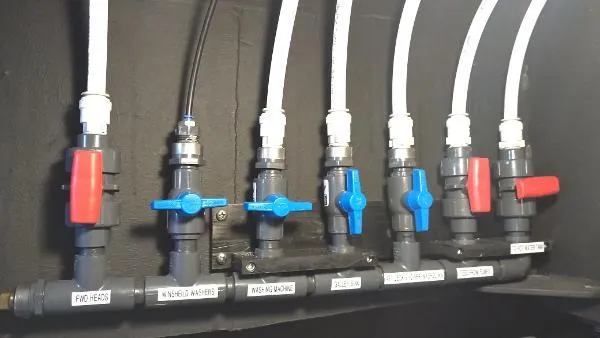

Water              50 gal. port, 50 gal. starboard, 15 gal. hot water by engine circulation or 110VAC. 2x pressure regulated pumps supply water from port or starboard tanks, level gauge is present at the galley.

Gray waste      50 gal. with pump-out port and overboard with vane macerator pump. Level gauge is present at the galley

Black water     50 gal. with pump-out starboard and overboard with diaphragm pump. level gauge is present at head 2.

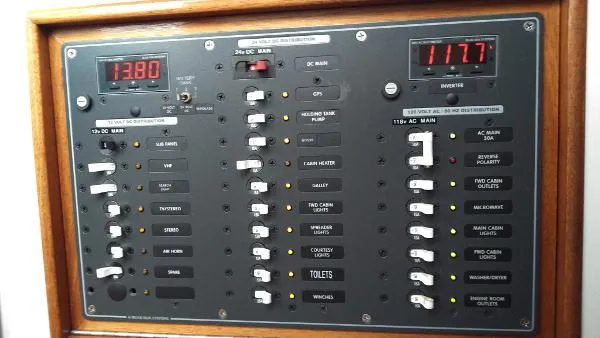

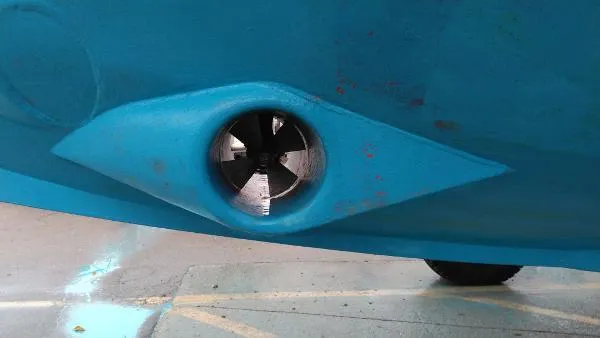

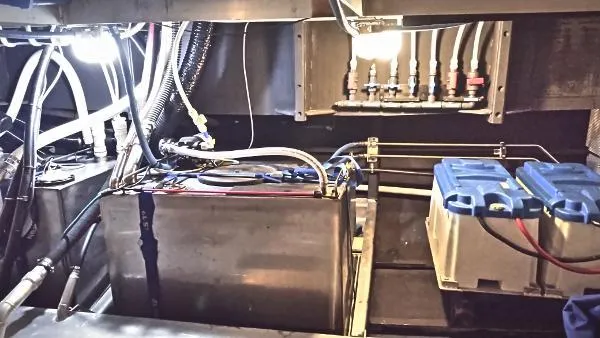

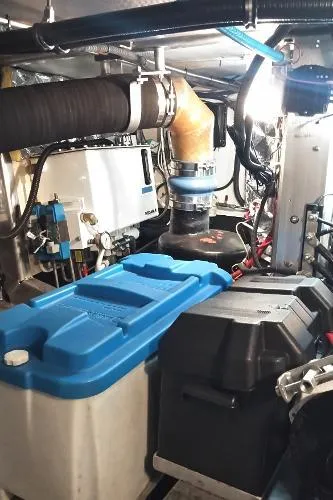

Batteries          24V house, 2x 8D house + 2x group 37 for bow thruster connected in parallel for proper charging. Thruster and house batteries can be disconnected if necessary. House batteries power most of the boat.

                        12V engine, group 37 charged from engine alternator

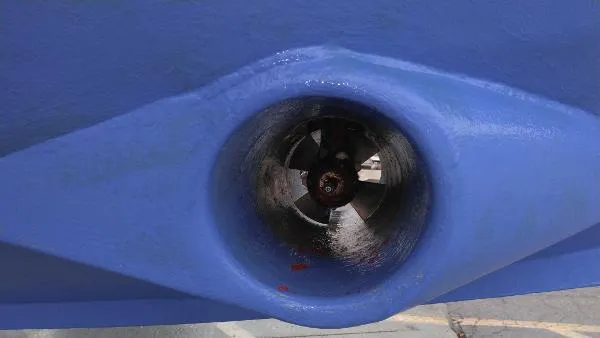

12V stern thruster, 8D charged from engine alternator with auto isolation from engine battery when not charging. 8D can be joined to engine if start battery is flat. The 8D powers the small stern thruster, VHF radio, TV, Stereo AM/FM radio.

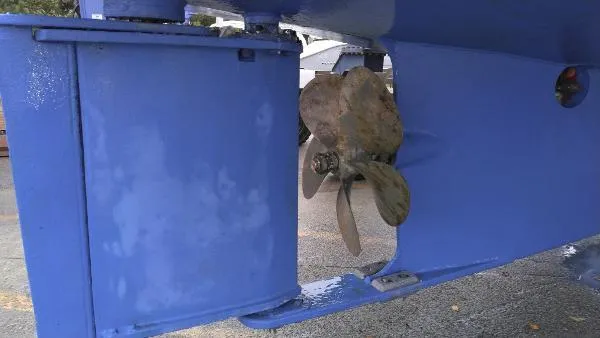

Rudder            Large articulated rudder. Supported with full keel. Hydraulic rams actuated by helm wheel or by autopilot. An emergency tiller is also present.

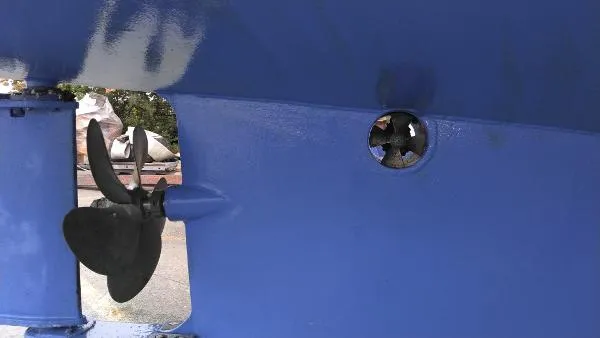

Propeller         24”, 5 blade,  appropriate alloy for aluminum hull, 2” shaft

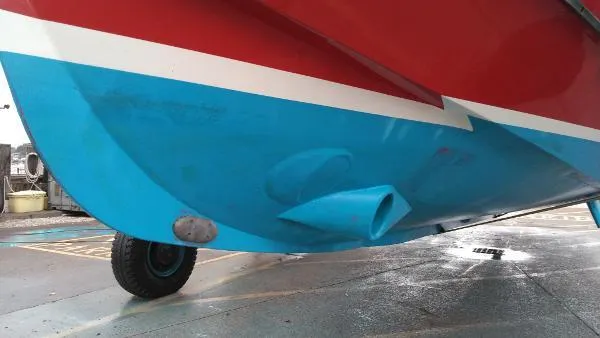

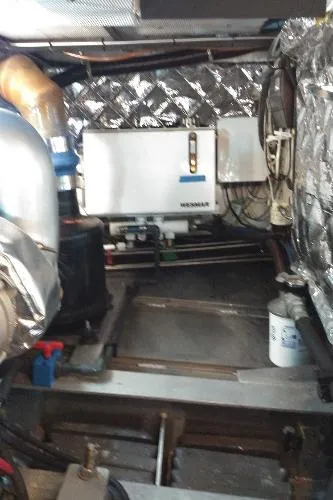

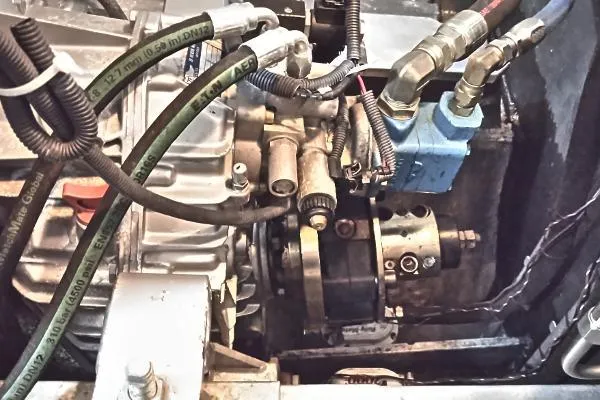

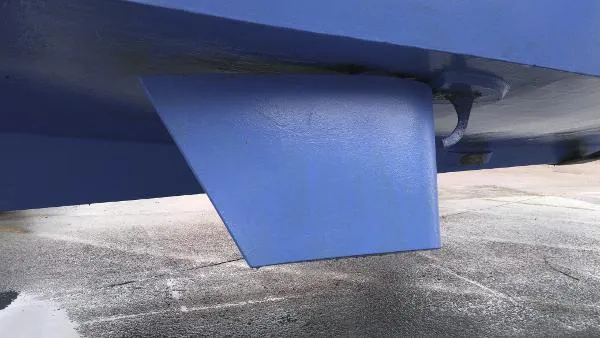

Stabilizers       Articulated fins P/S, Wesmar hydraulic from engine PTO, 2015 updated control module and helm display.

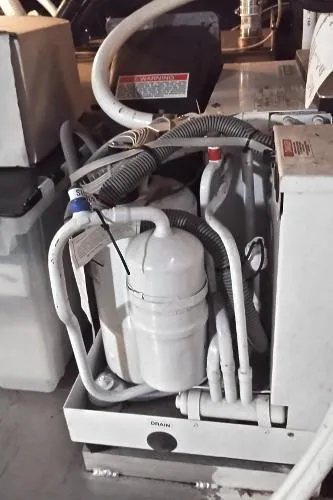

A/C                  Air conditioning units are present but not connected or commissioned.

Washer/Dryer Water/electric Hook-up and mounting pad is present just under steps to the staterooms. A Splendide combo unit was successfully installed but is no longer present.

Dinghy             West Marine 310, Servicable, no leaks. With Tohatsu 2.5hp, serviced annually.

Dinghy lift       24V rope winch for boom, 4/1 tackle to boat lift harness

Deck lighting   3x flood lights on each mast, articulating search light on forward mast.

Wipers            Windshield wipers are present, rain-x preferred and works excellent with reverse rake windows. Fresh water spray is present but not really used.

Windows         pilothouse windows are ¼” laminated safety glass. All other windows and three exterior doors are Diamond Seaglaze brand with split vertical opening and bug screens.

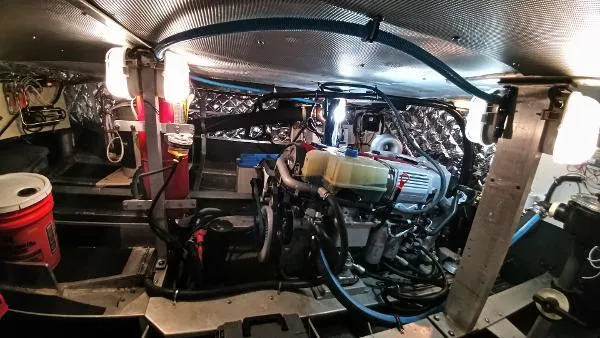

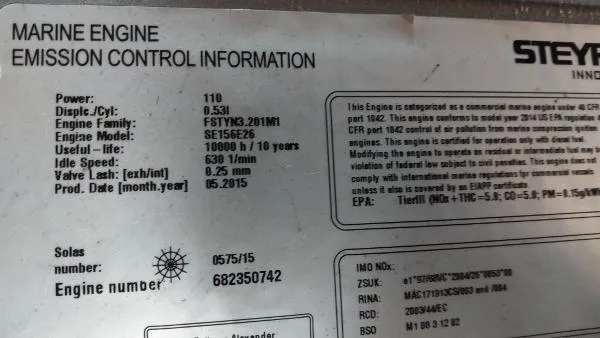

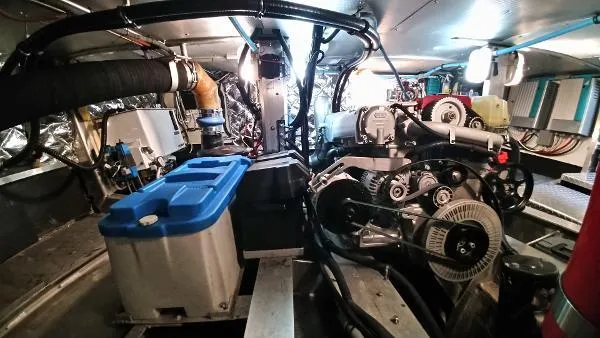

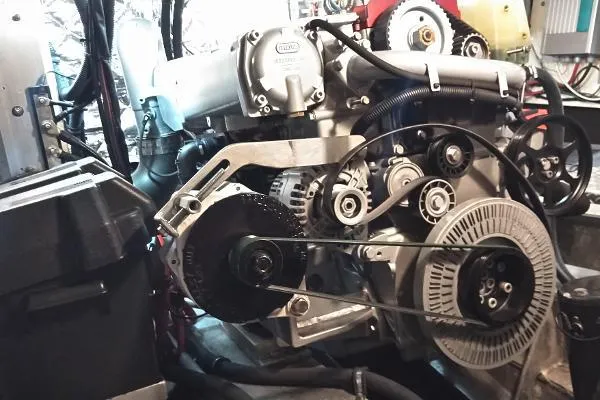

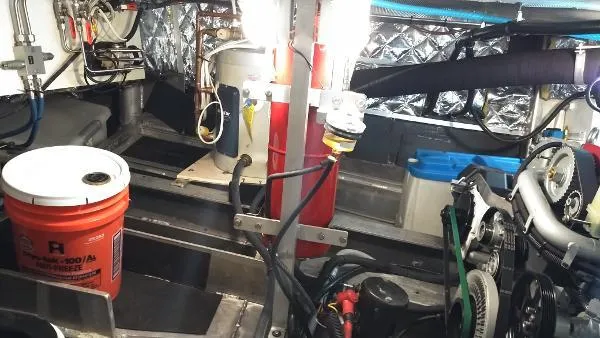

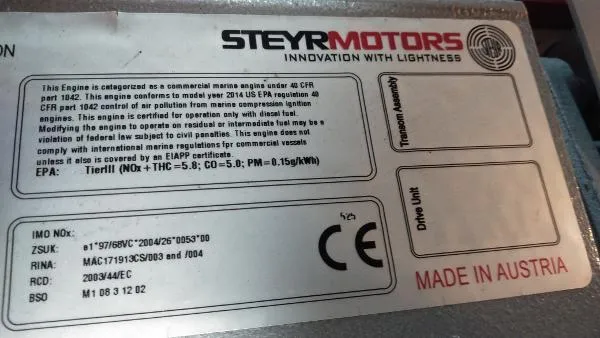

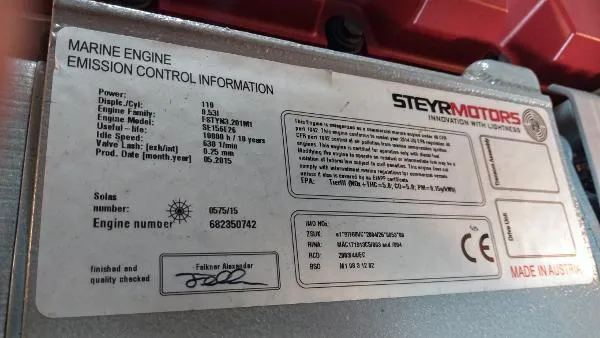

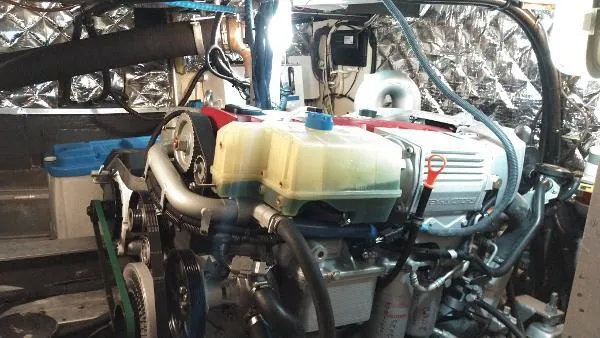

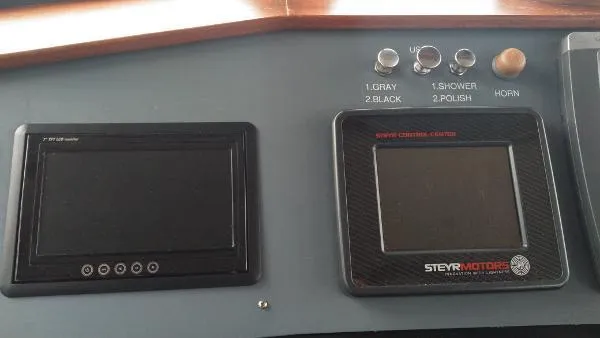

Engine             Steyr in-line 6 cylnder. This engine is a premium monoblock design with very high pressure mechanical injectors. This engine is extremely quiet and efficient. There are instruments at the helm and a full function interactive display at the helm.

                        The Engine was new in 2015 and has just under 500 hours.

Transmission  ZF 63V

Muffler            Water lift muffler with riser pipe from engine

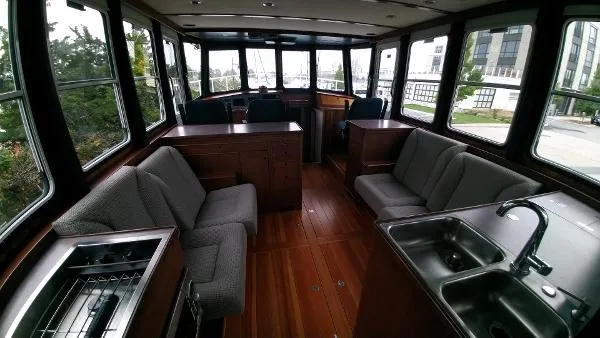

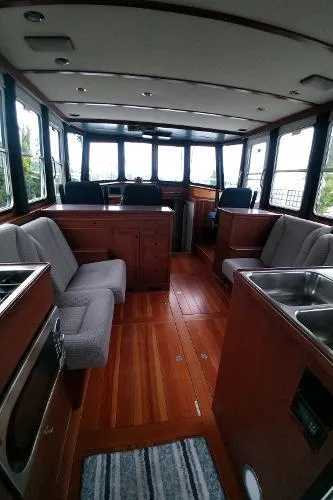

Lighting           Extensive lighting options are installed. The main cabin and staterooms have multi-zone “aircraft Style” fluorescent lights at the perimeter of the ceiling. The main cabin has 5 zones of overhead LED spot lights. The forward berths have task lighting. The main cabin, state rooms and heads have low intensity “courtesy lights” for night time safety. The engine room and storage/mechanical space have abundant work lights mounted.

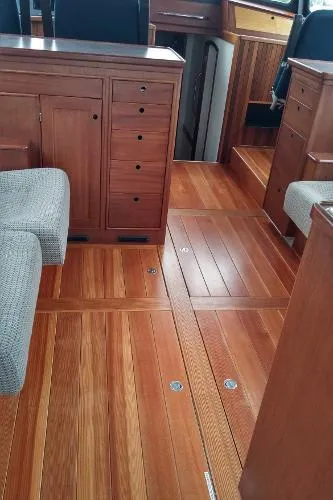

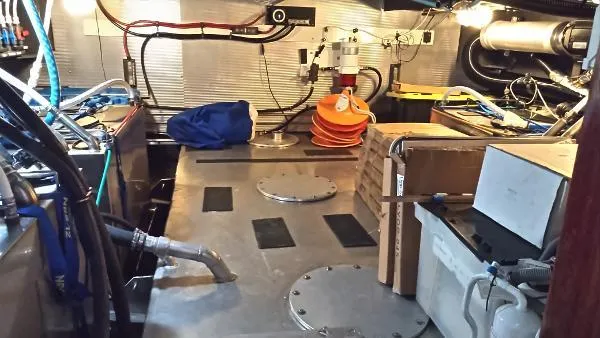

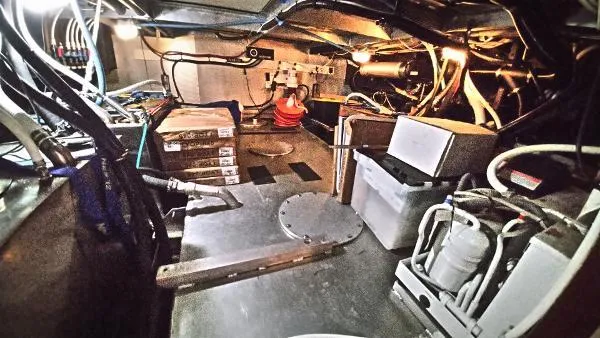

Storage           The entire space under the main cabin can be used for storage with easy access through sole hatches. Lockers are located on P/S sides of aft cockpit. The engine room has ample room for storage.

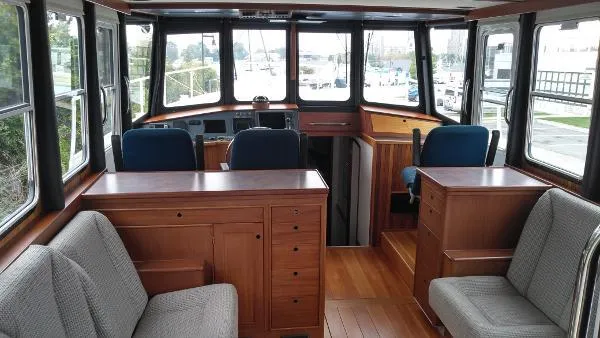

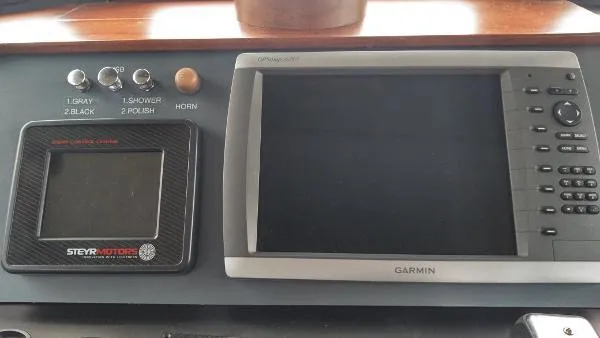

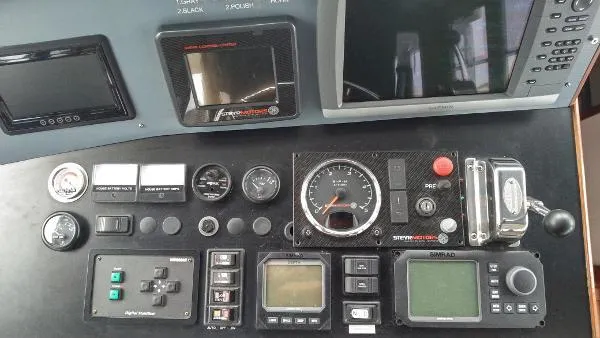

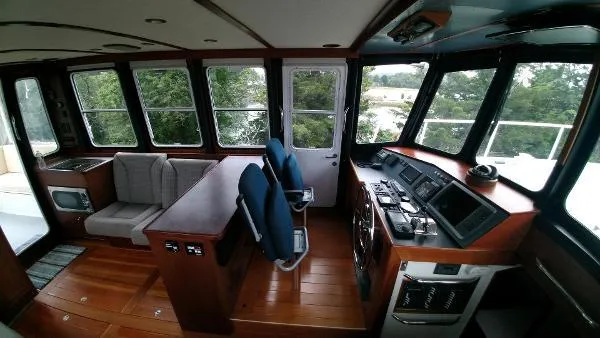

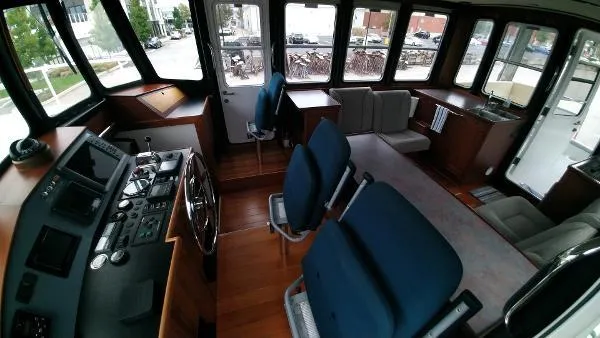

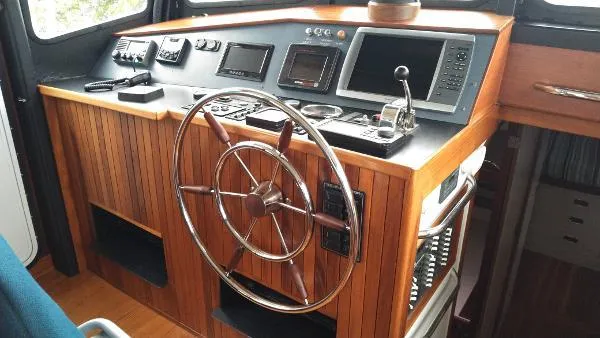

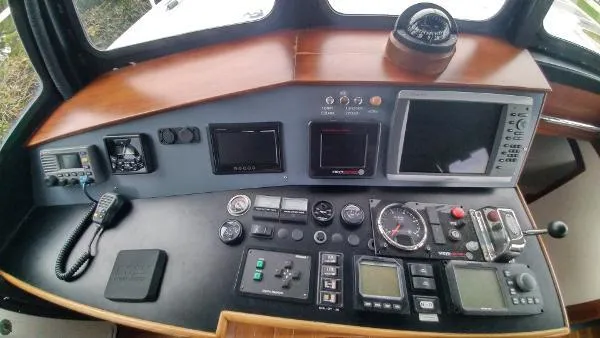

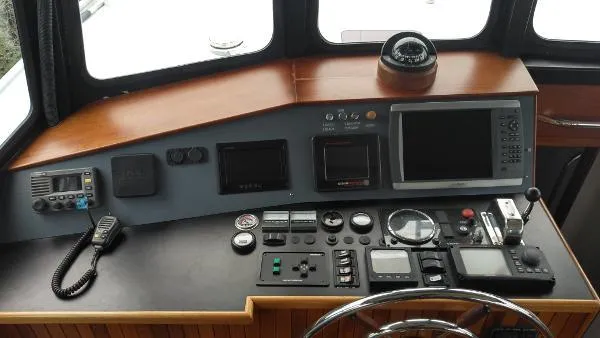

Helm               Seat located port of center with large wheel, Instruments include: Fuel filter vacuum gauge, fuel level, battery amp/volts, stabilizer fin control panel and display, depth gauge, autopilot control, throttle control, bow/stern thruster switches, Garmin GPS with 12’ color display, VHF radio, stereo AM/FM + aux, 6x bilge pump switches with AUTO-OFF-ON positions, various other switches.

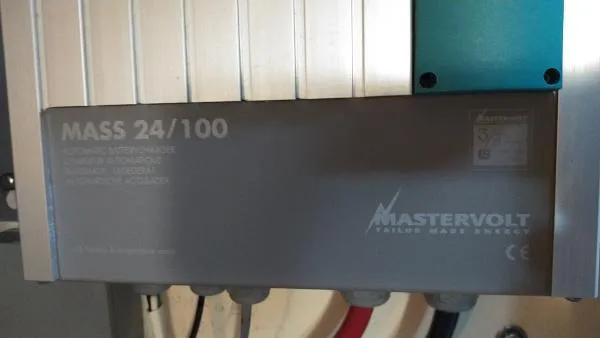

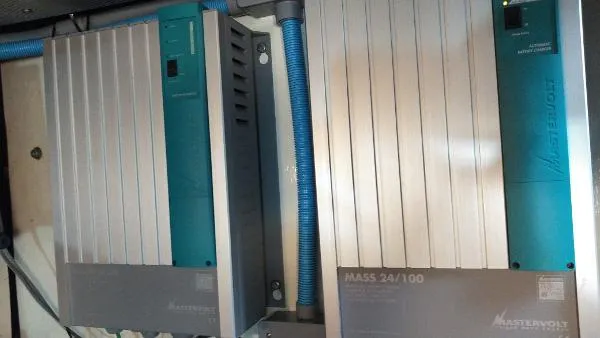

Charger           Mastervolt

Inverter           Mastervolt

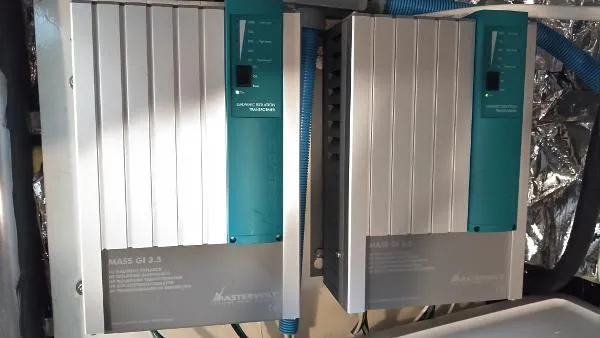

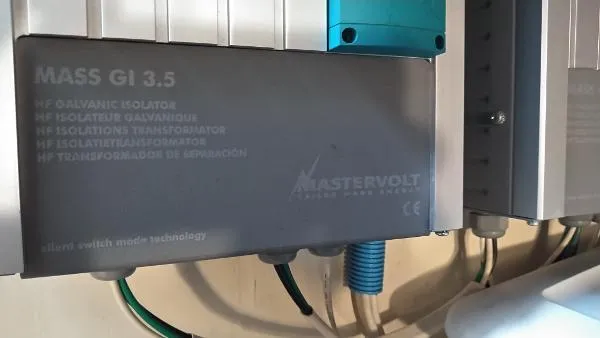

Isolators          Mastervolt Shore power isolators

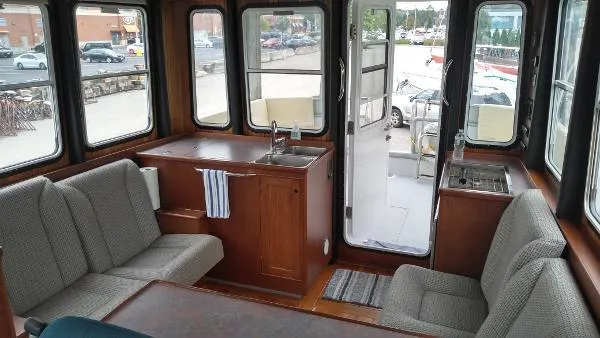

Galley              Top-load Refrigerator, Force-10 propane stove, double sink, waste bin, storage and full size microwave oven.

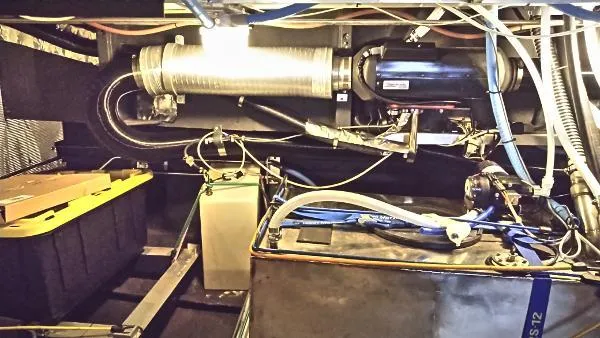

Cabin heater   Espar diesel/kerosene forced air unit. Has plumbing and filter to use diesel from main tank. Up to this time, the heater has only been run from a kerosene day tank. Change over to diesel is simple.

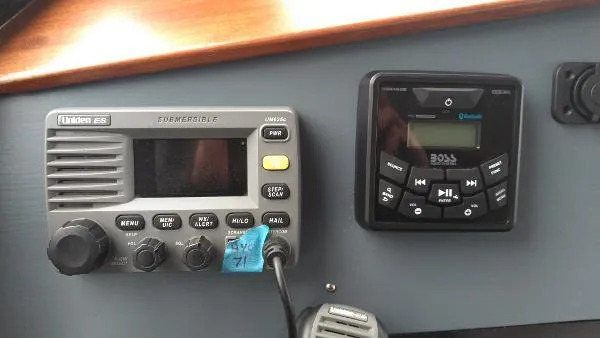

Stereo                  AM/FM radio with AUX and BT inputs has four quality speakers, two in the cabin and two in the aft cockpit.

TV                         A TV drops down from the ceiling at the pilot station.
