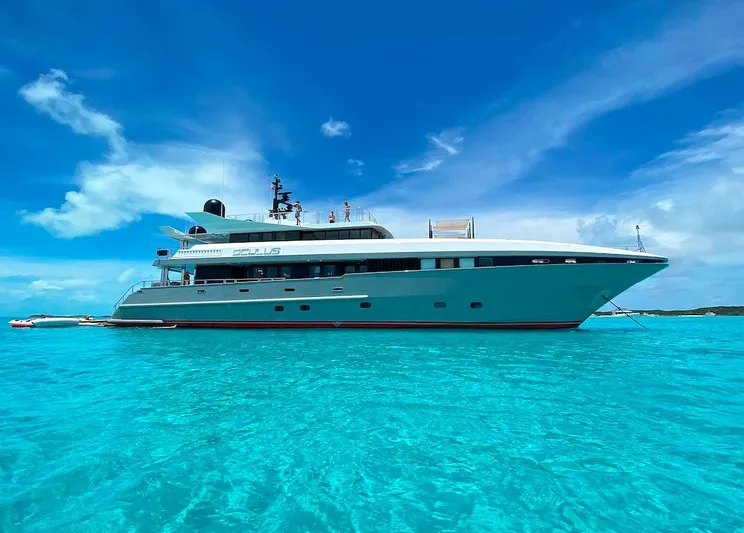

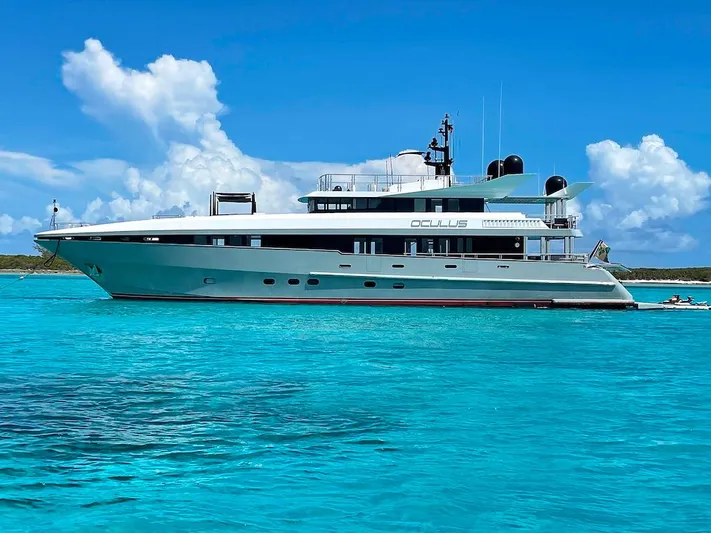

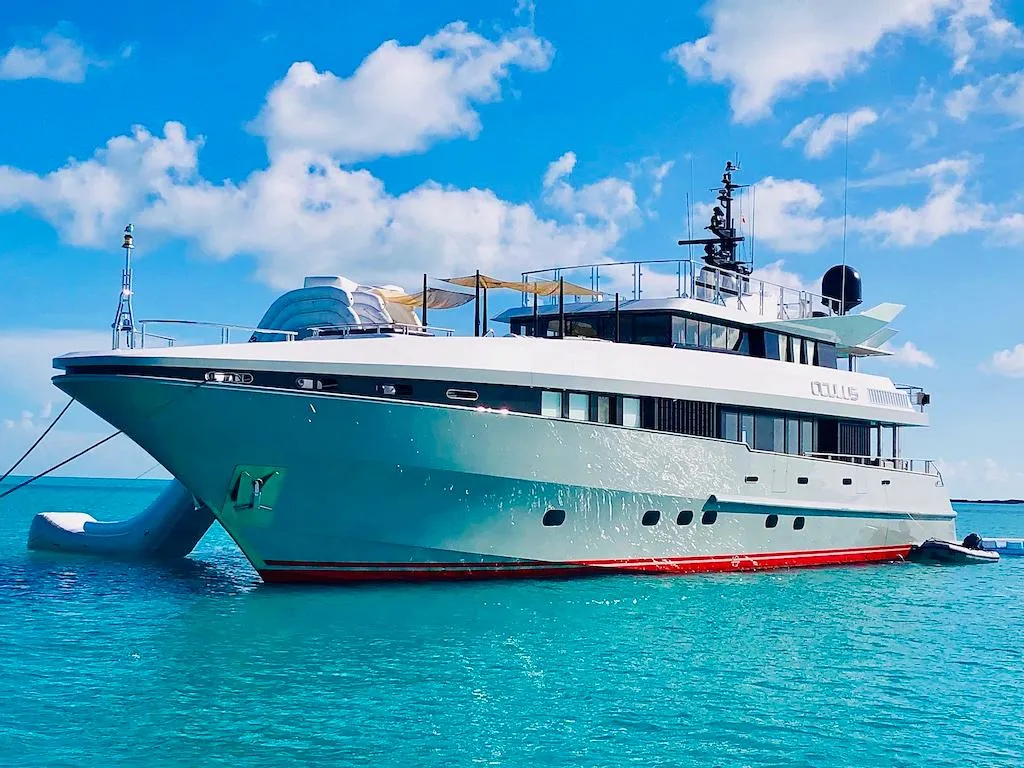

OCULUS Yacht for Sale

• Cruising Speed: 12 kn
• Maximum Speed: 16 kn
• Beam: 27' 0''
• Hull Material: Fiberglass
• Max Draft: 7' 0''
• Displacement: 324,000 lb
• Fuel Tank: 8 x 10000|gallon
• Fresh Water: 1 x 1563|gallon
• Holding: 3 x 396|gallon
• Cabins: 5
• Heads: 6

AVAILABLE UPON REQUEST: Charter Pro Forma – 2023 Bottom Job Pictures – Photo Brochure – YouTube Walkthrough Link – 2019 Refit Highlights

SPECIFICATION

Builder/Designer Builder: Oceanfast

Flag: Bahamas

Port: Nassau

Designer: Jon Bannenberg

Dimensions LOA: 128 feet

Beam: 27 feet

Draft: 7 feet

Gross Tons: 299 GRT

Displacement: 147 metric tons

Cruising Speed: 12 knots

Max Speed: 16 knots

Range at 10 knots: 1541nm

Water: 1563 gallon

Holding: 396 gallon

Tankage Fuel: 10000 gallon

KNOWN REFIT HISTORY:

2012 – Complete paint job, (Reported) W5's completed on MTU 8V396 TE94

2016 – List of items done over the year that can be provided in a separate document.

2017 – Big interior refit, new exterior paint of all black areas, new audio system and navigation equipment upgrades.  List of all items done can be provided in a separate document.

2019/2020 – Major refit completed including but not limited to, complete paint job, interior and exterior redesign, navigation equipment, audio equipment and new tenders/toys for owners and charter guests.

ACCOMMODATIONS

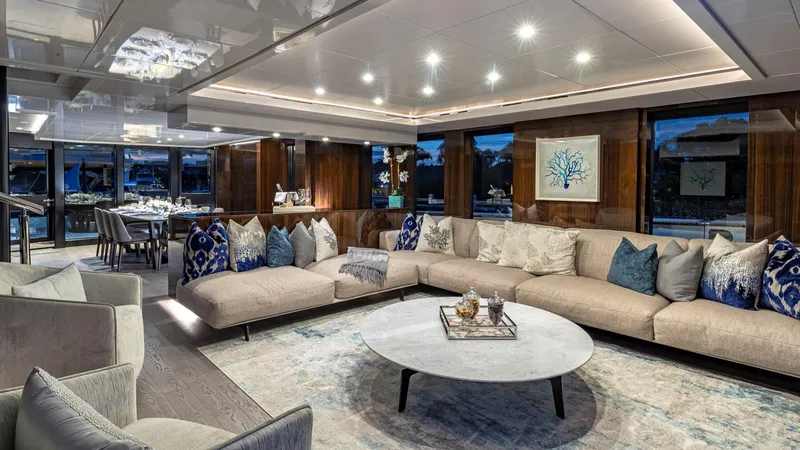

MAIN SALON / FORMAL DINING

• Formal dining area with seating for 10 Buffet tables and fine China storage
• Full-length windows
• Entertainment center with 65" Samsung TV with Bang Olufsen Speakers
• Somfy electric shades

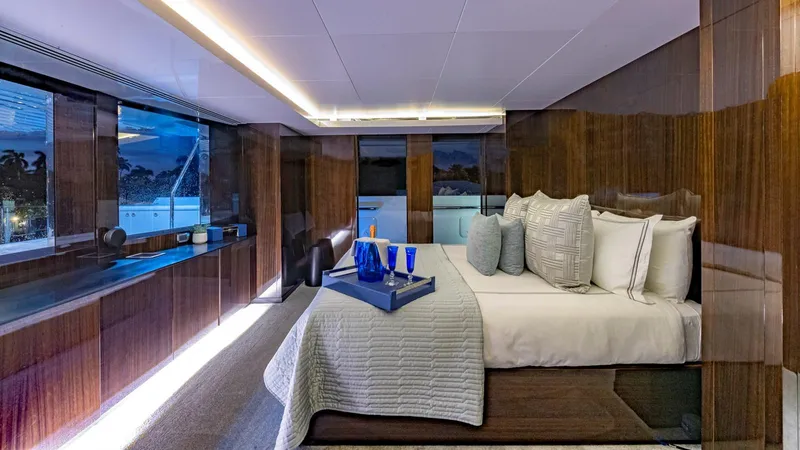

ON-DECK MASTER STATEROOM

• Entertainment system with 55” Samsung TV
• King size bed
• Large closets with ample storage
• LED reading lights
• Blackout Shades

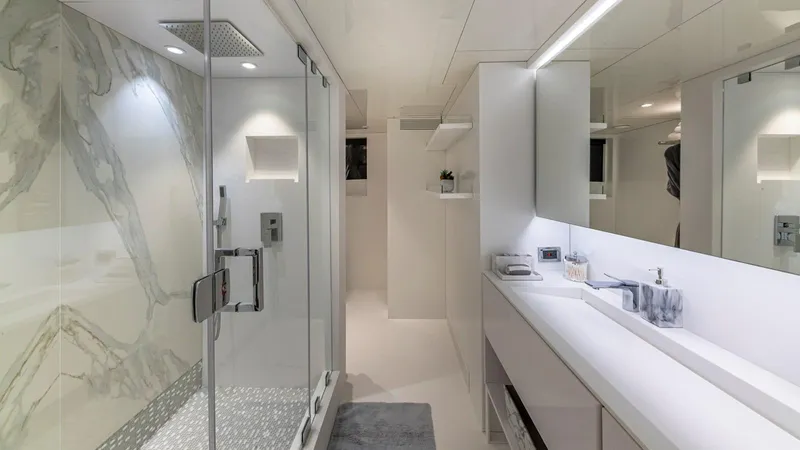

• Ensuite Head & Extra-Large Stall Shower:
• Custom Double rain-head shower
• Makeup Vanity/armoire

VIP BRIDGE DECK STATEROOM

Located on the Bridge Deck, the VIP Stateroom could easily become the Master Stateroom with a private Owners Deck.

• Incredible 180 panoramic views!
• Queen Bed
• Somfy electric blackout shades
• Closets
• LED lighting
• Blackout Shades
• Large Ensuite Head & Stall Shower
• 52” built in popup TV with Bang Olufsen speakers

FORWARD STARBOARD STATEROOM

• Twin Bed that slide to become a Queen
• Closet
• LED lighting
• Blackout Shades

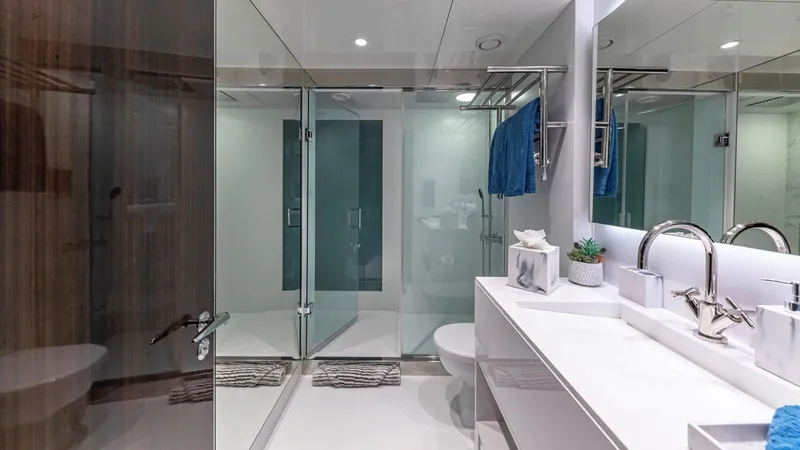

• Ensuite Head & Stall Shower

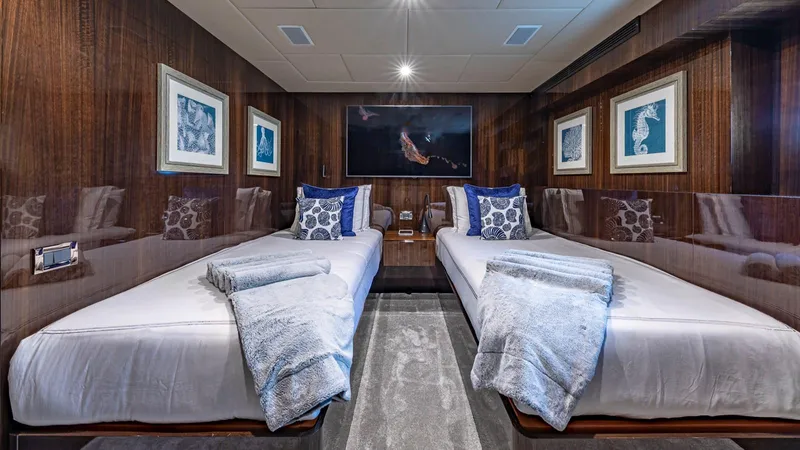

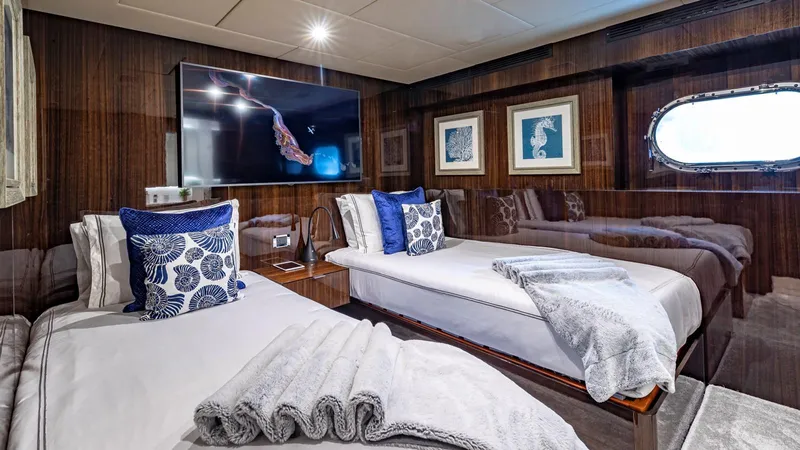

AFT STARBOARD STATEROOM

• Twin Beds
• Closet
• LED lighting
• Blackout Shades
• Ensuite Head & Stall Shower

PORT STATEROOM

• Double Bed
• Closet
• LED lighting
• Blackout Shades
• Ensuite Head & Stall Shower

CREW ACCOMMODATIONS

Crew accommodations consist of three separate cabins, all with en-suite heads and stall showers, each with 2 over-under bunks.

2020 Refit Included Private Captain Quarters with Ensuite Head & Shower on the Bridge

• Crew Quarters Includes:
• Dining table for crew with wrap-around seating
• Whirlpool microwave
• Kenmore dishwasher
• Refrigerator Large walk-in refrigerator with freezer
• NEW 2021 - Miele stackable washer/dryer
• Samsung 36" flatscreen TV
• Overhead speakers
• NEW 2020 - New Mattress for all crew bunks

MAIN DECK GALLEY

• New 2020 - Miele cooktop range
• Stainless hood ventilation
• New 2020 - Miele oven
• New 2020 - Miele microwave
• New 2020 - Refrigerator and Freezer
• New 2020 - Miele dishwasher
• New 2020 - Icemaker
• Side-by-side sink

LAUNDRY EQUIPMENT

• Laundry Equipment: Washer and dryers are located in the crew quarters and guest foyer
• Miele Professional stackable washer and dryer in crew quarters
• Miele stackable washer dryer in the guest foyer

BRIDGE DECK / SKY LOUNGE DECK

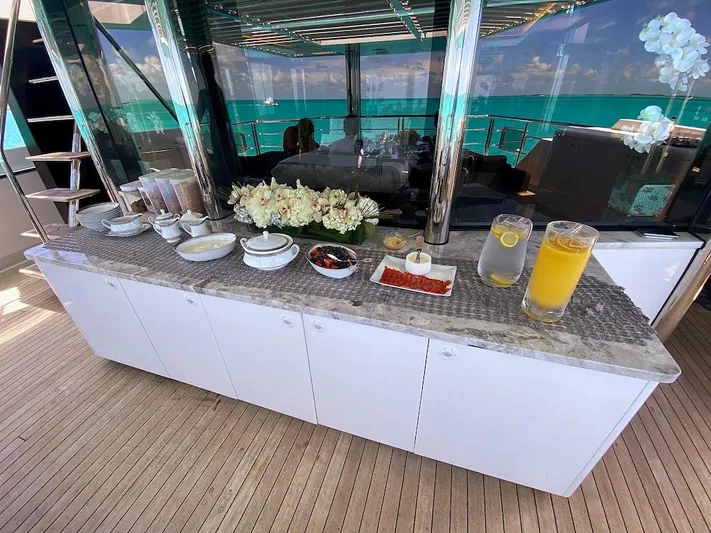

• Wet bar with granite bar top
• Ice-maker
• Refrigerator on starboard side
• Outdoor seating for 10
• Skylight looking down to the aft deck
• 4 Built-in speakers
• Teak flooring
• Overhead electric Louver
• Loose double sun lounge seating

FORE DECK & BOW

• Custom Jacuzzi
• Extremely large bow seating and lounge area
• Bimini-shaded
• Sun pads
• BBQ
• Refrigerator
• Stereo speakers
• The captain also has wing stations to both port and starboard making for easy docking

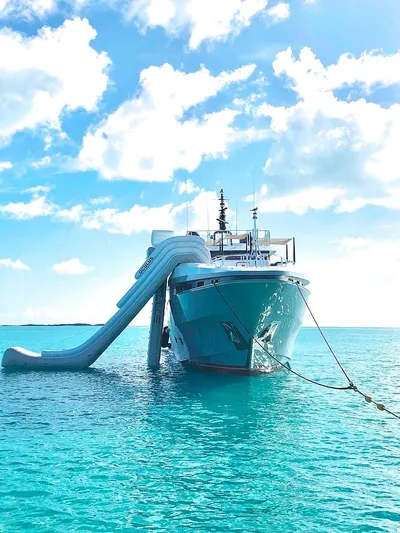

• Forward bow can accommodate 2 jet skis, water slide and rock climbing wall
• Forward bow has hideaway crane for launching jetskis
• Anchor locker is a huge storage area Bosuns locker

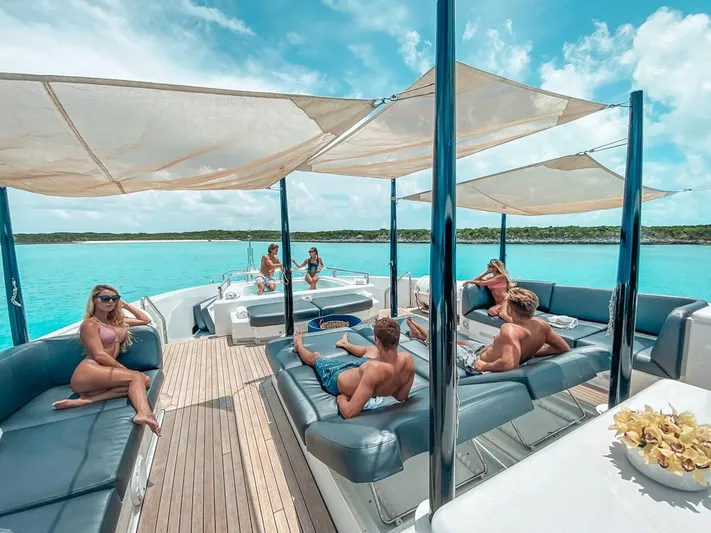

SUNDECK

• Completely renewed during 2020 refit
• Custom large U shaped seating/sun lounge with storage below
• Retractable table that can be used for dining or lowered to make a huge sun lounge
• Custom sun shades/bimini
• (3) quartz bar tops with refrigerators and storage below
• New audio system with powerful 9 speaker stereo system

COMMUNICATIONS AND NAVIGATION

COMMUNICATION

• NEW 2021 - Intellian V85NX 85cm VSAT
• NEW 2021 - Modem for VSAT with VOIP
• Pepwave with WiFi Antenna and Cloud management for WAPS
• KVH Mini M SATcom
• Intellian Satellite TV – New 2021
• Telephone System: Panasonic 1232 Easaphone Hybrid PBX with 20 extensions and 7 incoming lines
• VHF: (2) ICOM ICM605
• (2) HX 350
• (2) HX 460 - FS-1562-15, HF Radio

NAVIGATION

• Time Zero Navigation System with New 19” Display
• Garmin GPSMAP 943xsv
• Garmin GPSMAP 741xs
• Radar (1): Furuno 12 Kw with ARPA
• Radar (2): Furuno 6 Kw
• Gyrocompass: Sperry NAVIGAT X Mark II – Annual Service 2022
• Magnetic Compass: Jupiter overhead compass & Cetrek Poseidon flush mount on flybridge.
• Automatic Pilot: Sperry NavPilot 4000
• Depth Sounder: Furuno FCV – 581 (2) B&G Hydra Z speed & depth
• Furuno AIS FA-150
• Standard Horizon Quantum GX23605
• ACR RCL 300 Searchlight
• Gateway Computer with Samsung monitor
• CCTV System – Serviced 2022
• Furuno Navtex NX 700
• (6) FM walkie-talkies
• Alden 406 mhz Satfind EPIRB Model S-1015

ENGINE ROOM, ELECTRICAL AND DECK

MECHANICAL EQUIPMENT

THE MAIN ENGINES ARE KNOWN TO HAVE 15,000 APPROXIMATE LIFETIME HOURS.  THE ACTUAL HOURS ARE UNKNOWN BECAUSE RECORDS WERE POORLY KEPT AND/OR NOT TRANSFERRED AT TIMES OF NEW OWNERSHIP.  OCULUS EMPLOYS A FULL-TIME ENGINEER WHO MAINTAINS ALL THE EQUIPMENT BUT WHEN OR IF OVERHAULS ARE NEEDED FOR THE MAIN ENGINES MUST BE VERIFIED BY ANY INTERESTED BUYER.

• (2) MTU 8V396 TE 94 1500 hp MTU
• MTU Aftercoolers Removed and Cleaned May 2023
• NEW 2022 - MTU Exhaust Blankets by D’Angelo
• Gearboxes: Reintjes 2.458:1 reduction gears
• Port Gearbox rebuilt May 2023
• (2) 6 Blade Propellers – Tuned May 2023
• (2) 125mm Diameter Shafts – Tuned May 2023
• Air Conditioning: Dometic - New compressors in 2017
• Watermaker SEA-R.O. 240 GPH
• Stabilizer: Naiad 404/16
• Bow Thruster: Electric Naiad VT-60, 75 hp, 20'' diameter
• Fuel Filtration: Racor
• Sewage System: Orca IIA-12 Marine Sanitary Device
• Fresh Water System: (10) Evac floor mounted 90 Aviara silent vac
• Steering System: International Shipyards

ELECTRICAL EQUIPMENT

• Output: 208/120V/3 phase/60 hz
• Shore Power: Atlas, 75 kva Shore Power Frequency Converter
• (2) Generators: (Port) 75KW 60hz John Deer 4045TFM - (Stbd) 60KW 60hz John Deer 4045TFM – hour meters were not reset when overhauled so exact hours are unknown
• AGM 8D batteries
• (2) Mase Mastervolt 24/25 Battery Charger

DECK EQUIPMENT

• Muir HR-7000/150 horizontal anchor windlass
• (2) Muir docking capstans
• (2) 166kg polished s/s S.H.H.P balanced Jeyco anchors
• Fortress FX-125 stern anchor
• (2) 433' 17.5mm galvanized NVK2 Chain
• International Shipyards Davits 12'
• Sanguineti Chiavari telescopic gangway
• Marquipt 10-step boarding ladder

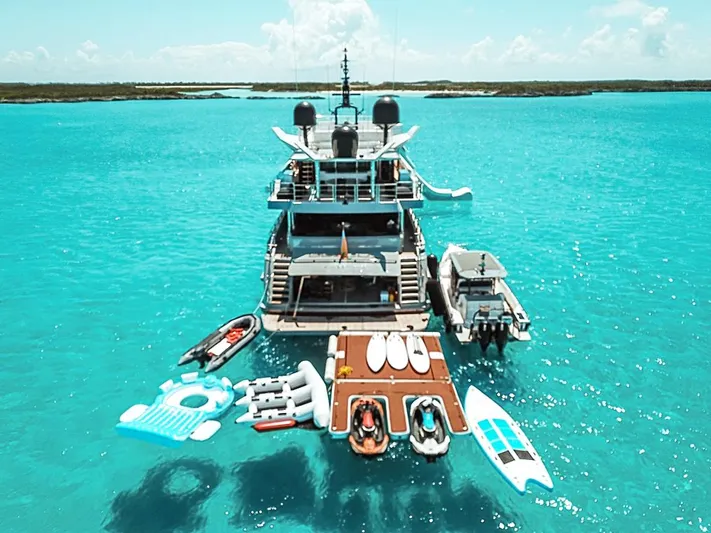

TENDERS AND TOY’S

*Can Be Negotiated As Part Of The Sale

• (2) SeaDoo spark jetski with covers. (1) 2022 (1) 2019, Stowed on foredeck
• 15' Caribe 90 HP Evinrude outboard. Stowed in garage

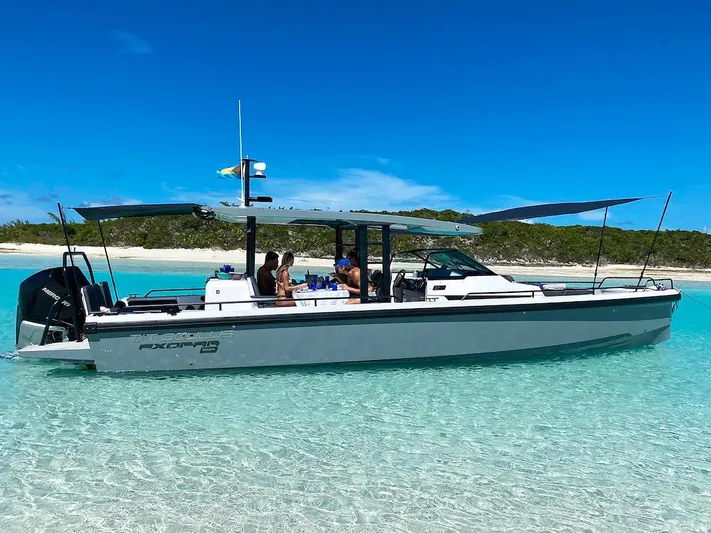

• 2019/2020 37 Suntop Axopar with twin 300 Mercury
• Fliteboard electric hydrofoil
• Electric surfboard
• Jetsurf
• Multiple inflatable paddleboards
• Waterslide, rock climbing wall and inflatable jetski dock

SAFETY AND FIRE PROTECTION

FIRE EQUIPMENT

• Nomex fire suits
• Chubb CO2 Unitor spiromatic breathing apparatus mode #217 U3/U4 with 1,400 liters free air capacity including spare cylinder
• Pair of non-conductive insulated boots
• Gel type fire blanket Standard fire blanket
• 30 meters of lifeline 15mm in diameter

SAFETY EQUIPMENT

• (2) Viking 16-person USCG/SOLAS 1988 Approved life rafts First Aid Kit Waterproof flare canister
• (4) Plastic life buoys
• (2) Comet M.O.B. smoke and light signals
• (2) 30 meter lifelines
• (12) Comet parachute signal rockets red
• Francis "ALDIS" 24cdc signal lamp
• Portable signaling lamp
• Complete set of international signal flags
• Set of nautical rescue signal tabs
• Comet Line throwing appliance
• (2) Black Anchor Balls

AVAILABLE UPON REQUEST: Charter Pro Forma – 2023 Bottom Job Pictures – Photo Brochure – YouTube Walkthrough Link – 2019 Refit Highlights

REMARKS

Very Rare Opportunity to own one of the most unique TRI-Deck Motor Yachts in its size range.  With the pedigree builders of the world focusing almost exclusively on 50m and above, this segment of the market is extremely niche!  Making “Oculus” an extremely rare option.  So many upgrades and improvements have been done making this one of the most unique Motor Yachts on the market today.

EXCLUSIONS

Owner's personal effects.  A full list will be provided upon signed agreement.

MECHANICAL DISCLAIMER

Engine hours are a representation of what the listing broker has been supplied by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser to verify engine hours, major overhauls and all other representations noted on the listing brochure.
