OHANA Boat for Sale

• Beam: 23' 9''
• Hull Material: Fiberglass

SAILS:

JIB ROLER FURLING CARBON

MAIN REEFING BLOCKS

MAST HEAD WINDEX

MAINSAIL LITE SKIN CARBON- CALVERT- NEW!!

SCREACHER PERFORMANCE LITE SKIN CARBON

CONTINUOUS FURLER AND SHEETS

SCREACHER HARDWARE

SELF TACKING JIB

AYSEMETRICAL SPINNAKER WITH SOCK

MACK SAILS CAT PACK- NEW!!!

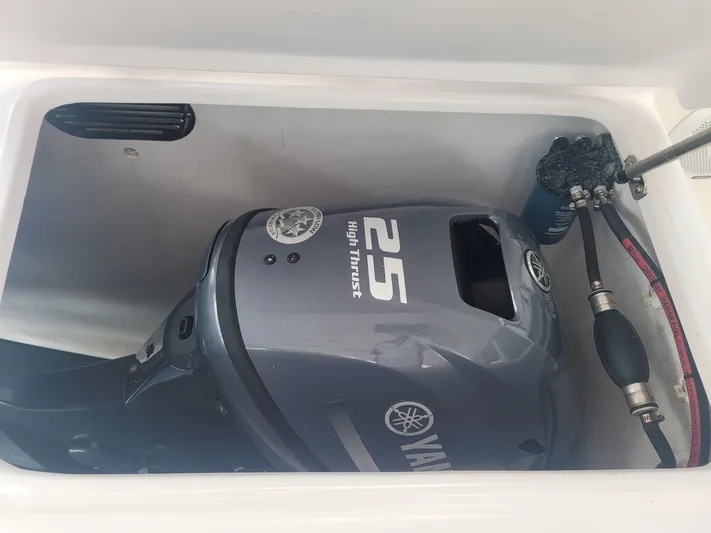

MOTOR:

2018 YAMAHA 25HP

 25” SHAFT

REMOTE AT HELM

ELECTRIC START

ELECTRIC TILT

BATTERY CHARGING

HIGH THRUST PROPS

LESS THAN 500 HRS

TACHOMETER

ENGINE HOUR GUAGE

MAST:

ALUM

SS FORESTAY AND MAST DIMOND WIRES

DYNEMA STANDING RIGGING

COLLIGO RIGGING SYSTEM

EXTERIOR:

BOTTOM PAINT BLACK

SWIM LADDER

MAGMA  BBQ GRILL

LPG GAS DETECTOR

2ea BINICAL ANALOG COMPASSES

DECK WASH FRESHWATER

TRANSOME SHOWER

DINGY DAVITL

DINGY HYFEILD HYPOLON

15HP MERCURY DINGY OUTBOARD

FOREDECK CUSHION SET

TARGA CUSHION SET

RAISED COCKPIT HELM SEAT

COCKPIT HELM CUSHION

t

ELECTRONICS:

B&G ASI

B&G 9”  CHARTPLOTTER

B&G RADAR

B&G VHF

B&G SPEED LOG

B&G WIND SPEED AND DIRECTION

B&G DIGITAL COMPASS

B&G AUTOPIOLET WITH REMOTE

WIRELESS ROUTER

FUSION STERO 2EASPEAKERS MAIN SALOON 2EASPEAKERS COCKPIT 2EA SPEAKERS AND CONTROLER AT BOW NETS

ELECTRICAL

SOLAR PANELS  800W

SOLAR REGULATOR

SHORE POWER Dockside Power

GFI BREAKES

DOCKSIDE CABLES

ADDITIONAL 12V OUTLETS

BATTERY 12V AGM 3EA

BATTERY CHARGER INVERTER MASTERVOLT 100V

LIGHTNING PROTECTION

SHORE POWER DOUBLE GPO 3X GALVANIC BLOCKER (110V)

SOLAR PANEL 800W

AIR CONDITIONING MAIN SALOON AND MAIN CABINS

BENCH TOP FREEZER

FLUSH MOUNT FRIDGE

MAIN SALOON DRINK COOLER

6 FANS

HARDWARE:

1ea ELECTRIC WINCH

3ea SELF TAILING WINCHES

SPINNAKER CONTROL KIT

SCREECHER CONTROL KIT

CARBON BOW SPRIT

CARBON TRAVLER ARCH

CARBON DAGGER STYLE RUDDERS

CARBON DAGGER BOARDS

INTERIOR:

3 BURNER LPG STOVE

GALEY CUPBOARD UPPER

NAVIGATION CUPBOARD

NAVIGATION DESK WITH STORAGE COMPARTMENT

2ea ELECTRIC HEADS (FRESH WATER)

2EA SHOWERS

2EA HOLDING TANKS

MAIN SALOON  TABLE

ANCHOR/DOCK LINES/ ETC:

ANCHOR BRIDLE

STANDARD PLOW ANCHOR 200’ CHAIN

WINDLESS

SECOND ANCHOR WITH CHAIN AND RODE

DOCK LINES

FENDERS

SAFTEY

FLARES

FIRE EXTINGUSHERS

#2 THROWABLE FLOTATION DEVISE

LIFE PRESERVERS

4 MAN LIFE RAFT

MISC SAFTY GEAR

SEAWIND 1190 Sport (11.90 METRES / 39ft)
STANDARD SPECIFICATIONS AND EQUIPMENT.
1. GENERAL:
The overall fi nish of the Seawind 1190 Sport will be consistent with that of the well known and loved 1160 range with onlythe highest quality equipment used throughout
The overall concept of the 1190 sport is for a competitive sports catamaran at a level of construction, workmanship, equipment, fi tout andstyle that surpasses any other available in the market at this price range
2. EXTERIOR / LAMINATE:
Finish: Full female moulded hulls & decks, exterior gelcoat and carbon fi ber fi nish with moulded-in non-slip surface on deck areas
Hull Laminate: New Infused Vinyl Ester (Modifi ed epoxy) resin laminate of the entire hull laminate. Polyester resin elsewhere. Laminatespecifi cations are certifi ed to CE and Australian survey standards
3. MAST/BOOM/SAILS:
Clear anodised aluminium mast and boom. Double spreader rig
Standing Rigging – Forestay 1 x 19 Dieform wire
– Cap Shruds Dynex Dux, synthetic rigging
– Diamonds 1 x 19 Stainless Steel wire
Halyards – Main halyard: 12 mm Spectra rope : Heavy duty shackle
– Jib halyard: 8 mm Spectra rope. Heavy duty shackle
– Topping lift: 8 mm rope, Heavy duty shackle
– Spinnaker Halyard: 8mm Spectra with snap-shackle
– Screecher halyard with new 2:1 purchase system
– Boom outhaul: 10mm Spectra
Slab reefi ng.
Fully battened square top black aramid, laminate mainsail. Triple stitched radial construction. Leach adjustable batten end caps andball bearing cars. Fibreglass sail battens
Black aramid, laminate jib with vertical battens
Asymmetric spinnaker in any color of your choice
Carbon fi bre bowsprit with synthetic bridle wires
Mainsail cover with integrated lazy jack system
Self-tacking headsail, curved headsail traveller track with end stops. With New single line control sheet to cockpit
Main sheet run to port and starboard helms
4 DECK EQUIPMENT

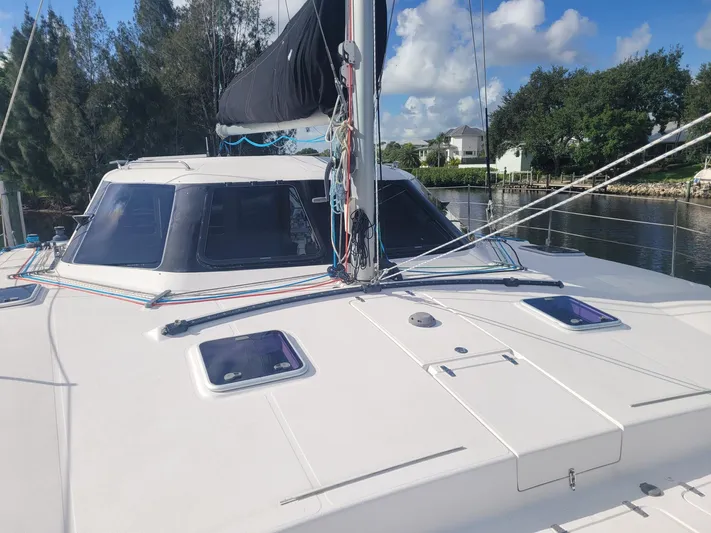

Aluminium Hatches & portholes (9 in total)
4 x Forward Hatches 470mm x 470mm
2 x Mid cabin hatches 470mm x 470mm
1 x Port Bathroom window hatch 507mm x 377mm
1 x Aft Cabin window hatch 507mm x 377mm
Fibreglass Deck Hatches:

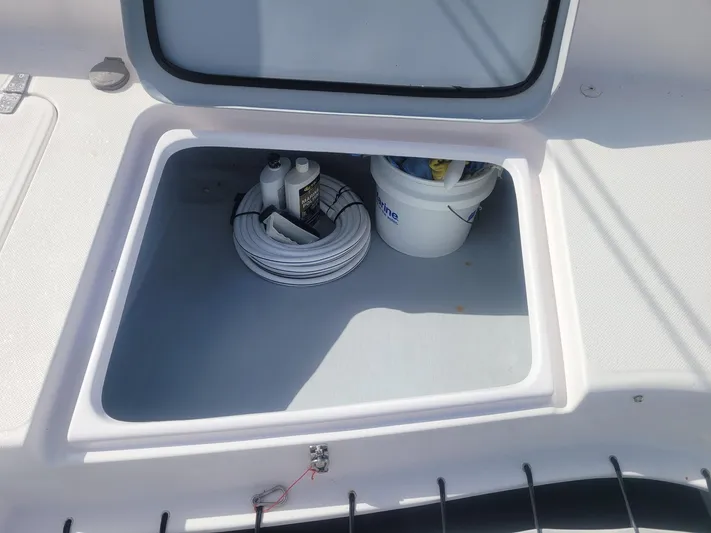

Forward anchor & storage hatches x 5
Cockpit storage hatches x 2
6 x Docking cleats. Each side : bow, stern & amidships
1 x Heavy duty mooring cleat on forward walkway
Ventilation: 2 x forward cabin hatch vents
Mast base turning blocks. All halyards & sail controls to cockpit.
13 x Rope clutches

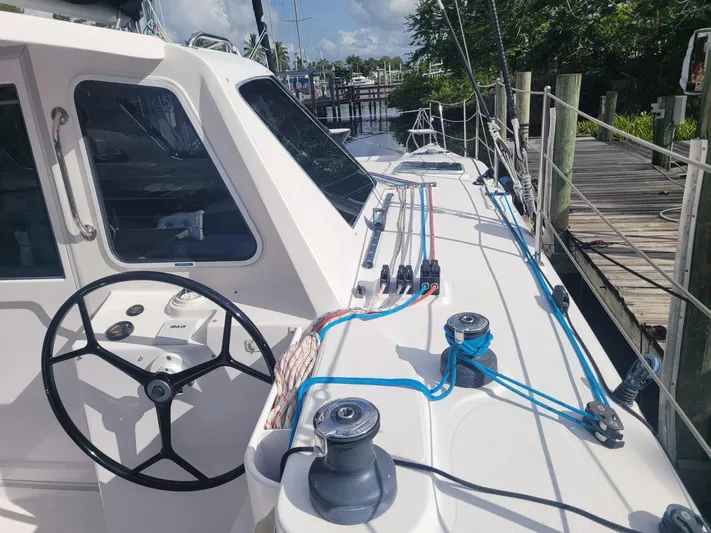

Sheet winches : 2 x 45ST – 2 speed self tailing, 3 x 40ST – 2 speed self tailing & 1 x 15ST self tailing
Stanchions/Rails: High quality stanchions 3 life-lines with 700mm high synthetic lifelines to meet CE requirements
2 x transom access gates with pelican hook releases
Aft swim ladder
Dinghy davits
5. FORWARD BEAM, CATWALK AND TRAMPOLINES:
Carbon reinforced fwd beam
Pelican striker and adjustable cable
1 x Mooring plate above foredeck

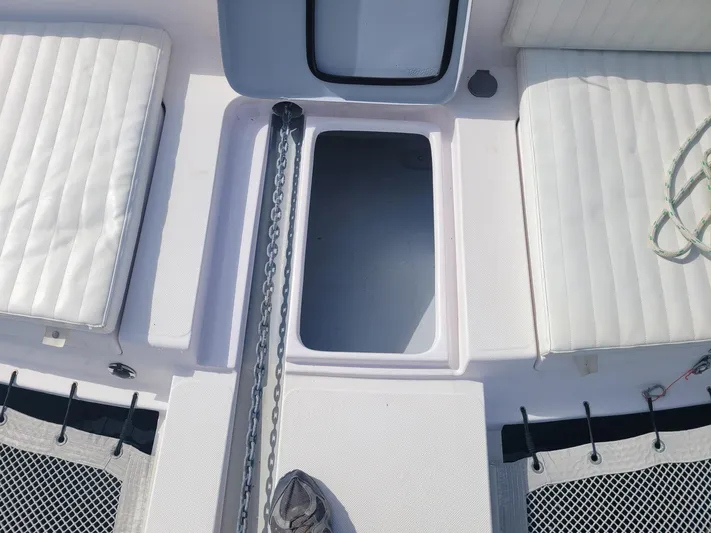

2 x Anchor roller under deck. Permanent stowage position for 45lb Plough anchor
Catwalk in pvc foam-sandwich fi breglass

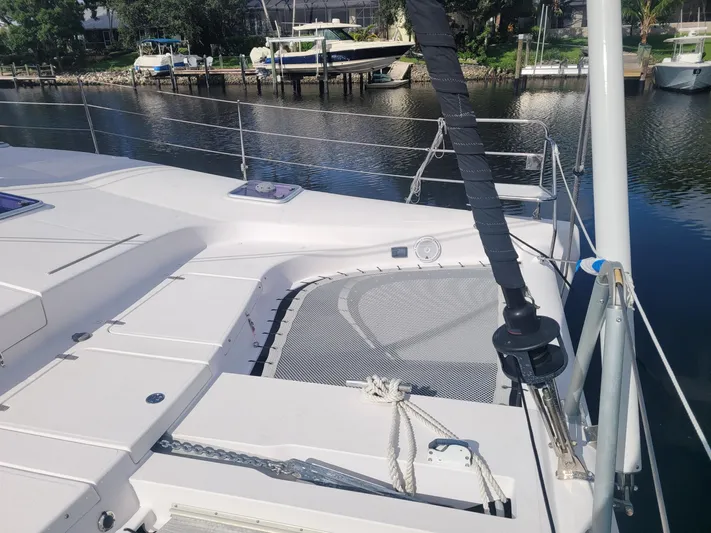

Light weight plastic coated open netted trampolines

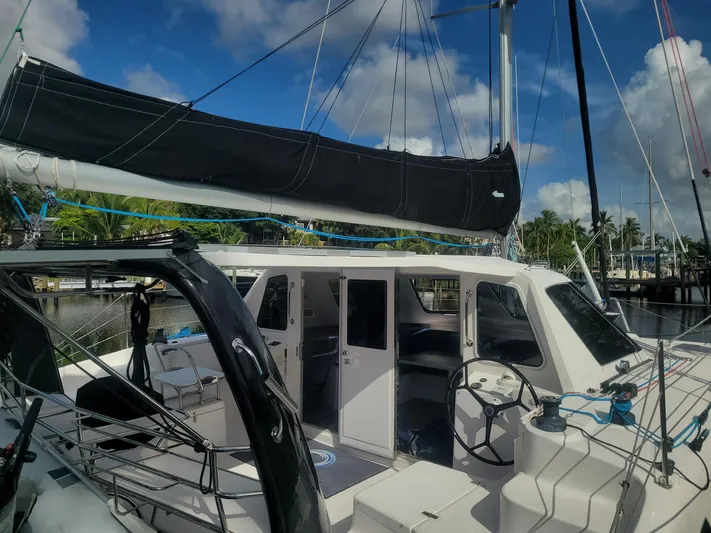

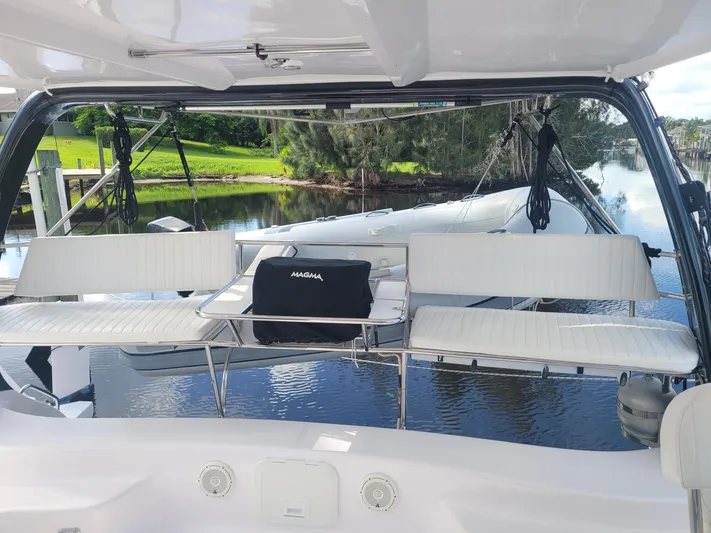

6. AFT BEAM AND DECK:
Carbon reinforced Targa Bar in gloss carbon fi nish with curved mainsheet track and sports traveller control system

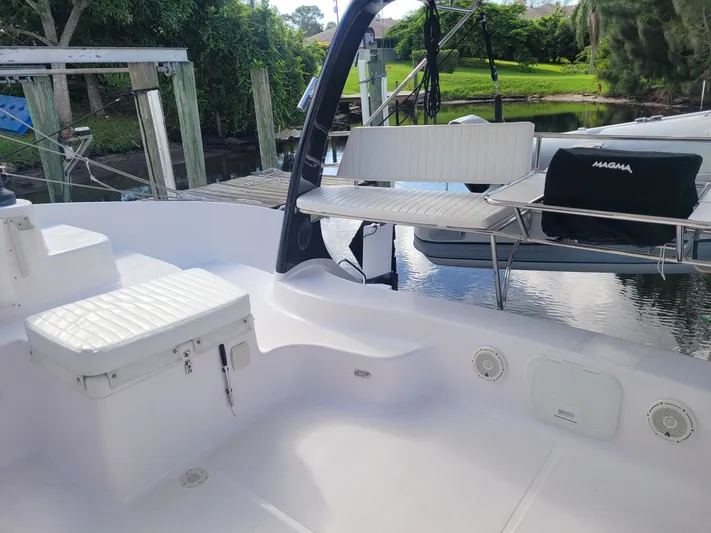

Stainless steel framed seats behind aft beam
full width hard top over cockpit
7. FOILS & STEERING SYSTEM:
Twin helm stations
2 X 32” lightweight composite steering wheels
Both wheels independently linked to steering system. – system offers back-up redundancy
Retractable dagger boards below deck height when retracted
8. INTERIOR FINISH:
Furniture and cabin sides in gloss gelcoat fi nish
Cabin top lined with lightweight liner
Floors: synthetic timber fl ooring
Cabinet doors in lightweight modern fi nish
9. SALOON:

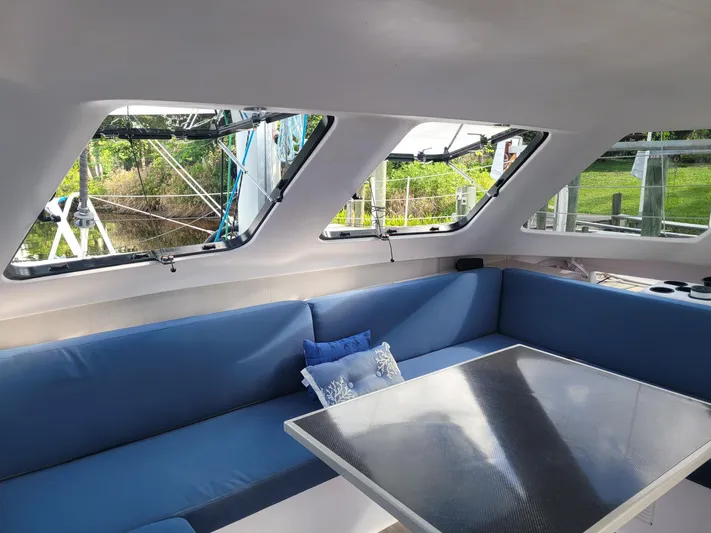

New Lightweight carbon fi bre saloon table
Upholstered settee
Cocktail cabinet with carbon fi bre fi nish
Forward opening windows with in marine ocean hatch frame. Side windows in 6mm toughened glass
Tri-fold saloon doors
Removable alloy framed, helm hatches

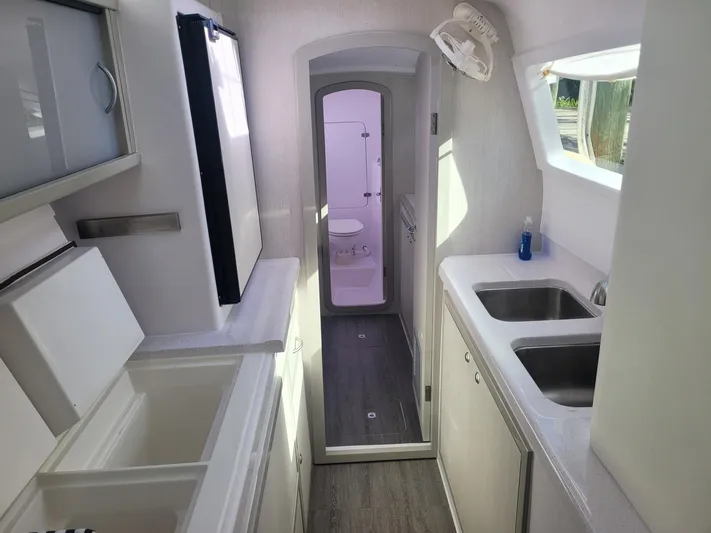

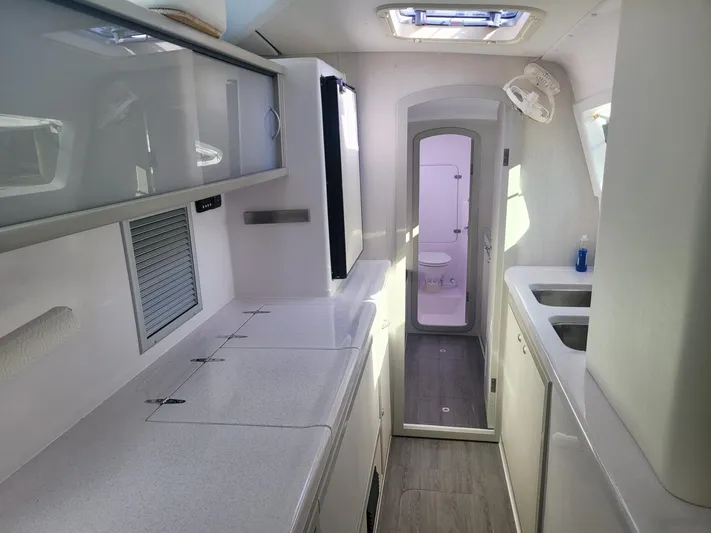

10. GALLEY:
Spacious galley with New lightweight Granite coat benchtops
Three (3) burner LPG stove, stainless steel pot holders. Flame failure device to shut off LPG immediately in event of fl ame going out
Stainless steel sink
Pressure fresh water system
Refrigerator: Front opening upright fridge 130 litres
Under bench storage
Trash bin
LPG solenoid control in galley
11. SLEEPING CABINS:
Light weight pvc foam cored timber doors on all private cabins
Port & Starboard fwd cabins : Each queen sized bed (2050mm x 1540mm)
Aft Starboard cabin : Double bed (1990mm x 1230mm)
Mattresses 150mm ( 6” ) foam upholstered
Cabins lined
12volt LED lighting
Storage/Cupboards
12. PORT HEAD:
New Polished light weight pvc foam cored timber door
Manual toilet. Discharge via holding tank
Holding tank built in. Discharge Pump out by shore station or directly overboard 130L
Pipes, skin fi ttings and sea-cocks are easily accessible and to meet survey requirements
Vanity basin with pressure water
Separate shower stall with wall mounted shower head & mixer tap
Electric shower bilge pump with direct overboard discharge
Large quantity cupboards / shelves to very high quality
13. LIGHTING/ELECTRICAL SYSTEM:
High quality DC electrical switch panel with circuit breakers, LED indicator lights and voltage display
Marine grade tinned electrical wiring with extensive use of heat sealed connectors
Batteries x 2 comprising: 1 x 12v 200Ah Deep Cycle House Gel Batteries. 1 x AGM Start batteries
230amp heavy duty isolation switch
12 V lighting : Numerous 12V interior lamps and courtesy lights throughout including recessed lights in cockpit
4 x 12V Outlets
CE approved navigation lights. Port & Starboard mounted on bows
Deck fl oodlight mounted on spreaders
Mast head anchor / riding light
2x 125w Solar Panels and 40amp regulator
14. PUMBING / FRESH WATER TANKS:
Pressure water system with water to galley and both bathrooms
Fresh water tank: 700 litres (185 gallons) roto moulded. Remote deck fi ller
Electric fresh water pump
Electric bilge pumps (2) with controls integral with master battery switch panel
Manual bilge pumps (2) in each hull
New Marelon fl ush mounted through-hull fi ttings to CE/ISO standard
Manual toilet in head
1 x LPG bottle – 4.5kg
Fresh water tank gauge
15. ENGINES:
Twin lightweight Honda 20hp engines. Mounted under each helm seat at each steering station
Remote electric key start with electric tilt fitted
Dual engine controls at port helm station
16. NAVIGATION:
Twin steering compasses
2x Multifunction displays with speed depth and wind transducers installed
17. ANCHORING / MOORING:
Electric anchor winch with chain & warp gypsy. Located under locker to give clean deck. Primary anchor is 45 lb Delta anchor type with55 mtrs x 8mm short link galvanised chain.
Primary anchor is stored in a specially designed anchor roller under the forward beam
Anchor winch has foot switch at the winch plus a remote up / down control at the helm station.
3 x PVC Infl atable Fenders
3 x Mooring lines (each 15 metres x 14mm)
18. ANTIFOULING / STRIPING:
Epoxy barrier coat plus 2 coats of high quality black antifouling bottom paint
Seawind 1190 Sport badge on each hull and stern
