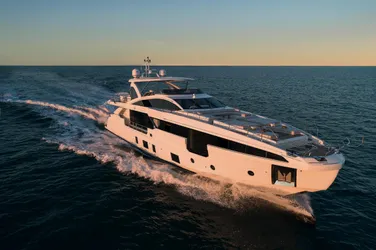

ONE & ONLY Yacht for Sale

• Cruising Speed: 20 kn
• Maximum Speed: 26.5 kn
• Beam: 24' 0''
• Hull Material: Fiberglass
• Max Draft: 6' 3''
• Displacement: 308,647 lb
• Fuel Tank: 1 x 4496|gallon
• Fresh Water: 1 x 766|gallon
• Holding: 1 x 792|gallon
• Cabins: 8
• Heads: 9

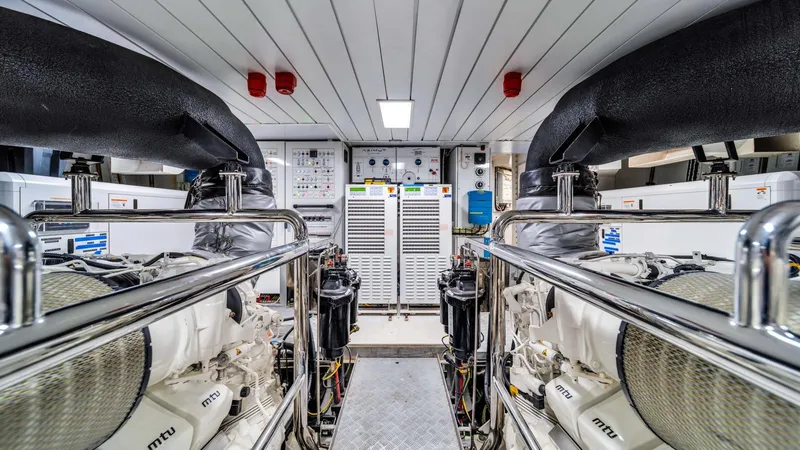

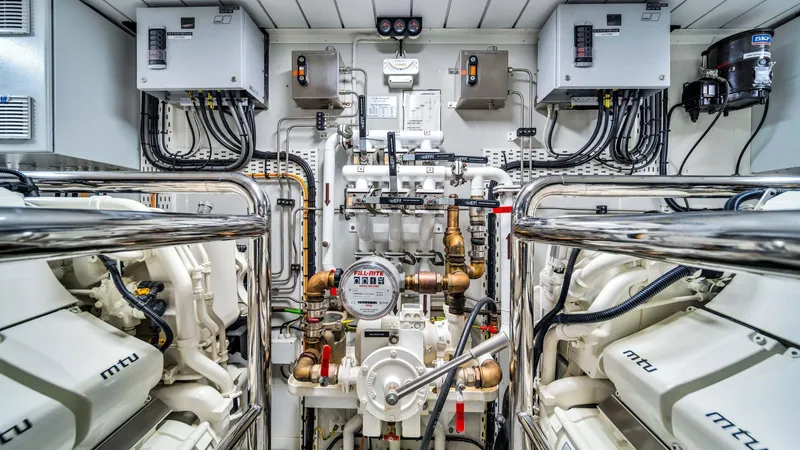

• Main Engines: 2x MTU 16V2000M86 Diesel 1,641 kW | 2,200 HP
• Engine Hours (06/24): Port - 1621 hours | Starboard - 1621 hours
• Engine Controls: MTU
• Gear Boxes: ZF 3360
• Stabilizers: 2 Electric Fins Stabilizer System ESF1000
• Bow Thruster: BCS SRI
• Steering System: Optimus by Seastar
• Engine Ventilation: Belimo BF24-TN

• Generators: 2x Kohler 45EFOZDJ 44 kW | 400V AC / 50 Hz / 3-phase
• Generator Hours (06/24): Port - 2900 hours | Starboard - 2700 hours

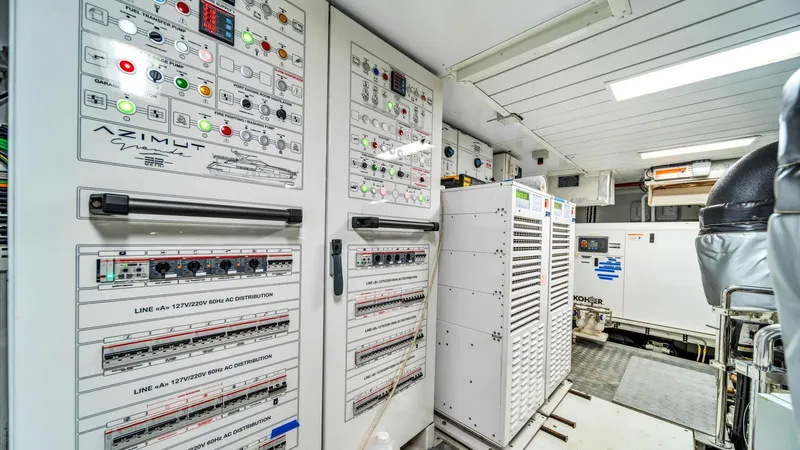

• Distribution: Main machinery 400V AC / 50 Hz / 3-phase | Lighting & Household Appliance 230V AC /  24V AC, single phase
• Shore Power: 125A shore power connector in the aft area with one 25 m. shore power cable
• Batteries & UPS:

  • Emergency lighting system - 24DC Battery System
  • Service equipment - 24DC Battery System
  • Radio equipment - 24DC Battery System
    ​

• Gross Tonnage: 223T
• Displacement Light Ship: 128T
• Displacement Half Load: 131T
• Displacement Full Load: 140T
• Fuel Capacity: 4,490 USG / 17,000L
• Fresh Water Capacity: 766 USG / 2,900L
• Sewage/Grey Water:  792 USG / 3,000L
• Water Makers: 180 liters of water per hour
• Day Tank: 627 USG /2377L

• Air Conditioning: Climma CWS 2402
• A/C Sea Water Pumps: Calpeda
• Circulation Pumps: Calpeda
• Fresh Water Purification: Idromar Watermaker
• Fresh Water Filters: Idromar
• Fresh Water Heaters: 2x electric stainless steel heaters w/ 53 USG / 200L total capacity
• Fresh Water Maker:  Idromar MC3J reverse osmosis watermaker; 180 liters of water per hour
• Fuel Oil Transfer Pumps: 1x electric transfer pump  & 1x manual pump
• Rudder Angle Indicator: Simrad
• Fire/Bilge Pump/Engine Room Fan Blowers: Gianneschi
• Underwater Lights: 8x Lumishore - 2 on swim platform and 3 each per side
• Monitoring System: an integrated yacht monitoring system will be provided. The 13” touchscreen panel allows to control and monitor the following systems:

  • 400Vac – 24Vdc System:
  • Navigation Lights
  • Window Wipers
  • Engine room fans
  • Steering
  • Navigation:
  • Horn
  • Tanks:
  • Fuel Transfer Pump
  • Daily Tank Level
  • Structural Fuel Tanks Level
  • Fresh Water Tank Level
  • Sewage/Greywater Tank Level and Pump Control

Lifesaving:

• 16x Lifejackets
• 2x Liferafts for 10 people each
• 2x Lifebuoys with buoyant line on flybridge
• Flares

Fire fighting:

• Fire alarm system with smoke detectors fitted throughout the vessel; the sensors will actuate an audible and visible alarm in the wheelhouse.
• Fire hydrant valves, with fire hoses and nozzles 3 on the main deck and  1 on the flybridge
• Portable CO2/foam/powder fire extinguishers,  per fire and safety plan.

• VHF System: Simrad RS90
• Internet: Source #1- WiFi

  • Aigean 7000 w/ External Antenna- Dual Band WiFi amplifier-2.4GHz & 5GHz-INCLDS 25ft of LMR400
  • Shakespeare S/S ratchet Nutless mount
• Internet: Source  #2- CELLULAR

  • MoFi 4G LTE cellular device
  • Shakespeare Galaxy 2G/3G/4G Cellular antenna
  • Shakespeare S/S 4" straight mount- Cell antenna
• Crew Internet: 8 Port Switch Cisco Router- 2.4GHz & 5GHz for crew Wi-Fi- shares same internet from ship
• SAT com: Peplink
• Intercom System: internal communication system will be fitted in wheelhouse, engine room, emergency steering location, aft cockpit and fore mooring station
• Phone System: PABX system for 9 phones with sockets in the following areas: wheelhouse, salon, galley, master cabin, VIP cabins, guest cabins, and crew mess.

Hull

• Transducer: Simrad B744V

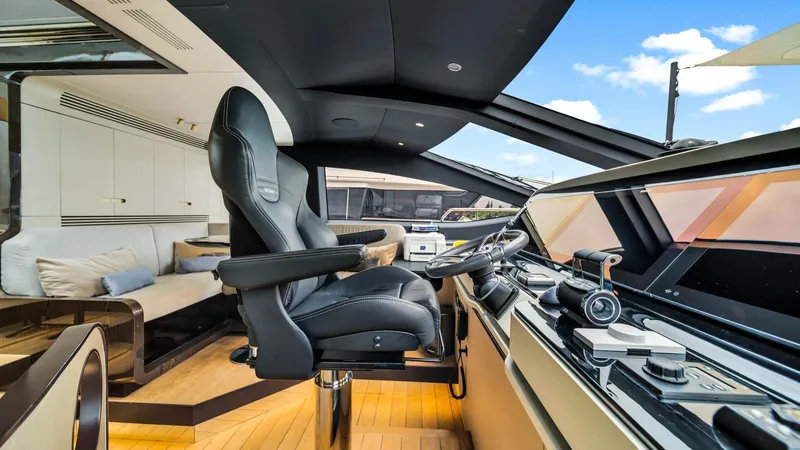

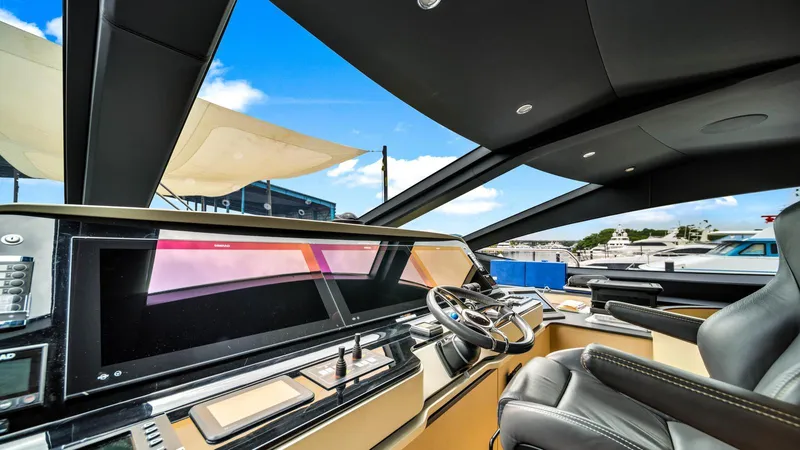

Wheelhouse

• Monitor: Simrad M016-T Touchscreen
• Auto Pilot: Simrad AP44
• Rudder Angle Indicator: Simrad IS42
• VHF: Furuno Simrad RS90
• Compass: Riviera BP2
• Log: Included in the navigation system
• Echosounder: Included in navigation system

Flybridge

• Multifunction Display: Simrad NSS16
• Autopilot: Simrad AP44
• Rudder Angle Indicator: Simrad IS42
• VHF Repeater: Simrad Handset/ speaker RS90
• Compass: Riviera BZ1/3 12V

Roll Bar

• Radar Antenna: Simrad Halo
• 2X VHF Antenna
• GPS Antenna: Simrad IS42

Emergency Station

• Rudder Angle Indicator: Simrad IS4

Bow

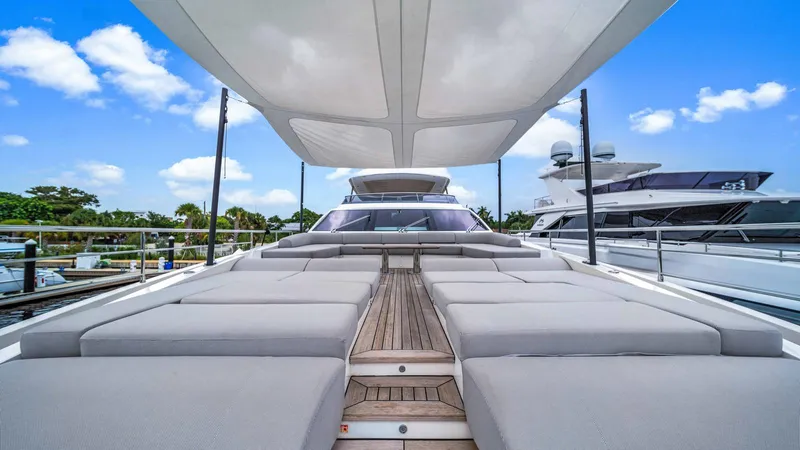

• 2x Oversized Sunpads Port & Stbd
• Bow Lounge with U-shaped Sofa & Table

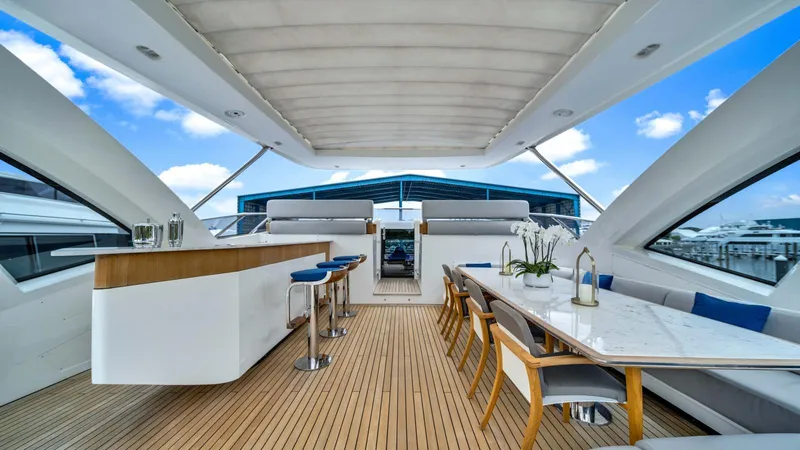

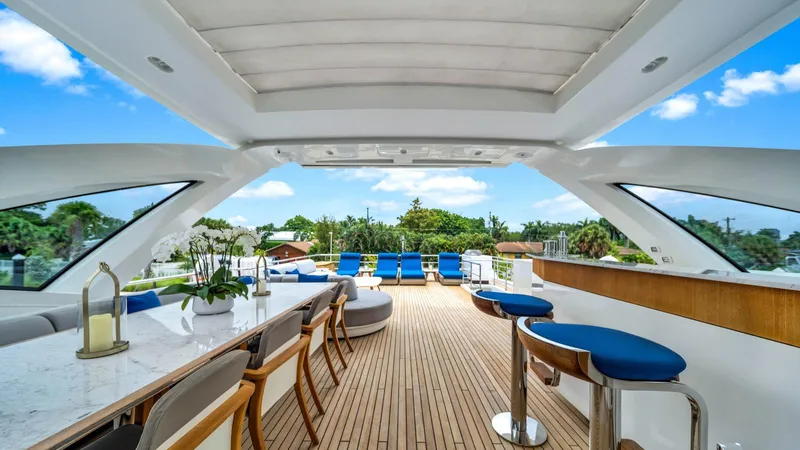

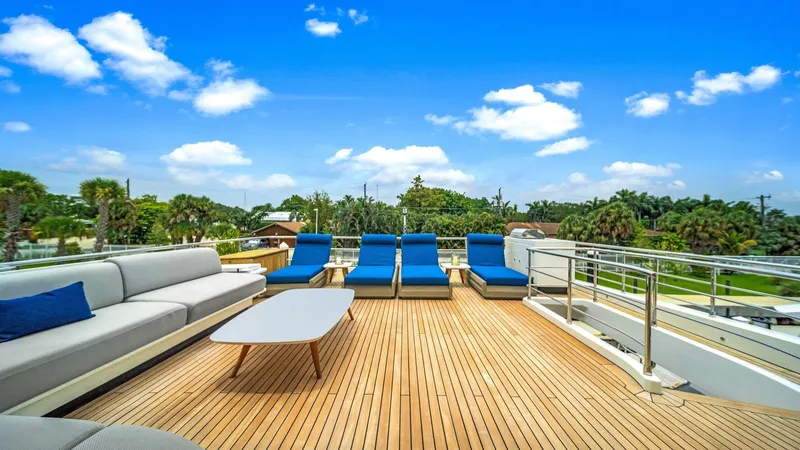

Flybridge

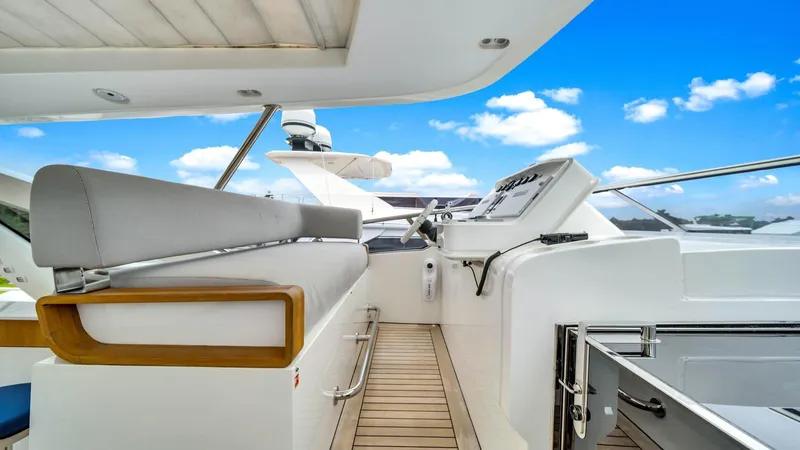

• Helm & Helm Seating to Port & Stbd
• Bar with 3x Barstools, sink/faucet, minifridge and icemaker

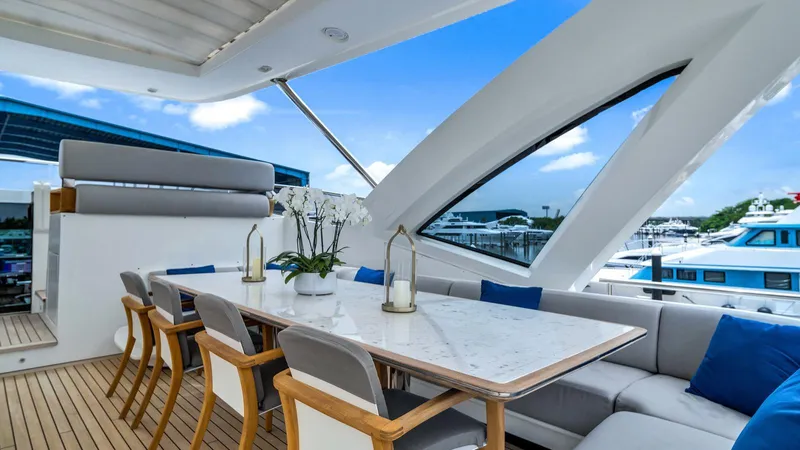

• Dining Area with dining table, oversized sofa (seats 10), and 2x dining chairs

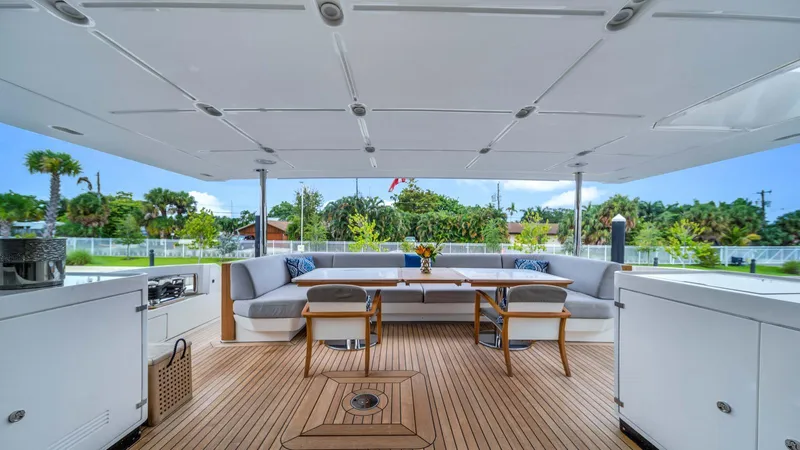

• Aft Lounge Area with sofa, 2x armchairs, and coffee table
• Barbecue: Kenyon Electric Grill

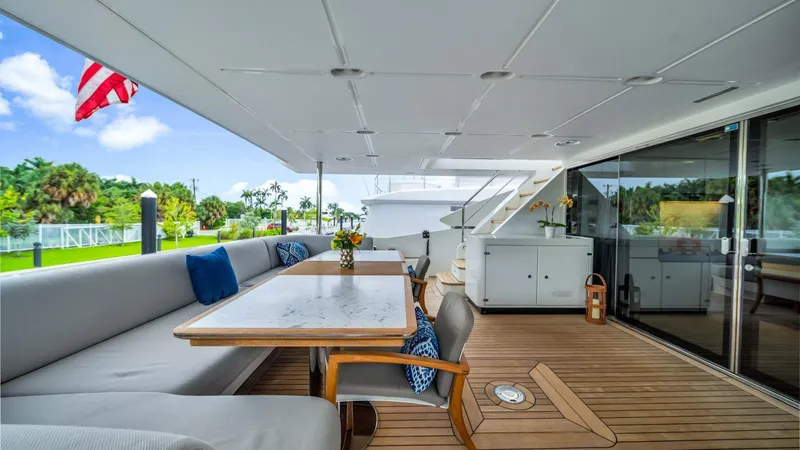

Main Deck Aft Cockpit

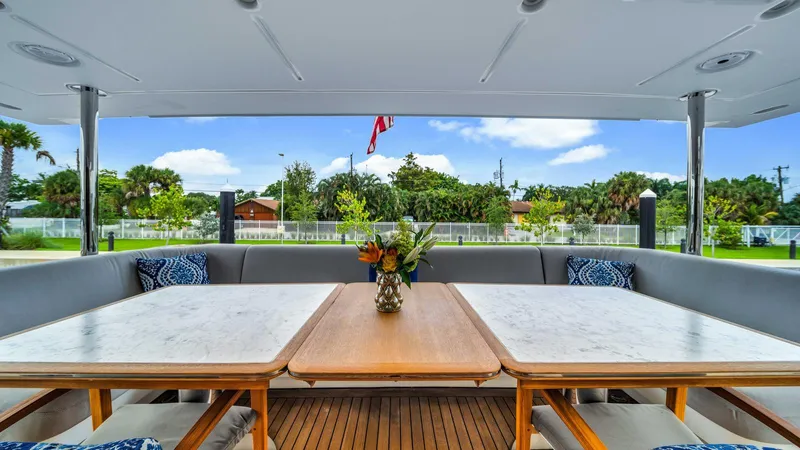

• Dining Area with dining table and sofa, and 2x dining chairs
• Cabinet with fridge and icemaker on cockpit stbd side

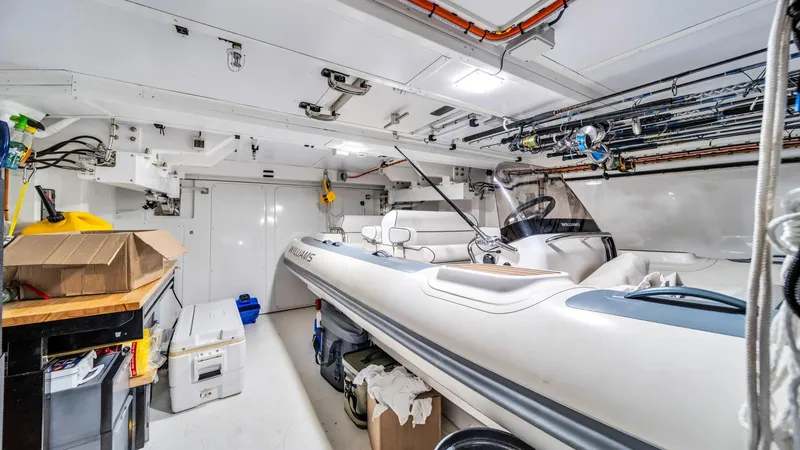

• Lower Deck - Tender Garage
• Starboard hydraulically operated garage door for launching tender

Beach Club

• Handheld shower
• Swimming Ladder: manual AISI 316 stainless steel, with teak steps, on side of the  swim platform

Misc Deck Equipment

• Anchors: 2x galvanized steel HHP (high holding power) anchors of 105 kg each
• Anchor Chains: 2x studless chains made in galvanized steel of 12 mm diameter link, length of each chain 110 m
• Windlasses: 2x electric windlasses placed at the bow
• Capstans:  2x electric foot-operated vertical capstans on aft deck
• Gangway: Telescopic retractable stern gangway hydraulically operated
• Spotlights: on aft flybridge

Flybridge

• 55" 4K UHD Samsung SMARTV UN55NU7100 - 110V/60Hz- Digital Audio out to Sonos
• DirectTV H25 HD Receiver- Installed in salon A/V rack- HDMI 1
• Apple TV 4 32GB- Installed in closet- HDMI 2
• SC Sonos CONNECT-Installed in Salon A/V rack- TV Audio LINE IN
• PROZAR DAC Digital to Analog Converter powered by USB on TV- For TV audio out to SONOS
• iPort Express for Sonos
• Parasound Zonemaster 250 Amplifier- for Sub Only- Installed in salon A/V rack
• Parasound Zonemaster 650 Amplifier- for Speakers- Installed in salon A/V rack
• Parasound Rackmount Kit for ZM250
• 7.7" JL Audio M Series Speakers JL M770-CCX-CG-WH- pair
• 10" JL Audio M Series Marine Subwoofer JL M10IB5-CG-WH
• Niles RCA-SM2 IR Receiver Kit- Use IR eyes for A.V equipment and splice into Harmony plug
• Logitech Harmony Remote- Wired for iPad control

Main Deck Bow

• Sonos AMP 125 W per channel- Installed in wheelhouse
  7.7" JL Audio M Series Speakers JL M770-CCX-CG-WH- pair

Main Deck - Aft Cockpit

• 40" 4K UHD Samsung SMARTV UN40NU7100 - 110V/60Hz
• DirectTV H25 HD Receiver- HDMI 1
• Apple TV 4 32GB- Installed in closet- HDMI 2
• Sonos CONNECT- Installed in salon A/V rack- LINE IN from TV
• PROZAR DAC Digital to Analog Converter powered by USB on TV- For TV audio out to SONOS
• Parasound Zonemaster 250- Installed in Salon A/V rack
• Parasound Rackmount Kit
• 2x 7.7" JL Audio M Series Speakers JL M770-CCX-CG-WH- pair
• Logitech Harmony Remote- Wired for iPad control

Wheelhouse

• Sonos AMP 125 W per channel- Installed in WH- LINE IN from DTV audio out
• UTL Sonance In-Ceiling Speakers- Pair
• Apple iPad mini 4 Wi-Fi 128GB
• iPort LaunchPort Magnetic Sleeve for iPad Mini 4- Black
• iPort LaunchPort Base Station- Silver
• DirectTV H25 HD Receiver-Installed in WH- Audio OUT to Sonos Line IN
• Niles RCA-SM2 IR Receiver Kit- IR eye on Sonos AMP
• SONOS CONNECT- Installed in wheelhouse- Audio IN drom Sirius XM receiver

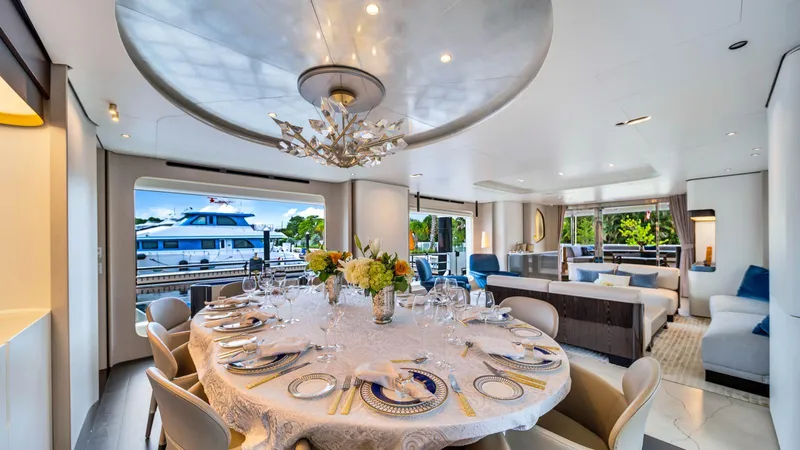

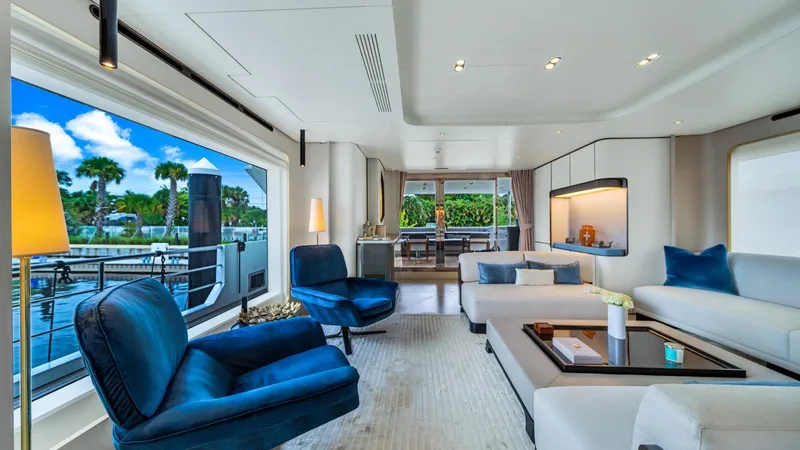

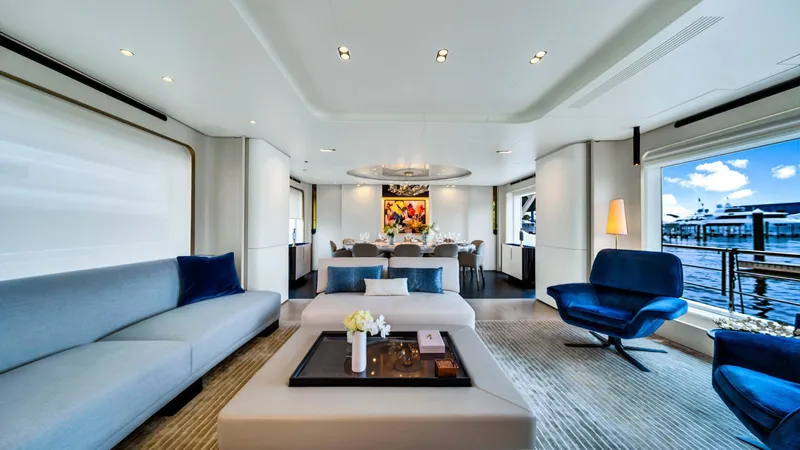

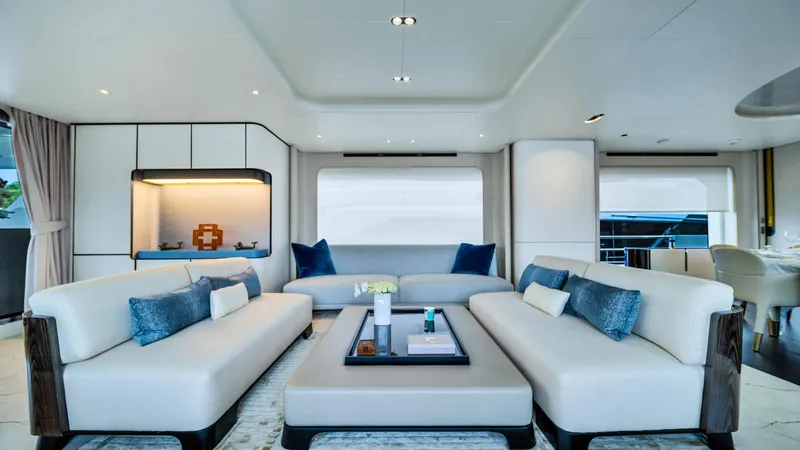

Main Saloon

• 55’’ 4k Samsung SMARTV UN40NU7100 - 110V/60Hz
• Apple TV 4 32GB- HDMI 2- Install in Salon AV rack
• Apple iPad Pro 10.5" 32GB Space Gray
• iPort Surface Mount Bezel Black Kit w/ PoE Splitter & Injector
• APC Smart-UPS SRT 3000VA RM 240VAC to 240VAC
• DirectTV HR24 HD/DVR Receiver- HDMI 1- Install in Salon AV rack
• Sonos PLAYBAR- Mounted in ceiling
• Sonos SUB-To be mounted in end table
• Sonos AMP 125 W per channel- Rear surrounds
• UTL Sonance In-Ceiling Speakers- Pair
• Logitech Harmony Remote- Wired for iPad control
• AM/FM stereo-wired to LAN for FM radio distribution
• Shakespeare 8ft AM/FM antenna
• Shakespeare S/S ratchet Nutless mount- AM/FM antenna

Galley

• Sonos AMP 125 W per channel- Mounted in Galley Cabinet
• UTL Sonance In-Ceiling Speakers- Pair
• iPort Express for Sonos

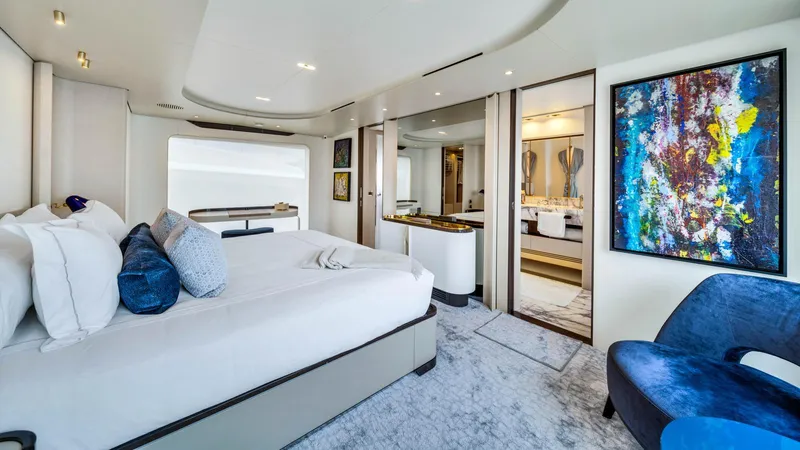

Owner’s Cabin

• 55" 4K UHD Samsung SMARTV UN55NU7100 - 110V/60Hz
• Apple TV 4 32GB- Installed in closet- HDMI 2
• Apple iPad Pro 10.5" 32GB Space Gray
• iPort Surface Mount Bezel Black Kit w/ PoE Splitter & Injector
• DirectTV HR24 HD/DVR Receiver- HDMI 1- Install in Salon AV rack
• Sonos PLAYBAR
• Sonos SUB- Installed under nightstand or forward cabinet
• Sonos Playbar Wall Mount
• Sonos AMP 125 W per channel- Installed in closet for surrounds
• UTL Sonance In-Ceiling Speakers- Pair
• Logitech Harmony Remote- Wired for iPad control

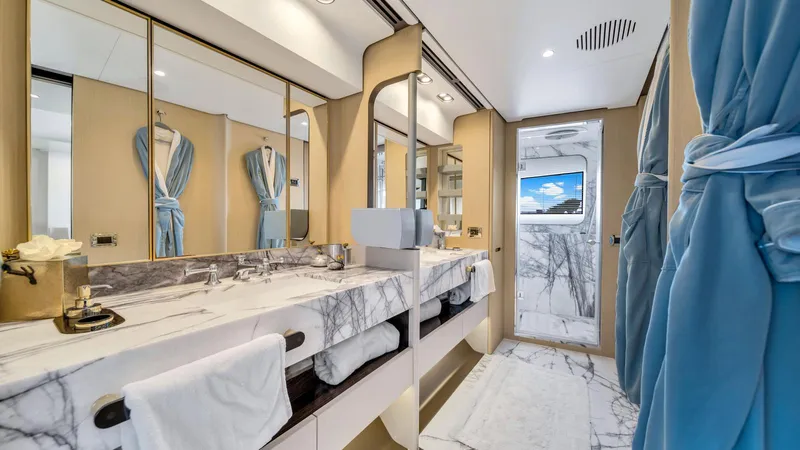

Owner’s Ensuite

• Sonos AMP 125 W per channel- Installed w/ mstr strm A/V equip
• UTL Sonance In-Ceiling Speakers- Pair
• iPort Express for Sonos

VIP Cabins - Port & Stbd

• 40" 4K UHD Samsung SMARTV UN40NU7100 - 110V/60Hz
• Apple TV 4 32GB- Installed in closet- HDMI 2
• iPort Express for Sonos
• DirectTV H25 HD Receiver- Installed in closet- HDMI 1
• Sonos PLAYBAR
• Sonos Playbar Wall Mount
• Logitech Harmony Remote- Wired for iPad control

VIP Ensuites - Port & Stbd

• Sonos AMP 125 W per channel- Installed w/ PT VIP strm A/V equip in closet
• UTL Sonance 2-Way In-Ceiling Speaker- Each
• iPort Express for Sonos

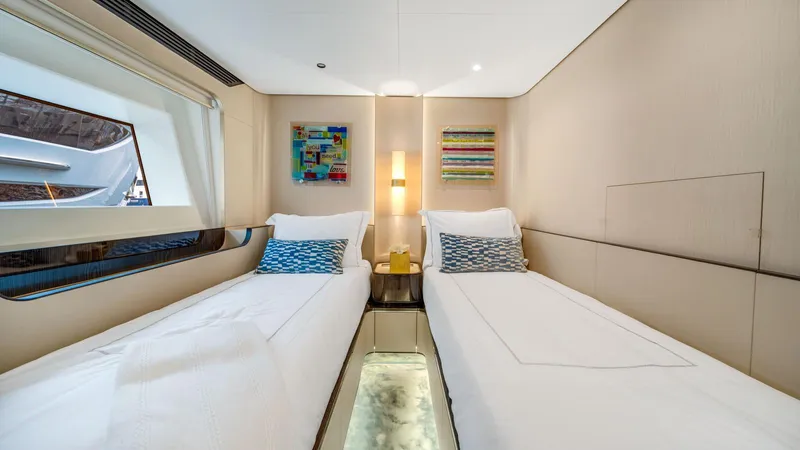

Twin Guest Cabins - Port & Stbd

• 32" LED Samsung SMARTV UN32N5300 - 110V/60Hz
• Apple TV 4 32GB- Installed in closet- HDMI 2
• iPort Express for Sonos
• DirectTV H25 HD Receiver- Installed in closet-HDMI 1
• Sonos BEAM - TV Audio to Beam
• Sonos BEAM Wall Mount
• Logitech Harmony Remote- Wired for iPad control

Guest Cabin Ensuites - Port & Stbd

• Sonos AMP 125 W per channel-Installed w/ PT Guest strm A/V equip in closet
• UTL Sonance 2-Way In-Ceiling Speaker- Each
• iPort Express for Sonos

Crew Mess

• 32" LED Samsung SMARTV UN32N5300 - 110V/60Hz
• Niles RCA-SM2 IR Receiver Kit
• AMP Sonos AMP 125 W per channel- Installed in Closet
• DirectTV H25 HD/DVR Receiver w/ RF remote- Audio OUT to Sonos Line IN - Installed in closet
• DIRECTV RF antenna for H25
• RF Remote for all DIRECTV receivers
• UTL Sonance In-Ceiling Speakers- Pair
• iPort Express for Sonos

Captain’s Cabin

• 32" LED Samsung SMARTV UN32N5300 - 110V/60Hz
• Niles RCA-SM2 IR Receiver Kit
• DirectTV HR24 HD/DVR Receiver- HDMI 1- Install in Salon AV rack
• Apple TV 4 32GB- Installed in closet- HDMI 2
• Sonos AMP 125 W per channel- Installed under bed
• PROZAR DAC Digital to Analog Converter powered by USB on TV- For TV audio out to SONOS
• Sonos OPT CNVTR HDMI ARC TO OPTICAL ADAPTOR
• UTL Sonance In-Ceiling Speakers- Pair
• iPort Express for Sonos

Crew Cabin

• 32" LED Samsung SMARTV UN32N5300 - 110V/60Hz
• Niles RCA-SM2 IR Receiver Kit
• Sonos AMP 125 W per channel- Installed in Closet
• DirectTV H25 HD/DVR Receiver w/ RF remote- Audio OUT to Sonos Line IN - Installed in closet
• DIRECTV RF antenna for H25
• RF Remote for all DIRECTV receivers
• UTL Sonance In-Ceiling Speakers- Pair
• iPort Express for Sonos

Beach Club

• 7.7" JL Audio M Series Speakers JL M770-CCX-CG-WH- pair
• Sonos AMP 125 W per channel- FUSION Audio to LINE IN- installed in Salon
• A/V rack
• iPort Express for Sonos

• Copier/Printer: Epson ET-3760

Flybridge Bar

• Isotherm Minifridge
• Isotherm Icemaker

Beach Club

• Isotherm Minifridge
  Main Salon Bar
• Isotherm Minifridge

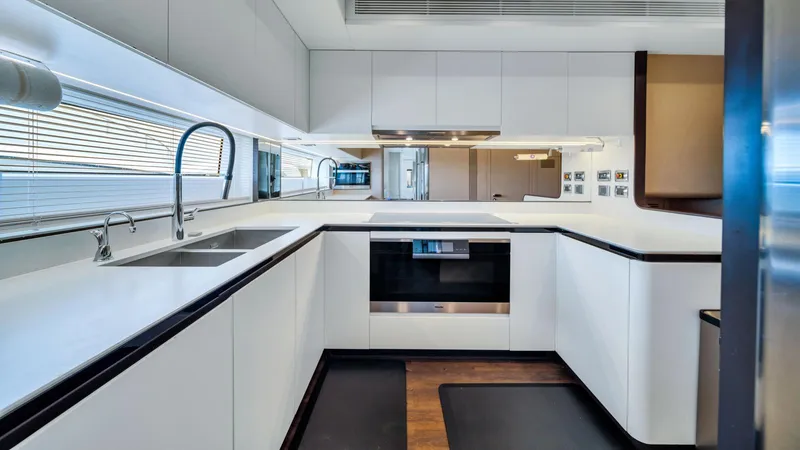

Main Galley Equipment

• Miele Cooktop & Oven
• Miele Microwave
• Two (2) GE Mabe Side-by-Side Refrigeration/Freezer
• Miele Dishwasher
• Liebherr Wine Fridge

Laundry

• 1x Miele Washer
• 1x Miele Dryer

Crew Mess

• Isotherm Fridge

• Williams Jet Tender 505

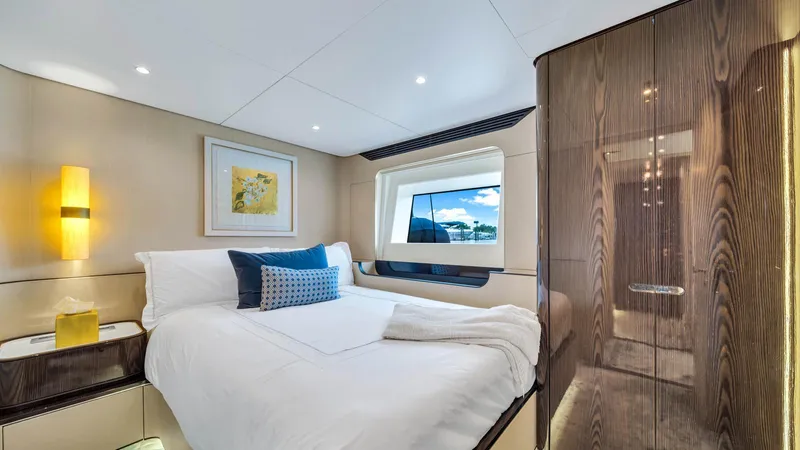

Accommodation for up to (10) guests in (5) cabins and up to (5) crew in (3) cabins.

Bridge Deck

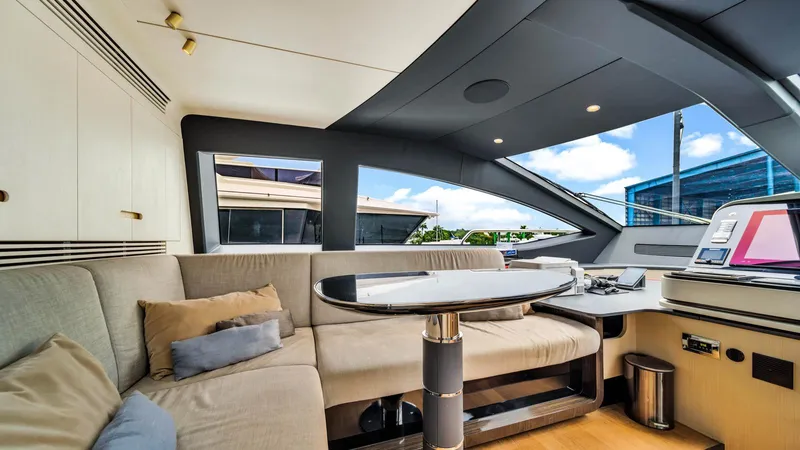

• Pilothouse
• Pilothouse Lounge with sofa & coffee table

Main Deck

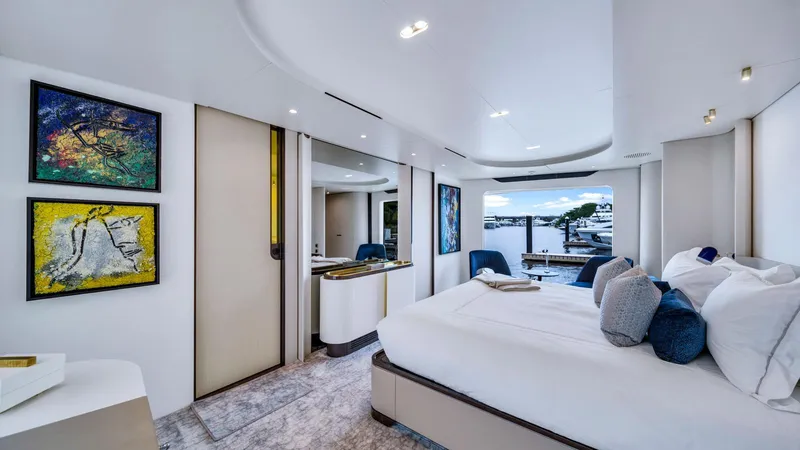

• Primary/Owner’s Cabin with King berth, nightstands, desk/vanity, desk chair, lounge area with (2) armchairs/table and private ensuite
• Powder Room
• Galley
• Pantry
• Crew Corridor
• Laundry
• Main Foyer
• Dining Area with dining table, (10) dining chairs, and cabinetry
• Main Saloon with sofa with seating for (4), (2) two-seater sofas, (2) armchairs, coffee table, and built-in cabinetry/storage
• Lower Deck - Guest Areas

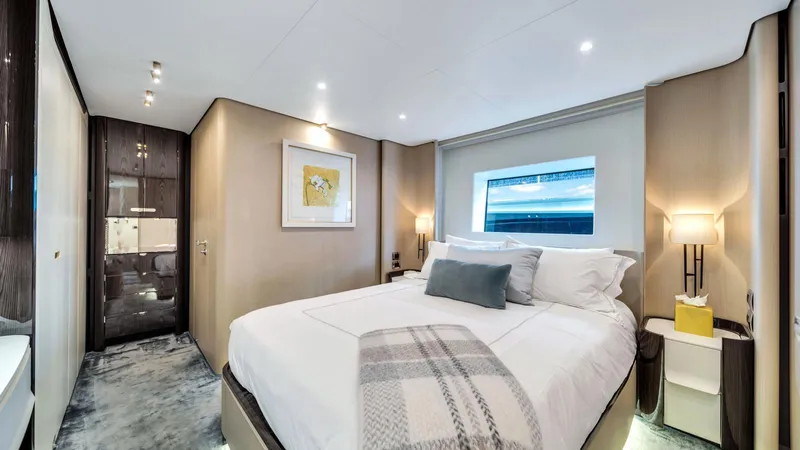

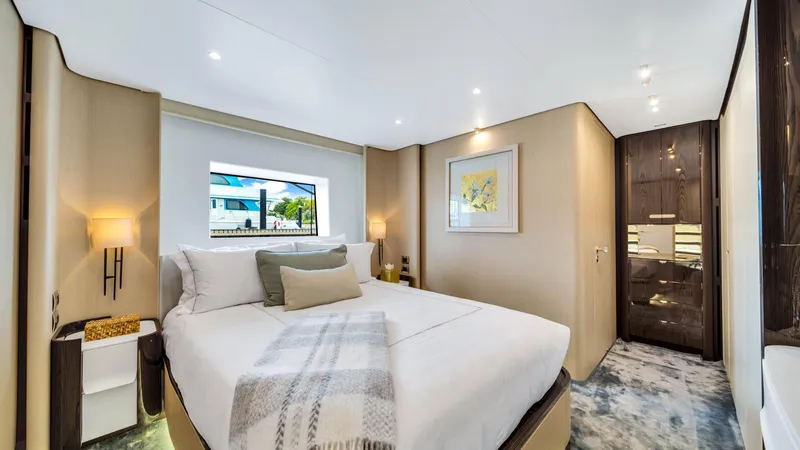

• Two (2) VIP Cabins Port & Stbd w/ Queen Berths, nightstands, desk/vanity, stool, and ensuite
• Two (2) Twin Cabins Port & Stbd w/ nightstand and ensuite
• Lobby
• Beach Club

Lower Deck - Crew

• Crew Mess
• Captain’s Cabin with Ensuite
• Two (2) Port & Stbd Twin Crew Cabins with Ensuite
