Order To Build Yacht for Sale

"PRELIMINARY LISTING. CONTENT SUBJECT TO CHANGES, OMISSIONS, OR ADDITIONS DURING PRODUCTION."

Construction

Hand-layup lamination process is employed. Hull and superstructure are laminated into female molds.

During construction process yacht is kept in clean conditions. All finished work is thoroughly protected. Particular attention is given to the covering of materials that could absorb impacts from tools, materials, and workers.

Hazards associated with the handling of composite materials is minimized.

Accommodations

The arrangement and accommodation layout shall be according to the General Arrangement plan and profile.

M120 has six Guest Stateroom including the Master’s Stateroom, two Double Guest Staterooms, two Twin Guest Staterooms, and a VIP Stateroom. Each Guest Stateroom has an en-suite Head.

She has three crew cabins with en-suite bathrooms in the aft, and a captain’s cabin with en-suite bathroom on upper deck.

Day heads is located on upper deck and main deck.

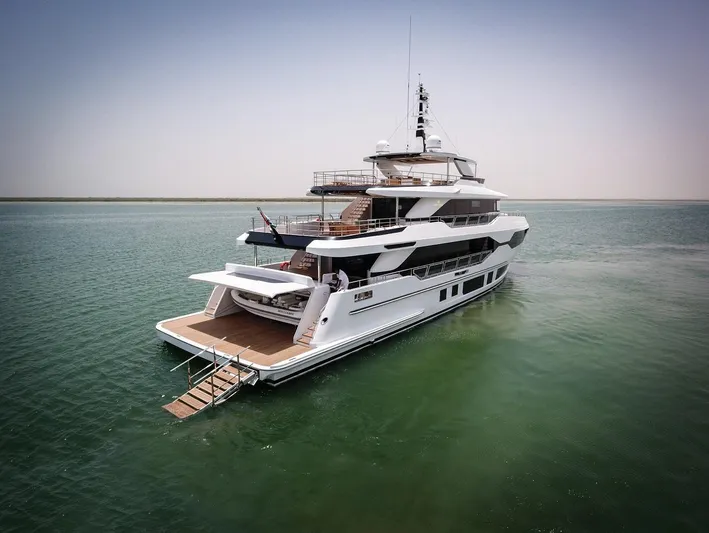

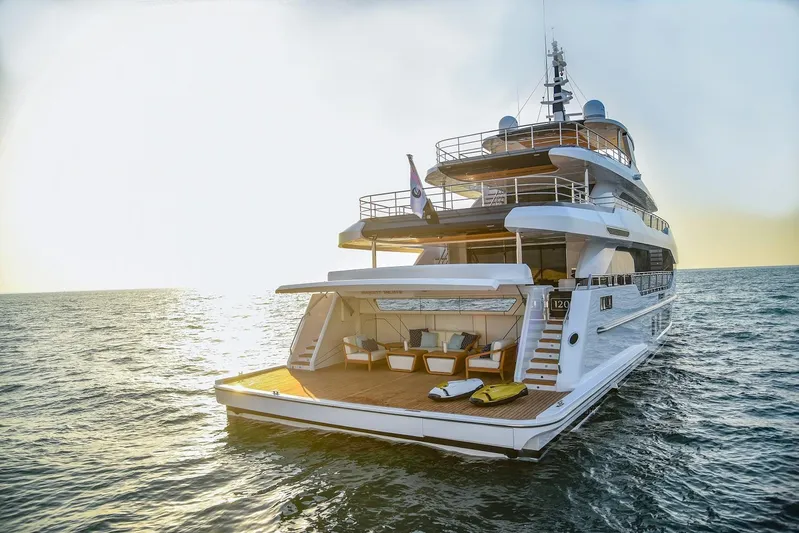

Garage and Swim Platform

Electrohydraulic crane for launching dinghy
Parking space for a 5 Meter or 16’4” dinghy
Teak decking
Electrohydraulic garage door
Two AISI 316L stainless steel pop-up cleats
Removable AISI316L stainless steel staple rails on swim platform
Swim ladder
Teak decking

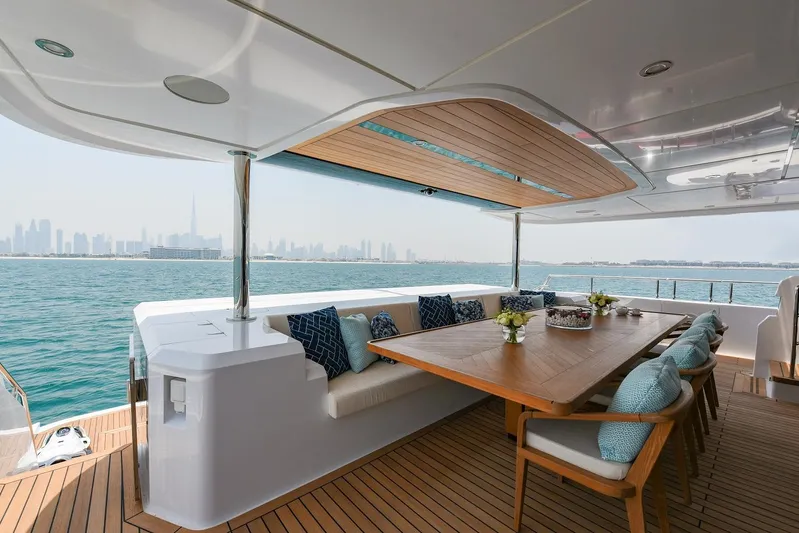

Aft Deck

AISI 316L stainless steel railings AISI 316L stainless steel deck cleats on aft
Two freeing ports
Weather tight doors to pantry and lobby
Sliding patio door
Stairway to upper deck on port
Weather tight door and stairway to crew mess and pantry on port gunnel
Counter top with washing sink on starboard
Upholstered sofa with teak dining table and four chairs
Bulwark doors on port and starboard
AISI 316L stainless steel transom doors
Teak decking
Self-draining
Four ceiling speakers by Bowers and Wilkins

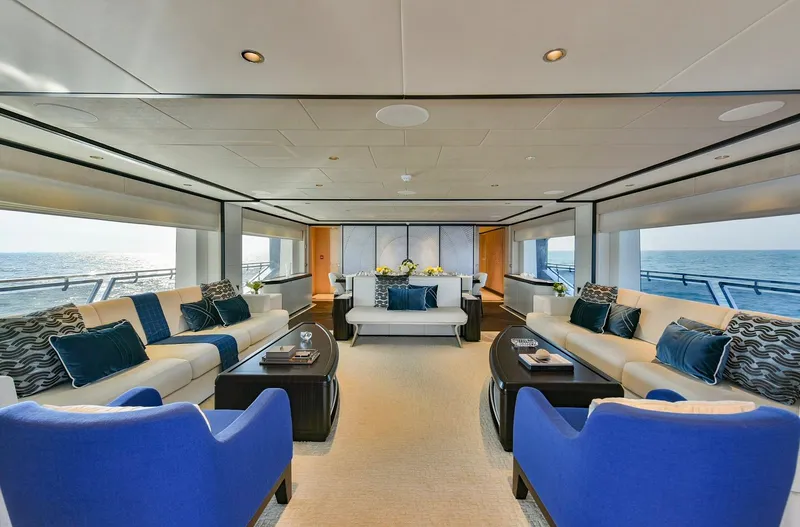

Main Salon

Two sofas with side tables
Sofa with pop-up TV lift
Two coffee tables
Two loose arm chairs
Electric roman blinds with pleated blinds
Electric curtain at the entrance
Carpeted floor under seating area
Wooden floor
Samsung 55” UHD 4K Android TV with pop-up lift
Four ceiling speakers by KEF
Satellite receiver by Humax
Apple TV 4K 32GB
Media hub

Formal Dining

Dining table with glass top and 10 persons seating capacity
Low counter tables with storage cabinets
Electric Roman blinds with pleated blinds
Sliding doors to pantry and lobby
Sliding door to China storage
Wooden floor

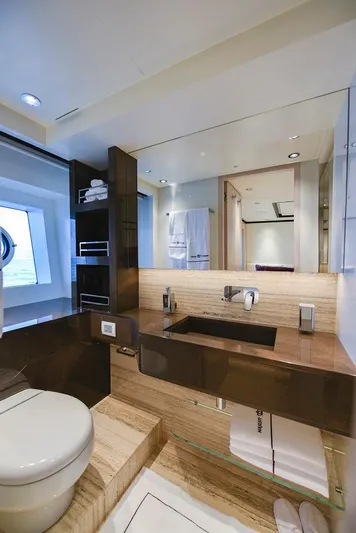

Day Head

Washbasin with mixer tap
Vanity mirror
Electric toilet
Sanitary accessories
Pleated blinds
Marble floor
Exhaust blowers

Hallway to Galley

Counter top with storage cabinets
Sliding fire rated door to main galley
Wooden floor

Galley

Counter top with twin bowl sink, mixer trap and soap dispenser
Overhead cabinets
Under counter storage cabinets
Dining table with two sofas
Three fridge-freezer combination by Miele
Refrigerator by Miele
Oven by Miele
Dishwasher by Miele
Four burner induction Hob by Miele
Cooker hood by Miele
Coffee machine by Miele
Microwave oven by Miele
Ice maker by Scotsman
Door to Laundry
Pleated blinds
Ceramic tile floor
Automatic fire dampers by C.E.M.
One ceiling speaker by KEF
Structural fire protection

Laundry Room

Washer by Miele
Dryer by Miele
Ironing stand
Storage cabinet
Resilient tile floor

Upper Deck Lobby

Door to Pilothouse
Door to day head
Electric roman and pleated blinds
Wooden floor

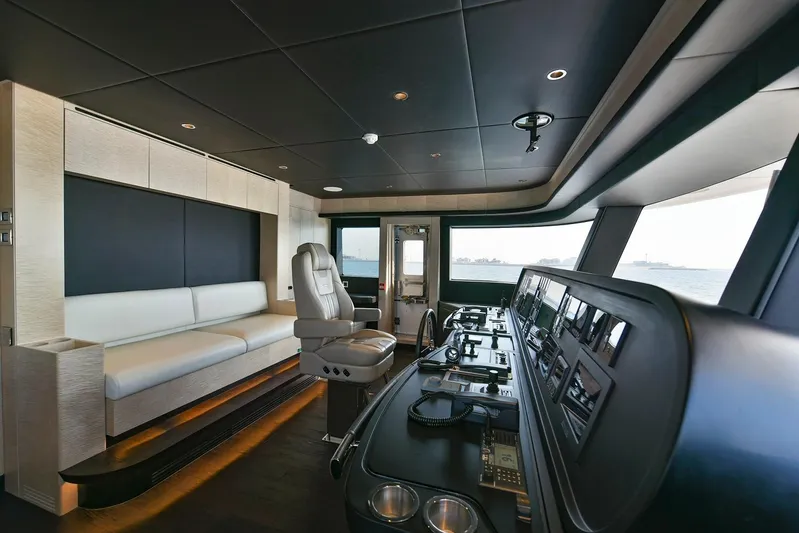

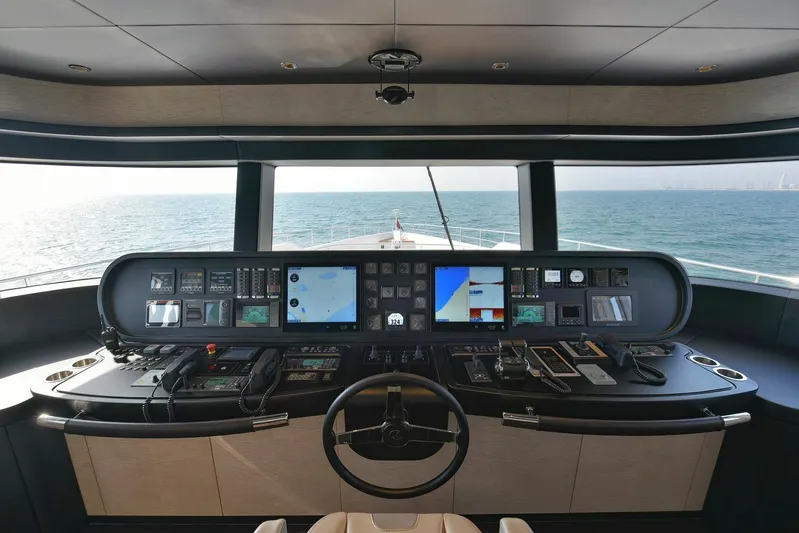

Pilothouse

Main helm station
Captain’s adjustable seat
Sofa
Working desk with chair
Door to captain’s cabin
Wooden floor
Stereo system with built-in Wifi by Fusion
Two ceiling speakers by KEF
Satellite entertainment T system TV8 by KVH. Two domes on hardtop one with the antenna and the other as a dummy
Navigation system by Furuno
Two 17” navigational displays on Pilothouse
Magnetic compass by Ritchie
Two radar scanners by Furuno
GPS system by Furuno
Automatic identification system by Furuno
Autopilot by Furuno
VHF Radio by Furuno
Night vision camera M324CS by Flir
Two echo sounders for temperature and depth measurement by Airmar
Two wind transducers integrated with instrument display on main helm station by Furuno
Lighting arrester
Doors and windows sensors integrated to the panel
Two digital chain counters
Horn Switch
Control panel
Yacht controller for remote control maneuvering of Bow thruster

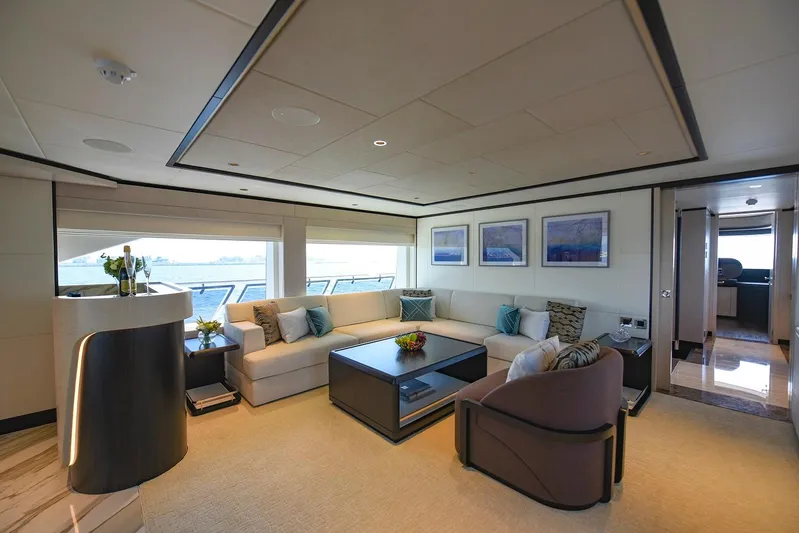

Sky Lounge

L-shaped sofa with side table
Two coffee tables
Loose arm chair
Two poufs
Wet bar with sink
Four bar stools
Under counter fridge by Miele
Sliding door to upper deck lobby
Electric Roman and pleated blinds
Carpeted floor under seating area
Wooden floor
Samsung 55” UHD 4K Android TV
Four ceiling speakers by KEF
Satellite receiver by Humax
Apple TV 4K 32GB
Media Hub

Main Lobby

Stairway to upper deck lobby
Stairway to guest lobby
Day head
Door to Owner’s Stateroom
Wooden floor

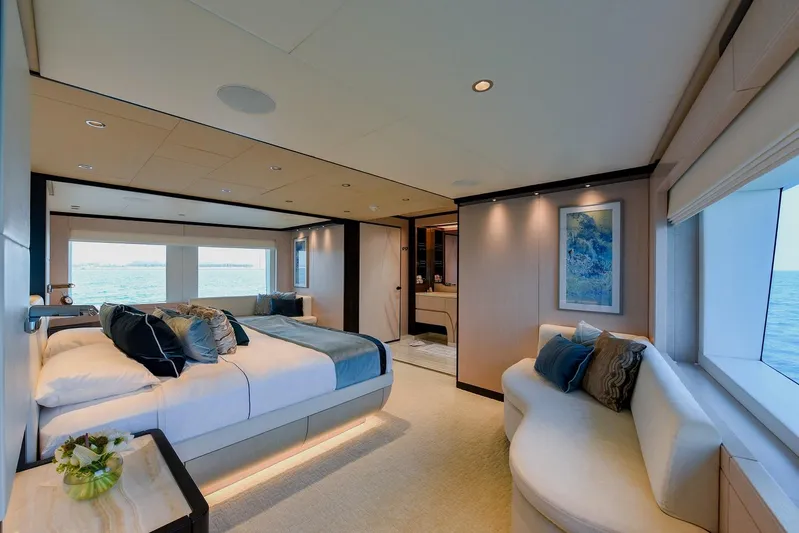

Master Stateroom

Located on Main Deck
Double bed with side tables
Sofas on port and starboard side
Under counter small fridge by Dometic
Walk-In closet
Electric Roman blinds with pleated blinds
TV counter with side cabinets
Vanity table with chair
Carpeted floor
Samsung 55” UHD 4K Android TV
Four ceiling speakers by KEF
Satellite receiver by Humax
Apple TV 4K 32GB
Media hub

Master Head (His and Hers)

Marble counter top with twin washbasins and mixer tap
Vanity Mirrors
Electric Toilet
Bidet
Sanitary accessories
Glass door to shower room
Marble floor
Shower seat
Head and handheld showers

Lower Deck Companionway

Washer / dryer by Miele
Storage cabinet
Doors to double guest, twin guest, and VIP guest stateroom
Wooden floor

Guest Lounge

L-shaped sofa
Arm chair
Desk vanity
Coffee table

Two Double Guest Stateroom

Double bed with side tables
Vanity table with chair
Wardrobe
Electric Roman blinds with pleated blinds
Carpeted floor
Samsung 32” UHD 4K Android TV
Two ceiling speakers by KEF
Satellite receiver by Humax
Apple TV 4K 32G
Media hub

Two Double Guest Heads

Marble counter top with wash basin
Vanity mirror
Electric toilet
Bidet
Sanitary Accessories
Glass door to shower room
Marble floor
Head and handheld showers
Shower seat
Marble Floor in shower
Exhaust blowers

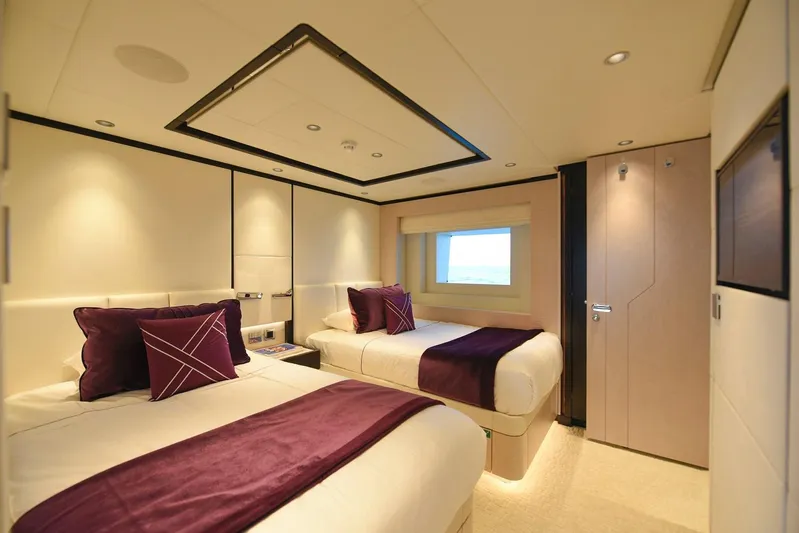

Two Twin Guest Staterooms

Two single beds with side table
One Pullman bed
Wardrobe
Electric Roman blinds with pleated blinds
Carpeted floor
Samsung 32” UHD 4K Android TV
Two ceiling speakers by KEF
Satellite receiver by Humax
Apple TV 4K 32G
Media hub

Two Twin Guest Heads

Marble Counter top with washbasin and mixer tap
Vanity mirror with storage cabinet
Electric toilet
Bidet
Sanitary accessories
Glass door to shower room
Marble floor
Head and handheld showers
Shower seat
Marble floor in shower
Exhaust blowers

VIP Guest Stateroom

Double bed with side tables
Walk-in closet
Electric Roman blinds with pleated blinds
Carpeted floor
Samsung 32” UHD 4K Android TV
Two ceiling speakers by KEF
Satellite receiver by Humax
Apple TV 4K 32G
Media hub

VIP Head

Marble counter top with washbasin and mixer tap
Vanity mirror
Electric toilet
Sanitary accessories
Marble floor
Exhaust blowers
Handheld Shower
Glass Door To Shower Room
Sanitary Accessories
Marble Floor

Captain's Cabin

Single bed with side table
Wardrobe
Roman and pleated blinds
Carpeted floor
Samsung 32” LED TV
Satellite receiver by Humax
Media hub

Crew Mess and Lounge

Corian counter top with bowl sink and mixer tap
Overhead cabinets
Under counter drawers and storage cabinets
L-shaped seat with table
Fridge-freezer combination by Miele
Microwave by Miele
Washer / Dryer by Miele
Doors to crew cabins
Watertight / Fire rated door to engine room
Resilient tile floors
One ceiling speaker by KEF

Crew Cabins

Location: Upper Deck
Two bunk beds
Wardrobe
Pleated blinds
Resilient tile floors

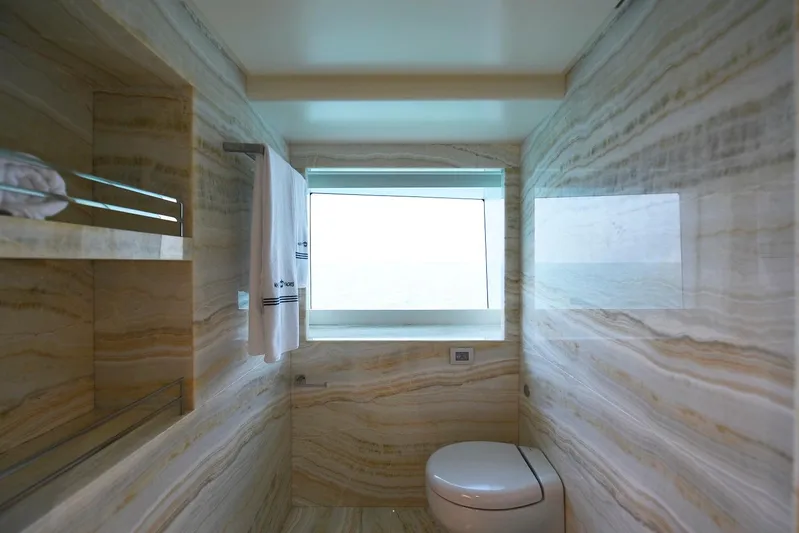

Captain's Head

Washbasin with mixer tap
Vanity mirror
Hand shower
Electric toilet
Sanitary accessories
Teak grating
Corian floor
Exhaust blowers

Crew Heads

Washbasin with mixer tap
Vanity mirror with cabinet
Electric toilet
Hand held showers
Floor with teak grating
Exhaust blowers

Engine Room

Twin MTU 16V2000M96L, 1939 kW, 2600 BHP, 2450 RPM marine diesel engines
Twin reverse reduction gearbox by ZF
Twin propellers
Electric fin stabilizers with servo control unit
Exhaust and ventilation reversible fans with fire dampers by C.E.M.
Automatic fire dampers by C.E.M.
Master station with five lines connected to substations and emergency steering by Zenitel
Structural fire protection
6,430 US gallons (24,340 liters) FRP fuel tanks with interconnection and fuel transfer system
Main AC fuel transfer pump by C.E.M.
Emergency DC fuel transfer pump by C.E.M.
Deck fillers inside recessed lockers on main deck side gunwale
Fuel polishing system by AXI connected to the fuel transfer system
AISI 316L stainless steel fuel transfer manifold
Zinc anodes
Copper plates

Flybridge

AISI 316L stainless steel railingsRail track for cleaning
Sunbed with safety railing
Upholstered sofa with two teak dining tables
Pantograph doors to wheel house on port and starboard
Stairway to sundeck on aft port side
Sliding patio door
Service counter on starboard
One 3-seater sofa + end table
Two 1-seater + coffee table
Teak decking
Self-draining

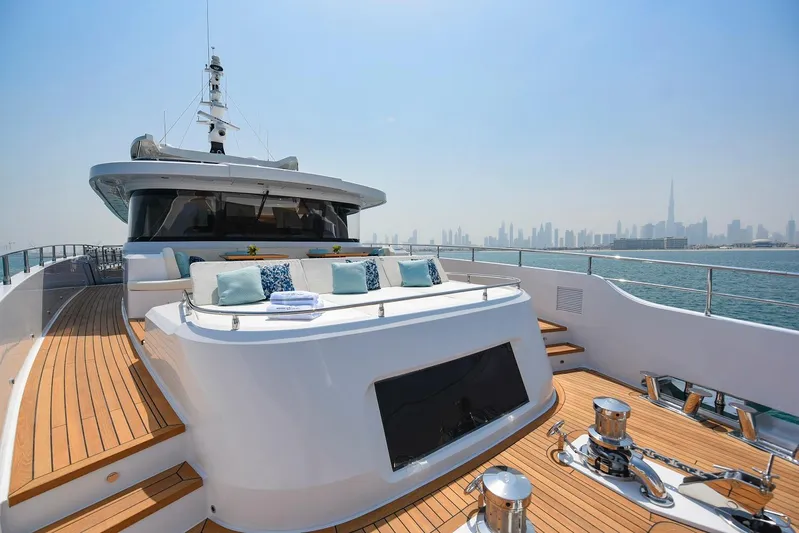

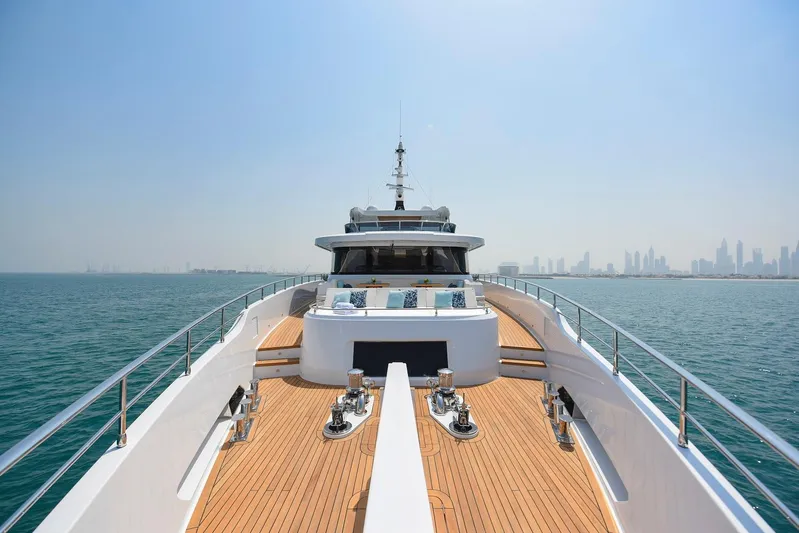

Fore Deck

AISI 316L stainless steel railings
Flag Post
Four AISI 316L stainless steel deck cleats
Two AISI 316L fairleads with rollers
Two freeing ports
Watertight hatches for garbage and anchor chain compartments
Teak decking
Self-Draining
Four on-wall speakers by Bowers and Wilkins
Four ceiling speakers by Bowers & Wilkins

Sundeck

AISI 316L stainless steel railings
L-Shaped upholstered sofa with coffee table
Wet bar with sink
BBQ grill
Under counter fridge by Vitrifrigo
Ice maker by Vitrifrigo
Four bar stools with AISI 316L stainless steel bases
Jacuzzi
Sun Bed with retractable roof
Three sun loungers
Warm white exterior lights by Cantalupi
Teak decking
Self-draining
Two ceiling speakers by Bowers & Wilkins

Electrical Equipment and System

Line voltage: 230V-400V AC 3~phase generators with load distribution
Dockside cable master system by
Glendinning
Main switch board (400V, 3~phase, 50Hz)
Galvanic isolator by Dei Marine
Four 16A smart battery chargers by Victron Energy for charging engine and generator batteries
Two 80A battery chargers by Victron for charging service and machinery batteries
One 30A battery charger by Victron Energy for charging emergency batteries
Four 12V, 200AH batteries for engines by Exide
Four 12V, 100AH batteries for service and machinery by Exide
Four 12V, 100AH batteries for generators by Exide
Two 12V, 200AH batteries for emergency by Exide
All accommodation and machinery spaces have 230V AC power outlets by Vimar
Electric steering system by CMC Marine
Electric bow thruster with 830 kg thrust and 52kW electric motor by CMC Marine

Systems

A/C System:

Two air conditioning chillers with the total cooling capacity of 384,000 BTU/hr by Climma
Fresh air system with two fresh air makeup units of 45000 BTU/hr each by Climma
Two sea water pumps by Calpeda
Two chilled water pumps by Calpeda
Air handler units with capacities ranging from 7,000 to 24,000 BTU/hr by Climma
Two self-contained air handler units in the engine room by Climma
One self-contained air handler unit in Garage Room by Climma
One self-contained handler units in Rudder room by Climma
One self-contained air handler unit in A/V system room by Climma

Lube Oil System:

Two 75 US gallons FRP clean and dirty lube oil tanks
Main AC lube oil pump by C.E.M.
Emergency manual lube oil pump by C.E.M.
AISI 316L stainless steel lube oil manifold

Fresh Water System:

1075 US gallons FRP fresh water tank
Two fresh water AC pumps and an emergency DC pump by C.E.M.
Two 200 liters water heaters by Quick
Two hot water circulation pumps by C.E.M.
Two water makers with 140 liters/hour production capacity by HP with sea water intake pumps
Deck wash connections in garage, main deck, upper deck, fore deck and sun deck.
Transom shower with hot and cold water mixer
Dock connection for fresh water supply with pressure regulator
Fresh water piping is polybutylene

Grey Water System:

260 US gallons FRP forward grey water tank
Deck out for overboard discharge to port/marina
Black and grey pumps interconnection
Polished AISI 316L stainless steel scuppers on all decks
Grey water system piping is uPVC and AISI 316L stainless steel

Black Water System:

260 US gallons FRP forward black water tank
Deck out for overboard discharge to port/marina
Black water system piping is uPVC and AISI 316L stainless steel
Sewage treatment plant with treating capacity of 3500 liters/day by Selmar
Electric toilets by Tecma

Bilge System:

Bilge suction strainers
Main bilge pump connected to the fire and bilge manifold
High water bilge alarm panel in the Pilothouse. The alarms are audible and visual
Bilge system piping is AISI 316L stainless steel

Safety and Fire Protection Systems

Alarm and Monitoring System:

Alarm and monitoring system automation system for monitoring and controlling the yacht.

Tank level, pumps start and stop, general alarm, fire alarm, power failure, engines exhaust gas temp., batteries power management, navigation lights control and monitoring, bilge alarm monitoring, garage gas detectors and hatches and doors open/close monitoring is integrated.

Fire Detection and Fire Alarm System:

Fire Alarm panel by Catef Marine
Smoke detectors by Apollo
Heat detectors by Apollo
Call point by Tyco
Fire bells by Thorn Security
Warning light by Sunbeam

Fire Appliances:

FM-200 fixed dire extinguishing system by Fire Boy
Main fire pump by C.E.M., interconnected to the Fire and Bilge manifold
Emergency diesel pump by C.E.M.
02Kg dry powder fire extinguishers by Firex
06Kg dry powder fire extinguishers by Firex
Five fire hydrant supply points are provided with fire hose reel of 20M with jet spray nozzle on upper deck forward and aft, main deck aft, main deck lobby, guest lobby, and engine room
Sprinkler system and petrol fume detection system in garage
International shore connection with isolation valve and fire hydrant
Fire control plan for the guidance of the Master and Crew of the yacht

Life Saving Appliances and Means of Escape:

Four life rafts each with 10 persons capacity by Ocean Safety
Inflatable life jackets with light and whistle (23 adults and 4 children) by Vikings
Two lifebuoys with light and smoke
Two lifebuoys with line
Two lifebuoys with light
One set of line throwing appliances by Pains Wessex
Six rocket parachute flares
Emergency position indicating radio beacon by Mcmurdo
Search and rescue transponder by Mcmurdo
Two fireman’s outfit by Flameguard
Two breathing apparatus by Scott
Grab bag
First aid kit
Two fire blankets

Camera Monitoring System

CCTV camera monitoring system with dome cameras by HIK vision at the following locations:

Sundeck
Aft cockpit
Gunnel port and starboard
Engine room forward and aft

Light Systems

Navigation Lights:

Following navigation lights by Lopolight are installed:

Masthead light
Port light
Starboard light
Stern light
Anchor light
Not under command lights

Emergency Lighting:

24V DC emergency lights

Flood Lights:

Two flood lights on hardtop aft by Lumitec
Two flood lights on sundeck aft by Lumitec
Two flood lights on upper deck aft by Lumitec
Two flood lights on the foredeck flag post by Lumitec

Underwater Lights:

Twelve LED white underwater lights by Ultimate Limited

Sound and Networking Equipment:

Gateway router by Peplink Networking switch device by Cisco
Indoor and outdoor access points
Storage device with four 2TB hard drives by QNAP
HDMI splitter by Aten
HDMI extender by WyreStrom
Amplifier by Bang and Olufsen
Sonos connect in all accommodation areas
Audio switcher by Shinybow
Apple iPad mini4 32GB

Anchor and Mooring Equipment

Twin electric vertical windlasses AISI 316L stainless steel 400VAC with chain length measurement display by Data hydrolik
Two 152Kg SHHP Pool TW type anchors with 122m/ea. Length and 16mm diameter stud link chain
Pressure washing of chain by fresh water outlet
Twin electric 24V DC AISI 316L stainless steel 400VAC 3kW captans with foot switches by Data hydrolik
Mooring lines 3 nos. 70m length/each with eye at one end
Compressed air horn with chrome finish on hardtop by Kahlenberg
Air compressor and air tank for the horn and compressed air supply points by JUN Air
Retractable boat hooks
Eight fenders F6, 11” x 42” by Polyform
Eight fenders ties, 4.5 meter, 10mm 3 strand, white
Tool kit
Portable hose reel
Two deck wash connectors
Exterior protection covers for sofas, windows, and windshield
Owner’s manual with maintenance schedule
Engines, machinery and equipment manuals
Forward search light by Francis

Majesty 120 Options

The options selected from the below list and any additional requirement shall be considered as a variation and upon confirmation shall become a part of Work Order:
