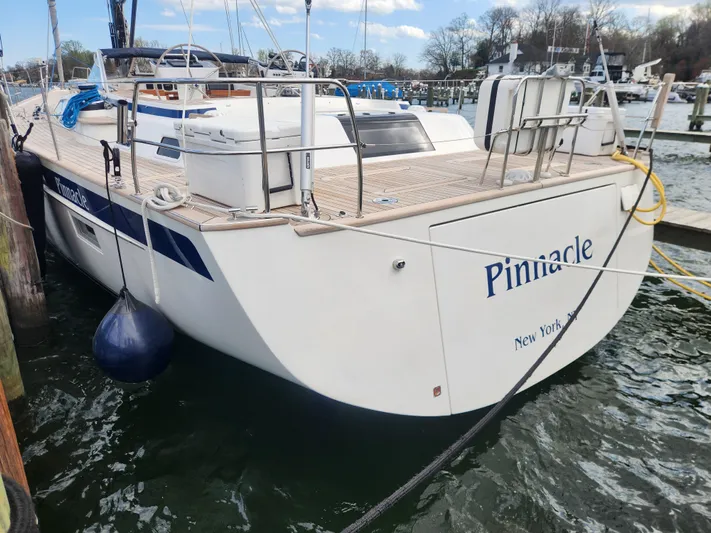

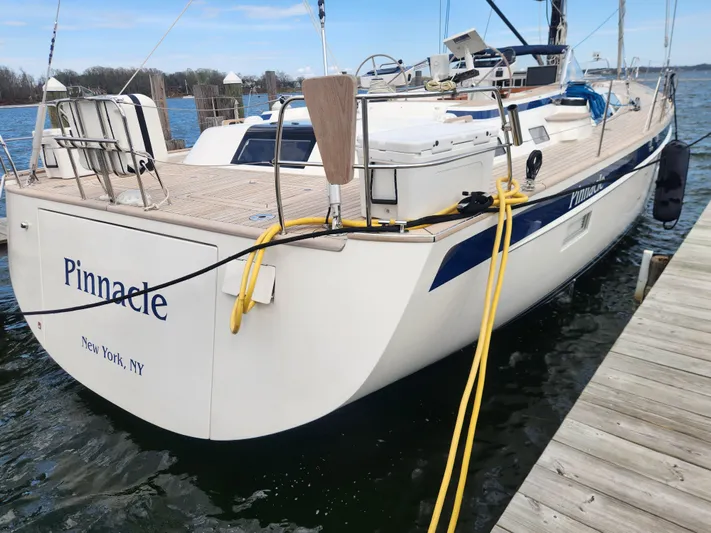

PINNACLE Boat for Sale

Accommodations Overview: One level sole throughout the boat. Linear galley to port, two saloon sofas, double size centre berth in the aft cabin with a sofa on each side and a vanity table. All interior woodwork in light mahogany matt silk finish with horizontal grain. Flat locker doors, invisible hinges and ventilation above. Floor is varnished wood with inlaid holly strips. Saloon and aft cabin ceiling have paneling with mahogany strips and ceilings in remainder of boat has light lining. Cushions on all berths 12 cm / 5’’ thick and resting on unvarnished, well-ventilated boards to avoid condensation. Handholds are in all the right positions.

• Beige Carpet throughout
• Deluxe upholstery in dark blue with piping
• Lighting packages include under lockers, red night lights and reading lights

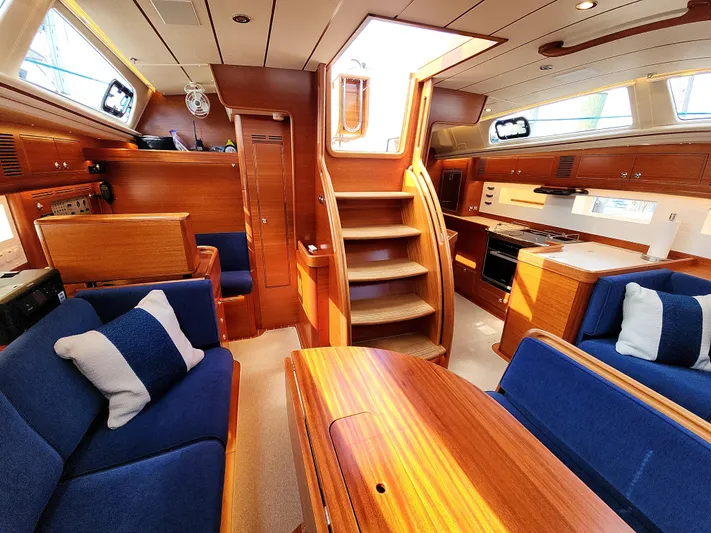

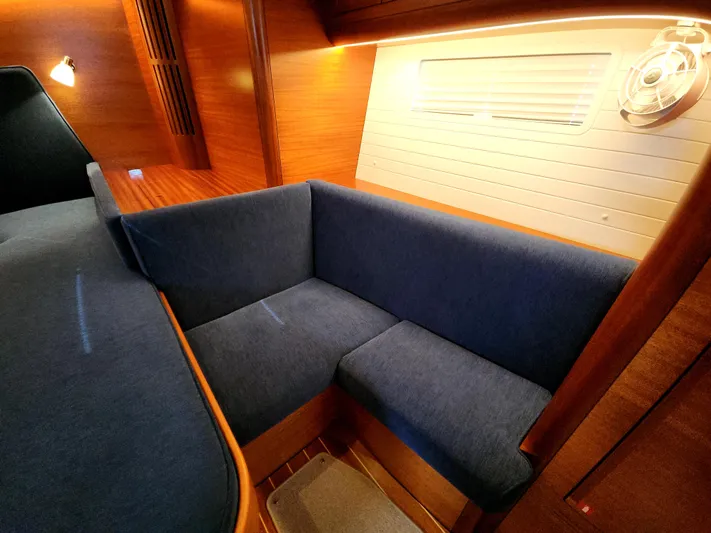

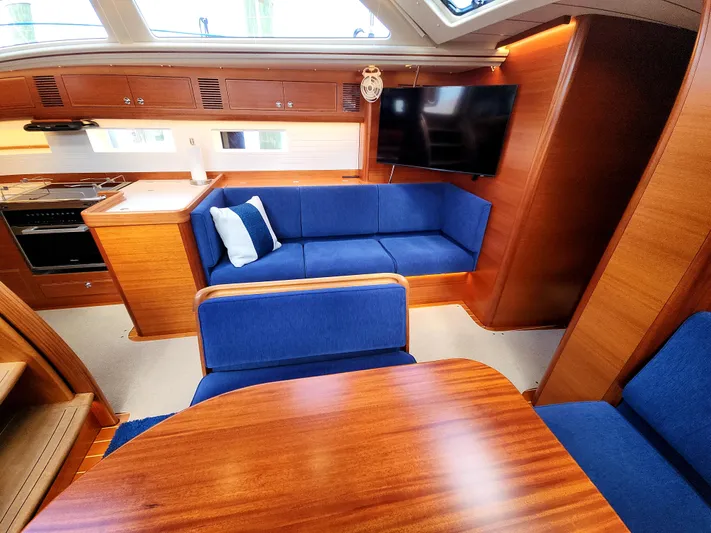

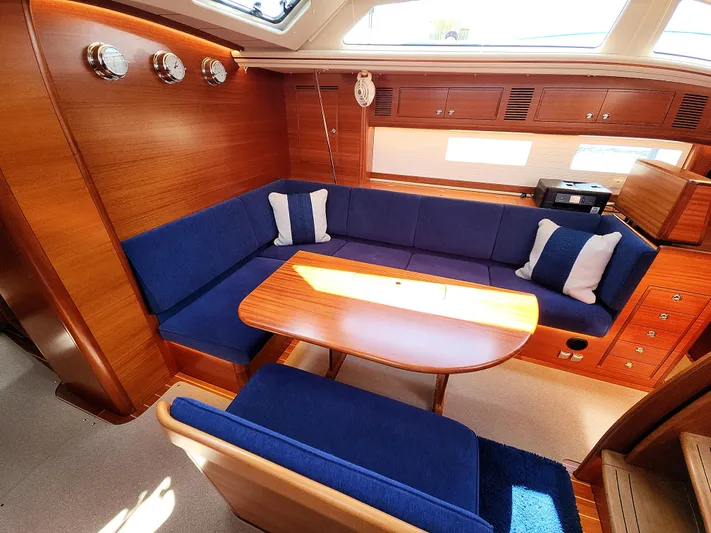

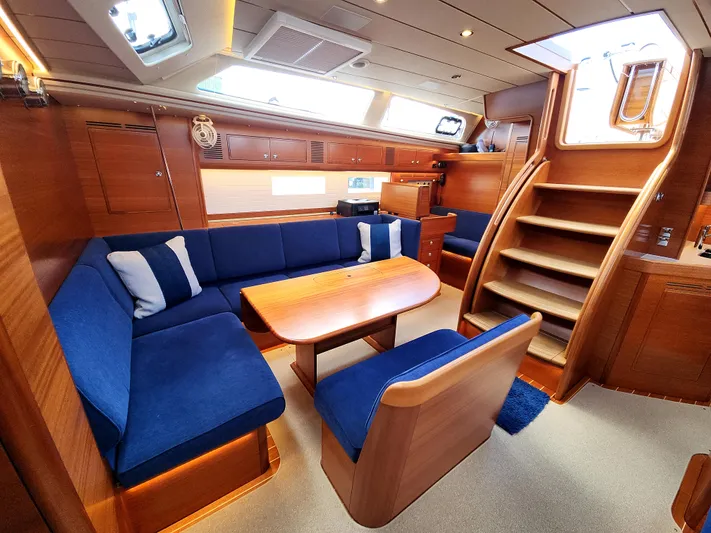

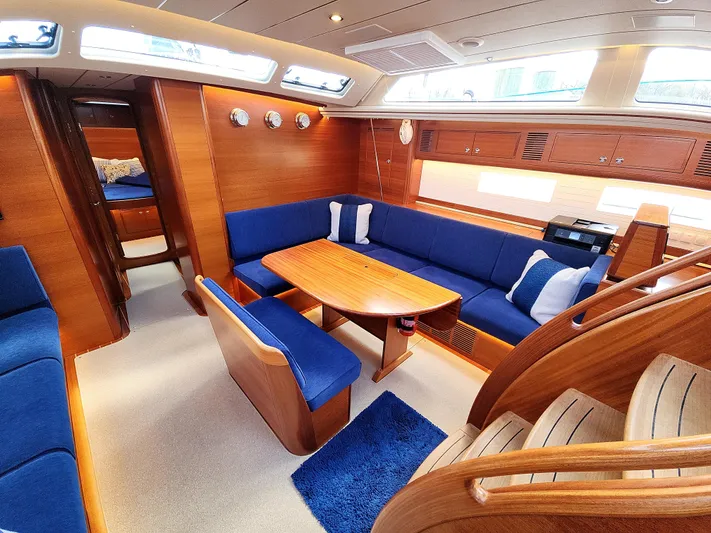

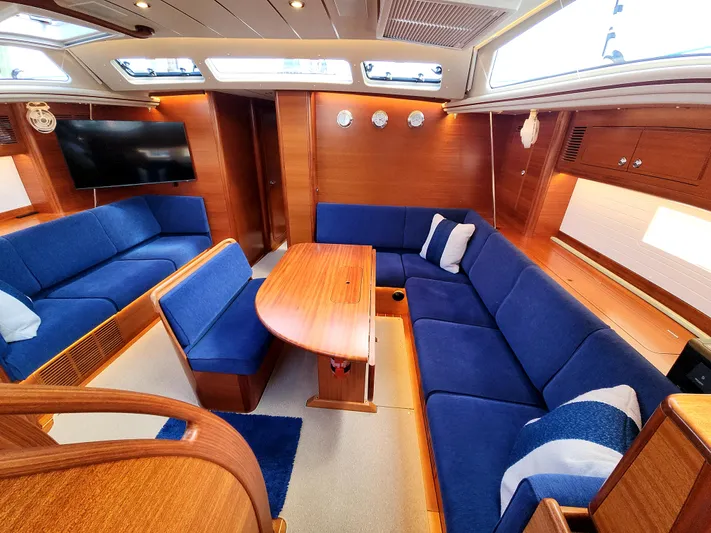

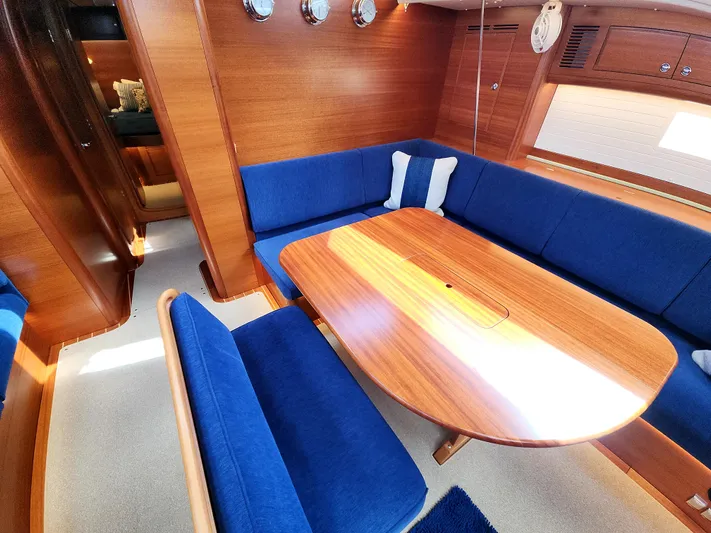

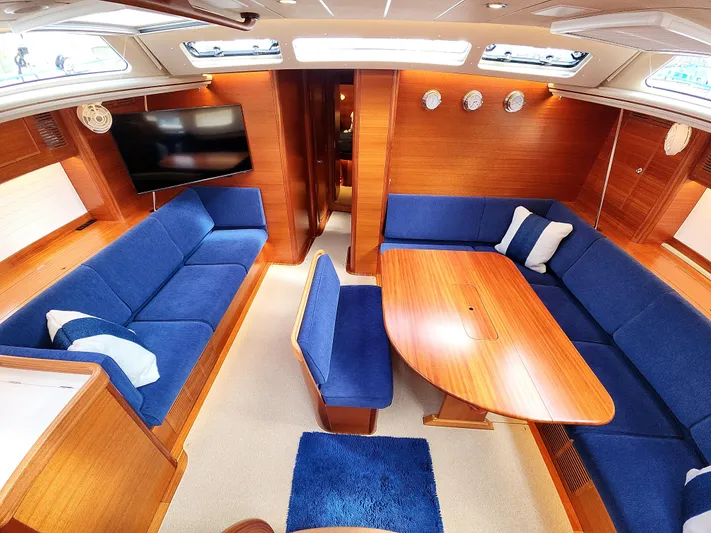

Saloon:  The settee offers comfortable seating. On the starboard side a 2.48 / 8’ 2’’ long L-sofa that has backrests with hinges so that the space behind can be utilised as storage. On port side 2.10 m 6’ 11’ long settee. The backrests can be lifted to reveal additional storage. Between the settees a strong table with foldable sides.

• Bar in the table.
• Cork on the underside of the table/bar lid.
• Wine cellar under the floor
• 2 Leecloths in saloon sofas
• Wempe Corum clock
• Wempe Barometer
• Wempe Comfortmeter
• Mini safe
• 10 24V fans throughout for addied ventilation
• Headroom in saloon 2.16 m / 7’ 1’’.
• TV on the portside

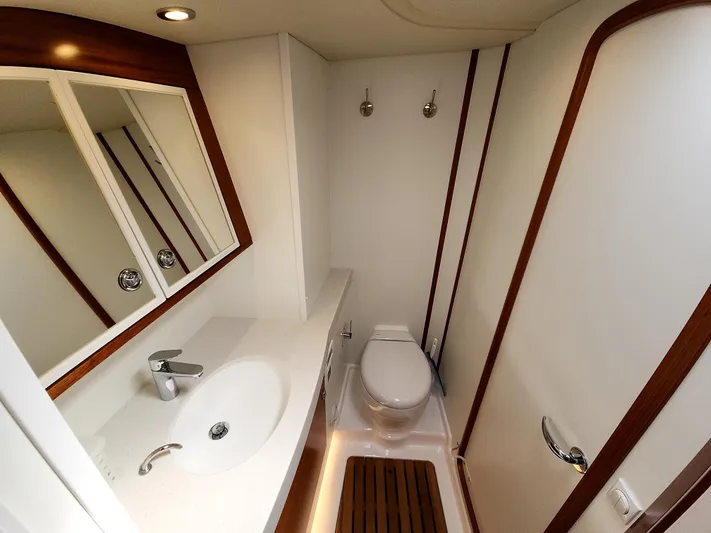

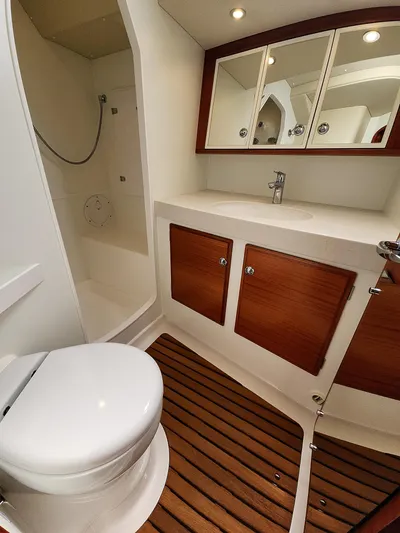

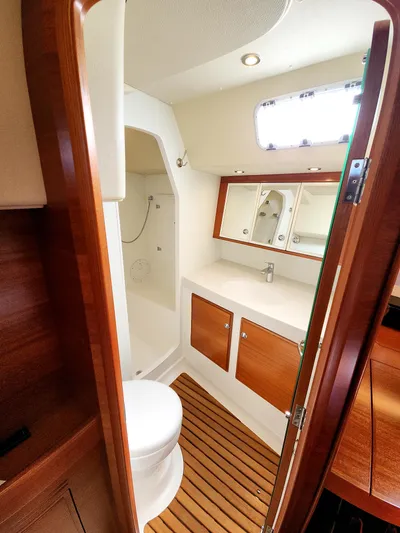

Forward Head Compartment: Bulkheads and lockers in white formica.

• Teak grating
• Corian wash basin and Corian countertops
• Large mirror

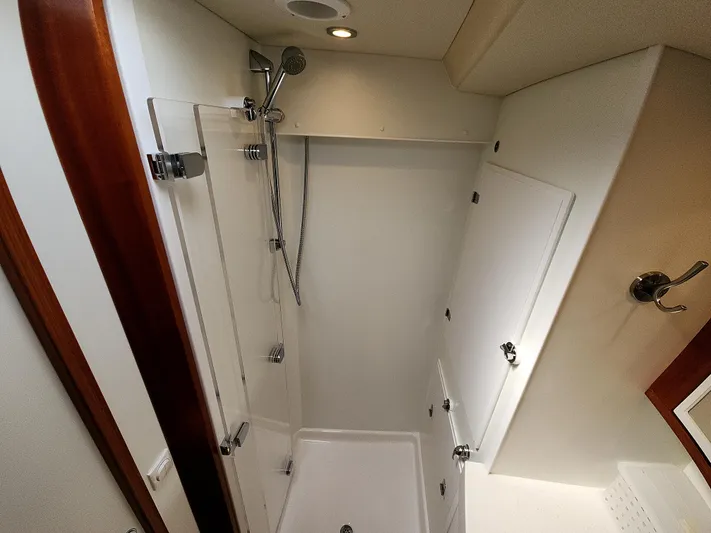

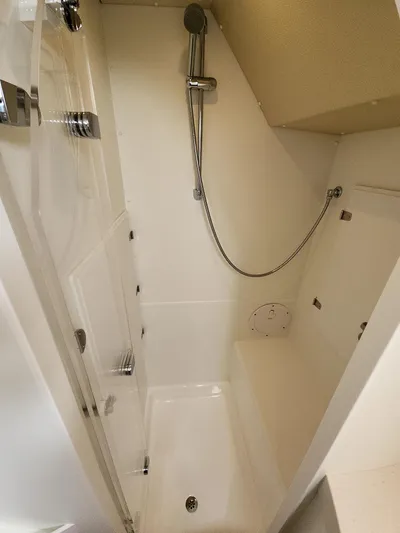

• Separate shower with watertight shower stall, acrylic glass doors.
• Shower water drained by pump directly overboard without going into bilges.
• Hand switch for shower pump
• Cupboard above and below washbasin
• 24V electric toilet- Fresh water flush
• Globius tank monitor for holding tank
• Ventilation through opening porthole and hatch.

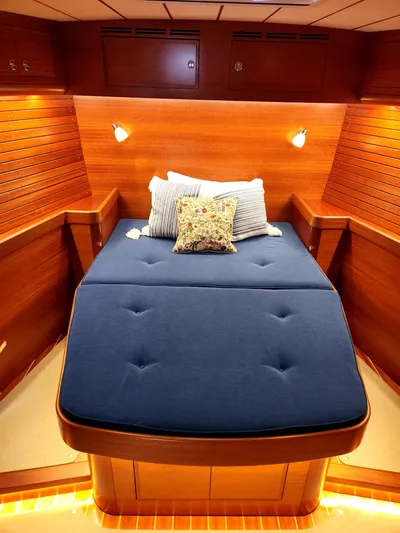

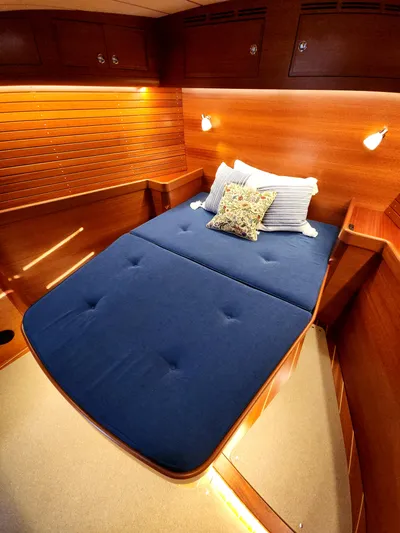

Forward Cabin: The door to the forward cabin has been arranged in such a way to allow free movement for dressing.

• Centerline queen/double berth with ample stowage above and below and two additional hanging lockers.

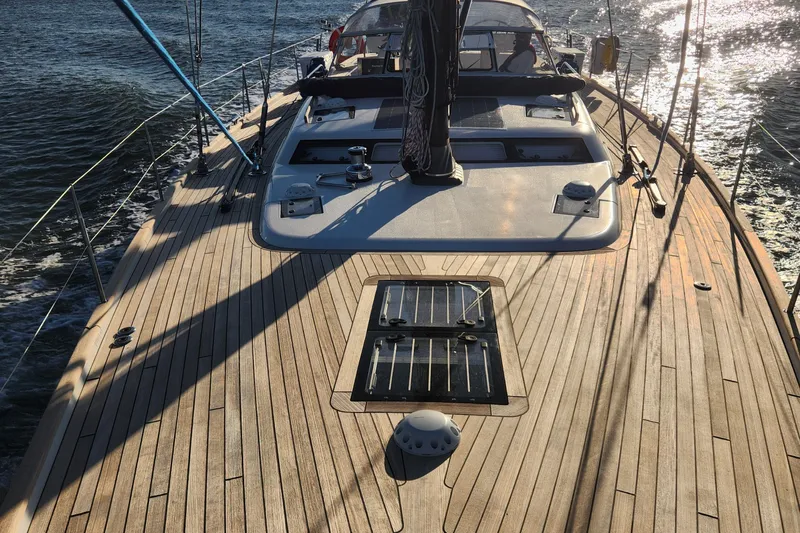

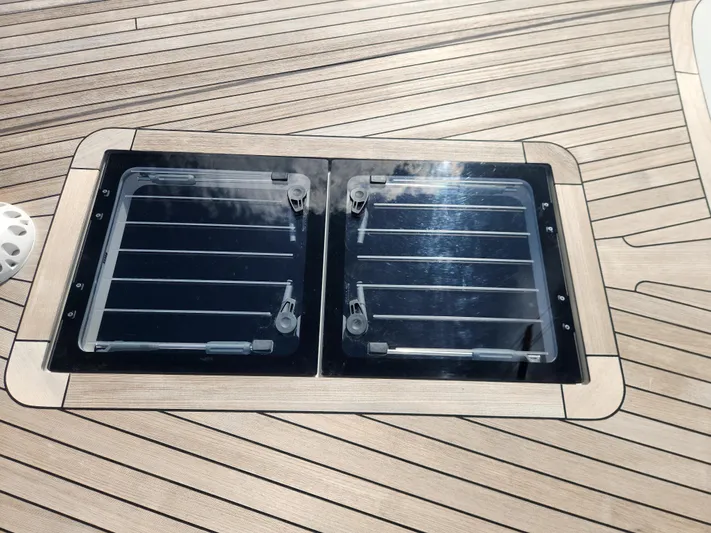

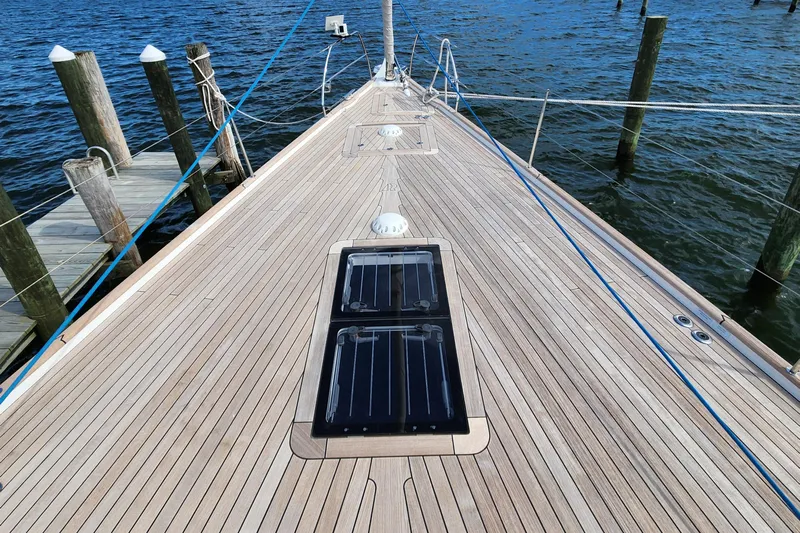

• Two large deck hatches for light, ventilation and access for sails.
• Blackout package shades for hatch
•  Automatic vent on fore deck.
• Blackout shade package on hatch
• Additional mattress topper
• TV

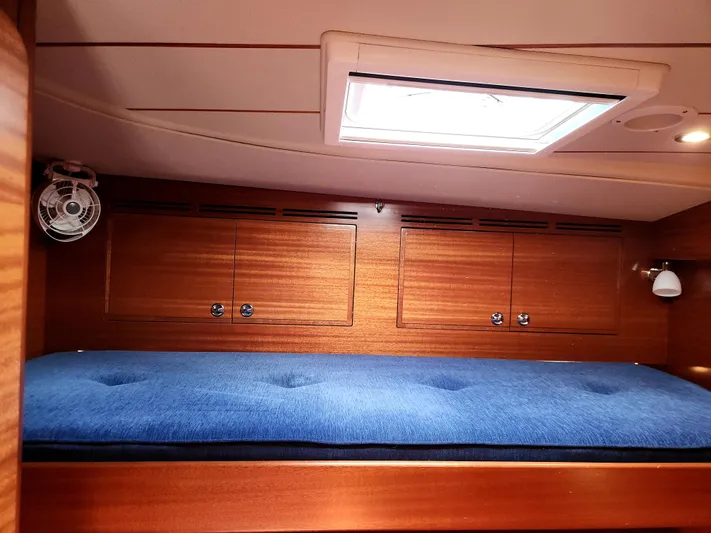

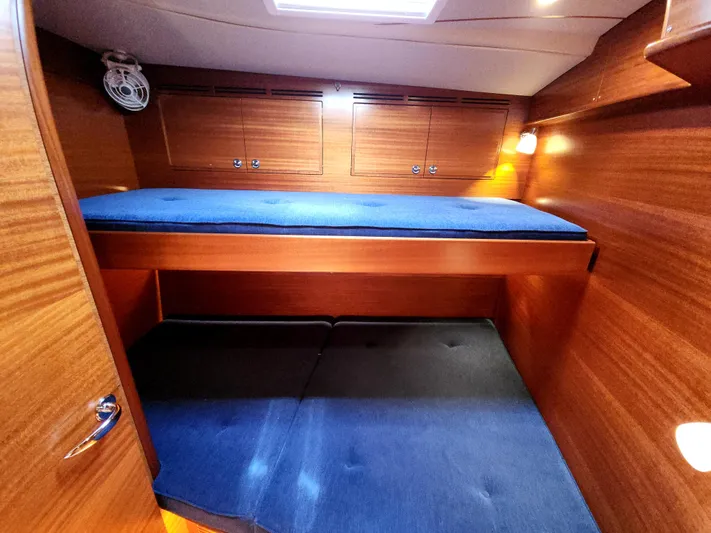

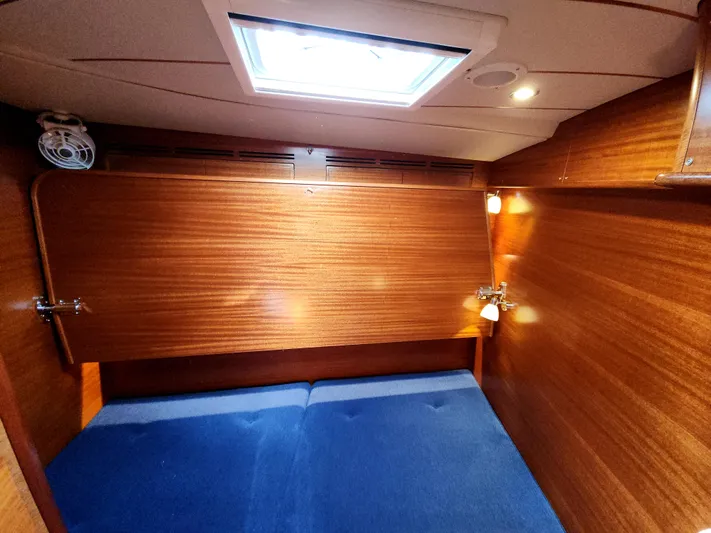

Starboard side cabin: Pullman berth over standard berth cabin. Good elbow space.

• Vanity, several lockers
• Hanging locker
• Blackout shade package on hatch
• Mattress topper

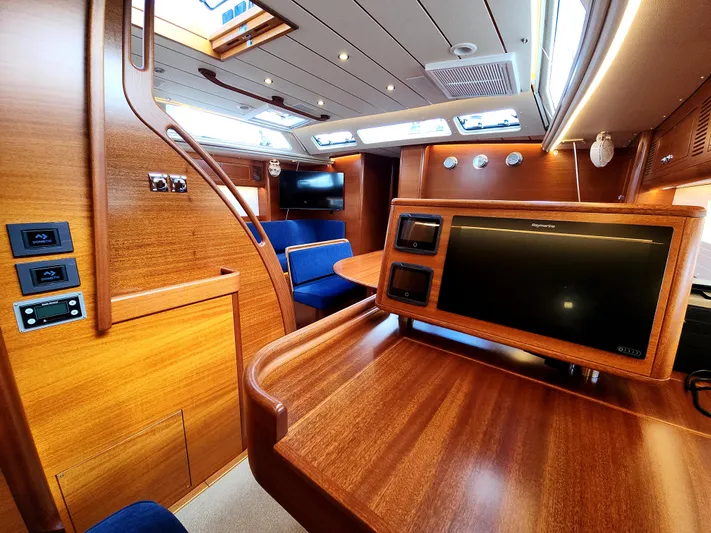

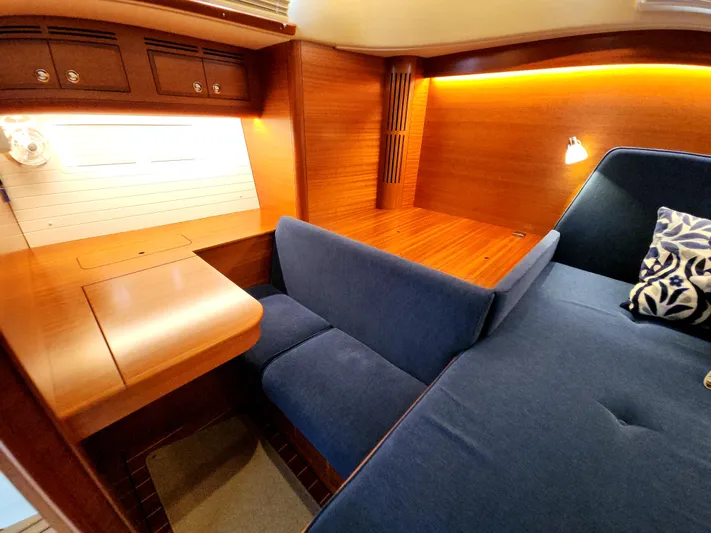

Nav Station/Work table and Walkthrough:  A comfortable work table seat with spacious table to port. Drawers, stowage slots and a wet locker. There is a larger rubber sealed door access to the walk-in engine room off the walkthrough. Good headroom 2.05 m/6’ 9’’ in the walkthrough thanks to use of cockpit coaming for headroom. Red Night light

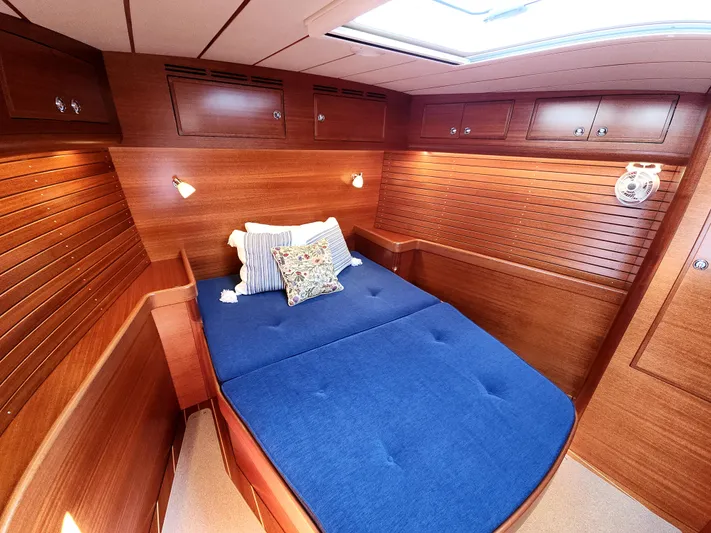

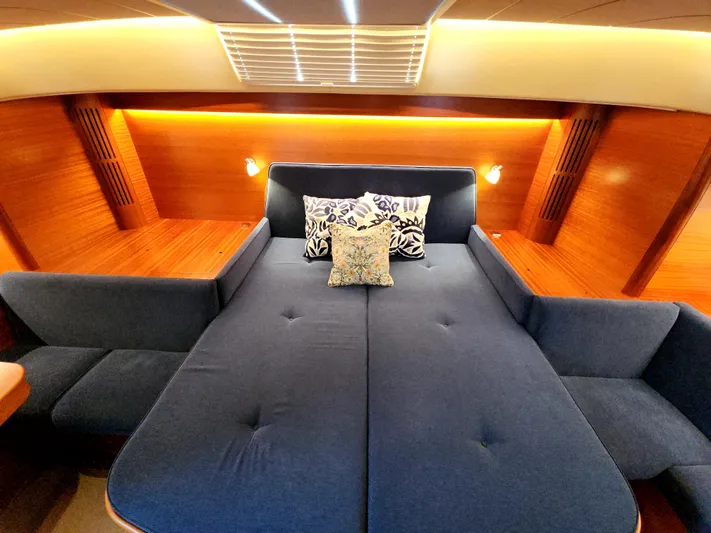

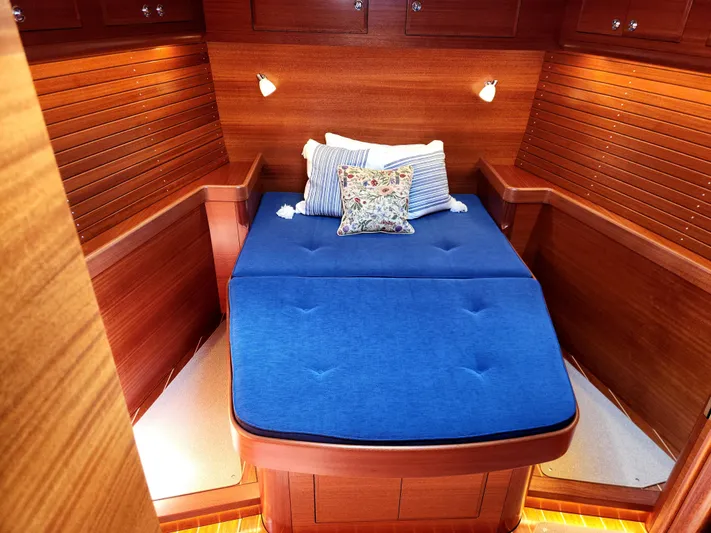

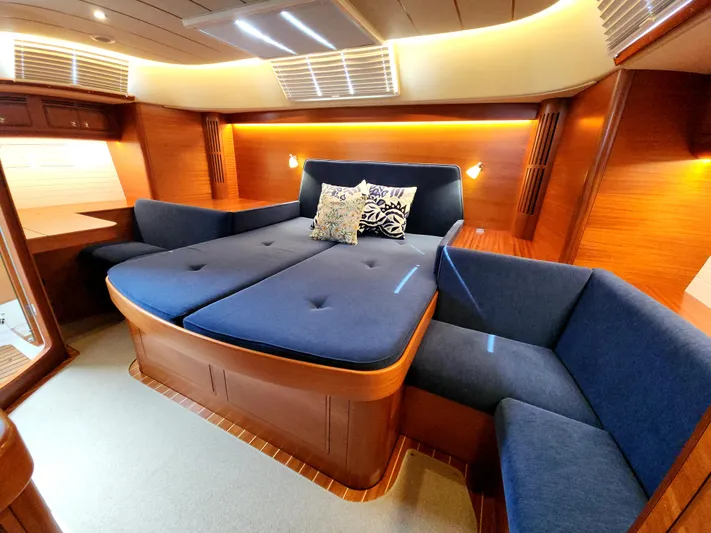

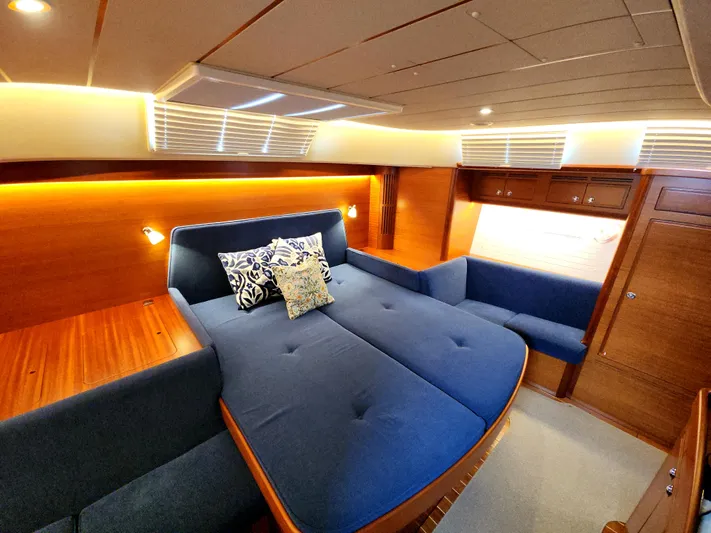

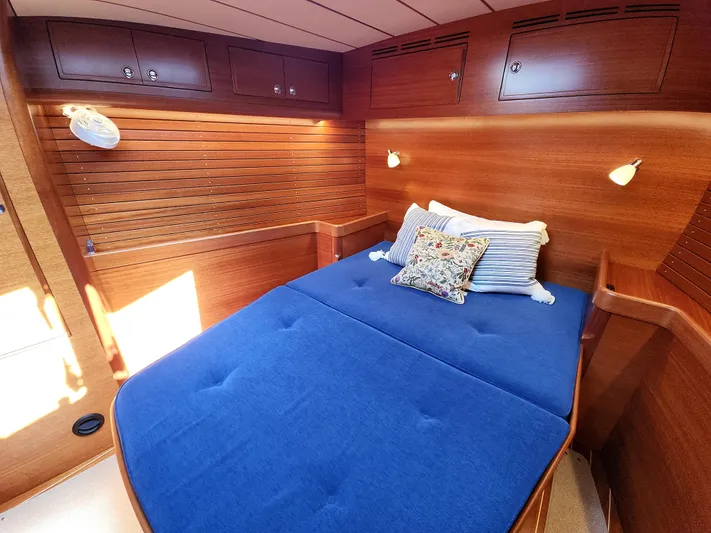

Aft Cabin : Aft cabin has a generous hanging locker and double centreline berth.

• Additional drawers under centre berth.
• 2 full height mirrors on door to cabin - one facing into cabin, one facing towards walkthrough.
• A seat on each side, with vanity table.
• Mattress Topper
• Fabric covered headboard
• Blackout Skyscreen
• TV

Aft Heads: Bulkheads and lockers in white formica.

• Teak grating
• Corian wash basin
• Corian countertops and two large mirrors
• Separate shower with watertight shower stall, acrylic glass doors
• Cupboard above and below washbasin
• 24V electric flush toilets with fresh water flush
• Globius tank monitor for holding tank
• Ventilation through opening porthole

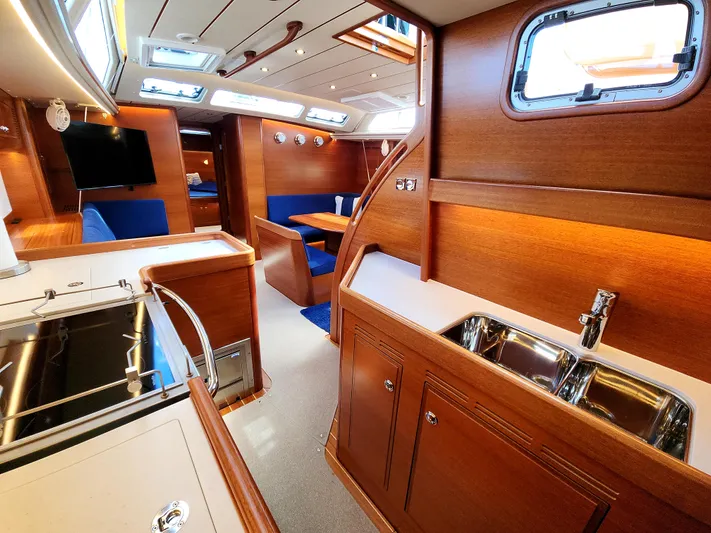

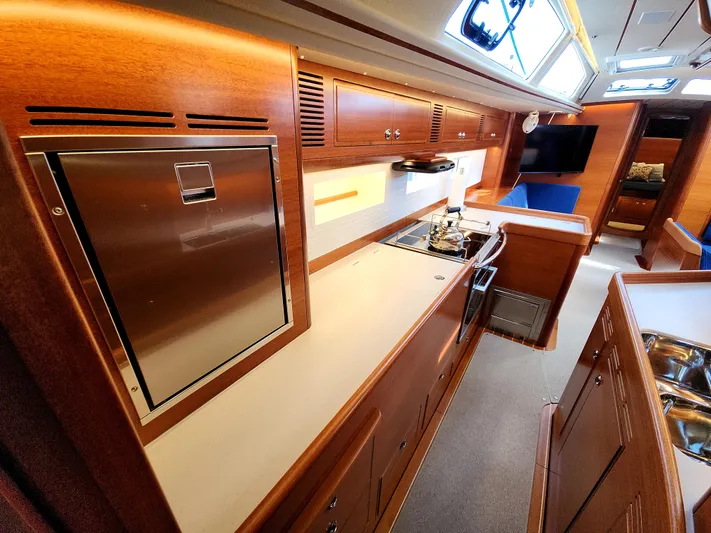

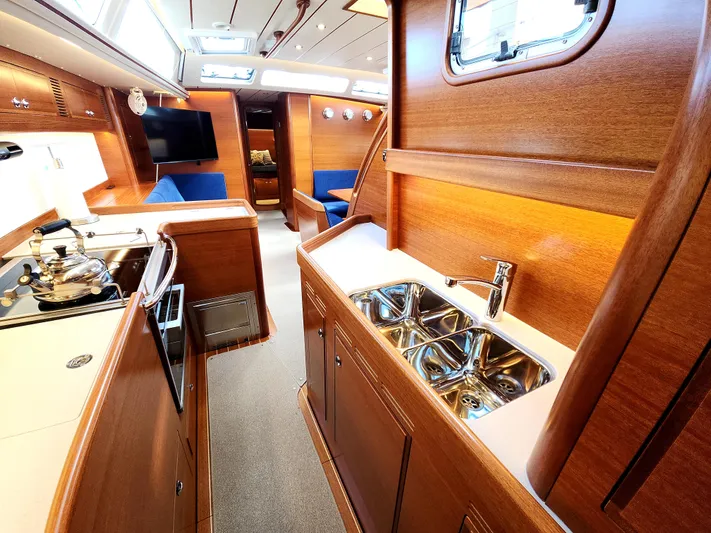

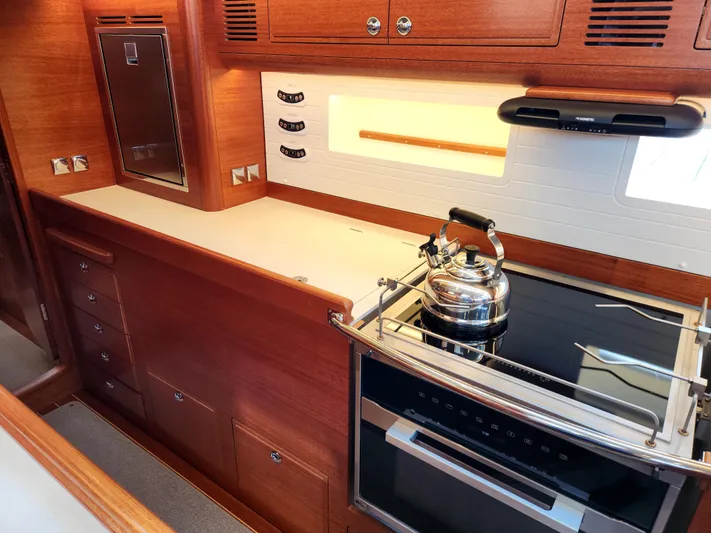

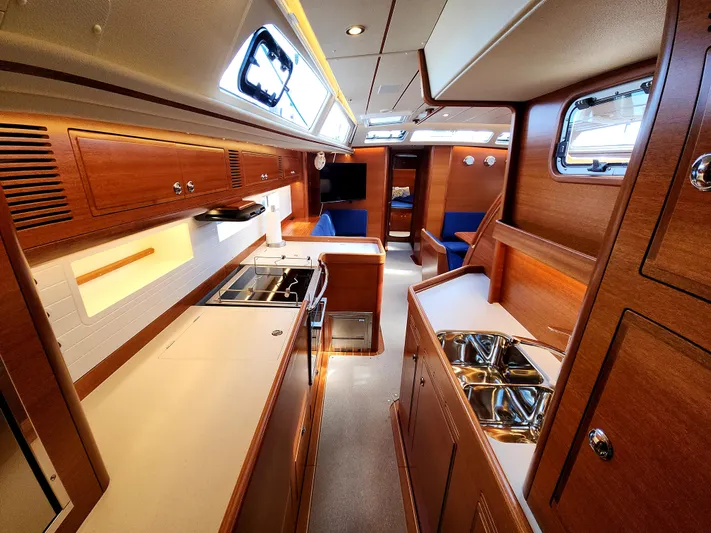

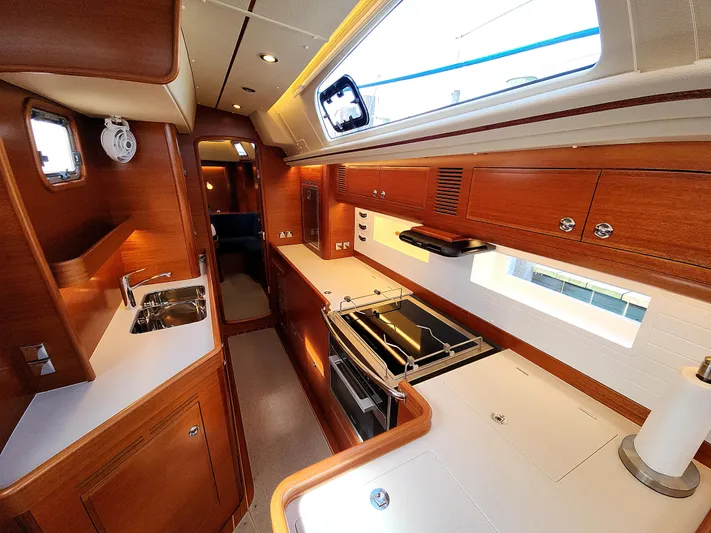

Galley: Linear Galley to port.

• Working surface in Corian with strong, all round wooden fiddle rail, which is milled as a handhold.

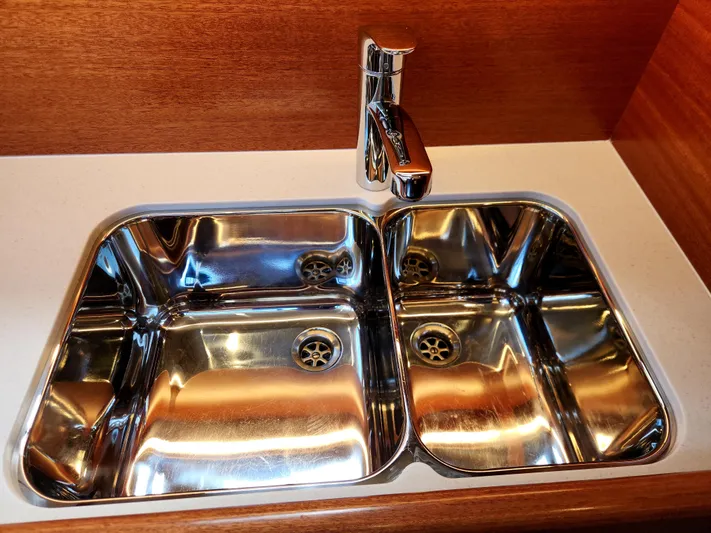

• Extra deep, double sink

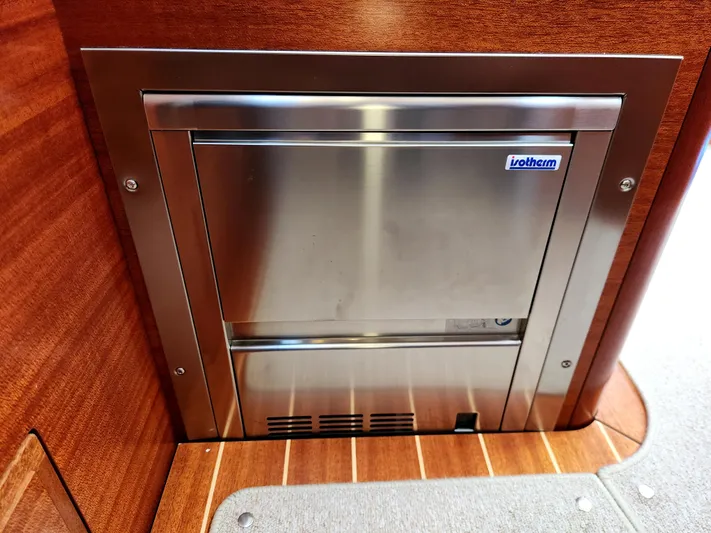

• IceMaker
• Well insulated boxes for refrigeration - one top opening as fridge and one top opening for freezer
• Freezer may be switched to fridge using the same compressor
• 1 additional front opening fridge
• 1 additional top opening fridge  (4 boxes total)
• Exhaust fan over stove

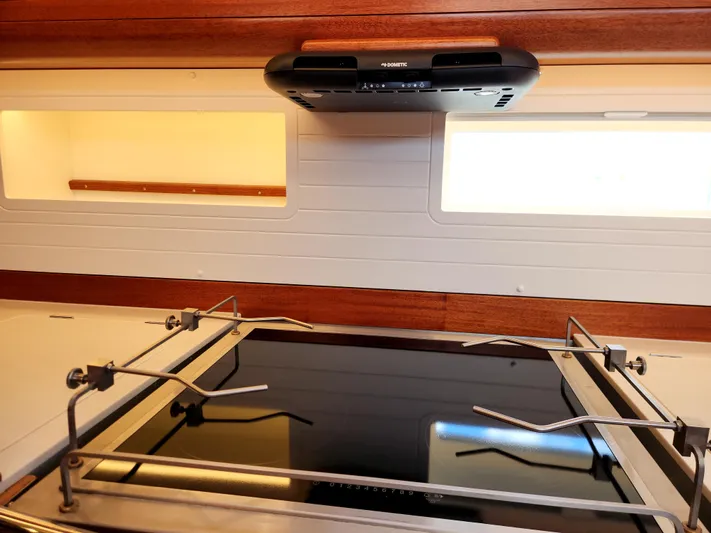

• Miele induction stove with microwave
• Fridge and Freezer compressors are sea water cooled
• Crockery locker and cutlery drawer
• Bread board.
• Room for saucepans and utensils

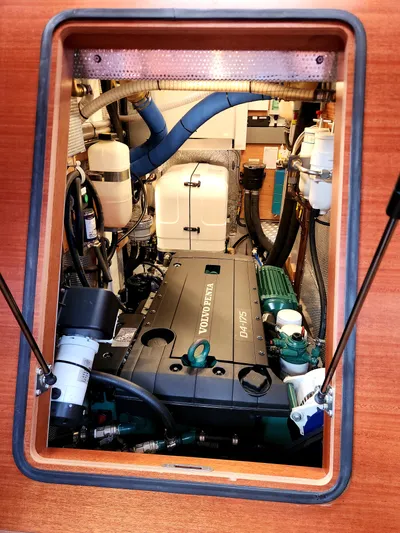

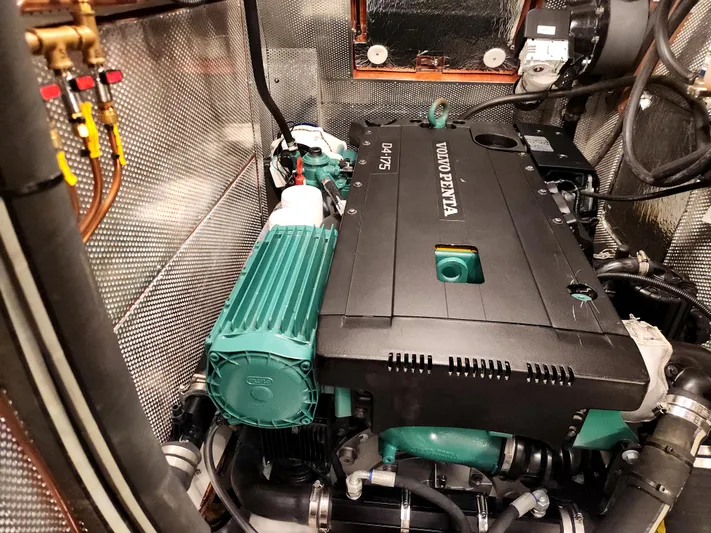

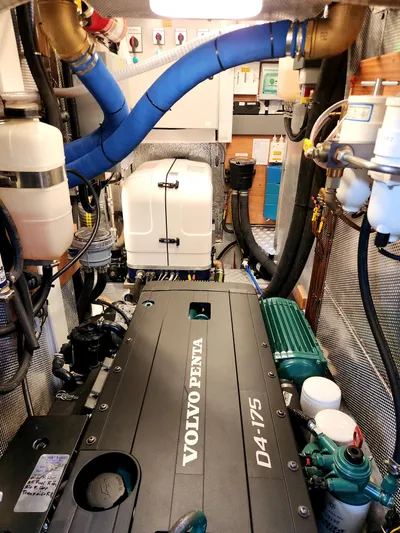

There is a large door to a walk-in engine room. It is carefully sound insulated and perforated aluminium plates cover the insulation. In here the technical equipment is found: low RPM Volvo Penta D4-175, 175 HP main engine,  the Fisher Panda generator with soundshield, heater, pumps, filters, pressure equalizer for the fresh water system, AquaDrive flexible coupling for the engine shaft, just to mention a few. Everything easy to maintain, all well sound insulated. The engine room lighting is 24 v with the additional option of fluorecent light with power supply from either the shore connection or the inverter.

• Mounted with four rubber feet on strong foundations to avoid vibration and noise.
• Fixed 3 bladed propeller installed
• 3 bladed Gori prop as spare
• Water-cooled rubber exhaust pipe.
• Freshwater cooled engine.
• Aqua Drive flexible link for a quiet and smooth engine.
• The hot freshwater circuit is led into a 75 litres well insulated hot water tank. Due to the good insulation water remains hot for many hours after the engine has been run.
• The engine is served by a separate 12 V start battery.
• There is a large filter for cooling water.
• The bilge pump has been installed in a position where it can be cleaned even in extremely bad weather conditions.
• There is a sump pump in the engine room in order to empty water or dirt from the fuel tank.
• Double Racor filters with switch and water alarm
• 2 work lights
• Electric oil change pump
• Smoke alarm
• Emergency switch for engine start
• Retractable bow and stern thrusters with docking system
• Rope Cutter

• Webasto Air heaters EVO40 2 units with outlets in each cabin including the heads
• Dometic Air Condition 230V 50/60hz
• Spectra Watermaker 155 l/hour 24V with Z-ION

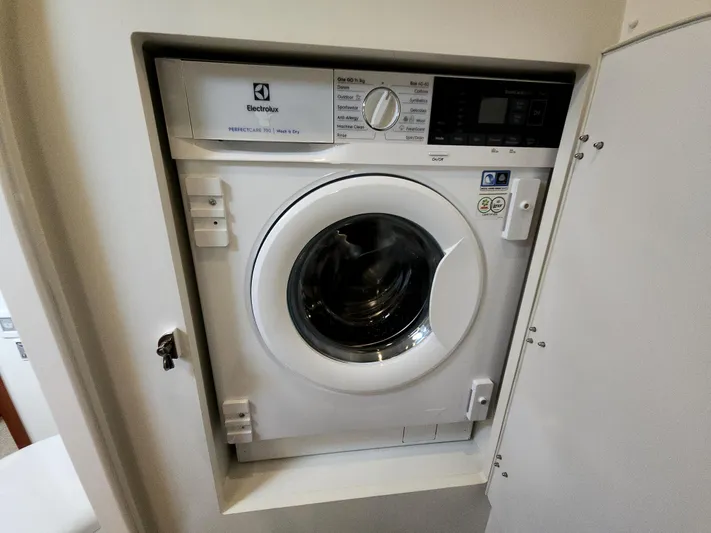

• Washing Machine/ Dryer
• General service pump - sea or fresh water 50 l/minute
• High water alarm

• Raymarine Autopilot p70 with Whitlock drive

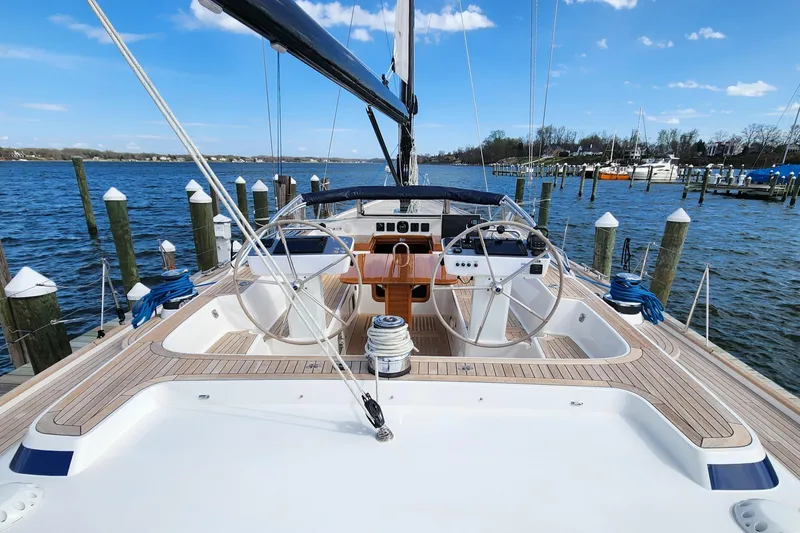

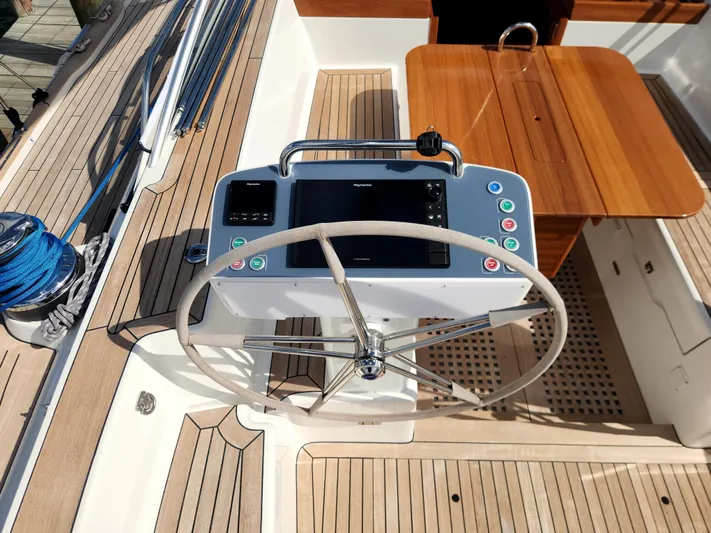

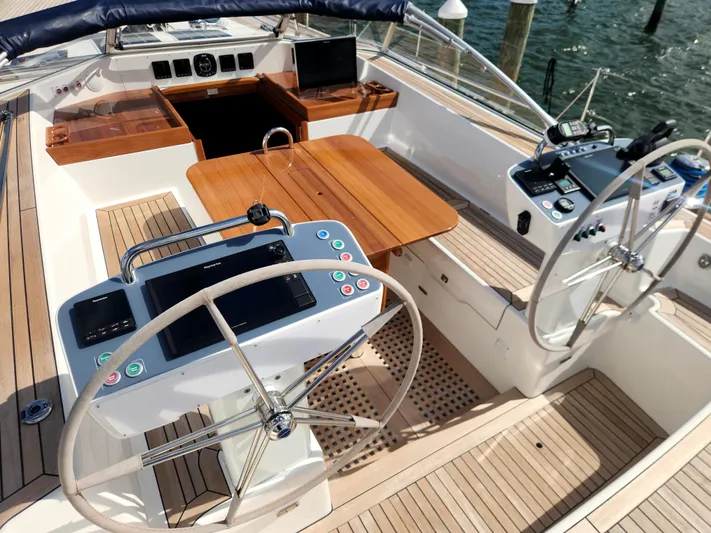

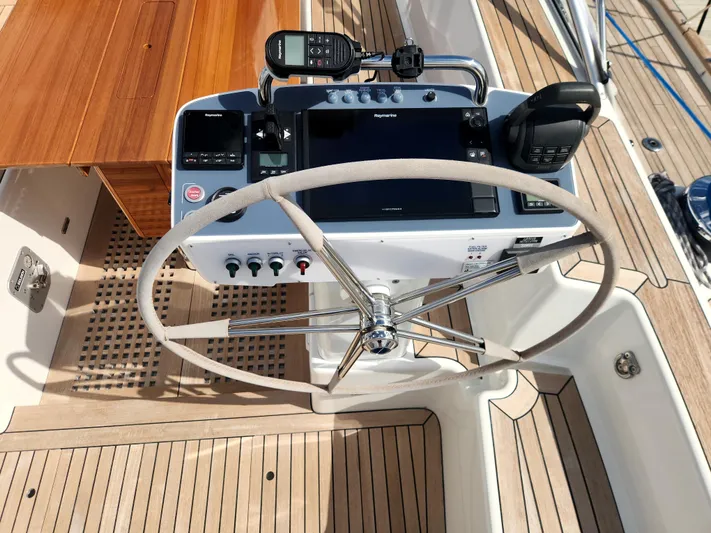

• Raymarine Axiom pro 12 Multifunction display (2) at steering pedestals
• Raymarine Axiom XL19 Multifunction display at outer chart table
• Large instrument pod at interior Nav Station with
• Raymarine XL multifunction display
• Raymarine AIS700 Class B transponder
• Raymarine RCR microcard reader and USB
• FLIR Camera M364C
• Raymarine Quantum 2 Q24D Doppler 18" radar and GPS antenna mounted
• Stainless radar console mounted on mast

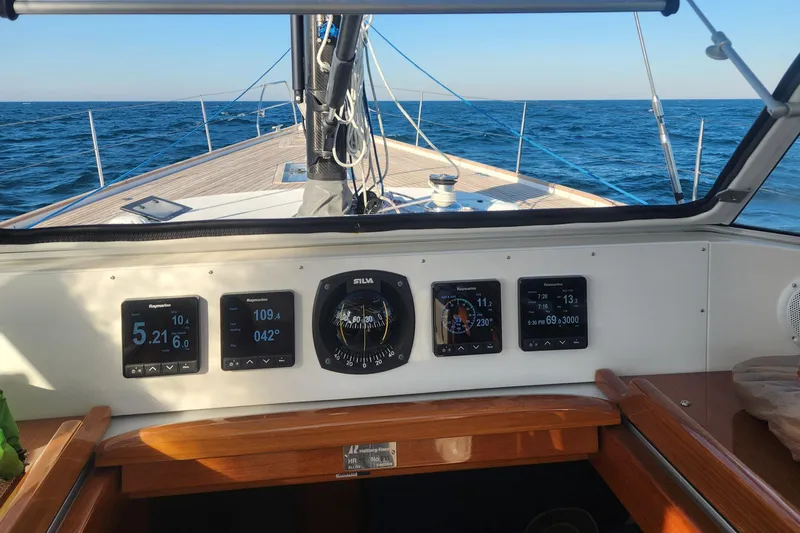

• 4 Raymarine i70s over sliding hatch
• Raymarine i70s at interior Nav station
• VHF Ray 90 DSC class D , 2 control units
• VHF antenna with cable to Nav station
• UFO marine TV/FM -antenna
• Stereo Fusion RA770 connected to Raymarine MFD, 2 loudspeakers
• Stereo speakers in cockpit
• 3 Tv's one in main salon,one fw acbin,one in aft cabin

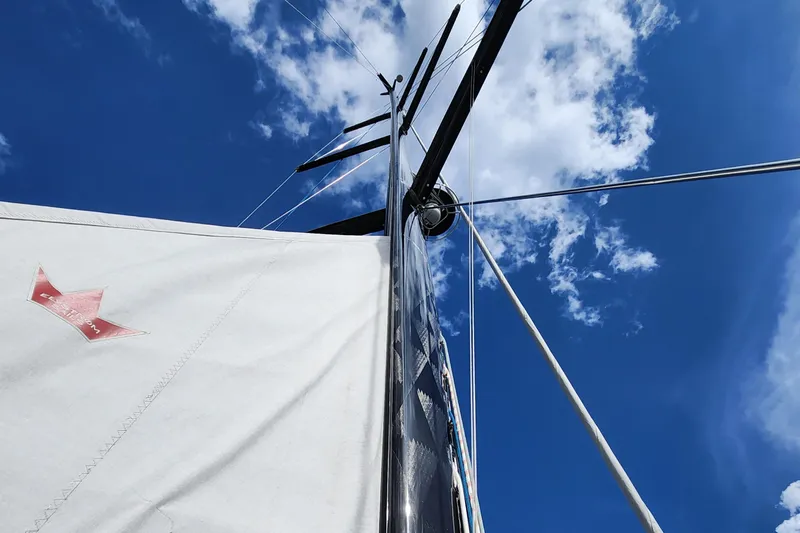

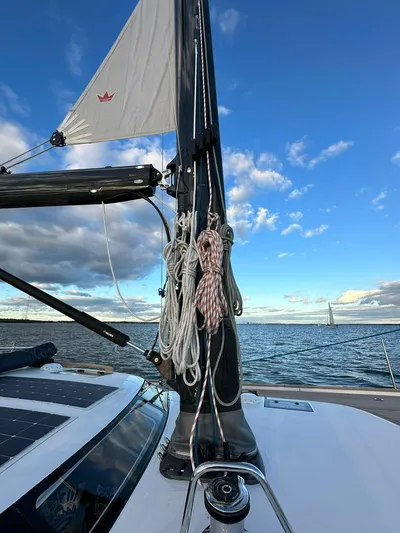

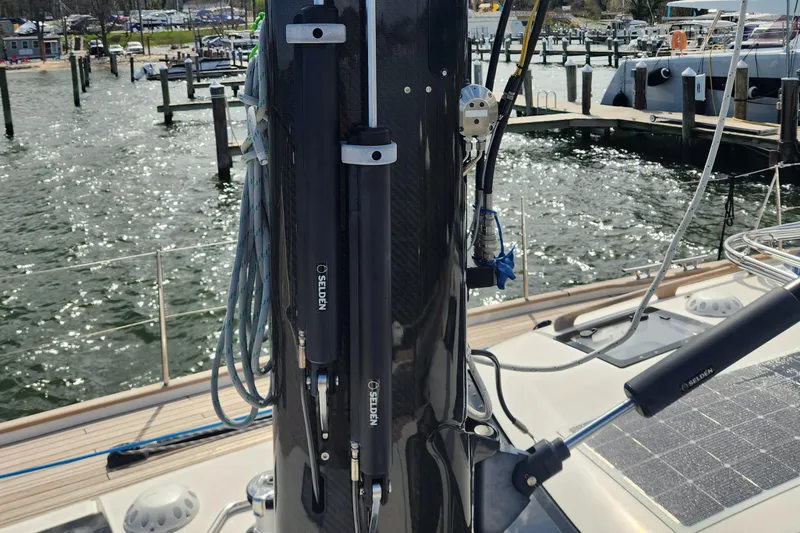

• Selden Triple spreaders rig

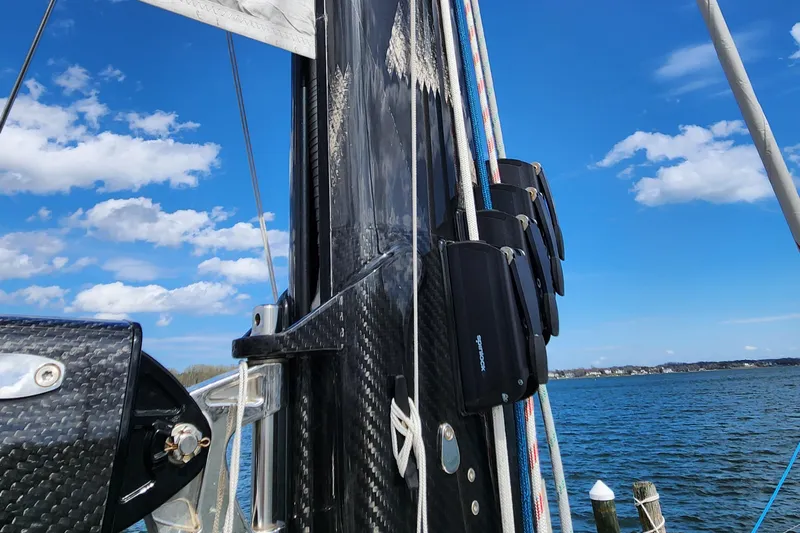

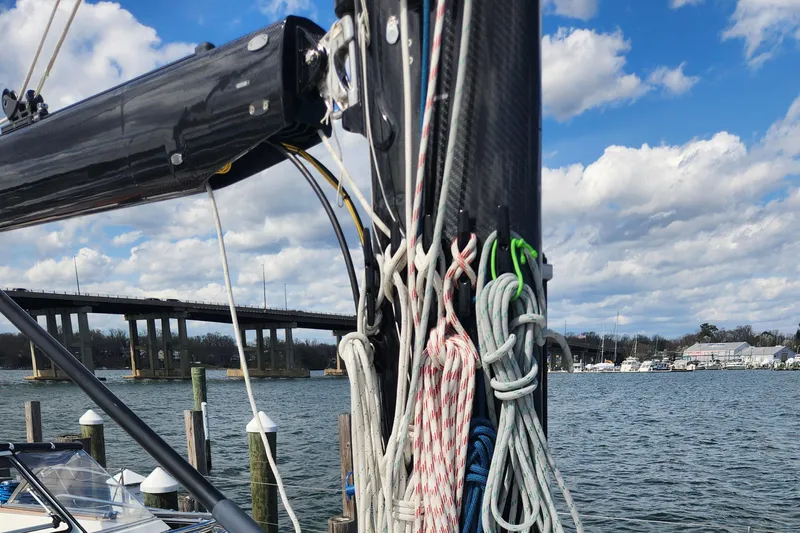

• Selden Furlin mast in carbon fibre

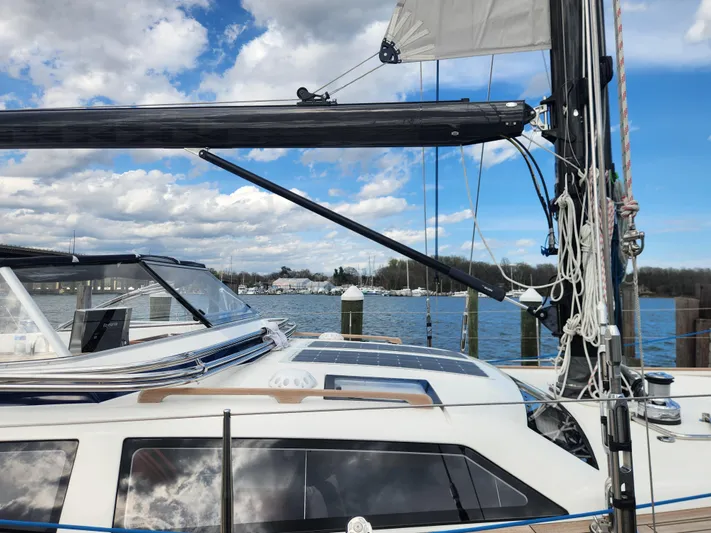

• Boom in carbon fibre with hydraulic outhaul

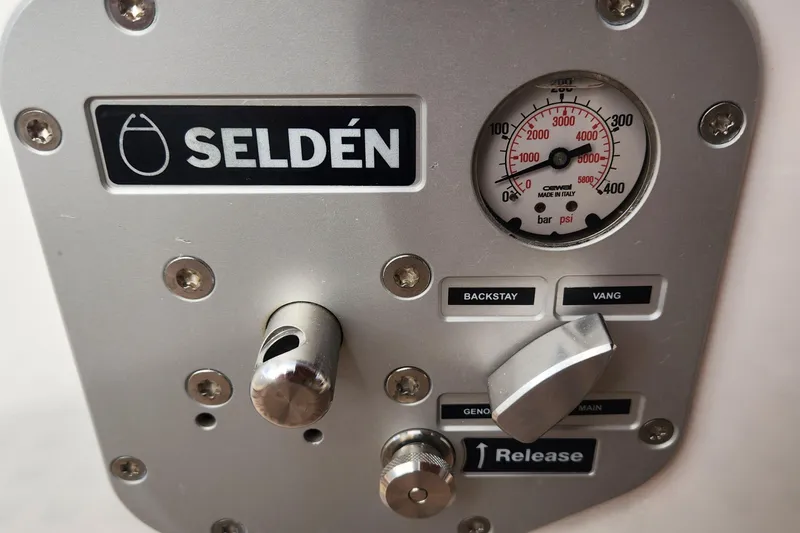

• hydraulic mast jack
• hydraulic halyard tensioner

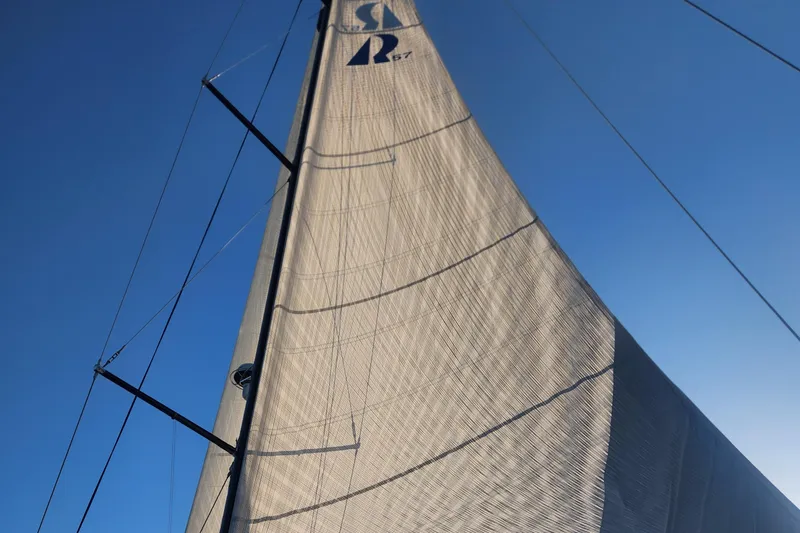

• Furlin mainsail EPEX
• Genoa jib EPEX E-flex
• Heavy Duty UV protection for Genua
• Code Zero
• Preventer on roller in boom
• In-boom lights

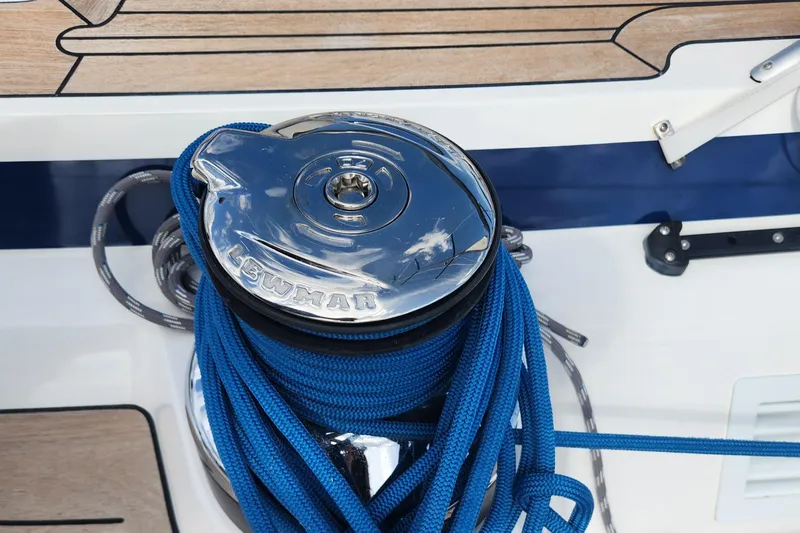

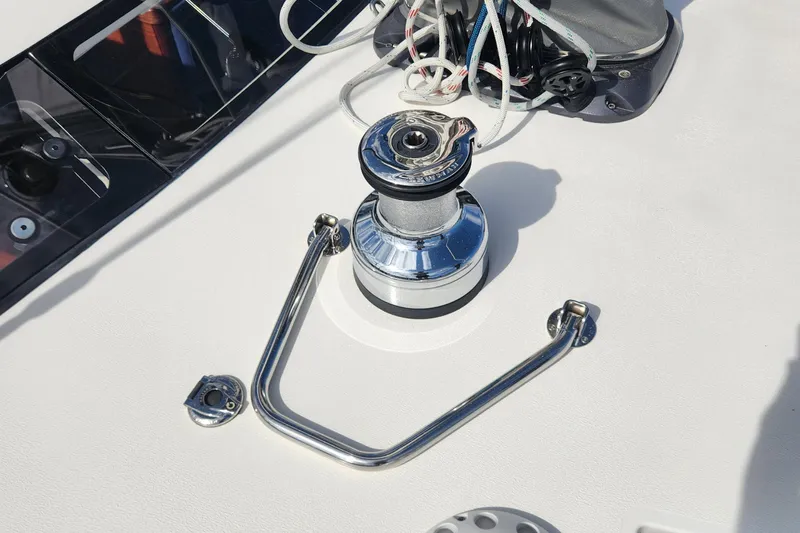

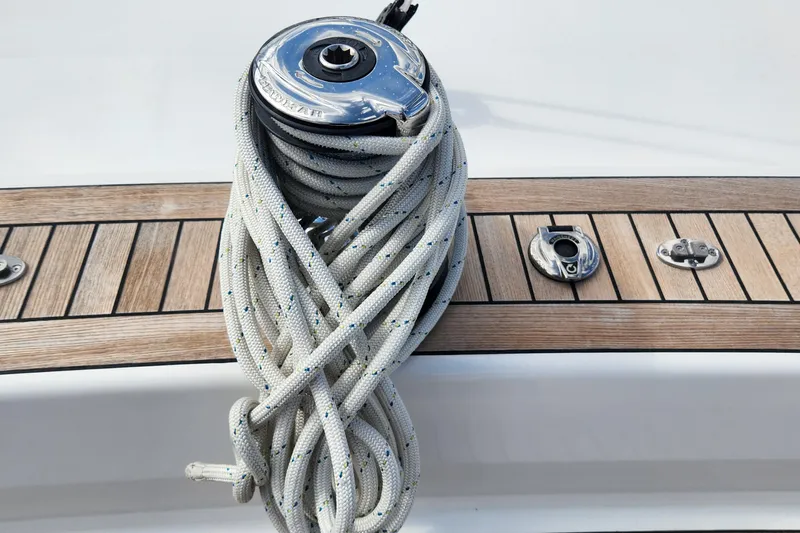

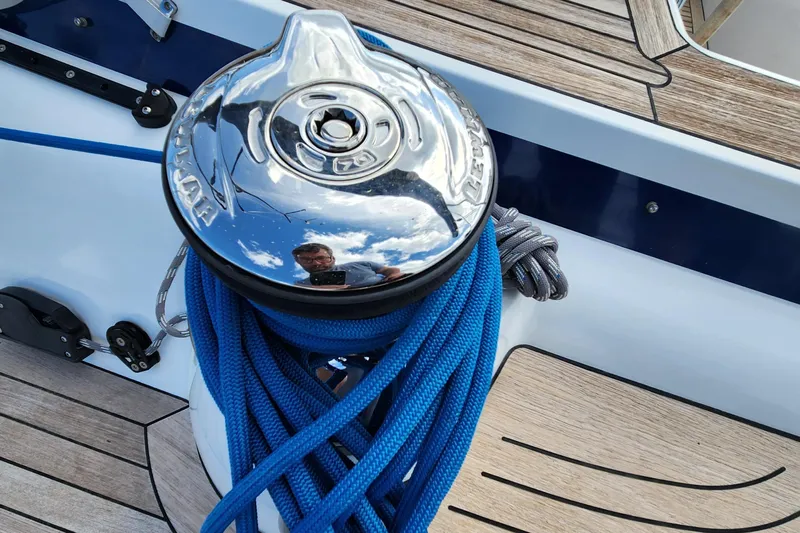

• Lewmar 70 Evo chrome electric primary winches
• One electric main sheet winch
• Lewmar 55 EVO electric halyard winch
• Fixed anchor winch remote control at steering pedestal
• Electric windlass

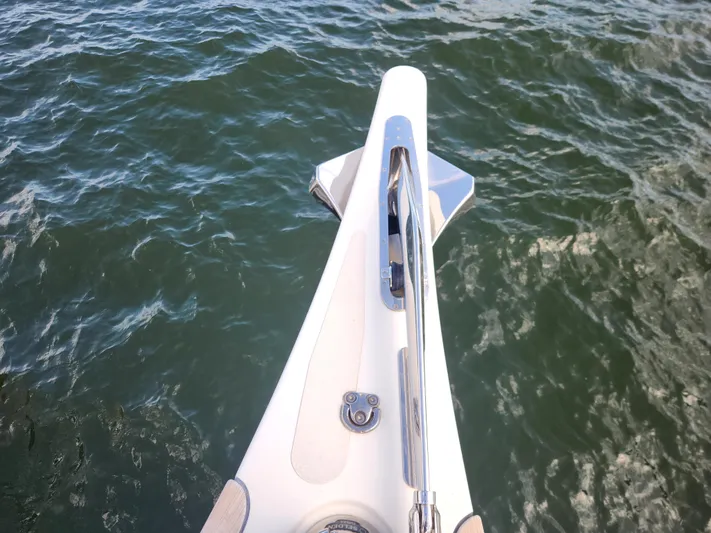

• Stainless Ultra anchor 45 kg
• Stainless steel Duplex chain
• Lewmar chain counter

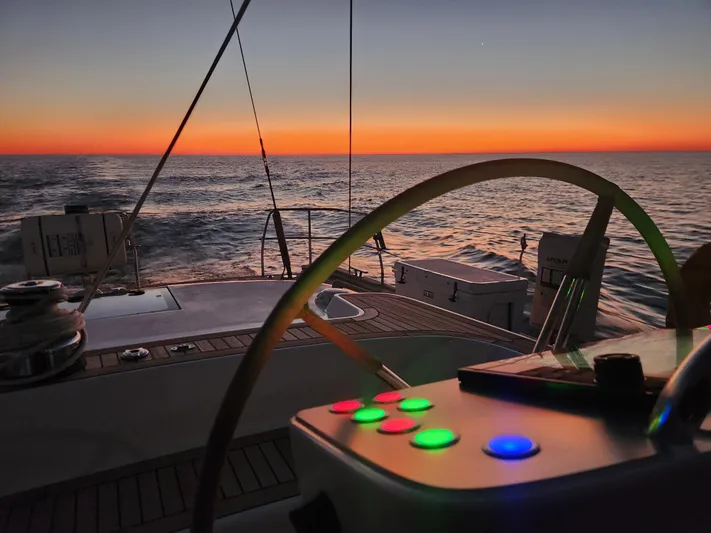

• Buttons on cockpit coaming for main and genoa winches

• Opening gates port and starboard

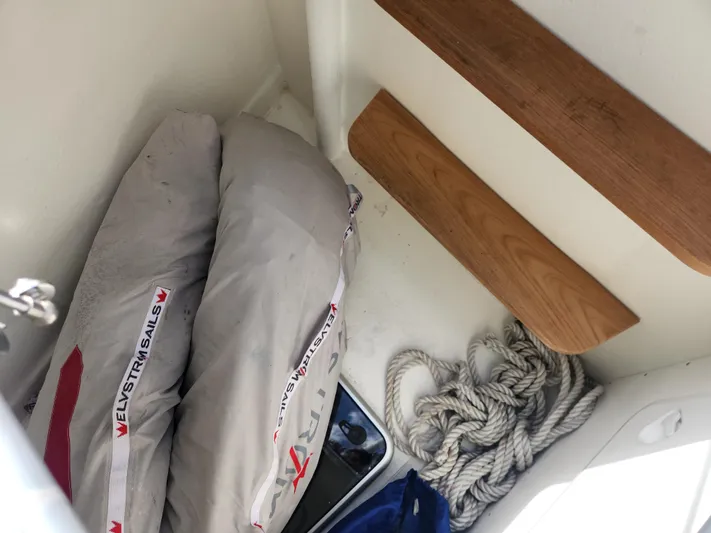

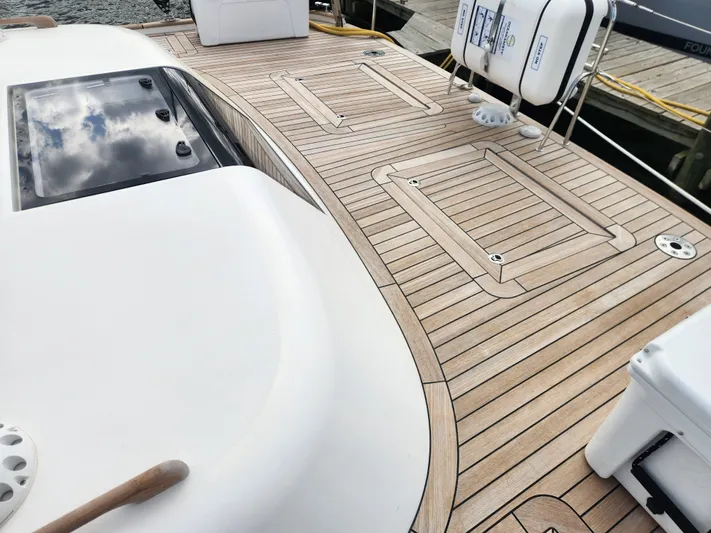

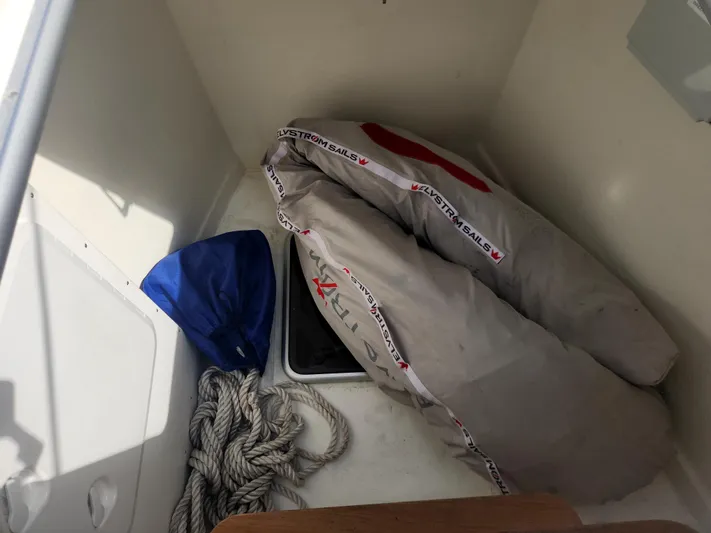

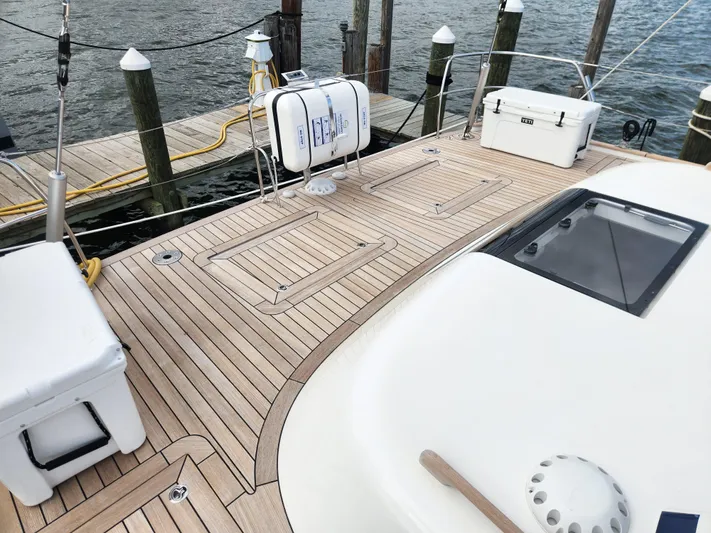

• Stowage in three aft deck lazarette lockers, with four lids.
• Cockpit locker
• Deck storage between forward cabin and the anchor locker.
• All in all ten cubic meters of deck locker storage.

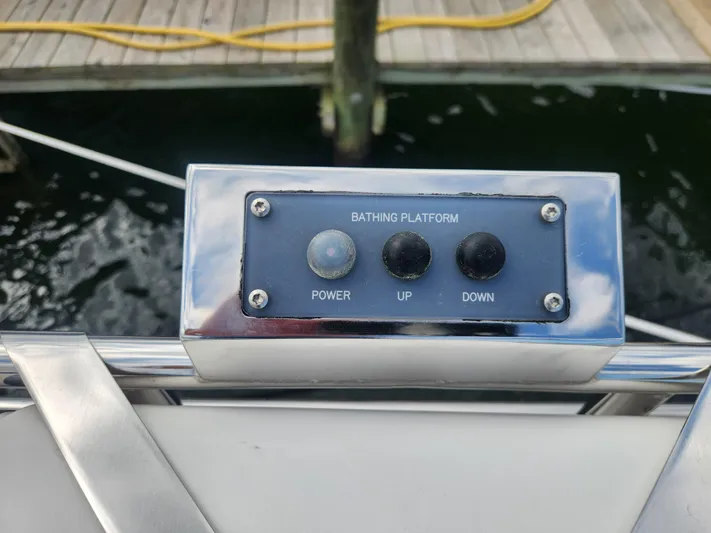

• Push button operated fold-out bathing platform in transom with bathing ladder
• Shower at bathing platform
• LED lamps in stowage lockers - sail locker/cockpit locker/aft deck lockers

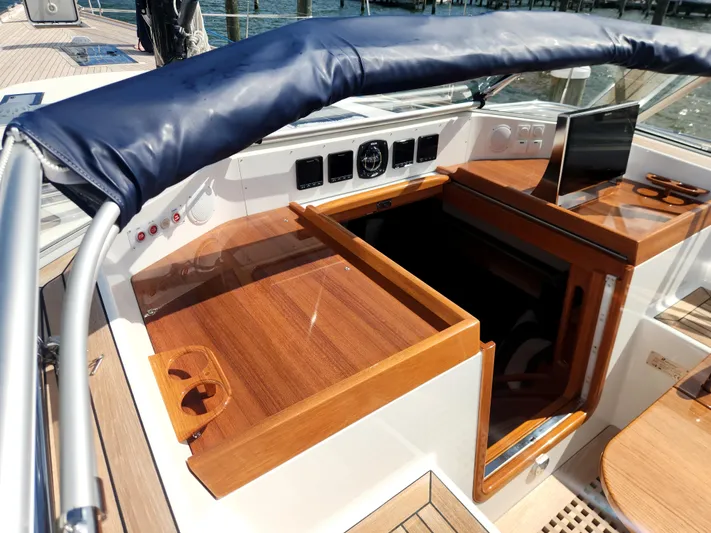

• Varnished washboards and outer chart tables
• Sliding washboard at companionway entrance
• Outboard bracket

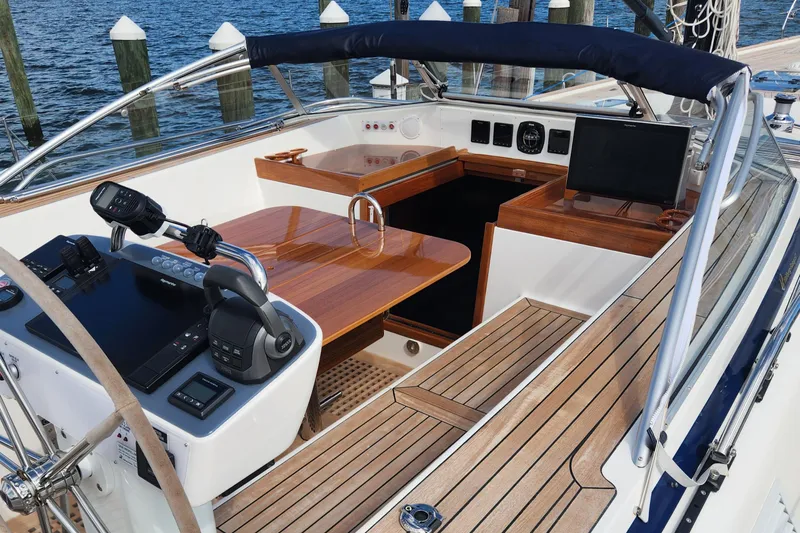

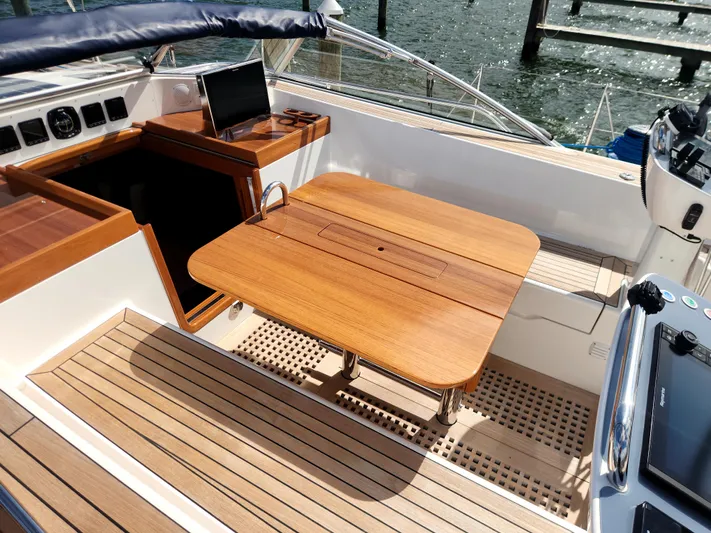

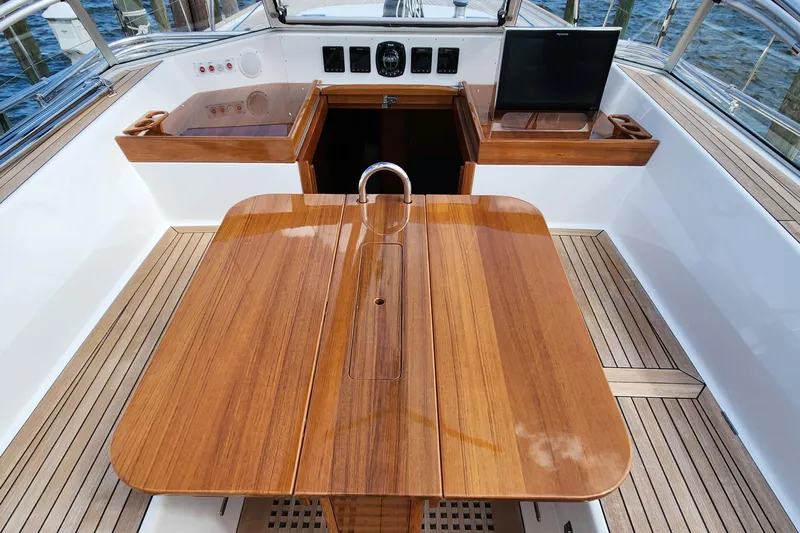

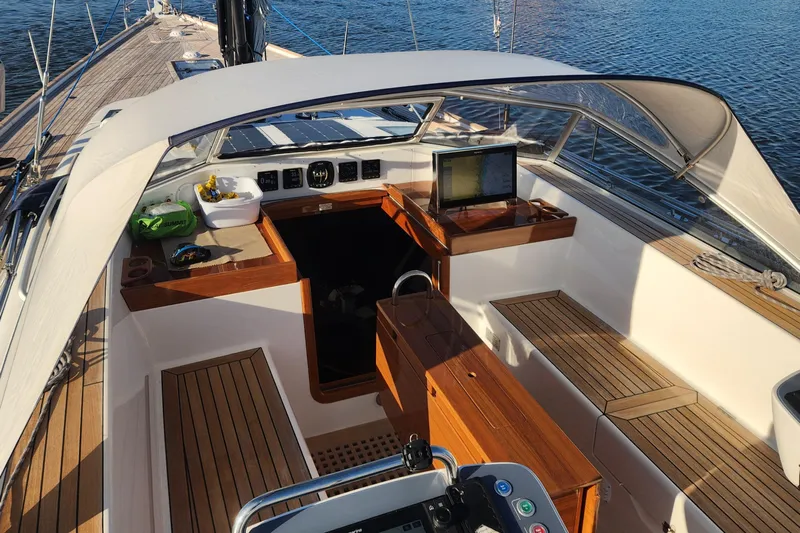

• Fixed cockpit table with cover, high gloss varnish, glass holders
• Glass holders on underside of lid in cockpit table
• Floor lighting
• Pull out foot support under cockpit table
• Stainless fairleads by transom for stern mooring
• Lifelines in webbing/jack lines
• Swivelling Simpson Davits
• 6 pad eyes in aft deck locker

Canvas-

• Bimini with stainless frames, closeable window
• Cockpit cushions
• Sprayhood extension
• Steering pedestal covers

• Life raft in container - 6 person
• Life buoy with holder
• EcoMax 230 radar reflector
• Flare kit IOR in container
• LED tri-color toplight with anchor light
• 4 fittings for lifebelts in cockpit

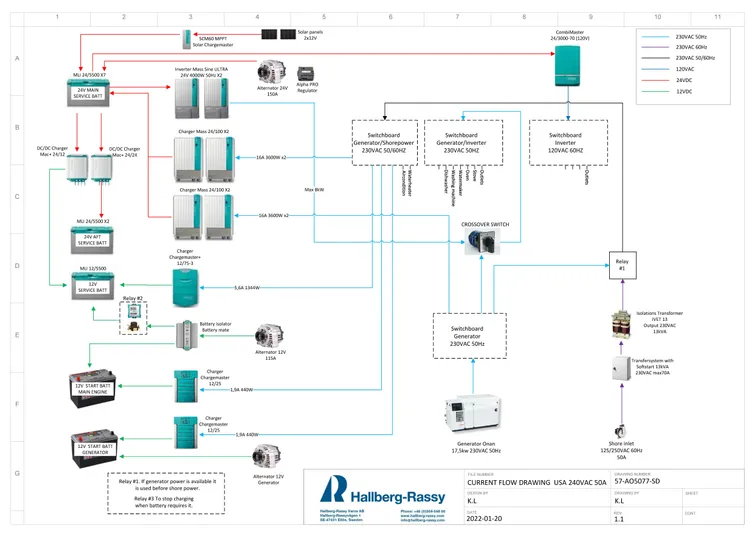

Large lithium package battery system with solar panel:

•  24V Main Battery Bank MLI24/5500x7
• Aft 24V service bank MLI 24/5500x2
• 12V service bank MLI 12/5500x1
• Charger Mass 24/100x4
• Inverter Mass Sine Ultra 24V  4000w50hz x2
• Combi Master 24/3000 120V
• 24V Alternator 150amp
• 12V Alternator 115amp

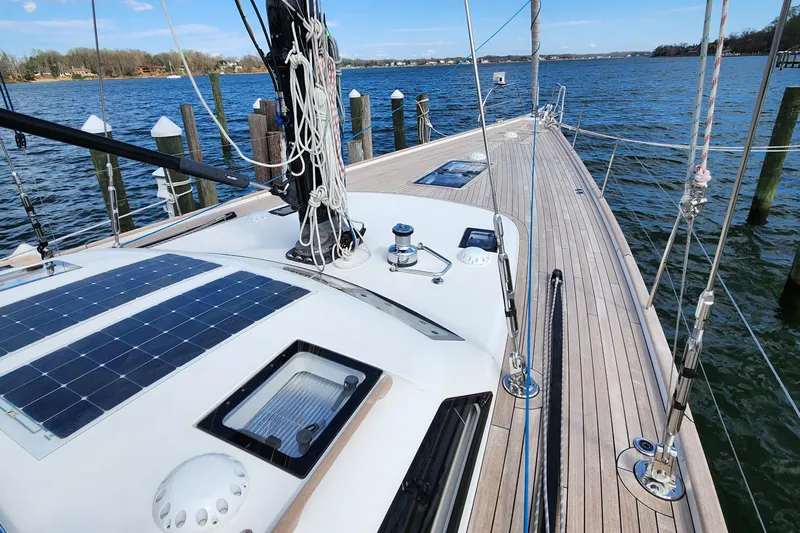

• SCM60 MPPT Solar Chargemaster

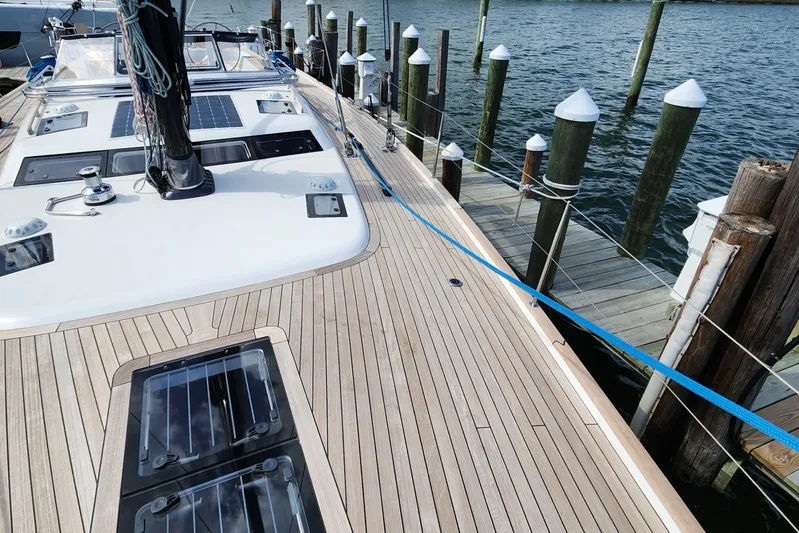

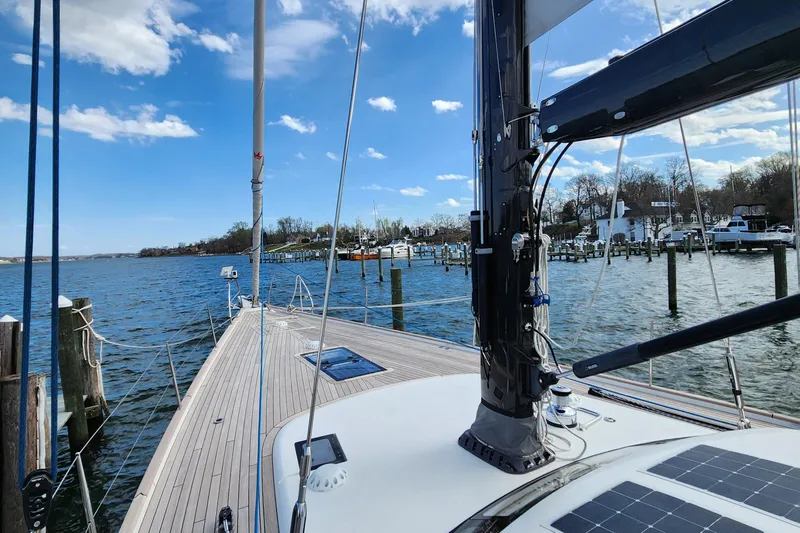

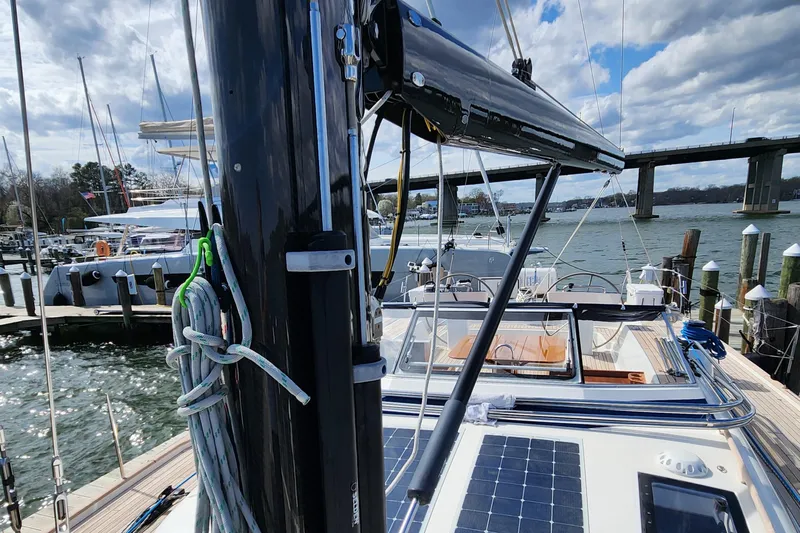

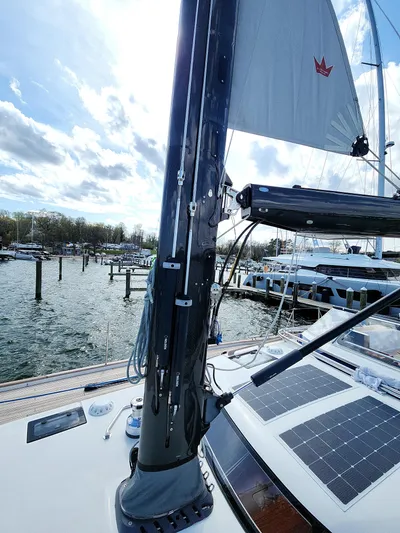

• 2 Solar Panels
• Shore Power Inlet 220V60hz 50amp
• Transfer system with SoftStart 13Kva 230AC  max 70amp
• Isolation transformer IVET13 output 230VAC  13Kva
• DC/DC Charger  MAC+ 24/12
• DC/DC Charger MAC+ 24/24
• Charger ChargeMaster Plus 12/75-3
• 12 Volt start battery for main engine - with Charge Master 12/25
• 12V start battery for generator - with Charge Master 12/25
• 32A 230V shore power cable with 50amp 125/250V plug

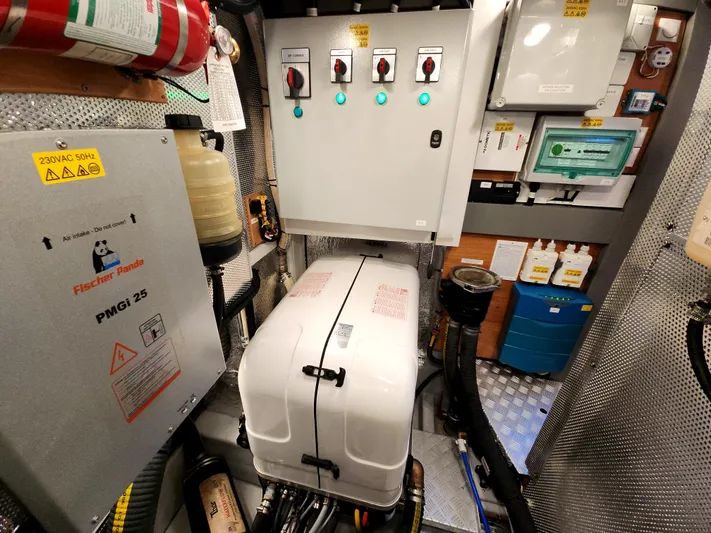

• Fisher Panda 20kw generator
