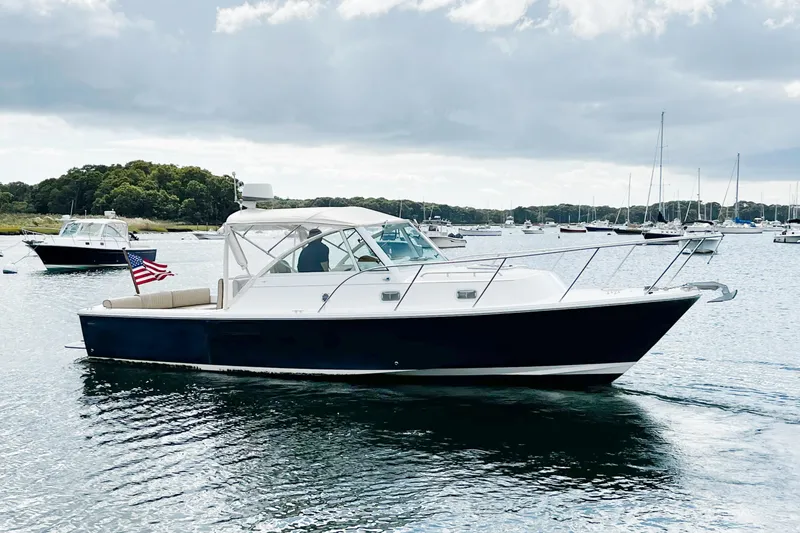

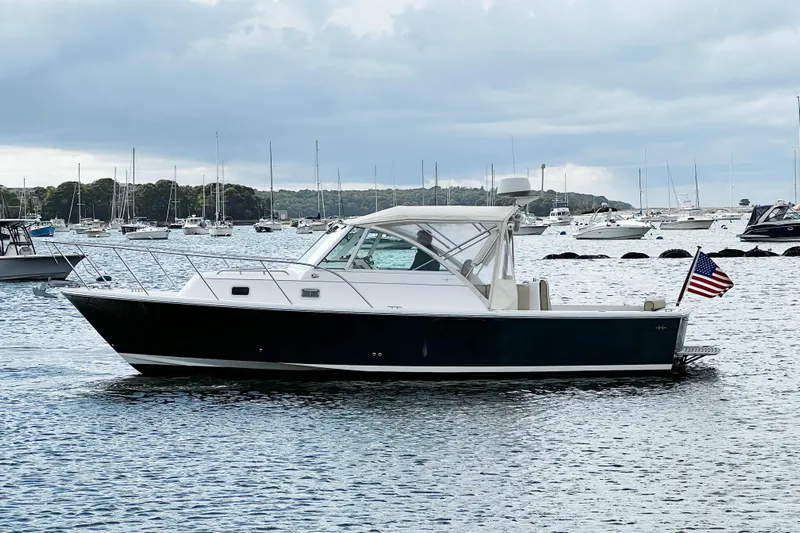

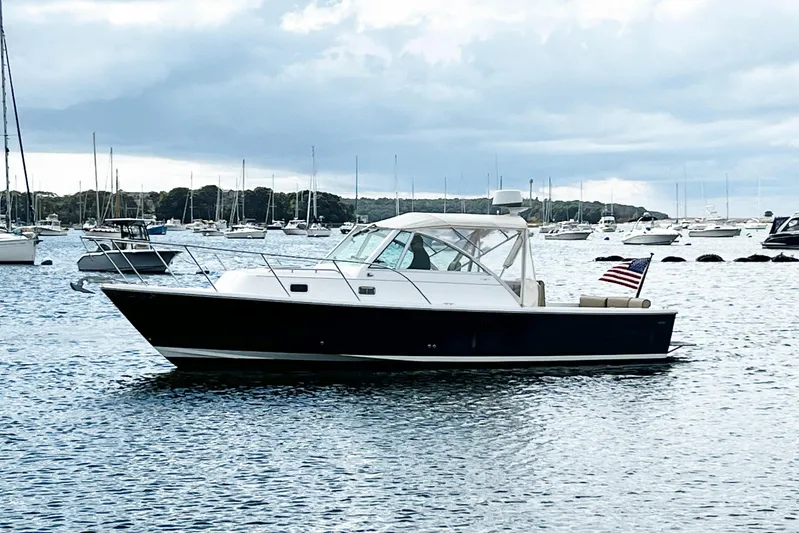

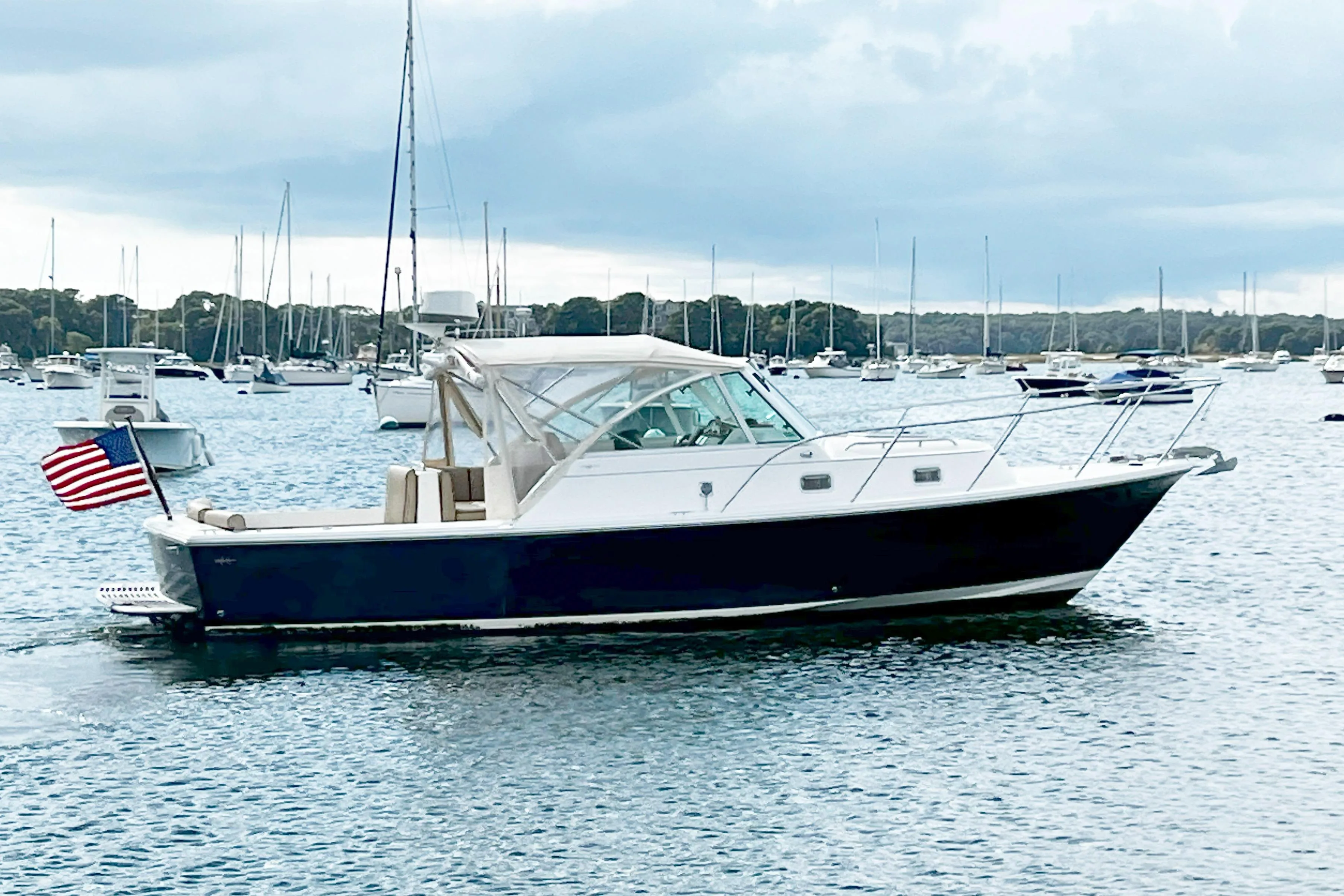

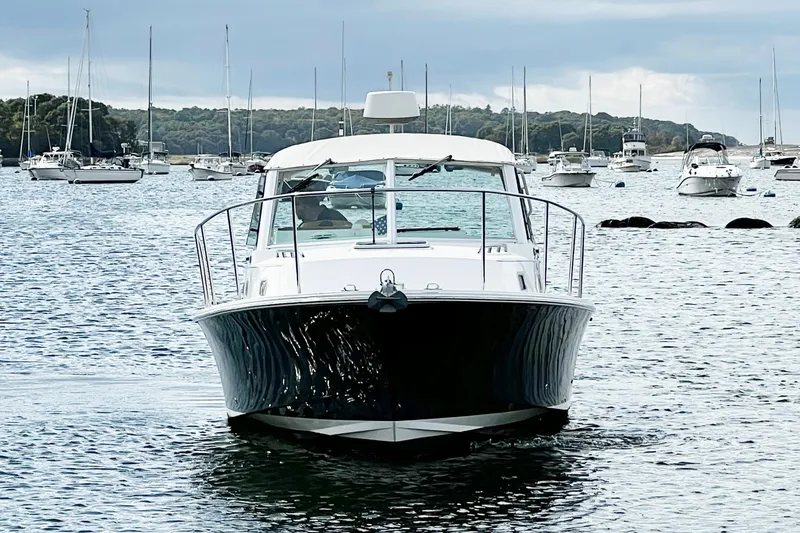

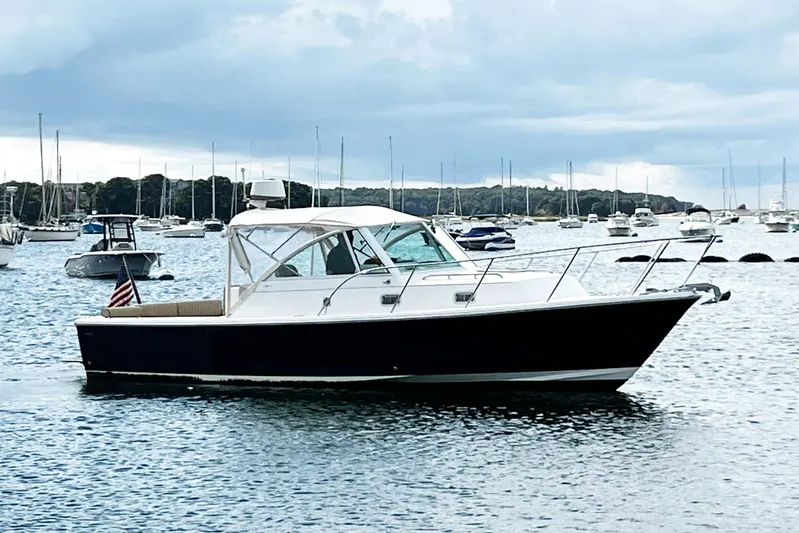

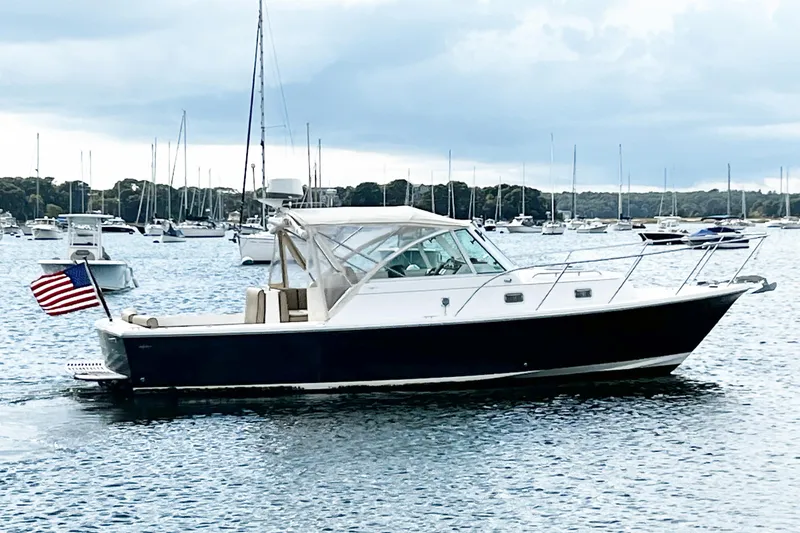

RADAR Boat for Sale

• Cruising Speed: 26 kn
• Maximum Speed: 33 kn
• Beam: 10' 6''
• Hull Material: Fiberglass
• Displacement: 8,000 lb
• Fuel Tank: 1 x 150|gallon
• Fresh Water: 1 x 28|gallon
• Holding: 1 x 15|gallon
• Cabins: 1
• Heads: 1

INTRODUCTION:

RADAR has always been yacht yard maintained with an open check book level of care. She has returned to Hunt Yachts several times for numerous upgrades as recently as 2021.

Recent betterments to RADAR include:

• Simrad GPS plotter/radar/sounder NSSEVO3 w/4kw (24”) Raydome antenna
• Simrad autopilot
• Simrad GPSmap multifunction display
• Simrad sounder IS 12 with xSonic SS60 Stainless-steel thru hull low profile transducer with 20 degree tilt
• Simrad VHF RS35

Winter 2021 Hinckley/Hunt Yacht Service Major Service

• All cushions and helm chairs recovered in Reflections Sand and Dark Green Piping with custom channeling
• New Bimini top, side curtains and backdrop
• Major 500-hour engine service performed. The engine was removed and reinstalled. Coolers cleaned and pressure tested and replaced with new gaskets. Injectors were sent out and serviced. All engine hoses and clamps were replaced. All seawater hoses were replaced. The engine, bilge and drive shaft were cleaned, primed and painted to reduce corrosion. The oil pan was replaced. Secondary fuel pump was replaced. Racor filter housing were cleaned and the fuel was polished. Fuel tank valves were cleaned, primed and painted. New belts installed. The engine box was cleaned and degreased.
• Major drive service performed. Drive steering arm, bushings and steering knuckle replaced. Output seals, drive bearings and shims replaced.

• The props were sent out and reconditioned.
• Bow thruster serviced and shear pin replaced.
• The engine electrical harness was replaced.
• All head tank hoses were replaced.
• Shower sump replaced.
• The Co2 detector in cabin replaced.

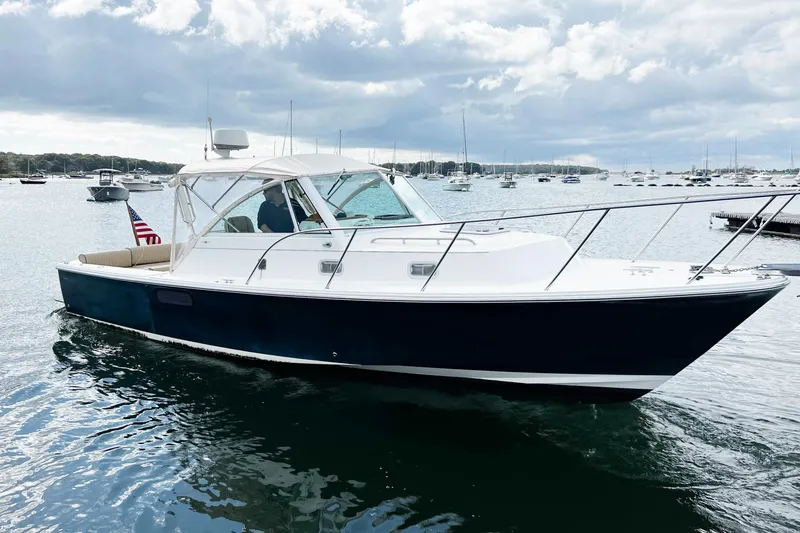

HULL & DECK:

Construction:

• Hand laid solid E-glass bottom laminate
• Molded non-skid pattern
• Foam-cored topsides
• Vinylester osmosis barrier
• Foam-cored E-glass stringers
• Painted bilge
• Stainless steel vents
• Extruded vinyl sheer guard
• Molded interior liner
• Dark Green Awlgrip hull
• White Gelcoat w/Optional Cream Awlgrip deck
• White Gelcoat with Cream nonskid gelcoat
• White boot stripe
• Black bottom paint
• Teak swim platform with stainless supports

Deck features:

• Delta Anchor #14 with bow roller and 15’ x1/4 chain, 200’ rode
• Simpson Lawrence Sprint 600 windlass with deck & helm controls
• (2) Stainless steel bow chocks
• (6) Stainless steel 8” cleats
• White powder-coated windshield with handrails
• USCG approved running & anchor lights
• Cockpit courtesy lights
• Lewmar cabin hatch with screen and solar powered vent for passive ventilation
• (4) Wichard fender pad eyes (2) port & (2) starboard
• Stainless steel water, fuel & waste fills
• (4) S.S. Rod holders
• (2) S.S. Stern eyes
• Two transom lockers molded into transom with drains
• Extended stainless steel bow rail
• Aluminum boarding handle mounts in rod holder

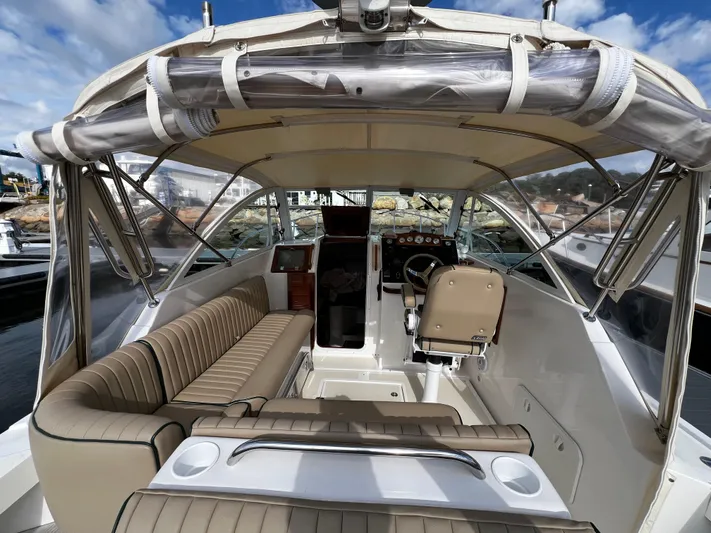

COCKPIT:

The deck layout of the Surfhunter 29 is that of the classic New England cuddy cabin. Her cabin is forward and accessed from the companionway to port of the helm pedestal seats. Next aft is the L-shaped cushioned settee incorporating the front of the engine box. The aft cockpit is spacious and open and features an aft facing seat on the engine box.

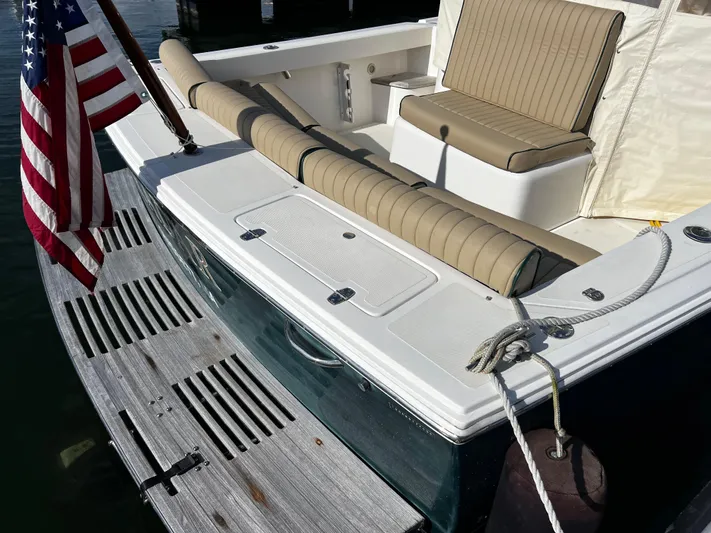

• Self-bailing cockpit, with guttered hatches
• Bimini top with stainless steel frame and bows, tan Stamoid top (2021)
• Stamoid and Eisenglass front and side panels (2021)

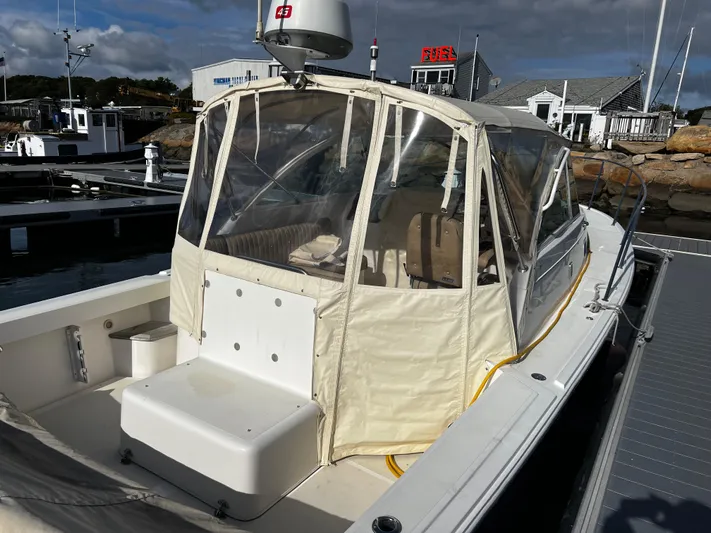

• Aft three-piece enclosure with Stamoid and Strataglass panels (2021)

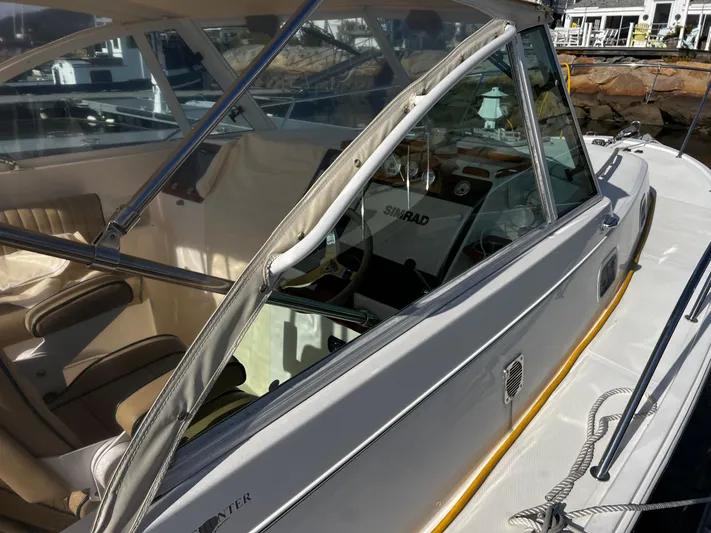

• Fixed glass windshield and side windows, opening side vents

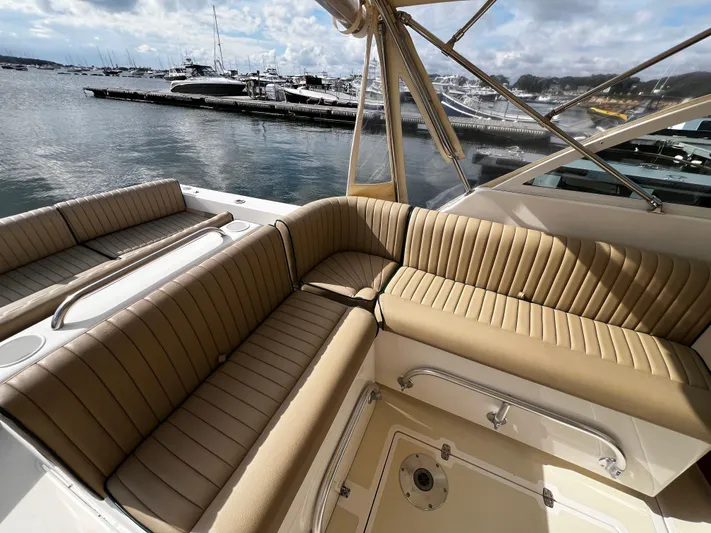

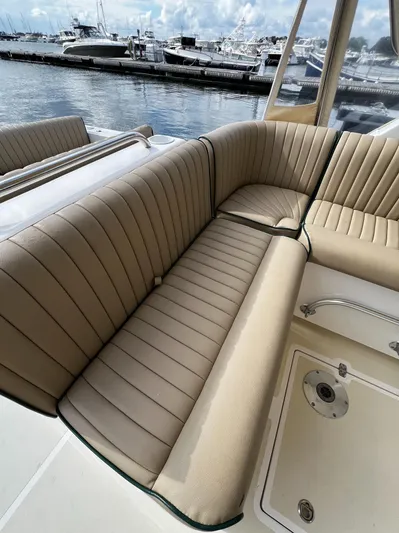

• L-shaped cushioned settee in Reflections Sand with green piping with storage underneath (2021)

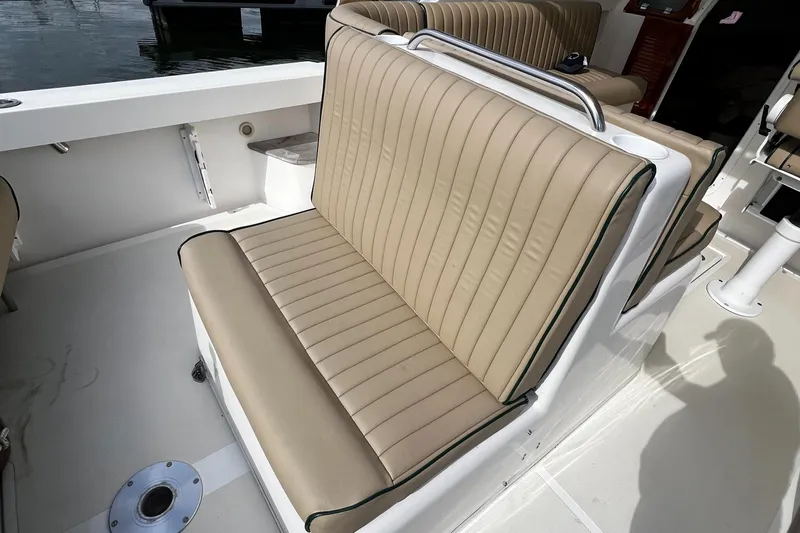

• Aft facing seat on engine box in Reflections Sand with green piping (2021)

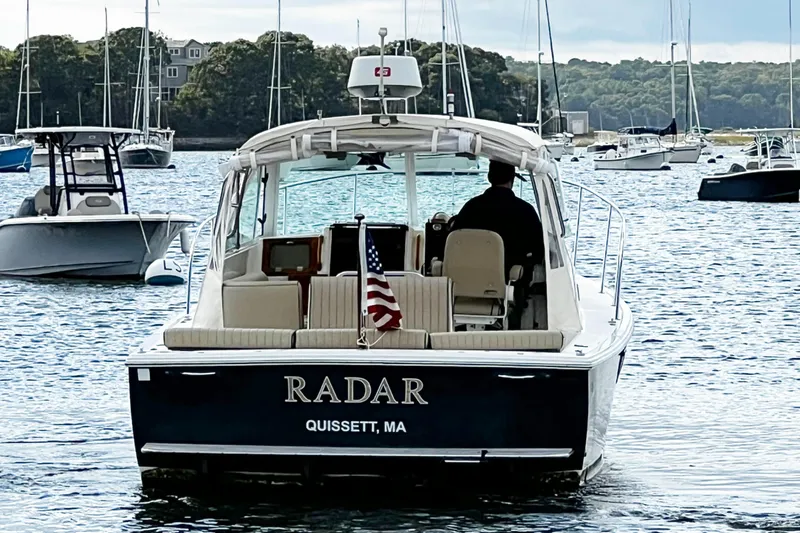

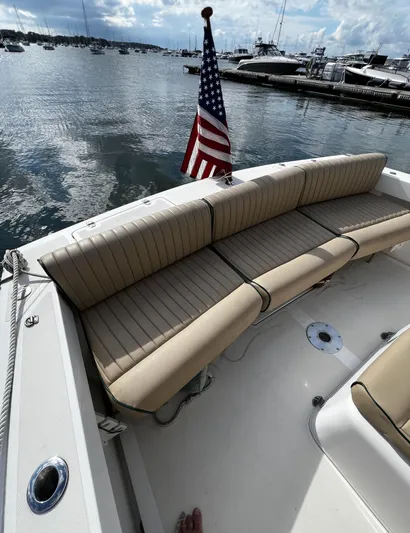

• Full stern bench seating in Reflections Sand with green piping (2021)
• Varnished Teak navigator dash storage compartment
• Varnished Teak Folding companionway door
• Port and starboard under gunnel rod storage

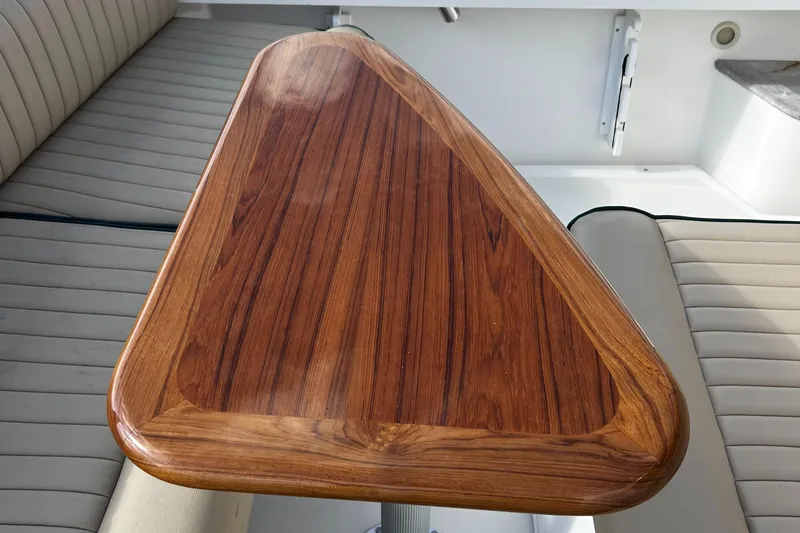

• Custom varnished teak cockpit table w/ padded cover (removable)
• LED cockpit courtesy lights
• Hot and cold pressure shower on transom
• Roca pantograph windshield wipers with AFI motors

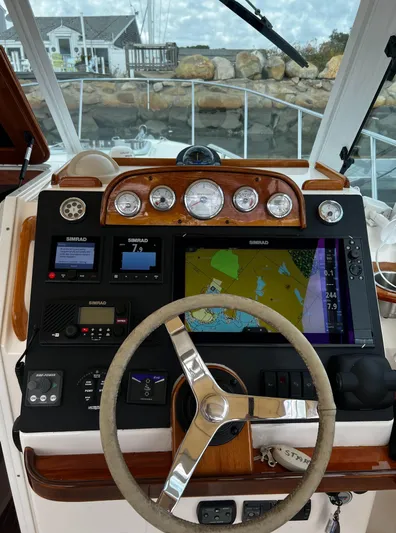

Helm Station:

The helm station is to starboard and offers excellent visibility either standing or sitting in the comfortable helm chair.  All controls are within easy reach and logically laid out. The electrical breaker panel is outboard of the helm seat.

• Fiberglass helm console with varnished teak shelf, handholds, trim and fiddles
• Teak instrument cluster
• Two optional Stidd Slimline helm seats w/custom powder coat and covered in Reflections Sand w/ Green piping (2021).
• One Pin type adjustable pedestal – 5” vertical travel for helm chair
• Stamoid covers for pedestal seats
• 12V cigarette style outlet at helm
• Elkhide wrapped Edson steering wheel-tan smooth side out
• Antique Beige Sunbrella fitted cover for L-settee & engine box & area forward of settee below portside companion seat

NAVIGATION / ELECTRONICS EQUIPMENT:

All electronics and navigation systems are flush mount installed in the helm console in a logical, easy to see and reach location.

• Ritchie compass
• Volvo LCD display panel for D6
• FUSION stereo receiver

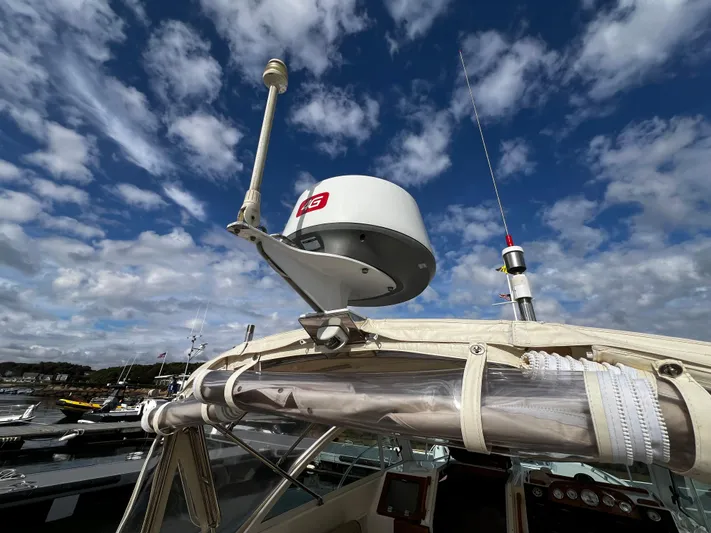

• Simrad GPS plotter/radar/sounder NSSEVO3 w/4kw (24”) Raydome antenna

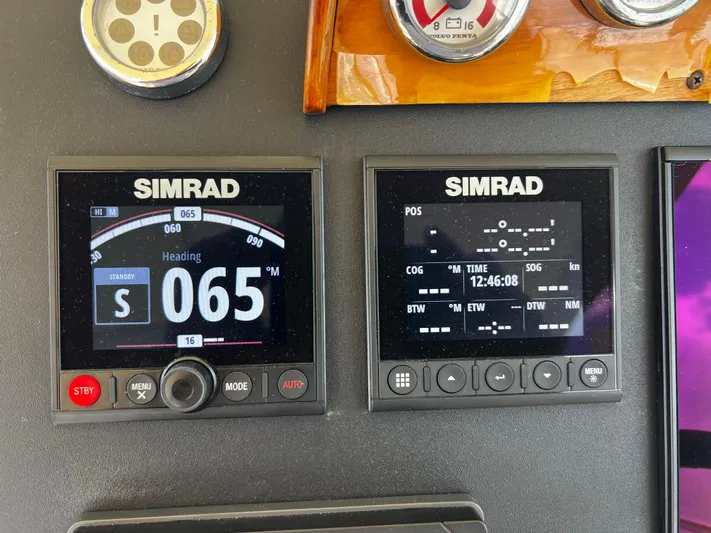

• Simrad autopilot
• Simrad GPSmap multifunction display

• Simrad sounder IS 12 Simrad sounder IS 12 with xSonic SS60 Stainless-steel thru hull low profile transducer with 20 degree tilt

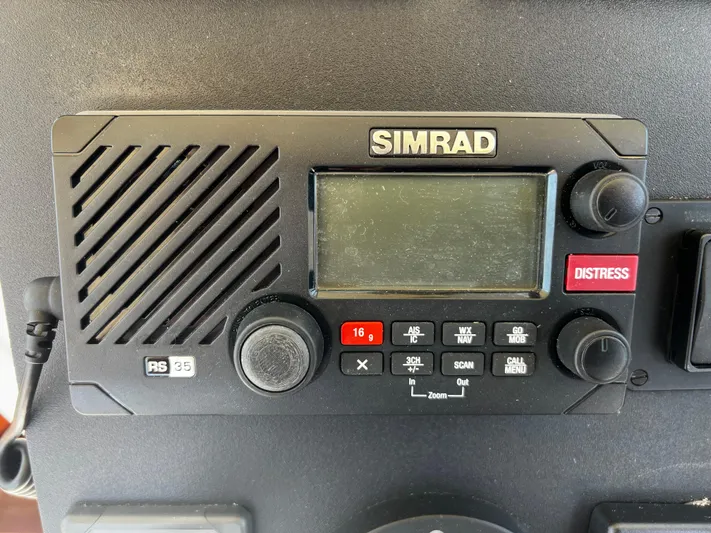

• Simrad VHF RS35

INTERIOR:

Through the forward folding cuddy companionway door is the spacious cabin finished in white gelcoat with cherry trim. Accommodations for two includes a V-berth with cushions, full galley to port, and spacious head to starboard.   The below decks accommodations on the Surfhunter 29 are extremely well thought out and offer excellent utilization of space for weekends and light cruising.

• Opening overhead hatch with screen for ventilation and natural airflow
• Optional solar vent mounted in overhead hatch for continuous passive ventilation
• Four opening portlights
• Faux teak and holly sole
• Overhead dome light
• Satin varnished Cherry interior wood
• Laminate (faux) teak and holly cabin sole
• 12v overhead dome lights
• 12v bulkhead mounted reading lights

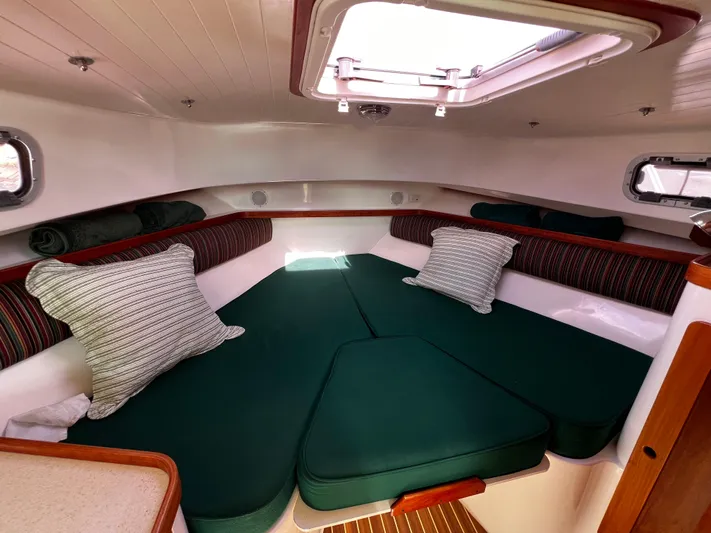

Berth- forward:

A full-length V-Berth with filler provides ample sleeping space for two. A large Lewmar overhead hatch with screen and three Lewmar opening ports with screens provide excellent natural ventilation.

• V-berth with filler cushion
• Storage compartments under berth
• Cherry fiddle
• Coaming bolsters outboard of berth
• Wrap around shelf with varnished
• Two stereo speakers

Head- starboard

The large, full stand-up head is aft to starboard and features a large Corian vanity, plenty of storage, and an opening port. There is also a solar powered ventilator on the overhead for continuous passive ventilation. The telescoping fixture at the sink hangs on the bulkhead along with a removable shower curtain to convert the space into a shower. The molded nonskid shower pan is easy to clean and features an automatic sump pump.

• Wilcox Crittendon saltwater head
• Corian countertop with undermount stainless steel sink
• Stainless steel faucet with extendable shower wand
• Bulkhead mount for shower wand
• 110v GFCI outlet in head
• Solar powered vent fan on the overhead for continuous ventilation
• ITT Jabsco quiet flush fresh water electric toilet
• Towel rack and storage shelf on aft bulkhead
• Clothes hook
• Mirror mounted on forward bulkhead
• Storage in lockers outboard and under sink

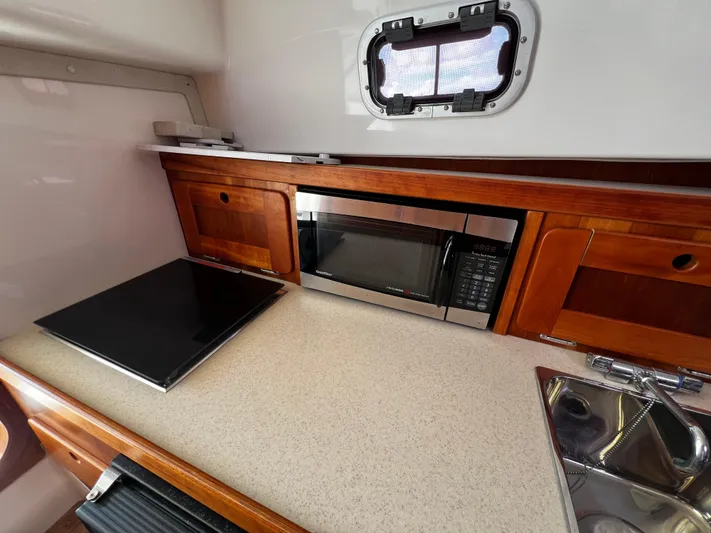

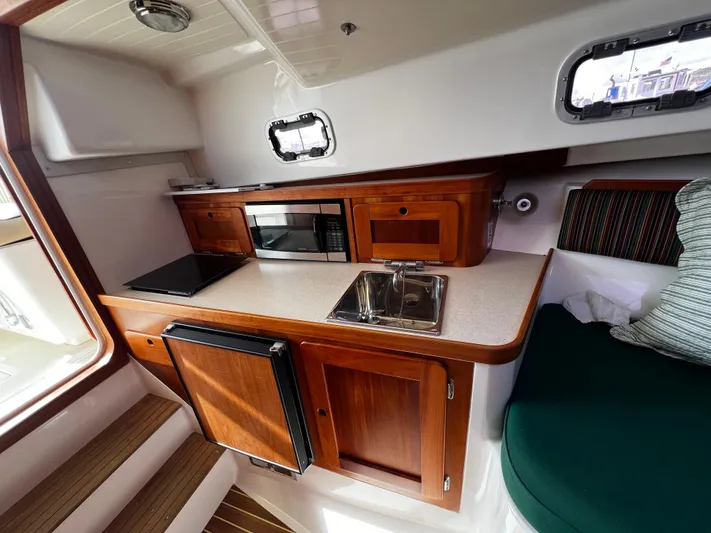

Galley- port:

The galley is to port at the base of the companionway steps and provides functional and more than adequate amenities and storage for weekend cruising and entertaining.

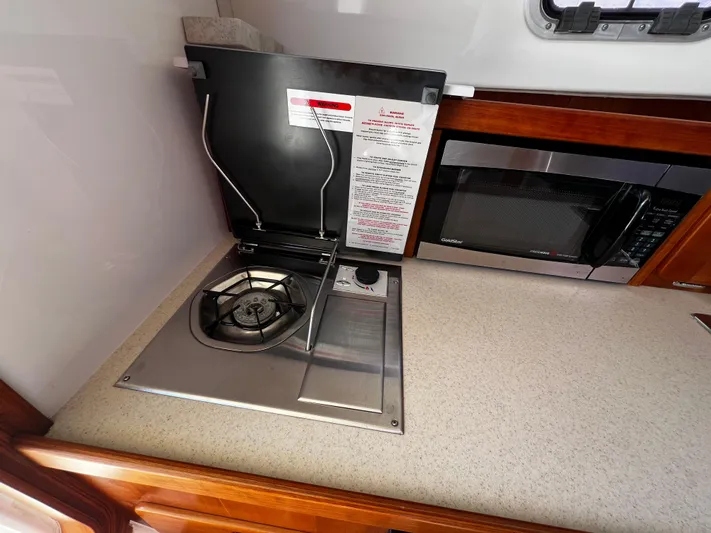

• Single burner butane cooktop with tempered glass cover
• Deep single stainless steel galley sink
• Corian galley countertops w/ cherry fiddles
• 110v GFCI outlet
• Norcold 12v / 110v refrigerator
• Hot and cold pressure water
• Microwave oven
• Two storage lockers on either side of microwave
• Storage shelf atop locker and microwave with fiddle
• Storage locker under sink with space for trash can
• 12v Hella fan

ELECTRICAL SYSTEM:

12-volt DC electrical system:

• (2) 12-volt Group 24 batteries with selector and parallel switches
• 12-volt distribution panel with breakers, volt and amp meter
• 12v utility outlet at helm

110-volt AC shore power electrical system:

• 2 - 30-amp shore power service outlets with (1) 50ft and (1) 25ft power cords
• Charles 15-amp automatic battery charger

MECHANICAL/ENGINE DETAILS:

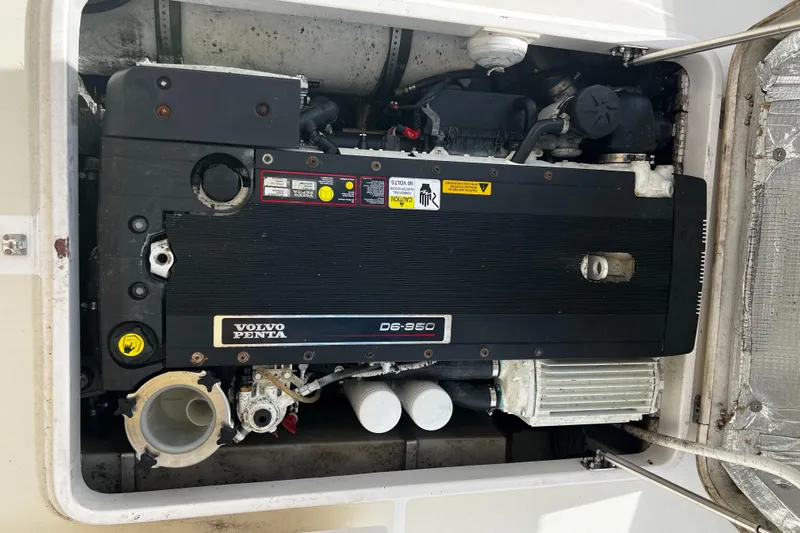

• 2006 Volvo Penta D6 350HP Diesel
• Volvo single lever control
• Hydraulic steering

• Steel jackshaft between engine and outdrive

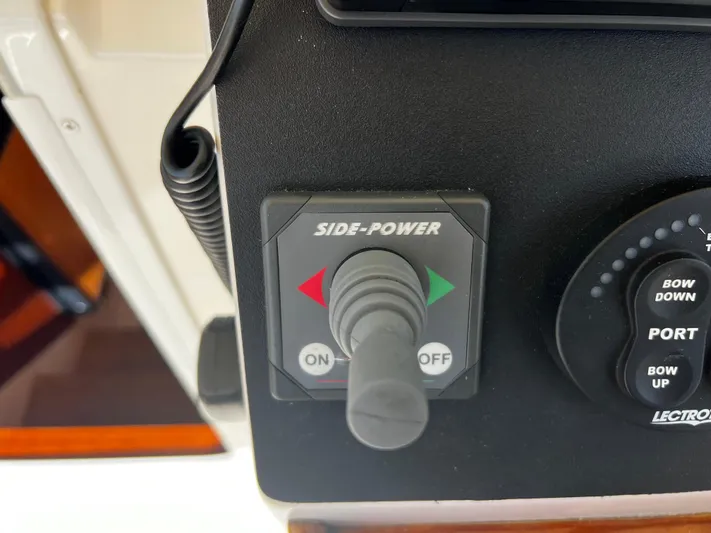

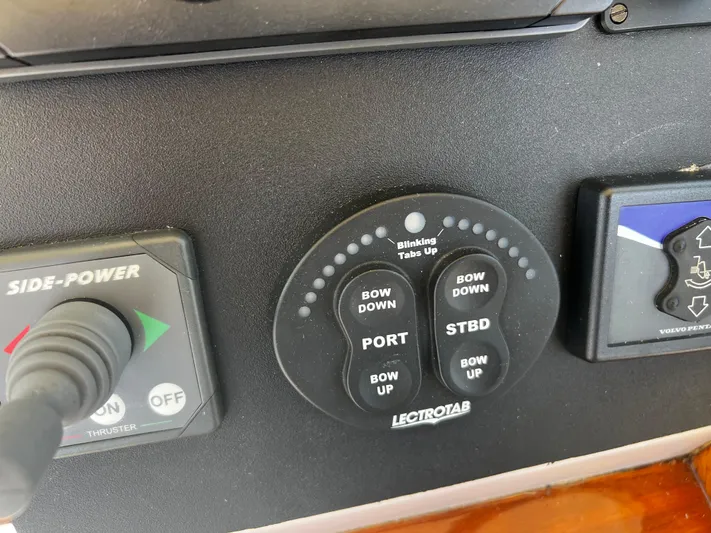

• SidePower electric bow thruster
• Fuel filter/water separator

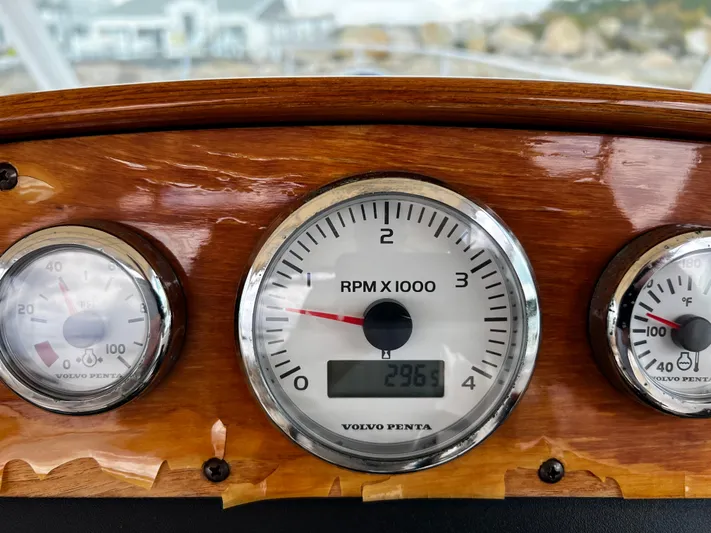

• Tachometer with engine hours gauge
• Gauges: Fuel, oil pressure, water temperature, voltage, and outdrive trim
• 2 - 75-gallon poly molded fuel tanks with stainless steel deck fills
• 28-gallon poly molded water tank with stainless deck fill
• 15 gallon holding tank w/ overboard macerator pump & gauge
• Lectrotab trim tabs w/ position indicator
• Pressurized freshwater water system

• Hot water heater- both engine heated and electrically heated
