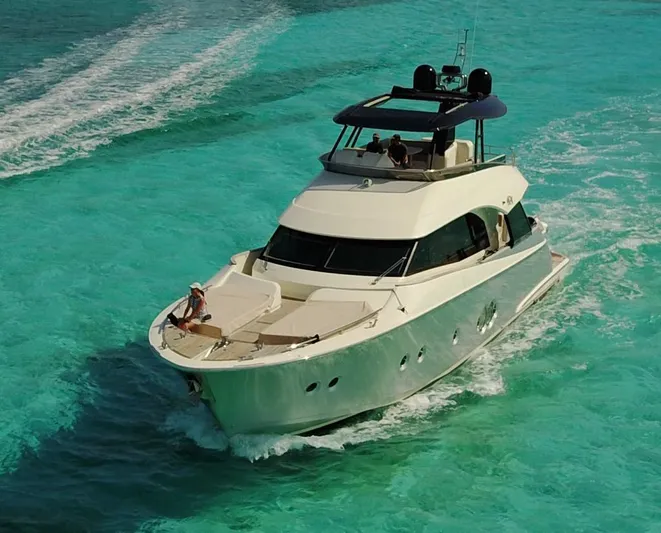

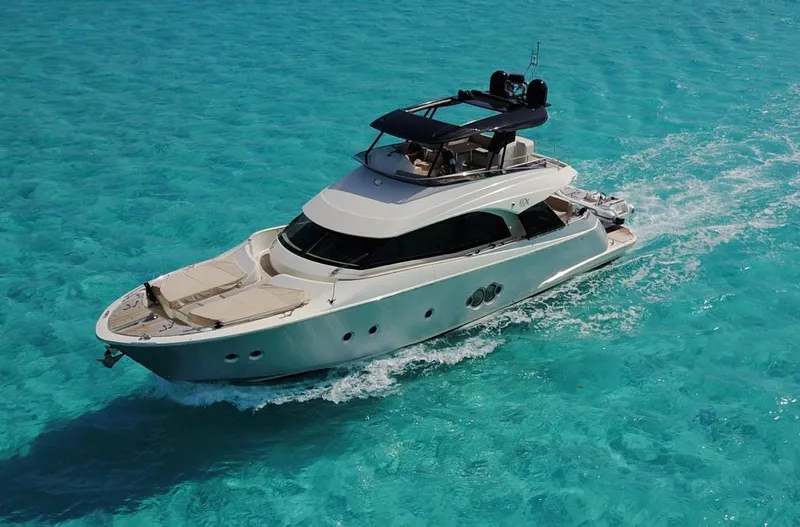

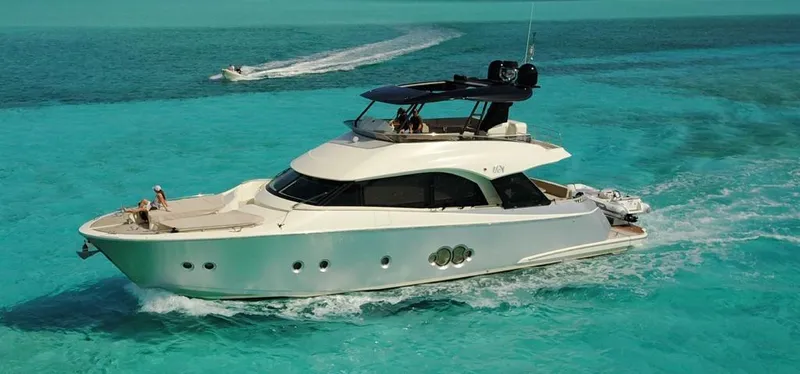

REMEDY Yacht for Sale

• Cruising Speed: 26 kn
• Maximum Speed: 30 kn
• Beam: 17' 1''
• Hull Material: Fiberglass
• Max Draft: 5' 1''
• Displacement: 80,000 lb
• Fuel Tank: 1 x 925|gallon
• Fresh Water: 1 x 198|gallon
• Holding: 1 x 66|gallon
• Cabins: 4
• Heads: 4

• MCY 65 has a planing hull, with a 15° deadrise angle along the entire bottom, deep “V” bow, with 6 iso-parametric spray rails.
• Hull, deck and superstructure are made in sandwich lamination using only vinylester resin in the external skin to prevent osmosis phenomena and DCPD resin.
• A bow crash box to improve the resistance to waves and impacts is provided. Furthermore, in that same area, the hull is reinforced by using kevlar lamination.
• Structural bulkheads are in sandwich.
• The other internal partition walls are built using LARICROSS composite
• The structural project of the hull is according to CE-Design Category A

• Engines
  • (2) MAN V8 1200, 8 cylinders, 90° V design
• Gearbox
  • ZF 510 - 1 A
  • Direct mount marine transmission
• Shafts
  • Aquamet 22, diam. 80 mm
• Propellers
  • NiBrAl alloy, four blades, 880 mm diameter
• Rudders and Steering System
  • Steel, 0.25 sqm surface
  • Power assisted steering system
• Dual Station Bow Thruster
  • 24V 10kW (210kgf)
  • Manoeuvring system option:
    • Manoeuvring joysticks (main helm and flybridge) for easy control at docking, with electronic control of bow thruster and engines
  • Trim Tabs:
    • Hydraulic Trim Tabs System (Note:  Trim Tabs function, the display is inoperable)

• 40 kg anchor with 70 m chain
• Reversible electric anchor winch, with foredeck, main helm and flybridge controls (controls on floor for up/down/captain operation)
• Stem head roller with automatic anchor launch and retrieve
• Bow stainless steel protection
• Stainless steel bow fairleads with stainless steel protection
• Stainless steel bow, stern and 6 spring cleats ( and additional 2 as option)
• Option:  twin stern mooring electric winches
• Stern stainless steel fairleads with rollers

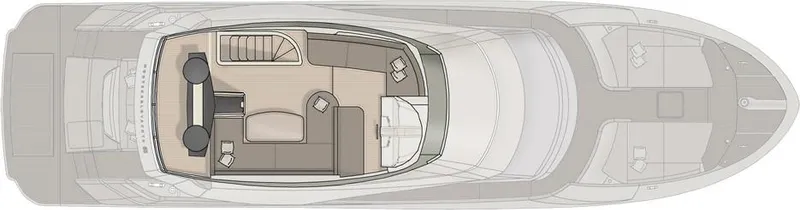

• Flybridge
  • External staircase with teak steps
  • Option:  teak floor
  • Lights and perimeter courtesy lights
  • Plexiglass and aluminium access hatch to flybridge
  • Plexiglass and stainless steel windscreen
  • Stainless steel protection pulpit and handrails
  • Fiberglass radar mast, black painted, with aluminium wings supporting:
    • navigation lights,
    • radar and GPS antennas equipment,
    • TV antenna,
    • horn
    • lighting protection
    • flybridge lights
  • Pilot console with navigation and engine control screens, including instrumentation as per section 9, plus:
    • steering wheel
    • main engines and reversing gear levers
    • key switches for port and starboard engines
    • rudder angle indicator
    • horn, windscreen wipers, rudder pump, anchor winch and chain counter, search  light
    • panel with warning and alarms for monitoring system
  • Helm Seat with storage
  • C-shape sofa with cushions, decorative cushions and large capacity storages
  • “L” sofa on port side, with cushions
  • Teak table for 6 people with 2 stainless steel legs.
  • Sunbathing aft platform
  • Galley with sink, hot and cold water supply, fridge, ice maker and storages
  • Barbecue grill (option)
• Stern
  • Bathing platform with:
    • hydraulic up/down lifting system – 600 kg max loading capacity
    • platform size suitable for a 3.25 m tender length
    • platform teak floor and teak grating
    • stainless steel fender bar with rubber insert reinforcement
  • Foldable bathing ladder
  • Water proof access hatch to engine room, and crew cabin
  • Stern stairs to aft cockpit, with stainless steel handrails and hatches for shore power connection and stern platform shower (cold and hot supply)
  • Option: electro-hydraulic concealed stainless steel gangway, with teak grating, automatic stanchions.
• Aft Cockpit
  • Option: teak handrails on bulwark with stainless steel handrails
  • Teak floor with perimeter courtesy lights
  • Stainless steel and tempered glass fashion plates for lateral protection of the cockpit, with courtesy lights
  • Salon door in stainless steel and tempered glass
  • Stainless steel and plexiglass gates to stern staircases
  • Stern sofa with cushions and storage
  • Teak table for 8 people with two stainless steel legs
  • LED power and courtesy lights on ceiling
  • Flush deck hatch for engine room
• Sideways
  • Option: teak floor with perimeter courtesy lights
  • Storages covered with teak door and step, containing fresh water intake (on port side) and black and grey waste discharges (on starboard side)
  • Option: teak handrails on bulwark with stainless steel handrails
  • Stainless steel fender rubber with rubber insert reinforcement
  • LED power lights on ceilings
  • Tempered high thickness glass windows glued to the superstructure
  • Window on starboard side (manual)
  • Option: semi-automatic electric watertight door from saloon to starboard sideway, in lieu of manual window
• Bow cockpit
  • Chain locker in the anchor winch area, with:
    • two storages and handrails to fix fenders
    • chain guiding support
    • cold and hot water shower
  • Teak floor with perimeter courtesy lights
  • Flush deck hatch for VIP cabin emergency exit
  • Sofas with cushions and storages
  • Complete Portuguese bridge with storages
  • Stainless steel handrails
  • Option: teak handrails on bulwark along the Portuguese  bridge
  • Forward windscreen in sandwich tempered glass
  • 2 electric windscreen wipers for forward windscreen

• Main deck – saloon
  • Cabinet with drawers on starboard side on starboard side.
  • Electric panels along stairs to lower deck
  • Dishware and cutlery storage
  • Sofa on port side with sofa table
  • Sofa on starboard side with foldable dining table
  • Option: TV with up/down rotating lifting mechanism for a 40" LED full HD TV
  • Direct LED lights on ceilings, indirect lights on ceiling
  • Venetians blinds on port and starboard sides
  • Electrical panel on starboard side
  • Stairs to lower deck
  • Galley on portside
  • Electric venetian blinds (option)
• Wheelhouse

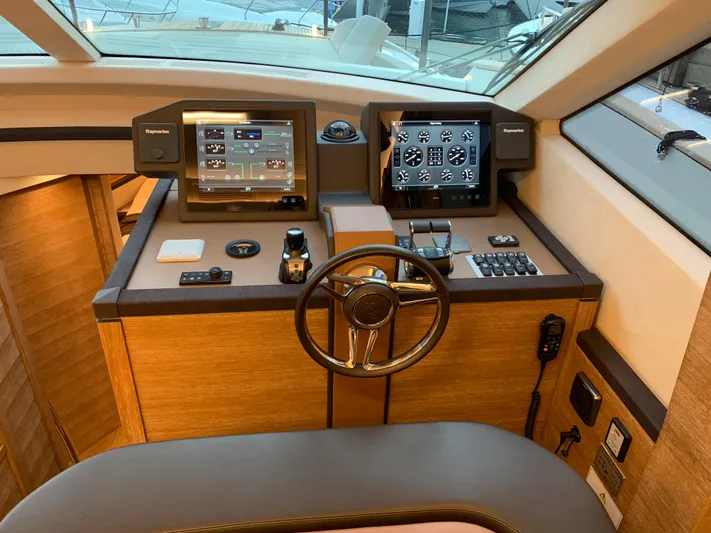

  • Instruments console
  • Option: semi-automatic electric watertight door to access sideways
  • Helm seats (for 2)
  • Direct LED lights on ceilings (day and night navigation lights)
  • Pilot station includes, further to the instrumentation as per paragraph.9:
  • Steering wheel in leather
  • Main engines and reversing gear levers
  • key switches for port and starboard engines
  • Rudder angle indicator
  • Horn, windscreen wipers, rudder pump, anchor winch and chain counter, search light, fire extinguisher controls
• Galley
  • Working top with cooking top and stainless steel sink
    • Storage under cooking top and sink
    • Storage shelves
    • Direct LED lights on ceilings
  • Equipment of galley includes:
    • four induction hobs
    • extractor
    • combined oven
    • fridge + freezer 190 liters total capacity
    • option: dishwasher
    • hanging furniture and cabinets
    • option: front opening freezer + 260 liters fridge
  • Crew Cabin
    • Two beds with mattresses, bedspreads and pillows
    • Wardrobe
    • Direct LED lights on ceilings
    • Opening porthole with mosquito net
    • Storage underneath the bed
    • Weather tight door to engine room
    • Sink
    • Mirror
    • Cabinet
  • Crew Bathroom
    • Tecma WC
    • Direct LED spotlights on ceiling
    • Shower
  • Master Cabin
    • King size bed with mattress, bedspread and pillows
    • Two nightstands
    • Power LED indirect light and LED spotlights
    • MCY design large windows with opening portholes and mosquito nets
    • Chaise longue with cushions
    • Venetians blinds on port and starboard sides
    • 2 wardrobes with hanging bars
    • Large storage and drawers on portside
    • Vanity table with pouf- Carpet
  • En-suite bathroom
    • Tecma WC
    • Option: Tecma bidet
    • Marble with two large size basins and floor
    • Venetian blinds
    • Mirror and cabinet
    • Power LED indirect light and LED spotlights
    • Separate shower room with:
    • Mosaic tiles
    • Shower column with central rain shower on the ceiling
    • LED lights on ceiling and in the shower
    • Extractor
  • Guest Cabin
    • Twin beds with mattress, bedspreads, pillows and storage underneath
    • One nightstand
    • Two opening portholes with mosquito nets
    • Power LED indirect light and LED spotlights
    • Wardrobe with hanging bar, mirror and light
    • Venetian blinds
    • Carpet

• Guest Bathroom
  • The guest head can be used as a day toilet with direct access also from the lower deck corridor
  • Tecma WC
  • Sink
  • Mirror
  • Cabinet under the sink and behind
  • Shower with circular box
  • Opening porthole with mosquito net
  • LED spotlights on ceiling and in the shower
• VIP Cabin
  • Double bed with mattress, bedspread, pillows and storage underneath
  • Two nightstands
  • Wall reading lamps in leather
  • Power LED indirect light and LED spotlights
  • Four opening portholes with mosquito nets
  • Wardrobes with hanging bar and light
  • Emergency hatch on ceiling, with mosquito net
  • Venetian blinds
  • Carpet
• VIP Bathroom
  • Tecma WC
  • Sink
  • Mirror
  • Cabinet above and under the sink
  • Shower with glass and steel door
  • Shower column with central rain shower
  • Opening porthole with mosquito net
  • LED spotlights on ceiling and in the shower
  • Power LED indirect light

• General characteristics.  The whole system has been carried out according to:
  • 1) Directive 94/25/CE, amended by 2003/44/CE
  • 2) EN ISO 10133:2000 “Small craft – Electrical systems – Extra-low-voltage D.C. Installations”
  • 3) EN ISO 13297:2000 “Small craft – Electrical systems – Alternating current Installation”
  • 4) EN ISO 10134:2003 “Small craft – Electrical devices – Lightning protection systems”
  • 5) EN ISO 16147:2002 “Small craft – Inboard diesel engines – Engine-mounted fuel and electrical components”
• Voltage system as follows:
  • 24V DC with grounded negative for:
    • Bilge systems
    • Steering systems
    • Internal / External lights
    • Engine room lights
    • Navigation lights
    • Electronic monitoring system
    • Navigation systems
    • Emergency systems
    • Thrusters & Winches
    • Engine room ventilation
    • Other small utilities
  • 230/110V AC, single phase, 60Hz for:
    • Air conditioning systems  (option)
    • Galley appliances
    • Battery chargers
    • Electrical outlets
    • Entertainment systems
    • Other small utilities
  • Electrical panels
    • Main electrical control panels are installed in the:
      • engine room
      • wheelhouse
    • Secondary electrical panels are installed in all the areas of the yacht
  • Wiring / Conduits
    • Electrical wiring is housed in metal or self- extinguishing closed PVC conduits.
    • Electrical wiring is developed with no flammable materials and with proper cross section related to the use.
  • Ground Equipment
    • Ground system for all the water intakes, the aluminium structure, steel components, etc…
    • Ground system for all the 230/110V AC equipment
    • Lightning protection
    • The ground system is connected to:
      • Stern and under hull zincs
      • Porous copper plates under the hull
    • 230/110V AC Power sources
      • Shore Power
      • Two 230V AC, 50A shore inlets placed on stairs hatch – with Glendenning  master cable systems (option)
      • AC power source run to the main electrical panel in the engine room.
      • Power sources are protected by magneto/thermal breakers and isolation transformers
      • Each shore power line has a multi-meter, to control all the electrical parameters (Volt, Amp, Watt, frequency)
    • Generator
      • One 23 kW Kohler generator, 230/110V AC, 60Hz, 12V DC starter, with sound shield            box and electronic control panel located in the engine room.
      • AC power source run to the main electrical panel in the engine room
      • Power sources are protected by magneto/thermal switches
      • Generator has a multi-meter that control all the electrical parameters (Volt, Amp, Watt, frequency)
      • 230/110V AC distribution
      • Each appliance is protected by magneto/thermal breakers
      • 24V DC Power sources
    • Batteries
      • Group of 24V AGM Mastervolt batteries for services
      • Group of 24V AGM Mastervolt batteries for engines
      • Group of 24V AGM Mastervolt batteries for anchor winch and bow thruster
      • 12V AGM Mastervolt battery for generator
      • Group of 24V AGM Mastervolt batteries for stern thruster (option)
      • All batteries new 2022
    • Battery chargers
      • 24V 100Amp Mastervolt battery charger for services / engine batteries
      • 24V 30Amp Mastervolt battery charger for anchor winch and bow thruster batteries
      • 12V 25Amp Mastervolt battery charger for generator
      • 24V 30Amp Mastervolt battery charger for stern thruster (option)

• Alternators
  • 24V 120Amp alternator connected to service battery.
  • 24V 120Amp alternator connected to anchor winch and bow thruster battery
  • 2 x 24V 120Amp alternators connected to engine battery

Generator alternator connected to the generator battery

• Engine Room
  • Spotlights 24V DC are installed to the ceiling of the engine room.
  • Engine room lights are connected to service batteries
• Master, VIP and Guests Cabin
  • Power LED spotlights and strip power LED in the ceiling
  • Courtesy strip LED around the bed an under the furniture
  • Lights control close to the entrance door and near the bed
• Saloon and Galley
  • Power LED spotlights in the ceiling
  • Blue power LED spotlights in the dashboard ceiling (night navigation lights)
  • Lights control close to the entrance door and near the stairs
• Crew
  • Power LED spotlights and strip power LED in the ceiling
  • Courtesy LED under the bed
  • Lights control close to the entrance door
• Bathrooms
  • Power LED spotlights and strip power LED in the ceiling
  • Courtesy LED
  • Lights and shower ventilation control close to the entrance door
• Exteriors
  • Power LED spotlights and strip power led in the aft cockpit ceiling and in the side deck ceiling
  • Courtesy LED spotlights around the floor of the external deck and the floor of the fly bridge            -
  • Courtesy Power LED spotlights  on the upper side of the fashion plates
  • Power LED spotlights in the radar mast wings
  • Lights control close to the entrance door and in the monitoring system

• Dashboard & Navigation Instruments

  • Hull
    • N°1 Raymarine DT800 Depth / Temperature transducer
  • Wheelhouse
    • 2 Raymarine Axiom touch screen displays
    • 2x Raymarine ST70 displays
    • 1x Raymarine GPM 400 G Series processor
    • 1x Raymarine G Series keyboard
    • Raymarine RAY 240E DSC VHF
    • Flaps indicators
    • Option: manoeuvring joystick
    • Magnetic compass
  • Flybridge
    • 2x MAN CLC  6.5” displays for engines monitoring (including voltmeter, engine oil temperature, water temperature, engine revs, gearbox oil temperature, etc)
    • 2 Raymarine Axiom Displays
    • 1x Raymarine ST70 display
    • 1x Raymarine G Series compact keyboard
    • Raymarine RAY 240E VHF repeater
    • Flaps indicator
    • Option: manoeuvring joystick
    • Magnetic compass
  • Radar Mast
    • 1x  Raymarine  PB200 weather station / GPS antenna
    • 1x  Raymarine radar antenna radome 4 KW digital
  • Monitoring System Salon Dashboard
    • On Raymarine Axiom Screens
    • External and engine room temperature indicators
    • Alarms and manual controls for bilge system
    • Fresh, Grey and Black water level indicators and alarms with discharge control systems
    • Fuel level indicators and alarms with engines consumption indication, water in Racor filters indicator (option), fuel valve ON/OFF indicator
    • Service battery  indicators (Volt, Amp IN/OUT, Charge level)
    • Engine  battery switch control and voltage indicator
    • Bow thruster and anchor winch battery switch control and voltage indicator
    • Stern thruster battery switch control and voltage indicator (option)
    • Generator battery switch control, voltage indicator, Start/Stop control, fuel valve ON/OFF indicator, water in Racor filter indicator (option)
    • Engine room ventilation alarms and control
    • 230V AC Source selection page with Volt,  Amp, Watt, frequency, phase indicators
    • 230V AC main breaker status indicators
    • 230V AC overload and load shedding system
    • Navigation lights status (ON/OFF) and alarms indicators
    • Owner’s manual pages viewer
    • Fly dashboard acoustic alarm activation
    • Fly dashboard optical alarm activation
    • Fly dashboard indicators
    • Acoustic remote alarm
    • Optical remote alarm
    • Emergency operation panel (included into 24V saloon panel)
    • Bilge pump alarm indicator and manual switch
    • VHF power supply selection

• Salon
  • Option: 40" Edge LED full HD TV with up/down lift
  • Option: Home Theatre Bose Lifestyle V-Class
  • Option: DVD player
• Owner Cabin
  • Option: 32" Edge LED full HD TV
  • Option: Home Theatre Bose Lifestyle V-Class
  • Option: DVD player
• VIP Cabin
  • Option: 26" Edge LED full HD TV
  • Option: DVD player
• Guest Cabin
  • Option: 20" Edge LED full HD TV
  • Option: DVD player
• Aft Cockpit
• Two Bose External Loudspeakers  (with remote control)
• Bow Sun pad Area
  • New JL Audio control head with 4 new speakers
• Flybridge
  • New JL Audio control head with 5.1 speakers

• 2x stainless steel tanks, for a total capacity of 925 US gals (3.500 l).
• Each tank is provided with stainless steel breather pipe and electric sensor for level monitoring.
• Fuel tank levels are visible on the electronic monitoring system LCD screens at the wheelhouse dashboard operating with a safety magnetic system.
• Fuel filling operation is carried out through inlets placed on each deck side.

• 1x grey water tank with 80 US gals (300 l) capacity.
• 1x black water tank with 66 US gals (250 l) capacity.
• Grey and black water tank levels are visible on the electronic management system LCD screens at the wheelhouse dashboard.
• Tank's emptying has automatic or manual outboard through 2 dedicated electric pumps.

• Centralized system with suction in each compartment connected to the main collector positioned in the engine room
• 24 V DC electric pump with controller in main helm on the electronic monitoring system
• Emergency manual pump in the engine room.
• 24V automatic bilge pumps.
• High capacity emergency bilge pump in engine room through engine sea intakes and water pump.
• Bilge level alarm.

• Fresh water system is fed by tanks in the midship bilge (capacity 200 US gals - 750 l) or by the shore connection on stern.
• Water tank levels are visible on the electronic monitoring system LCD screens at the wheelhouse dashboard.
• 2x 16 US gals (60 l) water heaters

• 4x main brass sea water intakes with valves and filters: 2 for the engines, 1 for the generator and 1 for general utility.
• Chain washing with sea water supplied by an electric pump positioned under the floor of VIP cabin

• Interiors ventilation
• Centralized system for toilet air extractors
• • Galley extractor
  • Engine Room ventilation
  • Engine room ventilation system:
    • 2x  electrical ventilators 24V DC
    • 2x  electrical extractor 24V DC
  • Engine room ventilation system control is connected to the engine keys and to the electronic monitoring system.
• Cruisair air conditioning system with reverse cycle (cool and heat) (option)

• Hull and deck sandwich lamination together with absorbent, sound-proofing and heat insulation materials guarantee high level of noise reduction and thermal insulation.
• Interiors ceilings and floorings are soft mounted through vibration absorbers materials and system in order to maximize vibrations and noise reduction.
• Complete noise and thermal insulation of engine room through insulation materials, covered with aluminium sandwich finishing walls.

• Docklines
• 6 fenders
• Dishware, glassware and cutlery for 6 people
• Towel sets for bathrooms, with MCY logo
• Owner’s manual (with electronic copy available through the electronic monitoring system)
