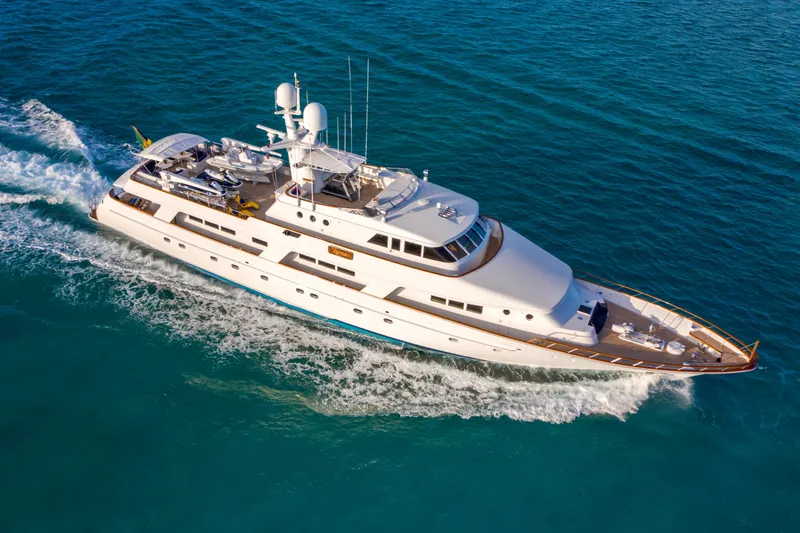

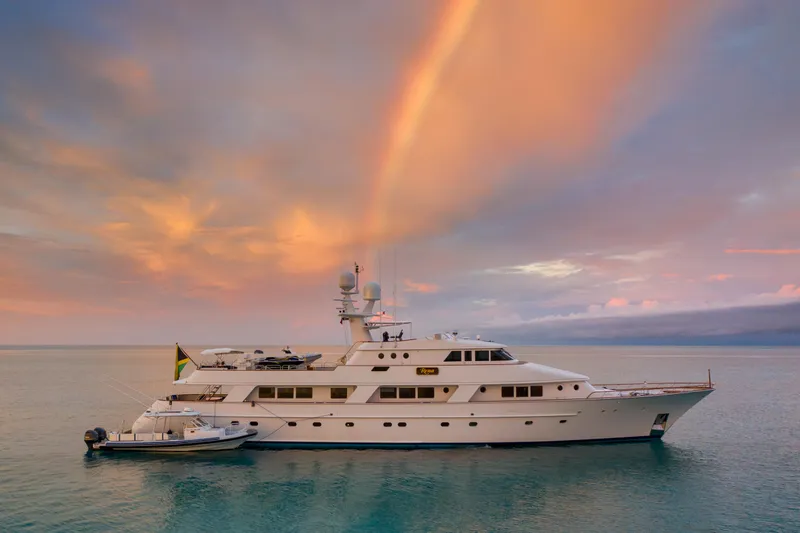

RENA Yacht for Sale

• Cruising Speed: 13 kn
• Maximum Speed: 15 kn
• Beam: 25' 5''
• Hull Material: Aluminum
• Fuel Tank: 1 x 17700|gallon
• Fresh Water: 1 x 5900|gallon
• Heads: 6

DIMENSIONS

Length O.A.                            44.2m (145')

Length W.L.                            42.3m (134'9")

Beam                                      7.7m (22'5")

Draft                                        2.3m (7'5")

Gross Tons                             334

Net Tons                                 100

Year Built                                1989

Builder                                    NQEA

Naval Architect                       Jack Hargrave

Interior Designer

Construction                           Aluminum hull and superstructure, teak laid decks

Classification                          Lloyds

MACHINERY

Main Engine                           2 x 1,500hp Caterpillar 3512D diesel engines

                                              February 2024 (Reubild in progress)

                                              Port: 0 hrs

                                              Stbd: 0 hrs

Gear Boxes                            0 hrs

Shafts

Propellers                               2 x 5 Blade Conial

Speeds                                  13 knots cruising speed

                                              15 knots max speed

Main Generators                     2 x 99kw Northern Light

Generator Hours                     Sep-23

Gen #1:                                  1,700 hrs. (last major overhaul 2021)

Gen #2:                                  1,700 hrs. (last major overhaul 2021)

Electricity                               60 Hz

Electical supply           Shore Power50 or 60 hertz 1000KW Atlas shore power (New 2024)

Batteries                               14 x 8D volt (house runs 24V DC)

Fuel Consumption:

                            222 litres (60 gal) per hour at 12 kts (including generator)

                            252 litres (68 gal) per hour at 13 kts (including generator)

Range                                    4,000nm @ 10 knots

Tank Capacities (Approx)

Fuel                                      66,995 litres (17,700 gallos)

Water                                   22,332 litres (5,900 gallons)

Water Maker                        18,927 litres/day (5,000 gallons)

Clean Lube Oil

Dirty Lube Oil                        1,135 litres (300 US gallons)

Grey Water                           1,135 litres (300 US gallons)

Black Water                          1,135 litres (300 US gallons)

Mechanical Equipment

Steering System                   Sterling Marine

Stabilizers                            Naiad Stabilizers with Quantum Control Unit

Fuel Filters                           7 x Racor

Fuel Oil Separator                Alpha Laval

Oil/Water Separator              N/A

Bilge Pump                           Custom Manifold with 2 x 4hp pumps

Fire Pump                             2 x 4hp pumps

Sewage Treatment               Headhunter MSD

WC's                                    10

Air Conditioning                    4 x 10 Ton HVAC (24 dometic air handlers)

Ventilation                            4 x Delta T (new 2023)

Magnetic Compass             SIMRAD Fluxgate

Gyrocompass                     HAMBURG gyrocompass

Automatic Pilot                   SIMRAD auto pilot

Log B&G                            speed log

Echo Sounder                   B&G and Furuno

Radar                                2 x Furuno 2117 ARPA Radars

Chart Plotter                      Transas and Nobletec

GPS                                 2 x Northstar 952XD GPS

Wind Instruments             B&G

AIS                                  1 x Furnuno FA-150

DECK EQUIPMENT

Anchor Windlass              240 V (fully rebuilt 2021) anchor windlass and

                                        new anchor chain

                                         Ground Tackle2 x Anchor with 400 ft of chain each

Aft Warping Capstans      2 x capstans on aft deck

Boat Crane and Davits     2 x Nautical Structures 2,000lb SWL 3 phase

                                        hydraulic davits

Pasarelle                        Nautical Structures telescoping gangway

Searchlights                   2 x searchlights joystick controlled

Awning                          Multiple areas and removable if desired

Safety and Security Equipment

Closed circuit TV with motion sensors

MEDLINK offshore medical kit with 24/7 concierge service Defibrillator and entire ditch bag kit with 22 immersion suits30 life jackets, flares and three 8-person life rafts

Fire Fighting                         2 x 4 hp pumps with 26 extinguishers

Alarm and Monitoring           Consillium (New 2023) Raytheon ( New 2023)

SATCOM                              Cellular Systemin Intellian V SAT internet Fleet one

Satellite Communication,     GMDSS, STARLINK (New 2023) and cellular system

VHF Radiotelephones         2 x Sailor RT-2027 VHF radios/ JRC NCM-2150 MF/HF SSB

                                           12 x ICOM Digital Radios

Crew Comms                      2 x GMDSS Handheld, 2 x VHF Handheld, SART, 2 x EPIRB

Audio/Visual Entertainment Systems

SalonTV                        TV, Media Server Library, CD/DVD/ Blu-ray and Bluetooth

Deck Lounge                 TV, Media Server Library, CD/DVD/ Blu-ray and Bluetooth

Sun Deck                      TV, Media Server Library, CD/DVD/ Blu-ray and Bluetooth

Owner's Cabin               TV, Media Server Library, CD/DVD/ Blu-ray and Bluetooth

Guest Cabin                  TV, Media Server Library, CD/DVD/ Blu-ray and Bluetooth

Captain's Cabin             TV, Media Server Library, CD/DVD/ Blu-ray and Bluetooth

Crew Cabins                 Wi-Fi Entertainment

OFFICE EQUIPMENT

Bridge                         IMAC

DOMESTIC EQUIPMENT

Main Galley               Vulcan Hart E60FB Oven Range with 6 electric burners

Dishwasher                 2 x Miele WXR860WCS

Laundry      Washing Machine(New 2023) 1 x Samsung 5.5 C ft Smart Washer (New 2023)

Pantry                         2 Refrigerator and Freezer

Crew Mess                 Small refrigerator, coffee maker and ice machine

Boat Deck                  Refrigerator, Ice Maker and Grill

Main Deck                  Refrigerator, Ice Maker

OTHER EQUIPMENT

Ship's Safes                1 X Securitronic safe in Pilothouse

Gym Equipment      Recumbent Bike, Treadmill, free weights, ab roller and exercise mats

TENDERS AND WATER SPORTS

Tenders                     1x Nautica catamaran landing craft with 115hp Yamaha engine

Wave Runners           2 x Yamaha VX-1050 3 person

Kayaks                      2 x Hobie kayaks with optional foot pedals

Sailboat                     1 x Vanguard Zuma sailing dinghy

Equipment                 2 x SUP paddle boards, wake boards, water ski's,

                                  snorkeling and fishing gear

Paint

Hull Paint                Du Pont Matterhorn White

House Paint            Du Pont Matterhorn White

Boot Stripe              All Craft Royal Blue

Bottom Paint           Seahawk BIOCOP-TF Blue

Accommodations

Accommodation for up to 14 guests in 5 cabins, and up to 10 crew in 6 cabins, as follows:

Owner's Stateroom: Full-beam master with king size bed

VIP Stateroom on main deck with king size bed

Guests Stateroom Three additional staterooms with queen beds and single beds, two of the staterooms have pullman berths

Captain's Cabin      Queen Bed on the main deck

REFIT and Completed work list:

MAINTENANCE TIMELINE M/Y RENA

October 2023 to May 2024

-       Complete top and bottom rebuild of both Cat 3512 main engines

-       Rebuild of both ZF main engine transmissions.

-       Replace pneumatic throttle control system with Kobelt electrical controls

-       Replaced both main engine governors to accommodate electric control.

-       Removed and factory rebuilt bow thruster main unit. Replaced bow thruster

        command controls in bridge and wing station.

-       Replaced autopilot center command unit and center wing station follow up controls

        controls

-       Replaced VHF GMDSS radios

-       Replaced bridge weather station

-       Replace B and G bridge speed and depth monitors

-       Replaced both depth sounders

-       Replaced plotter screen with 2 x 19 inch HD screens.

-       Added Time Zero (nobeltec) to existing transas 4000 plotter

-       Replaced generator DPF catalytic convertor systems along with all associated

        hardware, electrics, and exhaust plumbing.

-       Replaced all cushions on aft deck main dining area.

-       Replaced center area of bridge deck teak.

-       Painted entire hull from cap rail to keel including inside of bow area and all of

        transom

-       Removed all 10 microphor toilets, and completely rebuilt with all new components.

        Replaced all associated rear plumbing, and reinstalled as new toilets

-       Replaced both air compressors with Primary AC and back up DC compressors.

        Replaced air expansion tank with new tank and mounts.

-       Replaced last of old air handlers. All on board air handlers, and plumbing and ducting

        are replaced between 2018 and 2024.

-       Removed and replaced skin fitting and intake pipe and valve to main AC, and all

        piping to and from new sea strainer.

-       Sealed and welded up all redundant hull penetrations.

-       Removed all old and redundant wiring and piping from Mast, Bridge, ECR, fan room

        and engine room.

-       Painted all of engine room piping below deck plates in engine room. Interior engine

        room hull plate and supports painted where needed.

-       Engine Control Room electrical circuit, and breaker boards and panels completely

        removed and replaced with new components, and breaker boards.

-       Seamless touch screen transfer installed new as part of Control room rebuild.

-       ATLAS frequency converter replaced, and redundant wiring, cabling, transformers,

        and smart box removed.

-       LED light replacements ongoing on main deck, bridge deck and exterior.

-       Wing stations re fabricated to accommodate updated controls.

-       Bridge consul re-fabricated to accommodate new equipment and controls.

2023

-       Replaced all 3 x washing machines and all 3 x dryers

-       Replaced top deck exterior cushions and sun pads

-       Replaced all exterior awnings

-       Replaced all exterior covers for tender, jet skis and furniture

-       Replaced all cushions on bow

-       Installed starlink marine grade data equipment and high speed pep-wave router

-       Replaced fire alarm system with new Lloyds approved Consillium detection system

-       Replaced monitoring system with Raytheon remotely accessible system.

-       Replaced all fuel tank sensors and mounts and all bilge sensors and mounts

-       Replaced on board security system

-       Rebuilt fuel separator and plumbing and added bleed off tank

-       Replaced 2 x Yamaha wave runners

-       Replaced 2 x AC chillers

-       Replaced galvanic isolator

-       Converted main deck interior lighting and switched to LED

-       Replaced bridge and crew cabins ceiling insulation

2022

-       Replaced engine room intake and exhaust fans with 4 x Delta T frequency drive fans

        with auto shut off vents.

-       Replaced all ducting manifolds and framing for engine room ventilation

-       Replaced majority of teak on bow and port side

-       Painted all of main deck aft of bow

-       Replaced hull plate and struts from water line to keel forward of bow thruster

-       Replaced all VHF and GPS aerials and cables

-       Replaced Transas computer and updated to Transas 4000

-       Rebuilt stabilizer system hydraulic side. Replaced fin bearings

-       Replaced remaining 50% of air handlers

-       Rebuilt fan room on top deck with new storage racks and boxes, installed led

        lighting, replaced all cables outlets and breaker boxes. and new tool cabinetry,

        soundown, and insulation, replaced all top deck aluminum drain pipes

-       Installed LED lighting and switches. in engine room lazarette, and steering room

-       Installed underwater lighting on swim platform

-       Removed and replaced majority of engine room ceiling insulation and soundown

-       Rebuilt VIP stateroom bathroom to fully disabled functionality. Installed all LED lights

        and switches in VIP stateroom

-       Complete top and bottom rebuild of both Northern Light 95KW generators, repaired

        and painted engine mounts and sound boxes.

-       Major overhaul Atlas frequency converter

-       Replaced shaft seals with Wirtzilla dry seals

-       Replaced oil coolers on both main engines

2020

-       Replaced swim platform teak

-       Replaced rear half of top deck teak and added 3 mm deck plate

-       Rebuilt all wiring harnesses and electrical components of both main engines

-       Replaced satellite Vsat dish with Intellian and re fabricated mast structure to

        accommodate new dish

-       Painted all of top deck

-       Stripped and re varnished galley teak floor and bridge teak floor

-       Stripped and re varnished all exterior wood surfaces including cap rails rear wall,

        table tops and bar and counter tops

-       Rebuilt anchor windlass and replaced all electrical components

-       Replaced anchor hawse pipes

-       Rebuilt anchor wash system

-       Replaced deck head liners and framing main deck aft. Installed LED lights and

        switches

-       Replaced rear half of main deck ceiling insulation

-       Replaced teak seating on bow

-       Replaced “satcom A “phone and dish

-       Replaced refrigeration and freezer systems

-       Replaced all seat and lounge cushions in bridge and crew mess

-       Installed media server

2019

-       Replaced steering system

-       Complete Rebuilt bow thruster system

-       Replaced all hull sections under both main engines

-       Rebuilt black and grey water tanks and replaced all pumps , pipes and plumbing

        fixtures

-       Replaced main engine exhaust risers and through hull piping

-       Replaced all through hull skin fittings and valves

-       Rebuilt fire and bilge manifolds

-       Replaced 50% of air handlers

-       Replaced interior wall liners lower deck

-       Replaced all TVs and monitors

-       Replaced Direct TV KVH satellite 100cm dish

-       Rebuilt fresh water manifold and filtration system

-       Major replacements of pipework throughout engine room

2017

 -       Sand blasted hull back to bear metal and recoated anti-foul

-       Replaced teak forward end top deck

-       Replaced all A/C chillers and plumbing manifolds and strainers

2016

-       Full top to bottom paint job

-       Replaced both hot water heaters

-       Replaced all carpets

-       Replaced head liners salon

-       Replaced salon lounges

-       New AV system throughout

-       Complete rebuild hydraulic passerrelle

-       Complete rebuild both davits

-       Replaced all ice machines and bar fridges

-       Stripped and re varnished bridge interior wood
