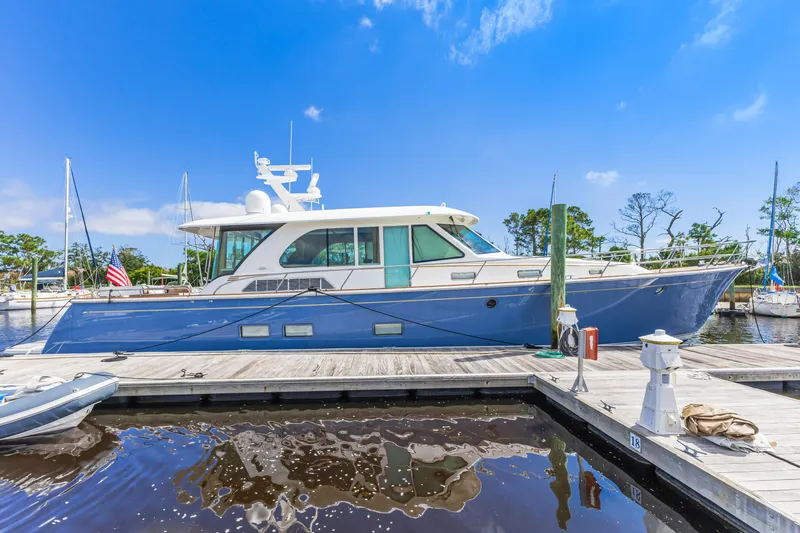

Sandcrab Yacht for Sale

Beam: 18' 1''
Hull Material: Composite
Max Draft: 5' 1''
Displacement: 82,500 lb
Fuel Tank: 1 x 975|gallon
Fresh Water: 1 x 300|gallon
Holding: 1 x 120|gallon
Cabins: 3
Heads: 3

MECHANICAL

Seakeeper NG16 gyro stabilizer
Dometic SeaXchange Watermaker 50 gallons per hour
Electric line handling winches P&S
Install dual AC pumps with a manual switch valve between them
Fuel polishing system
Electric overboard discharge thruhull
IPS Joystick in the cockpit, stbd wing on FRP wedge
Plumb oil change intake and pump out lines into transom locker
Raise the Charles Isoboost Transformers up to 3" for better access
Upgrade hydraulic swim platform to 2200lb capacity
Replace Onan generators with Northern Lights generators
Build a platform on top of SeaKeeper and install a toolbox on top of it

ELECTRICAL

Central vac with (3) outlets and 32 foot hose
ACR searchlight model RCL-100D 200,000 candela
(2) Install additional 120VAC duplex outlets, one on each side of the master berth
Full color spectrum underwater LED lights with controller, set of 5, new full spectrum color package
Delete the cable TV hookup from boat
Install parallel NMEA backbone system

EXTERIOR AND DECK

Contrasting non-skid color
Teak decking in aft cockpit and steps
Teak decking on swim platform
In transom storage space build a dedicated storage area for cleaning supplies, pails, shammy mops, etc.
Custom mast arrangement to have 6' array on bottom platform, 4' array on top
Install a 32" television in the cockpit overhead to drop down
EE001 style grill cabinet in cockpit with a cushion on top and propane grill
Install Passerelle in cockpit with straight out, updown
Piping on the cockpit settee

INTERIOR

Satin finish on drawer pull hardware
Beveled mirror in the master and VIP heads, guest/day head standard
Rapid coat wood finish throughout boat
Delete the wall tile in the VIP and Guest shower. Build shower walls out of white acrylic panels.
Delete all wallpaper from boat. Cherry walls with cherry chair rail.
Colorquartz Bel Air Beige in the galley, mezzanine deck, master head countertop and seat
Replace the standard galley faucet with Kohler Purist K-7507-CP in polished chrome
Replace the standard head faucets with Kohler Purist K-11402-4A-CP in polished chrome
Replace the standarded shower head and hand shower in all showers with Kohler Purist K-76467-CP hand shower and Kohler Purist K-939-G-CP shower head in polished chrome

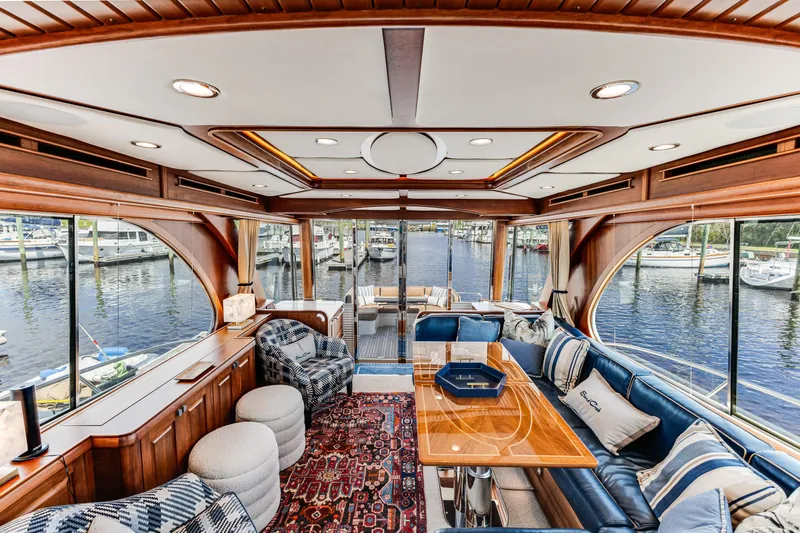

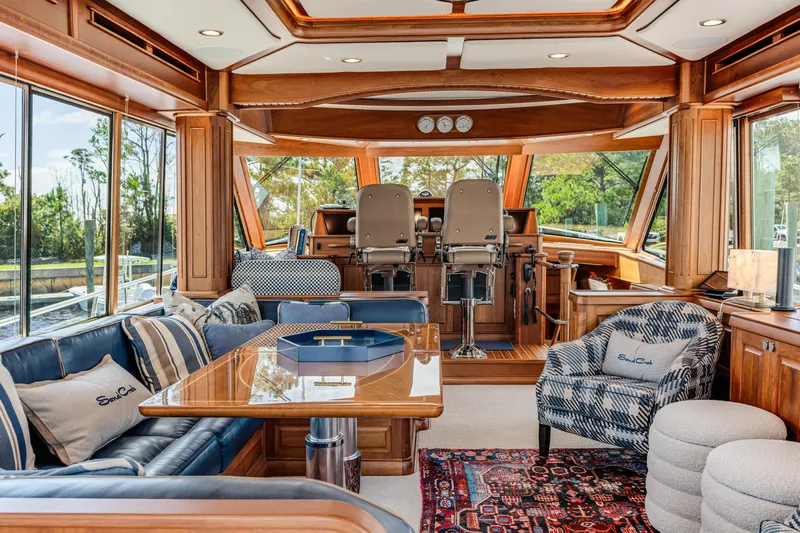

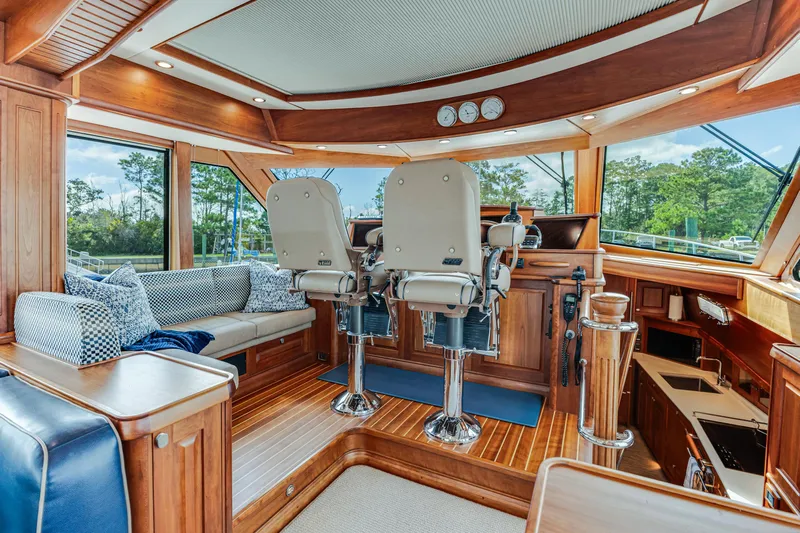

MEZZANINE DECK / MAIN SALON / HELM DECK

Mezzanine deck sole to be teak decking.
Install a 24" SubZero freezer to stbd in the mezzanaine deck, delete the icemaker
Customer main salon drapery fabric, S/B Boss Tweed OD Color: Wren
Piping on the main salon settee
Mount the watermaker controls on an articulating arm and install in the stbd side of cabinet aft of the helm door
Install trim in front of the main salon corner curtains to hide the track

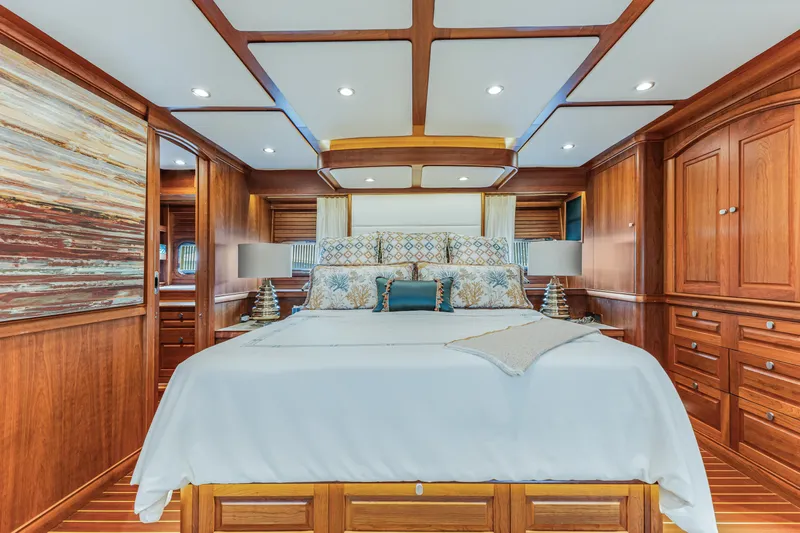

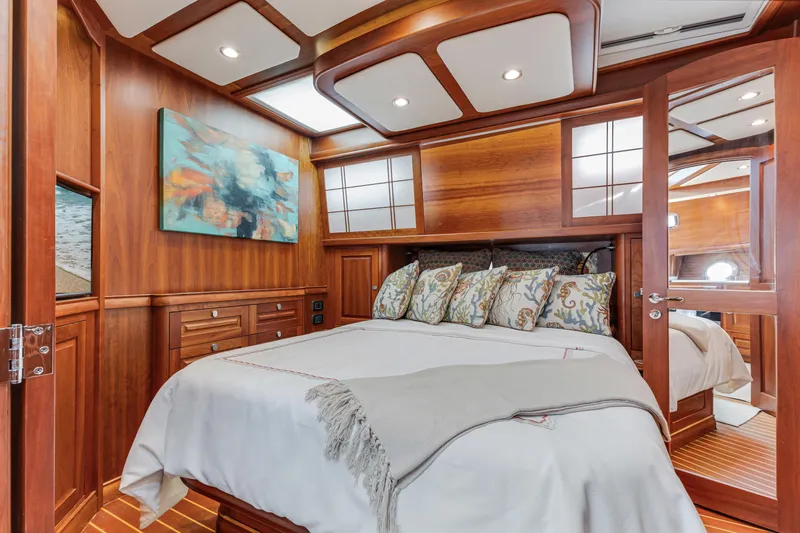

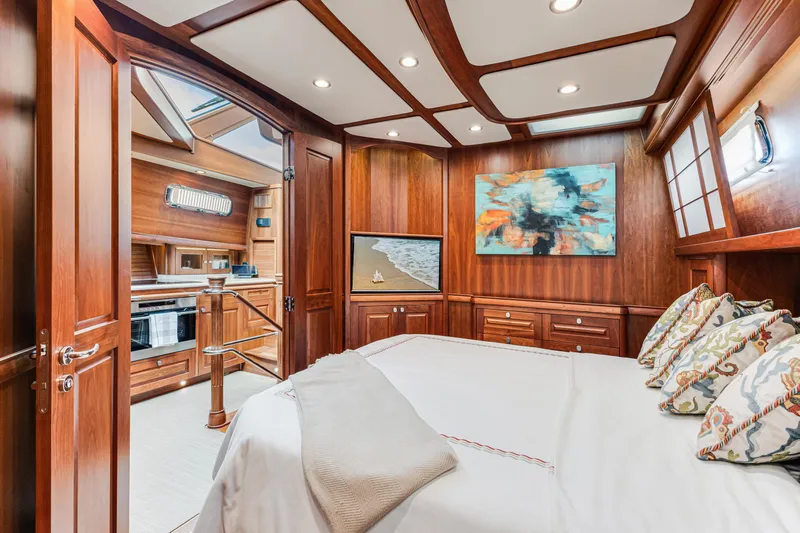

MASTER STATEROOM & MASTER HEAD

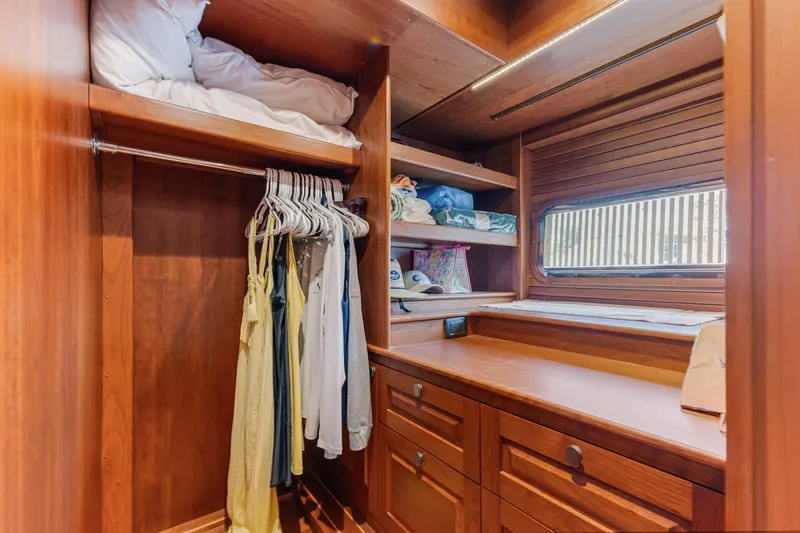

Stainless steel valuable safe mounted in walk-in closet
Master head, install same style TP holder as hull 001 in brushed nickel
Customer master berth, base standard height with slats instead of a solid platform. Keep standard drawers below berth. Customer 5.5" box spring with customer master berth. Berth platform, box spring, and berth to have square corners
Install an undermount sink in master head
Colorquartz Bel Air Beige in the master stateroom end tables x4
Add S48 style arm rests on the master stateroom sette
Redesign master stateroom seat and back rest cushions to be reversible
Master Head
- Install customer supplied master shower port bulkhead: Onda Borgogna 24X24 M/R with Mapei Navajo grout #35
- Install customer supplied master shower forward and aft bulkheads: Borgogna 12X24 M/R with Bull Nose Borgogna 3X24 BN M/NR with Mapei Navajo grout #35
- Install owner supplied custom master head sole tile: Borgogna 12X24 M/R Mapei Navajo grout #35
- Replace standard wall mount mirror with Jerdon HL 1016CL
Owner supplied cup holder in vanity drawer
Custom master berth mattress: 1/2 and 1/2 - Master, from foot of bed: C4 latex on left, C2 latex on right with memory foam on the top - 10" depth, custom shape mattress with a square bottom

VIP STATEROOM & HEAD

Install an undermount sink in the VIP head
Colorquartz Bel Air Beige countertop in the VIP head
Install owner supplised customer tile in the VIP head sole: COEM Reverso Beige Wavy Mosaic with Mapei Ivory grout #39
Install owner supplied customer tile in the VIP shower sole: COEM Reverso Beige Wavy Mosaic with Mapei Ivory grout #39
Replace standard reading lights in the forward cabin with Imtra St Maarten, SS w/Ocean Swirl Globe

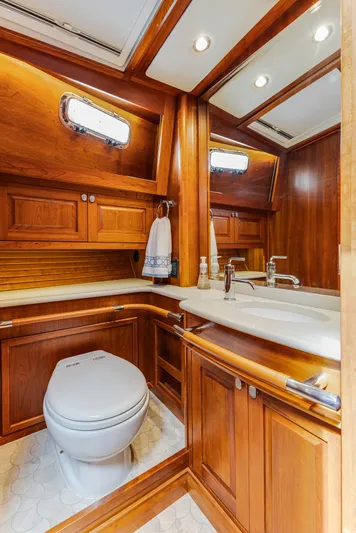

GUEST CABIN & HEAD

Install an undermount sink in the Day head
Colorquartz Bel Air Beige countertop in the Day head
Install owner supplied customer tile in the forward cabin head sole: COEM Reverso Beige Wavy Mosaic with Mapei Ivory grout #39
Install owner supplied customer tile in the forward cabin shower sole: COEM Reverso Beige Wavy Mosaic with Mapeo Ivory grout #39
Install owner supplied cup holders on the inboard bulkhead of the sink, 7", centered on the bulkhead

Garmin radar; Fantom 6, 6’ array
Garmin radar; Fantom 4, 4’ array

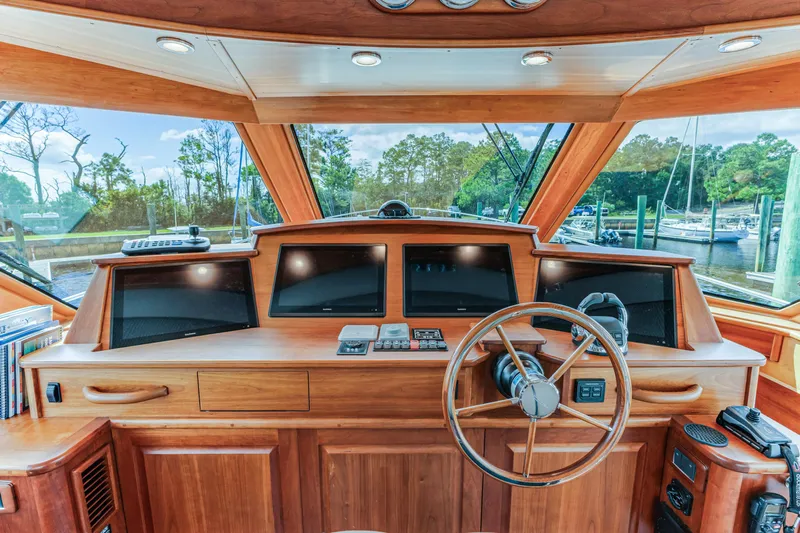

Volvo Garmin 8617 Glass Cockpit (stbd screen)
Garmin 8622 Glass Cockpit (middle two screens)
Garmin 8617 Glass Cockpit (port screen)
Garmin GSD25 sounder module
Garmin GSD24 sounder module
Garmin GXM 53 wx module
Garmin AIS600
(2) Garmin VHF 300, w/2 8’ ant. and hailer horn
ACR RCL300 HID spotlight
FLIR camera
Garmin mast and engine room cameras
Intellian 6 series HD system with dummy dome (5) DirecTV receivers
ACR Epirb
Sentinel Marine telematics BM40 system
Gost exterior cameras

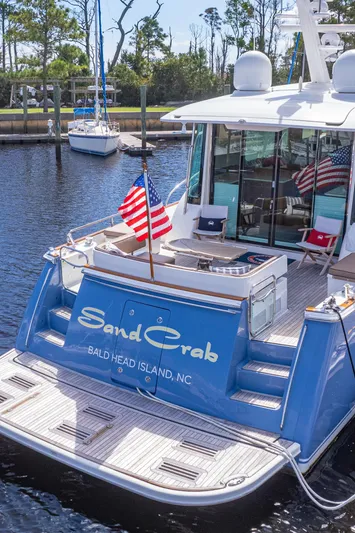

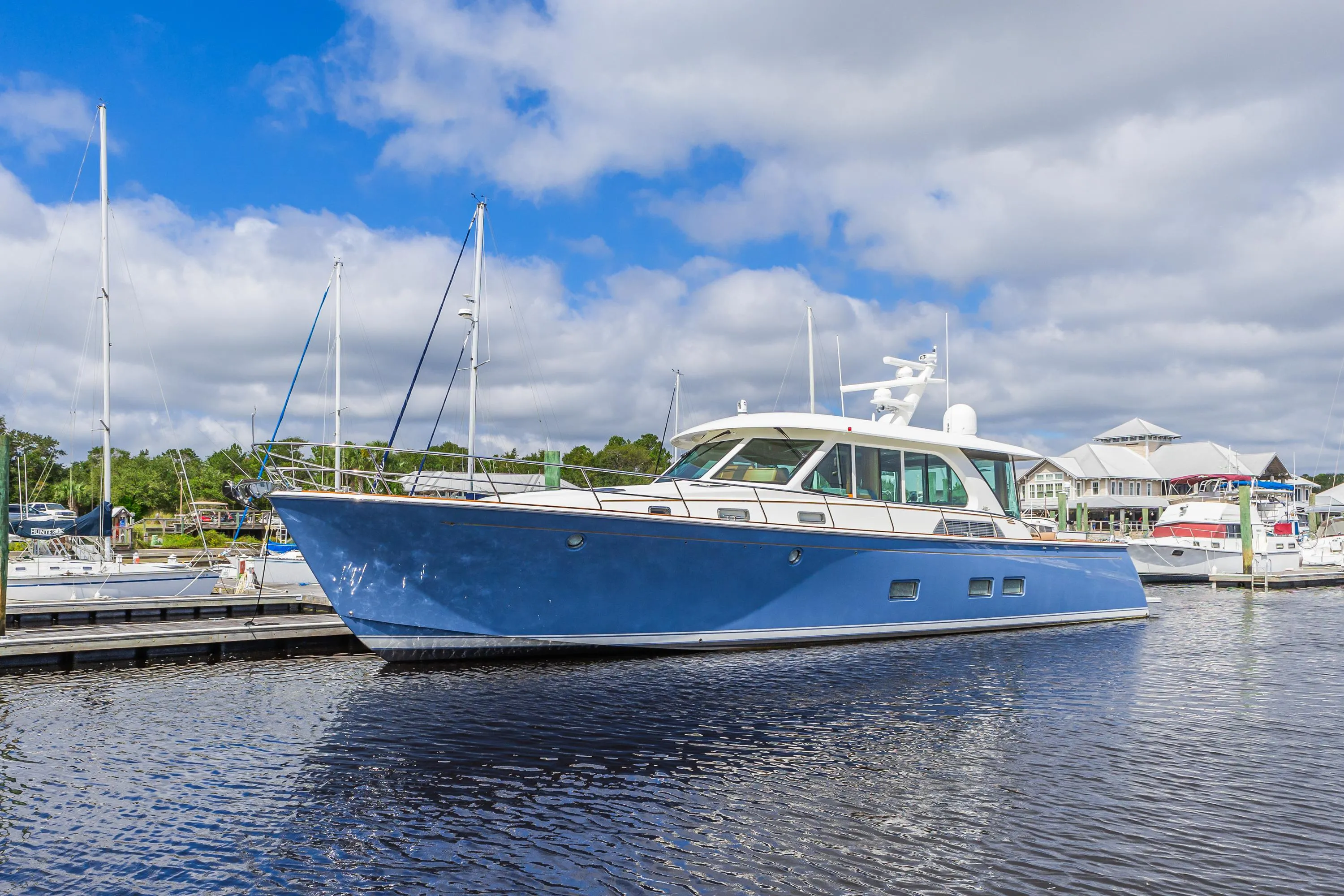

EXTERIOR

Hull Paint Color: Pigeon Blue H5511
Boot Top Color: Sport Yacht White
Cove stripe: Gold
Deck Color (Gelcoat): Sport Yacht White
Anti Skid Color (Gelcoat): Smoke
Swim Platform Color & Anti Skid: Sport Yacht White w/ Teak
Cockpit Settee Fabric: U/L Cora Harmony with U/L Promessa Marine Midnight Piping
Cockpit Grill Seat Cushion: U/L Cora Harmony with U/L Promessa Marine Midnight Piping

MEZZANINE DECK / MAIN SALON / HELM DECK

Overhead Cloud Fabric (throughout boat):U/F Irish Lace
Mezzanine Countertop Color: Bell Air Beige Color Quartz
Mezzanine Deck Sole Material: Teak Decking
Main Salon Settee Fabric: U/L Promessa Corn Flour with U/L Cora Indoor/Outdoor Harmony Piping
Main Salon Chairs Fabric: S/B Pinacle OD Color: Denim with U/L Promessa Corn Flour (owner supplied fabric)
Main Salon Cabin Sole Material: Sapele 4'' wide wood plank sole w/ standard maple border
STIDD Seat Fabric: U/L Cora Indoor/Outdoor Harmony with U/F Strada Armanda Piping
Helm Deck Settee Fabric:
- Seat: U/L Cora Indoor/Outdoor Harmony with self welting
- Back Rest: S/B Pinacle OD Color: Denim (owner supplied fabric)
Helm Deck Sole Material: Maple plank sole with Cherry border
Main Salon Curtains: S/B Boss Tweed OD Color: Wren (owner supplied fabric)

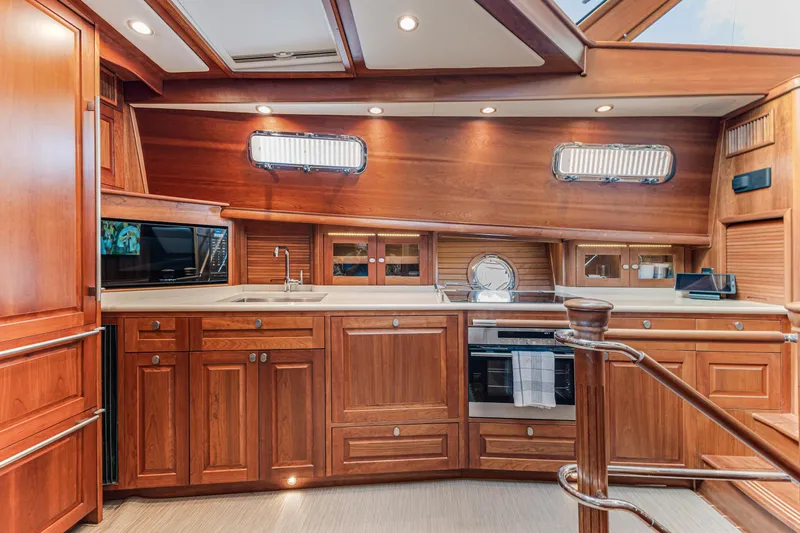

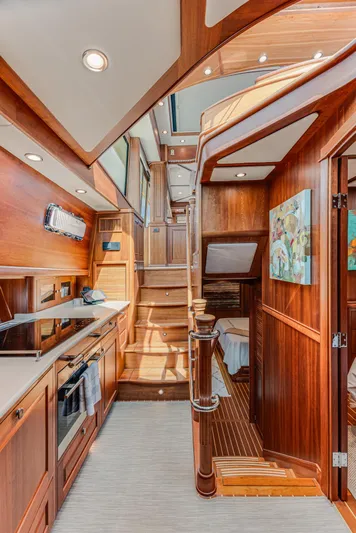

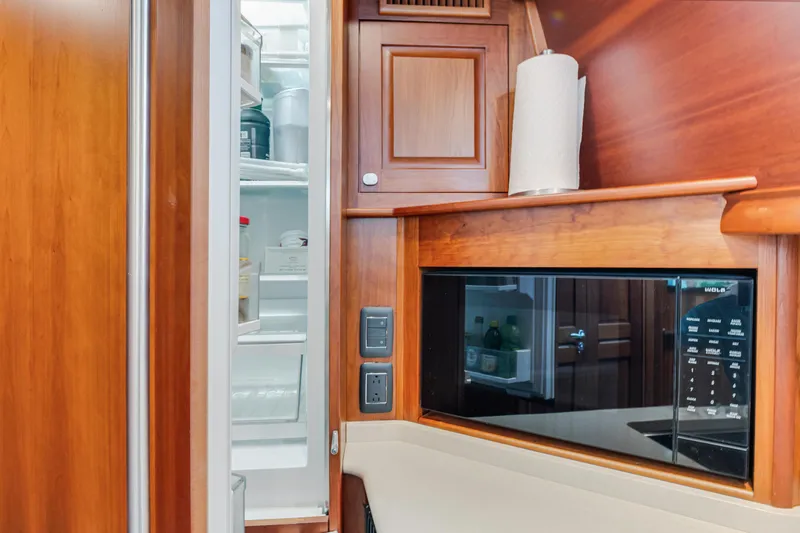

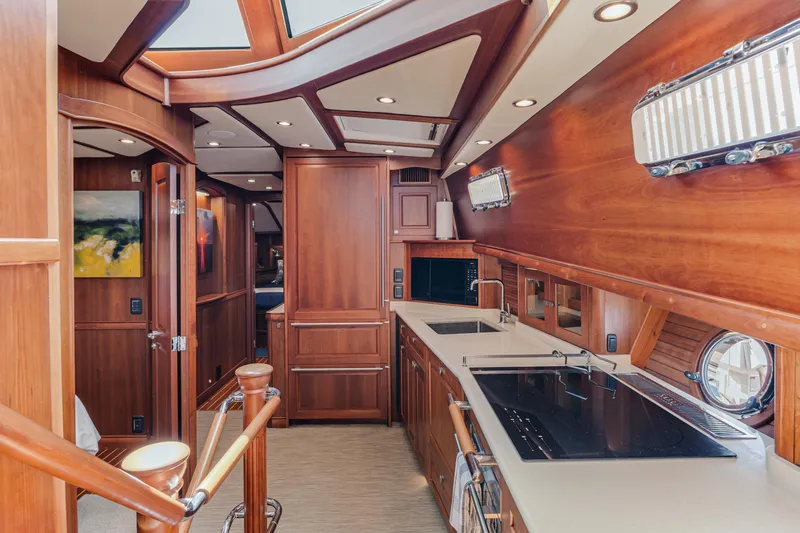

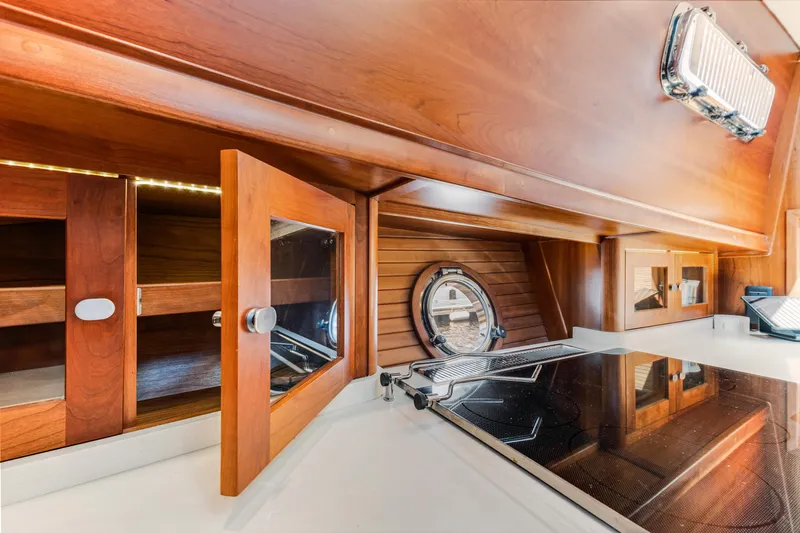

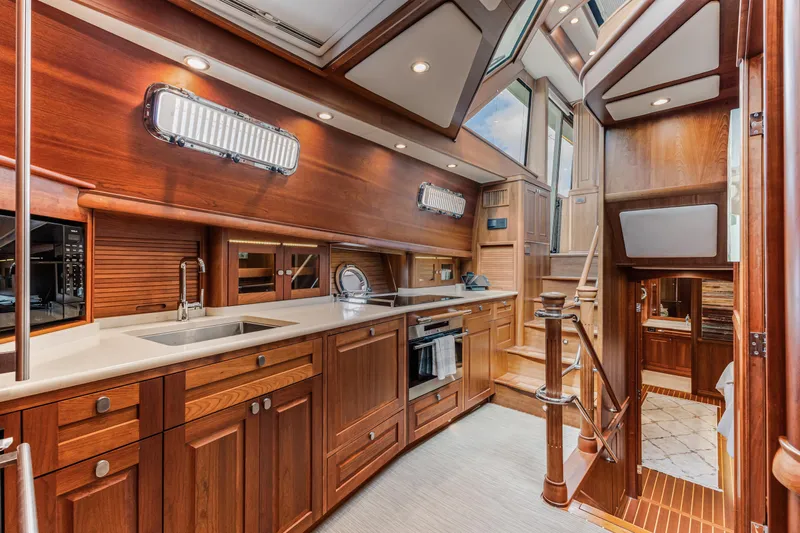

GALLEY / HALL

Galley Countertop Material: Ball Air Beige Color Quartz
Galley and Hallway Sole Material: Cherry and Holly
Art Nook Shelf Material: STD High Gloss Cherry

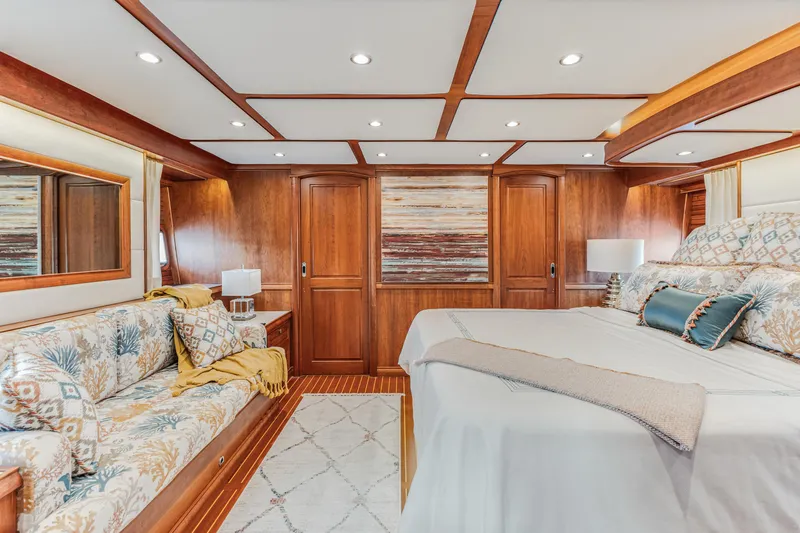

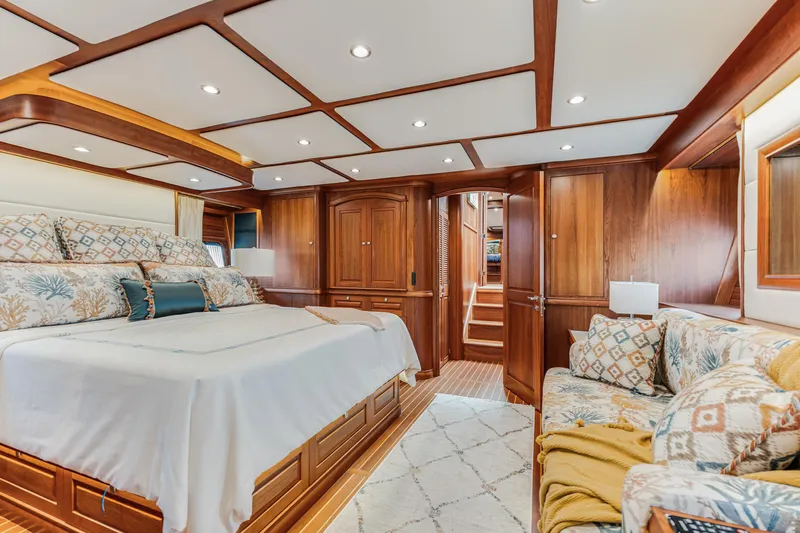

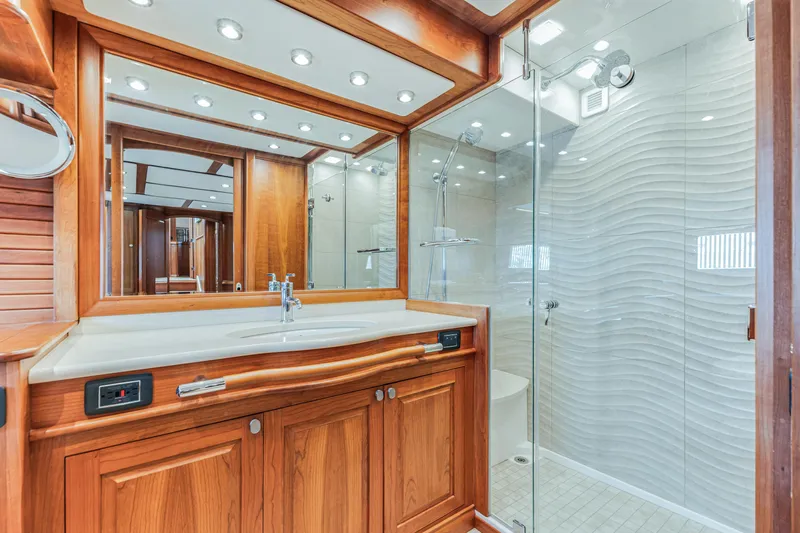

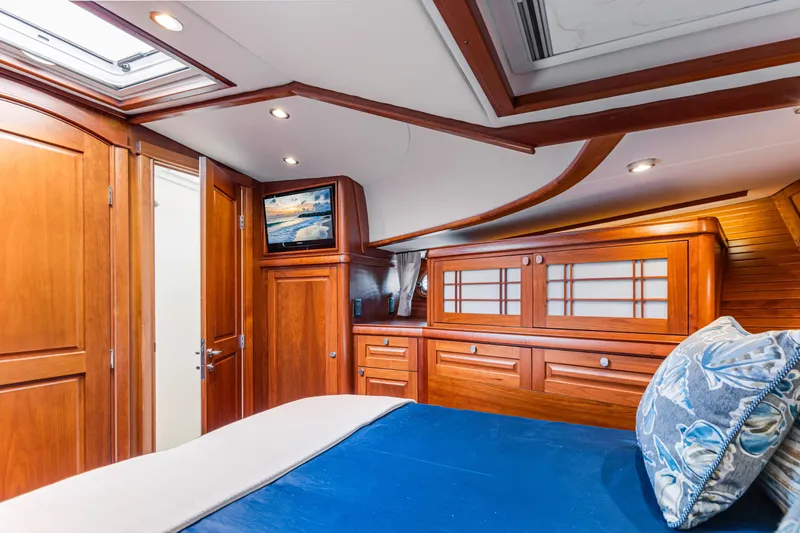

MASTER STATEROOM & MASTER HEAD

Master Sole Material: Sapele 4'' wide wood plank sole w/ standard maple border
Master Stateroom End Table Top Material x4: Bell Air Beige Color Quartz
Master Head Countertop Material: Bell Air Beige Color Quartz
Master Head Shower Seat Material: Bell Air Beige Color Quartz
Master Head Sole Material: Owner supplied custom head sole tile: Borgogna 12x24 M/R Mapei Navajo grout #35
Master Shower Wall Tile: Owner supplied custom master shower tile:
- Master Shower Port Bulkhead: Onda Borgogna 24x24 M/R with Mapei Navajo grout #35
- Master Shower Forward & aft Bulkheads: Borgogna 12X24 M/R with Bull Nose Borgogna 3x24 BN M/NR with Mapeo Navajo grout #35
Master Shower Sole Tile: Customer supplied tile, Grout - Mapei Navajo grout #35

VIP STATEROOM & HEAD

VIP Cabin Sole Material: Cherry and Holly
VIP Head Countertop: Bell Air Beige Color Quartz w/ undermounted sink
VIP Head Sole Material: Owner supplied COEM Reverso Beige Wavy Mosaic with Mapei Ivory grout #39
VIP Shower Wall Tile: Custom Acrylic Walls
VIP Shower Sole Tile: Owner supplied COEM Reverso Beige Wavy Mosaic with Mapei Ivory grout #39

FORWARD CABIN & DAY HEAD

Forward Cabin Scissor Berth Fabric: S/B Dupione Galazy
Forward Cabin Sole Material: Cherry and Holly
Day Head Countertop: Bell Air Beige Color Quartz w/undermount sink
Day Head Sole Material: Owner supplied COEM Reverso Beige WavyMosaic with Mapei Ivory grout #39

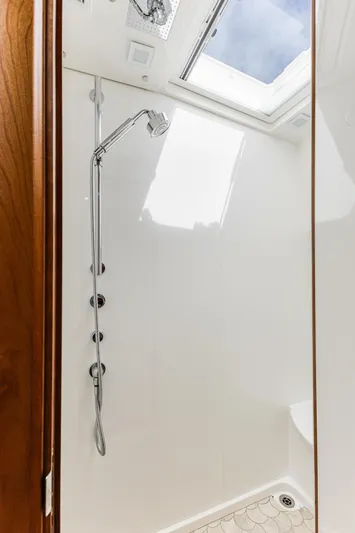

Forward Cabin Shower Wall Tile: Custom Acrylic Walls
Forward Cabin Shower Sole Tile: Owner supplied COEM Reverso Beige Wavy Mosaic with Mapei Ivory grout #39

PROPULSION SYSTEM

(2) Volvo IPS 1200 drives w/D13 900hp engines
Volvo Interceptor automatic trim system
Volvo DPS positioning system
Volvo Active Corrosion Protection system
Volvo autopilot with joystick steering
Volvo/Garmin Glass Cockpit Engine Display (1)
Fresh water-cooled engines
Primary 24VDC alternators each engine for charging isolated engine start batteries
Groco raw water intake strainers
Oil change system services engines, drive units, and both generators
Engine room ventilation system 24VDC
Engine room intake ducts on cabin house side with stainless steel grills
White gelcoated engine room
Fully sound insulated engine room

HULL

Premium LP Painted Topcoat Finish
Modified “V” planing hull design
21 degree deadrise amidships and 16 degree deadrise at transom
Reverse sloped transom
ISO NPG clear gel coat w/ vinylester back-up resin
Knitted Biaxial Structural E-Glass reinforcements
Infused SAN Corecell foam core in hull bottom and topsides
PVC Foam cored composite stringer system
Hull side rubbing strakes
White PVC rub rail with stainless steel cap
Painted (Urethane) Double Boot Strip
Gold Cove Stripe

DECK

ISO NPG gelcoat
VIP resin infused Knitted Biaxial Structural
E-Glass Reinforcements with coring
Molded-in anti-skid deck surfaces
Twin anchor lockers
Direct glazed windshield
Sliding/opening side windows
Port & Starboard transom gate access to cockpit

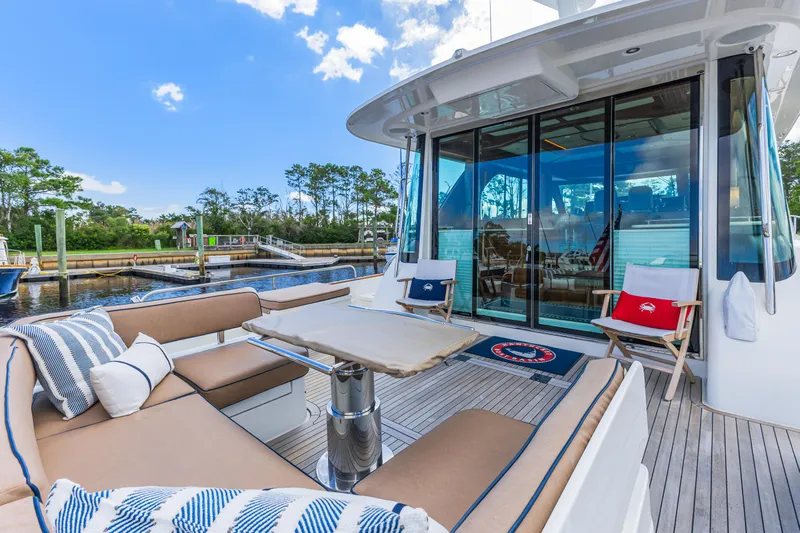

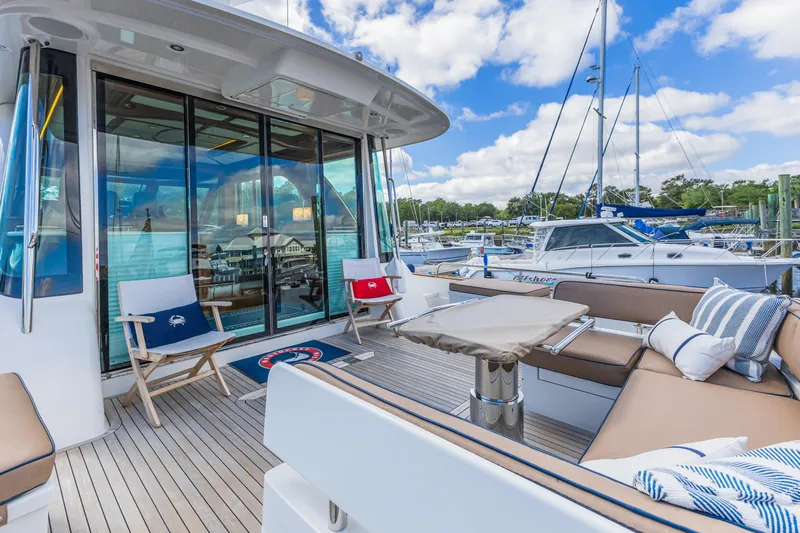

Cockpit U-shaped settee with hi gloss table & (2) chairs
Hydraulic submersible swim platform 900 lb. capacity for dinghy storage and handling

DECK HARDWARE

1 1/2" diameter type 316 stainless steel perimeter rail system
(4) stainless steel spring cleats
(2) stainless steel mooring cleats
(2) stainless steel stern cleats
Salt water wash down system forward

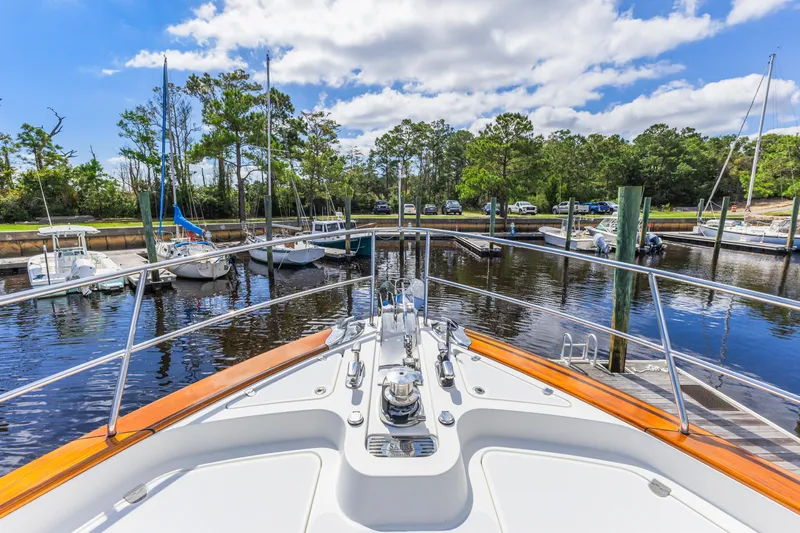

Custom stainless steel dual anchor roller
24V Electric Windlass with controls at helm and foot switches on deck
Flagpole holder and flagstaff
Stainless steel hatches w/screens
Oversized Stainless steel opening ports
Teak cap rails port and starboard
Teak cabin side eye-brow
Custom cast stainless steel “SABRE” medallion
Triple Exalto windshield wiper systems
Dual Kahlenberg air horns
Cockpit retractable sun awning

FUEL SYSTEM

975 gal. diesel fuel total
Port & Stbd 225 gal. “day” tanks
525 gal. centerline diesel storage tank
Dual redundant fuel transfer pumps
Racor dual 75/1000MAX fuel filters for propulsion engines
Racor 500MA fuel filters for generators
2” “Diesel” stainless steel deck fill plates starboard

NMEA2000 NETWORK SYSTEM

Network monitoring of systems
Network control of DC & AC electrical circuits
Backup/override of all network circuit faults
Mode controls, single one push button activation of boat wide circuits, customizable
Onboard WiFi for network
(2) iPad Minis with Launch Port for wireless control of network systems
Parallel NMEA backbone for dealer installed electronics

120/240 VAC ELECTRICAL

Twin 120/240VAC 50 amp AC shore power services with cord reels aft
Isolation boosting transformer each shore service
21.5kW Onan “Quiet” generator primary
13.5kW Onan “Quiet” generator secondary
Automatic AC switching system for shore & generator power
Mastervolt 4.0kW high output inverter/charger
Stand-alone 100A battery charger
All accessible 120VAC outlets GFCI protected
120/240VAC distribution panels in engine room, adjacent to helm, and in galley.

24DC ELECTRICAL SYSTEM

Ships battery bank (8) 6V AGM batteries
Port & starboard isolated 24VDC engine starting battery banks, (4) Lifeline AGM 3100
Dedicated 24VDC battery charger for engine battery banks
Helm remote controlled battery switches with manual override
LED Navigation lights
High efficiency LED designer lighting throughout interior
24VDC distribution panels in engine room, pump room, and adjacent to helm

12VDC ELECTRICAL SYSTEM

12VDC battery bank (2) Lifeline AGM 24 supports generator start & 12VDC circuits
Dedicated 12VDC battery charger
Redundant 24VDC/12VDC converter
12VDC USB outlets at helm and in all cabins
12VDC distribution panel adjacent helm
HDMI cables run from each TV to the area forward stbd of the master stateroom entry

WASTE DISPOSAL

Polyethylene holding tank 120 gallon capacity
Holding tank vent filtration
Full time cycling pump room exhaust fan
Tecma Silence & Dometic Freshwater MSD’s with white ceramic bowls
Diaphragm pump on holding tank to pump overboard
Electric motorized seavalve for holding tank pump out when at sea
Day head ability to bypass holding tank and direct overboard discharge via locked Y-valve

FRESH WATER SYSTEM

Water capacity approx. 300 gals.
24VDC Headhunter X-Caliber primary pump
240VAC Headhunter Mach 5 primary pump
26 gal. water heater
Hot water circulation pump
Filters on fresh water pump system and shore water inlet
Fresh water coil hose in engine room
Fresh water wash down at anchor locker

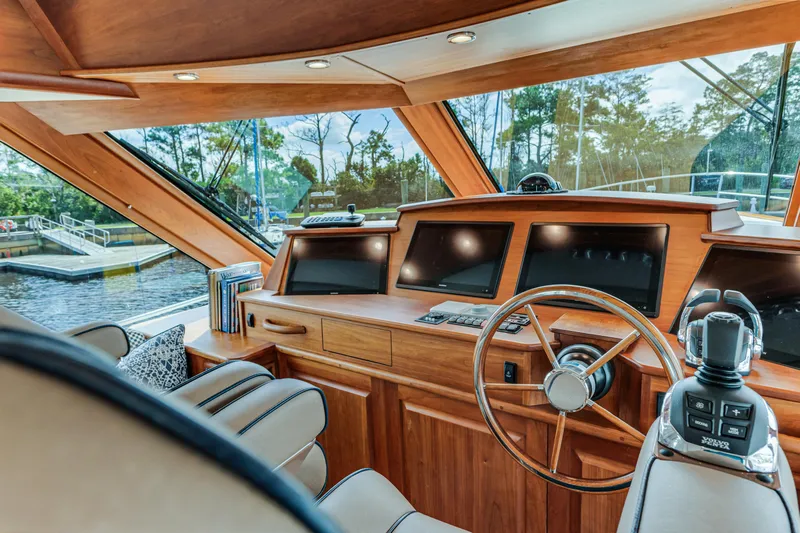

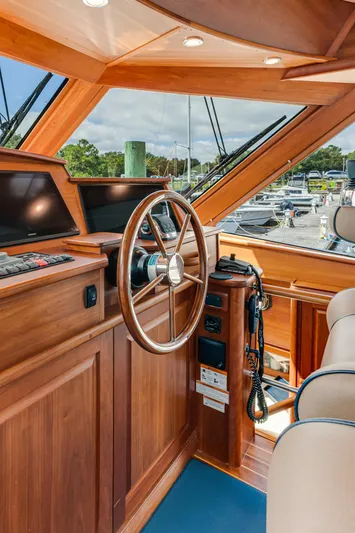

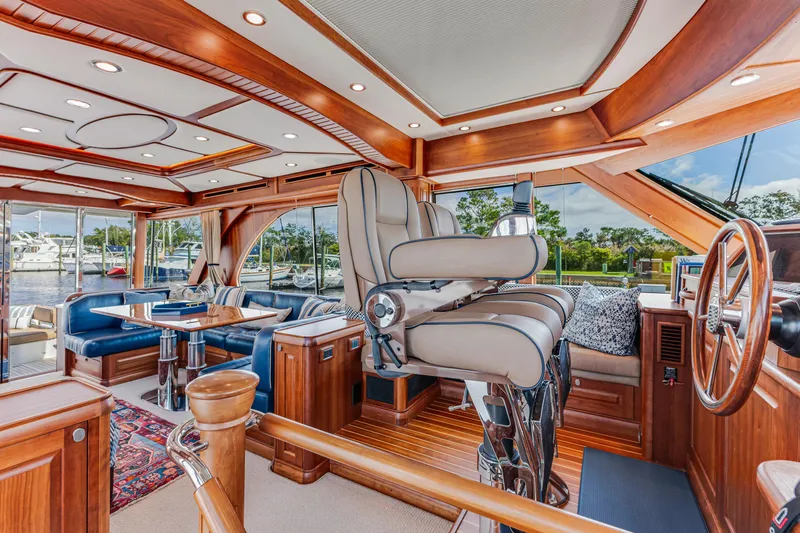

HELM DECK

Electrically operated sun roof over helm & salon
Twin Stidd helm seats with chrome finish
Joystick steering on helm seat armrest
Helm deck settee to port
Door to starboard side deck
Helm dash area finished in cherry
Volvo/Garmin touch screen display for network operation
Navigation switch panel
Custom wood trimmed stainless steel wheel
Air Conditioning/heat 12,000 BTU

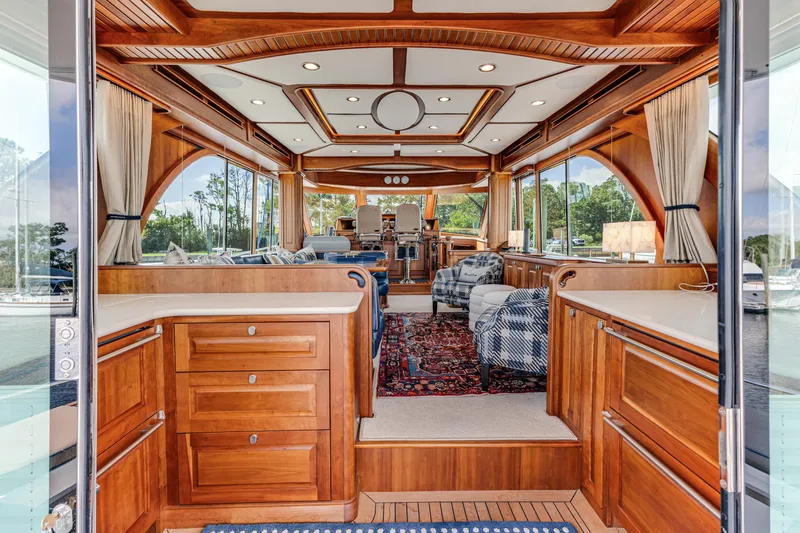

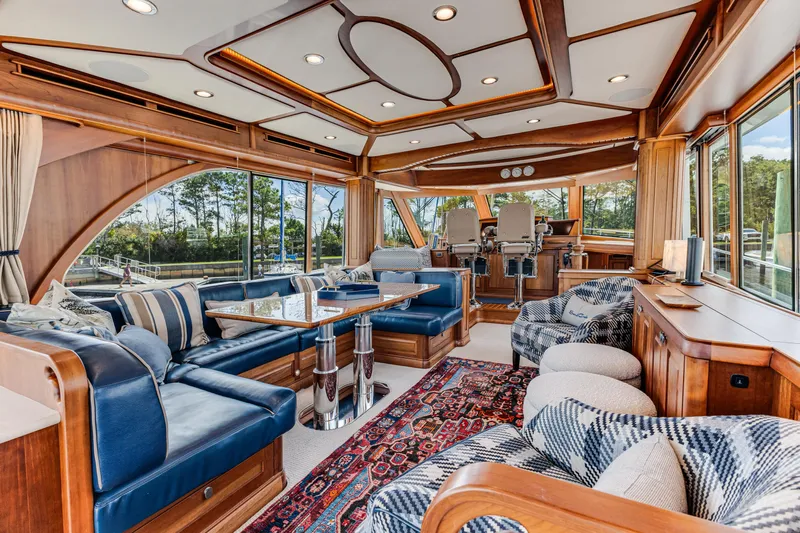

MAIN SALON

U-shaped lounge to port with custom fabrics.
Hi-Lo table with inlays and deep epoxy finish
Lounge chairs to starboard with 50” HD Smart television on electric lift
Blinds on all windows
Cherry sole with sealer finish
Soft acoustic headliner panels
Air Conditioning/heat 48,000 BTU total,
24,000 BTU each side

BAR DECK

Stainless steel electric sliding double-acting door to cockpit with curved glass windows on corners
Viatera countertop with bar sink and glass locker below
Sub-Zero undercounter refrigerator

GUEST STATEROOM- Forward

Scissor berth converts from queen island to twin bunks with storage below
Cherry hull ceilings
Enclosed upper shelves to port and starboard of island berth Fwd most section open shelf
Dimmable accent lighting below shelves and berth.
Cedar lined hanging lockers
Bureau
Built in 24”HD television
Screen/Shade for hatch
Private access to guest head/shower compartment
Cherry and holly sole with sealer
Soft acoustic headliner panels
Air Conditioning/heat 12,000 BTU

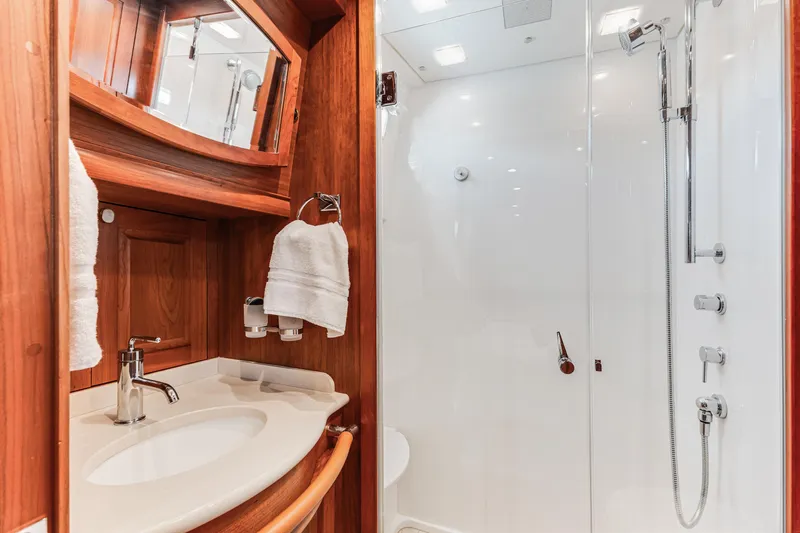

GUEST/DAY HEAD- Forward

High Gloss solid cherry vanity top with vessel sink and faucet
Cherry and holly sole with sealer in day head
Separate shower stall with ceramic tile floor
Storage lockers
Stainless steel towel bars
Wood trimmed mirror over sink
Ventilation blower

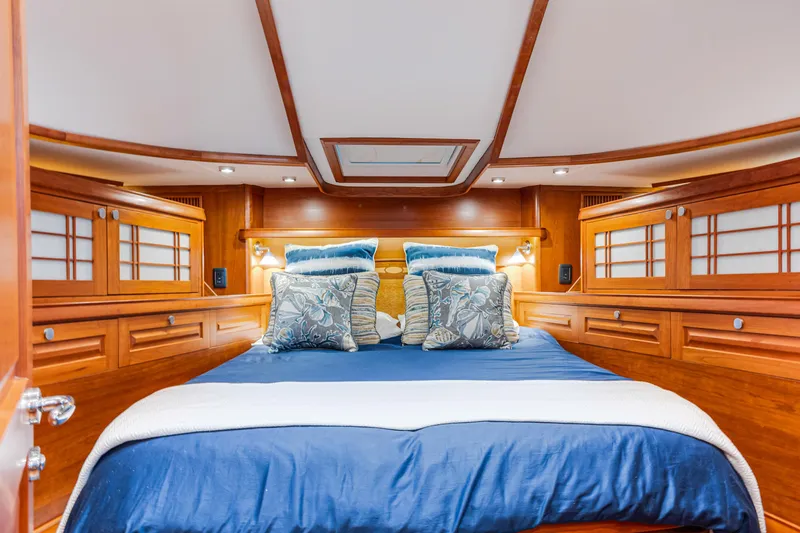

VIP STATEROOM – To port

Queen island berth with drawer & storage below
Night stands with drawers both sides
Cedar lined hanging locker.
Bureau
Built in 32”HD television
Stainless steel investment cast port lights with screens
Round hull side deadlights
Screen/Shade for overhead hatch
Private access to VIP head
Cherry and holly sole with sealer
Soft acoustic headliner panels
Air Conditioning/heat 10,000 BTU

VIP HEAD

High Gloss solid cherry vanity top with vessel sink and faucet
Cherry and holly sole with sealer
Separate shower stall with ceramic tile sole
Ceramic tile floor
Storage lockers
Stainless steel towel bars
Wood trimmed mirror over sink
Ventilation blower

GALLEY

Toe kick space length of galley with courtesy lighting
Sub-Zero full height refrigerator/freezer
Wolf 4-element induction cook top
Wolf convection steam oven
Wolf microwave oven
Fisher & Paykel tall dish drawer
Galley exhaust fan 120VAC
Viatera cored counter top
Dovetailed drawers
Stainless steel under-mount sink with designer faucet
Pull out waste basket
Magic corner pull out storage
Air Conditioning/heat 10,000 BTU

UTILITY (between galley & master)

Stacked washer and dryer
Storage under stairs
Entertainment electronics locker

MASTER STATEROOM (Full beam)

King size island berth with drawers and storage below
Night stands with drawers both sides
Settee
Bureau(s)
Walk-in closet
Hanging lockers
Large fixed stainless steel hull port lights
40” HD Smart TV hidden in mirror
iPad Mini with Launch Port for wireless control of network systems
Cherry sole with sealer
Soft acoustic headliner panels
Air conditioning/heat 24,000 BTU

MASTER HEAD

Single porcelain sink with Viatera countertop
Solid Surface countertop
Cherry sole with sealer
Separate shower stall with matching Viatera seat
Ceramic tile floor in shower
Storage lockers
Stainless steel towel bars
Wood trimmed mirror over sink
Ventilation blower

DÉCOR

Screens and shades on opening ports and hatches
Dovetailed maple drawer boxes throughout

SAFETY

Fire extinguishers throughout
Isolation transformers on shore power services
Bronze and Marlon sea valves on all below waterline fittings.
Bonding system to safeguard against galvanic corrosion
Automatic fire extinguishing discharge system with override
(4) Automatic electric bilge pumps 3700 GPH
(4) Bilge high water alarms

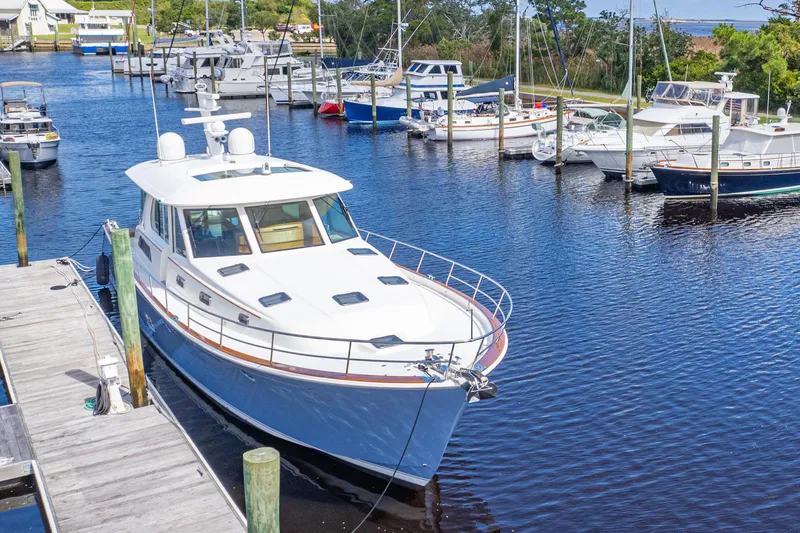

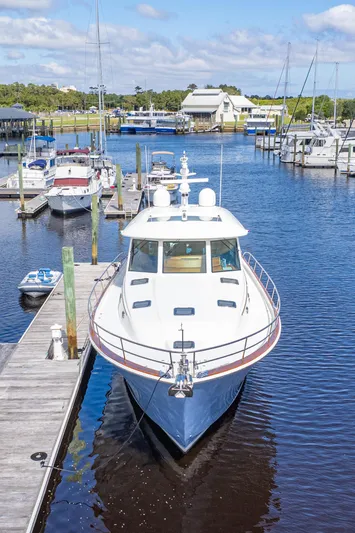

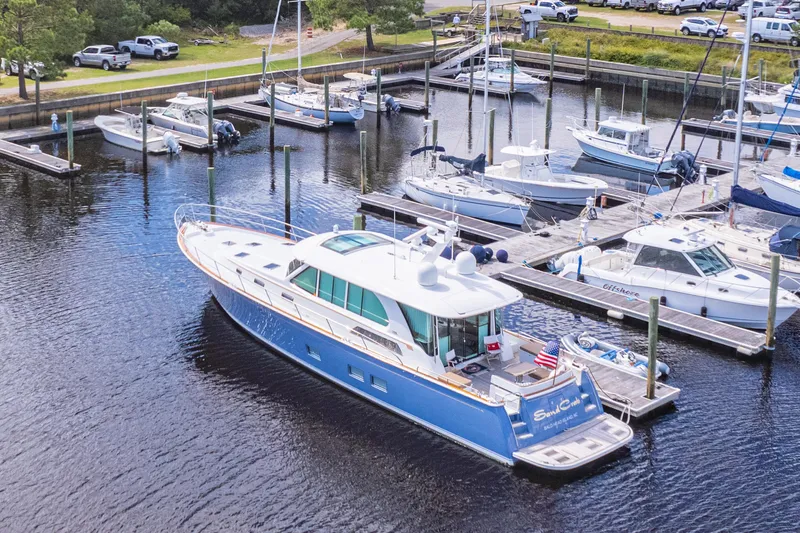

The Sabre 66 Dirigo is the first American built, downeast-style motor yacht of this size to be introduced to the market. She is, as Designer Kevin Burns states “the highest expression of Sabre yet.” From her functional foredeck to her spacious and comfortable cockpit, she is every bit a Sabre. The best deck hardware, on-deck walking surfaces that are safe and secure, hand holds wherever they are needed, all speak to Sabre’s 45 year history of building boats for people who know boats, and know how they should be equipped.

Her interior is crafted by boat builders with decades of experience. Her systems are modern and functional and her performance as invigorating as boaters have come to expect from Sabre Yachts. Her vee-hull with propeller pockets is sea-worthy and dry. As standard she is fitted with Caterpillar C15 865 hp electronic Acert engines, that are linked to Twin Disc Quick Shift transmissions for smooth and powerful operation. The 54 Salon Express will cruise comfortably in the mid-twenty knot range with incredibly low sound levels of 75 db. She is also available with Volvo IPS 900 engines and pods for those seeking the efficiency, convenience and close quarter’s handling capabilities of pod drive systems. AC Electrical services aboard are provided by two 9.0 Kw Onan generators and her DC system is 24 volt. Molded steps from the aft cockpit provide easy access to her functional and well lit mechanical room.

Her interior accommodations are another world of comfort and elegance. Beautiful woodworking throughout the yacht, pleasing proportions and unusual fine points such as maple inlays and Shoji screens in the owner’s cabin doors, all create an atmosphere of luxury and warmth in this masterpiece of the boat builders craft.
