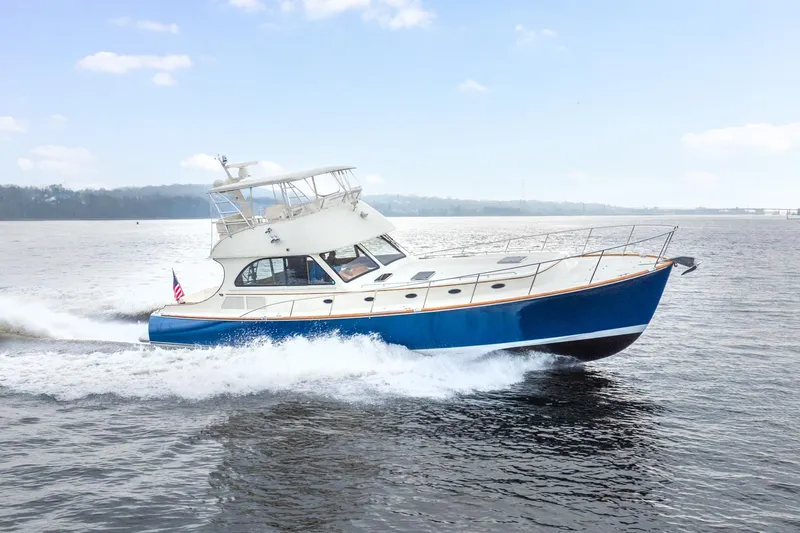

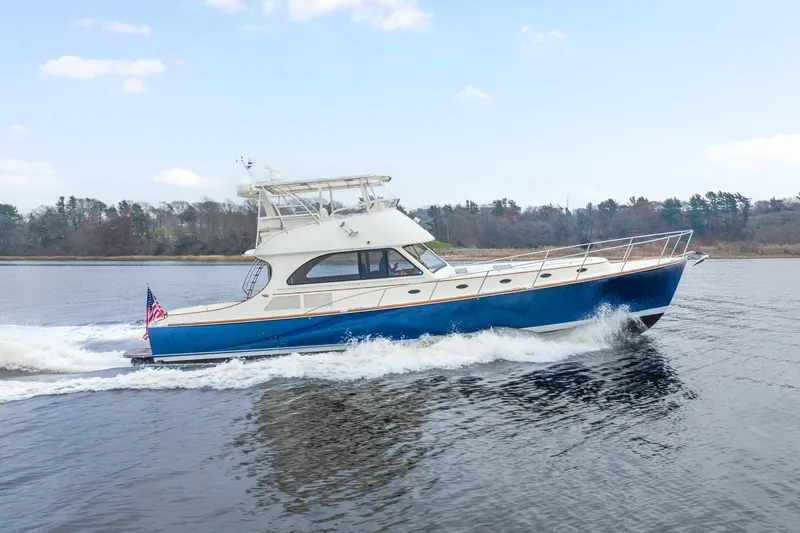

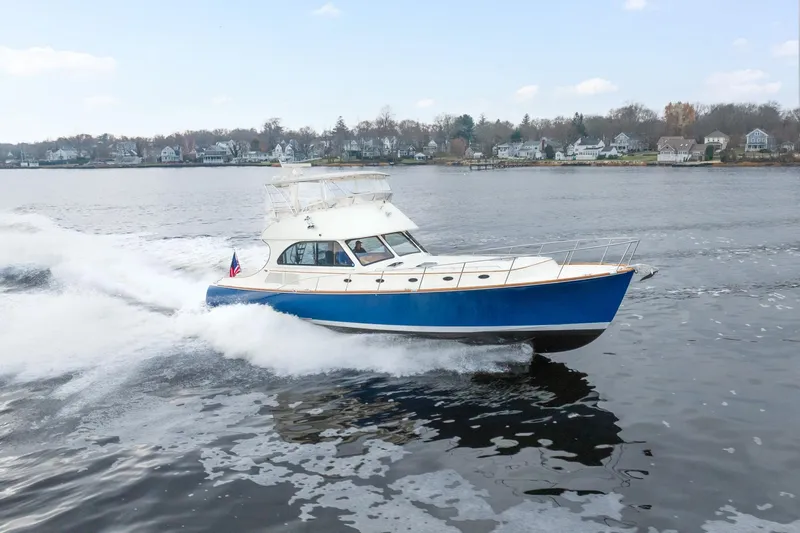

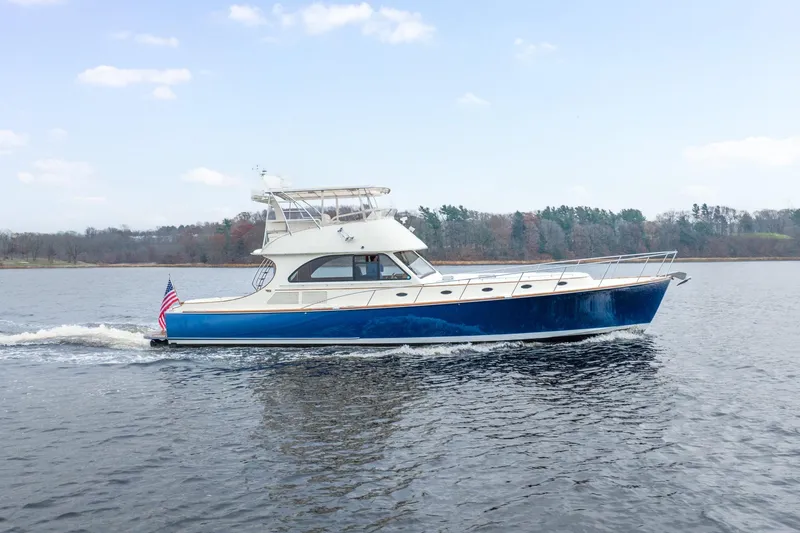

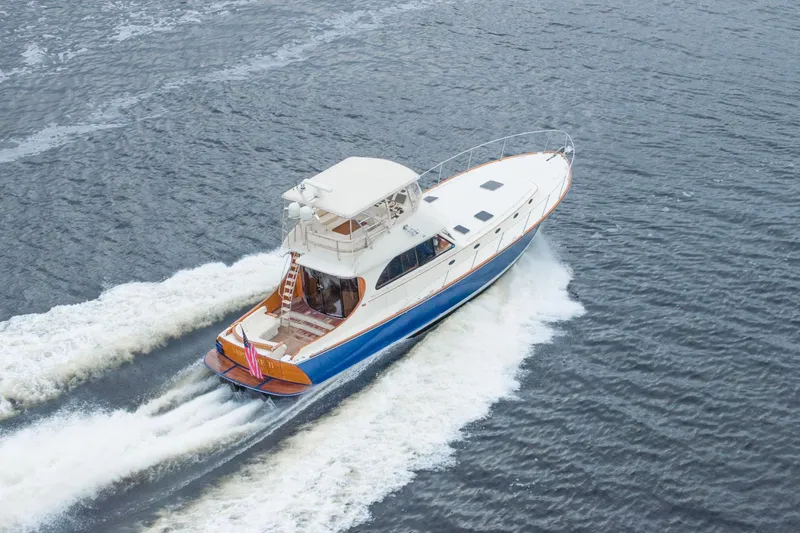

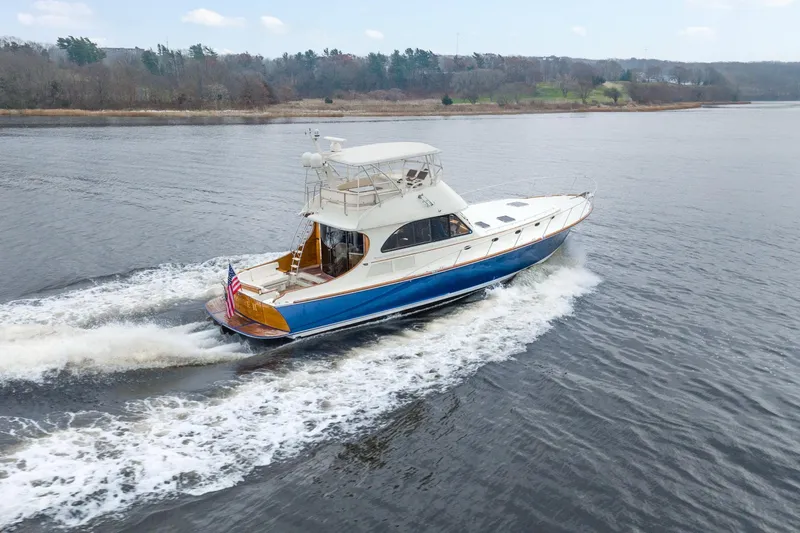

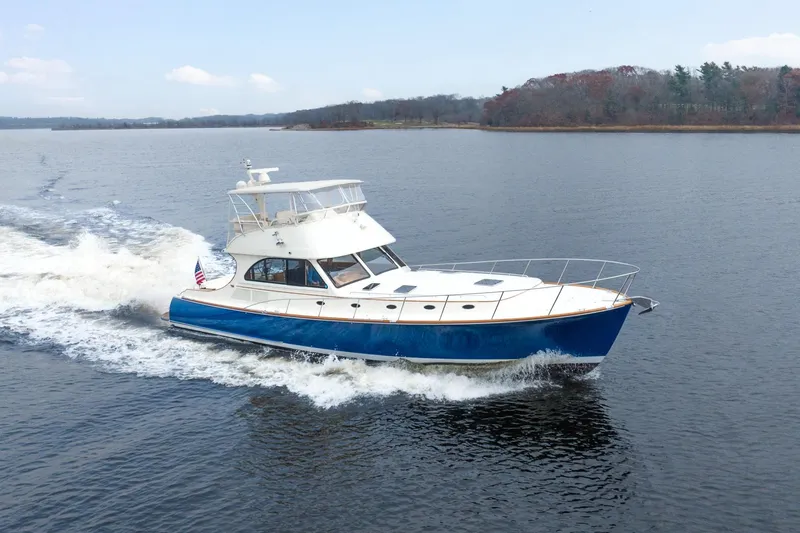

SAPPHIRE II Boat for Sale

• Beam: 17' 9''
• Hull Material: Composite
• Max Draft: 2' 8''
• Fuel Tank: 1 x 1000|gallon
• Fresh Water: 1 x 200|gallon
• Cabins: 2
• Heads: 2

• MAN 1000 Hr A1/A2 Service (Winter 2023)
• New 230 volt 60Hz Smart Start Chiller System x 3 and pumps (Winter 2023)
• New Inverter/ Charger (Winter 2023)
• New cockpit, transom and windshield covers (Winter 2023)
• New Interior Sole board runners (Winter 2023)
• Hull painted (Winter 2021)

• Molded non-skid surface on side deck and cabin housetop walking surfaces.
• Smooth gelcoat surface on vertical surfaces of deck, house, waterways, and pilothouse top
• Tapered varnished teak toe rails with Hinckley profile.

• Anchor locker molded into the foredeck, with hinged and gas-spring assisted hatch. Hydraulic Muir windlass - mounted in custom anchor well. Anchor windlass control at both helm stations. Remote control for anchor windlass
• Custom 316L lighted (for retrieving anchor at night) stainless steel bow roller for primary anchor. Manson Supreme 80lb anchor with 300’ of stainless chain.
• Saltwater deck wash and fresh water spigot are located in foredeck locker.
• (8) Portlights (all opening) with screens.
• (9) Opening Bowmar overhead hatches with stainless steel frames provide a light and airy interior. Bowmar hatches have bug screens/shades on all overhead hatches
• Custom step lights
• 30" high 316L stainless steel bow rail
• (2) Open custom Hinckley stainless steel open bow chocks
• (4) Closed custom Hinckley chocks.
• (10) 316L stainless steel mooring cleats bow, stern and spring line cleats. 12" Bow and stern cleats and 10" springline cleats.
• Overboard direct drainage scuppers for cockpit.
• Wichard folding pad eyes and chafe strips for fender and dock lines near stern cleats.
• Custom Hinckley fender storage lockers in side decks
• Huge foredeck locker
• Custom Hinckley aluminum mast

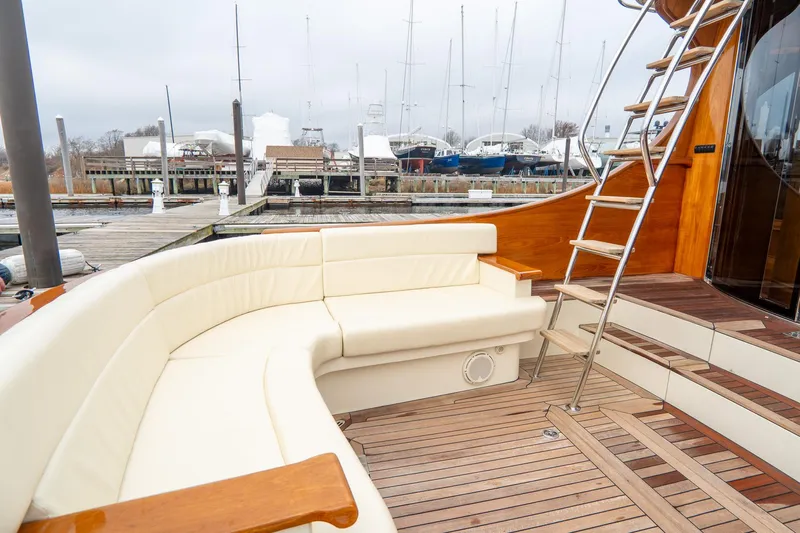

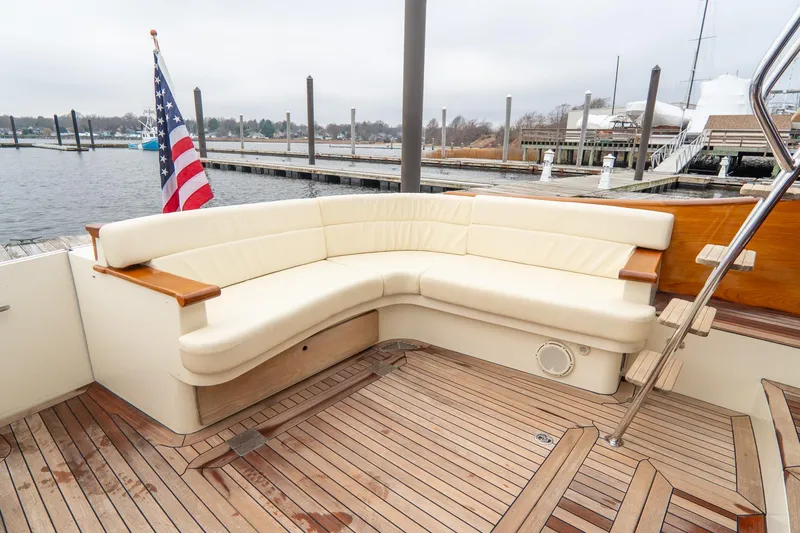

• Teak - The cockpit sole is teak and the coaming is varnished teak.

• The cockpit sole hatch with recessed hinges has manual hydraulic risers for access to the Generator and Jet System, as well as plenty of storage.
• Two Glendinning powered shore cord reels exit the transom through a flush hatch.

• Courtesy lighting under cockpit coaming.
• Safety light on cockpit step.
• Cockpit shower with hot/cold mixing valve with shower near transom door.
• Dockside water supply inlet and shore cable TV/phone inlet.
• Lockers under cockpit coamings port and starboard.

• Hard bimini - A polished aluminum frame has a canvas top with integrated lighting.
• Masthead - A fully custom designed mast provides support for associated antennas and cameras

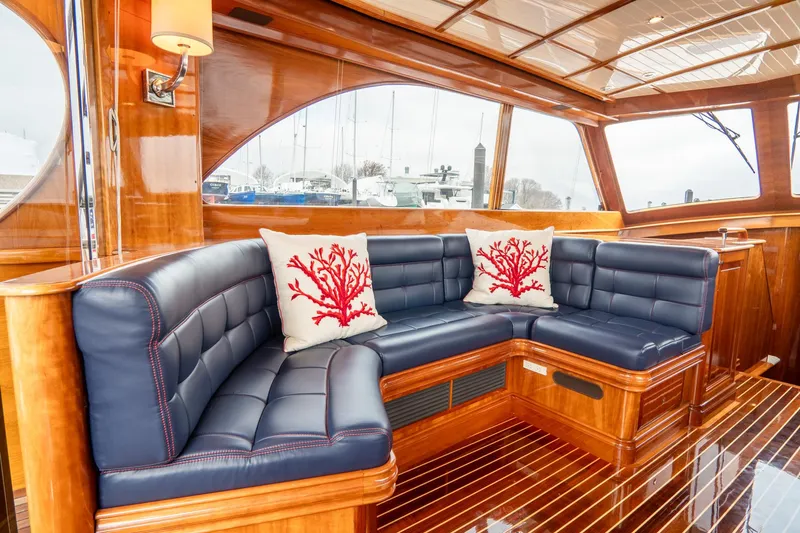

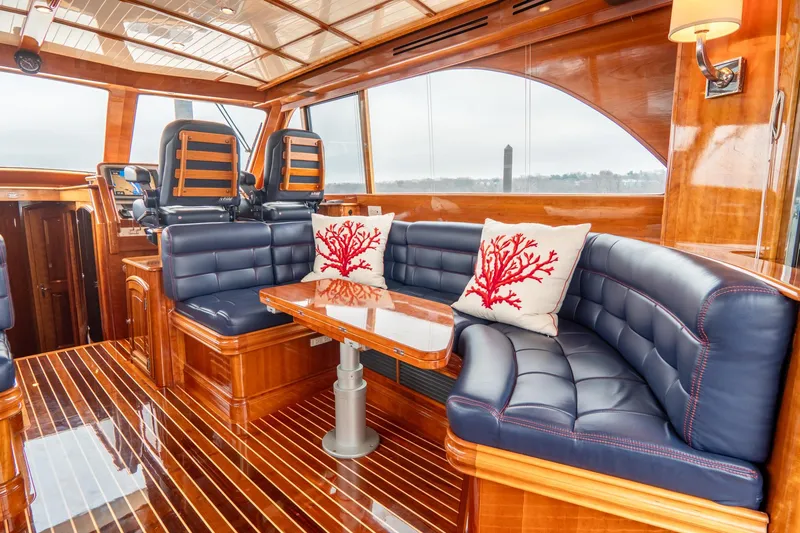

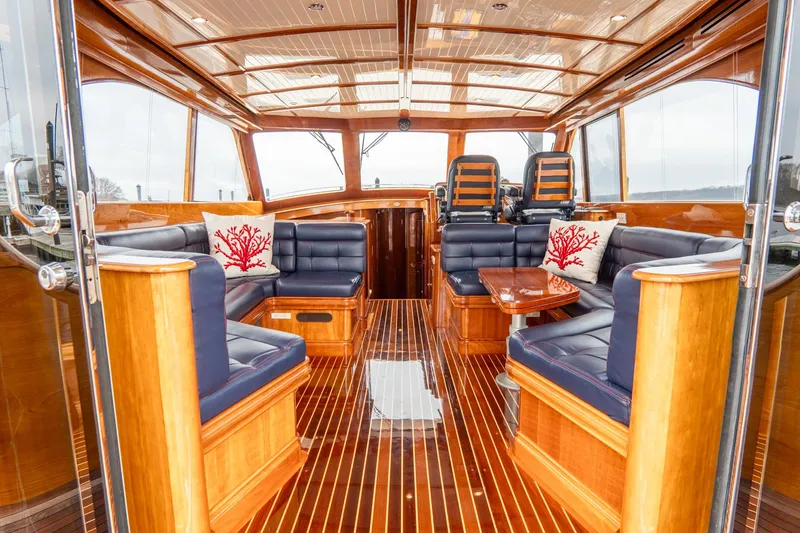

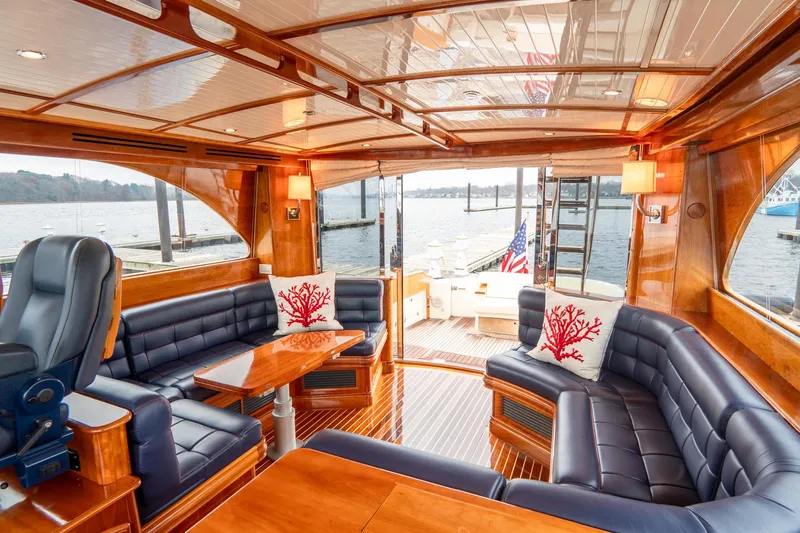

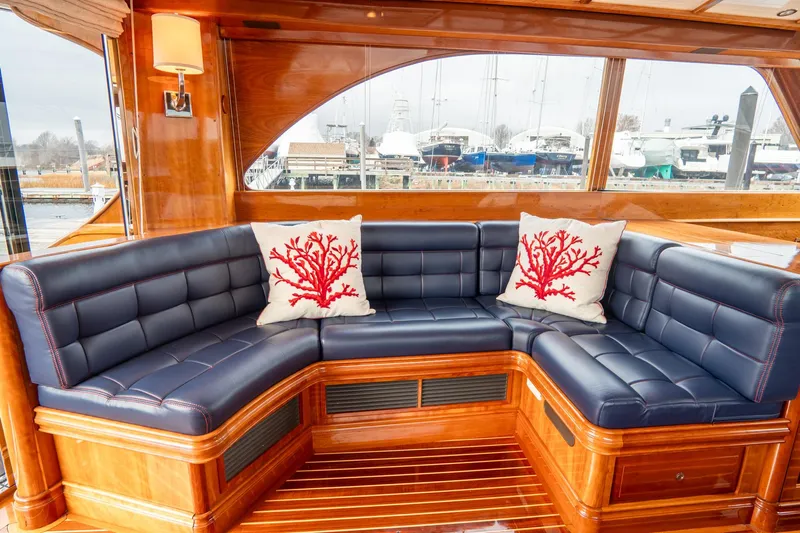

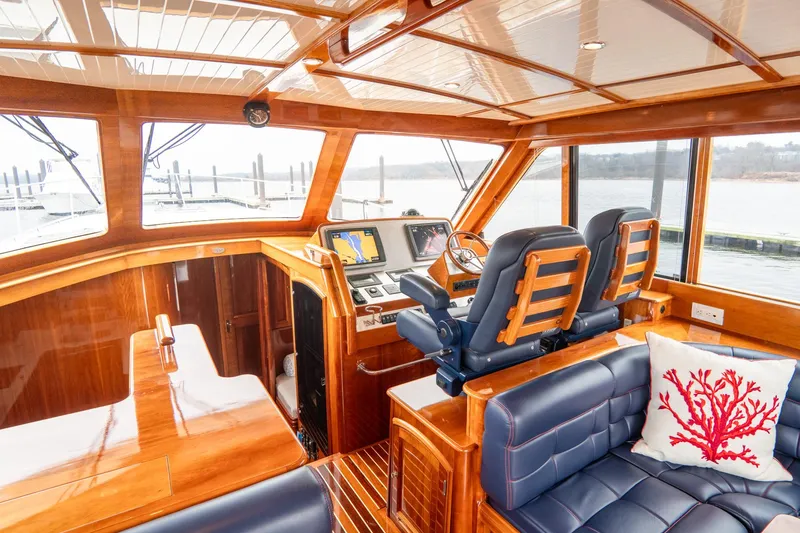

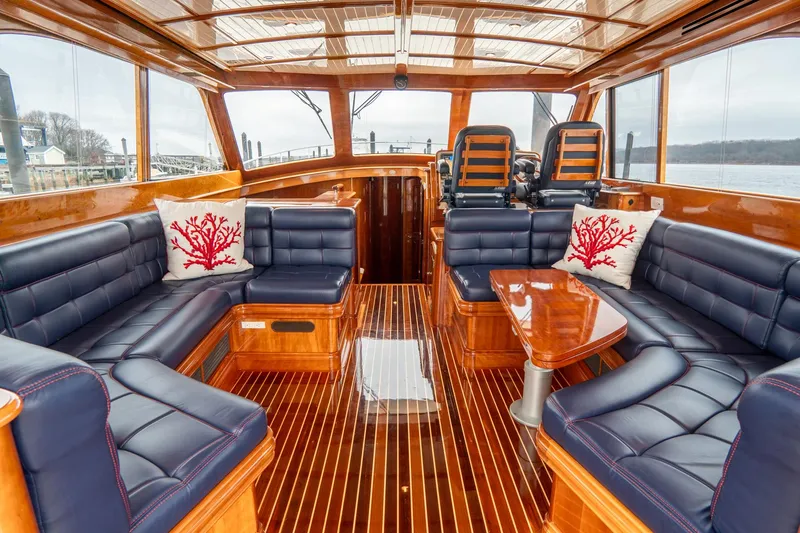

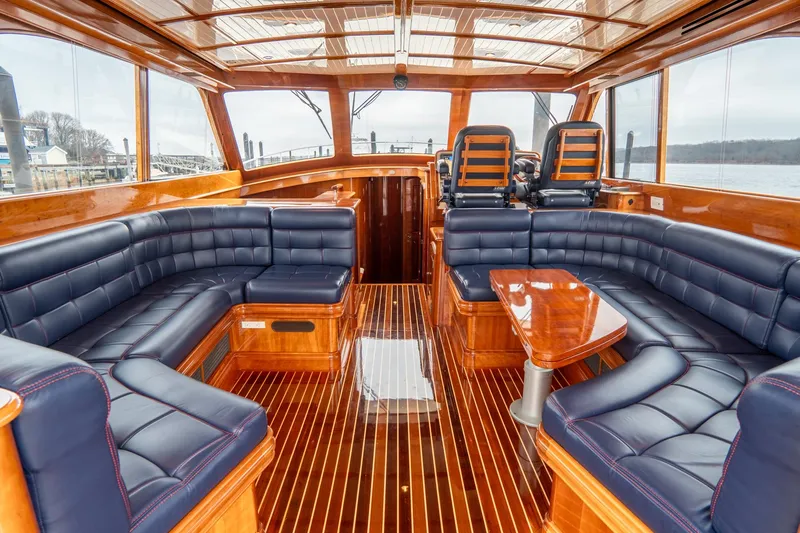

• A large fully custom U-shaped Dinette to starboard surrounds a varnished cherry table with fold-out leaf.
• To port is an opposing custom U-shaped settee without a table.
• Forward is the entertainment center, and a large “pop-up” flat-screen television with concealed HDTV satellite receiver.  A bar area with storage below is also in this area along with a U-Line Ice maker.

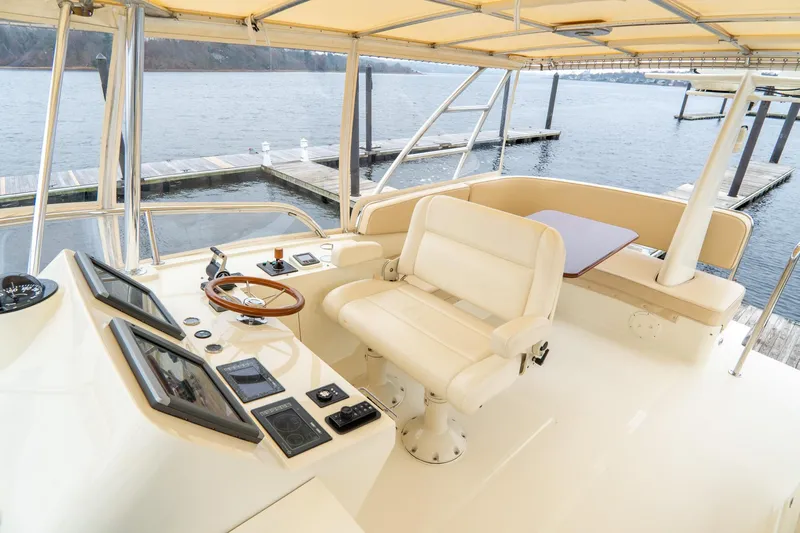

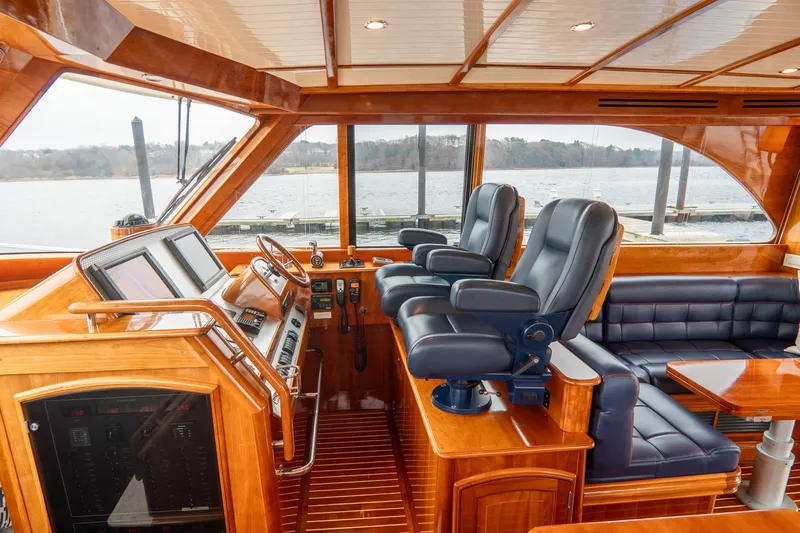

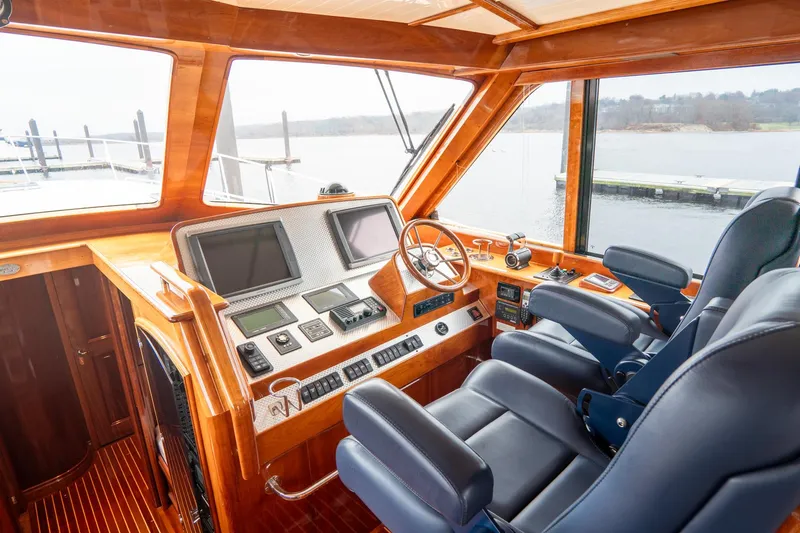

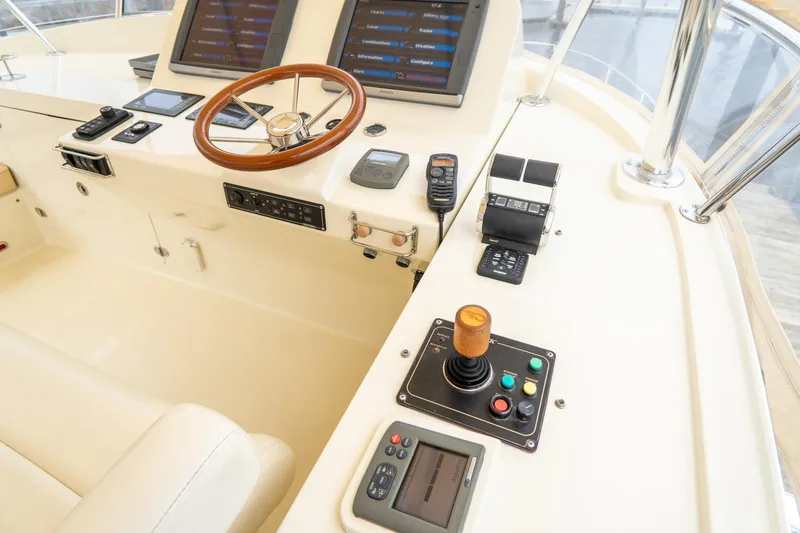

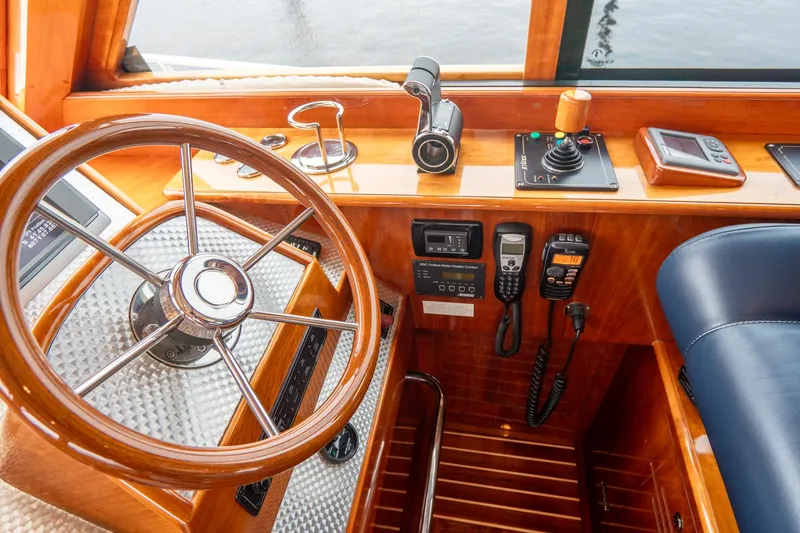

• Hinckley "JetStick" system - with manual override back-up.

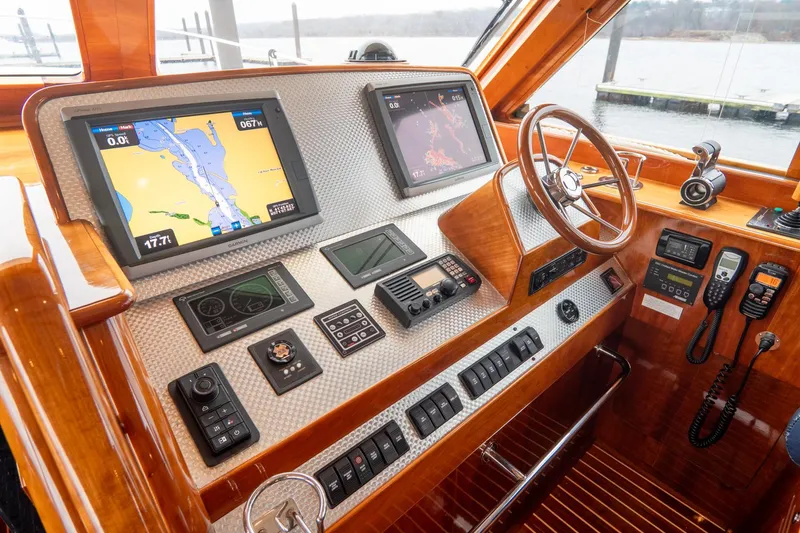

• Electronic throttle controls
• 2 x Garmin 7215 Displays
• MAN engine control panels
• FLIR remote camera control
• ACR remote spotlight control
• Icom IC-M604 VHF radio w/command Mic III
• AutoSet Lectrotab control
• Raymarine ST70 Display
• AutoAnchor AA560 Control
• Iridium phone
• Master air-conditioning control panel
• Fuel and water gauges

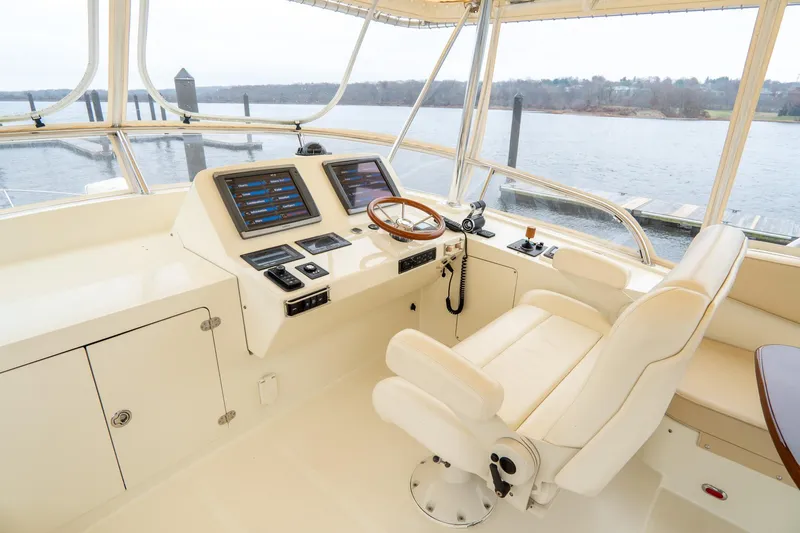

• Electronic throttle controls
• 2 x Garmin 7215 Displays
• MAN engine control panels
• FLIR remote camera control
• ACR remote spotlight control
• AutoAnchor AA560 control
• Icom Commandmic III VHF
• Raymarine ST70 display
• AutoSet Lectrotab control
• Ritchie Powerdamp Compass

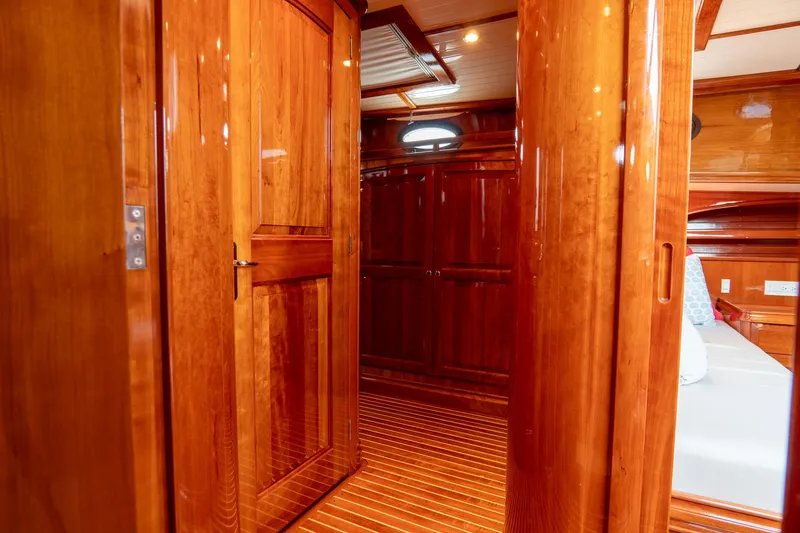

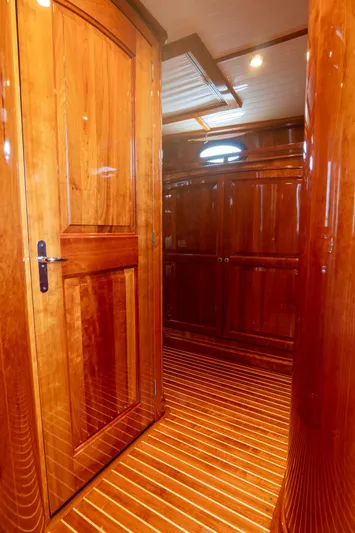

• Raised panel doors are cherry, and cabin liners are cherry-sheathed.
• The large overhead hatches have Ocean Air screens and shades. Opening ports with custom screens provide additional natural ventilation
• Reverse-cycle air conditioning.
• Custom cabin lighting throughout include halogen swivel lights and Cantalupi Cupid satin-nickel bulkhead lamps with rheostat controls.
• Interior cushions are covered in Spinneybeck Blue ultra-leather with antler buttons.
• Most countertops throughout are custom and are made of beautiful Honey Onyx stone.
• Moving aft there are cedar-lined hanging lockers to port and starboard.

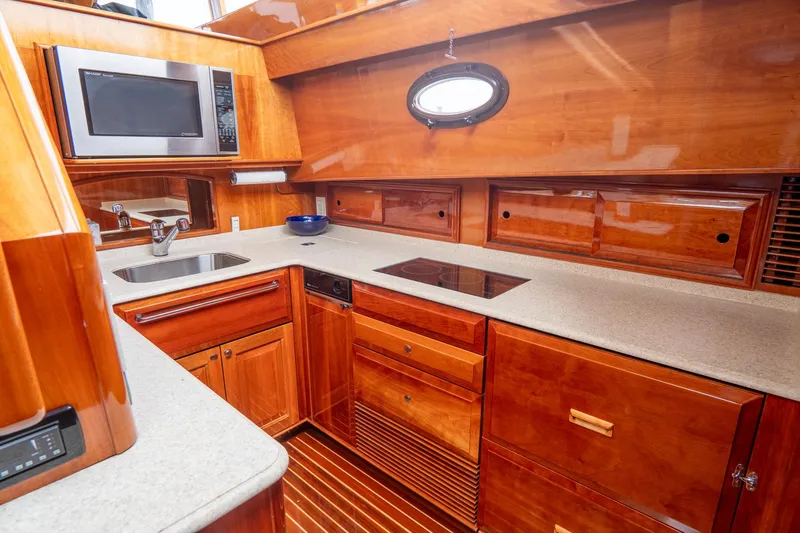

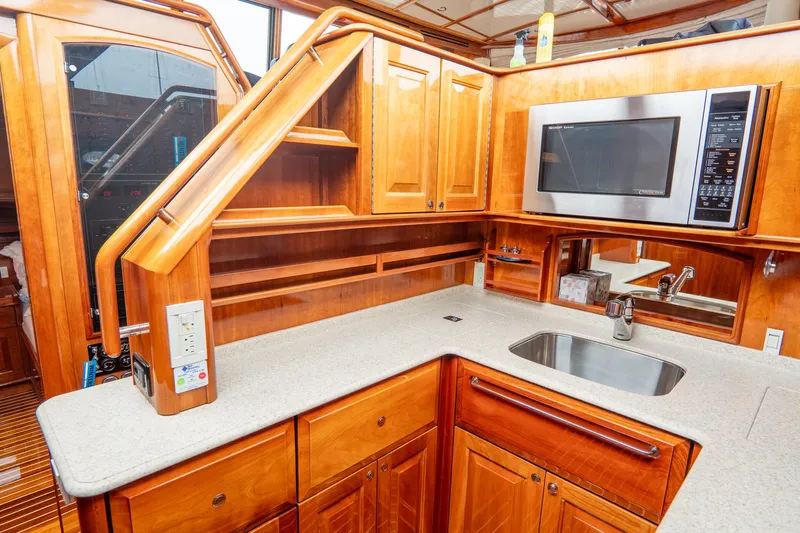

• Kenyon 2-burner electric cook top.
• Sharp Stainless steel microwave/convection oven - above sink.
• Broan Trash compactor
• Polished stainless steel under mounted sink with single-lever fixture with sprayer
• Hot and cold pressure fresh water system
• (2) U-Line Refrigeration drawers with cherry-faces
• Lighted cold plate freezer box
• 110 volt AC icemaker in a locker below the companion helm seat
• Over-counter lighting with dimmer
• AirCon control
• Sea Recovery water maker control
• Storage for dinner service for 8
• Inboard locker in galley has adjustable shelves

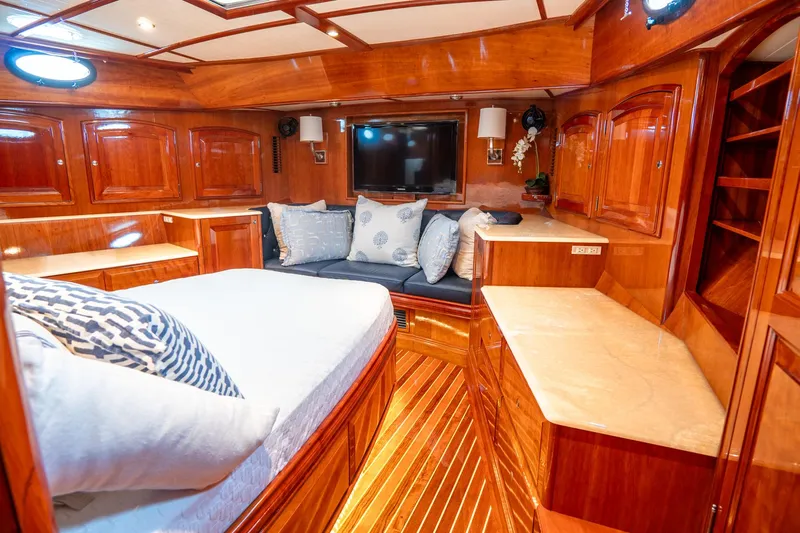

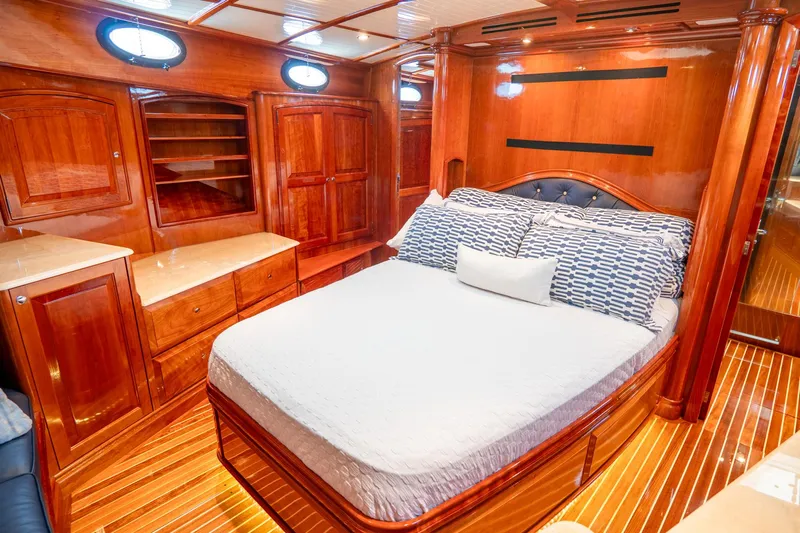

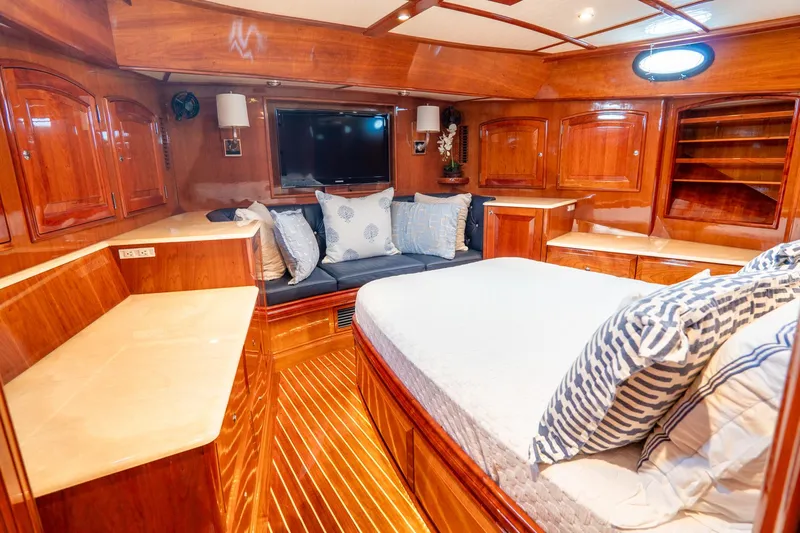

• Centerline forward-facing queen berth with innerspring mattress and storage drawers below.
• A custom settee is centered on the forward bulkhead
• Dressers with Honey Onyx stone countertops are port and starboard
• Aft are cedar-lined hanging lockers to port and starboard.

A Samsung TV is bulkhead mounted over the settee and faces the bed.

Features include:

• Custom halogen swivel art lighting over the owner's bunk to illuminate anything mounted on bulkhead.
• Ample storage in lockers and drawers port and starboard.
• 4x Opening ports with screens
• Large centerline Bomar hatch with screen and blackout shade
• Overhead lighting on dimmer circuit.
• Bulkhead mounted lighting forward and aft.
• 2x bulkhead mounted Fans
• Reverse-cycle AC/heat vents

32" Samsung TV/monitor with HDTV satellite TV/DVD/Blu Ray receiver, and stereo speakers.

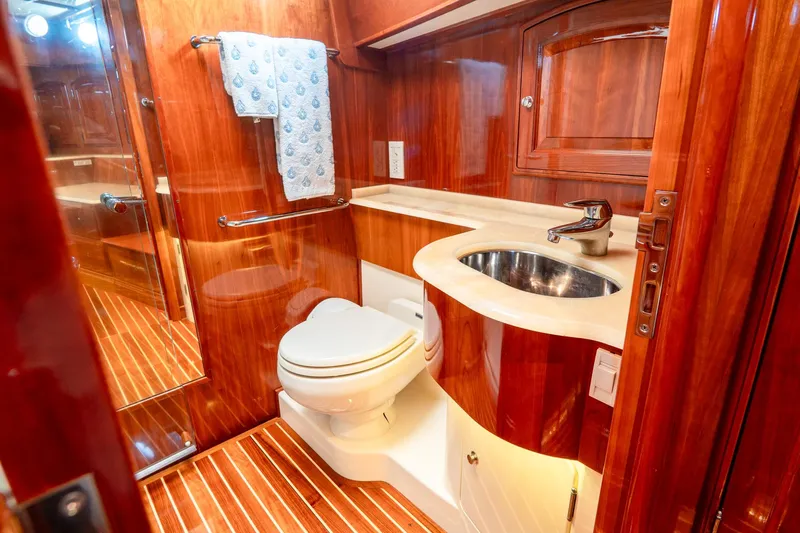

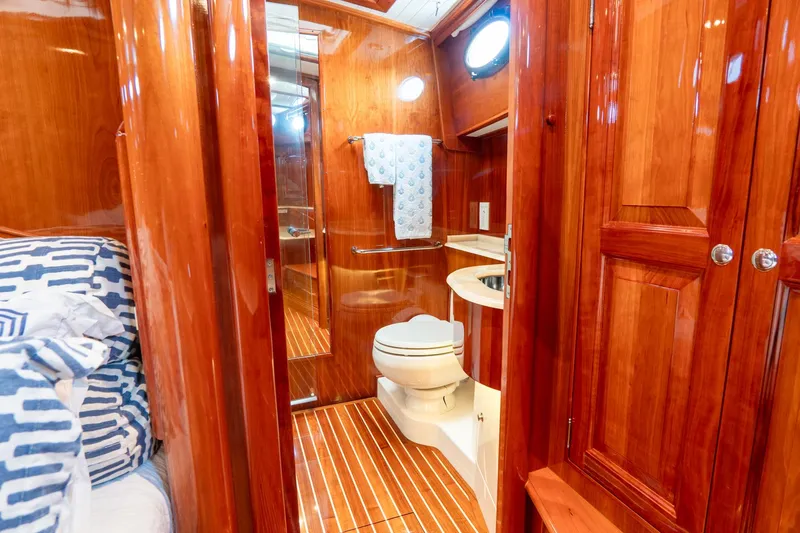

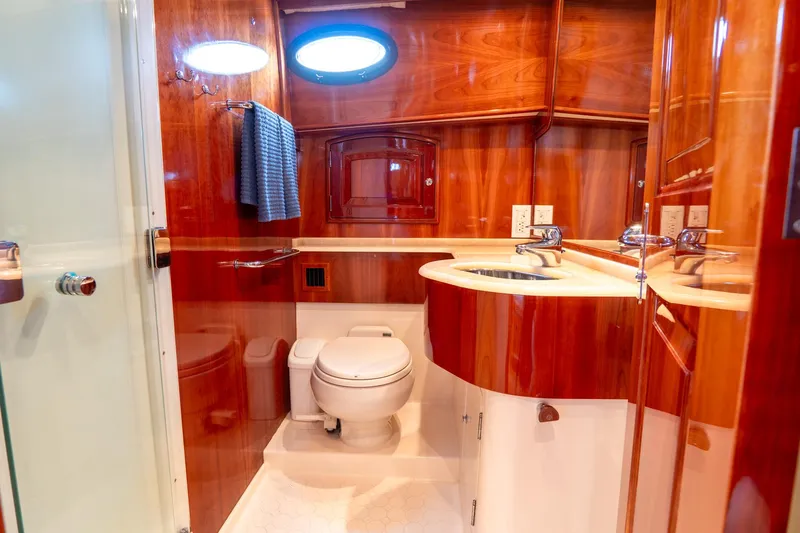

Stainless sink with Grohe faucet

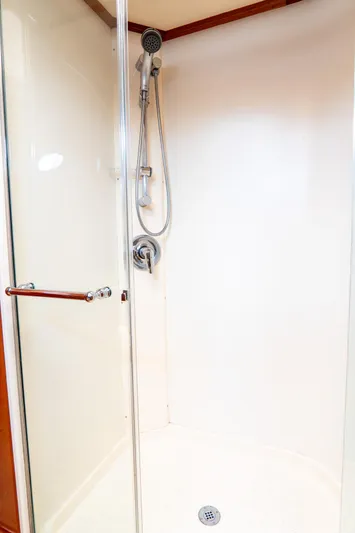

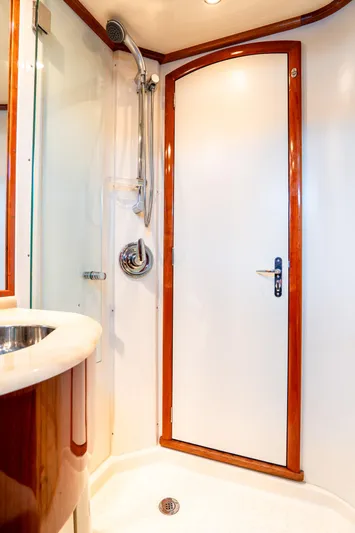

• Separate Stall Shower with a Grohe single-lever mixing valve
• Sealand Vacu-flush marine toilet plumbed directly to 100-gallon holding tank. The holding tank can then be emptied via a deck fitting or overboard through the Sealand macerator pump to a discharge facility
• Opening portlight with screen
• Bowmar overhead opening hatch with screen and blackout shade
• Full-length mirror
• Overhead lighting has dimmer except for shower.
• Storage areas outboard and under sink.

• 110 volt outlet
• Overhead lighting on dimmer Reverse cycle AC/heat control pad.
• Bulkhead mounted lighting
• Rope lighting
• Reading lamps
• 2x Opening ports with screens
• Overhead opening Bowmar hatch with screen and blackout shade

• Sealand VacuFlush marine toilet plumbed directly to 100-gallon holding tank. The holding tank can then be emptied via a deck fitting or overboard through the Sealand macerator pump to a discharge facility.
• Stall shower with Lucite doors, with a Grohe single-lever mixing valve
• Opening port light with screen
• Bowmar opening overhead hatch with screen and blackout shade
• Overhead lighting has dimmer except for shower.
• Storage areas are outboard and under sink.
• Custom towel racks.

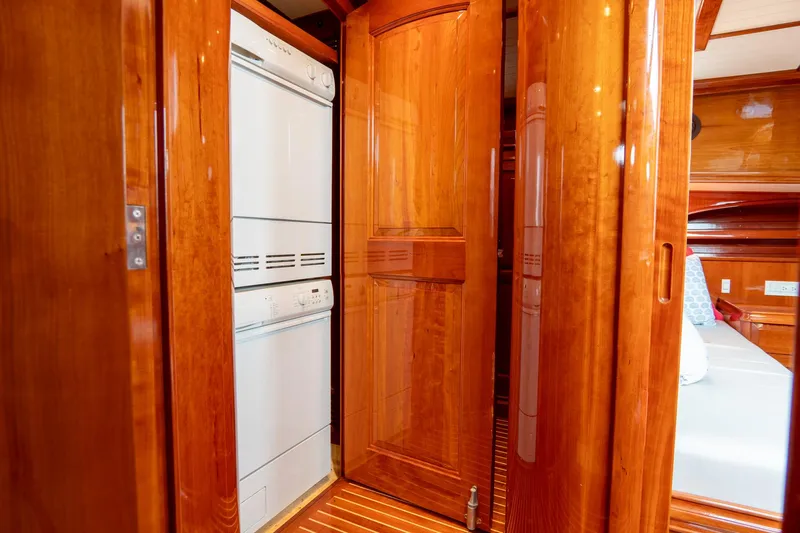

• ASKO front-loading full sized washer and dryer, plumbed to the sump tank.
• Built-in hanging locker, and additional cedar lined storage compartments
• Opening Bowmar hatch with screen and blackout shade.

• 120/240 volts AC
• 24 volts DC
• Start batteries: Four (4) BCI group 31 AGM batteries for main engines and generator
• House service: Four (4) BCI group 31 AGM batteries for the main house bank
• Heavy-duty battery switches for port and starboard engines, with ability to parallel start batteries
• (2) 100 amp 24 volt DC.Balmar alternators
• (2) 24 volt DC battery chargers.
• 240 volts AC from shore with 12-volt DC electronics panel
• 12 Volt lighting
• (2) 120/240 volts AC Power 50 amp inlets
• Custom 12-volt cockpit outlet - under stbd forward teak coaming.
• Link 10 battery monitor
• Two Glendinning powered shore cord reels

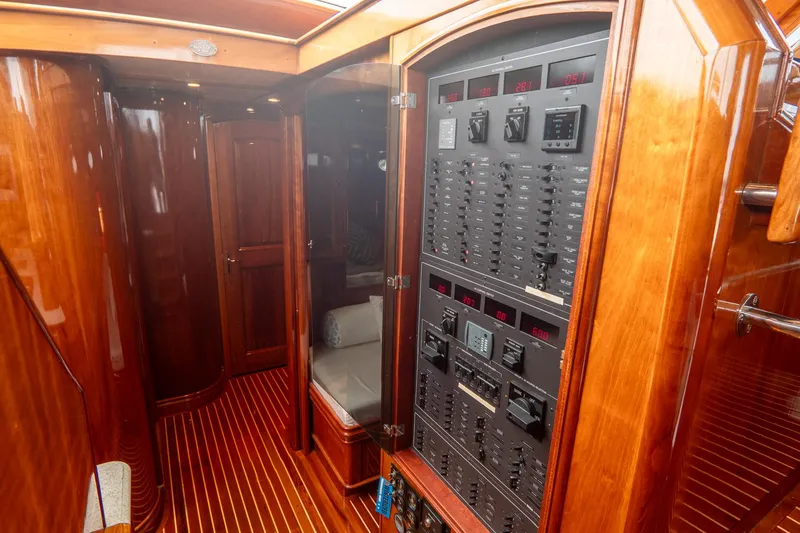

• Custom lighted circuit breaker panel w/smoked glass cover, meters, switches, and indicator lights

• Common wire bonding with a minimum branch wire size of #8 AWG per ABYC.

Westerbeke 240 volts AC 12 kW generator Model 12 OBTDC in sound shield.

• Remote panel with gauges for generator starting

• Faced Foam/composite engine room insulation with metal covering on visible surfaces.
• Double gaskets on access door to engine room.
• Engine Air Intake: Air De-misters at both vents. Baffled and insulated
• (4) cage-protected lights.

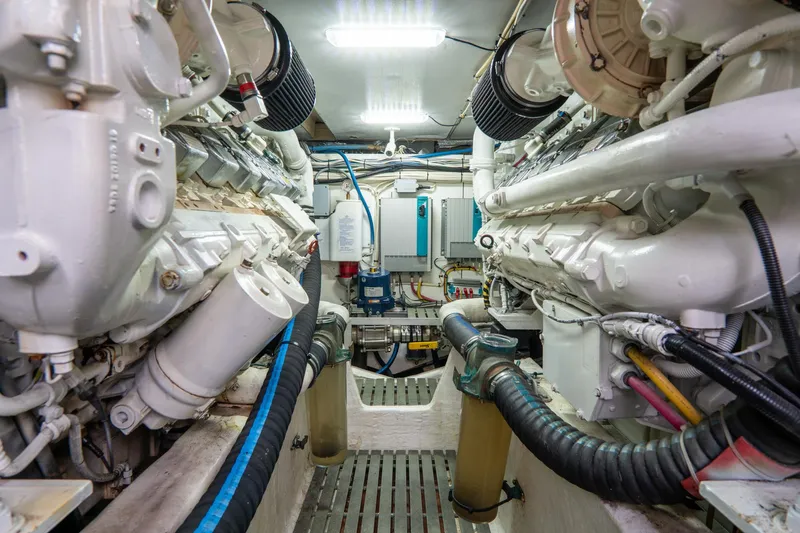

Twin Man D2842 LE404 diesel 1360-hp diesel engines:

• (2) Hamilton 403 water jets
• Twin Disc MG-5145SC transmissions
• Racor fuel-water filters with pressure gauges, water sensors, petcock and drain tubes.
• Underwater exhaust system - with low speed by-pass.
• Side Power hydraulic bow thruster.
• Power-assist steering.

• Alarms for low engine oil pressure, engine high water temperature
• Oil Transfer Pump - reversible 24-Volt DC - for main engines, transmissions, and generator
• Fireboy fire suppression system with automatic engine shutdown.
• A custom 5-gallon oil reservoir in engine room is plumbed to the oil transfer pump
• Fresh hot and cold pressurized water
• 24-VDC main and back-up pumps supplying Galley, Shower, Head and Cockpit shower.
• (2) Automatic 24-volt DC sump pumps for showers, washing machine and air-conditioning condensate.
• (4) Rule® 24-volt DC electric 3500-GPH bilge pumps with ULTRA automatic float switches.
• High-water bilge alarm
• Saltwater deck wash deck wash pump with hose connections on deck near anchor roller.
• 17-gallon water heater - marine insulated stainless steel heater.
• 100-gallon aluminum holding tank
• 200-gallon stainless steel fresh water tank

• Washer and dryer
• Sea Recovery Watermaker

• Fireboy fire suppression system with automatic engine shutdown.
• (4) Fire Extinguishers: 2-lb. Type B-1 fire extinguishers for class A, B, and C fires.
• Remote controlled spot light - on pilothouse roof.
• Aft-deck flood light mounted on mast.
• Horn - Kahlenberg 24-Volt DC dual-trumpet air horn with switch at helm.
• Searchlight - 24 Volt-DC with remote at helm
• Assorted Life jackets
• Navigation lights
• Coast Guard safety package

• Hull - Hinckley DualGuard Composite Construction- Kevlar®/E-glass outer skin with balsa and Corecell® core and Carbon fiber inner skin, infused with Vinylester resin using Seaman Composite Resin Infusion Molding Process (SCRIMP®).
• Deck - E-glass skin with balsa and Corecell® core, laminatedwith Vinylester resin using Seaman Composite Resin Infusion Molding Process (SCRIMP®).  These materials and building techniques provide for a superior surface finish, greater resistance to osmosis, high degree of stiffness & stiffness/weight ratios, and greater hull strength against impact damage, and thermal insulation.
• Thru-hull fittings are Non-metallic composite with ball-valve seacocks are below waterline and above the waterline where appropriate. Bronze seacocks, thru-hull fittings and sea strainers on propulsion engines.
• Rub rail has stainless steel half-round on fiberglass molding.
• Swim Platform - Painted to match hull color with teak decking inserts and stainless steel half round with a stainless steel telescoping 3-step swim ladder under swim platform.
