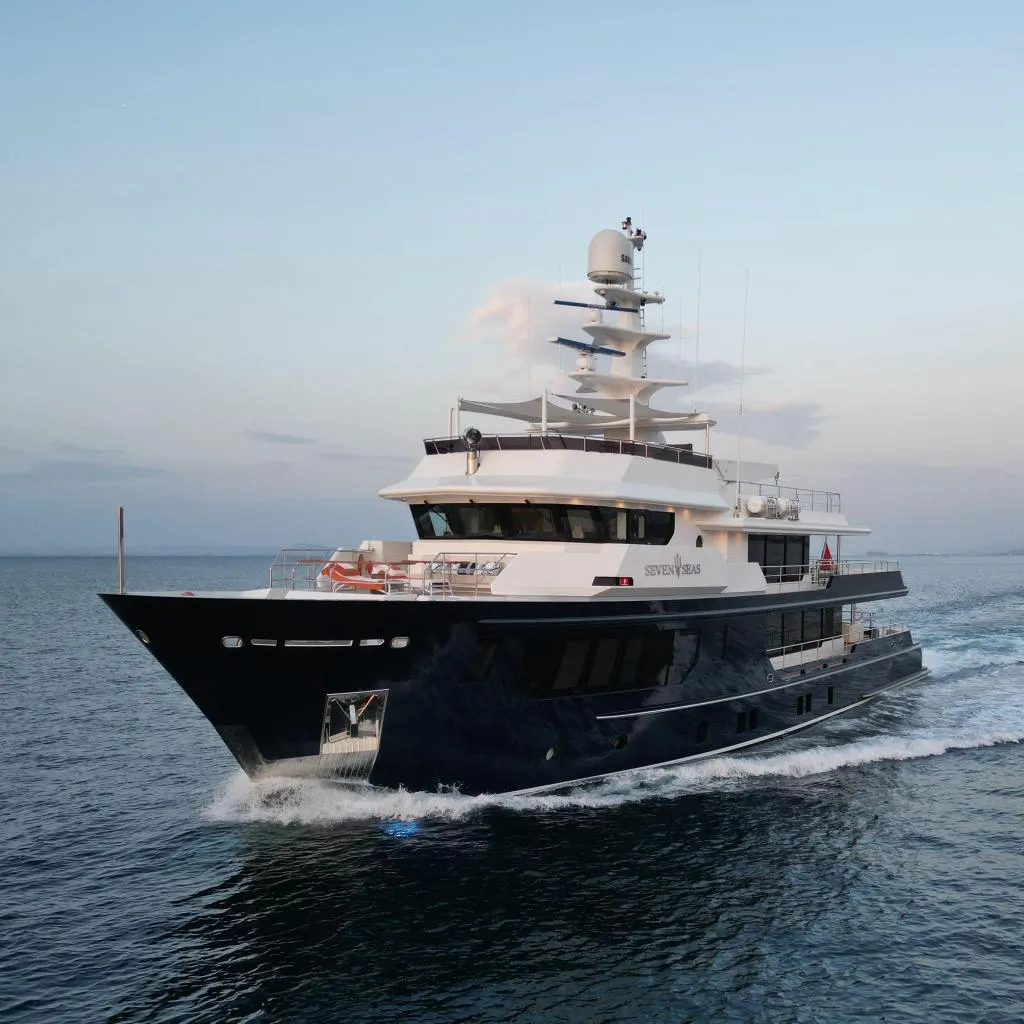

SEVEN SEAS Yacht for Sale

• Cruising Speed: 10 kn
• Maximum Speed: 13.5 kn
• Beam: 28' 3''
• Hull Material: Steel
• Max Draft: 9' 3''
• Fuel Tank: 1 x 41100|liter
• Fresh Water: 1 x 15320|liter
• Holding: 1 x 11000|liter
• Cabins: 9
• Heads: 9

Overview

Type: Explorer Motor Yacht

Designer: Vripack

Naval Architecture: RMK Marine

Interior Design: Epikworks

Builder: RMK Marine

Class: LR ✠ 100A1 SSC Yacht Mono G6A, (✠) LMC

Flag: Marshall Islands

Main Particulars

Length overall: 36, 86 m
Breadth (Moulded): 8, 6 m
Draught (Full Load): 2, 84 m
Gross Tonnage: 399 GT
Speed: 13.5 kts max, 10 kts cruise
Range @ 10kn: 3,600 nm

Propulsion & Steering System

Propulsion & Steering System
Engines: CAT C32 2x709 kW each @ 1600 RPM
Gearbox: 2 x ZF W3350(4,0:1) with throlling valves
Propulsion System: MMP 5-Bladed FPP
Steering System: Data Hydraulic
Rudder Assembly: 2 x Steel rudders with SS Shafts
Exhaust System: Halyard

Electricity Network: 24V DC, 230V/400V, 50Hz
Shore Power Converter: 1 x Atlas. 75kVA,
Service Generators: 2 x CAT C4.4 69 ekW,
Night Generator: 1 x Northern Lights 32 ekW,
Battery Charger: Victron
Batteries: Sonnenchein OPzV & Exide AGM - Gel type
Cables: XLPE based LR Certified
ICAF: Cathelco
Navigation Light: Aquasignal 55 Serie Incandesant
Flood Light: Hella Marine Sea Hawk
Technical Area Light: E-LED Oceanus
Interior Lighting: BCM Lite & Bright Serie Down
Underwater Lights: 8 x Underwater Light Ltd. QTS75 RGBW

External Communication : GMDSS A3
 Radar 1 : Furuno 25kW X-Band 8ft Array
 Radar 2 : Furuno 30kW S-Band 10ft Array
 GPS : SAAB R5 Supreme DGPS
 AIS : SAAB R5 Supreme DGPS-AIS
 EPIRB&SART : SAILOR 4065 EPIRB - TRON 20 AIS-SART
 Searchlight : Carlisle & Finch 500 Watt Xenon
 Magnetic Compass : Sperry Marine Jupiter 180mm Overhead
 Chart plotter : TRANSAS NS4000 ECDIS & TIME ZERO PRO
 Weather Station : Airmar WX220
 Echosounder : Furuno FE-800 50kHz & 200kHz Transducers
 Speed Log : Sperry Marine NAVIKNOT 350 Electromagnetic
 Fish Finder : Furuno CH600 Searchlight Sonar
 Data Repeaters : B&G H5000 Hydra & 6 x Graphical Display
 Intercom : Phontech CIS 3100 5 Zones
 VHF : 2 x SAILOR 7222 VHF DSC Class A
 MF/HF : 1 x SAILOR 6310 150W DSC Class A
 Navtex : Furuno NX700
 Inmarsat : SAILOR 6110
 SAT Phone : SAILOR 4300 Iridium L Band
 BNWAS : Furuno BR500 with 3 Stations
 Ship’s Horn : Kahlenberg F-3 5 Horns

 CCTV : Dahua HDCVI 8 x PTZ Dome Type AHD cameras with 15 Days recording capacity
 Brand / Model : LYNGSO Automation
 Display : 2 x 21” Panel PC, 3 x Digital Repeater
 Input/Output : 350DI, 15DO, 108 AI, 400 Serial IO
 Printer : 1x Epson

 Bulwarks & Guard Rails : GMDSS A3
 Anchor & Mooring : Furuno 25kW X-Band 8ft Array
 Anchors & Chain : Furuno 30kW S-Band 10ft Array
 Teak Deck : SAAB R5 Supreme DGPS
 Jacuzzi : SAAB R5 Supreme DGPS-AIS
 Crane : SAILOR 4065 EPIRB - TRON 20 AIS-SART
 Passarelle : Carlisle & Finch 500 Watt Xenon
 Side Boarding Ladder : Sperry Marine Jupiter 180mm Overhead
 Swim Platform : TRANSAS NS4000 ECDIS & TIME ZERO PRO
 Weathertight Hinged Ladder : Airmar WX220
 Watertight Sliding Doors : Furuno FE-800 50kHz & 200kHz Transducers
 Weathertight Sliding Doors : Sperry Marine NAVIKNOT 350 Electromagnetic
 Window Wipers : Furuno CH600 Searchlight Sonar

Owners Accommodation:

Number of cabins: 1

Number of berths: 1 double

Complement: 2

Guest Accommodation:

Number of cabins: 4

Number of berths: 3 double + 1 twin

Complement: 9 (with Pullman)

Crew Accommodation:

Number of cabins: 4

Number of berths: 1 double + 6 single

Complement: 7

Galley& Pantry Appliances: Miele

Laundry Appliances: Miele

Crockery, Cutlery, Glassware: Owner Supply

Loose Furniture: Owner Supply

Curtains & Soft Furnishing: Custom

Carpets :  20 mm wool-viscon & underlay, plain color

Quality and detailing of the interior is in accordance with the best yacht practice and high-quality material are used.
The material selection is carried out by the interior designer and RMK Marine.
Interior is of a contemporary styling with an overall use of standard veneers, semi-gloss finishes with accents in wall
panels, combined with natural and fresh colored fabrics. Tabletops are marquetry of standard veneers. Selection of
standard veneers and marble floors and countertops are implemented in bathrooms.
The minimum clear headroom above wooden construction floors to finished ceilings in principal areas is to be:
 Lower Deck : 2.11 m
 Main Deck : 2.11 m
 Wheelhouse Deck : 2.10 m
 Wheelhouse : 2.08 m
 Crew : 2.11 m
 Master Cabin : 2.18 m

 Fresh Water System
 Piping : U-PVC and C-PVC Piping
 Pumps : Headhunter AQX-230
 Water Maker : 2 x FCI ATLAS 13.632 lt/day each
 Boilers : Solareks 3 × 100 litres, Tanks 2x4,5kW Elements
Grey Water System
Piping : U-PVC Piping
 Pumps : Desmi
Black Water System
Piping : U-PVC and C-PVC Piping
Pumps : Desmi
Toilets : 11 x Tecma Silence Plus
 Sewage Treatment : Hamann HLCP025

Bilge & Fire System
Piping: CuNiFe Piping
Pumps: Desmi
Seawater System
Piping: CuNiFe
Deck Drain System
Piping : Steel Piping below Main Deck
Fuel System
Piping : Stainless Steel Piping
Pumps : Desmi
Diesel Oil Separator : 1 x Alfa Laval 503
Lube & Dirty Oil System
Piping : Stainless Steel
Pumps : Desmi
Tank Vent System
Piping : Steel
Compressed Air System
Piping : Stainless Steel
Service Air Compressor : Dalgakıran TIDY-4 7 bar 24,6m³/h
Hydraulic Systems
Piping : Steel
Power Packs: Main HPU and PTO’s. Swim platform & Pasarella with additional own
HPU’s.
Additional Information
10
HVAC

 Chilled Water Piping : PVC
 Fresh Air & Exhaust Ducting: Flexible Ducting
 Chilled Water Plant :
 1 x Flow Marine 43,9 kW Shell/Tube Titanium Condenser with VFD Controlled 3x15 kW Scrool Type
 Compressor additional 20kW Heater Barrel for heating process
 Supply & Exhaust Fans : 2 x ELTA 7,5kW
 Air Supply Fans : 15 x Heinen Hoppman In-Line Fans
 Fancoils :
 2 x 10K BTU
 3 x 12K BTU
 4 x 16K BTU
 6 x 18K BTU
 5 x 24K BTU
 4 x 400CFM FAMU
11
 Fire Fighting Systems
Sprinkler : Survitech low pressure sprinkler system for accommodation,
CO2 system in engine room.
2 x Seawater firefighting pumps in engine room.

 Portable fire extinguishers in each room.
LSA
Life Rafts : 4 x 12 person SURVITEC
Others : Viking
Glazing
Windows, port lights etc. : Heat tempered.
Insulation
Fire Insulation: Rockwool
Comfort Insulation: Rockwool
Paint
Antifouling : International AF system
Yacht Finish Paint : International AWL Grip HDT (Superyacht Finish)
