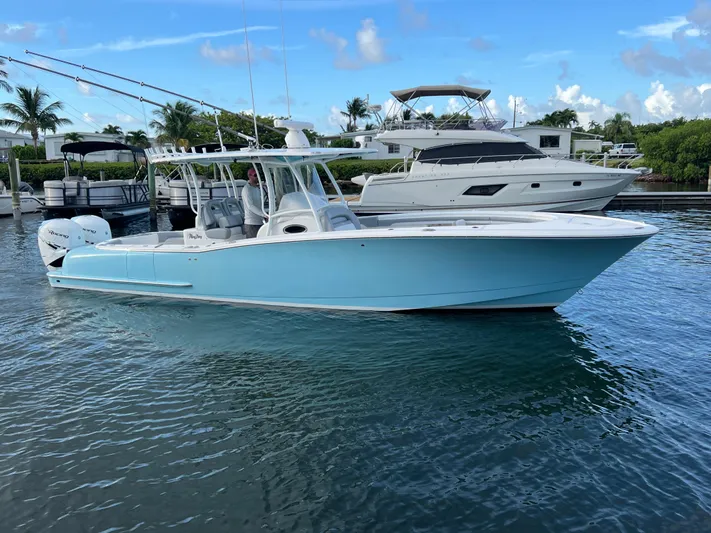

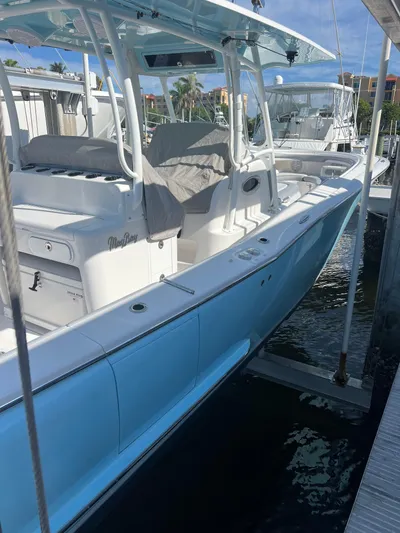

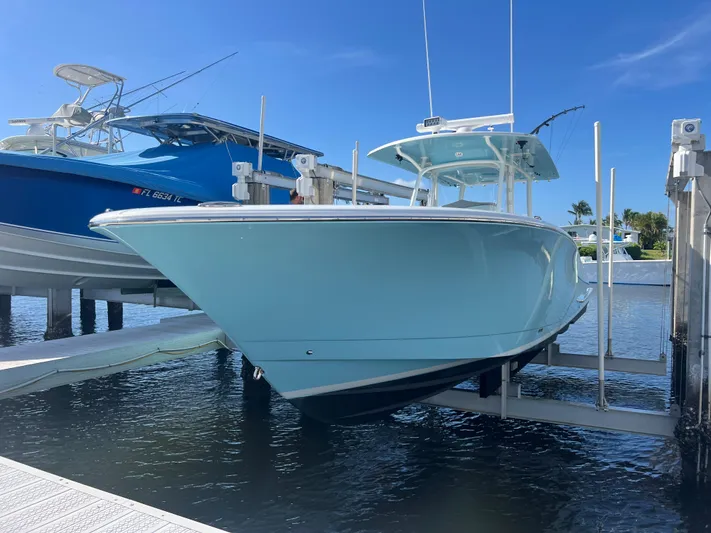

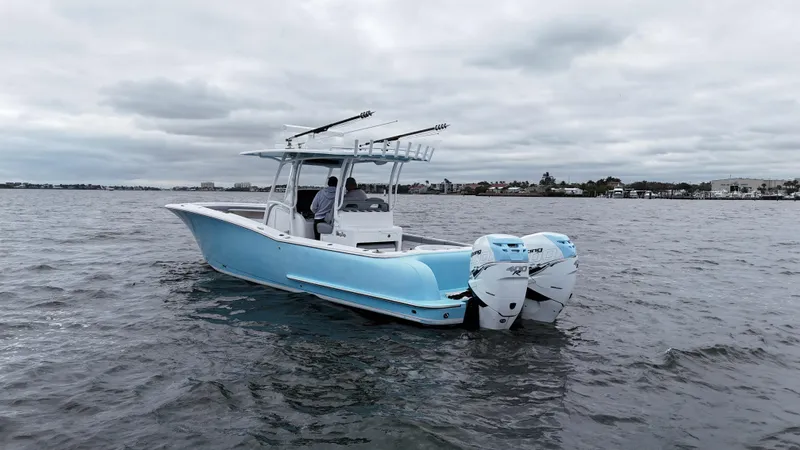

STELLA Boat for Sale

• Maximum Speed: 53.88 kn
• Beam: 10' 0''
• Hull Material: Fiberglass
• Fuel Tank: 3 x 338|gallon
• Fresh Water: 1 x 38|gallon
• Holding: 1 x 13|gallon
• Heads: 1

There are two primary configurations of the 33 Mag Bay, a shorter console version tailored to the diehard fisherman and a longer console version for those wishing to do more cruising. Of course, you have the ability to choose any console combination you would like to best suit your needs. There are plenty of semi-custom options that can be ordered from the factory to make it your perfect boat.

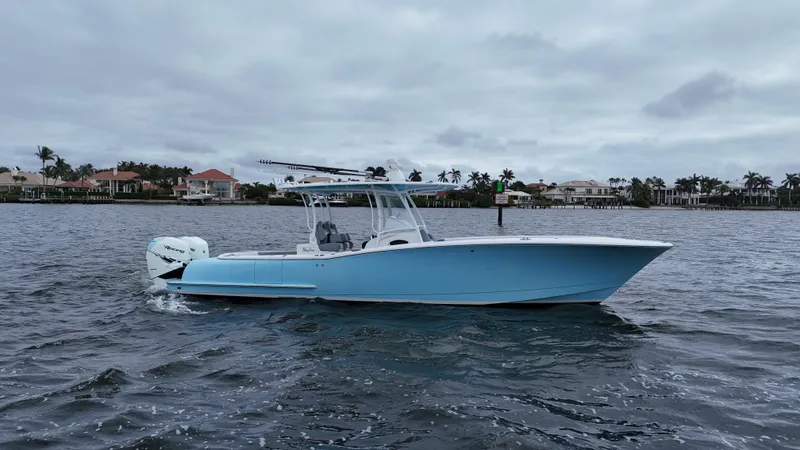

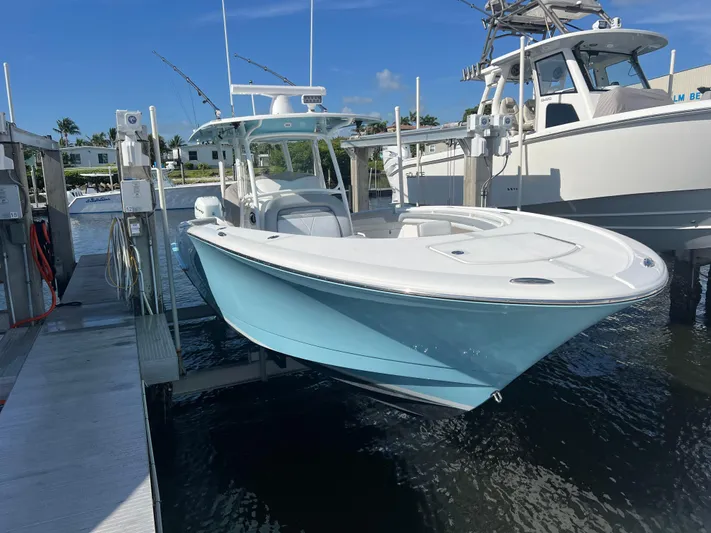

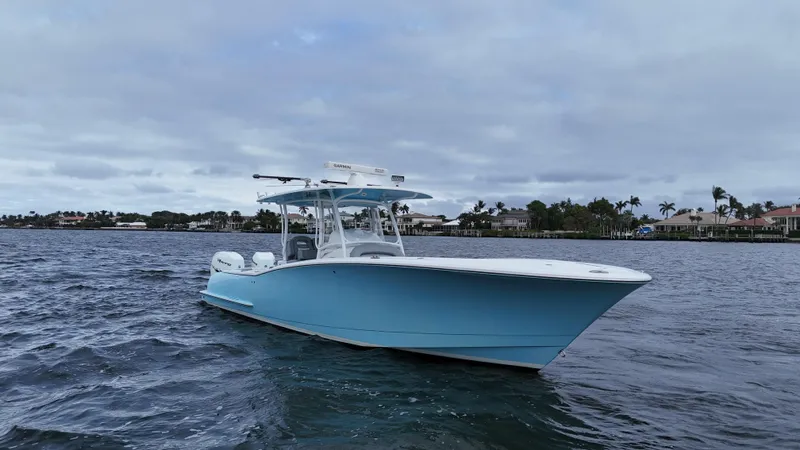

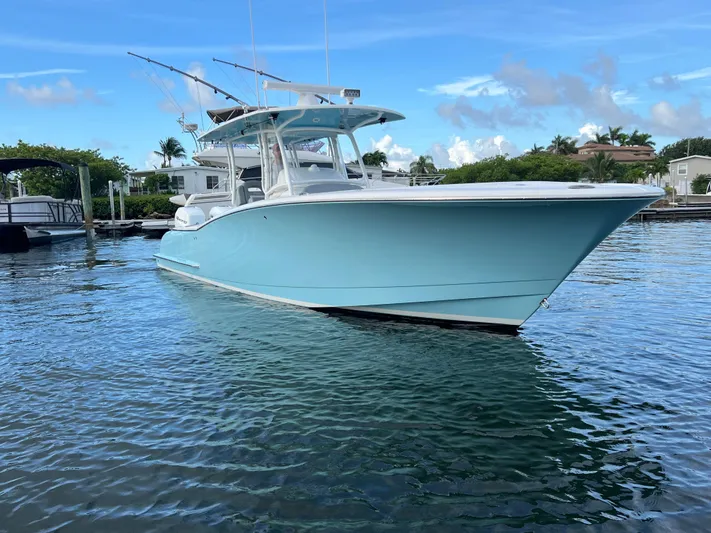

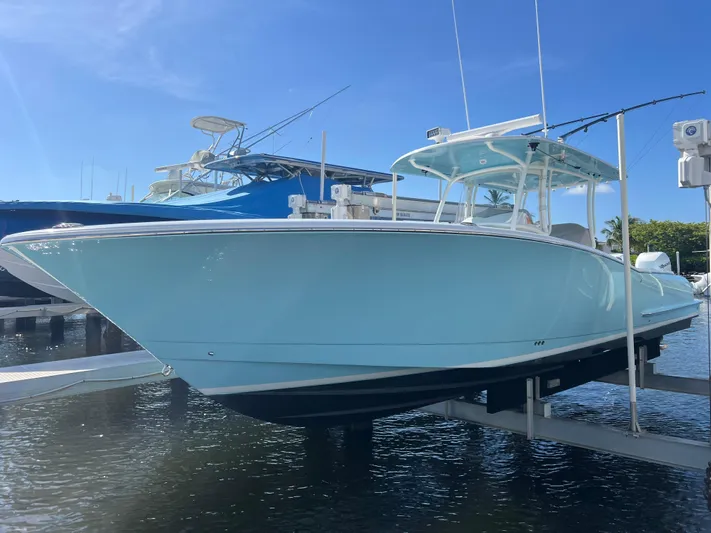

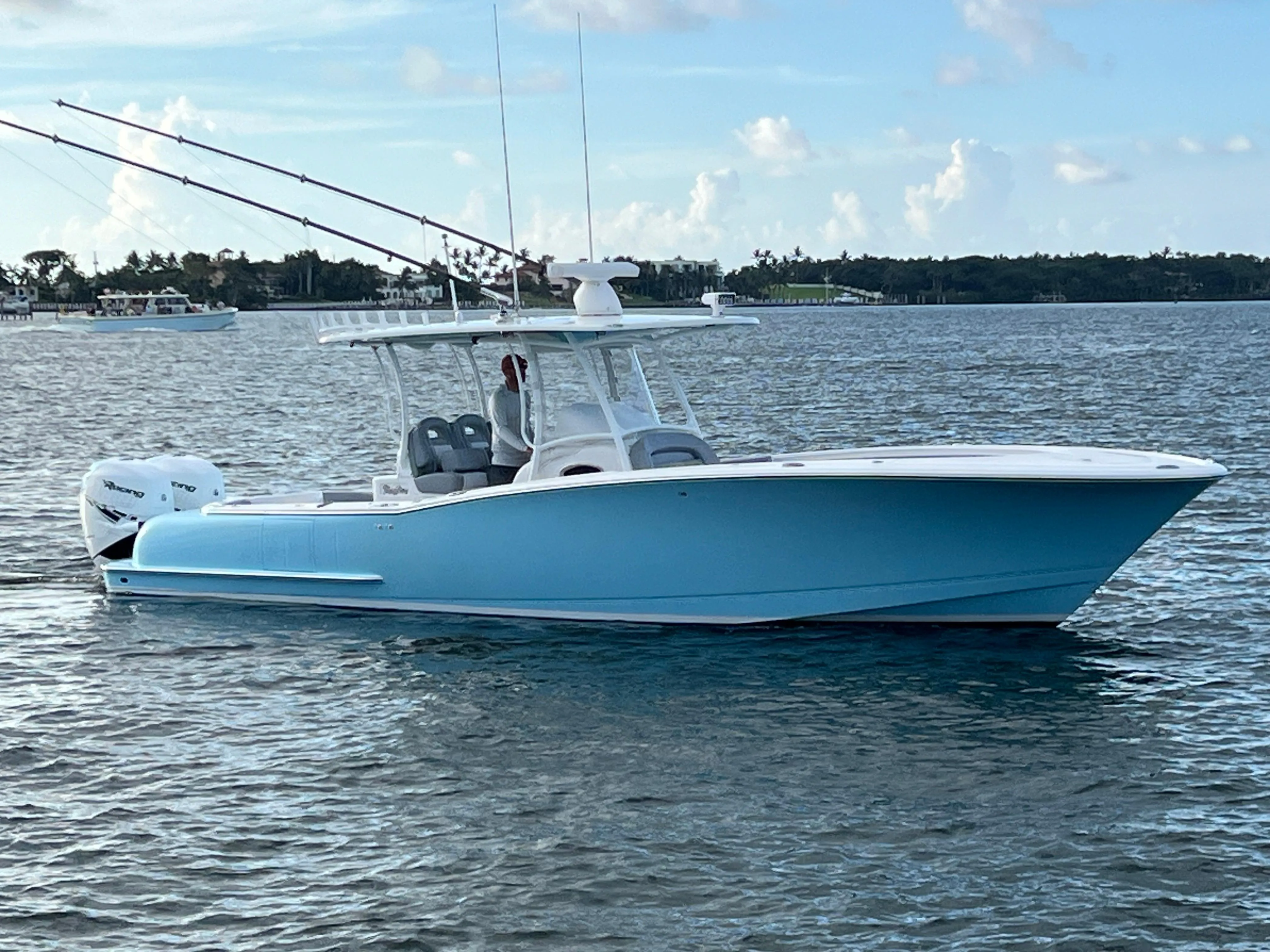

These center console boats have a length of 33’ 6” and feature a roomy 10’ beam. The deadrise at the transom is 22-degrees and the displacement is approximately 10,000-pounds. Fuel capacity of 338-gallons and a 38-gallon freshwater tank allows you to rinse off after a dive or wash off your fishing gear. Insulated fish boxes, dry storage and pressurized livewells are all standard features on the Mag Bay. A customizable aluminum T-top with an integrated electronics box is standard.

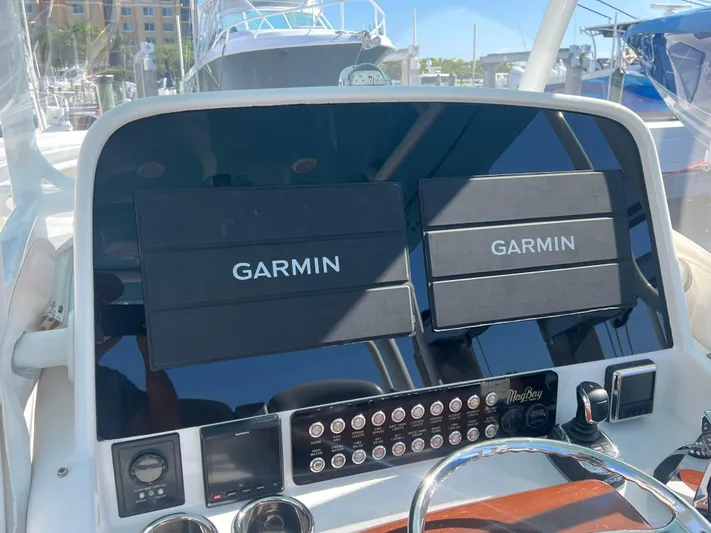

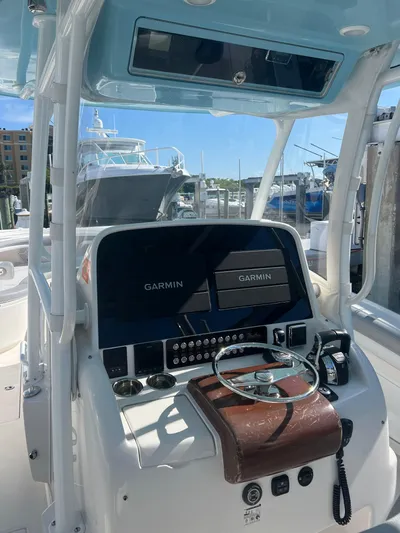

Large consoles in two designs have plenty of room for state-of-the-art electronics and user-friendly controls and switches. A glove box storage area includes usb-ports and engine start and stops. Optional fiberglass or hand built teak helm pods really add a tasteful touch to the boat.

• Patented Michael Peters Twin Step Hull Design

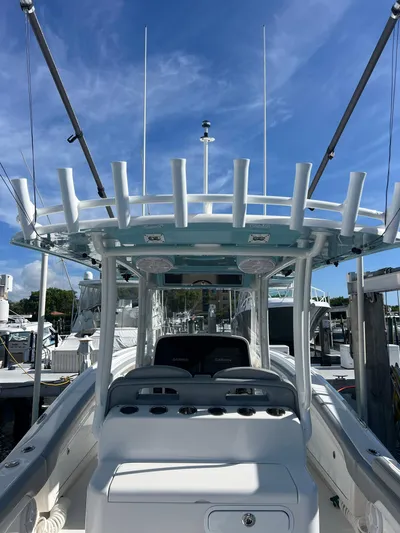

• Aluminum T Top With Fiberglass Hardtop
• 100% Vinylester Resin Construction
• Cored Hull Sides, Solid Fiberglass Bottom
• High Density Polyurethane Cored Transom
• Proprietary Molded Stringer Grid System

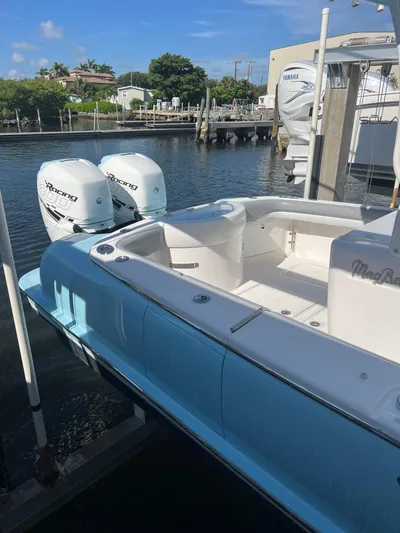

• Unique “Unibody” Transom
• .250 Wall Aluminum Coal Tar Coated Fuel Tanks
• True 3” Toe Kick On Both Consoles
• Stainless Steel Rub Rail With Hand Formed Ends
• 2x 2000GPH Bilge Pumps
• 900GPH Bilge Pump Forward
• Shower Sump Box
• 50-PSI Fresh Water System
• 70-PSI Saltwater Washdown System
• 3 Diaphragm Pumps For Fish boxes
• Fresh and Saltwater Washdown Systems
• 5 Pop Up Cleats Forward
• 2 Aft Cleats With Custom Hawse Pipes
• High and Low Speed Intakes For Sea Chest
• Fiberglass Sea Chest

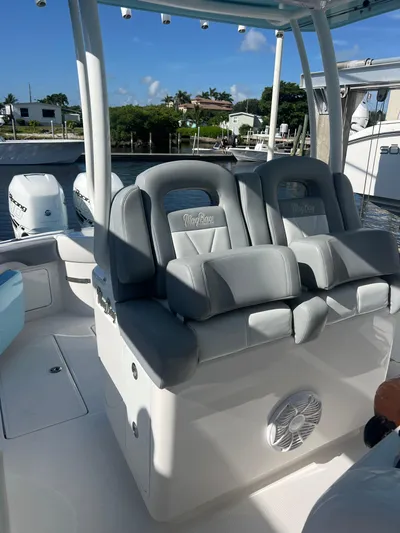

• Premium Upholstery

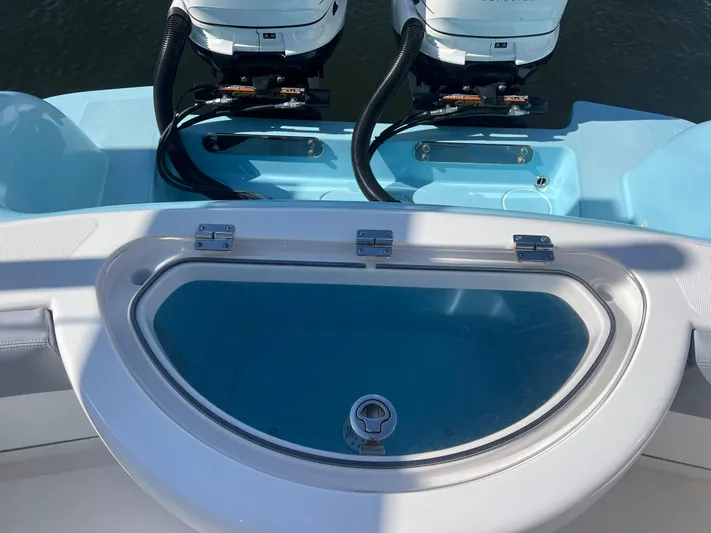

• Pressurized Transom Bait Tank With Clear Lid
• Seastar Optimus EPS Power Steering
• Double Fuel Manifold System
• 4 Lifeline Group 31 Batteries With Charger
• Integrated Motor Flush Inlet On Transom Plate
• 2 Tackle Centers With 12 Tray Capacity
• Electric Head With Freshwater Flush
• Aft Console Bait Prep Sink and Cutting Board
• 8 Cup Holders Between Consoles
• Lopolight 3NM LED Navigation Lights
• Color Changing LED Hardtop Lights
• Imtra Spreader Lights
• Console Cubby With 7 USB Ports
• 6 Gem Bluewater Rod Holders
• Wetsounds Speakers with Subwoofer
• Ongaro Steering Wheel
• Oversized Stainless Steel Hardware Throughout
• Extensive Storage Throughout
• Built With Pride In California, USA

• 100% Vinylester Resin Construction
• Gurit® Cored Hullsides, Solid Fiberglass Bottom
• Unique “Unibody” Transom
• Triple Reinforced Hull-deck-liner Joint Throughout Entire Boat
• Fiberglass Molded Stringer Grid System For Added Strength
• Premium Proprietary Gelcoat Used Throughout
• 316 Stainless Steel Rubrail With Custom Hand Bent And Fit Ends
• 316 Stainless Bow And Stern Eyes
• Starboard Side Inward Swinging Side Door With Folding Gunnel Gate
• Custom Made 316 Stainless Steel Hinges On Anchor Locker And Side Door
• Integrated Transducer Pocket For 1kw Transducer
• Industry Leading Fully Glassed And Gelcoated Liner To Deck Joints
• Self-bailing Deck With Outboard Gutters
• Integrated Hatch Drain System To Outboard Gutters
• Molded Toe Rail
• Diamond Pattern Nonskid
• Custom 316 Stainless Steel Motor Plate

• Two Outboard 94 Gallon 1⁄4” Aluminum Fuel Tanks
• One Central 150 Gallon 1⁄4” Aluminum Fuel Tank
• 38 Gallon Freshwater Tank With Deck Fill On Console
• 13 Gallon Holding Tank With Deck And Overboard Discharge Ports

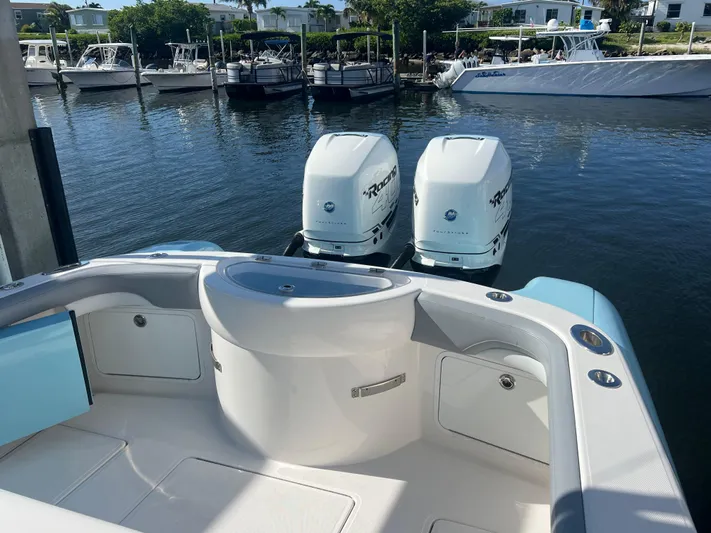

• 75 Gallon Pressurized Aft Livewell

• 70 Psi. 6gpm Saltwater Washdown Pump
• 50 Psi. 4gpm Freshwater Washdown Pump

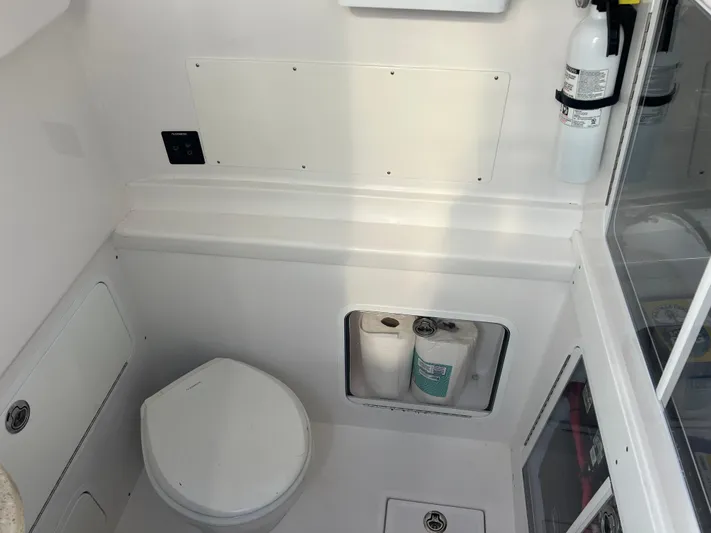

• Dometic Electric Head With Freshwater
• Freshwater Sink Inside Console.
• Forward And Aft Freshwater And Saltwater Washdown Spigots
• Rule 2000gph Bilge Pumps In Aft Lazarette
• Rule 1000gph Lo-profile Bilge Pump In Forward Console
• Rule Float Switches
• Jabsco Macerator Pumps For All Fish Boxes
• Jabsco Macerator Pump For Head

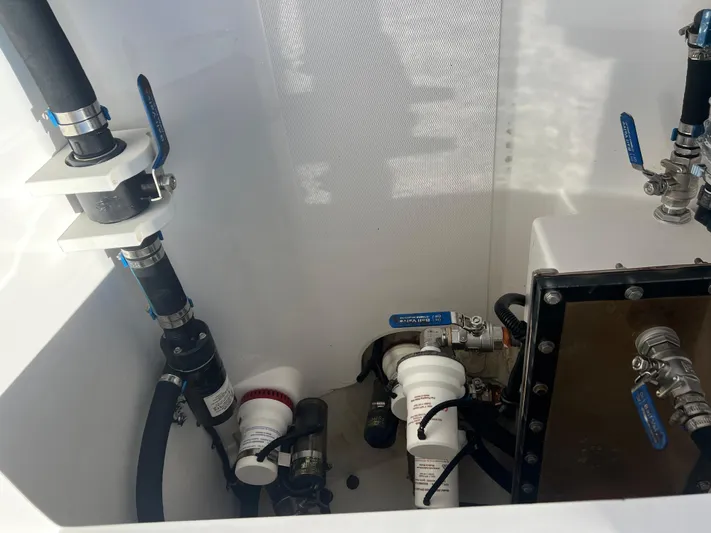

• Fiberglass Sea Chest In Aft Lazarette
• Rule Tournament Bait Tank Pumps
• Integrated Engine Flush From Splashwell Plate
• All Thru Hulls And Ball Valves Are 316 Stainless Steel

• Two In Deck Forward Storage Boxes
• Oversized Above Deck Insulated Console Storage With Drains To Deck

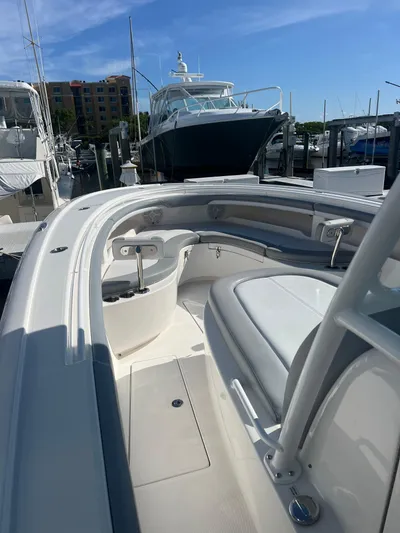

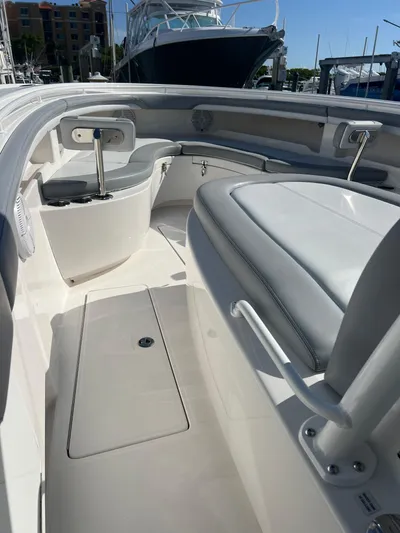

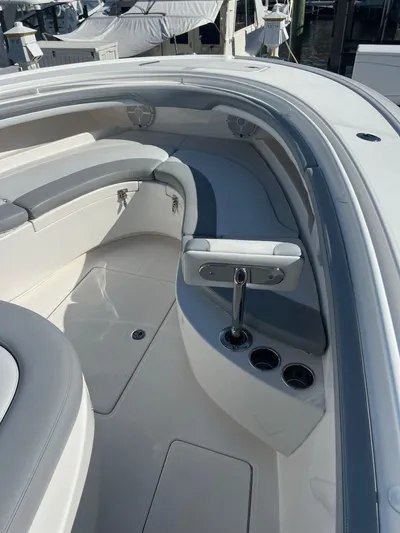

• Bow Seating With Large General Storage Compartments
• Oversized Insulated In-deck Forward Fishbox With Dedicated Macerator Pump
• Oversized Self-draining Anchor Locker With Sealed Forward Crash Bulkhead
•  Mirror Inside Console

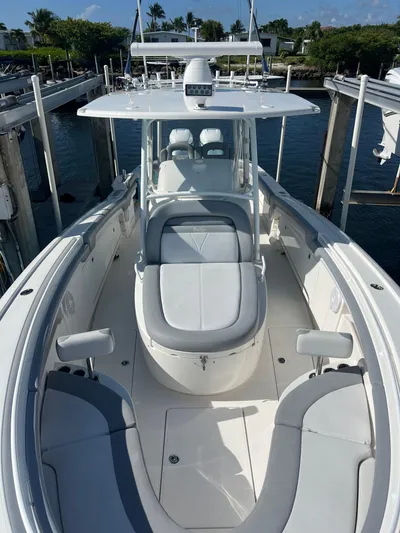

• Forward Sunpad Console with Above Deck Insulated Storage

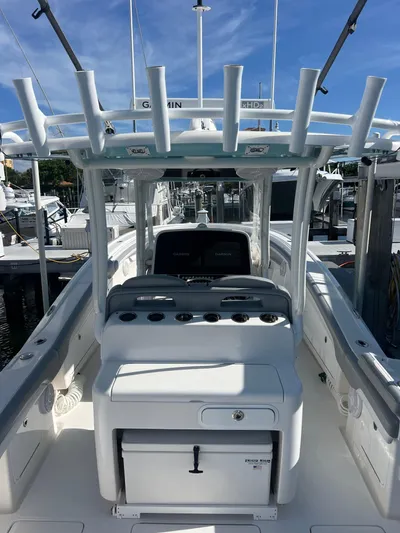

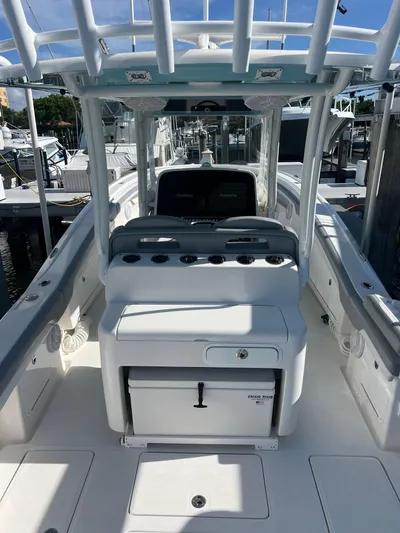

• Aft Console With Integrated Sink, Tackle Storage And Dual Drawer Unit
• Slide out Frigid Rigid 85-quart Cooler
• Two Dedicated Insulated Cockpit Fishboxes with Dedicated Macerator Pumps
• Generous Aft Lazarette
• Large Aft Storage For Fenders Or General Items
• Outboard EPIRB And Fire Extinguisher Locker
• Outboard General Storage Locker
• Console Fiberglass Pod
• Premium Silicone Based Leather Upholstery

• 316 Stainless Steel Construction With Mirror Polished Welds.

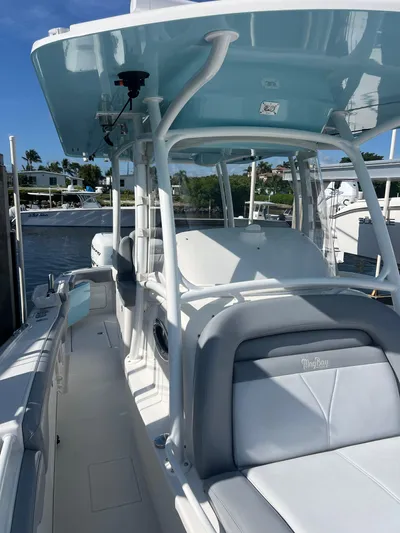

• Oversized Fiberglass Hardtop

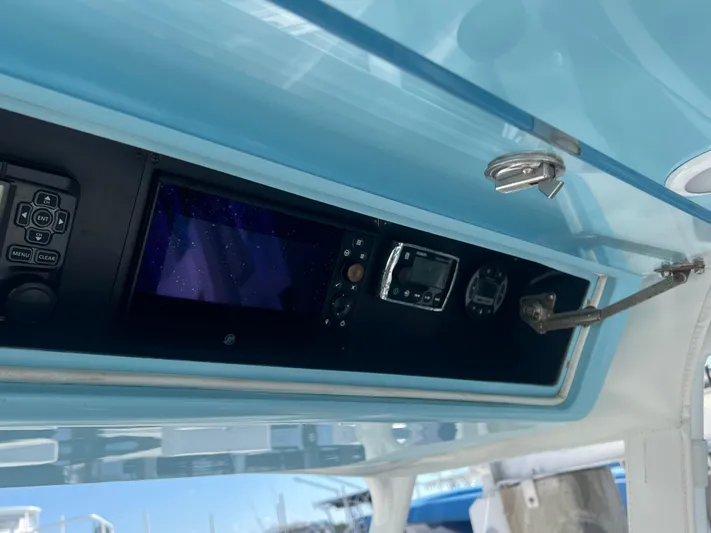

• T-top Molded In Electronics Box With Motor Display

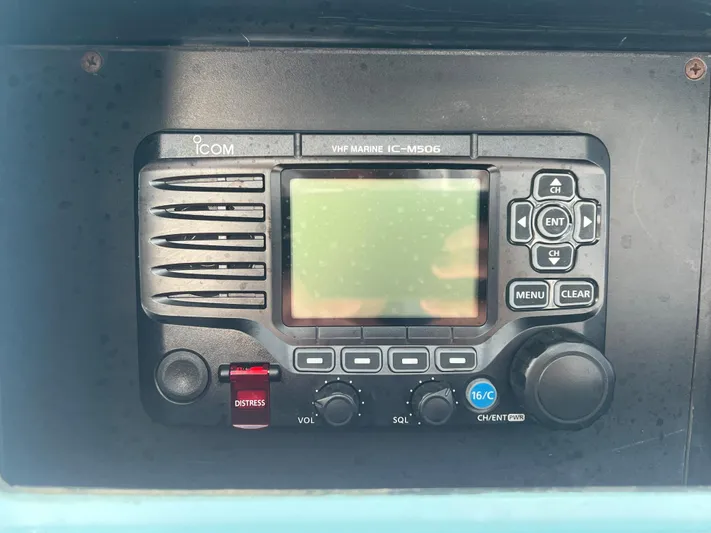

• Integrated Vhf Mounts Into Backing Plates
• Folding Anchor Light Controlled From Underside Of Hardtop
• 2mn Lumitec Navigation Lights
• Forward And Aft Lumitec Spreader Lights
• Stainless Steel Rod Holder Rack Standard On Boats With Rear Livewell

• Four Group 31 Batteries; Two House And Two Start All Wiring Throughout Boat Is Tinned Copper

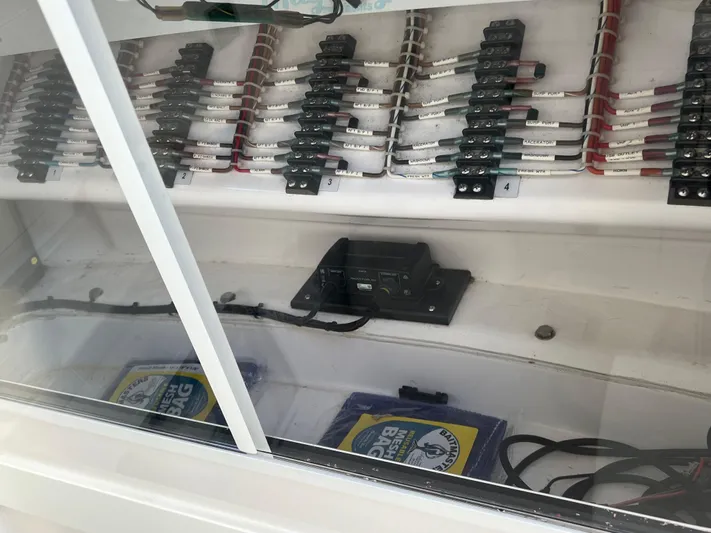

• All Wiring Has Heat Shrink Thermal Labels And Connectors
• Blue Sea Systems Remote Battery Switches And Automatic Charge Relays
• Mastervolt Battery Charger With 30amp Shore Power Connector And Cord

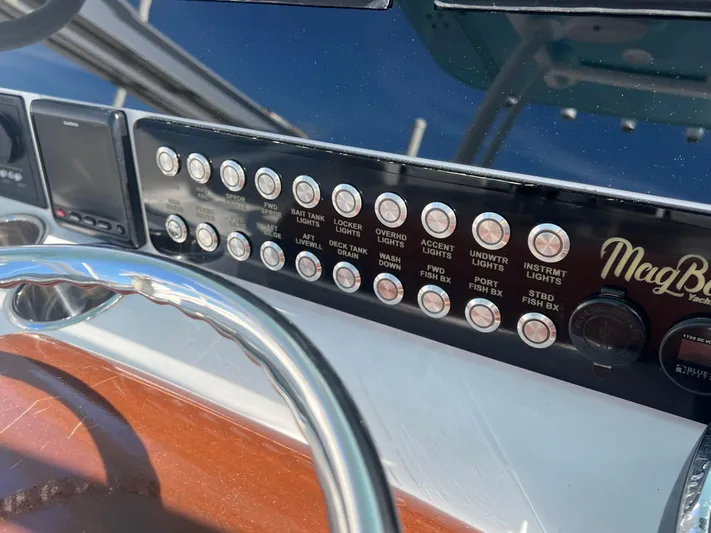

• Stbd Console Panel With Dedicated Electronics Area

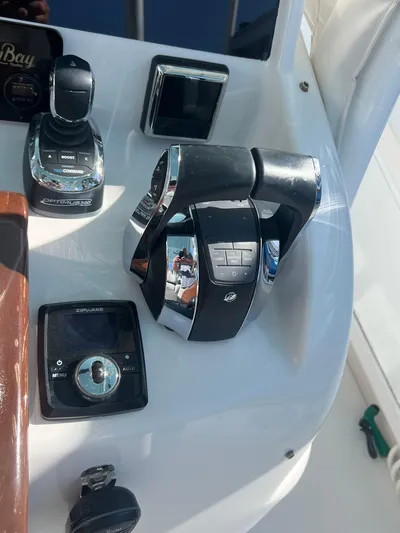

• Electronic Steering With Joystick Capability

• 316 Stainless Piano Hinges
• Premium Gemlux Cleats
• Six Gemlux Bluewater Rod Holders Standard
• Groco 316 Stainless Steel Ball Valves And Sea Cocks
• Southco Latches And Door Handles
• Ongaro Steering Wheel
• Mate Series Cupholders
• Custom 316 Stainless Side Door Hinges And Latches
