SV INDAGO Boat for Sale

Sv Indago Boat | 47' Tayana 1991

1991 Tayana 47

Builder- Ta Yang Building Co, Taiwan

Cutter Rig

LOA 47”

LWL 40’3”

Beam 14’6”

Draft 6’4”

Weight 35,000 #

Keel Encapsulated

Ballast 11675 #

Hull fiberglass, white, Gelcoat

Designer Robert Perry

Teak Removed Deck.2024

Decks repaired, sanded painted 2024

New Kiwi grip 2024

Engine Perkins M90, 85 HP Diesel

Tankage

            Fuel- 140 Gallons in 2 stainless tanks

            Water- 230 gallons in 2 stainless tanks

            Holding- 30 gallons in Fibreglass tank

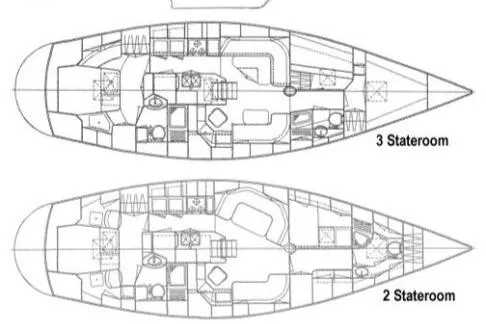

VESSEL WALKTHROUGH: (3 Cabin / 2 Head)

NOTES: All bedding has new covers - 2013-2015

  Most cabin lights replaced with LED bulbs – new 2014-2015

  There are new mattresses in the aft cabin – new 2013

Starting forward is a queen sized V berth. To starboard is a vanity with mirrored cupboard behind and drawers below. Aft is a hanging locker and for extra storage there are 2 large drawers under the bed.

Aft of the forward cabin and to port is the midships cabin which has single pullman berths (over/under bunks) with lee cloths.  The hanging locker is forward; a mirrored cupboard with small vanity and drawers below is aft.

Opposite the midships cabin is the forward head which has a Corian countertop outboard with the sink basin aft.  The toilet is most forward, facing aft and the shower aft. Fresh water is available by foot pump in addition to the pressurized water system which has all new hoses, accumulator, pump and three stage water filtration system in 2020.

Aft in the main salon to port is the U shaped settee surrounding the folding dining table. Redesigned layout and new cushions and upholstery in 2018.  The table itself folds shut and reveals a drinks holder on the aft pedestal.  There are shelved units outboard above the settee for ample storage.  Opposite the dining area forward to starboard is the forward facing navigation station.  Communication instruments are mounted forward along a bulkhead and the breaker panel is mounted outboard above the separate seat.

Aft of the main salon to port is a separate workshop with bench vice.

The linear galley follows aft to starboard with double sinks most forward with countertop above followed by the stove and fridge/freezer most aft.  Several cupboards are above the galley area outboard.  Opposite inboard of the galley are additional cupboard, microwave and a shelved area for ample amount of storage.

Further aft to port is the aft head which has porcelain tiled walls and a separate tub (sit-down) with shower most forward followed by the hand basin inboard and an inboard facing toilet most aft.

The aft master cabin has centerline queen berth, 2 hanging lockers (port and starboard) and a vanity with mirror and swing stool below, 4 drawers under bed, 4 side lockers.  2 seats on either side of bed (port and starboard).

GALLEY & WATER:

• 12 Volt Frigoboat keel-cooled, top and front opening fridge with (1) compartment and (1) plate, 5 cu ft - new 2014. Recharged 2021
• 12 Volt Frigoboat keel-cooled, top opening freezer with (1) compartment and (1) plate, 5 cu ft - new 2014 recharged 2021
• Force 10 propane, 3 burner stove with oven and grill; LPG hose to stove – new 2013
• West Marine water heater – new 2014
• Pressurized fresh water- new 2020
• Most water lines replaced 2024
• Manual fresh water in galley & forward head
• Fresh and salt water foot pumps - new 2014
• Spare water and sump pumps

• (forward) Jabsco head 2024
• (aft) Raritan head could be rebuilt or replaced with Electric
• (2) Interior showers; (1) with separate tub and shower stall; All head hoses - new 2014 and shower in forward head - new 2013
• Deck shower
• Cutlery, dinnerware, pots, pans and utensils
• Double stainless steel sinks; Faucet in galley - new 2014
• Porcelain tile countertops
• Haier microwave oven – new 2013
• Caframo Sirroco fans in aft cabin - (2) new 2014, main cabin – (2) new 2014, and guest cabin and v-berth - new 2014 none of these worked and have not been replaced yet

ELECTRONICS & NAVIGATION EQUIPMENT:

• Raymarine 7001 autopilot; linear drive – new 2015
• New Raymarine EV 400 in box can
• be included, for redundancy (negotiated)
• Garmin 4208 chart plotter – new 2014
• Garmin GMR 18 HD radar – new 2014; with reflector on mast
• Airmax tridata depth sounder 2024
• Garmin repeater GMI 10 - new 2014
• Garmin GWS 10 WIND direction and speed indicator – new 2014
• Garmin Pico wi-fi – new 2015 for use with Garmin Bluechart software on iPad
• Garmin g2 Bluecharts of US and Caribbean on plotter

• ICOM M802 SSB radio – new 2014
• Dragon Pactor 4 modem – new 2014
• ICOM M502 VHF radio with remote mic
• Ritchie compass
• West Marine stereo (main salon) and Sony stereo (aft cabin) – new 2014
• Bose speakers (in cockpit)
• ACR EPIRB
• Garmin AIS transceiver – new 2014
• TV antennae
• Wirie wifi and data booster – new 2018

ELECTRICAL SYSTEMS:

• 12 Volt DC, 110 Volt AC
• (4)  8D house batteries, 1000 Ah total – new 2018 2 replaced in 2024
• Exide 4D engine start battery – new 2022 Replaced in 2024
• Link 10 voltage/amp meter
• Victron Smart shunt new 2024
• Victron Cerbo gx 2024
• Victron Mulitplus 2, 3000w Available, price negotiable (with GX touch 50 display)
• Much old wiring was removed and some existing serviced or replaced. Ongoing

• (3) 395 Watts total solar panels; with Victron 60 amp MPPT control panel new 2018
• eMarine Air Breeze wind generator – new 2015
• Xantrex Prosine inverter/charger – working but part required
• (2) 30 Amp shore power cords

SAILS AND RIGGING:

NOTE: Chain plates removed and inspected in 2014; starboard chain plate - new 2014

• Stainless steel wire standing rigging – ALL new 2014
• Isomat aluminum mast.  Stepped on keel.
• Elk-hide spreader boots - new 2015
• Most running rigging - new 2018
• Genoa and staysail sheets - new 2018
• Harken roller furler for genoa – new 2014
• Schafer roller furler for staysail
• Harken battcars
• Doyle stackpack - new 2015
• Precision Sails main sail – new 2018
• Serviced 2024
• Precision Sails genoa- new 2018
• Serviced 2024
• Yankee Jib spare in good condition- serviced 2015, 2024
• Asymmetrical spinnaker with sock (very good condition)
• Hood staysail (good condition) - serviced 2018, serviced 2024

• Pad-eyes and jack-lines in cockpit
• Lewmar mainsheet traveler; with Garhauer blocks - new 2015
• Genoa cars – new 2015
• Spinnaker pole
• Manual boom vang
• (2) Lewmar #66 self-tailing winches (cockpit)
• (2) Lewmar #40 self-tailing winches (cockpit)
• (2) Lewmar #52 self-tailing winches (cockpit)
• (2) Lewmar #43 self-tailing winches (cockpit)
• Lewmar #43 self-tailing winches (mast)
• All winches serviced 2024
• Winch covers - new 2014
•

DECK & HULL:

• Primary anchor with 150’ of chain and 150’ of rode – chain & rode new 2014 needs attention
• Fortress spare anchor
• Folding dinghy anchor with 25’ of rode
• Maxwell 2500 anchor windlass; with additional spare unused motor- new 2018. New foot switches 2024
• 10’2” Avon RIB dinghy – 2003- tired.
• 15 HP Yamaha 2 stroke outboard engine – 2007 new carb, kill switch and complete service 2024
• Magma propane barbeque
• Cockpit table - new 2014
• Solar arch and Dinghy davits - new 2018
• (2) Bow anchor rollers
• Custom fibreglass  bimini top with incorporated water collection – new 2018
• Canvas Dodger – new 2014
• MOB equipment: lighted horse-shoe with sea-anchor, pole, throw rope, floating cushions
• Life jackets

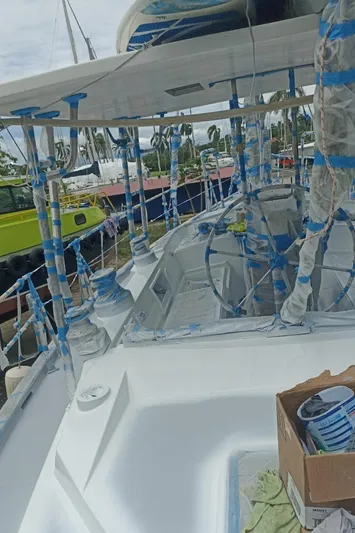

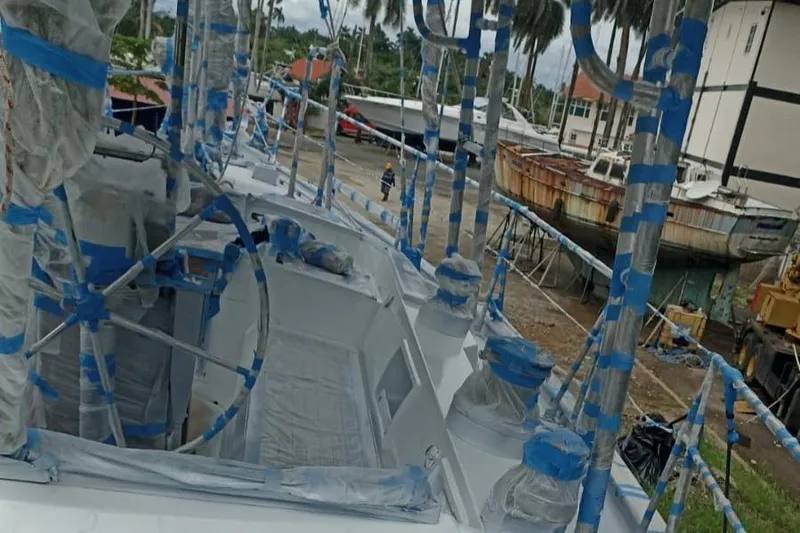

• Deck teak removed. Fittings removed. Deck surveyed for soft spots and renewed. Deck epoxied. Sanded. Painted. Kiwi grip applied - 2024

• Flareshin
• Side stanchions & solid stainless lifelines and netting- new 2018
• Bow pulpit & rails
• Teak handrails
• Vented propane locker
• (2) 20 lb Fiberglass propane tanks – new 2014
• (6) Fenders and dock lines
• Swim platform
• Swim ladder
• Deck wash down system - new 2015
• (4) Dorade vents
• Deck light- new 2020
• Navigation lights LED, including masthead tricolor - new 2018
• Engine crane for outboard (never existed)
• Lexan in hatches and hatch covers - new 2014
• (2) Deck prisms – new 2014. Rebedded in 2024
• Secondary Lexan washboard to companion way - new 2014

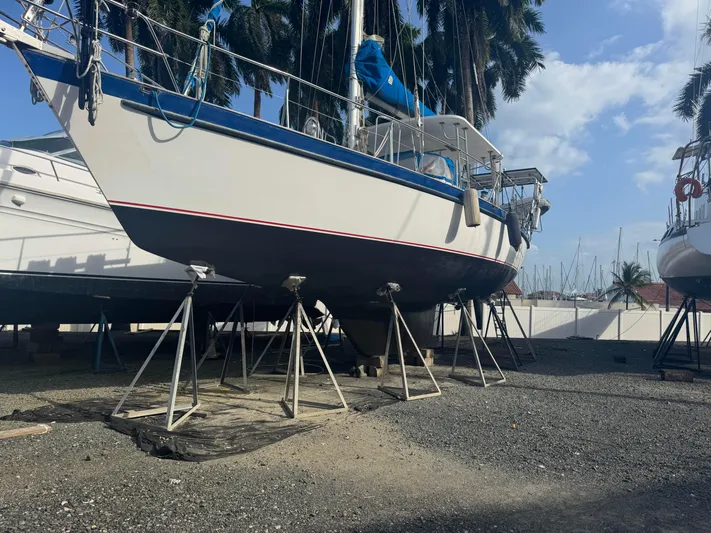

• Hull stripped to fiberglass, faired, 3 coats primer and 3 coats anti fouling- new 2018
• Hull cleaned, sanded repainted below waterline. New antifoul 2024
• All through hull tested and replaced.
• All new zinc

MECHANICAL EQUIPMENT:

• Automatic bilge pump
• (2) Manual bilge pumps; (1) Whale – new 2014
• Propane shut off valve- new 2020
• Smoke & CO2 detectors
• (2) Fire extinguishers in engine room with remote control, (4) fire extinguishers (1 in each cabin)
• Manuals for almost all equipment and engine
• Most Fresh water hoses replaced 2024. replacement filters
• Most fresh water pumps, sump pumps, bilge pumps serviced or replaced. Multiple spares

• Skeg hung rudder
• Edson manual wheel steering system
• (2) Bilge alarms
• Bilge blower
• 20” Bronze Flexofold propeller - new 2014, serviced 2018 serviced and painted with speed prop 2024
• Emergency tiller
• Manual oil changer on engine
• Maradyne heater – off engine – new 2014

ENGINE DETAIL:

NOTE: Major External Overhaul/ New engine heat exchanger 2014

• Engine hours: 1000 hrs (Since Overhaul: Oct 2014)
• Racor duel fuel filter system - new 2014
• Engine seacock – new 2014- replaced 2024
• Tachometer - new 2015
• Raw water sea strainer
• Fresh water cooling
• All fuel, oil, water, filters and strainers cleaned, replaced and serviced 2024

• Engine alarms
• Fuel filters
• Fuel shut off
• Engine room fire extinguishing
• Diesel fill hoses – new 2014
• Engine mounts- new 2020
• Starting harness- new 2020
• All Shaft seals replaced- 2021

REMARKS: The Tayana 47, a well known and reputable offshore cruising vessel. Large aft stateroom, linear galley and classic salon with chart table layout. Multpile spares. Tools. included
