Sweet Annie Yacht for Sale | 40 Hinckley Yachts Naples, FL

HULL AND DECK:

Construction:

Hinckley TriGuard Epoxy Construction – Aramid fiber/E-glass outerskin with Corecell M Foam for core. Carbon fiber for inner skin infused and post-cured with epoxy resin using Seaman Composite Resin Infusion Molding Process (SCRIMP).

Deck Features:

Teak decking with SEMCO finish
Awlgrip Petrol Blue topsides accented by Double Cream boot stripe and contrasting Light Cream gelcoat
Micron CSC black bottom paint
Optional teak decking with white seams throughout including, weather decks and cabin top, aft cockpit, and pilothouse
Optional teak transom
Extended Swim Platform – Heavy-duty fiberglass swim platform has the optional teak decking with stainless steel brackets and half round, and a stainless-steel telescoping 3-step folding swim ladder
Three white trailblazer waterproof lights mounted underwater on transom

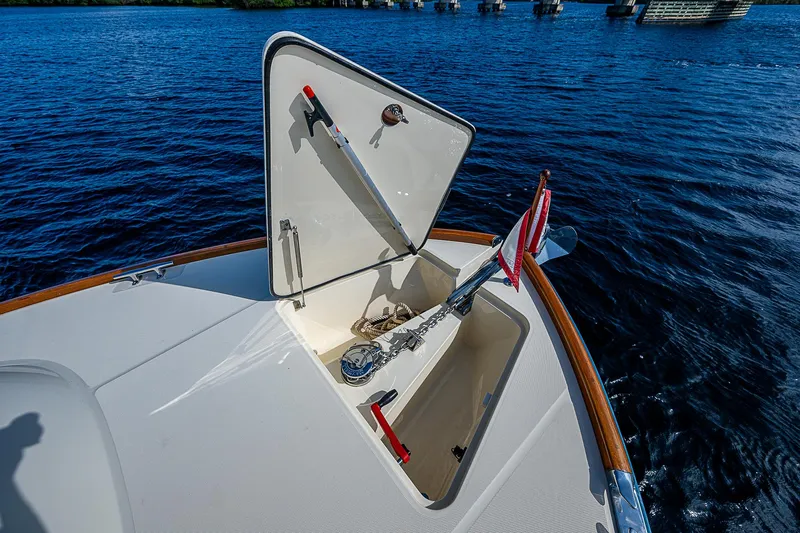

Large forward anchor locker with additional fender storage, remote windlass and collapsible boat hook
Two stainless steel half-round Hinckley bow chocks on fiberglass molded rub rail
Four 12” stainless steel (2) bow cleats and (2) stern
Mid-deck cleats are stainless steel pop up models
Tapered teak high gloss toe rail with rounded Hinckley profile
Varnished teak exterior handrails
Port and starboard hull ports
Fenders are easily located in the forward anchor locker, aft deck hatch or self-deploying mid-ship via the easily assessable deck compartments located mid ship. Aft fender are easily fastened by Wichard clips and stainless steel D rings.
An optional stainless steel Bo Peep boarding handle has two receiver sockets located along the aft decks port and starboard it is stored along the inside port gunnel
Remote controlled spotlight on mast, painted to match deck

PILOTHOUSE and AFT COCKPIT FEATURES:

Teak decking with white seams and white courtesy lighting along footwell
Varnished teak dash forward of port and starboard helm seats and lower helm wheel pod
Two overhead large self-dogging power stainless steel hatches providing excellent ventilation include Oceanair covers and screens
Two optional Marine 12000 BTU reverse cycle air conditioning units are dedicated to the Pilothouse and have independent thermostatic controls located outboard each helm seat port and starboard
Forward are two large fixed frameless tempered windscreens with intermittent washer and wiper controls located at helm providing excellent visibility
Five dimmable LED lighting in located overhead in the insulated white headliner with a teak grab handle running centerline

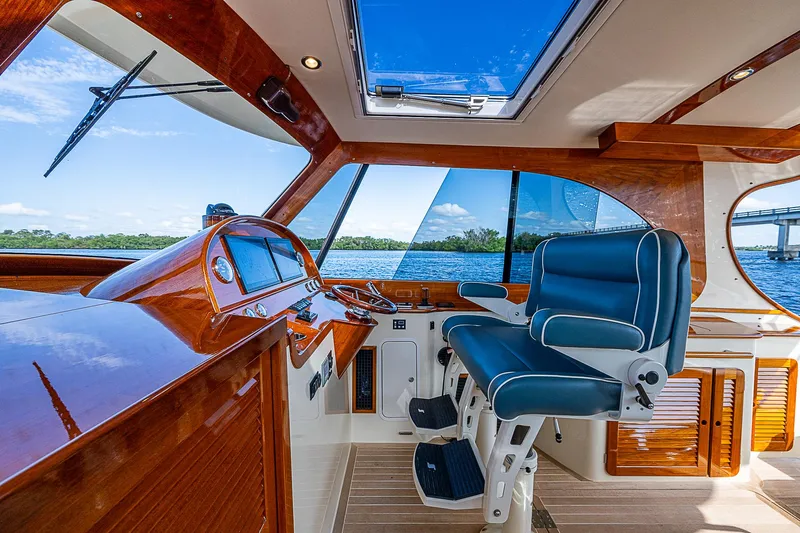

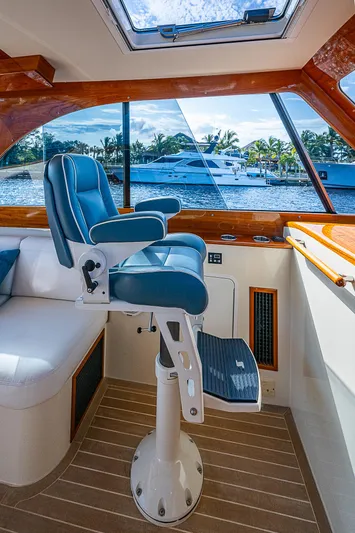

Double Stidd helm seat in Ultraleather Promessa Stone Blue with Promessa Ermine Piping
A single matching power Stidd seat is located to port for the co-pilot
Port and starboard large power sliding window provide additional ventilation and light also have snap in Ivory Stamoid covers for interior privacy or sun protection when not underway
Two Hella fans located inside the forward windscreen

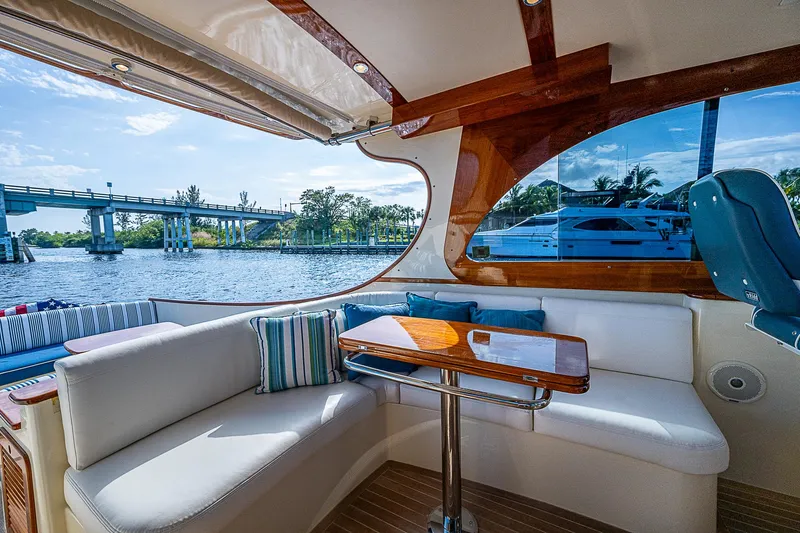

L-settee cushions in Ultraleather Promessa Ermine. The teak table is thoughtfully designed with an integrated stainless steel grab handle and folds outward to double its size when needed. The pedestal is polished stainless steel
An amenity cabinet to starboard with stainless sink beverage center refrigeration below and has a teak counter top with louvered doors for storage for bottle and glassware
Additional storage in located in the pilothouse deck hatch below

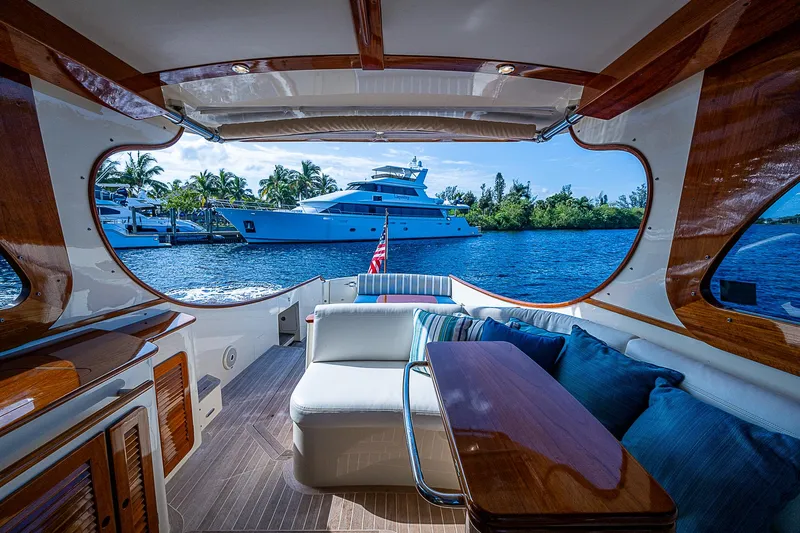

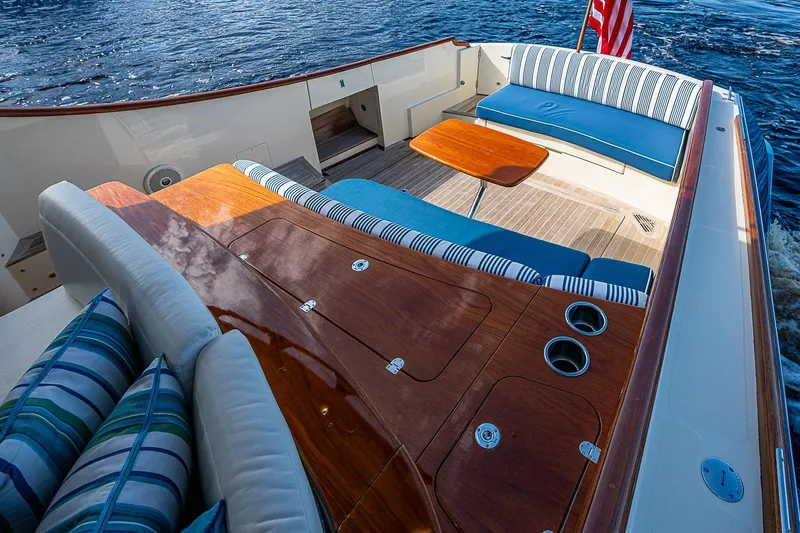

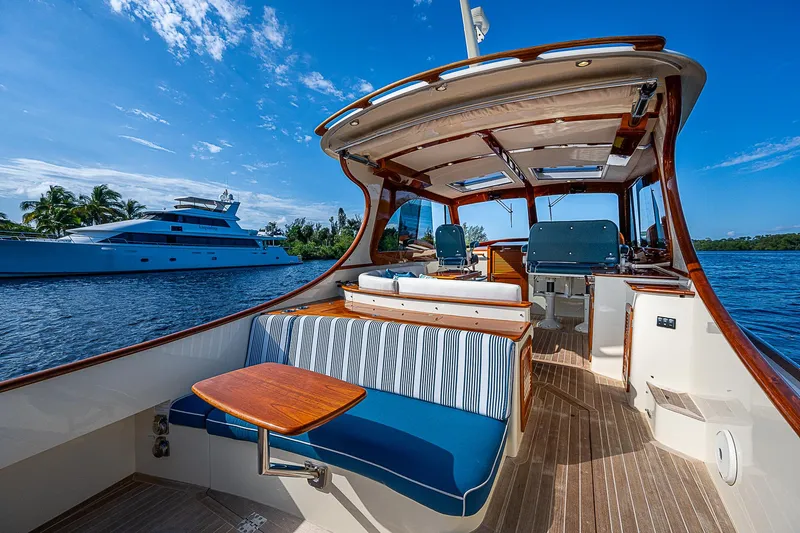

Deep aft cockpit with spacious seating fore and aft. Backrests in Perennials I Love Stripes Lagoon with Sailcloth Dragonfly piping. Seats in Perennials Sailcloth Dragonfly with Sunbrella Natural piping
Optional retractable Sureshade in Sunbrella Parchment
Removable high gloss cocktail table in the aft cockpit and optional filler cushion to complete the aft bench.
Ice chest with an adjacent champagne bucket with lid on shelf behind rear facing bench
Additional storage is located between the forward facing settee in the pilothouse and aft facing bench in the aft cockpit. A trash receptacle is located inside of the louvered teak endcap door
Engine box is hinged at the rear facing aft settee an electric lift to provide for easy access to the engines compartment
Large centerline deck hatch with fender and line storage; also provides access to the generator
Fresh water wash down shower with hot and cold mixer located just inside the transom door
Two stainless steel combination rod holder / cup holders are located on the aft side decks
A three piece Ivory Stamoid /Eisenglass encloses the pilothouse when needed
Aft cockpit cover in Stamoid Ivory which attaches to pilothouse top and fastens allow the upper edge of transom and coaming. It is well ventilated and has zipper access at the transom door

Helm Station Features:

Hinckley JetStick III control system located just forward of the starboard armrest. Jetstick III’s Electronic steering dynamically adjusts tension and sensitivity to optimize helm feel at all speeds. Military specifications sensors paired with GPS provide superior vessel handling in tight quarters while improving Hover Lock and Heading Hold features

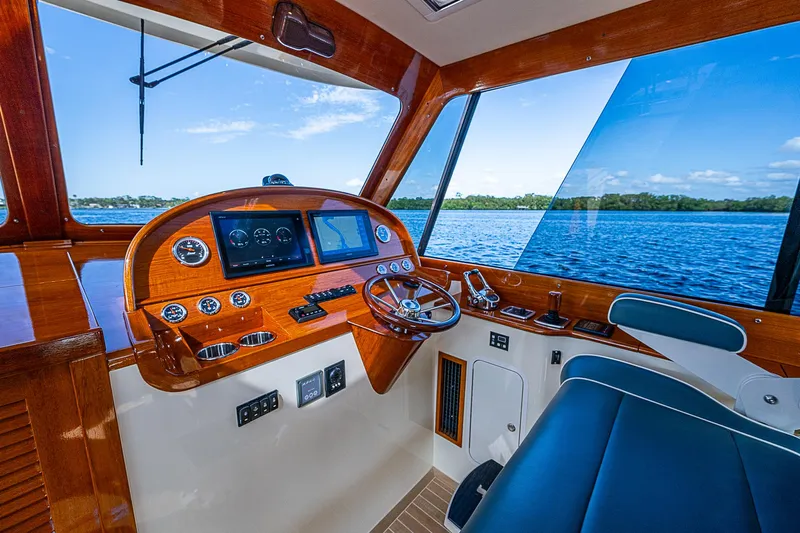

The helm pod is located front and center with a beautifully rounded and finished in high gloss teak. Contains twin plotters, engine multifunction gauges as well as the analog fuel/ temperature / electrical outputs
Danforth Constellation high-speed Compass
The dash contains additional switching for power hatches, windows and lighting controls
A USB charging station and two cup holders are purposefully placed within reach of helm
Display for the ACR remote spot light and Intermittent/self-parking wiper controls are also close at hand
A twin-engine binnacle is located along the starboard shelf
Autopilot is located just aft of the Jetstick III control system
The 14” Alpa leader stainless steel wheel is finished with gloss varnished teak rim

Helm Electronics:

Hinckley OnWatch remotely monitors bilge, security, shore power, batteries, location and critical engine data. Hinckley technicians can perform diagnostics engine and control system remotely. Companion mobile app with notifications and security system control
Two Garmin GPS Map7612 Multifunction touch screen displays with depth reading
Dual frequency 1kw traditional sonar
Garmin 4kw 24” GMR X HD Raydome
Garmin autopilot
Standard Horizon Explorer ram GX1600B VHF with Ram Mic

Entertainment Electronics:

Fusion MS-UD 755 AM/FM stereo with USB connection and Bluetooth connectivity. Remote mounted at helm with Garmin integrations

(2) Fusion 6 inch speakers for interior
(2) Fusion 7 inch speakers in the pilothouse
(2) Fusion 7 inch speakers in the cockpit

Sirius XM satellite weather for Garmin
Sirius XM satellite radio for Fusion Stereo
28” Samsung Smart TV mounted on bulkhead aft of bunk to starboard. Picture source is standard stereo with DVD player

ACCOMODATIONS BELOW:

Access to the cabin is through the locking high gloss teak louvered pilothouse door
The interior in finished in satin varnished cherry
The light cream sound absorbent headliner overhead has dimmable low voltage lighting overhead
The entry steps with courtesy light are raw teak and lead to a high gloss teak and tulipwood cabin sole

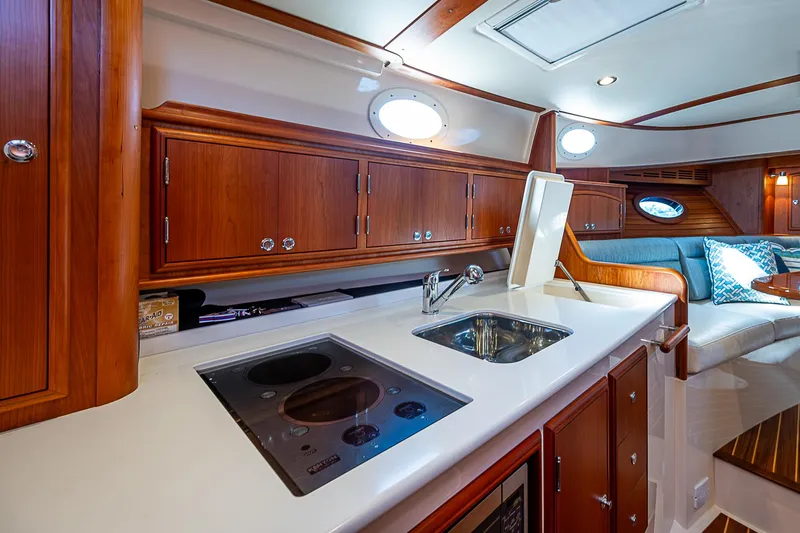

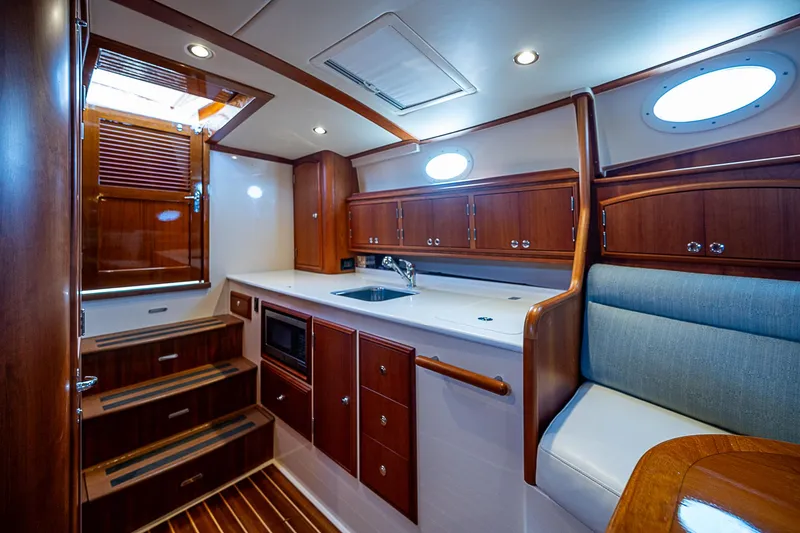

The galley located to Port has a cabinet housing the C-Zone switching battery breakers. 12V lighting is provided underneath locker and illuminating the counter
Modern White Corian countertop has a under mounted stainless steel sink with hot/cold Grohe facet and Kenon two burner electric cooktop and Top load 12V refrigerator with thermostatically controlled cold plate
A contemporary wooden handrail is provided below the counter forward of the sink
110 volt GFI outlet mounted at aft bulkhead
There are five LED bulkhead lights controlled individually at fixture
Matching Corian covers for the sink and stove when not in use

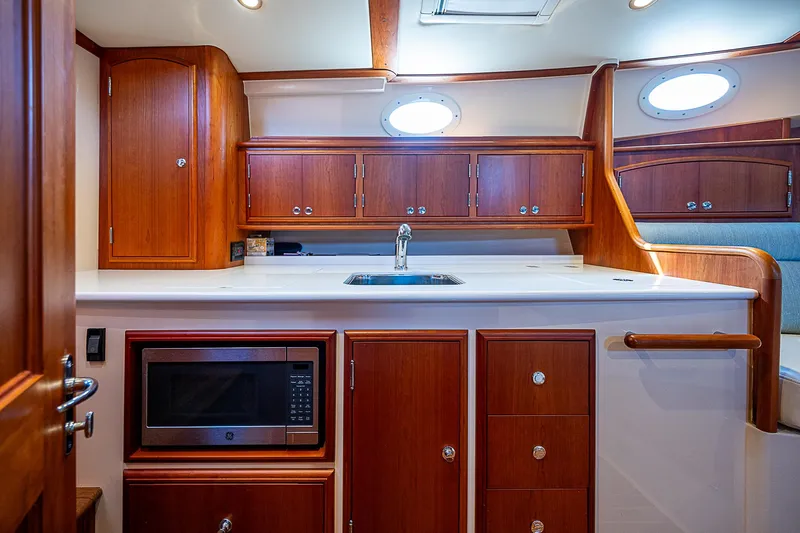

Microwave oven and slide out trash located in cabinet below
Five dovetailed cherry maple drawers with cherry satin cherry front
There is locker sheer located above the galley counter top as well as a deep shelf behind

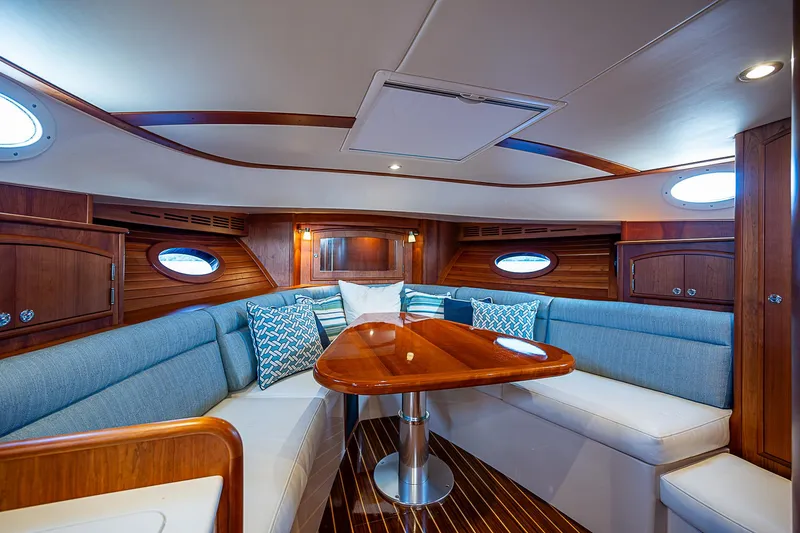

Forward in the V- berth: convertible settee with Duralee Marine backrests and Ultraleather Promessa Ermine seats which easily converts to a queen berth via the stainless steel electric pedestal
The outside walls of V-berth are finished tastefully with satin-varnished cherry battens with sheer lockers located above
A cedar lined hanging locker is located starboard forward of the Head
Two Hella electric fans located on the forward bulkhead
A dedicated Marine reverse cycle 12000 BTU air conditioning unit can be run off the invertor, shore power or generator

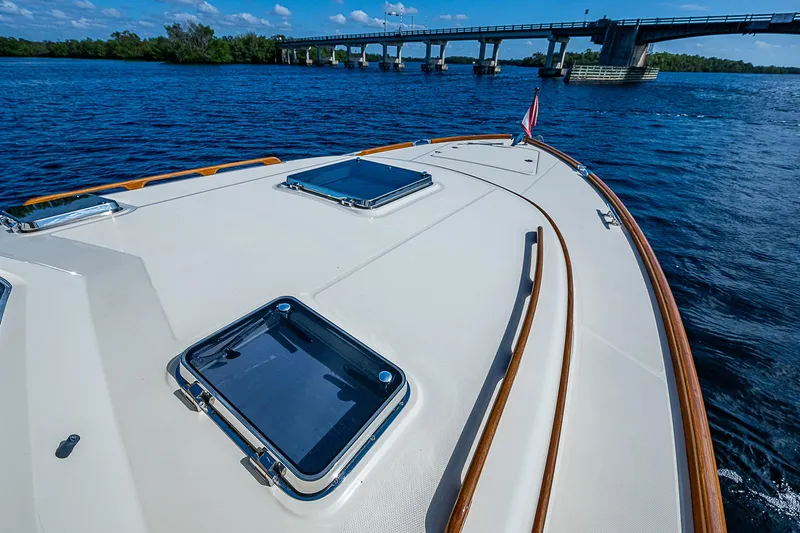

Three venting overhead stainless steel hatches with Oceanair skyscreens and three oval powder coated portals providing additional light from the cabin house

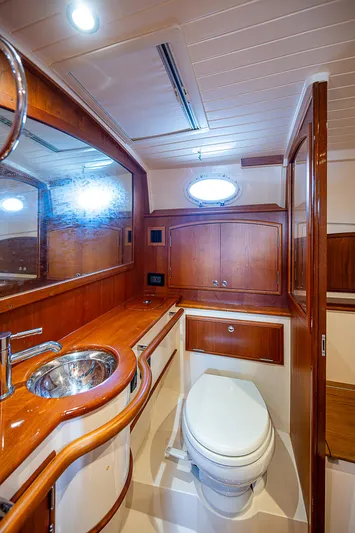

Head:

The head is located starboard and accessed through a lockable satin inset paneled door cherry door with eyebrow top. Hooks are provided on the back of the door for towels
The ceiling is finished in moisture compatible gelcoat white beadboard with dimmable low voltage lighting
A large high gloss cherry countertop is forward running port to starboard with cherry trimmed mirror above. The counter contains a under mounted polished stainless steel sink hot/cold water and a top load trash receptacle with cherry lid.
A Hella fan and 110V outlet are provided
Under the counter is louvered storage compartment and dedicated swing out door for toilet paper
An stainless steel hatch with Oceanair Skyscreen is located overhead, additionally there is screened port light mounted outboard on the cabin house both providing light an ventilation
A Sealand Vacu-flush marine head is plumbed to a holding tank with optional Y valve for overboard discharge
The shower is located aft and separated by a Plexiglass partition and swing door within the head
Drainage is through the recessed teak grate
A moisture resistant sheer locker is located above the shower seat
The shower seat itself has additional dry storage below
A stainless steel towel rack is mounted on the aft bulkhead of the shower stall

MECHANICAL:

Twin Hamilton 322 high efficiency jet drives powered by the twin Cummins QSB6.7, 480 hp diesels with Common Rail technology
Upgraded (2) ZF 220 transmissions, reverse gear which enables jet back flushing
Cummins digital engine information interfaced to Garmin multifunction display(s). Separate analog tachometer, oil pressure, fuel tank level, and engine coolant temperature for each engine. Buzzer for low oil pressure and high engine coolant temperature
(2)187 U.S. gallon polyethylene fuel tanks with flush mount vents and fuel air separators
(2) Racor fuel filter. Water separators with vacuum gauges and water sensing alarms
Equipped with the optional oil change kit for main engines and generator
(1) 12,000 BTU air conditioning with reverse cycle heat in cabin, powered by shore power, newly installed Kohler generator, or inverter
(2) 12,000 BTU reverse cycle air conditioning units for pilothouse
Fresh water wash down in anchor well

PLUMBING

Hot and cold pressure water
80-gallon polyethylene water tank with flush mount vent on hull side and remote gauge
10-gallon stainless steel hot water tank. Heated either via shore power or engine
12-volt DC VacuFlush marine head with a 35-gallon polyethylene integrated holding tank with flush mount vent on hull side and pump out fitting on deck
12-volt DC automatic shower sump pump
Three 1500 GPH, 12-volt pumps with safety float switches and high water alarm
Manual pump mounted in cockpit locker
Marelon ball valve seacocks with thru hulls below water line

SOUND REDUCTION

Engine room insulated with Mylar faced acoustic foam
Extensive gasketing for bridge deck and opening hatches to engine room and bilges
Custom fiberglass, baffled, insulated and drained
Custom water cooled exhaust silencers
Sound absorbent material overhead in Pilothouse
Sound absorbent material overhead in Cabin

SAFETY EQUIPMENT & ADDITIONAL EQUIPMENT

Polished stainless steel 22# anchor with 25’ of stainless steel chain and 150’ rode. The windlass can be operated from the helm station or a handheld remote.
Automatic fire extinguisher system for engine compartment with automatic shut-down
Emergency bilge pump
Three 2-1/2 lb. dry chemical fire extinguisher
USCG approved flare kit
12-volt Kahlenberg air horn with switch on dash
Six adult, two child type I PFDs and one Type IV throwable PFD
Four 25 foot and two 50 foot 5/8” docking lines
USCG approved running and masthead lights
(4) 8” x 20” inflatable fenders with Polartec covers and Wichard snap hooks for each fender line
170 piece Crescent tool kit
