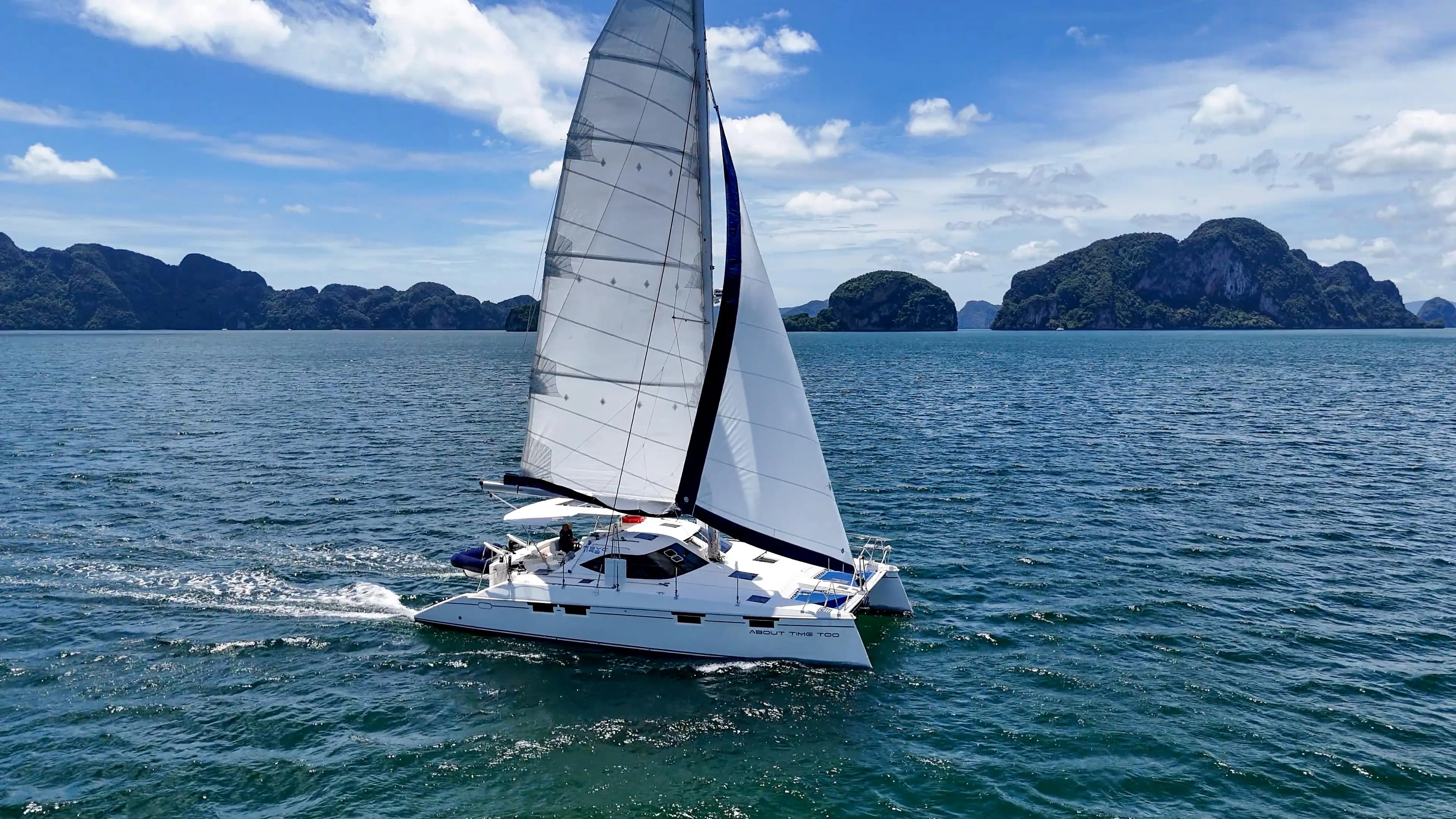

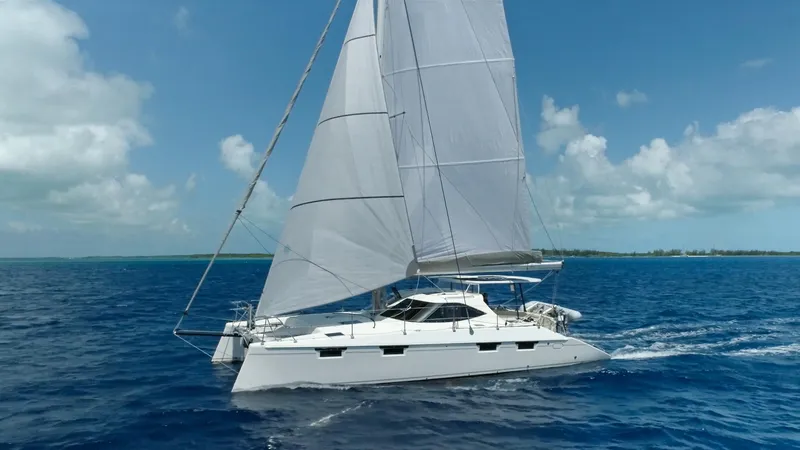

TAO 452 Boat for Sale

• Beam: 23' 3''
• Hull Material: Fiberglass
• Max Draft: 3' 8''
• Displacement: 23,148 lb
• Fuel Tank: 1 x 110|gallon
• Fresh Water: 1 x 84|gallon
• Cabins: 3
• Heads: 2

• Finish: Full female moulded hulls & decks, exterior gelcoat finish with moulded non-slip surface on deck areas.
• Hull Laminate: 100% Vinyl Ester (Modified epoxy) resin infusion laminate. 100% structural foam core composite.
• Deck Laminate: 100% vinyl ester resin and e-glass, vacuum bagged. 100% foam core. No structural wood or balsa core used. High density foam core and aluminum backing plates used for mounting deck hardware. Vacuum bagging or resin infusion is used extensively in the build.
• Bulkheads 100% vinyl ester resin E-Glass laminate / foam core vacuum bagged or resin infused

• Selden Mast: Clear anodised aluminium mast and boom. Single Spreader, 7/8 rig
• Halyards: Main halyard Main halyard 2:1 in 12 mm Dyneema rope: Heavy duty shackle; Jib halyard: 12 mm Dyneema rope; Screacher Halyard (12 mm 2:1 Dyneema); Topping lift: 10 mm dyneema rope, Heavy duty shackle; Spinnaker Halyard: 12 mm Spectra rope with snap-shackle spliced to end.
• Boom outhaul
• 2 x mainsail slab reefing fitted (3rd reef available)
• 3 Block mainsheet system (port & starboard mainsheets)
• 140% Genoa to adjustable lead tracks. Jib sheet leads aft to starboard cockpit aft winch (electric) winch station (both genoa sheets) for easy tacking. Furler by Selden.
• Self-tacking headsail (blade) deck hardware available. Curved headsail traveler track with end stops.
• Sails by Neil Pryde:
• Dacron Mainsail, fully battened. Luff adjustable batten end caps. Fiberglass sail battens (5). Roller bearing batten cars.
• Dacron Genoa
• Lazy bag cruising mainsail cover with integrated lazy jack system is optional (not supplied as standard equipment. Choice of colors from Neil Pryde)
• LED deck spreader lights
• LED mast up-lights from spreader
• LED navigation at deck
• LED tri-color navigation light at mast-head
• LED anchor light
• LED steaming light
• LED foredeck light
• Self-tailing winch (#45) at mast for spinnaker, screecher, jib halyards and topping lift

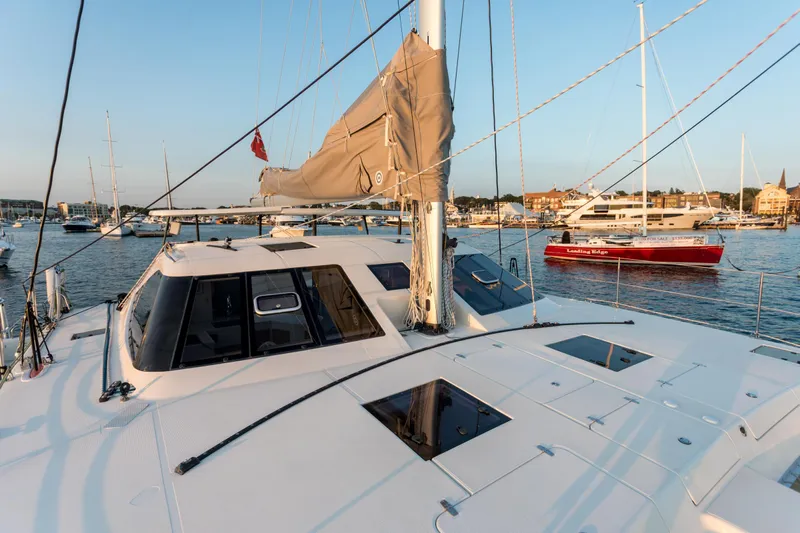

• Recessed Deck Hatches (10 in total)
• 2 x Foredeck hatches, 2 x Forward cabin hatches, 3 x Saloon cabin hatches (plus opening windows), 2 x Aft bathroom hatches, 2 x Aft Cabin hatches
• Fiberglass Deck Hatches: Forward anchor & storage hatches x 4
• Cockpit storage hatches (x3)
• 8 x docking cleats
• 1 x Heavy duty mooring cleat on catwalk
• 2 x Heavy duty bow chocks (port, starboard)

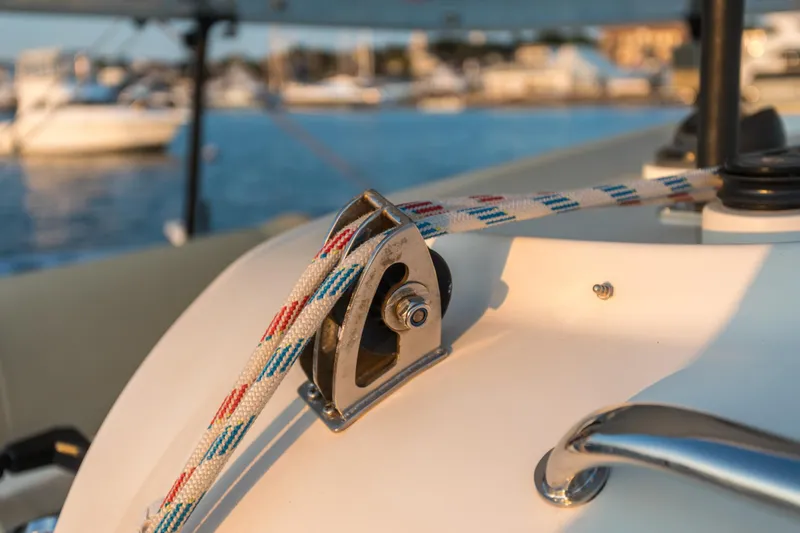

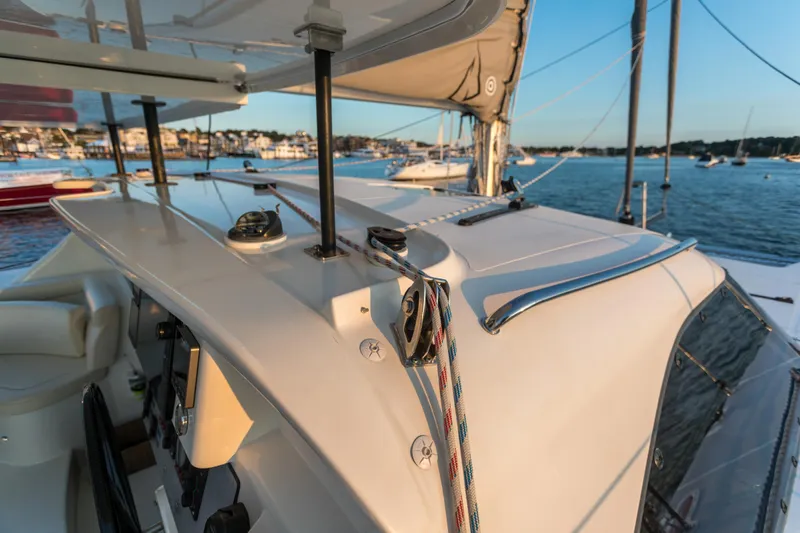

• Mast base turning blocks. Main halyard & sail controls to cockpit.
• Spinnaker sheet bow blocks
• Rope clutches – Lewmar or Spinlock brand
• Sheet winches: 3 x 50EVO (Lewmar)– 2 speed self-tailing (electric winch for main halyard & jib optional)
• Stanchions/Rails: High quality stanchions, bow rails and stern rails with 2 life-lines.
• 2 x transom access gates with pelican hook releases.
• Aft swim ladder (1) folding stainless ladder
• Aft swim shower with hot/cold water (1)

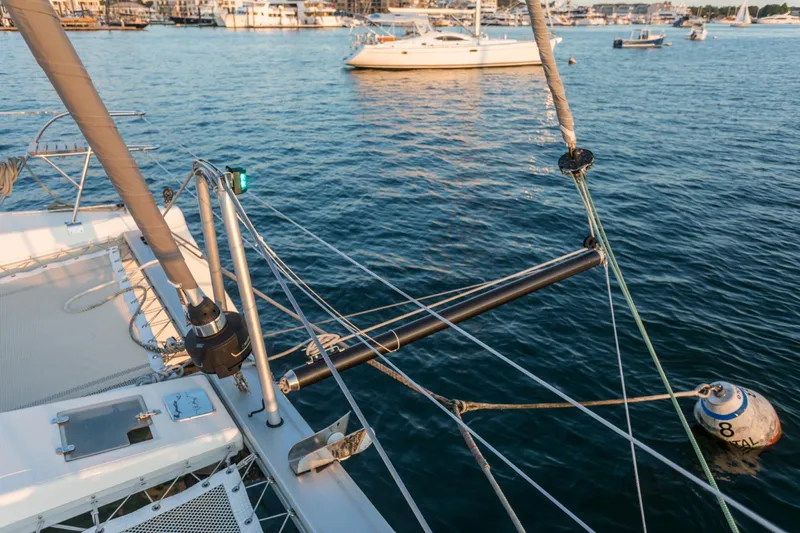

• Alloy Forward beam (Selden)
• 1 x Mooring chock above forebeam
• 1 x Anchor roller under forebeam
• Catwalk in fiberglass composite
• Plastic coated trampolines with dyneema lines

• Moulded cockpit sole with large opening doors to saloon

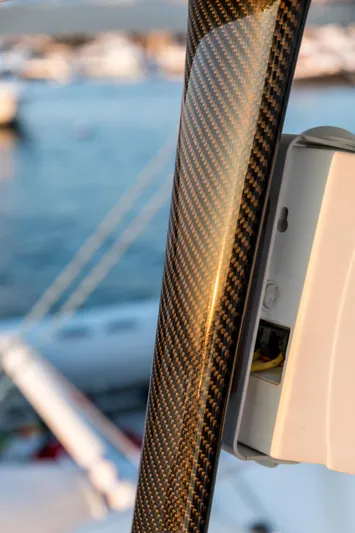

• Carbon fiber reinforced, foam core bimini top with helm opening
• Bimini overhead lights
• Non skid deck with water tight engine hatches with SS gas struts

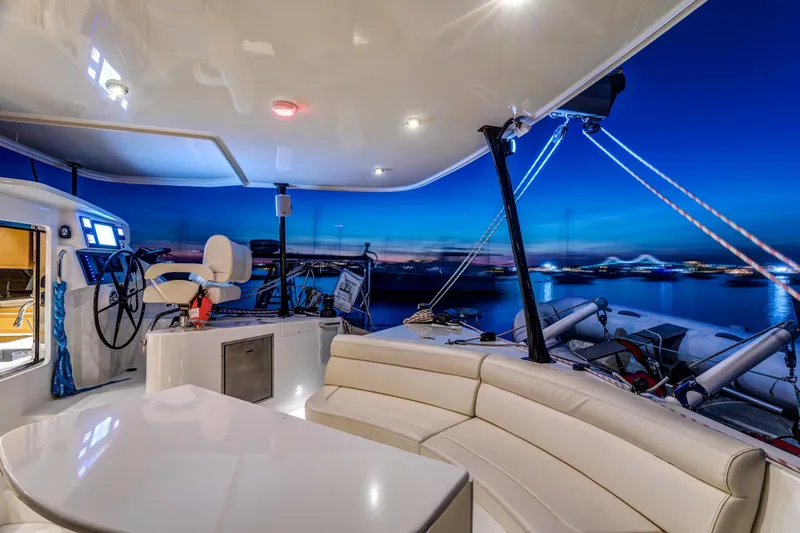

• UV quality vinyl seating for 8 people.
• Built in storage box under cockpit seat
• Aft cockpit sink with hot & cold water
• Cockpit refrigerator (optional)
• Walk up transom entry port & starboard.
• Davits with pulley system for dinghy (optional)
• BBQ mounting compartment (BBQ is optional)

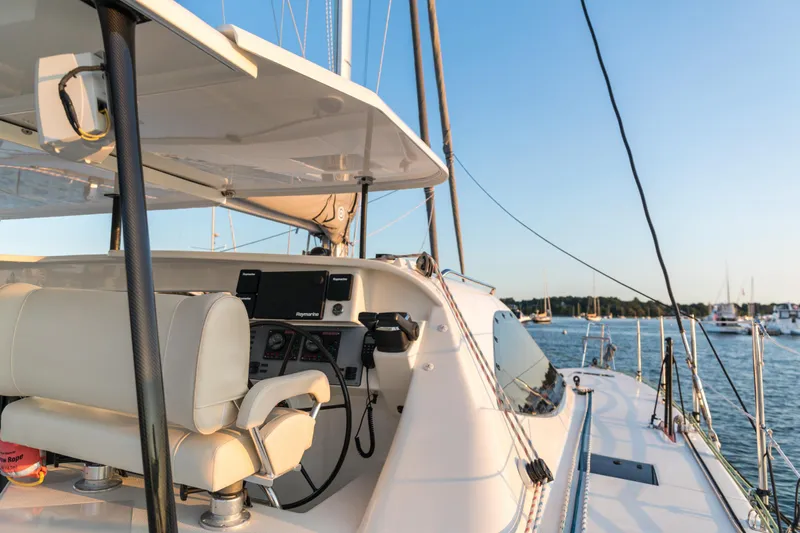

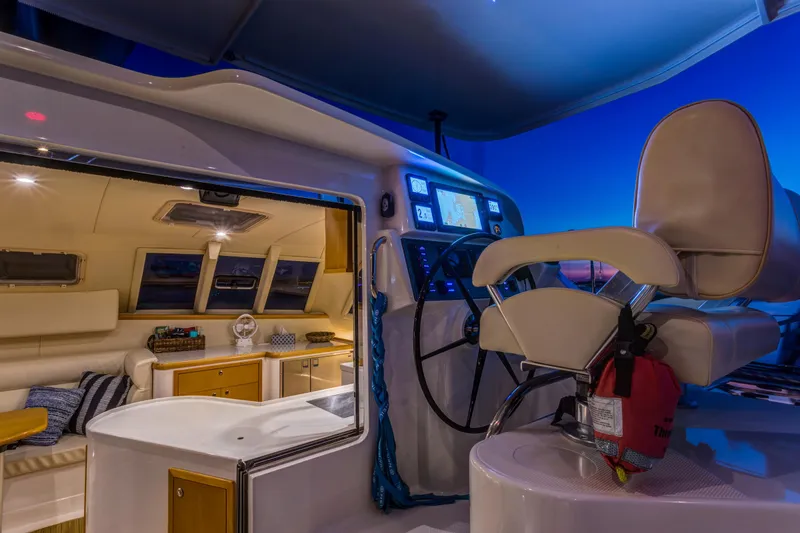

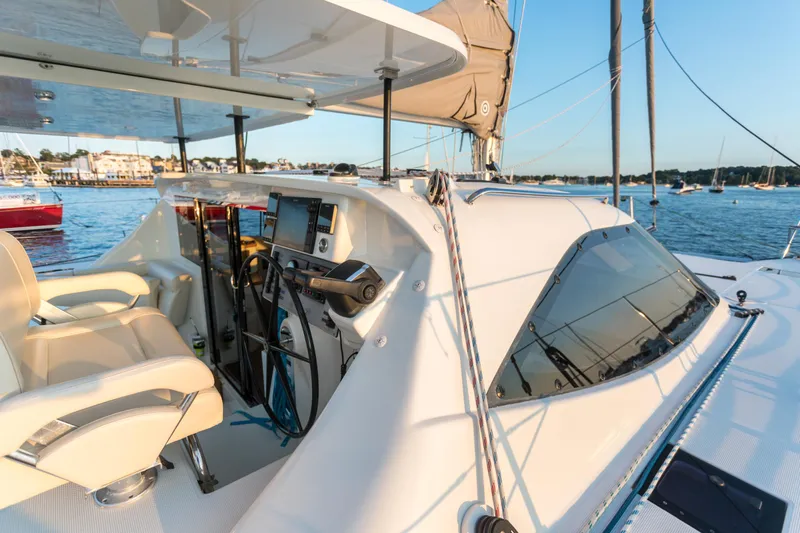

• Raised helm station with twin helm seat
• Hydraulic steering
• Stainless Steel Steering Wheel (Carbon fiber optional)
• Compass with dedicated back-light switch
• Engine gauges
• Fuel gauge
• Engine controls (throttles/gear shift)
• Digital engine NMEA 2000 interface (optional)
• Fuel gauge NMEA 2000 interface (optional)

• Cabinetry in matte finish maple wood honeycomb composite construction
• Hull sides and cabin top lined with soft vinyl
• Floors: Common area soles simulated timber. Cabin soles simulated timber.

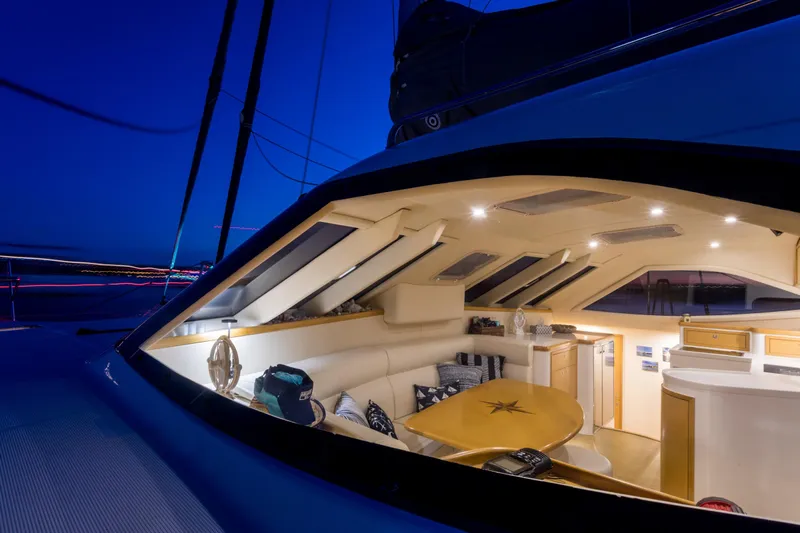

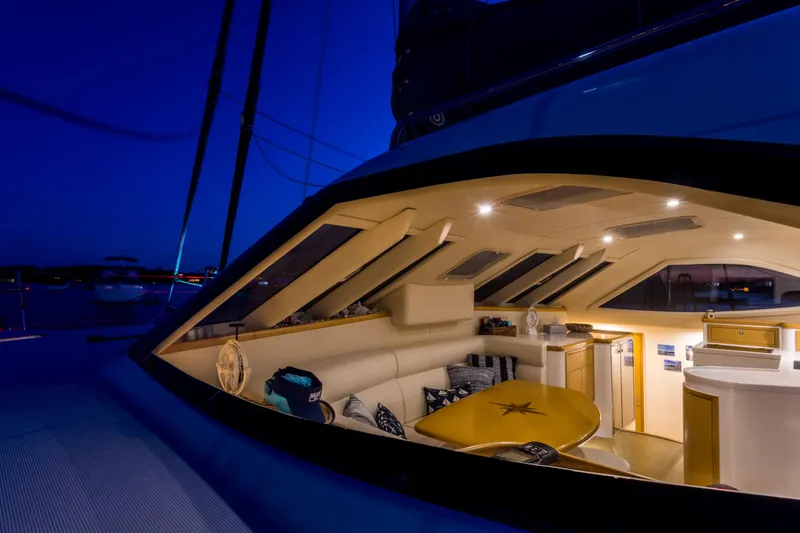

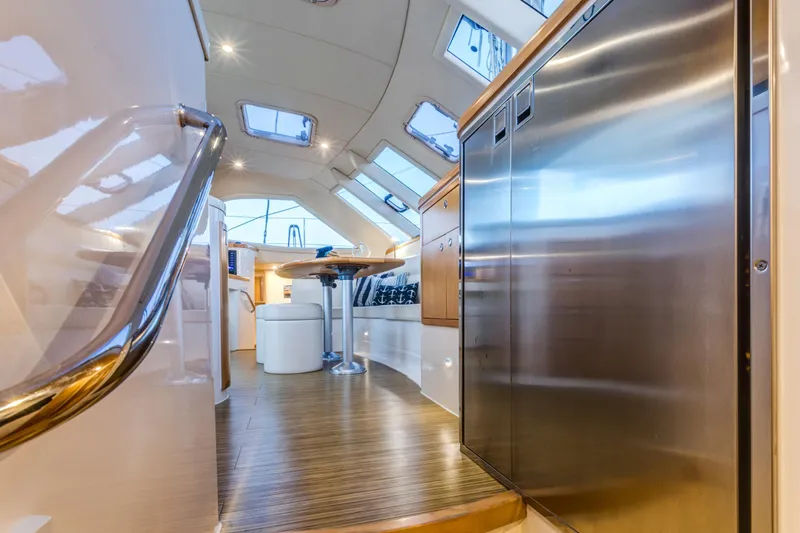

The salon area on the Tao 452 offers comfortable accommodations with a spacious galley, ergonomic couch, and ample headroom throughout.

• LED lighting with dimmer
• Matte finish timber dining table
• Upholstered surround settee
• Matte finish timber chart table
• Windows in UV grey toughened glass
• Overhead hatches (3), window hatches (2)
• Saloon / cockpit doors: polished stainless steel framed glass sliding doors

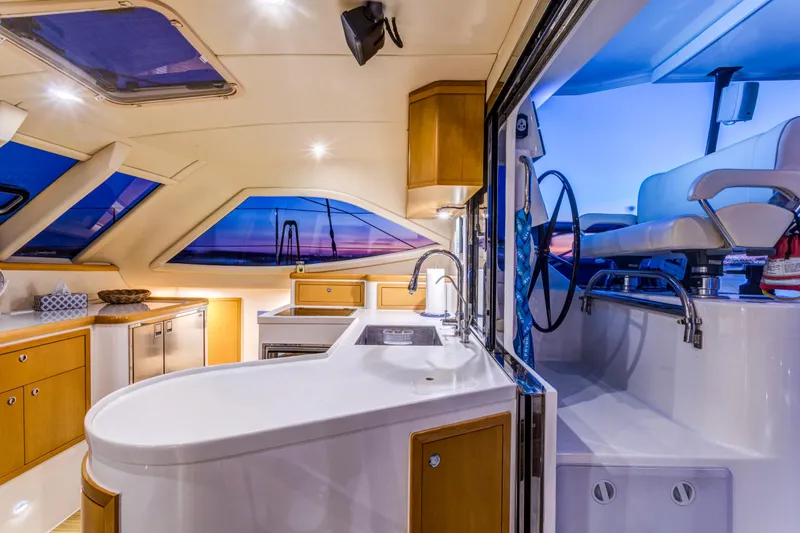

• Spacious galley with composite counter surfaces, timber finished light-weight honeycomb composite doors and drawers
• Three (3) burner LPG stove. Stainless steel pot holders.
• LPG Oven
• Sink (rectangular deep single sink)
• Pressure hot & cold fresh water system. Single lever mixing tap.
• Refrigerator / Freezer: Double door Fridge-Freezer.
• Under bench storage with polished timber door fronts & cutlery drawers.
• LPG solenoid control in galley

• Timber doors on all private cabins (lightweight honeycomb composite construction), stainless steel hardware

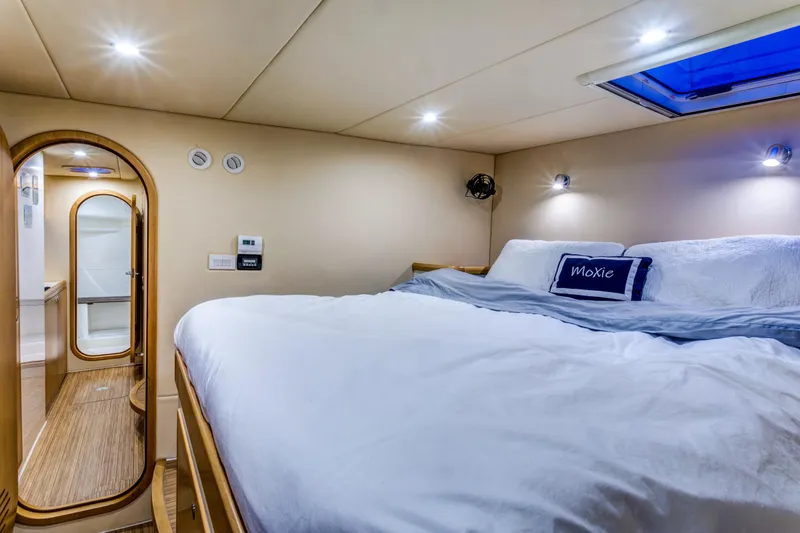

• Port & Starboard fwd cabins : queen sized island bed in each
• Aft Port cabin : Queen sized bed or Single bed if office option
• Mattresses 150mm (6” ) quilted foam upholstered.
• Cabins lined with vinyl or gelcoat surfaces
• Recessed 24 volt lighting (LED)
• Courtesy lighting (LED)
• Reading lights (LED)
• Storage compartments and drawers (lightweight honeycomb composite, timber veneer)

• Polished lockable doors
• 2 heads full size electric (quiet flush optional)
• Holding tanks discharge by deck pump out (to shore vacuum pump) or by ships’ pump directly overboard (note: lockable Y-valve selector)
• Pipes, skin fittings and sea-cocks are easily accessible built to ABYC recommendations
• Vanity basin with pressure hot & cold water
• Wall mounted shower head & mixer tap
• Shower with direct overboard discharge by electric diaphragm pump – no bilge pump to clog or clean
• Cupboards / shelves in each head
• Toilet roll holder, towel rack & mirror mounted

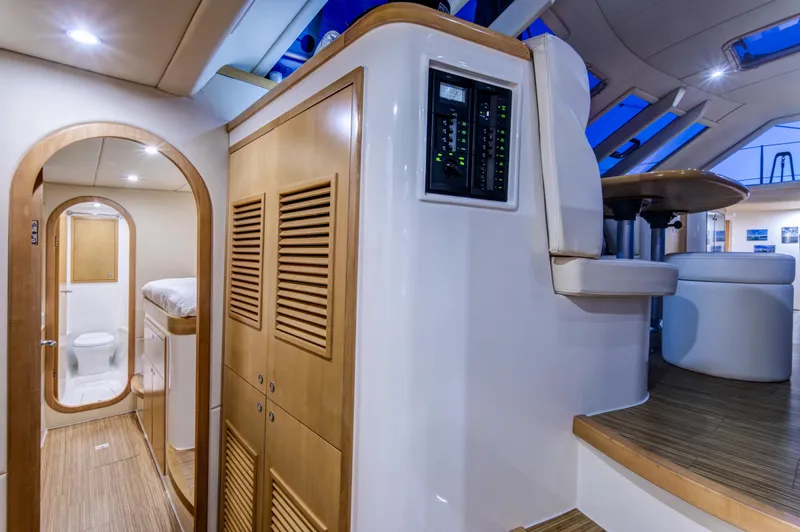

• DC electrical switch panel (Blueseas) with circuit breakers, LED indicator lights and voltage & battery monitoring display.
• Marine grade tinned electrical wiring with extensive use of heat sealed connectors
• Engine start batteries: two independent batteries (AGM glass mat), emergency parallel
• House batteries (24v): Lithium (Victron LIPO 10kw optional and recommended), standard AGM 4800 watt deep cycle
• Remote controlled heavy duty battery isolation switches
• LED lighting throughout including dimmable down lights in cockpit and a red/white dome light in cockpit
• LED courtesy lighting in cockpit (optional)
• 3 x 12V accessory outlets (Helm, Nav Station)
• USCG approved LED navigation lights on bow/stern, steaming light on mast
• USCG approved LED mast tri-color navigation light
• Foredeck floodlight mounted on spreaders (LED)
• Mid-deck spreader down lights (LED)
• Mast up-light (from spreader) (LED)
• Mast head anchor light (LED)
• 30A 110v/60hz (or 15A 230v/50hz) shore power

• Pressure hot & cold water system. Hot water storage system (40 litre / 11 gallons) . Hot & cold water to galley and both bathrooms.
• Galley fresh water tap is lever type
• Deck fill for fresh water tank
• Fresh water pump with pressure accumulator (Jabsco)
• Automatic electric bilge pumps (4 x 2000 gph + 2 x 1000 gph + 1 x 750 gph)
• Bronze through-hull fittings, bonded
• Electric sump pump for shower drains
• LPG bottles aluminum (optional)
• Fresh water tank gauge
• Black water tank gauge
• City water connection (optional)

• Twin 38hp saildrive diesel engines. Fresh water cooling, rubber isolation mounts on reinforced fiberglass bed (24v secondary alternators)
• Sound insulation to engine rooms
• Two bladed propellers (optional folding 3 blade propeller upgrades available)
• Engine controls at helm station. Remote electric start at engine controls.
• Fuel tanks: Total 417 litres in pressure tested aluminum tank. Fuel gauges fitted.
• Water intakes for engines protected by large strainer with easy access (1 per engine)
• Primary Racor ( or similar) water separator / fuel filters, secondary engine fuel filters
• Console mounted engine instruments with electric tachometers, engine monitoring & warning systems, engine hour meters
• NMEA 2000 engine interface optional

• Steering compass (Ritchie Helmsman)
• Raymarine instruments and marine radios optional available

• Lewmar CPX-3 electric anchor winch with chain & rope gypsy. Easily accessed in bow anchor locker
• Storage for primary anchor is provided in a specially designed anchor roller under the forward beam.
• Anchor winch has foot switch at the bow plus an optional remote up / down control

• Hull and waterline striping
• Epoxy barrier coat and antifouling paint (optional)
• Decals on each hull and stern.
