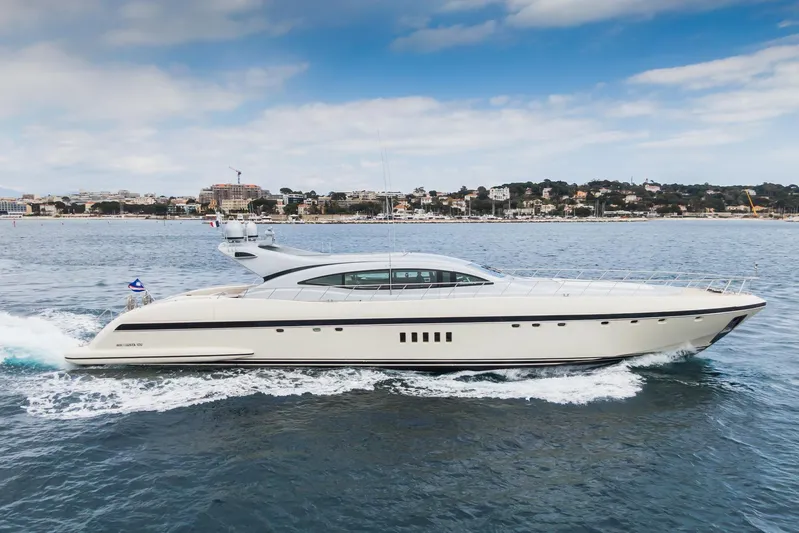

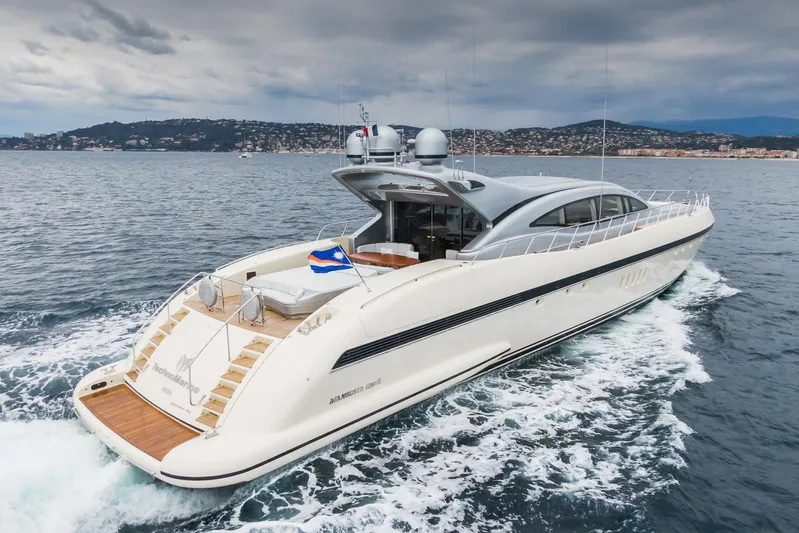

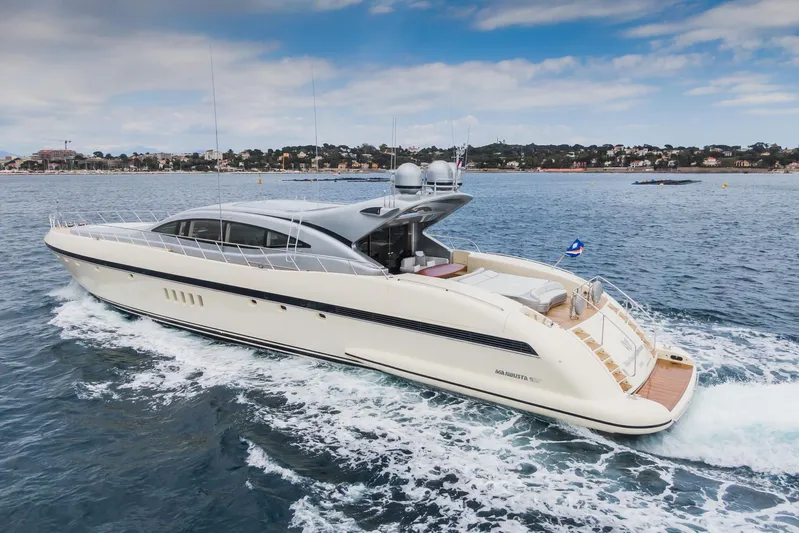

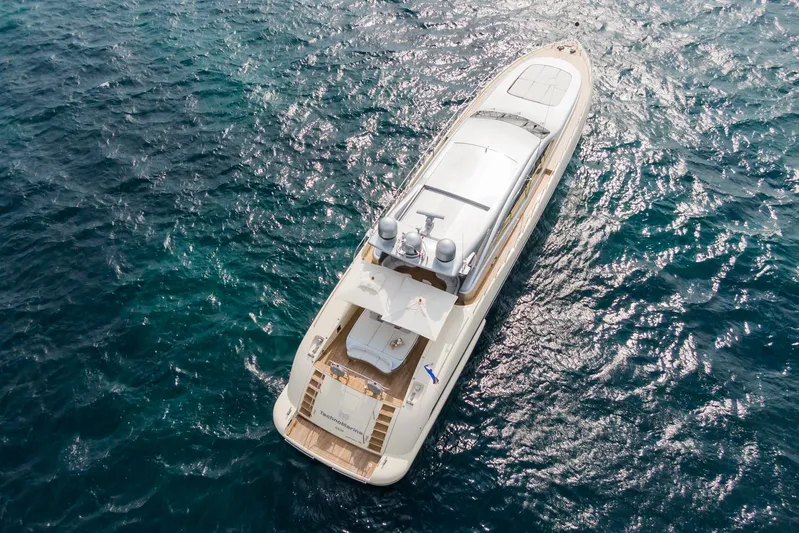

TECHNOMARINE Yacht for Sale

• Cruising Speed: 30 kn
• Maximum Speed: 34 kn
• Beam: 23' 4''
• Hull Material: Fiberglass
• Max Draft: 3' 3''
• Displacement: 231,485.38 lb
• Fuel Tank: 1 x 14700|liter
• Fresh Water: 1 x 2000|liter
• Holding: 1 x 1600|liter
• Cabins: 4
• Heads: 1

DIMENSIONS

- LENGHT OVERALL: 33.28 m (109’)
- LENGHT ON WATERLINE: 29.71 m (97’4’)
- BEAM: 7.12 m (21’7’’)
- MAX DRAFT: 1.30 m (17’3’’)
- DISPLACEMENT AT FULL LOAD: 105t (231,485 LBS)
- DISPLACEMENT AT HALF LOAD: 98t (216,053 LBS)


PROPULSION

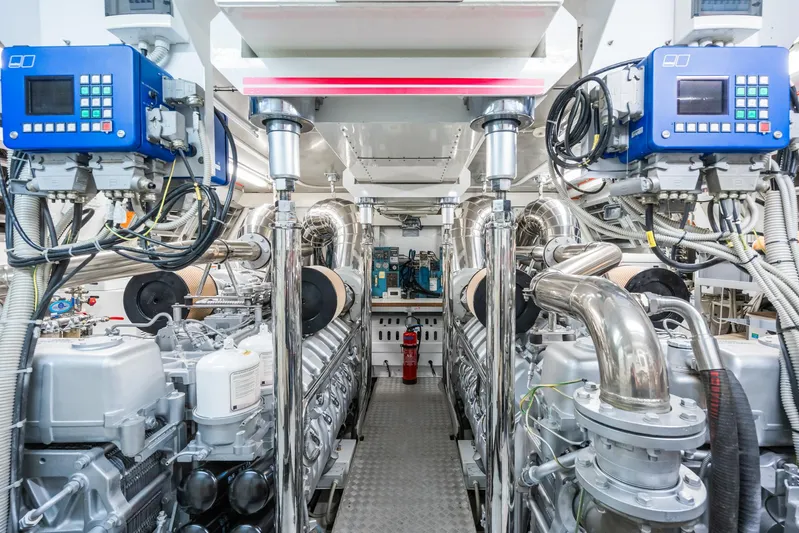

- MAIN ENGINES POWER: 2 X MTU 12V 4000 M90 2735 HP each
- HOURS PORT 1,702 – STBD 1,693
- TRANSMISSION: 2 X KAMEWA63 S 3
- GENERATORS: 2 X KOHLER 33EFOZ @ 33kW each
- HOURS PORT 3,940 – STBD 3,940
- STABILIZER: (Installed 2018) 1 X SEAKEEPER mod. 26

TANK CAPACITY

- FUEL CAPACITY: 14,700 L (3,883 US GALS)
- WATER CAPACITY: 2,000 L (528 US GALS)
- GREY & BLACK WATER: 1,600 L (422 US GALS)

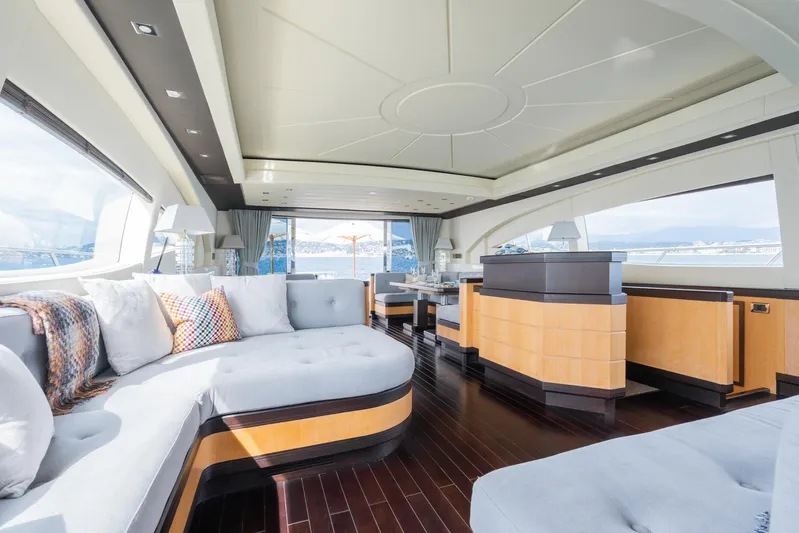

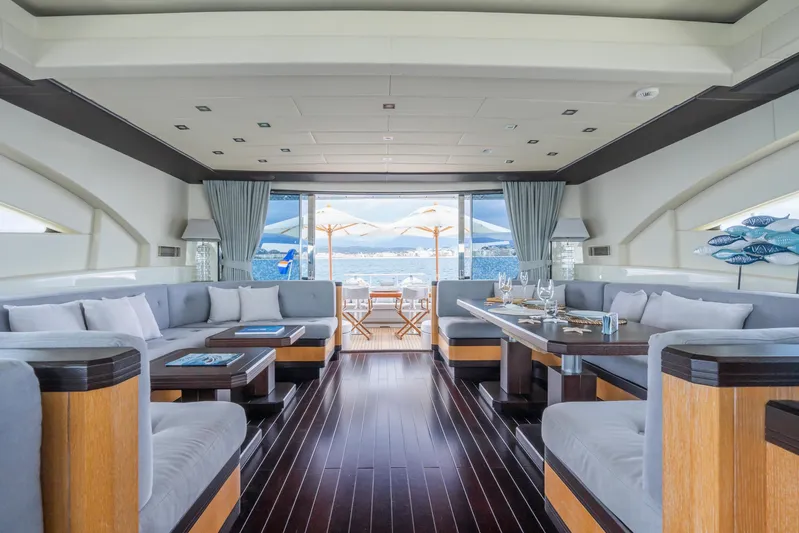

ACCOMMODATION

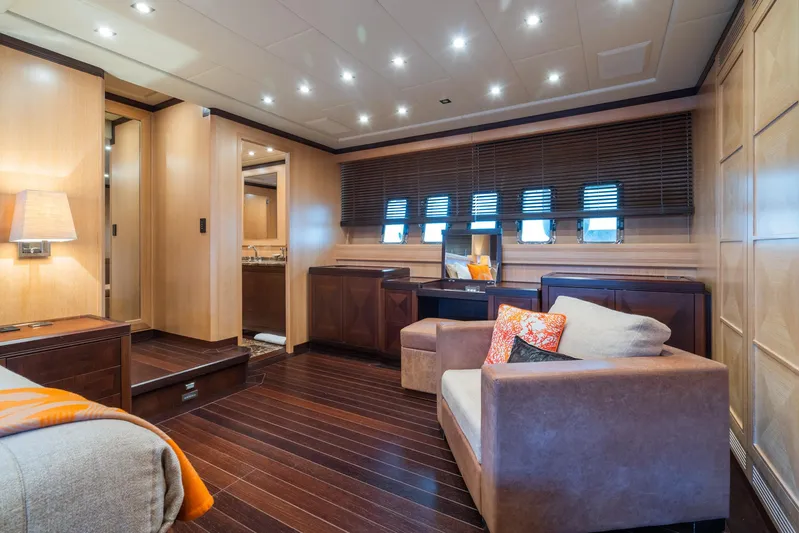

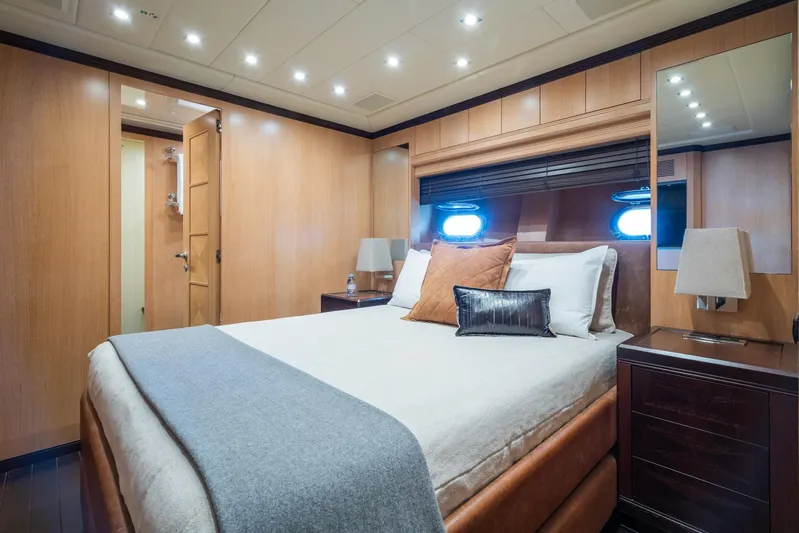

- GUEST CABINS: 1 OWNER + 2 VIP + 1 TWIN (+ Pullman berth)
- CREW CABINS: 1 SINGLE CAPTAIN + 2 TWIN CREW


PERFORMANCE

- MAX SPEED HALF LOAD: 34 KNOTS
- MAX SPEED FULL LOAD: 30 KNOTS
- CRUISING SPEED HALF LOAD: 30 KNOTS

RANGE AT ECONOMICAL
- CRUISING SPEED: 350 NAUTICAL MILES LONG


PROPULSION

REDUCTION GEARS
Two flange-mounted reduction gears ZF model 4650 with a reduction ratio selected in accordance to Kamewa


WATERJETS
Two waterjets Kamewa (RRAB) model 63 S3 connected to the output flange of the gearbox by means of a coupling supplied by Kamewa


STEERING SYSTEM
Kamewa WJ steering system


DIESEL GENERATOR
Two Kohler EFOZ 33kW marine generator, each having a capacity of 33 kW


BOW THRUSTER SYSTEM
Hydraulic Bow Thruster BCS 47 kW


ONBOARD SYSTEM
FUEL SYSTEM
Direct suction from structural GRP tank through two RACOR fuel pre-filter supplied by MTU and WESTFALIA OTC2 Fuel purifier


BILGE / FIRE FIGHTING PUMP SYSTEM
• Gianneschi bilge pumps and fire fighting
AIR CONDITIONING SYSTEM
• Frigomar (2 new inverters)

Equipment replaced or overhauled

- Most of the engine room electrical circuit breakers are new
- Overhaul of all engine cylinder heads
- Overhaul of all engine injectors
- Engines fresh water circuit and seals
- Portside engine fresh water pump
- Engine intercooler circuit and seals
- Engine thermostats are new
- Engine keys
- Major revision of the Hamann system (wastewater) + installation of a remote control system for the
Hamann
- New air conditioning compressors
- Air conditioning circulation pump
- Engine room automatic bilge pump new
- Overhaul of the watermaker
- 1 new starboard fire damper
- Revision of ZF inverters
- Seakeeper stabilizer overhaul
- Westfalia major overhaul (diesel centrifuge)
- New engine batteries
- New generator batteries
- New backup batteries
- Overhaul black water / gray water transfer pump
- Overhaul and cleaning of the shore power converter
- Revisions of the Humphree (flaps)
- Revision of underwater lights

5 years Bureau Veritas visit

- Overhaul of the Diesel Fire Valve
- Major revisions of generators (injectors, endoscopes, rocker arm adjustments, diesel pumps, sea water
pumps, etc.)
- Engines endoscopy
- Mega test
- Complete overhaul of the Kamewa jets
- Cleaning & inspection of fresh water tanks
- Cleaning & inspection of diesel tanks
- Cleaning & inspection of the gray water & black water tank
- New valves at the waterline and under the waterline
- New 24V fire and bilge pumps (2022)
- 400 fire pump & bilge overhaul
- Dismantling and revision of both windlasses

Others

- New screens and yacht management system
- 90% of the air conditioning transformers and fan coils are new
- Major upgrade of the Audio system (amplifiers, remote controls, speakers, wifi)
- New TV & Hi-fi inverters

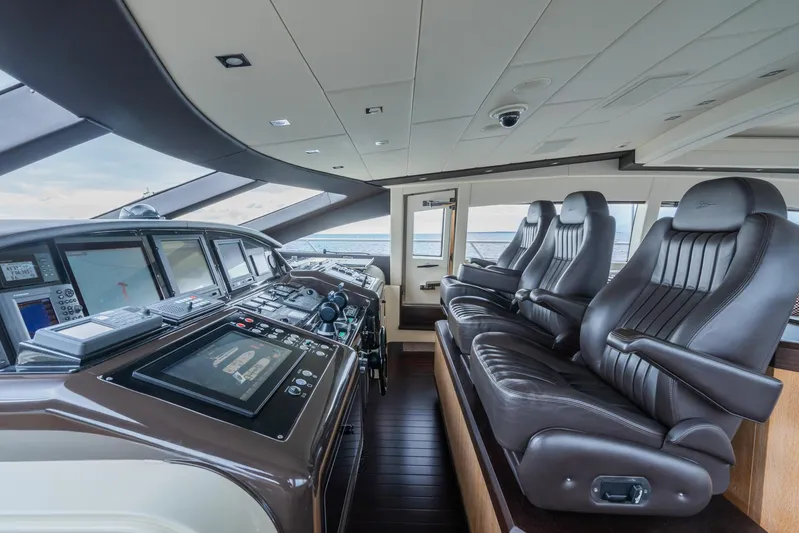

- New screen and navigation system + 1 GPS
- Dismantling & overhaul of swim ladder & cylinder
- New master cabin water heater
- Foredeck teak new caulking
- Overhaul of the tender (changed silent block, alternator, turbo…)
- Change of all gangway hydraulic hoses and overhaul of cylinders.
- Change of the hydraulic hoses of the cranes for the jet skis
