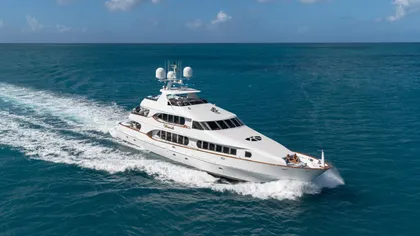

TOUCH Yacht for Sale

• Cruising Speed: 11 kn
• Maximum Speed: 13 kn
• Beam: 25' 0''
• Hull Material: Aluminum
• Max Draft: 9' 6''
• Fuel Tank: 1 x 5415|gallon
• Fresh Water: 1 x 1200|gallon
• Holding: 1 x 405|gallon
• Heads: 5

Length Overall: 120’1” (36.6m)
Beam: 25’ (7.62m)
Minimum Draft: 9’3” (2.8m)
Maximum Draft: 9’6” (2.9m)
Year Completed: 2004
Model Year: 2004
Refit: 2022
Type: Motor Yacht Custom Tri-Deck
Tonnage: 260 GT
Net Tonnage: 78 Net Tons
Displacement: Semi-Displacement
Cabins: 4
Guests: 8
Crew Cabins: 4
Crew: 7

Builder: Louisbourg
Naval Architect: Jean-Pierre Bolduc
Exterior & Interior Design/Stylist: Danielle Vigneault
Hull Material: Aluminum
Deck Material: Flexiteek Decking
Classification: IYB

Maximum: 13 knots
Cruising: 11 knots
Range: 1,300 Nautical Miles
Consumption @ Cruising: 50 US Gall/Hr

Fuel: 5,415 Gallons (20,498L)
Water: 1,200 Gallons (4,542L)
Grey Water: 405 Gallons (1,533L)
Grey Water: 240 Gallons (908L)
Lube Oil Capacity: 200 Gallons (757L)
Waste Oil Capacity: 200 Gallons (757L)

Engine Type: Twin 805hp MTU Detroit Diesel 12V 2000 Series
Horsepower: 1610hp @ 1800 RPM
Engine Serial Numbers: Port: 5352001955; STB: 5352001960
Main Engine Hours (Port): ~9600
Main Engine Hours (Stbd): ~9600

Flag: Jamaica
ISM: Mini ISM
Classification: IYB

MAIN ENGINES
Engine Type: Twin 805hp MTU Detroit Diesel 12V 2000 Series
Horsepower: 1610hp @ 1800 RPM
Engine Serial Numbers: Port: 5352001955; STB: 5352001960
Main Engine Hours (Port): 9600
Main Engine Hours (Stbd): 9600

GENERATORS & ELECTRICITY
Generators: 2x Northern Lights M1064A Gen. Sets 92kW each
Generator Fuel Consumption: 5 gal/hr
Port Generator Hours: 18,350
Starboard Generator Hours: 17,200
Shore Power: Atlas Fully Automated Main Switch Board w/ 70kW Shore Power

PROPULSION & STEERING
Gearboxes for Main Engines: Twin Disc Model MG-6557-00-PW
Stabilizer: American Bow Thruster Trac Stabilizer; Zero Speed (new 2022)
Stabilizer Underway: Yes
Stabilizer at Anchor: Yes
Steering System: 2x Hydronax Double Ram Steering System

OTHER MACHINERY
Water Makers: 2x Water Maker WMSQ 1950 Units
Bow Thruster: American Bow Thruster Trac 60hp Electric Bow Thruster
Fuel Separator and Filtration: Alfa Laval MIB 303 Fuel Separator
Sewage System: Headhunter TW200 MSD 2 Sewage Treatment System
Fresh Water System: 1.) Headhunter Hydropac Freshwater System w/ 2 Grundfros Pumps Capable of 22 gpm, variable speed 2.) 2x Sterilight UV Lamp Water Treatment Sterilizers
Air Compressor: California 4620 AC
Air Conditioning: Aqua Air 20 Ton 4 Stage Chiller A/C System
Emergency Batteries: 9 x AGM 8Ds

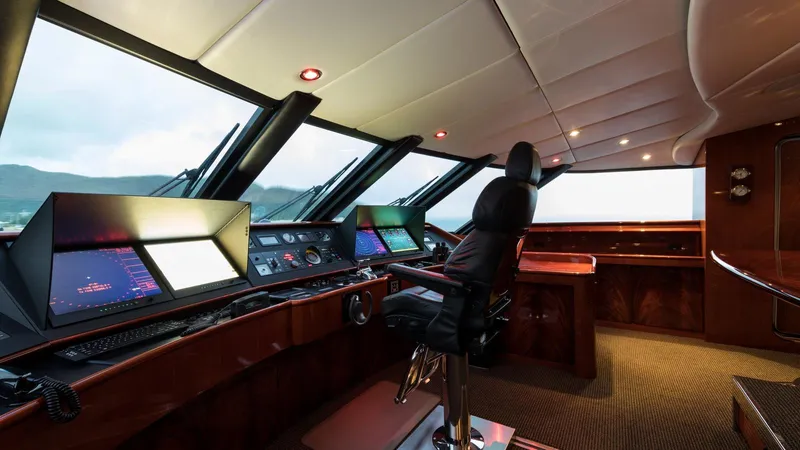

PILOTHOUSE
SAT COM: Yes
Telephone System: Internal Intercom
VHF: 2x Furuno FM-8500 VHF’s
Intercom: Crew Phone System + Master Cabin
Navtex: Furuno Navtex Receiver NX-500

NAVIGATION SYSTEMS
Radar: Furuno FR-2135 S Band Radar & Furuno FR-2115-B X Band Radar
Gyrocompass: Yes
Magnetic Compass: Yes
Auto Pilot: Anschutz NP2015 Autopilot & Steering System
Depth Sounder: B&G 20/20
GPS: 3x Leica MX420 GPS units
Electronic Charts: Nobeltec Digital Chart System
Wind/Speed Log: B&G 20/20

ENTERTAINMENT SYSTEMS
VSAT1: VSAT 4006 Antenna w/ DAC 2202 Controller
iPads: 7 Guest iPads (4 guest cabins, 1 main salon, 1 bridge, 1 sun deck)

MAIN GALLEY EQUIPMENT
Cooktop: Miele Induction Cooktop w/ 5 Burners
Oven: Miele Induction Cooktop w/ 2 ovens and 1 grill
Microwave: Kenmore 120V single phase
Refrigerator/ Freezer: 2x Subzero 611 Integrated Refrigerator & Freezers
Refrigerator: Walk-In Refrigerator w/ 200 sq ft Storage Space
Freezer: Subzero 611F Standard Deep Freezer
Dishwasher: Miele – professional short cycle 240v

LAUNDRY
Washing Machines: 2x Miele PW 6065 Professional Washing Machines
Dryers: 2x Miele PT 7136 Plus Professional Dryers

Anchor Windlass: 2x Anchors w/ Maxwell Electric Windlasses
Anchors: 2 Anchors
Anchor Chain: 450’ x2
Boat Crane and Davits: 2500 Lbs
Passarelle: Marquipt Hydraulic Passarelle Fully Extendable to 25’

• TENDER TOUCH - 15' Novurania semi-rigid inflatable 90hp
• Fun Air Sea Pool 4m x 5m with rip stop mesh - new 2022
• 2 x Sea Bobs
• 2 x Floating Chairs
• 2 x Kayaks
• Towable Tube –
• 2 x Stand Up Paddle Boards
• 2 x Wakeboards
• Water skis – one pair
• Mono ski – 2 single skis (Med & Large)
• Kneeboard
• Snorkel Gear
• Fishing Gear
• Various misc. sporting gear

Note: Subject to change and/or negotiation during the buying process.

SECURITY
Cameras: 5 x Exterior & 2 x Engine Room
Monitors: 4 Monitors - Bridge, Galley, Capt. & Eng. cabins

FIRE FIGHTING EQUIPMENT
Fire Control System: Laz & ER FM200
Fire Extinguishers Powder: 17
Fire Extinguishers CO2: 5
Fire Extinguishers Foam: 1
Fire Extinguishers Nitrogen: 1
Fire Panel: 1

SAFETY EQUIPMENT
Life Rafts: 4x 8pax Zodiac Life Rafts
Life Rings: 2 x w/ Light & Smoke, 2 x w/ Light
Adult Life Jackets: 21 x Light Jackets
Child Life Jackets: 6 x Light Jackets
Line Throwing Appliance: 1 x Line Throwing Appliance
EPIRBS: 2 x EPIRB
SART: 3 x SARTS
Flares: 12 x Flares
Medical Equipment: MedAire

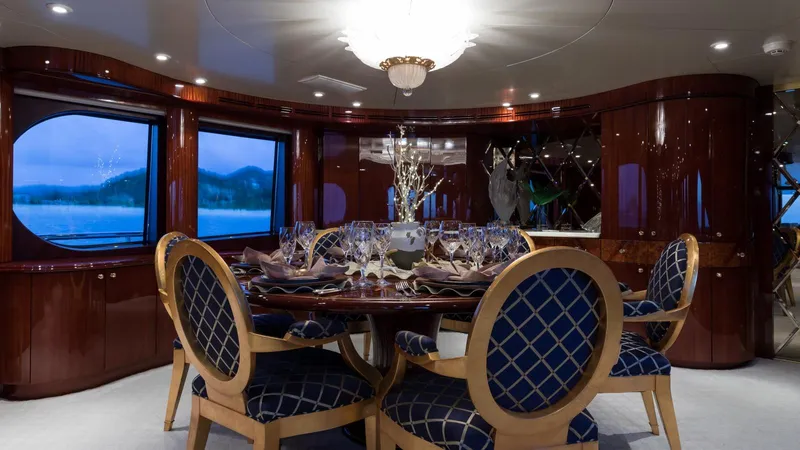

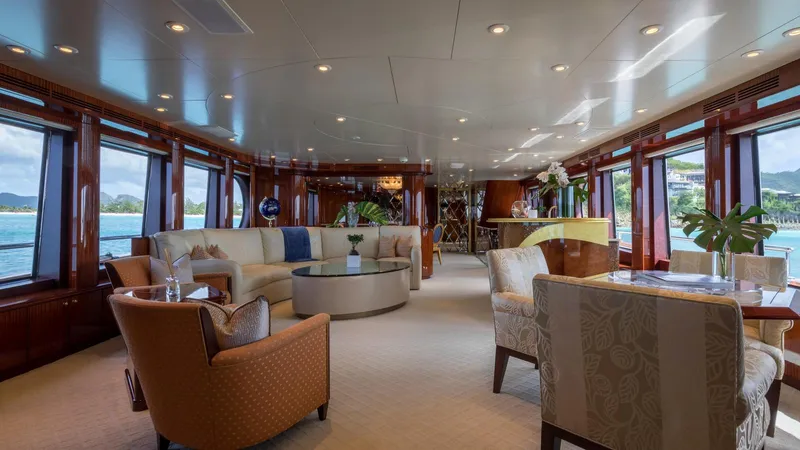

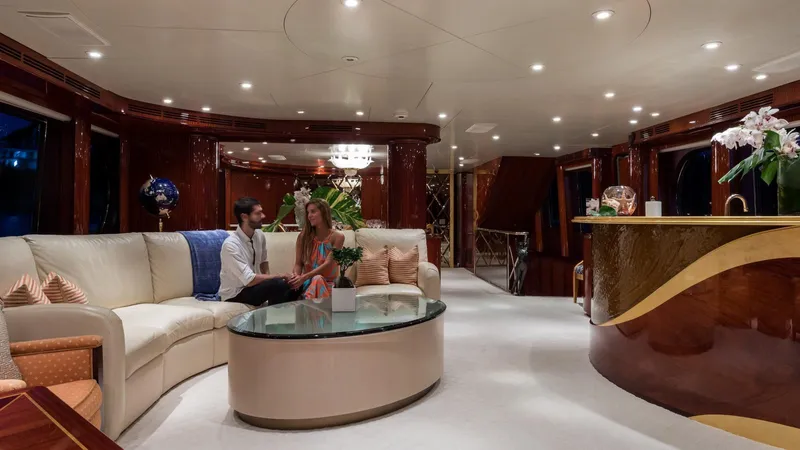

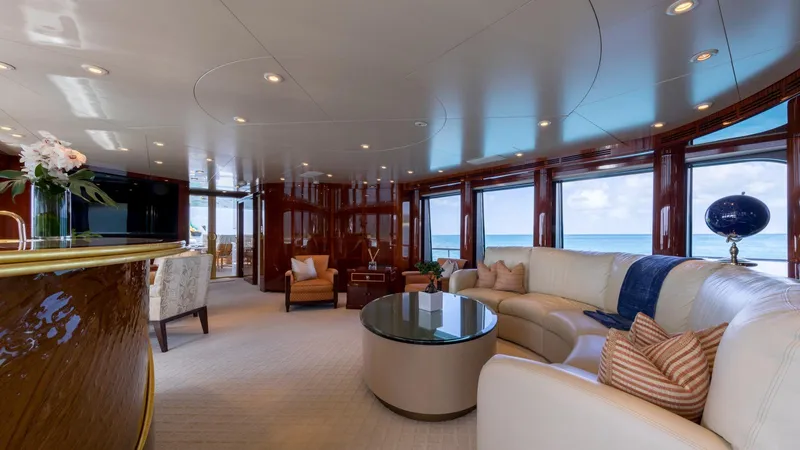

The main deck salon is the center for entertaining and socializing with ample seating arrangements, a bar and formal dining forward. Aft, sliding doors open on the aft deck with alfresco dining and the focal point, an 8-person jacuzzi to relax away all ills.

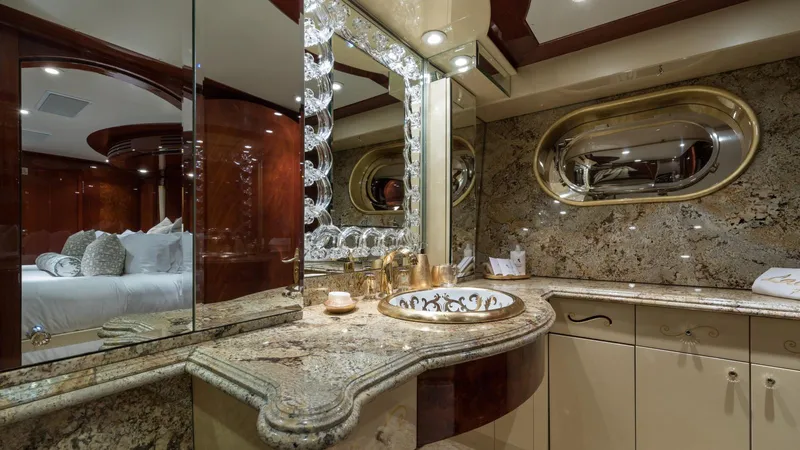

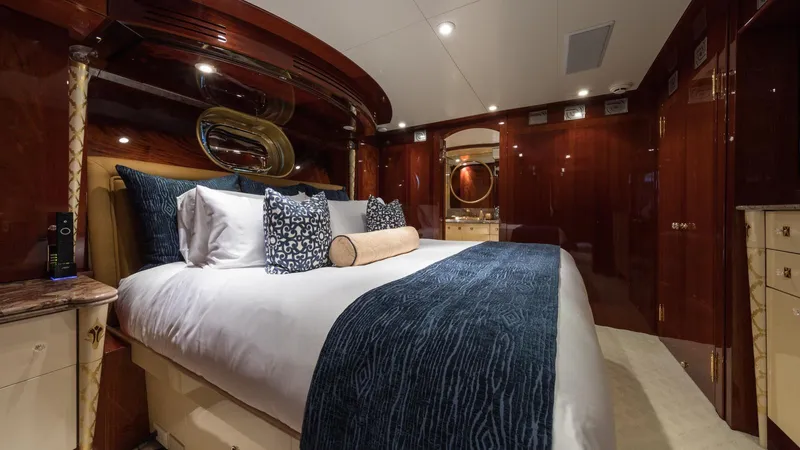

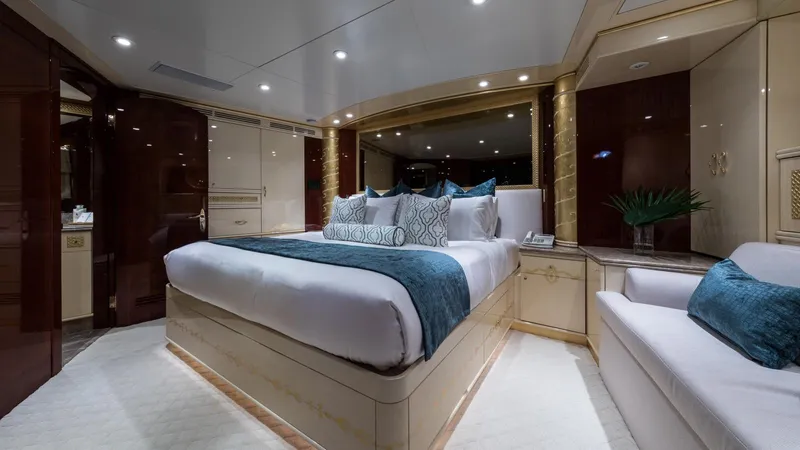

All guest staterooms are generous in size and offer a King size bed with a Vispring Luxury mattress that offer the most comfortable night sleep on the yacht charter market.

2022 - All new Smart TV's and enhanced VPN for streaming.

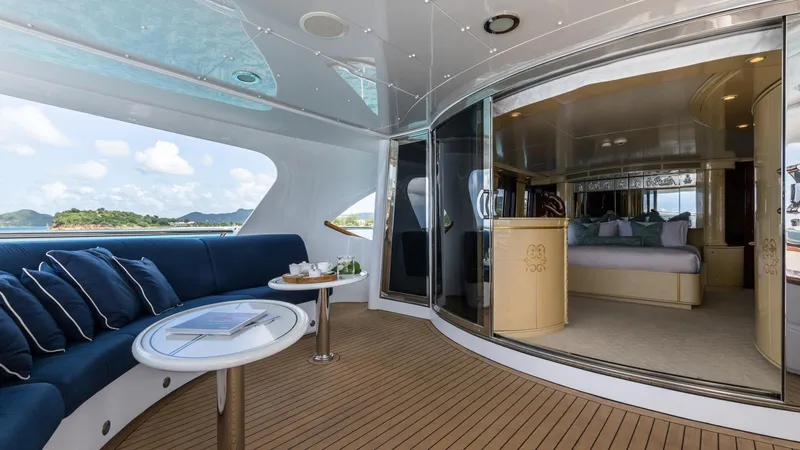

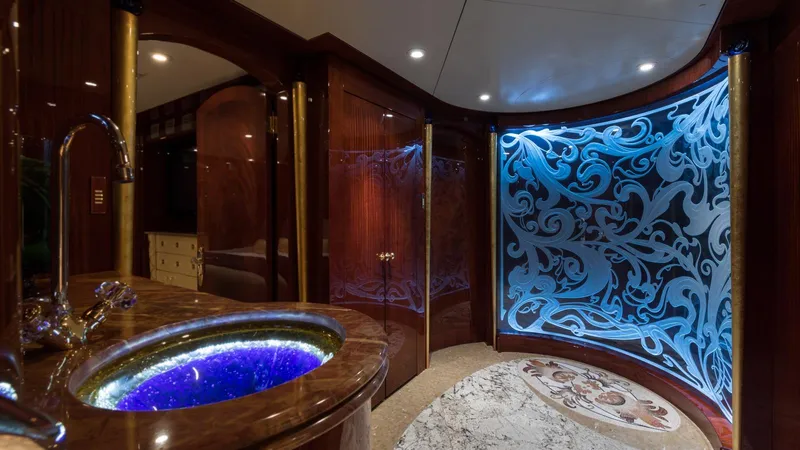

Master Stateroom – Upper Deck:
Walk-around King Bed with beautiful mirrored Lalique headboard; luxurious en-suite head with large 2-person Jacuzzi tub with full mosaic tiled wall behind Jacuzzi, shower with seat and multi-head shower tower by Kohler, double marble sink vanity with Baccarat faucet fixtures and imported marble throughout. Large closet with safe; vanity/office area with internet access; full entertainment system with pop-up Smart TV/Sat TV/Stereo system; Large windows with electric curtains and blinds, private deck with soft seating, two cocktail tables, and refrigerator.

VIP Stateroom – Below Deck Amidship:
King Bed with mirrored headboard; small settee with beautiful Lalique sculpture above; en-suite head and shower with Shower Tower and imported marble counters and floors throughout. Closet with safe. Full entertainment system with Smart TV/Sat TV/Stereo system.

Guest Stateroom – Below Deck Amidship Port:
King Bed; en-suite head and shower with Shower Tower and imported marble counters and floors throughout. Hanging closet with safe. Full entertainment system with Smart TV/Sat TV/stereo system.

Guest Stateroom – Below Deck Amidship Starboard:
King Bed; en-suite head and shower with Shower Tower and imported marble counters and floors throughout. Hanging closet with safe. Full entertainment system with Smart TV/Sat TV/stereo system.

Additional Notes:
• Safes in all staterooms
• Cedar lined closets in all staterooms

MAIN DECK
• Large main salon and dining area
• Galley and crew mess area

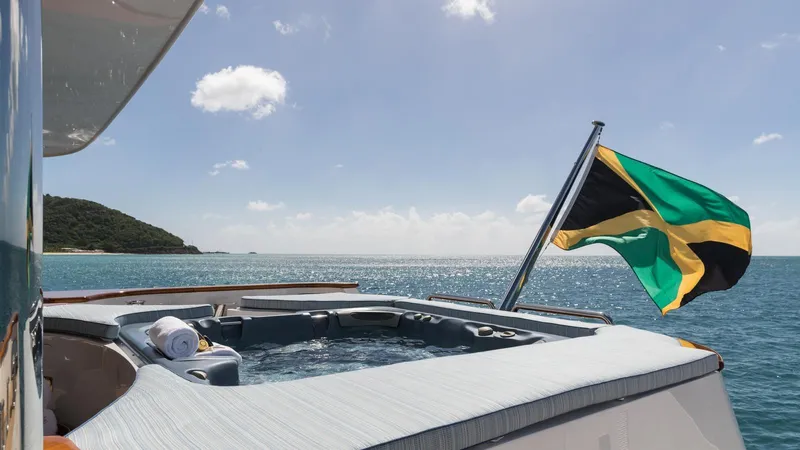

• Jacuzzi on aft deck
• Open plan aft deck with marble round table
• Walk-in refrigerator
• Bosun’s locker - exterior
• Foredeck lounge area - exterior

LOWER DECK
• Guest foyer with refrigerator and sink
• Three Guest Staterooms, each with ensuite bathrooms
• Swim platform
• Lazarette pumps & storage tanks
• Engineer and captain's cabins
• Laundry and control room
• Engine room
• Forward crew accommodation (separate from guest area w/ 2 cabins & head)
• Anchor Chain locker

UPPER DECK

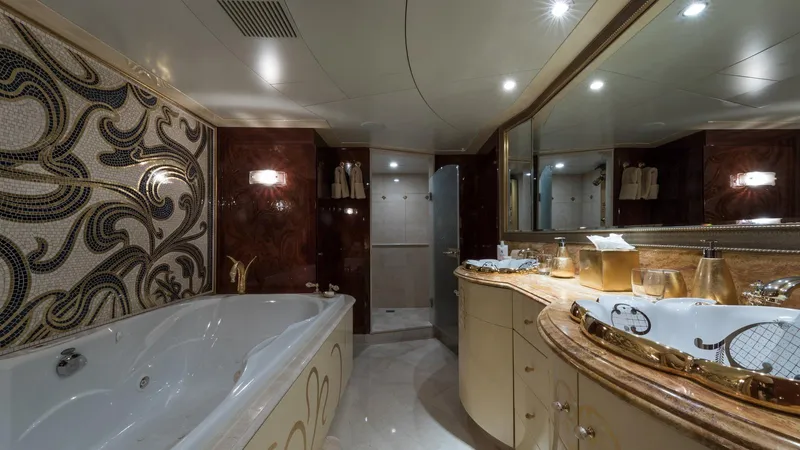

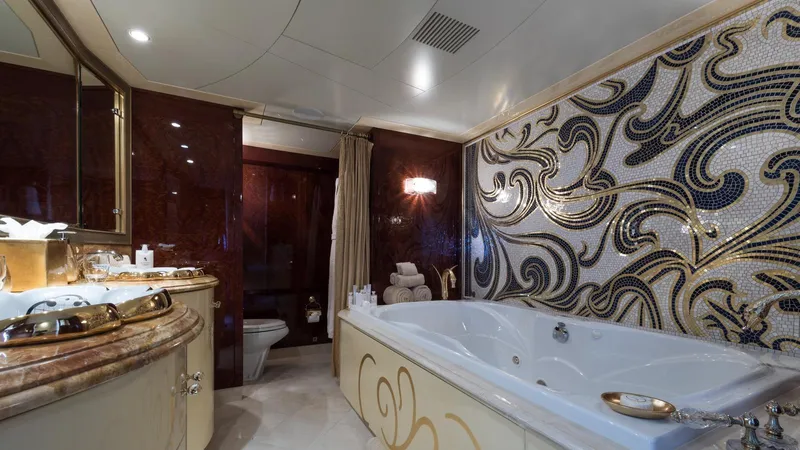

• Master Stateroom with ensuite bathroom (including bath/Jacuzzi)
• Boat Deck with Davit and 15' tender

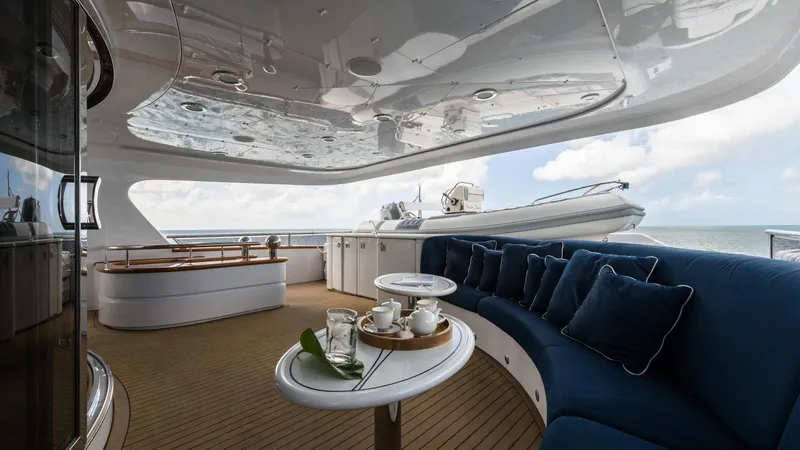

• Outdoor Lounge area w/ bar area

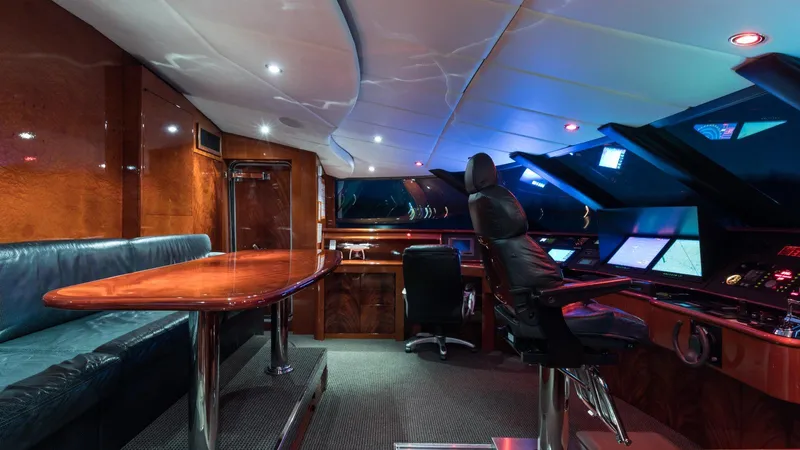

• Bridge

SUNDECK

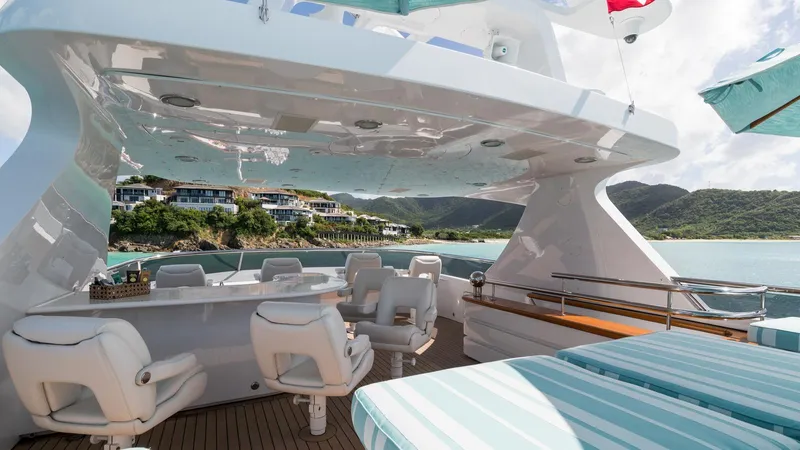

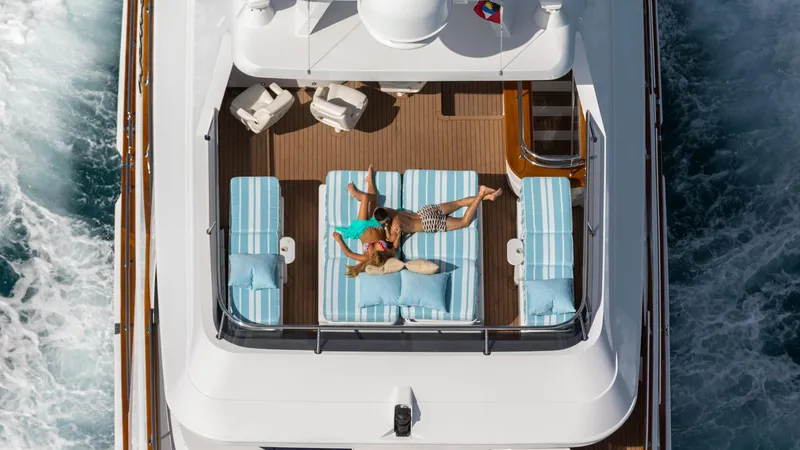

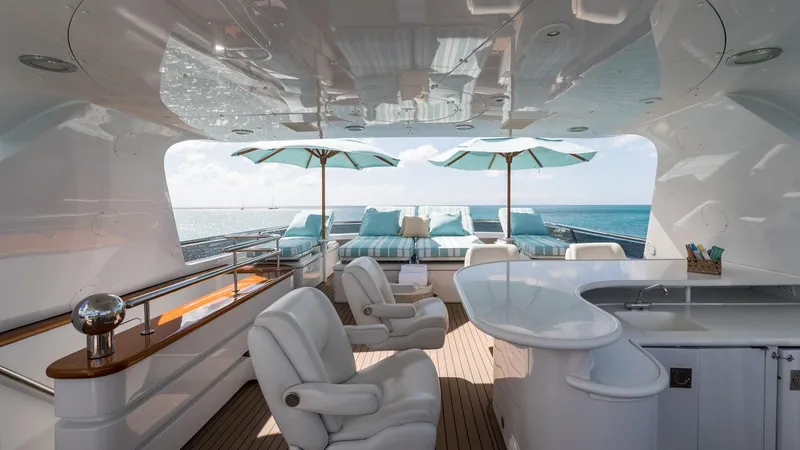

• The sundeck features a bar area with fridge and sink, four sun lounge seats, 1 gym style treadmill, and four lookout chairs. This area is also integrated into the vessel’s A/V system, with an outdoor sound system.

• VSat
• SeaTel Sat TV 4004 antenna with DAC 2200 controller
• Crestron integrated A/V system for entire vessel
• Karaoke unit in salon
• TVs in all guest state rooms, salon, galley, and aft deck
• Satellite TV throughout
• Light touch lighting system
• Underwater lighting – aft only

• Sundance 'Optima' Jacuzzi (seats 6) on aft deck
• 2x Anchors with Maxwell electric windlasses w/ 450' of chain
• 4x Maxwell electric deck winches
• Marquipt hydraulic passarella fully extendable to 20'
• Marquipt tender lift 2500 hydraulic davit
• Qty 1 Full gym style treadmill
• Marquipt side boarding step ladders x 6 integrated gangway at pt/stbd side
• Diesel crash water pump
• Dive equipment with 2 dive tanks and 2 BCO
• 2 x EPIRB and SART all on deck
• 4 x Zodiac 8-person Life Rafts (Solas ‘A’)

• Treadmill – Schwinn x1
• 2x bowflex weights
• 4x Yoga mats

• 2x Northern Lights M1064A generator sets, 92kW each, 11,500 hrs., November 2015
• 208 VAC 60 Hz 3 phase (American) with 2 European 220VAC Single phase outlets

• Furuno FR2135 S band radar
• Furuno FR2115B X band radar
• Anschutz NP2015 autopilot and steering system
• 3 X Leica MX420 GPS units
• Furuno Navtex receiver NX500
• 2x Furuno FM8500 VHF's
• Furuno Inmarsat C
• B&G Sonic speed and depth system (fully integrated into Navigation system)
• Radio Zeeland DMP monitoring system
• Nobeltec digital chart system
• Furuno AIS FA150 (fully integrated into Navigation system)

• 3G/4G data internet service
• Wi-fi – Starlink in USA & Sat com in Caribbean
• 2 x VHF
• 6 new Wi-Fi up-dated routers installed September 2023

• Miele induction cooktop with 5 burners, 2 ovens, 1 grill
• Ventmaster extractor with Ozone creating UV lamp system
• 2x Subzero 611 integrated refrigerator and freezers
• Walk-in refrigerator with 180 sq feet storage space
• Subzero 611F Standard Deep Freezer
• 2x Miele PW 6065 Professional Washing Machines
• 2x Miele PT 7136 Plus Professional Dryers

• 2x MTU Detroit Diesel 2000 Series engines, Model R1227K22, 805 hp at 1800 RPM
• 2 X Twin Disc Model MG6557 RV Transmissions with Ratio 2.481:1
• American bow thruster Trac stabilizer system
• American bow thruster Trac 60HP electric bow thruster
• 3 x Aqua Air 20 Ton 4 Stage Chiller air conditioning system
• Air handlers throughout entire vessels interior
• Headhunter TW200 MSD 2 sewage treatment system
• Alfa Laval MIB 303 fuel separator
• 2x Watermaker WMSQ 1950 units
• MP Pumps model 21365 Bilge pump (210GPM)
• MP Pumps model 29535 Fire Pump (180 GPM)
• 2x MP Pumps model 26086 Grey Water pumps (150GPM)
• 2x Hydronax Double Ram steering system
• Pegasus Deluxe rudder and shaft seals
• 2x 3'' Shafts with Bruntons 5 blade 42'' propellers (balanced Sept. 2023)
• Atlas automated main switch board with 70kW shore power capacity and automated generator paralleling ability for up to 160kW on generators
• Headhunter Hydropac freshwater system with (2) Grundfos pumps capable of 22 gpm, variable speed
• 2x Sterilight UV lamp water treatment sterilizers

2023
• Atlas convertor installed new contactors
• Stabilizer new servo valve installed
• Aft A/C discharge thru hull pipe replaced
• All new zinc’s, bottom paint & prop speed
• both props, shafts, couplers, cutlass bearings, rudders removed balanced new seals
• Both gear box shaft flanges new
• Main Engines & Generators serviced with oil sampling.
• Engine room bilges and flooring painted

2022
• Superstructure – fully repainted
• Repainted Cap rails and Brightwork
• Generators – service and further adjustments
• Stabilizers – fully serviced with new actuators, seals, and bearings
• Air Conditioning- modified and rebuilt
• Black, Grey, and Fresh water systems - fully cleaned and serviced
• Bilges repainted and system serviced
• Fire, Bilge, and Fresh water pumps rebuilt and serviced
• Eng. Room Fans serviced with controls upgrade – safety
• CCTV – cameras replaced with new infrared cameras for safety
• All TV’s replaced with Smart TV’s and enhanced VPN for Streaming
• Main Salon Carpet - replaced, Guest and Master cabins adjusted
• Hot Tub – new pumps, valves, and control pad
• Sun deck - Seats rebuilt and recovered
• Steering – rudder bearings, seals replaced, shaft and hull tube replaced
• RIB – replaced 70hp with new 90hp Engine
• Under water lights – serviced

2021
• Main Engine – major service and overhaul
• Generators – major service and overhaul
• Hull – repainted
• Hot tub – resurfaced
• New Depth sounder
• Renewed 24Volt system panel in Eng. Room

2019
• All new A/C system, chillers & handlers, make-up units, & plumbing

2015
• Hauled out summer 2015 at Lauderdale Marine Center
• All new bottom paint
• 5 Step OrcaSystem polish
• Shafts, rudders, and stabilizers all dropped:
o New cutlass bearings
o New rudder shaft seals
o New stabilizer seals
o New bow thruster seals
o All new sea cock valves

2011
• Complete new paint from bottom to top of mast with DuPont paint system
• Complete AV upgrade by Triton Technical Seattle including new flat screen TV’s, audio system and speakers, components, racks, and wiring. Full support can be given mostly over the internet. Upgraded Crestron system incorporating iPad controls. New HD salon 60” HD and Master 42” HD TVs with Blue Ray players and 8 Sat receivers. Song Request System (iPad controlled). New speakers throughout yacht. New sliding racks for main system.
• Complete satellite internet upgrade. New hardware including racks, components and wiring throughout including 42” SeaTel Dish for excellent footprint/coverage, new main I direct router and new routers throughout vessel. Also, a new antenna system fitted for access to shore based wireless internet.
• All new decks installed throughout
• All Fire-mains overhauled, rewelded, and replumbed
• All new exterior Varnish
• All exterior fabrics and coverings replaced including all sundeck chairs, cushions, pillows, and mats
• Deck chairs revarnished
• All interior gold fittings re-dipped including interior railings
• Gold leaf replated on rear sliding doors, furniture, and door frames. Other areas as needed to bring into perfect condition
• Interior fittings, knobs and attachments replaced where needed
• All interior woodwork repaired and revarnished/polished where necessary
• New guest linens throughout
• New curtains in Master and main salon
• Marble repaired and polished as needed
• Full engine room refit including new main engine and generator exhausts, new engine room fans, main engines Bore scoped…all excellent, no major service required at this time
• Injectors and injector pumps checked - all in excellent condition. Full-service history of engine services available
• ALL pumps and ALL electric motors checked, rebuilt, and replaced where necessary, including but not limited to: Stabilizer electric motor removed and rewound. Stabilizer hydraulic. pump rebuilt, stabilizer cooling pumps (electric and hydraulic rebuilt including electric motor) Fire pump and bilge pumps wet ends and motors rebuilt. Refrigeration pumps rebuilt. Air Conditioning fresh and saltwater circuit pumps replaced. Water maker pumps replaced and or rebuilt. Alfa Laval fuel polisher rebuilt. All engine/ genset cooling pumps checked and rebuilt. UV freshwater sterilizer rebuilt. Further details are available from Touch engineer upon request.
• Sewage system stripped down, rebuilt, and repainted.
• Entire seawater circuit stripped down and rebuilt (new valves etc.).
• All thru hull flanges rewelded and rebuilt where necessary, and ALL valves checked, rebuilt, and replaced where necessary.
• Full stabilizer rebuild and retro refit including hydraulics and pump and motor overhauls.
• Bow thruster removed and rebuilt.
• Anchors re-galvanized.
• Anchor windlasses rebuilt.
• Bow capstans rebuilt.
• Main shafts removed, checked and new bearings installed.
• Rudders removed, new bearings and hydraulics refitted.
• Props removed and checked and reworked to “S” Class.
• Complete DMP monitoring system rebuilt including new sensors and calibration and new computers.
• All fuel, fresh water, black water, grey water, oil, and dirty oil tanks, thoroughly cleaned, inspected, sandblasted, and recoated where necessary.
• New antifouling paint and zinc anodes.
• Passarelle removed, rebuilt, and painted.
• Crew areas fitted with new TV’s, DVD players and controls.
• New ships management and inventory system by Triton Administrator. The system has been fully implemented and documented by Touch’s engineer.
