TRINITY Yacht for Sale

• Cruising Speed: 21.72 kn
• Maximum Speed: 27.81 kn
• Beam: 17' 2''
• Hull Material: Fiberglass
• Max Draft: 4' 6''
• Displacement: 78,400 lb
• Fuel Tank: 1 x 1080|gallon
• Fresh Water: 1 x 240|gallon
• Holding: 1 x 72|gallon
• Cabins: 4
• Heads: 4

Fiberglass hull and superstructure

General

• Length Overall (L.O.A.):
  68.08 feet
  20.75 meters
• Beam:
  17.17 feet
  5.23 meters


• Draft:
  4.50 feet
  1.37 meters


• Displacement:
  78,400 lbs.

Capacities

• Fuel Capacity:
  1,080 US Gallons
  4,088 liters


• Water Capacity:
  240 US Gallons
  908 liters


• Holding Capacity:
  72 US Gallons
   272 liters


• Watermakers:
  800 US Gallons
  3,028 liters

Speed                  Consumption per hour    Range    RPM
Maximum:                    32.0 knots     95 US Gallons /hr        280 nm    2,300
Cruising:                     25.0 knots     80 US Gallons /hr        312 nm    2,000
Economical:               12.0 knots    20 US Gallons /hr        600 nm    1,000

Main Engines

Engine Type:
(2) MAN CR V10-1100 CR inboard diesels @ 1,100 Hp each – 1,000-hour service - Oct 2024

Engine Services:
•    Heat exchanger tanks SS sleeve
•    Heat exchanger bundles cleaned
•    Aftercoolers cleaned
•    Valves adjusted
•    (4) turbos rebuilt and balanced with new housings
•    New exhaust SS housings installed
•    New waste gate installed
•    Oil changed in mains, generators and gears

Gearboxes for Main Engines:

ZF Marine ZF5J0A transmissions

Drive:

Direct drive

Electronics:

ZF Micro Command

Generators & Electricity

Output:

21.5 kW

Generators:

 Onan generator – rebuilt 2019

•    Raw water pump replaced – 2019
•    Heat exchanger cleaned
•    Gear line replaced
•    New coolant in generator and mains
•    New impellers on water pumps

Generator Fuel Consumption:

1 gallon / hour

Shore Power:

•    (2) single phase 50 Amp 110/240V
•    (2) 75’ remote-controlled cablemaster
•    (1) 50’ 50 Amp extension cord for bow connection

Batteries:

•    (6) AGM 24V – engine room – 2020
•    (4) AGM deep cycle start batteries 24V – engine room
•    (1) AGM start battery producing 12 VDC – generator compartment - 2020

Battery charger:

•     (1) Mass 24 100 Amp – main engines
•     (1) Mastervolt for generator

Air Conditioning

Type:

•    MarinAir 120V reverse cycle

Output:

•    (5) with a total of 84,000 BTU (salon 30,000 ; master 16,000; crew 12,000 ; VIP 16,000, guest stateroom 10,000)

Other Machinery

Trim Tabs:

•    Dual station electric trim tabs with indicators - 2016

Watermaker

•    SeaRecovery with remote control panel  mounted in galley - 2018


Bow & Stern Thruster:

•    Dual Station Controls and wireless remote plus yacht controller

Steering System:

•    Hydraulic Sea Star-Teleflex

Sewage System:

•    Vacuum Vacuflush

Fresh Water System:

•    Pressurized

Bilge Water Filtration:

•    (3) Bilge pumps

Propellers:

•    Spare set propellers reconditioned

Communication Systems

VHF:

•    (2) - cockpit & main helm with additional ICOM VHF – flybridge - 2019

Wi-fi:

•    Aigean AN-700 Dual Band WIFI router
•    Peplink Router – cell antenna

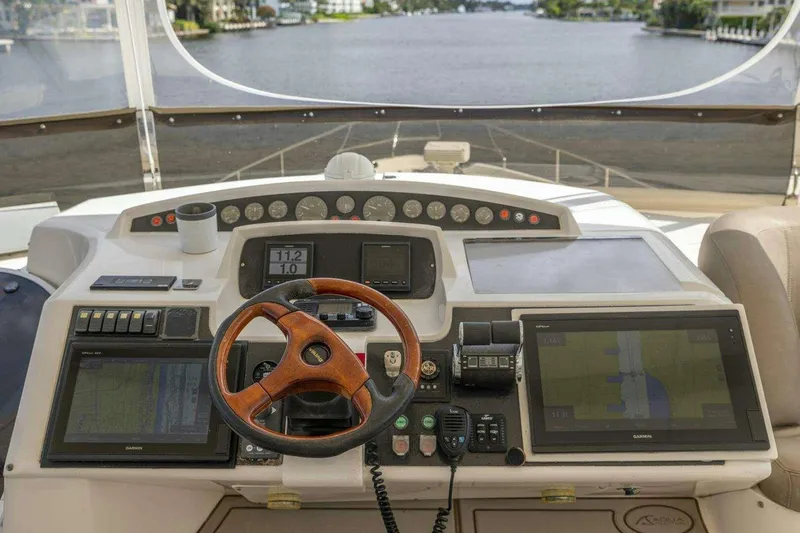

Navigation Systems

Radar:

•    (1) Garmin - 2018

Auto Pilot:

•    (1) Garmin GHC20 - 2018

Depth Sounder:

•    (1) Garmin GSD24 Digital Sounder – cockpit & main helm - 2018

GPS:

•    (1) Garmin AIS600 - 2018

Laser Plotter:

•    (2) Garmin GPSMap 7616SSY - 2018
•    (2) Garmin GPSMAP 7612 - 2018
•    (1) Garmin GPSMAP 8215 MFD - 2018

Wind/Speed Log:

•    (1) Garmin Sirius Weather - 2018

Searchlight:

•    ARC Searchlight

Other:

•    Fuel Tank Monitor
•    MAN OEM digital displays – lower helm station – 2020

Entertainment System:

a.    Video Equipment
    TV’s:

•    KVH Tracvision TV6 N
•    American Sat TV
•    (2) Direct TV receivers
•    (1) 40” Samsung smart TV – salon
•    (1) 43” Samsung TV and KVH direct TV with 2 receivers– master stateroom
•    (1) 43” Sharp Aquos 15” LCD TV - VIP

b.    Audio Equipment
    Stereo’s:

•    Fusion sound system with a Fusion subwoofer controlled by Bluetooth – flybridge
•    Bose home theatre system – salon
•    JVC AM/FM/XM/CD player with speakers – master, VIP, guest stateroom, crew

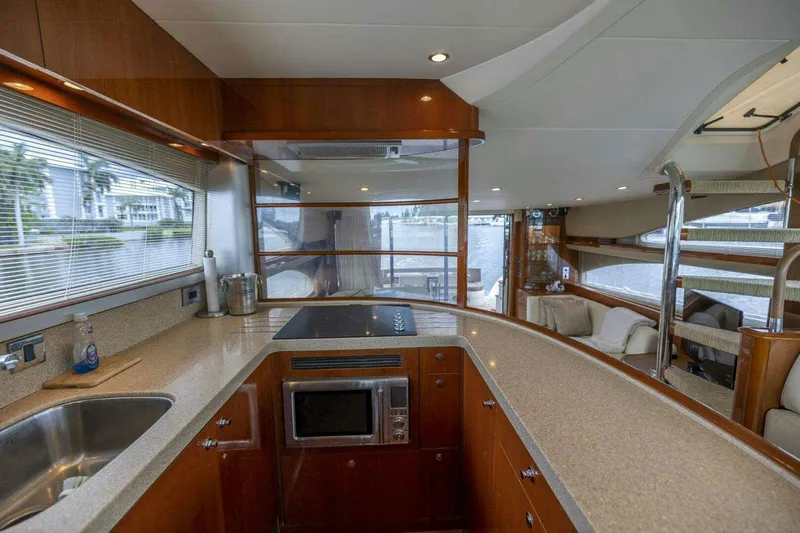

Main Galley Equipment

Cooking Equipment:

•    NEFF four burner stove with glass cooktop - 2020
•    Microwave oven – Built-in grill two convection Breville - 2021

Refrigeration/Freezer:

•    Upright LG refrigerator model LRBP103IT SS with separate freezer compartment - 2020

Dishwasher:

•    Miele Incognito under counter SS dishwasher - 2019

Other:

•    Raritan icemaker – 2019
•    Garbage disposal - Badger I disposal, 1/3 Hp - 2020
•    Single stainless steel deep well sink

Additional Galley Equipment

Refrigeration/Freezer:

•    Refrigerator – flybridge
•    Avanti wine cooler – master - 2018

Other:

•    BBQ electric grill – flybridge – 2019
•    Yeti ice chest - flybridge

Laundry Equipment

Main Laundry Equipment

•    Washer / Dryer, full size, dryer - 2014

Tenders:

•    Zodiac DL400 13’ RIB with 50 Hp Yamaha and Garmin Chartplotter - 2020

Dive Gear:

•    Hoka system w/air tank for bottom cleaning and propeller clearing

Anchor Windlass System:

•    Lewmar Combination Chain/Rode

 Anchors:

•    80 lbs. stainless steel plough anchor controlled from both helms with fresh water wash-down

•    Spare anchor added & mounted in bow locker

Anchor Chain:

•    229’

Boat Crane and Davits:

•    Marquipt model 5265 - 880lbs.

Passerelle:

•    Stainless steel hydraulic

Flybridge table:

•    All teak replaced with ¾” teak - 2016

Bimini Top:

•    Bimini top replaced - 2019

Lights:

•    (4) Ocean LED blue – underwater
•    (4) multi colored on Radar arch

Fire Fighting Equipment

Fire Control System:

•    Flagship Marine Systems Monitor Security monitoring high water, heat or loss of electricity

Fire Extinguishers:

•    (7) dry chemical
•    (2) fixed/clean agent

Alarms:

•    (6) smoke detectors
•    Carbon monoxide detectors

Safety Equipment

Life Rafts:

•    Revere 4-person coastal life raft - 2020

EPIRBS:

•    (1)


Other:

•    All Coast Guard required safety equipment

GENERAL

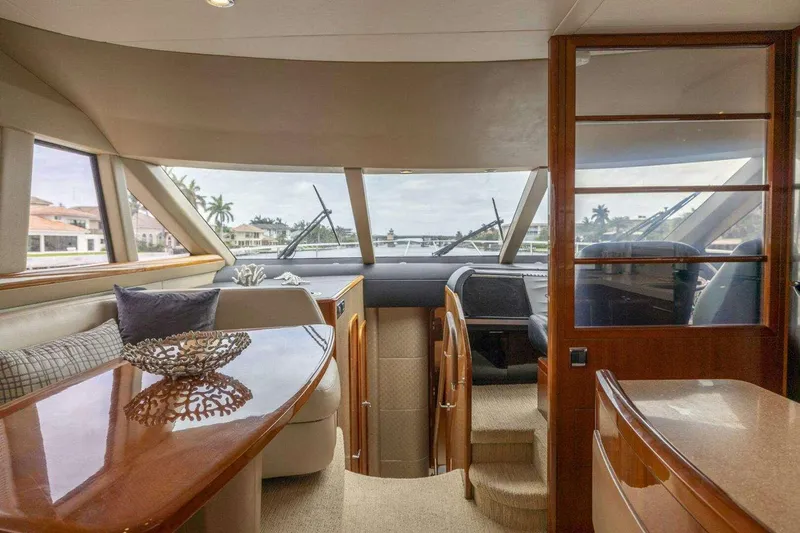

Trinity is a beautifully maintained flybridge motor yacht, offering a blend of style, comfort, and performance. With spacious accommodations and a well-thought-out layout, it features a generous saloon, dining area, and a galley on the main deck, making it ideal for entertaining or extended cruising. The flybridge provides ample space for outdoor enjoyment, while the elegant interiors ensure a luxurious onboard experience. Built with Princess's renowned craftsmanship and attention to detail, Trinity delivers exceptional sea-keeping capabilities and a smooth ride, making it a standout in its class.

OWNER

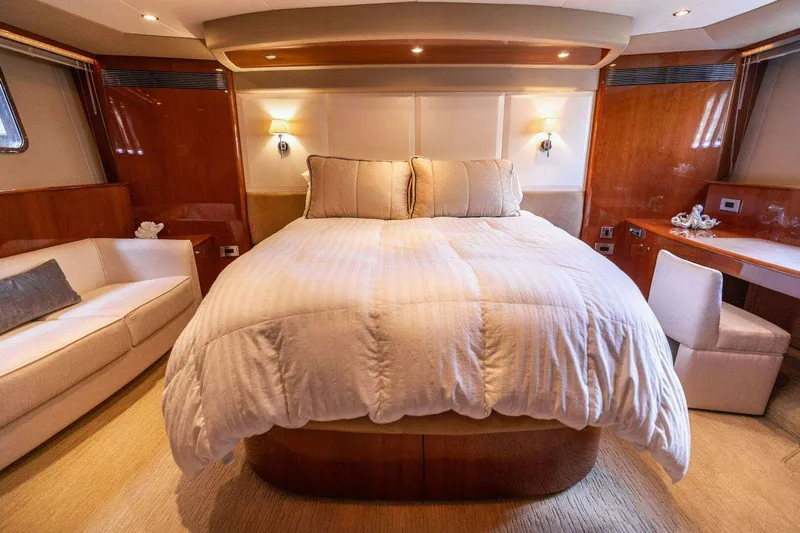

The master stateroom on the Trinity is a full-beam oasis of luxury and comfort. It features a spacious layout with a queen-sized bed, couch to starboard, and large windows allowing natural light to flood in, and elegant finishes throughout. Ample storage is provided with built-in wardrobes, while a concealed safe behind a framed picture adds a discreet security feature for valuables. The en-suite bathroom offers a walk-in shower and high-end fittings, ensuring a private and relaxing space for the owner. This stateroom is designed to be both functional and inviting, perfect for extended stays onboard.

GUESTS

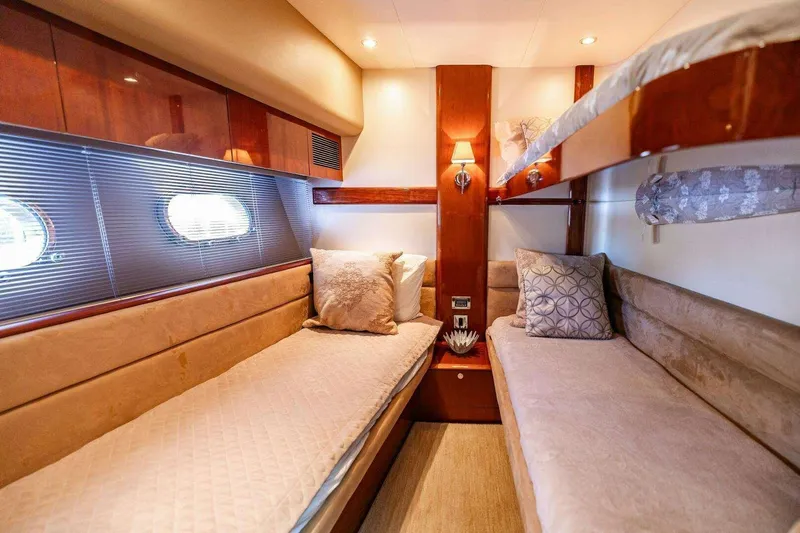

The Trinity offers well-appointed accommodations for guests, featuring a spacious VIP stateroom and a versatile twin guest stateroom. The VIP cabin is located forward and includes a queen-sized bed, ample storage, and its own en-suite bathroom, providing comfort and privacy for guests. The twin guest stateroom is fitted with two single beds and includes a Pullman berth that was added by American Yact Restoration. It matches the original Princess wood/finish, folds up and away against the wall when not in use, allowing for additional sleeping capacity when needed. It also has its own en-suite facilities, ensuring all guests enjoy a comfortable and luxurious stay.

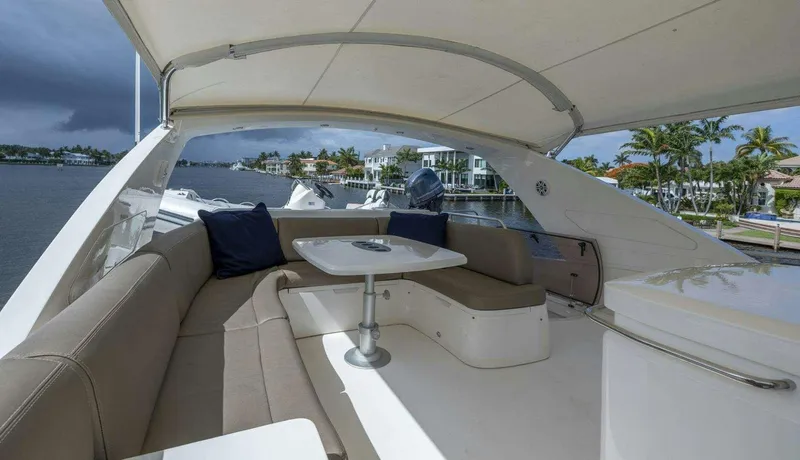

FLYBRIDGE

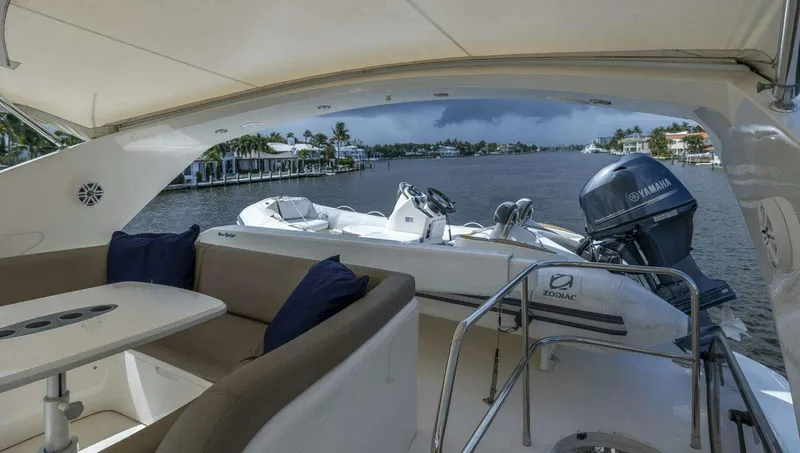

The flybridge Trinity offers a spacious and well-designed outdoor area, ideal for entertaining and relaxing. It features two custom Lebroc bound chairs for comfortable seating at the helm, ensuring a luxurious experience for the captain and co-pilot. The area is equipped with a full wet bar and a BBQ, making it perfect for social gatherings. Additionally, the flybridge accommodates a 13' RIB tender, easily accessible via the davit, providing convenient access to shore or exploring nearby waters.

CREW
Located aft, the crew cabin offers private accommodations with twin berths, storage, and an en-suite bathroom. This layout ensures that crew members have a dedicated space, separate from the main guest areas, while still being easily accessible for service. The aft location also provides convenient access to the engine room and other operational areas, enhancing the efficiency of onboard management.

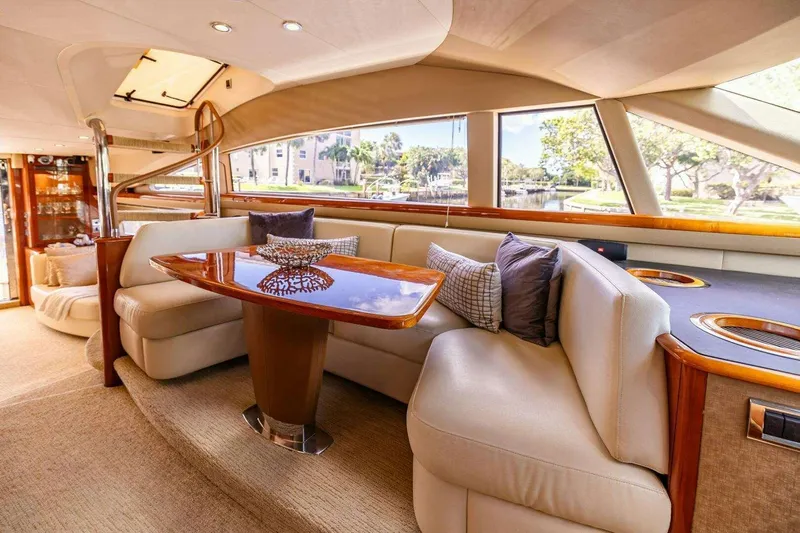

Trinity accommodates seven guests in three ensuite cabins, including a full-beam master stateroom, offering luxurious comfort. The galley is conveniently located on the main deck, complemented by a large separate dining area and a generous salon. As one of Princess's most popular models, Trinity features a spacious flybridge with a full wet bar, BBQ, and a custom $15,000 flybridge table upgrade. The yacht's modified deep V GRP hull design ensures unmatched seakeeping and performance, aided by bow and stern thrusters for easy maneuvering. A remote yacht controller simplifies docking, while the twin 1100 Hp MAN V10 diesel engines deliver speeds of up to 32 knots. A recent 1,000-hour service was completed in October 2024, and the vessel is equipped with multiple spare main engine parts and a spare AC pump for added reliability.
