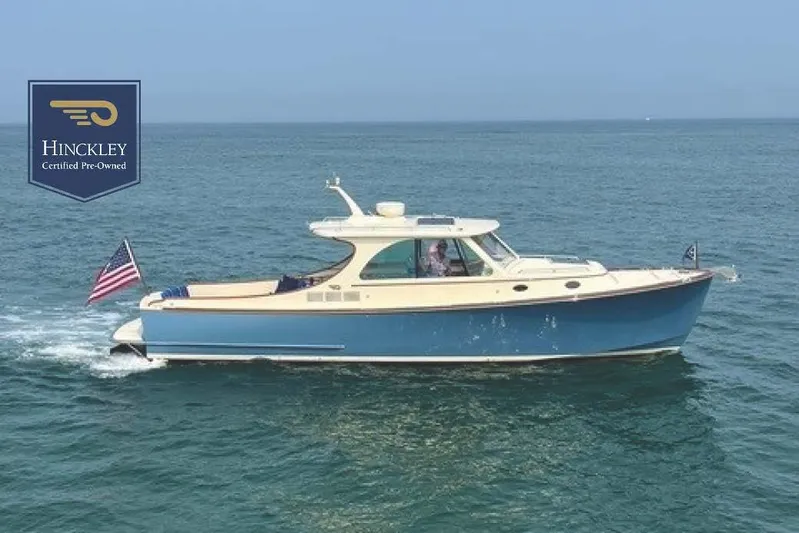

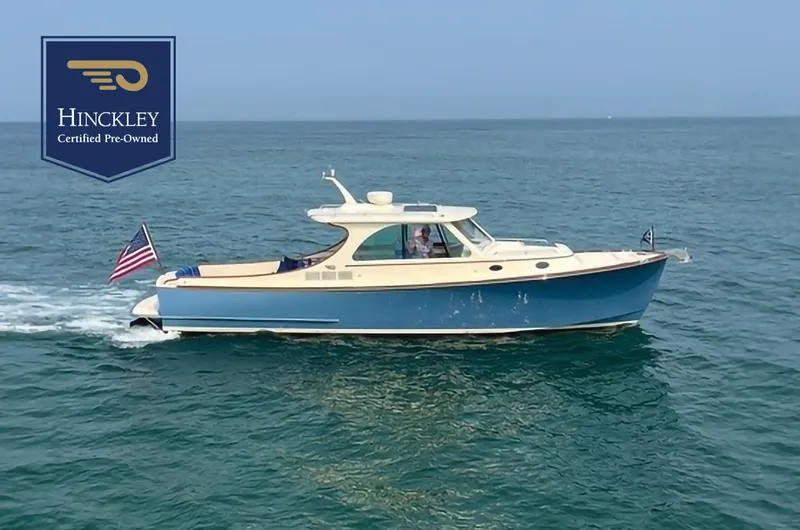

VALOR Boat for Sale

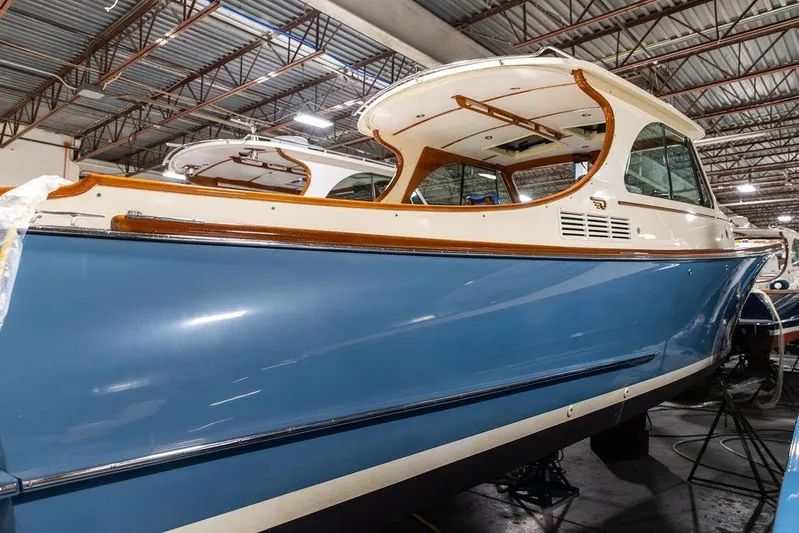

DECK & HULL: Construction of the hull is Hinckley DualGuard® Composite Construction of Kevlar E-glass hybrid outer skin with an Aircraft grade end-grain balsa core above and below the waterline and Carbon-fiber inner skin which is SCRIMP® laminated with vinylester resin.  Deck and cockpit are E-glass with closed-cell foam core, SCRIMPED with vinylester resin.

• Stars & Stripes Blue Awlgrip topsides
• Light Cream gelcoat cabin house and deck.
• Bootstripe in Awlgrip Cream
• Black bottom

• Stainless steel half round on fiberglass molded rub rail
• Hinckley designed heavy-duty fiberglass swim platform painted to match hull color with stainless steel supports and half round.

• Stainless steel telescoping 3-step folding swim ladder that stores under platform
• Stainless Steel swim handle painted to match hull color

DECK FEATURES

• Flush foredeck anchor locker with hinged hatch.
• Polished stainless steel anchor roller with 12 volt windlass.  Windlass controls at helm and hand held wireless remote.
• Rounded, tapered, varnished teak toe rail with Hinckley profile
• Varnished teak eyebrow molding around cabin house
• Stainless steel handrails on exterior.
• Three fixed ports on cabin top sides and one opening in the head.  Opening port in head has screen.
• Custom Hinckley 316L stainless steel bow chocks
• Bow, stern and 316L stainless steel mooring cleats - mid-rail easily reached from cockpit – pop-up mid ship cleats
• Fender padeyes with toe rail chafe strips
• Hinckley pilothouse with radome painted to match mast on pilothouse top.
• Two (2) oversized low profile aluminum pilothouse hatches in overhead.

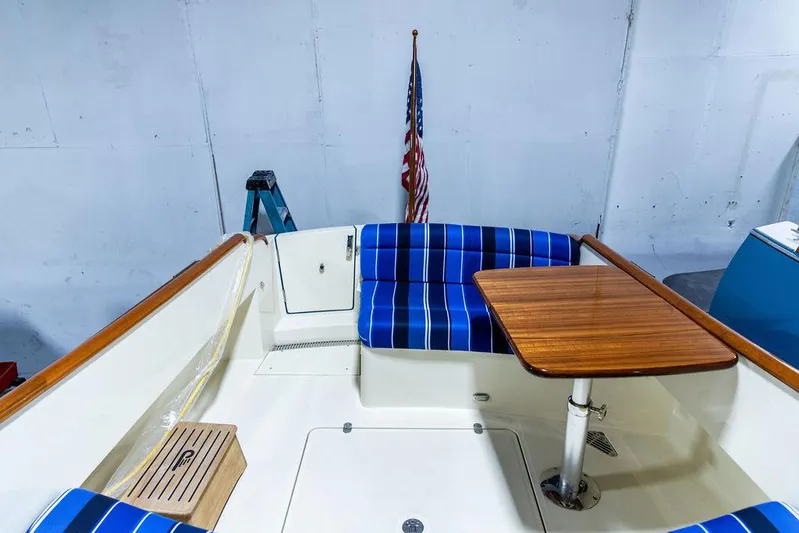

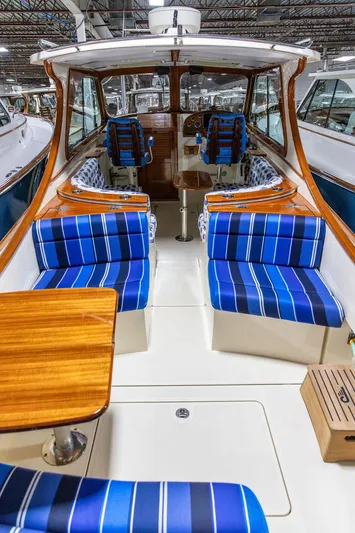

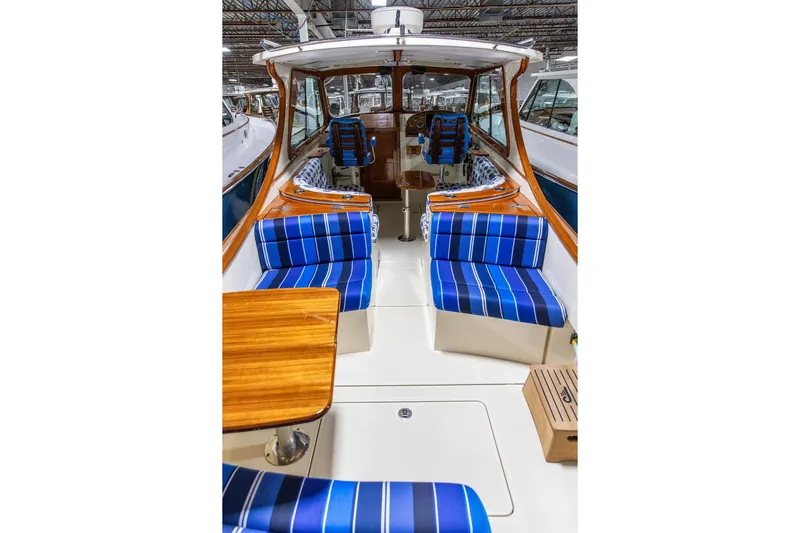

COCKPIT:

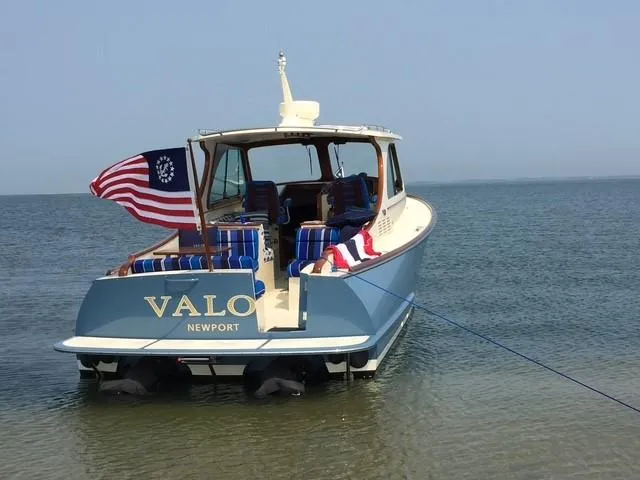

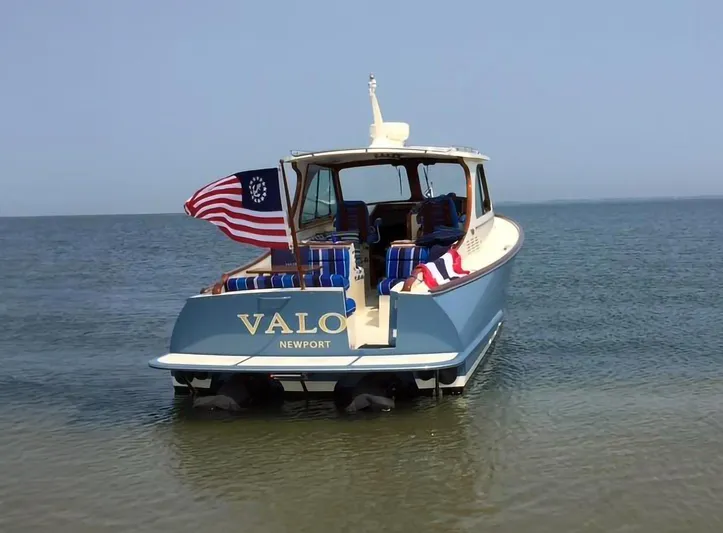

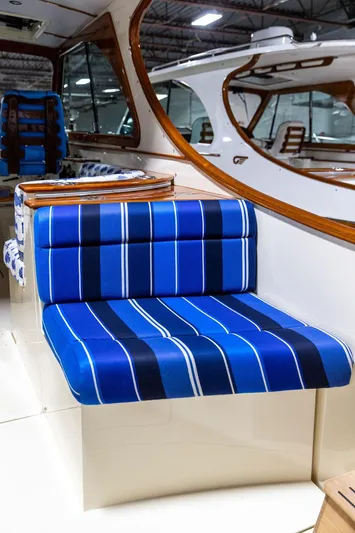

The cockpit features wonderful seating with both forward and aft facing seats. There is a transom door to provide easy access to the swim platform.

More cockpit features:

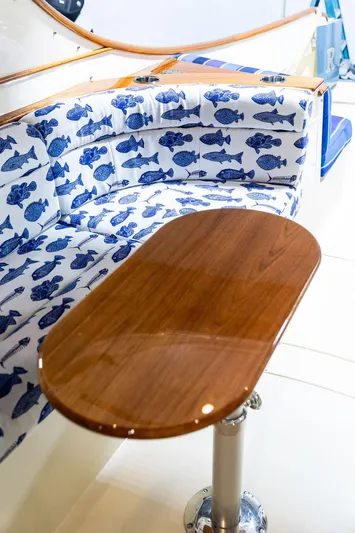

• Optional varnished teak table with removable pedestal and canvas bag

• Optional base to move table to aft pilothouse
• Starboard transom door from swim platform

• Hinckley custom built teak step box with storage to aid boarding
• Teak boarding step for port or starboard side deck
• Cockpit shower with hot and cold mixing valve at transom door
• Ample storage in seat lockers
• Optional Stamoid Cockpit Mooring cover with door and vents

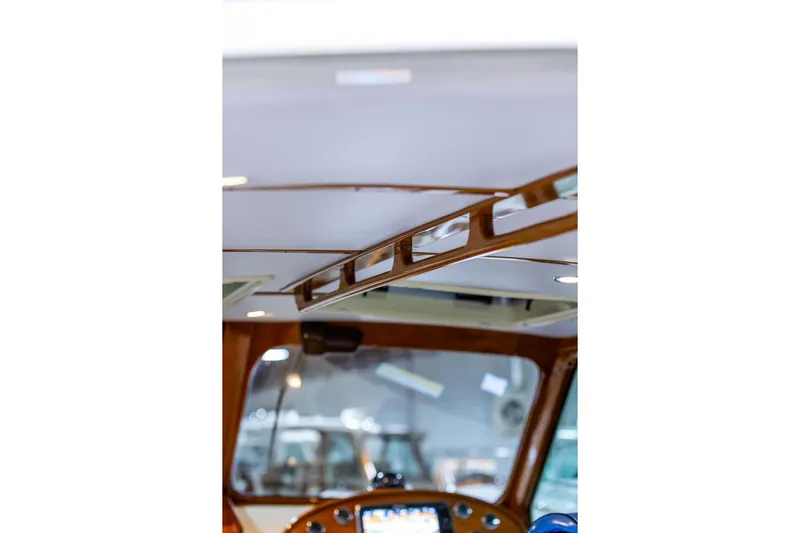

PILOTHOUSE:

• Four (4) Hinckley custom oversized frameless Stainless Steel pilothouse windows- two fixed front windows and two manual sliding side windows.
• Pilothouse front windows have heavy duty, self-parking, intermittent windshield wipers and fresh water washers
• Optional Cream window and windshield covers made of Stamoid

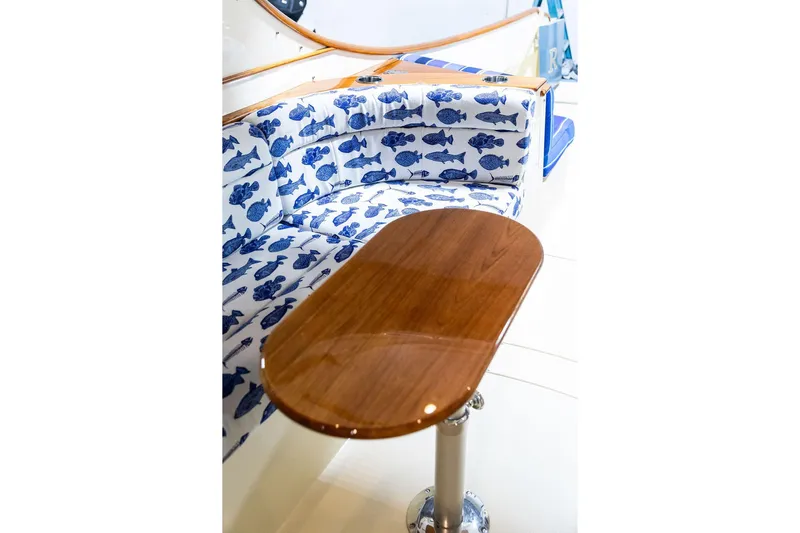

• Optional removable varnished teak drop leaf table with padded storage bag
• Custom built second Teak table that fits between seats in pilot house

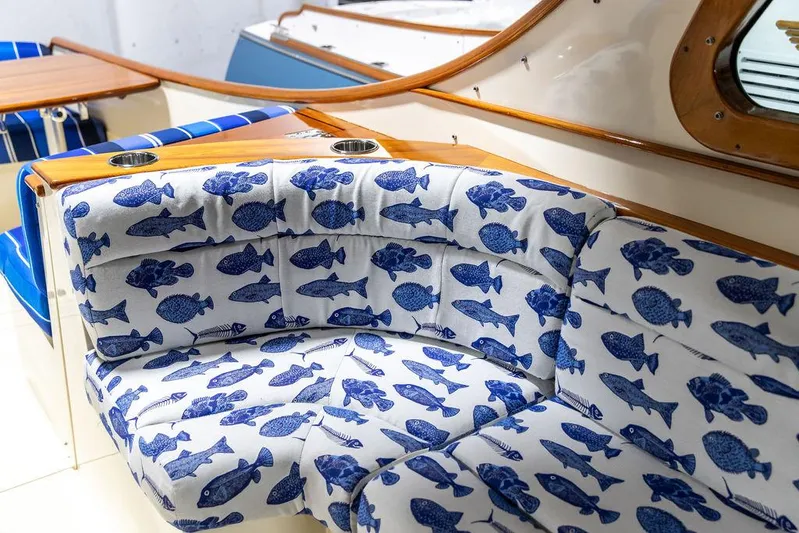

• Cushioned settees port and starboard covered in Sunbrella Solana-Seagull with piping in the same fabric
• Insulated white overhead.
• Illumination is by three (3) overhead low-voltage halogen lights on dimmers.
• Storage under pilothouse settees, port and starboard.

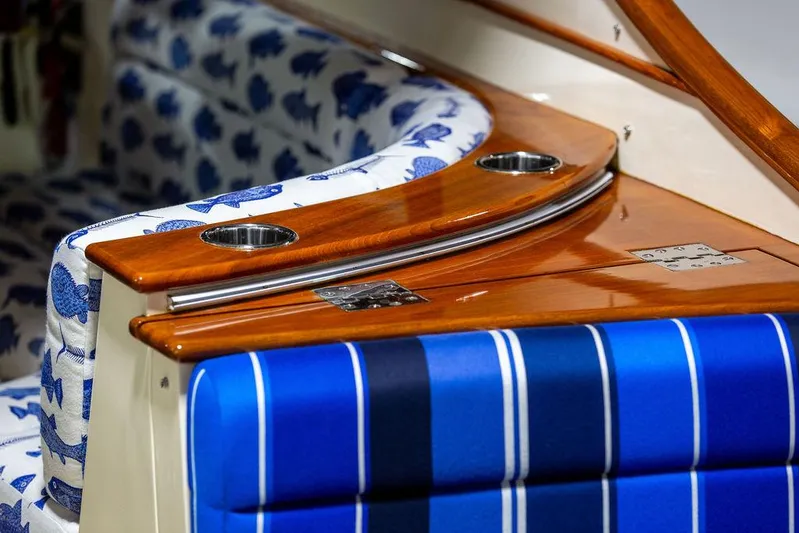

• (4)  Cup holders in the pilothouse and helm area.
• Varnished teak locking companionway door

• Interior window covers for pilothouse side and front windows made of Stamoid.

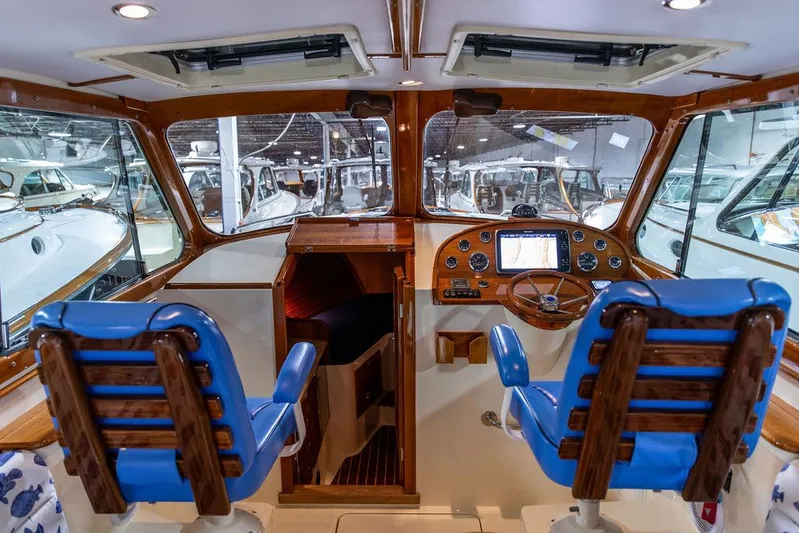

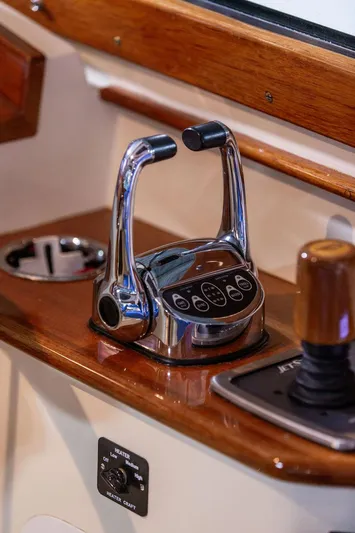

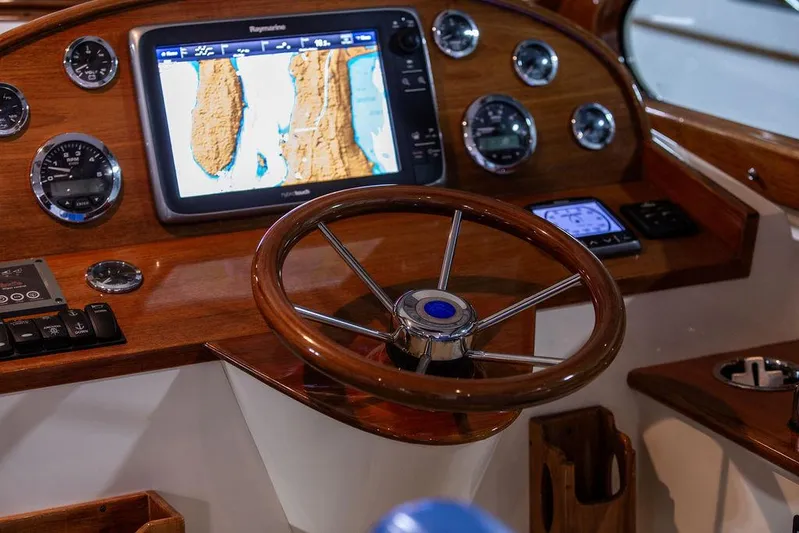

Helm Station (Starboard)

• Varnished teak instrument pod
• Stainless steel steering wheel with varnished wood rim
• Hinckley “JetStick II®” which integrates forward and aft motion, steering, and bow thruster into single joystick
• Engine gauges, tachometer with digital engine data display, oil pressure, cooling water temperature and fuel level.

Helm Electronics and Navigation Equipment

• Raymarine e-125 multifunction display at helm in lieu of standard e9 9” multifunction display.
• Display – Radar/Chartplotter/Depth Finder
• Standard Horizon VHF radio
• 4 kw digital raydome painted to match deck
• Ritchie compass
• Airmar ultrasonic wind sensor with redundant GPS antenna for navigation system, weather sensor with integrated secondary GPS Antenna, having all data relayed to the instrumentation onboard.

Entertainment Electronics:

• Clarion FM/CD/Satellite receiver ready with IPod connection in helm storage.

• 4 Clarion speakers – 2 fwd Vberth, 2 pilothouse.

ACCOMMODATIONS & LAYOUT:

INTERIOR BELOW

The interior is finished in satin-varnished cherry. The cabin sole is varnished teak and tulipwood. Louvered cherry locker doors and (5) Frigast stainless steel bulkhead lights add to the cabin ambience.

Entry is from the pilothouse companionway to the galley to port, private head to starboard and the V-berth accommodations forward.

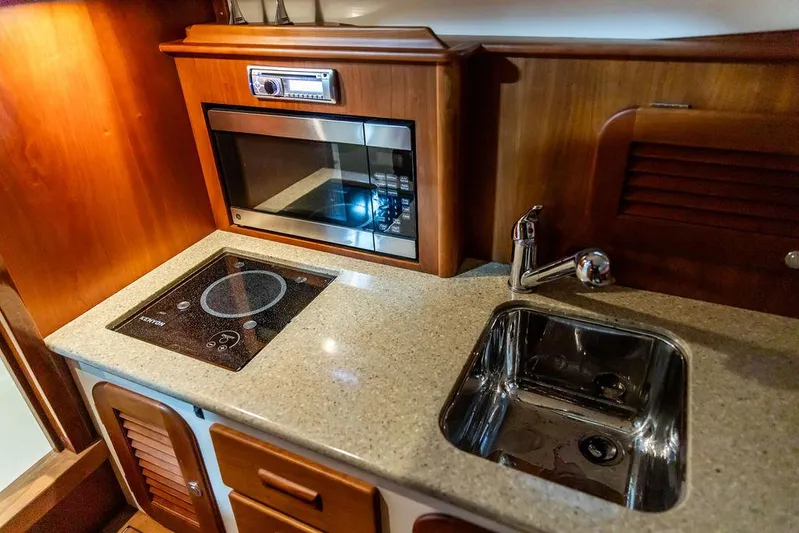

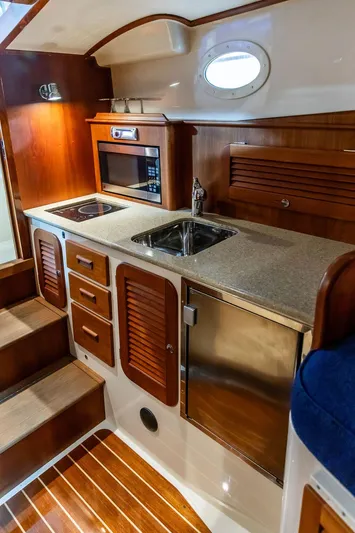

GALLEY (Port)

• Granola Corian countertop
• Single under mounted polished stainless steel bowl with Corian cover.

• Stainless steel front loading refrigerator.
• Single burner electric cook-top with Corian cover
• 110-volt microwave oven
• 110-volt outlet
• (3) Cherry pullout drawers
• Red step-light in galley
• Under counter pull-out garbage receptacle
• Additional storage is provided outboard and under the galley sink.

The stove is set in the countertop and has a Corian stove cover that adds to the already ample counter space surrounding the sink.  The sink also has a Corian cover. Microwave is built in outboard. The refrigeration is front loading.

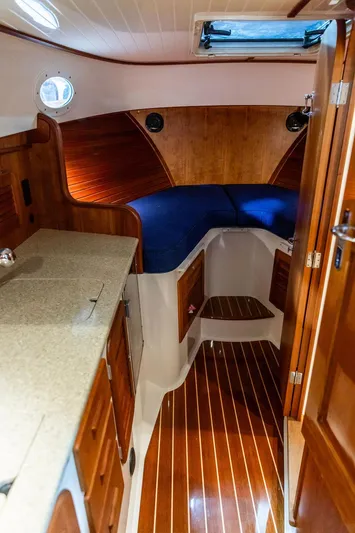

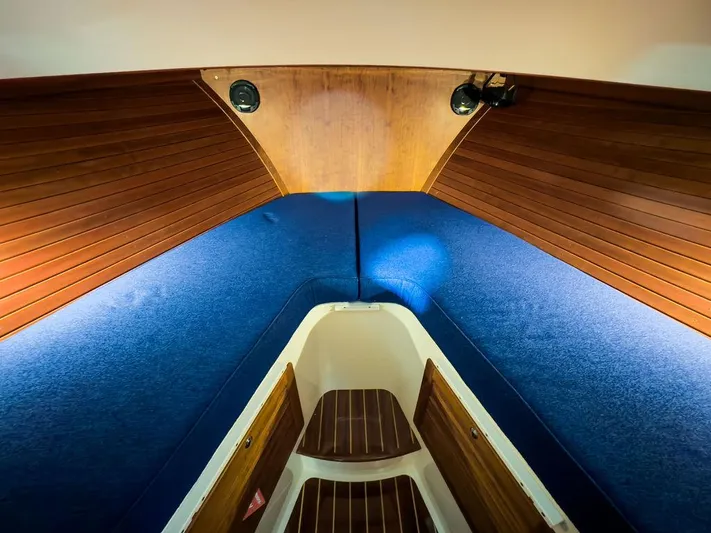

V-BERTH (Forward)

• V-berth upholstered in Sunbrella Sailcloth-Salt with Luxor piping in matching to the main helm seat upholstery.

• Storage lockers under V-berth have easy-access cherry drop-front door to port and starboard.
• Large storage compartments located mid and forward areas of the berth.

• Overhead opening hatch with screen

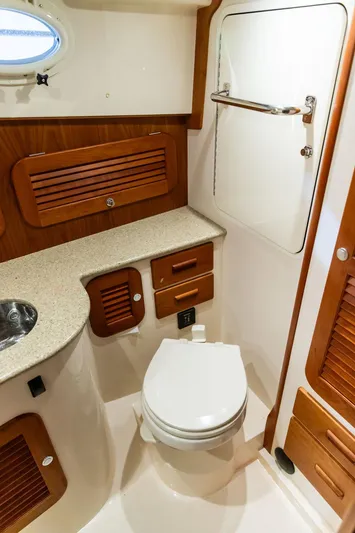

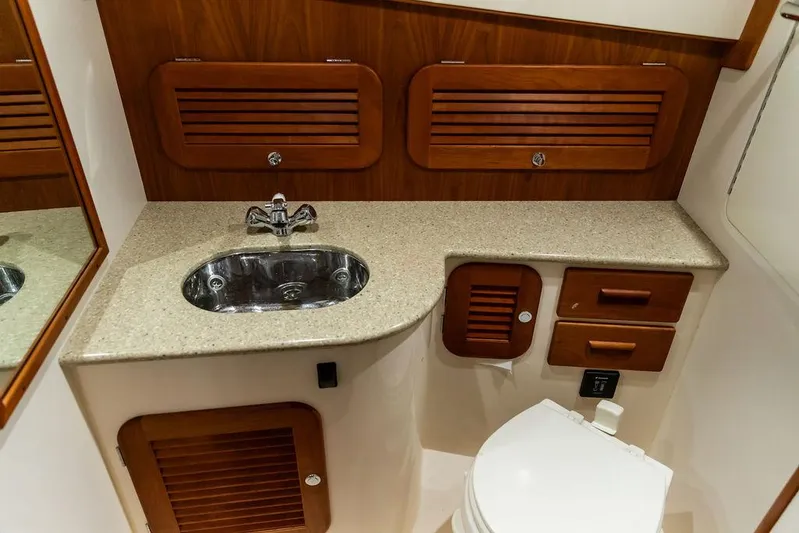

HEAD (Next aft starboard)

• Solid cherry door panel door
• Molded fiberglass sole for easy cleaning.
• Gloss varnished cherry head countertop with white porcelain sink
• Grohe faucet/hand held shower provides hot & cold pressure water – bracket for shower bulkhead mounted
• Sealand Vacu-Flush electric marine head is plumbed to a 28-gallon polyethylene integrated holding tank.
• Mirror on the forward bulkhead with cherry frame.
• Storage is provided by cherry faced lockers above and below counter.
• Opening port with screen

ELECTRICAL SYSTEM

Hinckley wired electrical system where all wires are hand labeled

Low resistance, copper wire and sacrificial zinc anode bonding system.  Zinc saver.

12-volt system:

• (2) 12-volt house batteries
• Start – Two 12-volt AGM Group 31 batteries
• House – One 12-volt AGM GPL-4DA
• Heavy-duty battery parallel switch allows emergency starting.
• Two 150 amp 12 Volt D.C. alternators, one for house batteries and one for starting batteries.
• 12-volt distribution panel using thermal-magnetic breakers with volt and amp meters.
• 30 amp battery charger for house and start banks.
• 30-amp – 110v shore power cord.

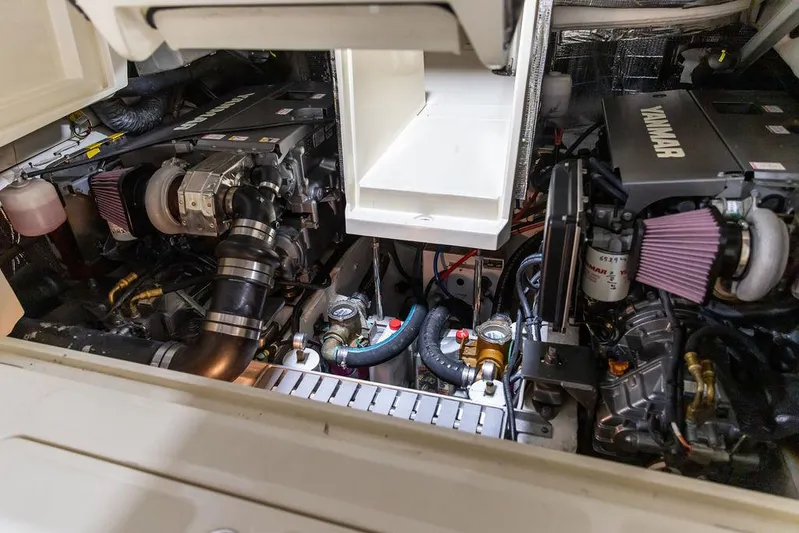

 MECHANICAL EQUIPMENT

• Twin Yanmar 6BY2-260hp common rail diesel engines
• Hamilton 242  Jet Drives
• Twin ZF 63 transmissions
• Proportional electric 7” bow thruster

• Hinckley custom “Jet StickII®” control system is integrated with the proportional electric bow thruster.
• Dual cylinder stainless steel trim tabs with indicator controls at helm
• Analog Fuel, oil pressure, and water temperature gauges.
• Alarms for high-low oil pressure, and high engine water temperature and hydraulic pressure.

• Manual hydraulic steering pump.
•  (3) Electric 1500-GPH 12-volt bilge pumps with float switches and high water alarm
• Whale emergency bilge pump - mounted in engine room and accessible through the day hatch.
• In-line 12-volt automatic shower sump pump.
• 28-gallon polyethylene holding tank with overboard discharge.
• 3-gallon stainless steel hot water heater – shore power and engine heated.
• 35-gallon polyethylene water tank.
• One 160 gallon polyethylene fuel tank.
• Mylar-faced acoustical foam-lined insulation in engine room and on bridge deck hatch.
• Engine room forced-air exhaust fan.
• Baffled and insulated air intake
• Automatic engine compartment fire suppression system, with automatic engine shut-down.

ADDITIONAL EQUIPMENT

Ground Tackle System:

• Muir electric windlass pkg:  Polished S.S. anchor roller with 12 volt windlass.  Windlass controls at helm and hand held wireless remote.



Equipment

• Varnished bow burgee pennant staff with flush socket.
• Stern mounted 4 ft. varnished teak ensign pole & flush socket.
• Dock lines
• Fenders with fleece covers
• Deck shower/water outlet with hot & cold mixing valve.
• Life jackets
• Fire extinguishers
• 12-volt air horn with switch on dash.
