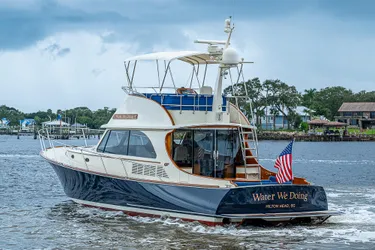

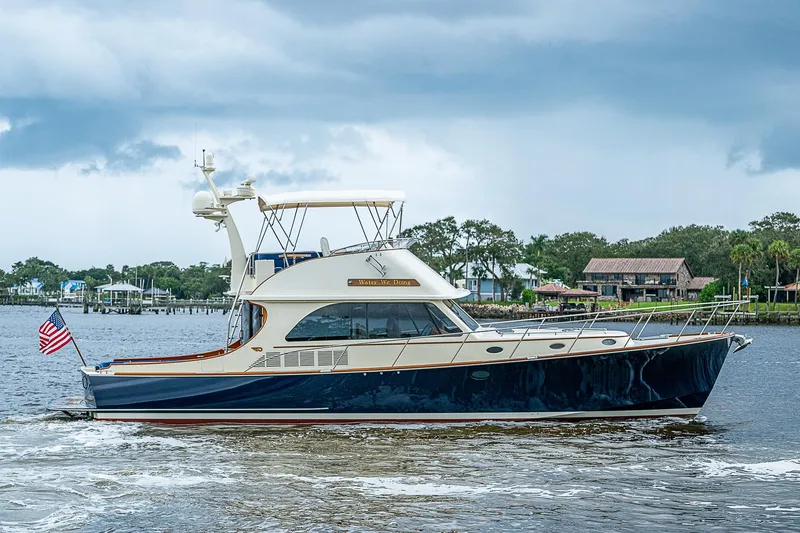

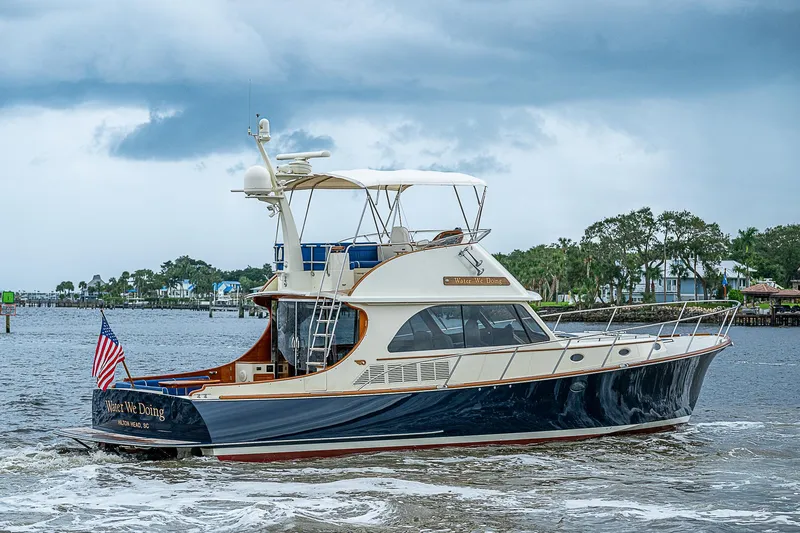

Water We Doing Yacht for Sale | 48 Hinckley Yachts Stuart, FL

INTRODUCTION:

The large Foredeck is easily accessed via port and starboard coaming gates and open side decks with mid-vessel pop up cleats and substantial stainless-steel bow rail. The stainless-steel anchor windlass mounted in the bow locker with fresh water wash down spigot and dedicated line or fender storage.

The deep Cockpit encompasses a molded L-settee to port with alfresco dining table and double seat to starboard with a walk-through transom door providing access to the swim platform for easy boarding from floating dock or dingy. Easy access to storage in all cockpit seating. Two amenities located at the sliding pilothouse doors offer refrigeration to port and icemaker with sink above to starboard.

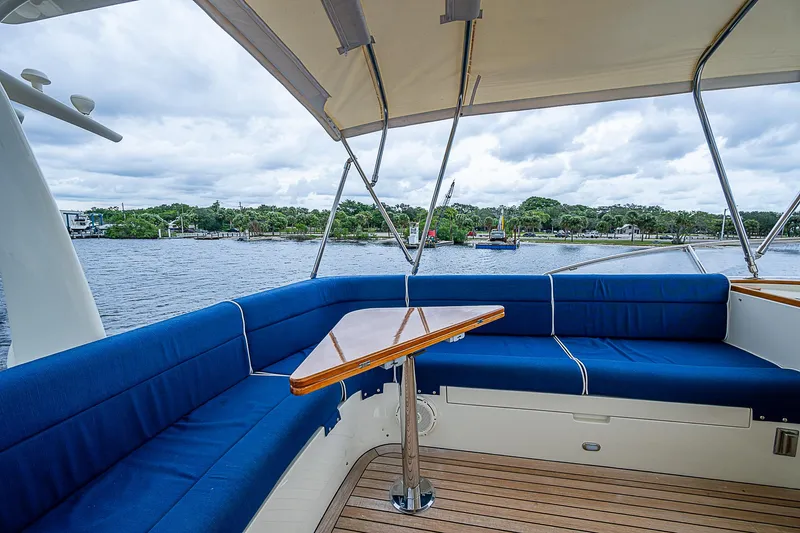

The Flybridge offers L-shaped settee with custom table with seating for up to seven with easily accessed storage throughout the settee. The custom teak table folds open to create a comfortable outdoor dining space with a large deep well fridge in the port side dash. Single Stidd helm seats with manual fore/aft adjustment compliment the full helm station and electronic suite to starboard. Custom forward windscreen keeps the upper helm area comfortable underway and removable bimini provides ample shade. The voluminous storage compartment under dash is easily accessed via access doors at dash.

The interior offers comfortable living aboard and abundant entertaining space. Generous master cabin, two full heads with showers, custom dinette/mid-cabin with privacy curtain provides a generous space to relax below which easily converts to a double bed and well laid out galley across to port. The fully equipped Helm station in the pilothouse allows for enclosed operation of vessel. Ample starboard and port seating in the pilothouse (convertible to additional sleeping accommodations) with numerous entertainment options.

HULL & DECK:

Flag Blue Awlgrip paint
Light Cream Gelcoat deck with nonskid
Red antifouling bottom paint.
Single cream boot stripe to match deck.
LED underwater lighting at the transom.

Construction:

Hinckley DualGuard® Composite Construction – Kevlar/E-Glass outer skin, Corecell M Foam core, Carbon Fiber/E Glass inner skin. Laminated with Vinylester resin using Seaman Composite Resin Infusion Process (SCRIMP). Deck is E-Glass outer and inner skin with Corecell M Foam core, laminated using SCRIMP.

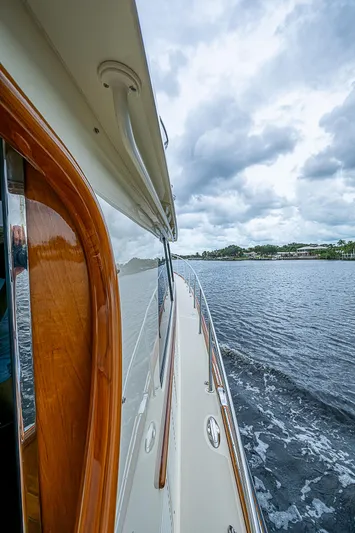

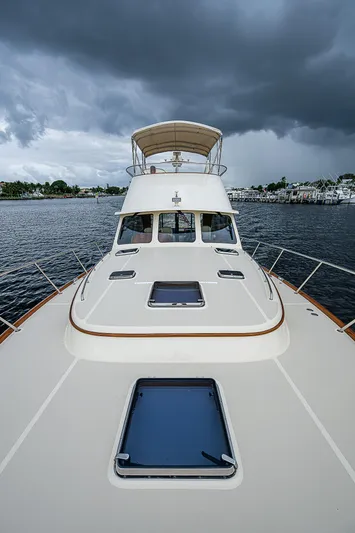

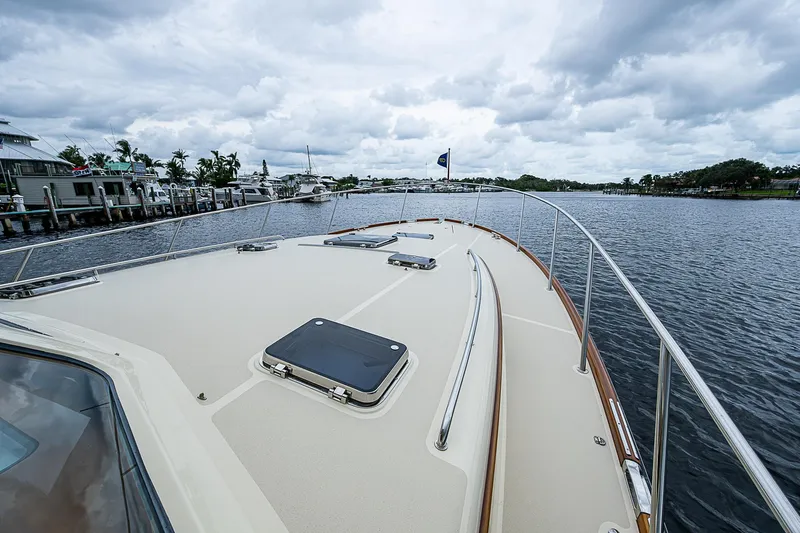

Deck Features:

Light Cream with contrasting Moon Dust paint Awlgrip non-skid
Cap rail in rounded and tapered solid varnished Teak

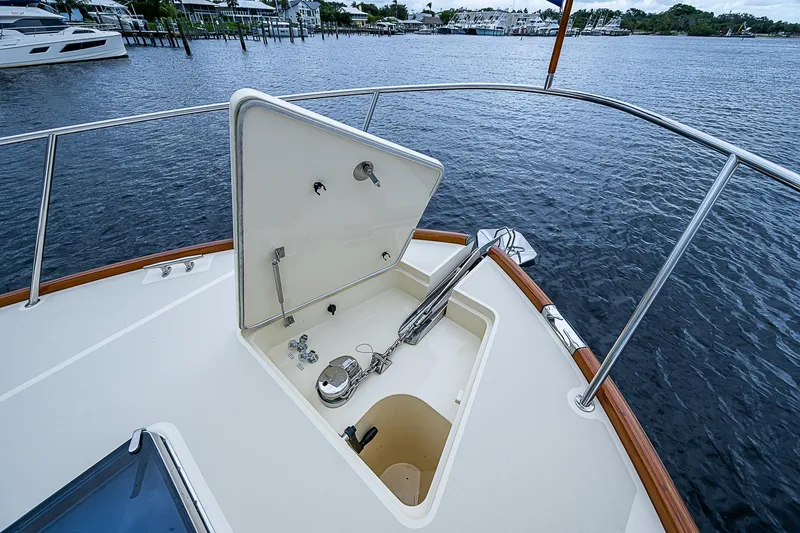

Anchor locker molded into the foredeck with gas spring assisted hatch with custom stainless steel anchor roller and fresh water wash down spigot
Stainless steel rub rail, half round on solid molding
Two open bow fairleads and four closed fairleads located fore and aft, all in 316 stainless steel
Eight stainless steel cleats, two fixed 12” 30cm, four 10” 25cm pull up spring cleats and two fixed 12” 30cm stern cleats
Varnished solid Teak eyebrow molding around cabin top
Handrails in low maintenance stainless steel tubing on forward deck. Powder coated handrails to match deck under pilothouse top
Hatches are low profile polished stainless steel with Skyscreens offering privacy blinds and insect screens
Bow rail is stainless steel 1 ¼” tubing with custom LED down lighting for additional safety at night
Custom foredeck sun pad finished in Sunbrella outdoor fabric

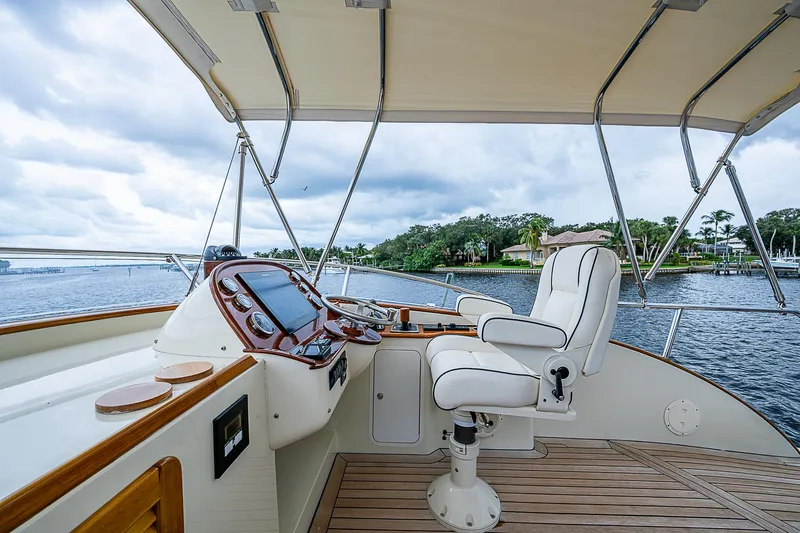

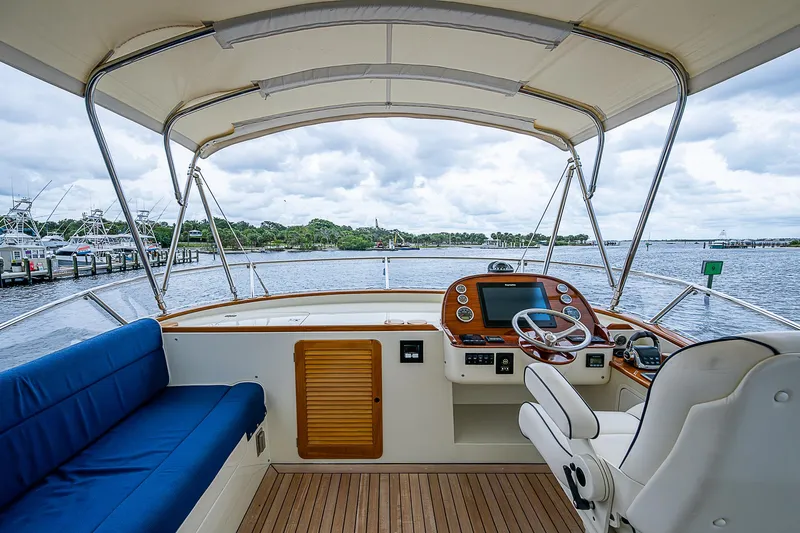

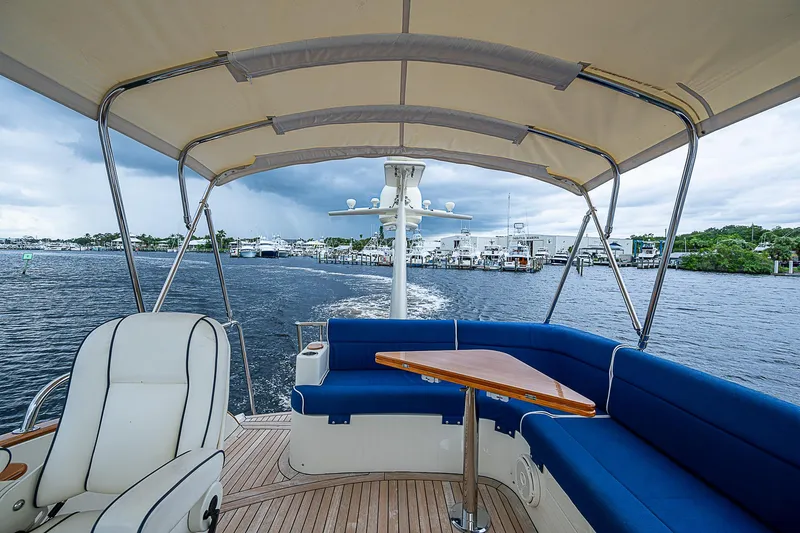

FLYBRIDGE:

Bimini with tension legs
Varnished teak package consisting of caps, helm pod and helm shelf
Teak decking with traditional black caulk seams
Varnished teak name boards port and starboard with running lights aft of name

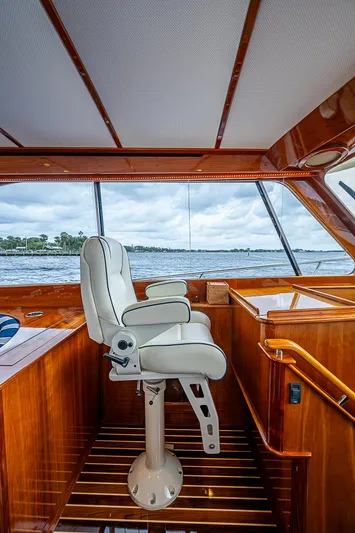

Single Stidd seats in Luxor Leather- Vellum BR01 with Br 222 Marine piping. Manually adjustment controls for up/down and powered fore/aft with pedestals powder coated to match deck color
Refrigerator in port dash
Gloss varnished folding teak table
Venturi windscreen in gray

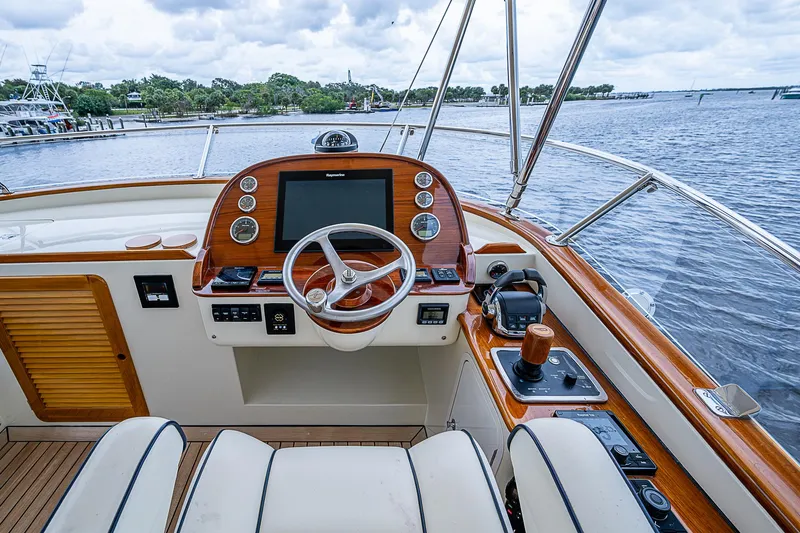

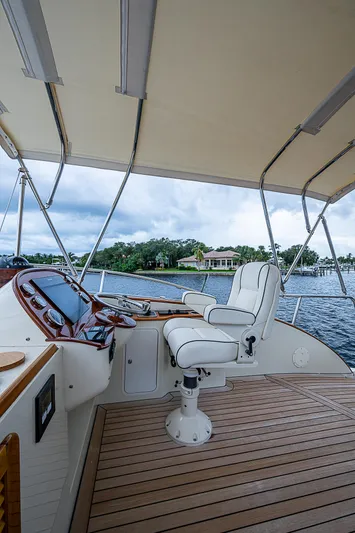

Full function upper helm with all engine and steering controls. The navigation package at the upper helm station includes JetStick II, with Heading Hold and Hover Lock, full navigational suite and VHF radio
Raymarine GS165 16” Glass Bridge multi-touch, widescreen chart plotter/sonar combo navigation display screen with full Volvo integration software
Raymarine Evolution Autopilot
Raymarine T453 Extended Range Dual -Sensor Thermal Night Vision Camera on mast
Raymarine P70 Autopilot Control Head
Raymarine 4kW 48" Open Radar Array
Raymarine CAM50 Reverse Image engine room camera
Raymarine CAM100 Day/Night Reverse Image
Marine Camera to be interfaced for viewing on yacht’s standard Raymarine navigation system
Standard Horizon MLS-310B VHF remote
Exalto Wiper Control with Washer Function
Lenco Electric Trim Tabs
Custom Carbon composite mast supporting navigation lights, aft deck flood light, horn, radar, Sat Dome, VHF and aft facing camera
Remote for ACR 100 spotlight mounted on flybridge brow
Weather covers for flybridge seating, helm seating and helm station equipment

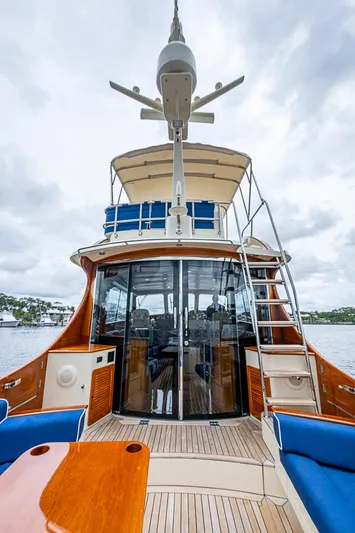

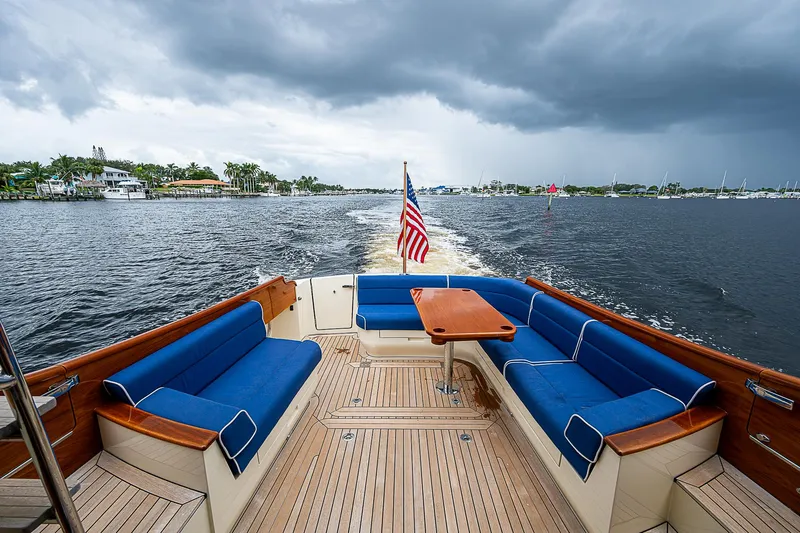

COCKPIT:

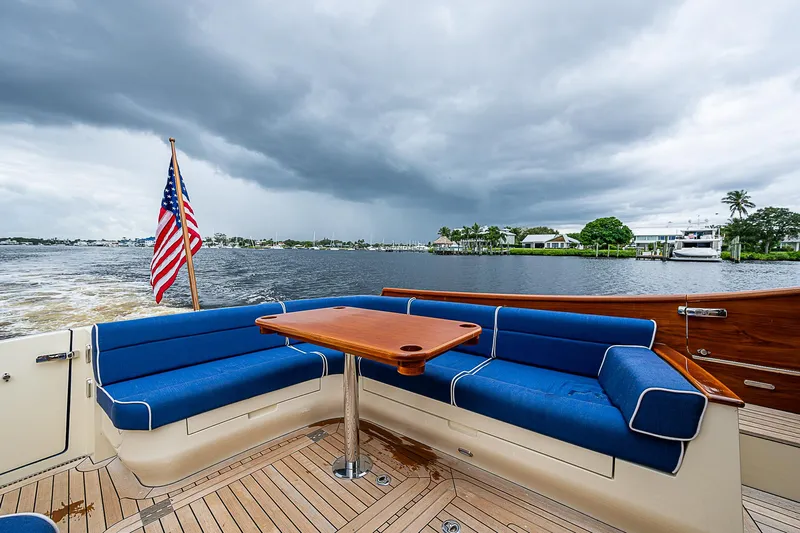

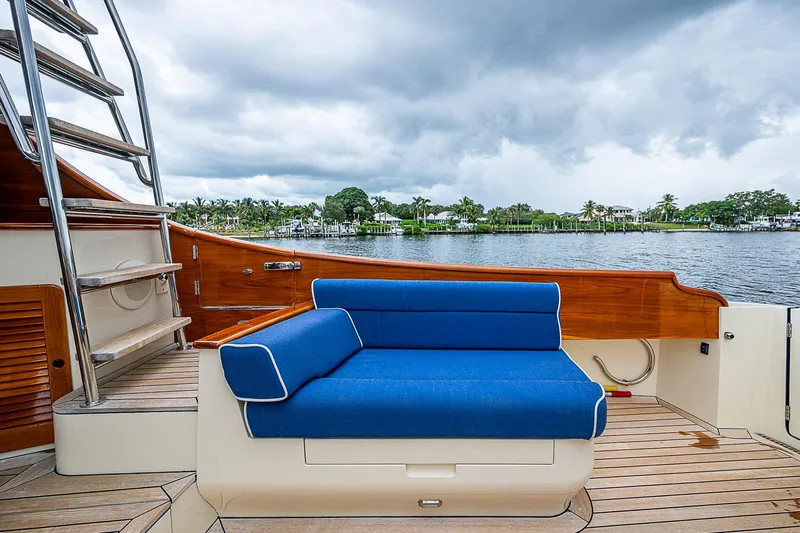

The deep Cockpit offers comfortable and generous seating with L-settee to port with dining table and double seat to starboard. The walk-through transom door provides easy access to the swim platform with swim boarding ladder.

Swim platform with teak decking inserts and Armstrong four step swim ladder
Teak decks on the cockpit and cigar decks with traditional black caulk seams
Transom walkthrough door with stainless steel magnetic latches to secure in open position
Four Mate series fishing rod and cup holders on aft and mid side decks
Molded in settee seating with storage port and starboard. Upholstered cockpit cushions in upgraded outdoor rated fabrics
Icemaker in starboard amenity
Refrigerator in port amenity
Cockpit shower with hot and cold water
Side boarding doors port and starboard with stainless steel magnetic latches to secure in open position

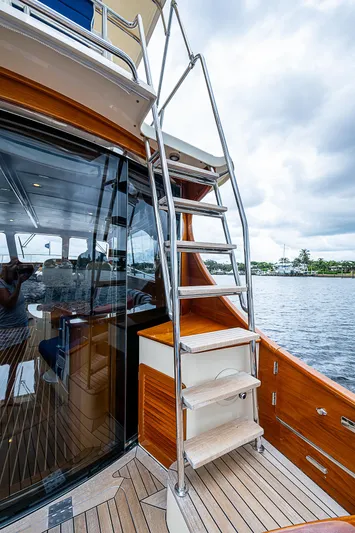

Stainless steel ladder to flybridge starboard side, aft of amenity
Fresh water deck wash in cockpit
City water inlet in shore utility locker at port transom
Weather covers for cockpit seating
Full mooring cover for cockpit
Ensign staff holder

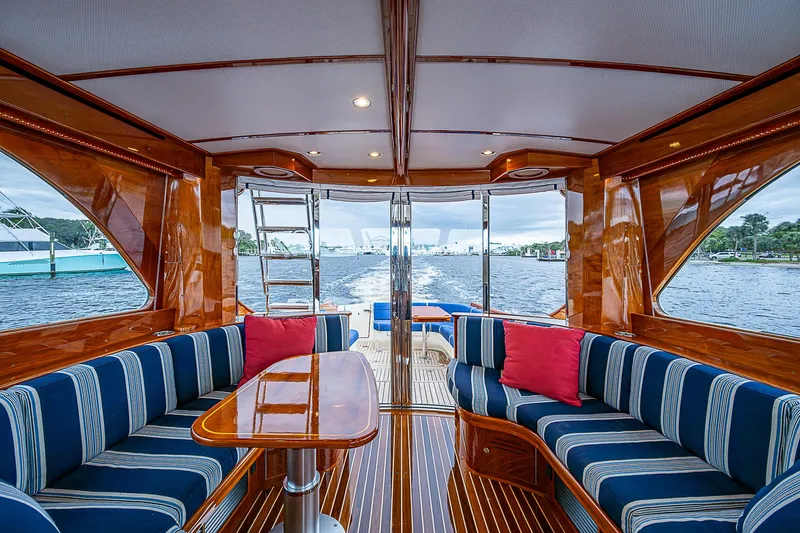

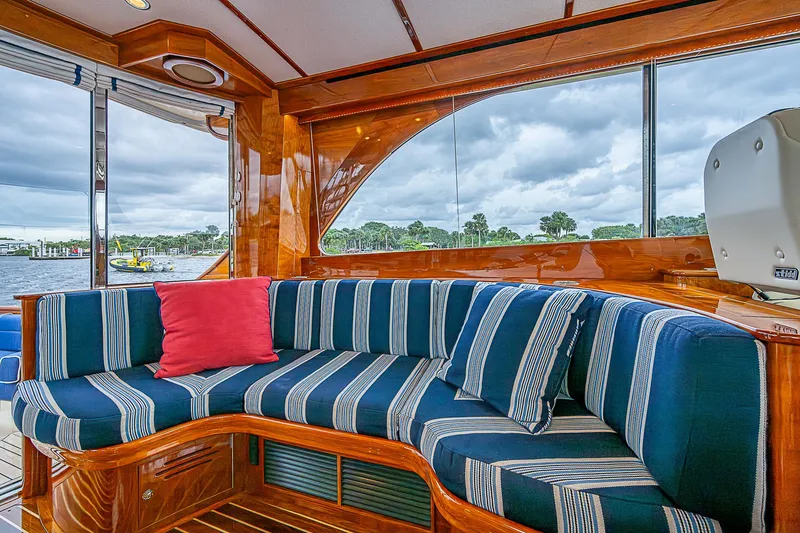

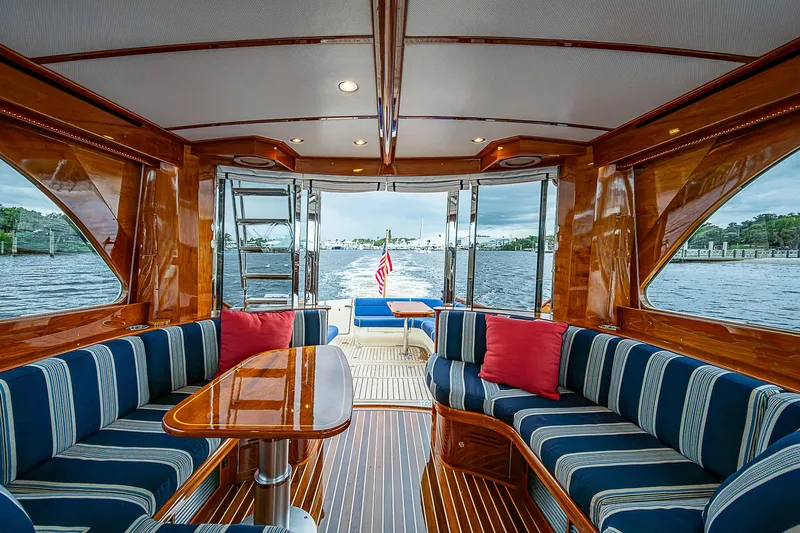

PILOTHOUSE:

Cherry wood finished in high gloss varnish throughout
Cherry cladding on vertical surfaces in high varnish gloss
Varnished Teak and Tulip wood sole in high gloss
Rubber backed floor covers for sole
Overhead handrail

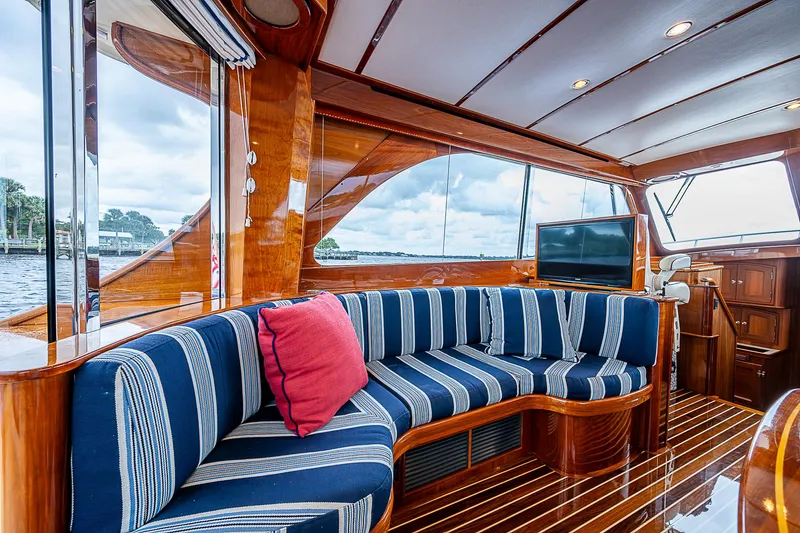

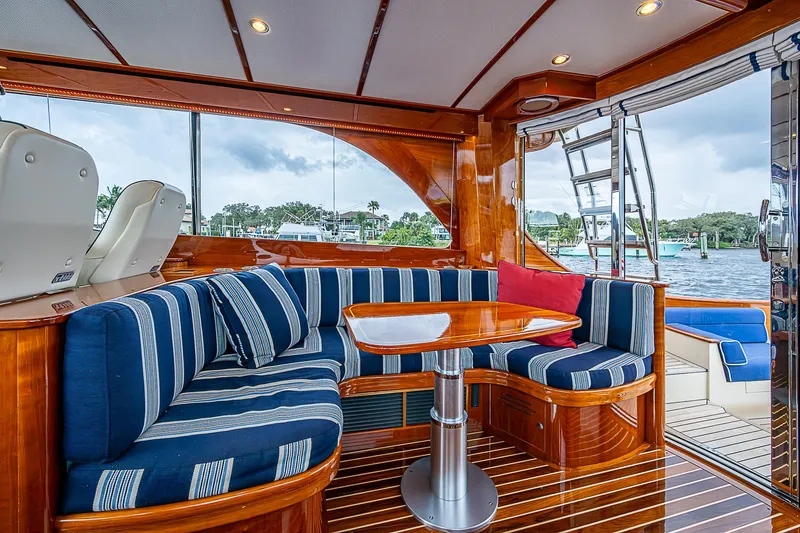

Settee to port and starboard in upgraded fabrics. Storage underneath
Saloon table - with hi/low pedestal for conversion from dining height to berth
Custom Lowe elliptical twist lock latching hardware stainless-steel door and drawer pull hardware throughout pilothouse and salon
Retractable TV forward of port salon side table.
Upgraded swing arm lamp fixtures at pillars either side of salon aft doors
Powered privacy shades for port and starboard side windows
Adjustable roman blinds for privacy at door/aft enclosure
Entertainment system speakers are all dressed with gloss varnished cherry trim rings with cloth
Custom chart table with built in storage forward of port helm seating with gooseneck lamp
Three (3) Pilothouse Stidd seats on power coated bases with manual (up/down/fore/aft) to the twin starboard helm seats
Custom warm white dimmable LED strip lighting at upper valences and starboard settee seat base

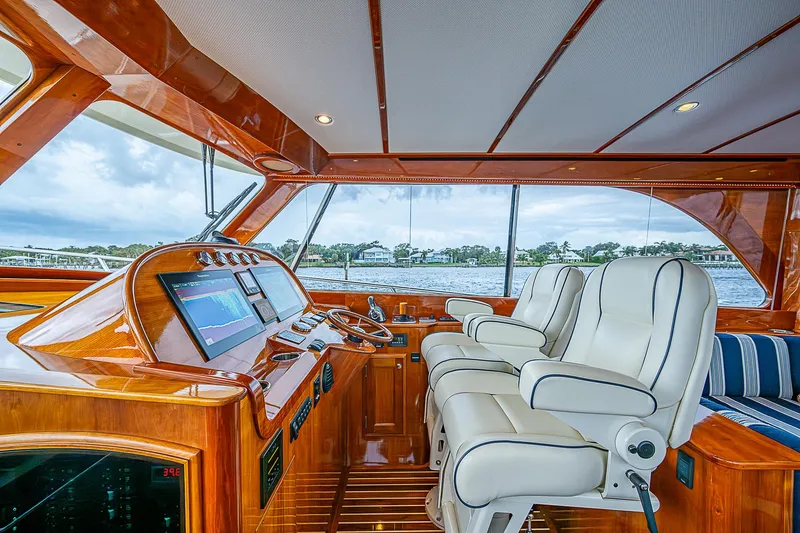

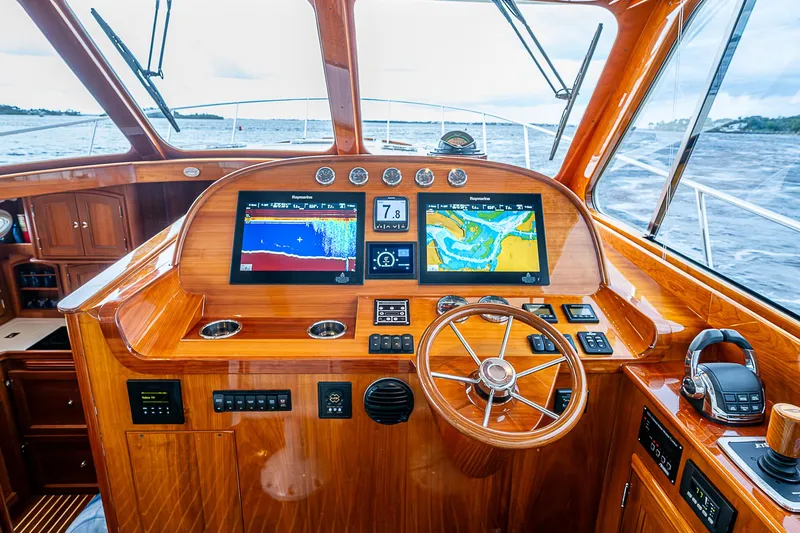

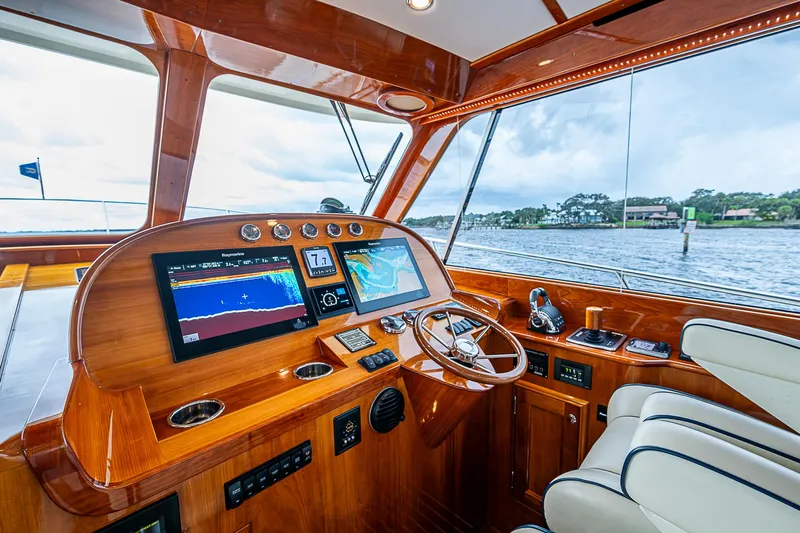

Helm Station:

Two (2) Stidd seats on powder coated bases to starboard with footrests and manual fore/aft/up/down for both helm seats
Upgraded Volvo 7” engine display
Varnished steering wheel with stainless steel spokes
Cupholders, USB charging and outlets outboard of helm seating
Custom chart locker forward of passenger seating with additional 110v and 12v outlet
Cupholders, USB charging and outlets outboard of passenger seating
Vessel DC breaker panel and voltage meters to starboard
Vessel AC breaker panel and shore/generator selector switches to port helm

NAVIGATION and ELECTRONICS:

Raymarine GS Navigation Package:

- (1) Raymarine GS165 16” Glass Bridge multi-touch, widescreen chart plotter/sonar combo navigation display screen at flybridge.
- (21) Raymarine GS165 16” Glass Bridge multi-touch, widescreen chart plotter/sonar combo navigation display screen at lower helm
- Raymarine Evolution Autopilot
- Raymarine T453 Extended Range Dual -Sensor Thermal Night Vision Camera on mast
- Raymarine P70 Autopilot Control Head
- Raymarine 4kW 48" Open Radar Array
- Raymarine CAM50 Reverse Image engine room camera
- Raymarine CAM100 Day/Night Reverse Image
- Raymarine CP300 ClearPulse Sonar module with 1kW B164 thru hull transducer networked to the yachts Raymarine Navigation system
- Raymarine standalone DT800 Smart Depth/temperature sensor for dedicated depth reading
- (2) Raymarine RMK-9 Remote Multifunction Display Keyboard, located on each outboard helm shelf
- Standard Horizon MLS-310B VHF with remote mics at upper and lower helm stations
- (1) SiriusXM Weather and Radio
- Raymarine Axion+ 7” multi-function display integrated to the FLIR thermal cameras at mast and engine room
- Raymarine T453 Extended Range Dual-Sensor Thermal Night Vision Camera
- Exalto Wiper Control with Wash Function
- Lenco Electric Trim Tab Control
- Seakeeper Display (at upper and lower helm)
- Remote for ACR 100 spotlight mounted on flybridge brow
- All antennas and radar are painted in Awlgrip to match the deck color

(2) Danforth 5” compass – Flybridge and pilothouse helms
Aft facing camera mounted on mast and interfaced to all navigation displays

ENTERTAINMENT ELECTRONICS:

Nuvo integrated entertainment system with separate zones and (5) separate remotes
Nuvo remotes mounted in master cabin, mid-cabin, salon, cockpit and flybridge
Premium speakers throughout with custom varnished cherry rings with fabric to dress the speakers
Wireless Network for Yacht, dual band Wi-Fi and Cellular data
TV monitor, 32” LED on electric lift in pilothouse
TV monitor, 32” LED mounted at lower dinette

ACCOMMODATIONS BELOW:

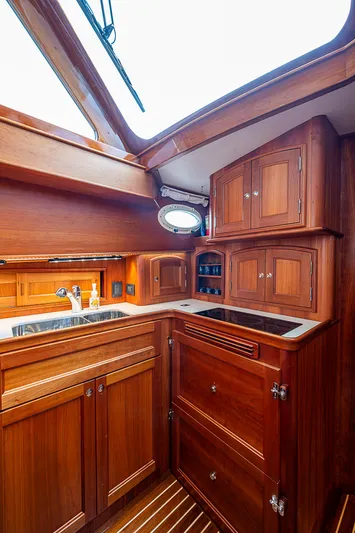

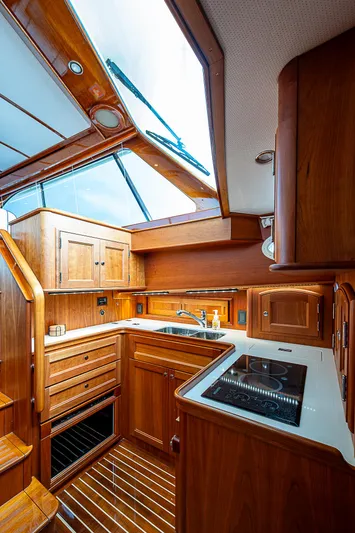

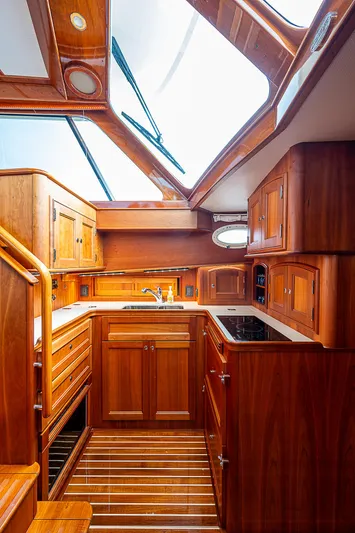

Galley:

Varnished cherry wood finish throughout
Galley counters in Corian- Bisque with varnished cherry fiddles and no back splash with stainless steel sink
Custom upper storage cabinet with raised panels and doors. Cabinet mounted on forward bulkhead in galley about the countertop
Kenyon electric 2 burner cooktop with touch control
Refrigerator, U-Line 2 drawer
Hinckley custom insulated freezer/refrigerator with digital thermostat
Grohe faucets single lever for galley sink
Custom (2) four drawer storage system in galley aft to maximize storage with drawer microwave below
Galley steps hinged with lift ups for extra storage beneath
Custom storage built into companionway steps
Custom storage added below galley floor
Custom warm white dimmable LED strip lighting beneath the side decks and over the galley countertop
Additional LED task lighting throughout galley

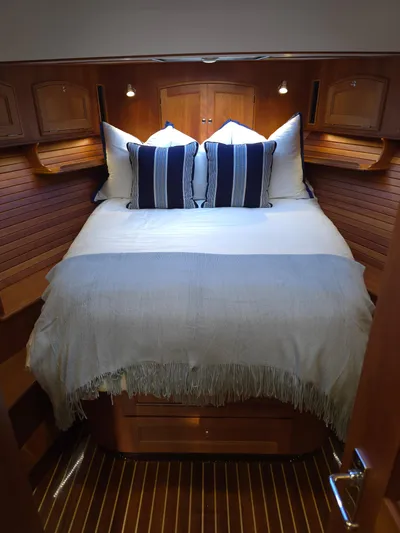

Master Stateroom:

Master cabin features a centerline queen berth with ample locker, drawer and shelf storage.

Varnished cherry highlights throughout master to include all drawer fronts, doors, window trim, baseboards, bulkhead trim, corner posts, moldings, overhead battens and fiddles
Queen sized Handcraft System 5 inner spring mattress with fabric hinge
Custom warm white dimmable LED strip lighting below master birth in toe kick area
Custom access to storage below hinged mattress via gas strut assisted lid with integral hinges
Small safe located in storage area below master bed
Hanging lockers port and starboard larger than standard for extra storage
Custom nightstand shelves installed to port and starboard outboard with outlets above
Custom storage in master cabin lower step via opening lid on step port and starboard
Custom fiddles added to the tops of all lockers for additional storage
Custom divided hanging locker port and starboard, shelves aft with hanging forward
Sheer lockers port and starboard forward of hanging lockers
All doors secure open via magnetic catches

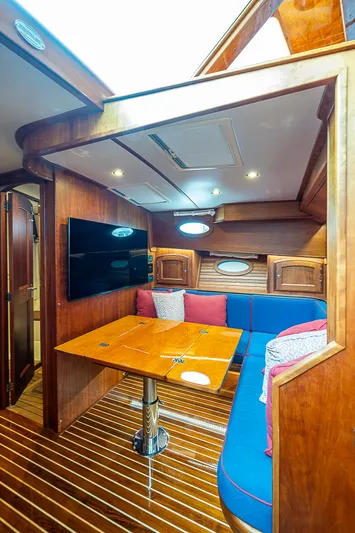

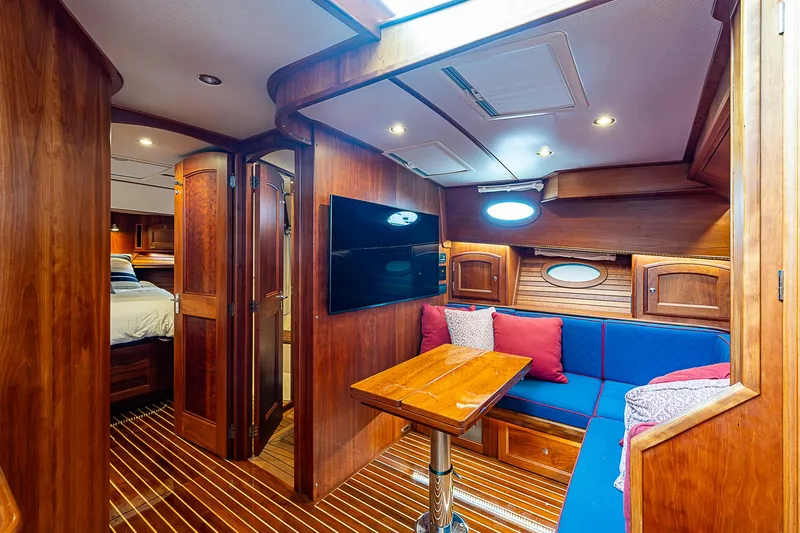

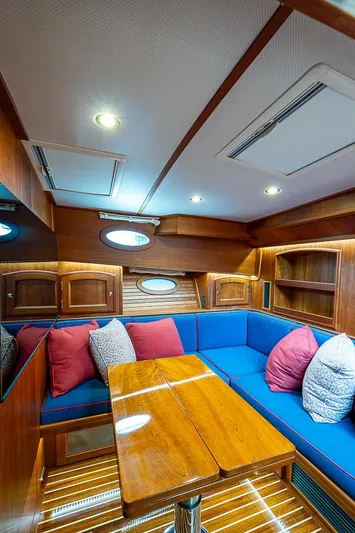

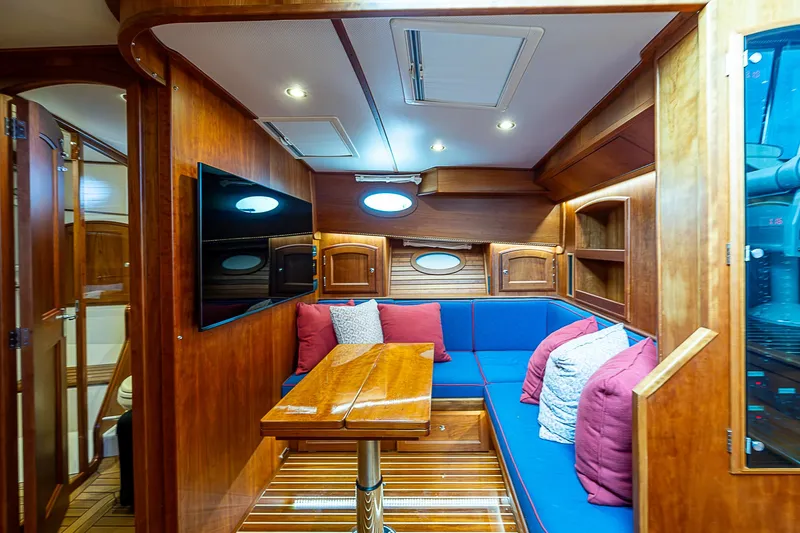

Dinette / Guest Cabin:

Varnished cherry highlights throughout master to include all drawer fronts, doors, window trim, baseboards, bulkhead trim, corner posts, moldings, overhead battens and fiddles
L-Settee dinette with hi-low table for conversion to double berth
Custom slide on the bottom of the table allows the table to function as a coffee table in the low position
Cabin space closes off via custom privacy curtain
Hanging locker at forward end of settee for guest storage
Custom warm white dimmable LED strip lighting below settee rails of the dinette
TV monitor, 32” LED bulkhead mounted mid-cabin/dinette
Custom storage is built into settee via drop from locker at the forward outboard section of the settee
Flush non-opening hatch provides additional natural light with Skyscreen privacy blind
Additional outlets

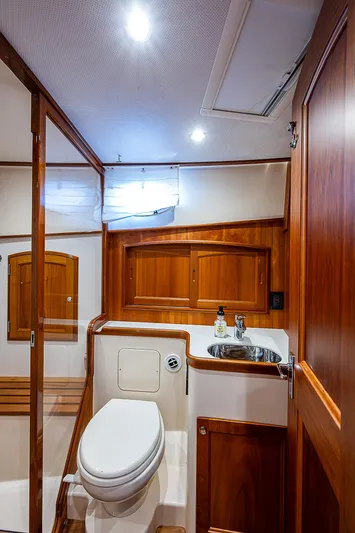

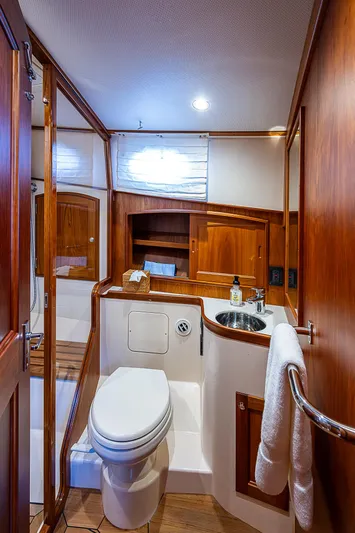

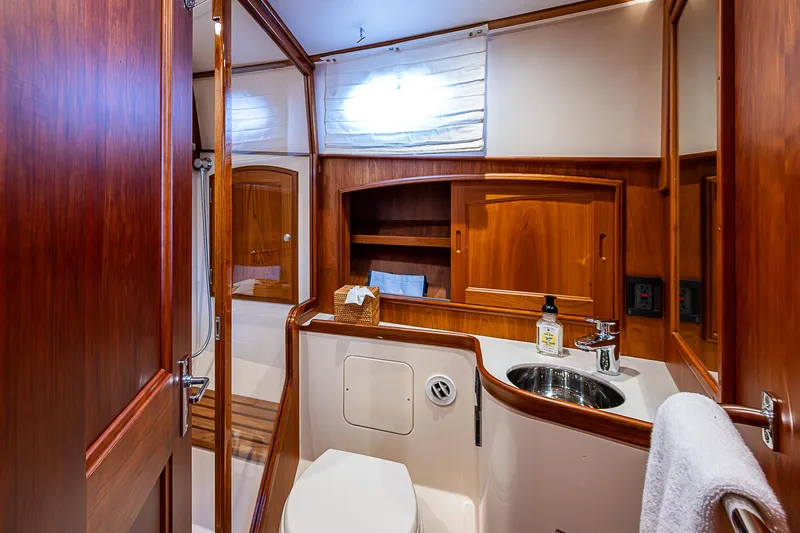

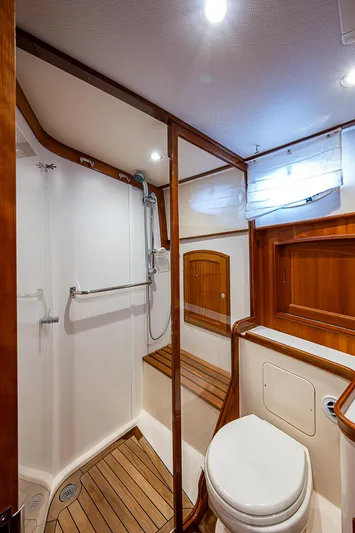

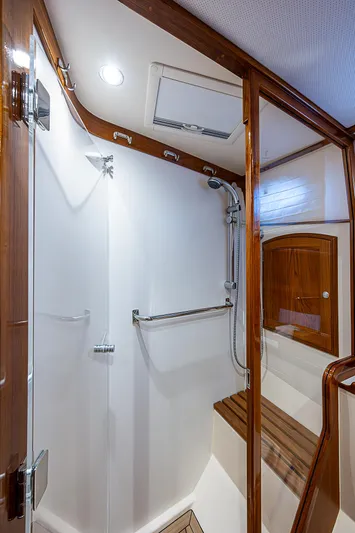

Guest and Master Heads:

Each head with full showers, easily accessed via passageway, and classically appointed with cherry countertops and high gloss varnish finish. Custom teak grating in both shower master and guest shower pan.

ELECTRICAL:

Four Lifeline 8D AGM house batteries
Two Lifeline 4D AGM start batteries with parallel switching
Heavy duty battery switches for both port/starboard engine starting
Mastervolt inverter/charger 4000 Watt
60A battery charger for starting bank
Dimmer switches for all lights except showers
100VAC outlets throughout the cabins
Two cigarette lighter type outlets at helm
Aft underwater LED lights
Three heavy duty self-parking windscreen wipers
Aft facing security camera mounted on flybridge
Nuvo audio system
Generator upgraded to Onan 17.5KW with double noise reduction mounts, 1150 hours

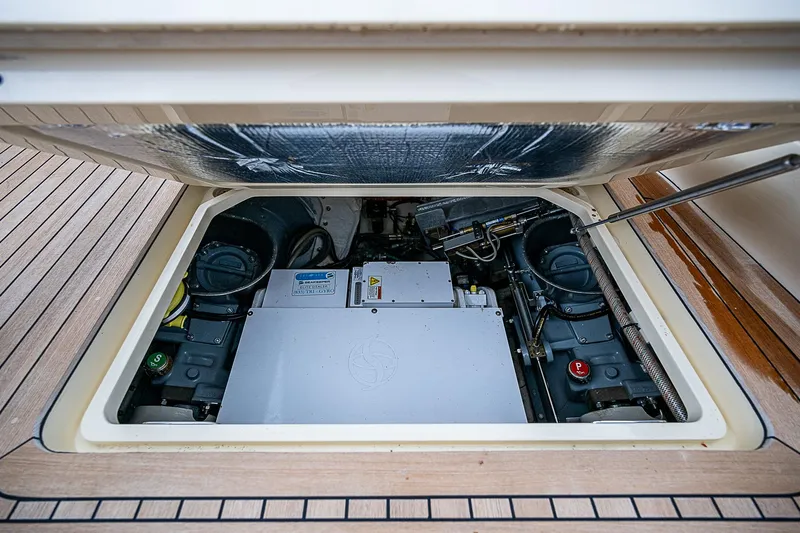

MECHANICAL:

Twin Volvo D12 800HP common rail Diesels with Dual Racor system, 730 hours
Twin Hamilton HJ364 Jet Drives
Hinckley JetStick II® with Heading Hold and Hover Lock at both flybridge and pilothouse helm stations
Wireless remote handheld JetStick
ZF Transmission with reverse gear enabling back flush
Seakeeper gyro stabilization system, 400 sea hours of operation
Dual raw water strainers for main engines
Chilled water air conditioning system with three independently controlled zones
Sidepower hydraulic bow thruster, proportionally controlled
Dual cylinder stainless steel trim tabs with indicating controls at helm
Alarms for low engine oil, high engine water temperature, high bilge level, fuel filter water detection and hydraulic oil pressure
Volvo digital monitoring displays for each engine

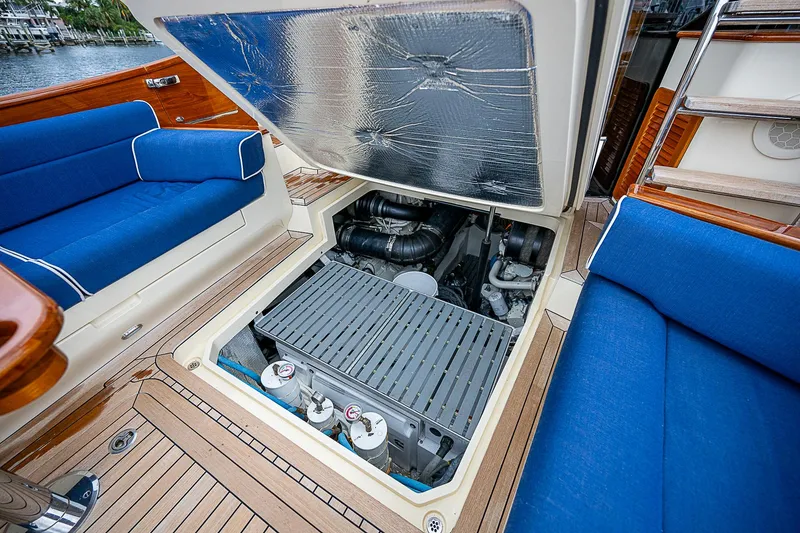

Electric lift for engine bay access
Hydraulic windlass, controlled at bow, and both pilothouse and flybridge helm stations
Automatic fire extinguisher system with automatic engine shutdown
Two Glendenning shore power cords with remote controls
Reverse-cycle heating system

PLUMBING:

Full boat water filtration system, 3M WV-B2 filtration system installed at freshwater pump
Hot and cold pressurized water system at galley, showers, heads and cockpit shower
17 gallon stainless steel hot water tank, heated electrically and engine heat transfer
(2) Sealand Vacuflush marine toilets with deck pump out and overboard discharge
Holding tank total: 62 US gallons, two tanks - one for each head
Sump pumps with automatic float switches for showers and aircon condensate
(3) Rule 3700-gph pumps with float switches
Whale emergency manual bilge pump
Non-metallic composite thru-hull valves
Flo-Jet pressure pump
Freshwater washdown in anchor locker
Freshwater washdown in cockpit
