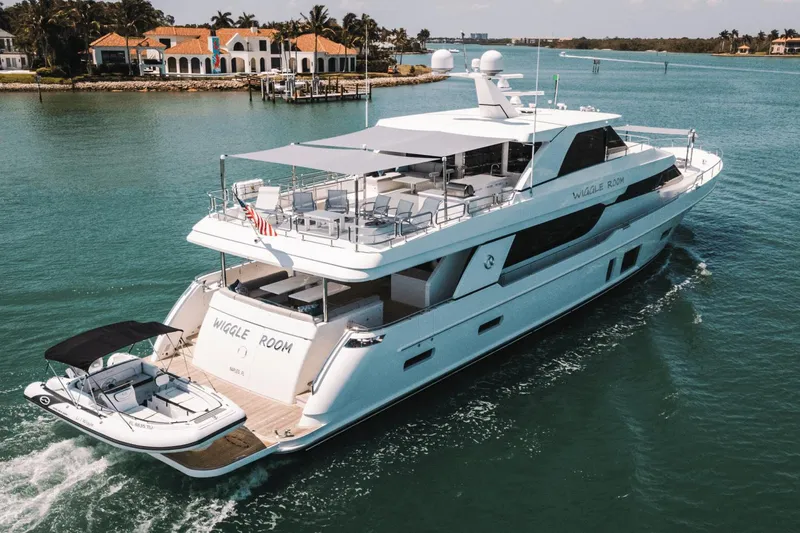

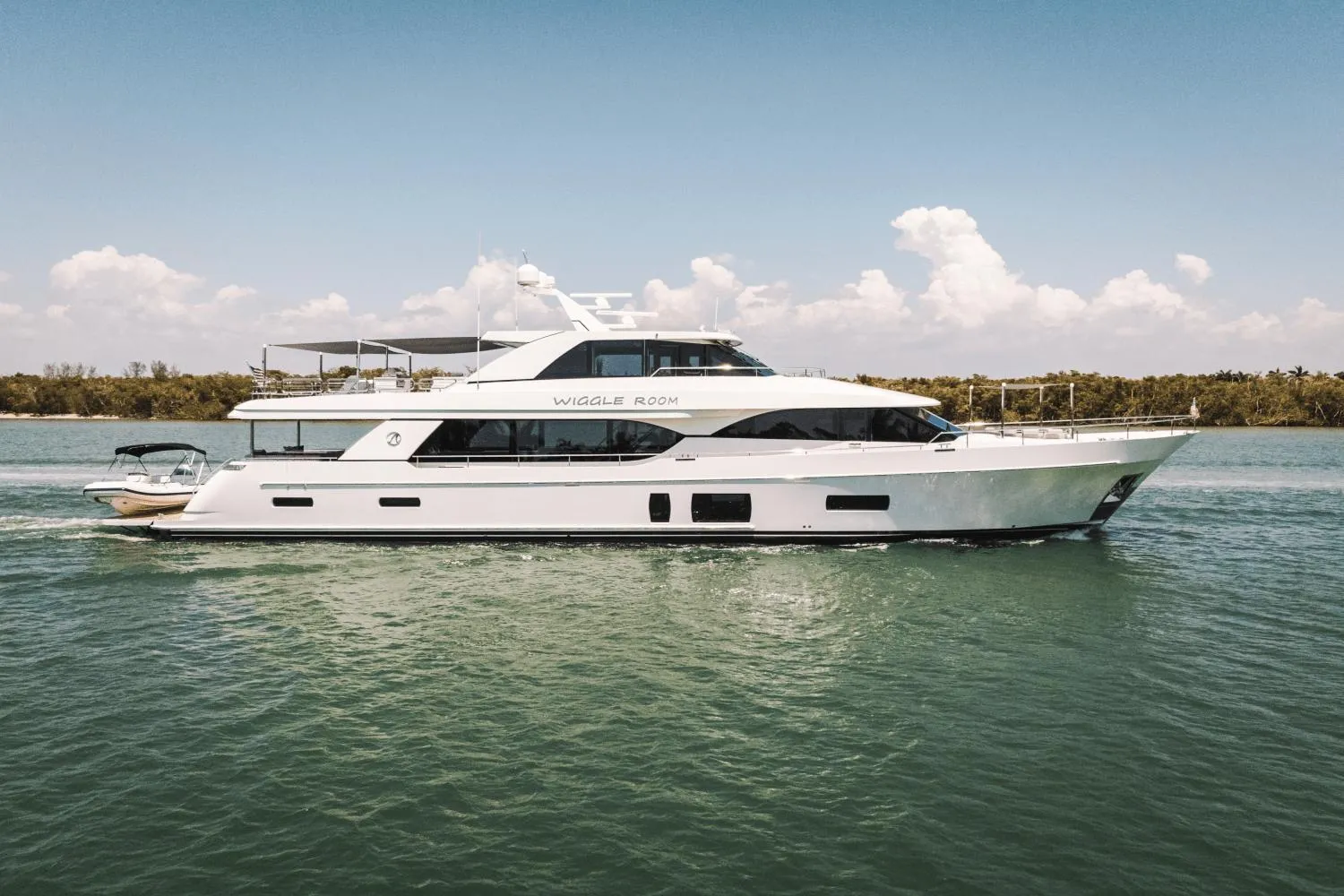

Wiggle Room Yacht for Sale

General:

-Vinylester resin with high-density structural foam. High density allows for high temperature resistivity and particular advantage in thermal and acoustic insulation. (usually only found in vessels 100'+)

-Longitudinal and lateral fiberglass stringers filled with high-density foam

-Ocean Alexander employs various techniques to reduce sound and vibration. Focusing on providing a quiet and comfortable yachting environment through various proprietary techniques of controlling sound and noise transmission. Some of these techniques include, multiple insulation barriers including reflective materials, absorptive materials, dampening materials, air pockets and flexible and isolation mounts. Ultimately resulting in vibration/ sounds levels that are industry leading and at times 1/2 to 1/10 of ISO- 6954 requirements (Unique OA feature)

-Sylomer floating floor system (Unique OA standard, usually found on 130'+ vessels)

-Fiberglass with infusion lamination manufacturing technology

-Reinforced collision bulkhead

-Frameless window

-All exterior hardware to be s/s 316 or to manufacturer requirements

-Weather-tight bulkheads with further sound and temperature insulation

-Marine grade aluminum beams for floors, walls and ceiling. Provides greater rigidity and monolithic structure. Reduces movements and "abrasive" sounds while underway. Also allows for one of the largest uninterrupted glass/window spans in the industry. (Unique OA feature)

-Use of cross-knit directional carbon fiber in high stress area for added structural integrity and torsional strength

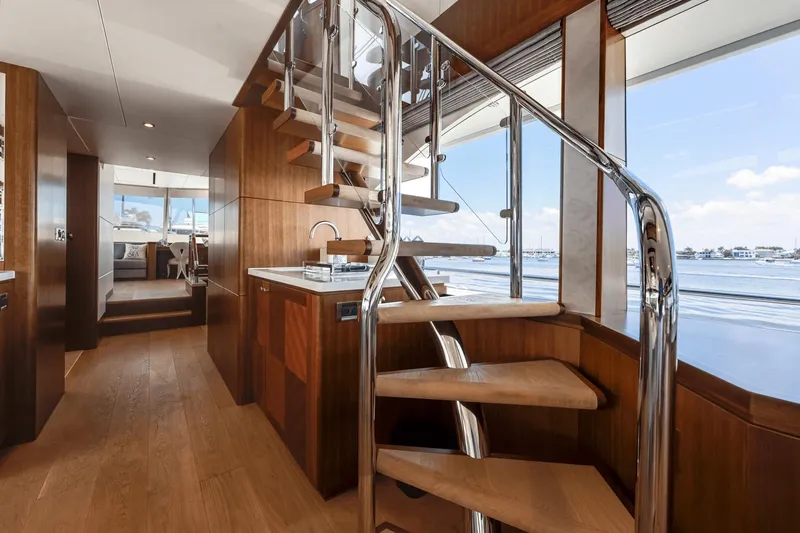

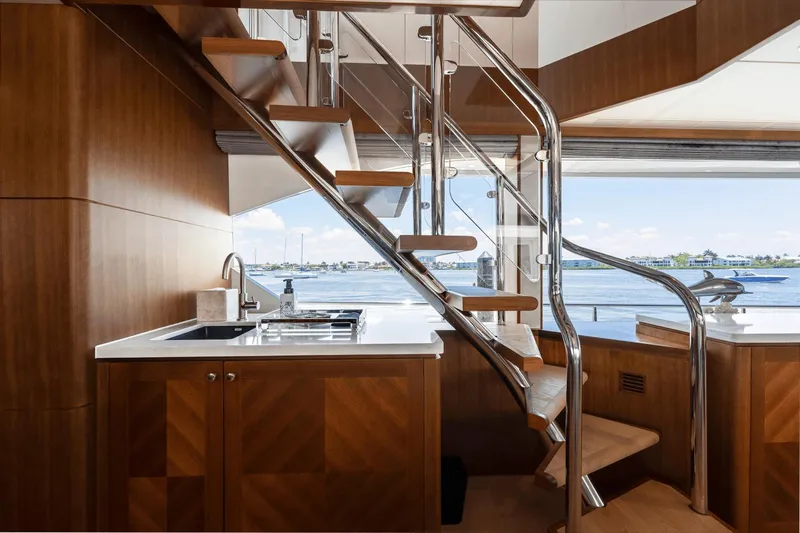

-Fiberglass staircase from cockpit to FB w/ teak steps

Hull/ Bottom:

-Black boot top stripe

-Interior structural componets all bonded to hull

-Three coats of Seahawk primer, hi-build epoxy barrier coat and covered with three coats of seakhawk self-polishing bottom paint (Unique OA feature, optional on competitors)

-Fiberglass rub rail with S/S striking plate.

-Bronze through-hull fitting

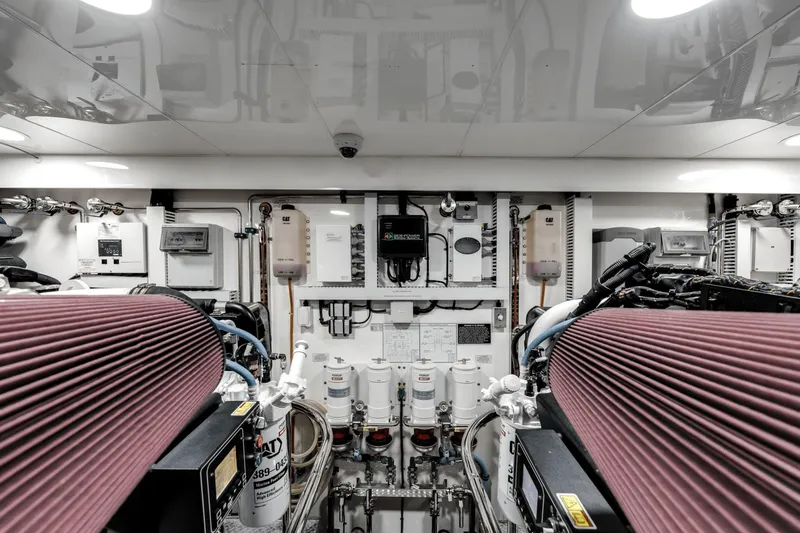

Main Engines:

-CAT C-32 ACERT 1928HP

-Add plug-in engine wired remote at aft deck and Skylounge

-Wing station control- Port and STBD sides including full engine controls and thrusters in a swing away control station

-Engine alarm system, for low oil pressure and high water temperature

-S/S engine beds

-Lube oil change system for engines/generators with approximately 45-gallon lube tank. Allows for oil change during cruise w/o need to stop & locate oil change service centers.

-Automated computerized Delta- T intake/exhaust fans with variable frequency drives shall be mounted to facilitate the pushing and/ or pulling of air through the machinery spaces and the providing of a high rate of air exchange. Ducts shall have fire dampers installed with manual/ automatic triggering that shall be tied into the machinery shut down circuits. Ducts in way of interior living space shall be insulated and soundproofed. System of water separator grills used on intake and exhaust sides of system.

-Adjustable/ Reversible Delta-T fans for engine exhaust located on superstructure instead of hull side. Maximizes water protection and salt spray, resulting in safter and lower maintenance ownership.

-Stabilizer with power take-off from both engines to provide redundancy

-Skylounge control station with complete engine instrumentation with lighted, modern switches.

-Ocean Alexander employs aerospace grade "autoclave" to make "hard coat" exhaust with AL-6XN alloys (used in Saturn V rocket nozzle) Ocean Alexander is unique in utilizing Military standards that ensures optimum and sustained performance in its exhaust system.

Steering/Control:

-Hydraulic steering system

-Steering control station with complete instrumentation

-S/S rudders with integrated zinc plates

-Dripless seal for rudder post

-High performance computer designed and machined NiBrAl propeller

-Maintenance free "dripless" seals for engine shaft packing glades

-Propeller shaft Aqua 22HS. 22HS is a high-grade austenitic alloy stainless steel that provides superior corrosion resistance (comparable to Aqua 22) along with excellent toughness and high strenght (comparable with Aqua 17) A no-compromise approach adopted by navies around the world.

Generator:

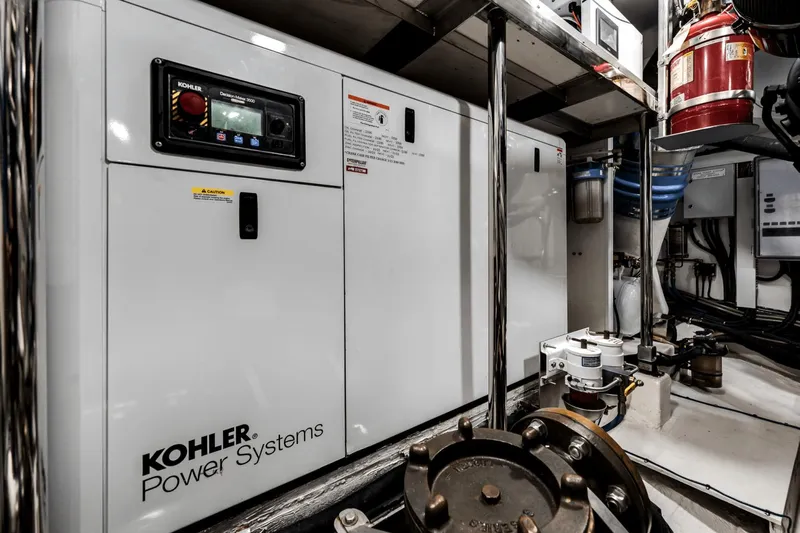

-Kohler 55 KW

-Generator exhausts- water-drop style. Reduces noise & vibration

-Generator set resiliently mounted and installed with sound shield & vibration dampener (Unique OA feature)

Windlass/Mooring:

-Dual Hydraulic windlasses, VWCLP4000

-Dual stainless steel plow anchors 350 lbs. from hull sides with 400ft anchor chain (1/2" HT) & chain stoppers.

-Integral roller and chain stopper with anchor winch

-Two vertical electric rope winches for Aft Deck

-Reinforced anchor platform and anchoring system

-Chain counter

-Hands-free anchor chain wash system- allows for cleaning of chain during anchor operation

Thruster/Stabilizers:

-Sidepower Vector Fin 15ft hydraulic stabilizer find with zero speed stabilization function

-Sidepower's patented "curved" fin design not only provides lift underway it is also unique in the industry with active "predictive" inertia control

-55 HP bow and 40HP stern thrusters

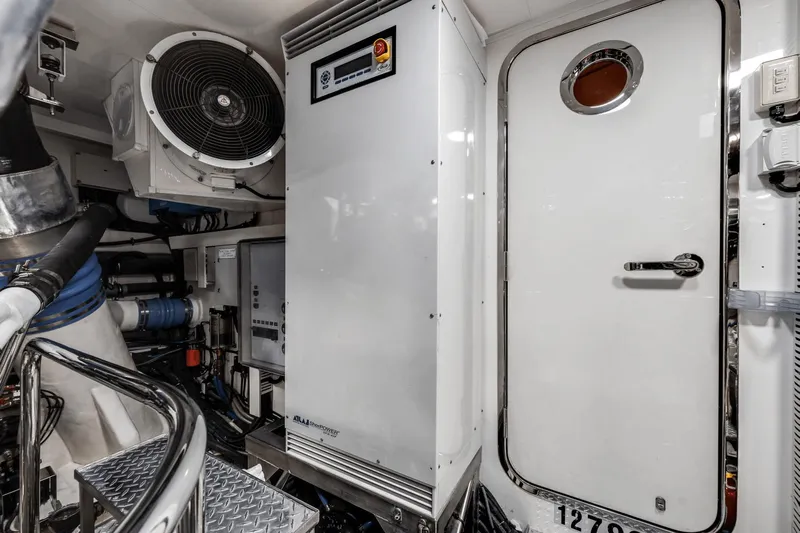

OTHER:

-Stainless steel rails on side of engine and stainless steel engine mounting plate

-Color-coded piping system for easy identification

-Fire extinguisher system with engine-shutdown feature

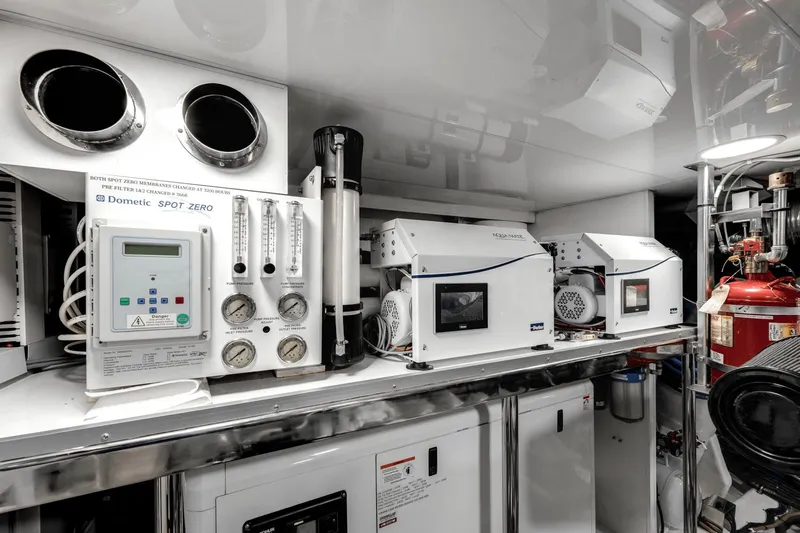

-Sea Recovery 1400G/Day water maker with auto fresh water flush operation, PH neutralizer, UV sterilizer and commerical pre-filter

-Kahlenberg heavy-duty horn

-All engine room and bilge spaces primed and top coated with polyurethane paint system.

-Heavy duty commercial grade pantograph windshield wipers & washers with intermittent fuction

-Detailed stringers in engine room & lazarette

-OA proprietary "dry bilge ventilation system" with dedicated bilge exhaust to outside. This provides constant airflow to keep the bilges dry and mildew free. Any moisture from condensation is evacuated outside the yacht to keep a clean and healthy cruising environment.

-OA design in oversized shafts, rudder and other drive train systems typically one-class larger than competition. Superior handling, longevity is ensured with OA drive-train systems.

Fresh water system:

-2mm thickness 316 S/S water tank with sight gauge

-Cold fresh-water wash down at bow, stern and boat deck

-Dockside water connection

-Two 40-gallon water heater with high density fiberglass insulation with dual high efficiency heating element that speeds heathing by 50%

Fuel System:

-Sight gauges for all tanks

-4.5 mm thickness 5052 Aluminum fuel tanks with sight gauges and tested to International standards 33CFR 510(a) with high and low fuel level alarm system

-Dual Racor fuel/water separator with Y-valves for engine & generator

-Gulfcoast Fuel polishing system based on US military Abrahams- M1 Tank design

-Filler for fuel tanks on both sides with individual tank vents.

-Fuel system with venting and "catchment system" designed for burps or overflow accidents

Holding Tank System:

-ECOmar waste treatment system (600Gal/day)

Bilge/Discharge:

-Oversized drains to overboard

-Automatic bilge pump-automatic switches in each space as divided by weather-tight bulkheads. High water alarms will be mounted in each of these bilge zones

-High water bilge alarm at every rule bilge pump station

Dry bilge area arrangement in center engine room

Lighted bilge with built-in S/S ladder

AC/DC system:

-AC outlets throughout

-All primary AC & DC electrical wiring is appropriately labeled throughout the yacht

-GFI (110V) AC outlet in potential "wet" areas. In addition, entire boat is protected via "GFI at source" Octoplex breakers.

-24 Volt system

-Engine battery isolation switches

-AGM Batteries with 40F to 140F operating temp and industry leading low self-discharge rates 1 to 3%

-Shore power receptacles in transom with cable masters

-Heavy-duty batteries

-Battery paralleling system with control switch

-Service battery switch

-Bonding system throughout

-The vessel's bonding and grounding systems include copper straps secured to the hull and running the full length of the vessel parallel to centerline. Engines, generators, metallic through hulls, strainers, and pump bodies shall be connected to the bonding strap using 8 AWG wire minimum or equivalent

Air Conditioning:

-Dometic chilled water system air conditioning system, rated for "Extreme Tropical Climates" (with reverse vycle for operation down to 40 F water temp)

-Refrigerant type is accepted worldwide under the Montreal protocols

-Dedicated engine room air conditioning

-Where possible A/C exits from custom made ceiling panels hidden from view. Shortens A/C ducting thus improving efficiency and speed of cooling by over 20%.

Lighting:

-24V LED lights (Aerospace quality, specially tuned color temperature for Ocean Alexander) with schene programmable lighting with dimming function built-in.

-Convenience lights

-International navigation lights

-High output LED underwater lights

Navigation Package:

-Garmin 8600 Series Black Box on Skylounge with Three 24" touch screens

-Garmin GRID remote input device installed on helm chair

-Garmin 25KW Open Array radar

-Garmin Autopilot GHC20

-Garmin VHF and card reader

-Garmin black box sounder

-Garmin AIS with NMEA GPS

-Three sets AXIS M3026-VE fixed dome network camera with digital PTZ

-HD7 with DIRECTTV receivers

-Ritchie Compass 5"

-iPad with built-in Garmin app for navigational control/viewing via iPad

-Navigational electronics standard versus optional with competitors

N2K view safety & security monitoring pkg:

-These security/safety automatic monitoring and alert abilities include using Apple iPad or Android for wireless access to perate, view, and alarm Octoplex data and navigation system with a fully customizable screen layout, and remote notification (cell phone) capability.

-These monitoring abilities include: Main Engines and Generators, AC monitoring, DC house bank battery monitoring, Engine room weather-tight bulkhead door, tank levels, firesystem, bilge level (high-water), exterior door sensors.

Power Converter Package:

-Atlas 50/60 Hz Power Converter. Allows for automatic marina connection irrespective of 60 Hz (USA) or 50 Hz (European) standards.

Inverter Package:

-Upgrade 80amp charger to inverter/ charger (5000 w/ 120 amp)

-Allowing for silent night/ no generator inverting from DC batteries to AC circuits (refrigeration, water pumps, select AC outlets)

-Blue-power full function programmable controller

Other:

-Onboard intranet, driven by commercial- grade 4G SIM card capable Wi-Fi router. Allows outside 4G Internet card and/or internal intranet net connection via supplied iPad to systems monitoring, Garmin and other onboard equipment apps. (Unique OA feature)

-Vimar switches and outlets

-ACR searchlight

-Spreader lights for swim step and FB deck

Crstron Package:

Ipad mini linked to Crestron fully programmable A/V entertainment system. Allows full A/V control from individual IPad mini locared for each stateroom and public area wherever there is a TV.

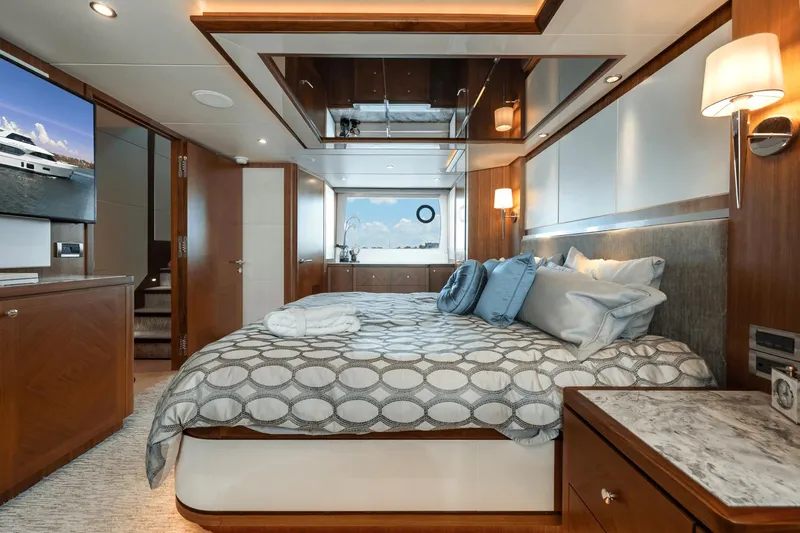

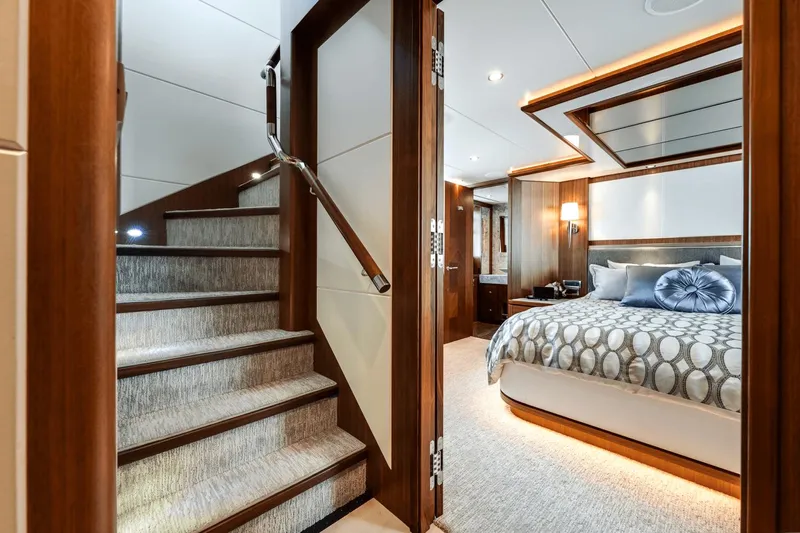

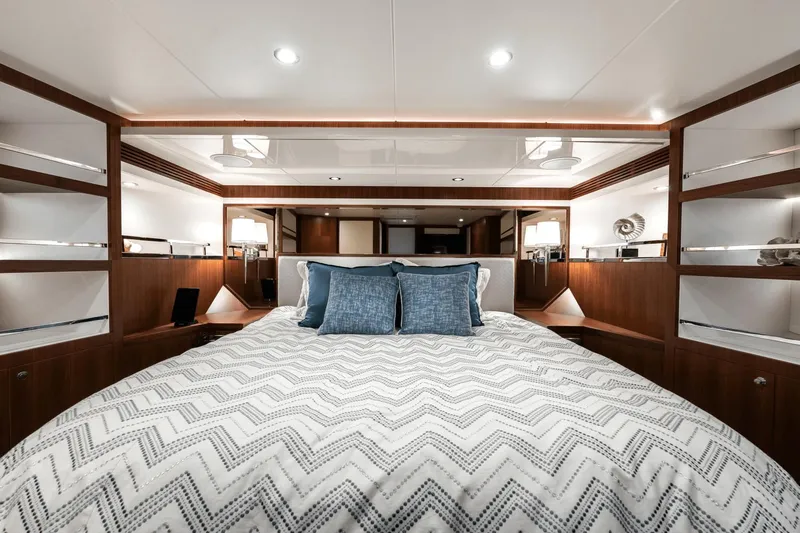

Main Deck Master Stateroom:

-LED 50" flip-down TV with A/V system

-One subwoofer

-King-sized berth (with independently coiled his & her sections to ensure minimal transfer of movement)

-Vanity on port, check of drawers on starboard

-Hidden safe in hanging locker

-Dayhead

-Walk-in closet

-Wide-opened curved window with custom engineered solution incorporating aluminum beams allows greatest visibility and incoming light

-Custom headboard with recessed indirect lighting

-Cedar-lined full-height hanging locker with automatic lighting

-Heated floors in bathroom

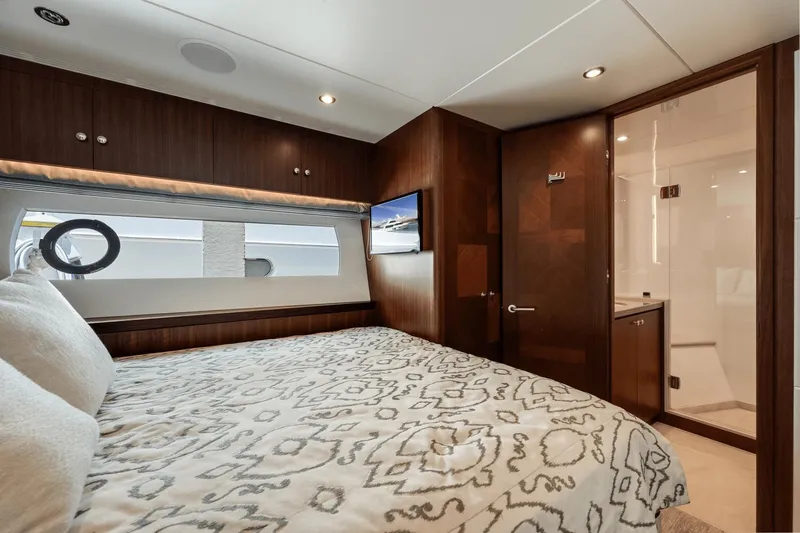

Lower Deck Master Stateroom:

-LED 50" TV with A/V system

-One subwoofer

-King-sized berth (with independently coiled his & her sections to ensure minimal transfer of movement)

-Sylomer floating floor

-Walk-in closet on port side

-Hanging closet space on stbd

-Enlarged windows with custom engineered solution incorporating alauminum beams and "sandwiched glass" construction technique from classed vessels. Allows of 28% greater visibility and incoming light

-Custom headboard with recessed indirect lighting

-Cedar-lined, twin full-height hanging locker with automatic lighting

-Enlarged master bathroom window with updated cabinetry to take advantage of additional 320% additional window visibility vs previous port light

-Heated floors in bathroom

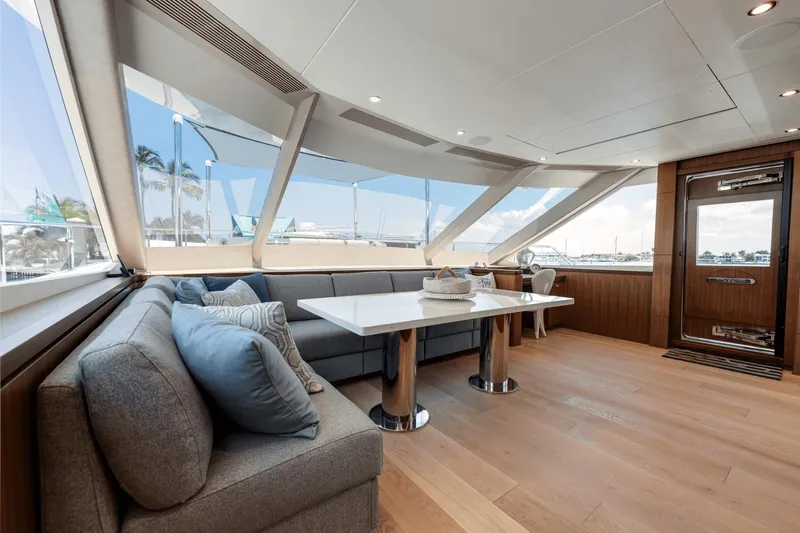

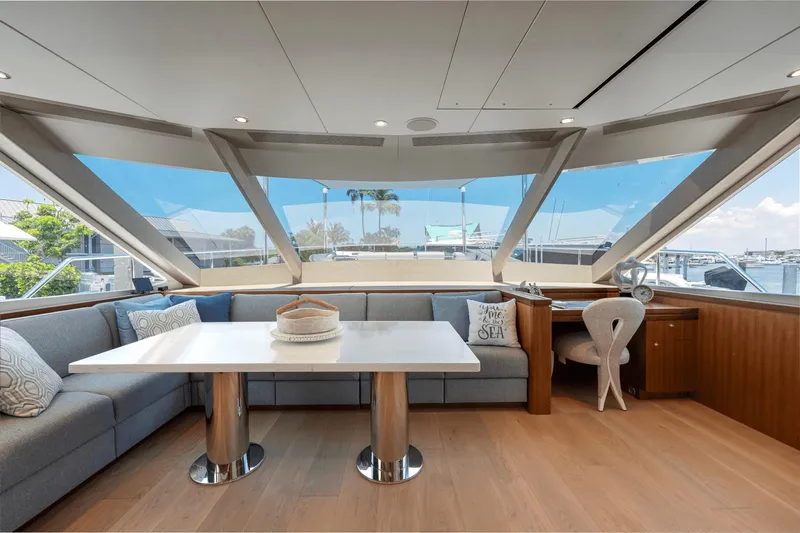

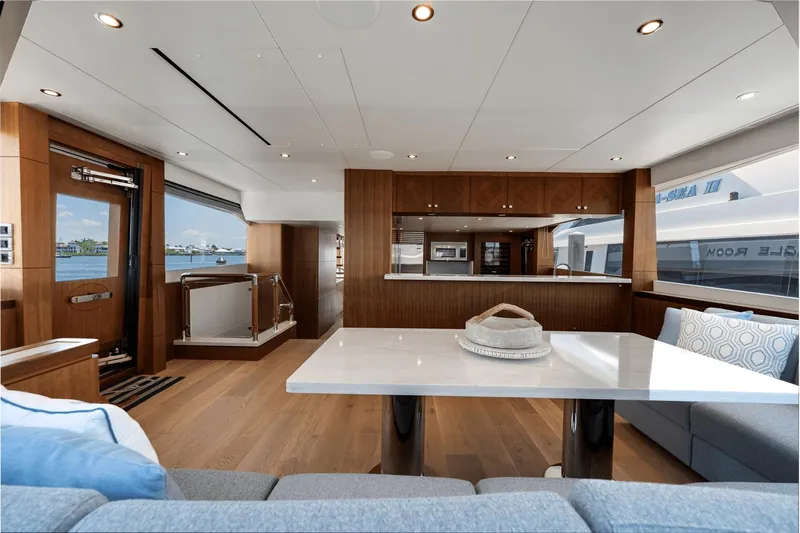

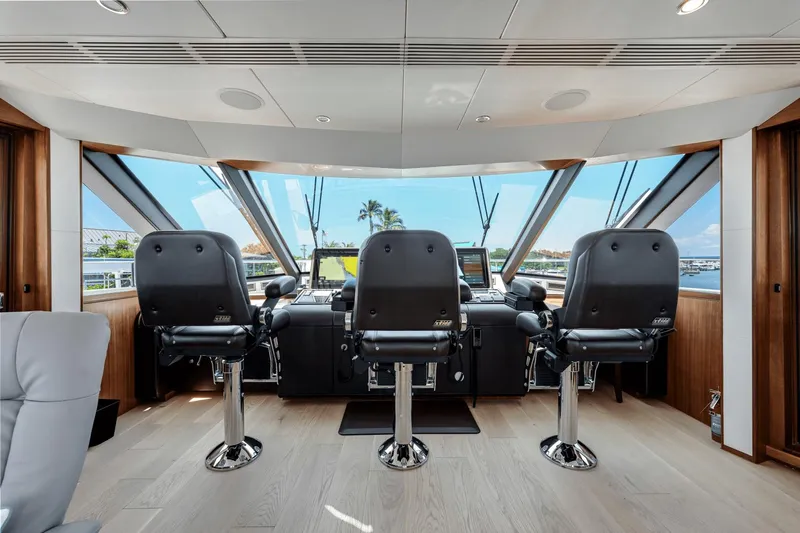

Skylounge:

-LED 50" TV with A/V system

-Cabinet including wet bar, Sub Zero wine cooler with solid panel door and storage

-Boat deck sliding hatch

-Wood valance board

-Raised settee with table

-Day head

-Chart locker

-Electric stidd helm seat x3

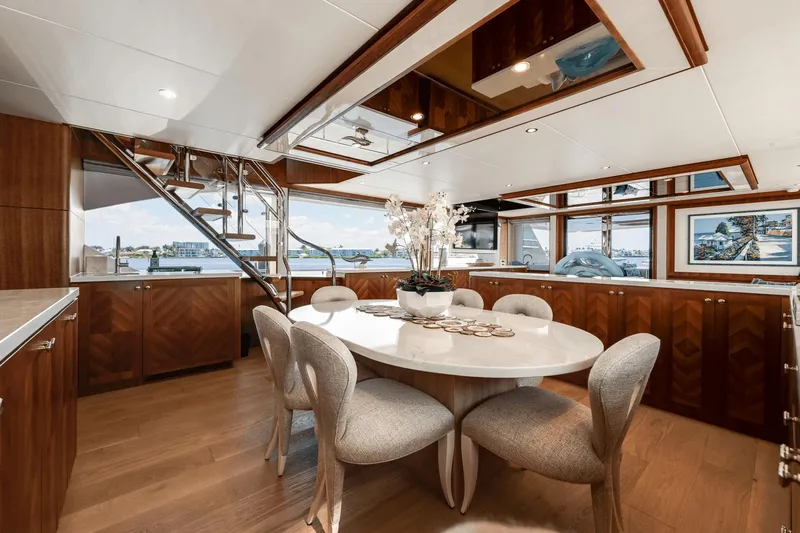

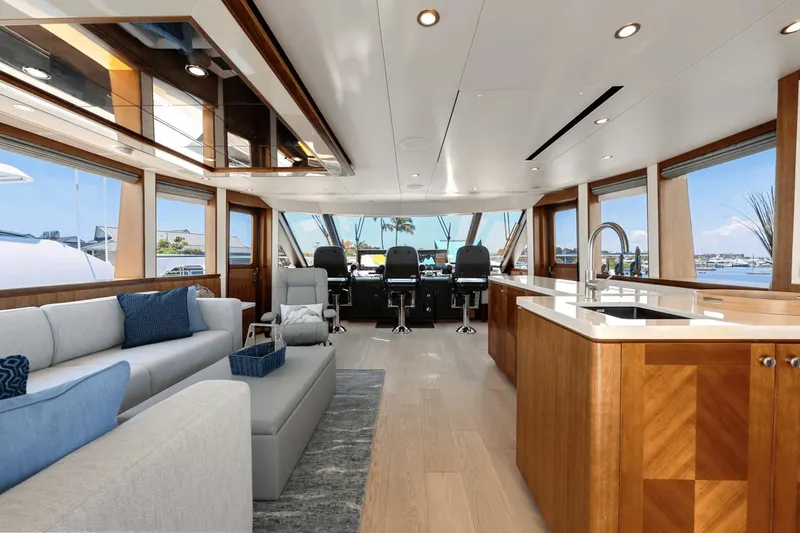

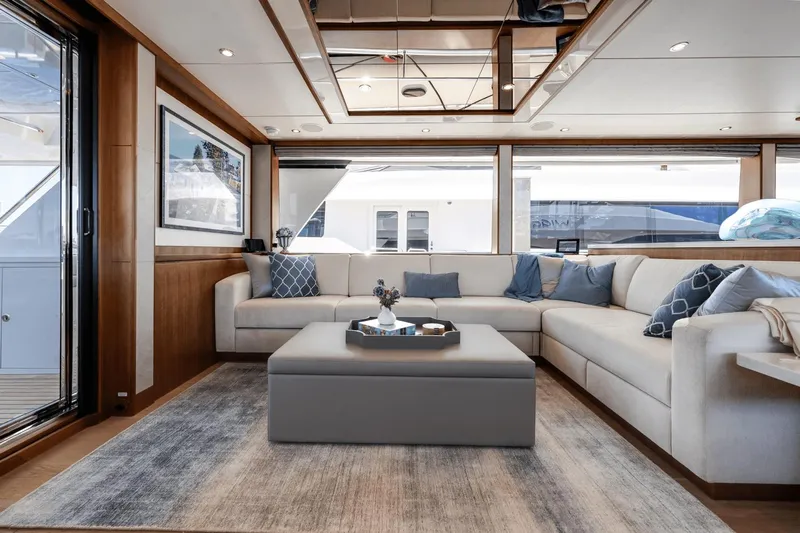

Salon:

-60" TV with Blu-Ray A/V system

-Wood paneling and cabinetry

-Evan K Marshall custom design salon furniture and sofa. Sofa includes concealed drawers for intelligence use of space and increase storage

-Custom designed window mullion

-Decorative ceiling treatment

-Phantom screen (for insects + pollen protection) with dedicated wood box for door

-Enlarged windows in salon with custom engineered solution incorporation marine grade aluminum beams allowing for industry leading window expanse. Incorporate A/C outlet from ceiling, provides unobstructed view to outside

-Sylomer floating floor and wall

-Sub Zero refrigerator

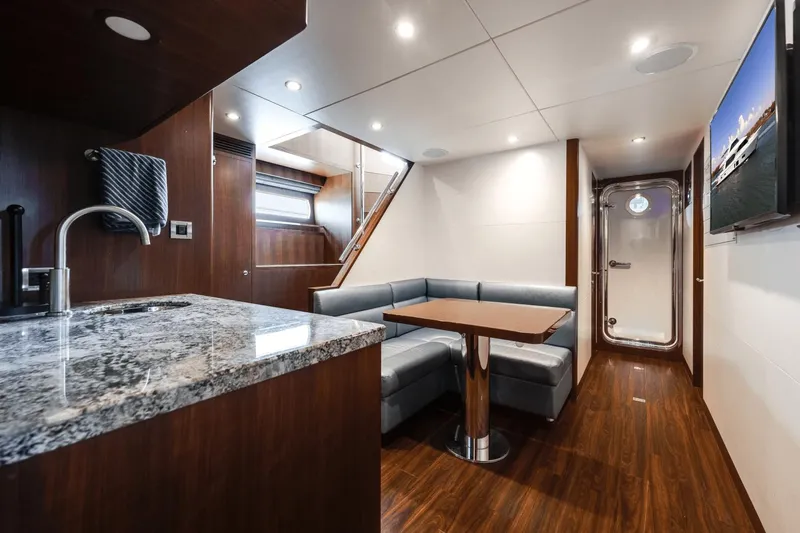

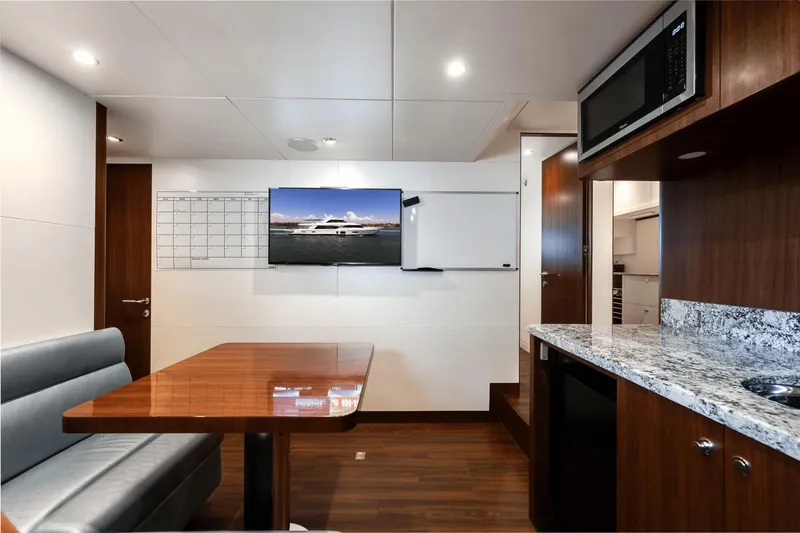

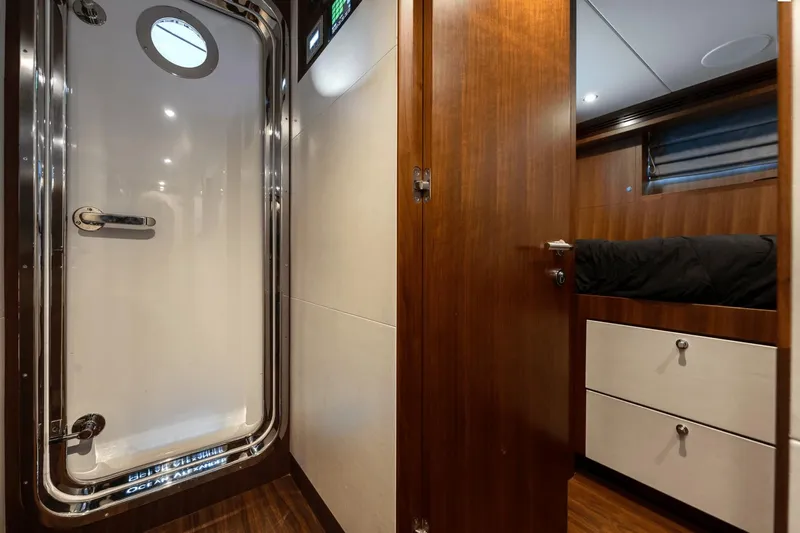

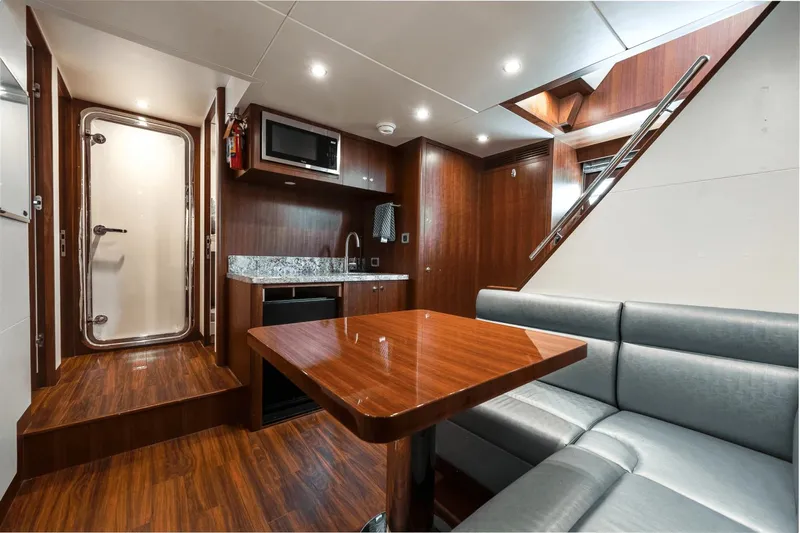

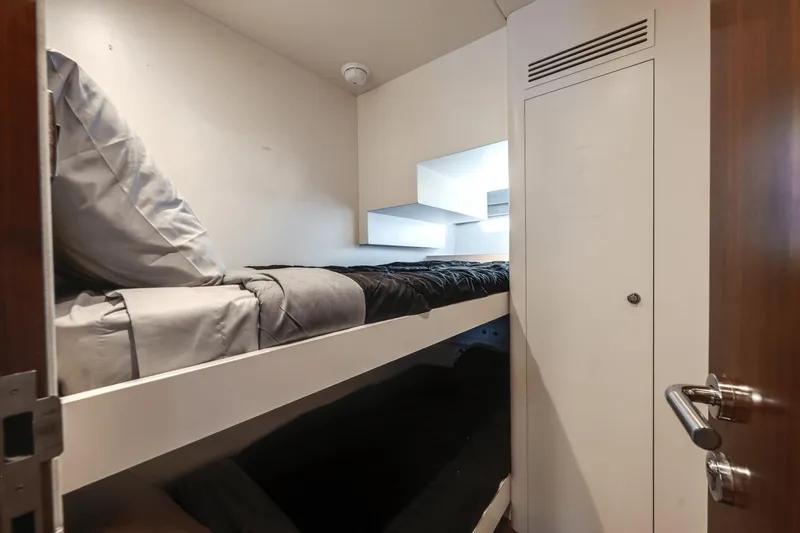

Crew Quarters:

-Largest crew quarters in its class with Ocean Alexander's unique design, the crew quarters doubles as a Cabana. Allows for day head and rest/ eat area for swimming / out of water activites without needing to access salon/main deck interiors.

-Cedar-lined hanging locker with automatic lighting

-Kitchenette (sink, microwave, and refrigerator/icemaker)

-Storage locker

-Drawers under bunk

-Microwave oven

-LED 32" TV & DVD with Satellite Receiver

-Captain quarters includes desk with storage and N2KView linked Apple IPad for systems diagnostics/alerts/settings. Full height hanging closet and queen size berth with storage under.

-Dedicated stainless work bench with vice and snap-on tool chest. Also includes a wet locker (with ventilation and separate water drain) and storage compartment. All staterooms fully air-conditioned

Interior Decor:

-Walnut with stain finish

-Wood paneling and cabinetry in semi-gloss

-Interior ceiling panels removable and finished with Diamond faceted edging. Provides a sharper and structured tailored look.

-Evan Marshall designed interior pilot station and display pod. With matching wood/Ultraleather and "floating"display pod. Ergonomically designed and laid out to enhance pilot experience/performance.

-Carbon monoxide and smoke detectors

-Air extraction in each head shall be by low noise extraction fans, switched separately form lights

-Opening (in glass port light) for MSR bath, MSR, twin staterooms

-High quality European door locks

-Cedar-lined, hanging locker with auto lighting

-FAbric covered walls for lower walkway walls

-Concealed hinges throughout interior cabinets

-Ergonomically designed mattresses and settees

-Washer/ dryer in lower foyer

-Wine cooler in lower foyer

-Concealed Chest Freezer in front of Dinette

-Port/Star staterooms side-by-side berths can slide together and convert to single queen berth.

-Flip-up additional storage fwd of dinette/under windshield

-USB power plug at lower helm and inside MSR nightstand

-Dedicated oversized drawer for golf club/sport rackets/ bulky items storage under fwd stateroom berth

-OA wood floor is custom made in Kentucky with solid wood top surface with the same wear capacity as solid 3/4" wood flooring. It uses 9 layers of European birch assembled in a cross-grain direction with a top layer of exotic hardwood to match the interior of the boat.

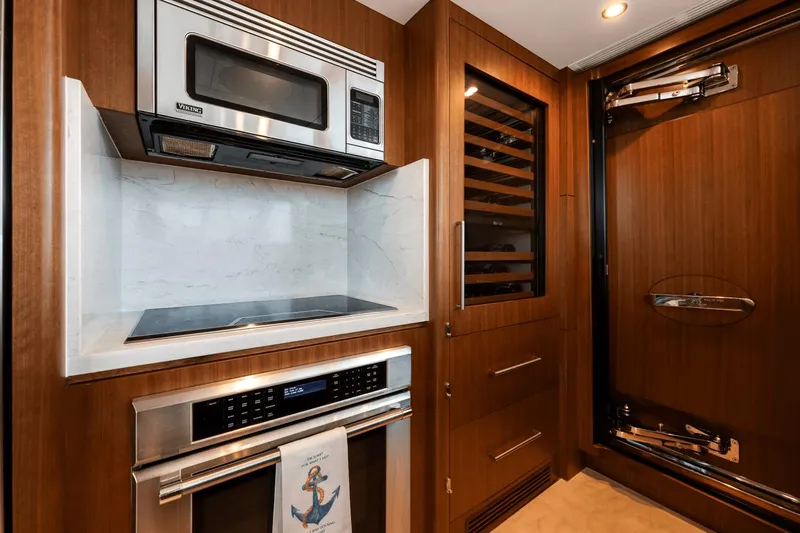

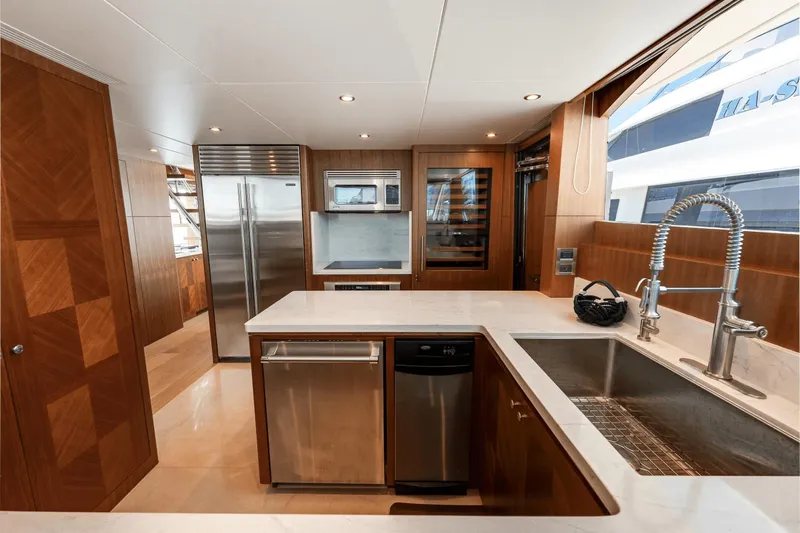

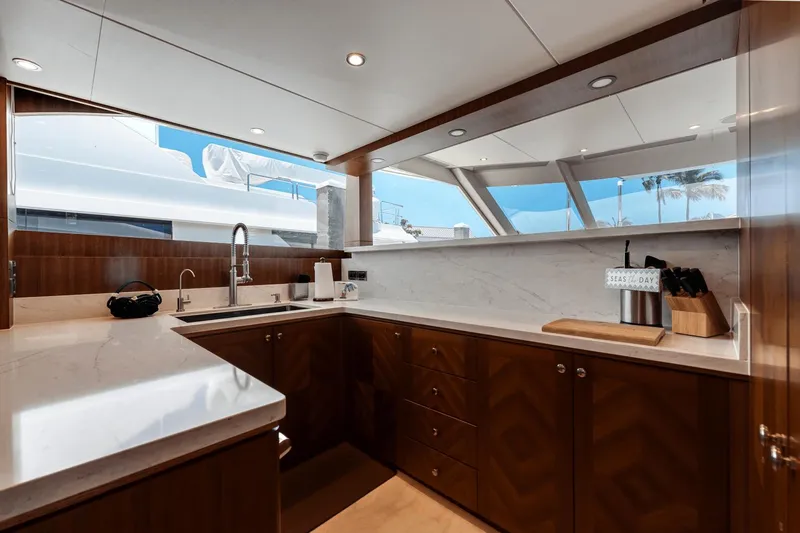

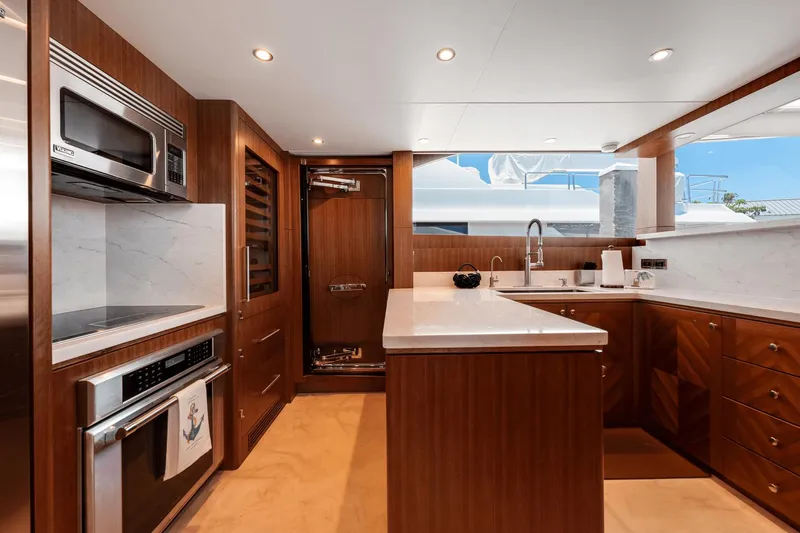

Galley:

-Wood panel and cabinetry with positive-latch doors or proprietary drop-lock drawers. Provides containment of stored objects while underway.

-Galley storage cabinetry with hidden hinges

-Elkay professional series kitchen sink with pull out tap

-Exhaust blower

-Overhead dish locker fwd & aft

-30" Thermador electric cook top

-30" Thermador electric oven

-Sub-Zero refrigerator/freezer

-Sub-Zero Ice maker

-Sub-Zero wine cooler

-Whirlpool garbage disposal

-30" Viking over-the range microwave with exhaust blower

-Jenn-Air dishwasher

-15" Whirlpool trash compactor

-Seagull water purifier (ADEX design award winner with filtration to 0.1 microns & EPA certification for microbiological purification)

-Custom S/S potholder for cook-top for securing pots while cooking underway

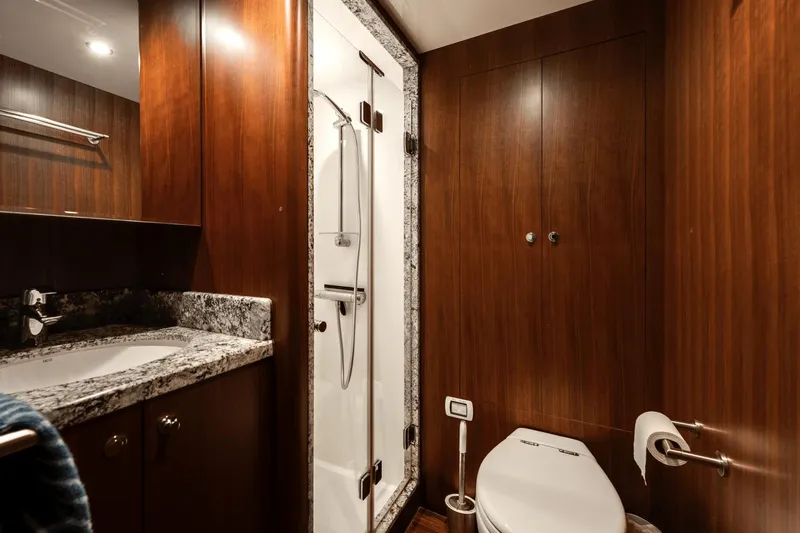

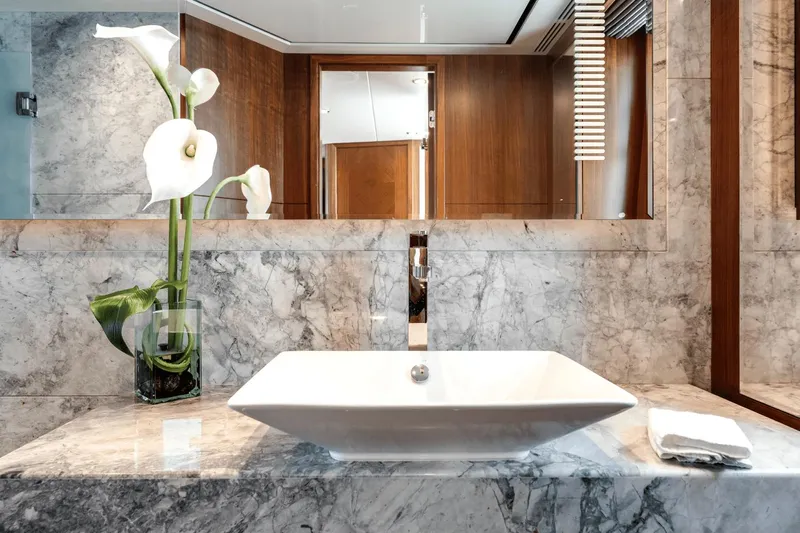

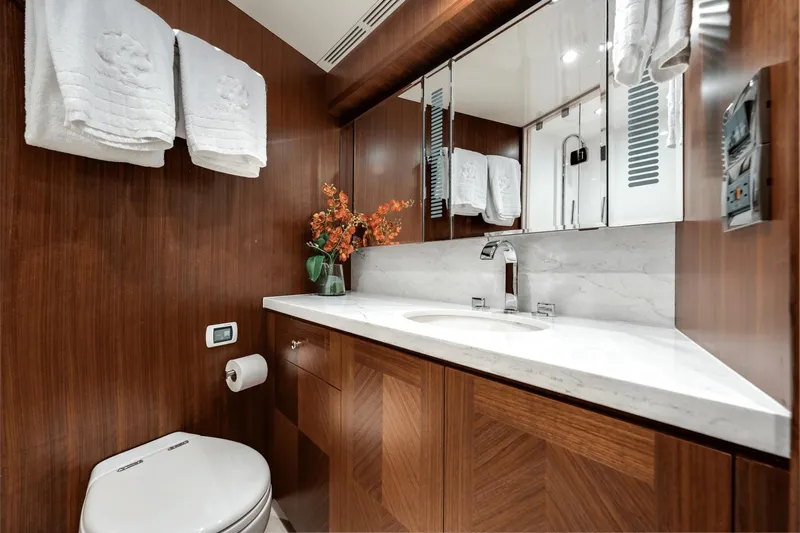

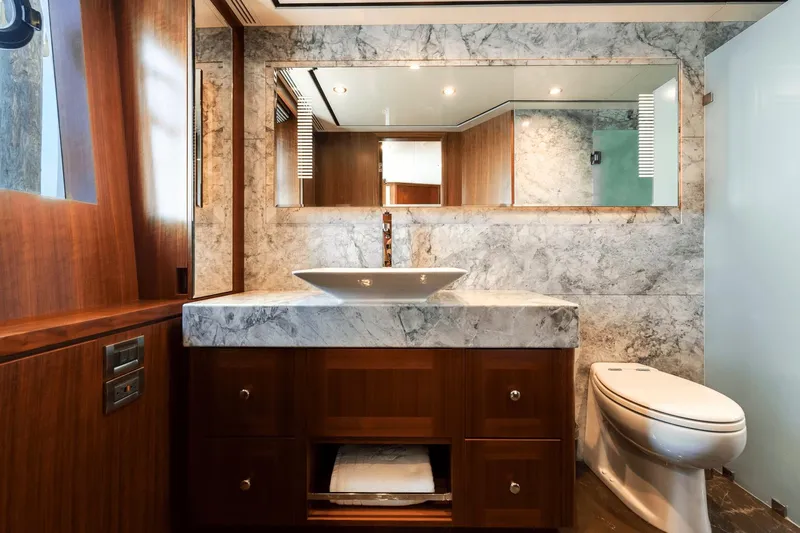

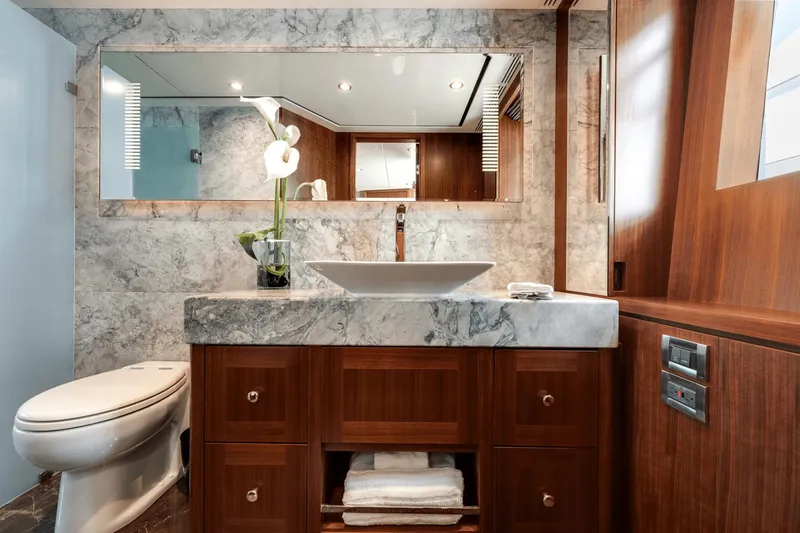

Heads:

-Wood paneling and cabinetry

-Seamless fiberglass stall shower with one-piece glass door. Industry leading seamless one-piece shower stall design provides long term protection against moisture, water intrustion behind the shower panels - leading to fould odors and water damage (Unique OA feature)

-Shower door shall use "crystal clear" glass custom made for OA. Providing superior transparency and reflectiveness. Together with custom made for OA "minimalist and transparent water strips" provides a unique OA proprietary "Crystal Shower"

-Cabinet with mirror door above sink

-Air extraction in each head shall be by low noise extraction fans

-Planus toilet system throughout with unique OA proprietary "Toilet lock out" system. Provides "lock out"of flushing when holding tank is full. Prevents accidental spillage or "blow back". Tankage status and alarm is standard via N2KView monitoring system.

-Custom bathroom fixtures

-Crew quarters with private head, shower and refrigerator

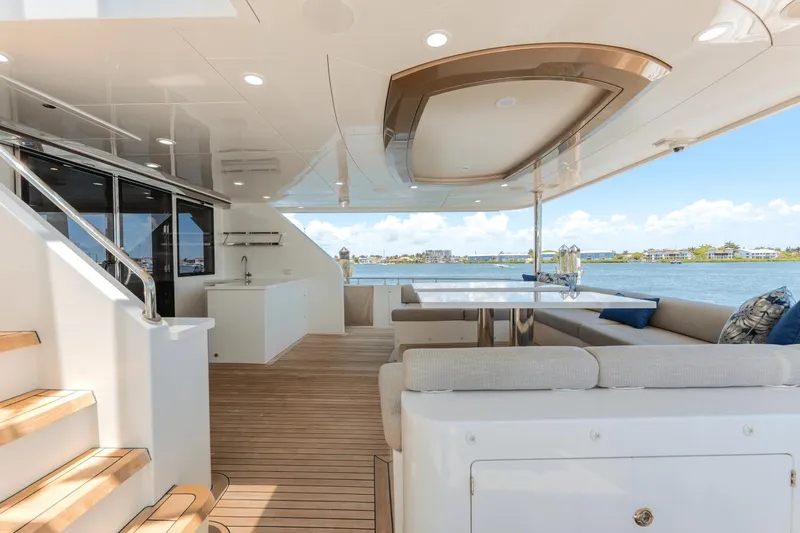

Exterior:

-Evan Marshall designed exterior pilot console and display pod- with contrasting metallic dark grey and metallic silver and "floating" display pod. Ergonomically designed and laid out to enhance pilot experience/performance

-Hardtop with dedicated custom S/S ladder to navigational electronics

-2" elliptical 316L Stainless steel handrails & stanchions, main deck 1-1/2" on FB. Elliptical conforms better to human grip than traditional round rails. Provides greater "grip strenght" for safety and comfort (Unique OA feature)

-316 Stainless-steel cleats

-Elec. stainless-steel sliding doors for salon and skylounge with safety light curtain that senses obstruction and protect for grandkis/pets. Also includes "foot-kick button" control for operation when both hands with full food tray's other items.

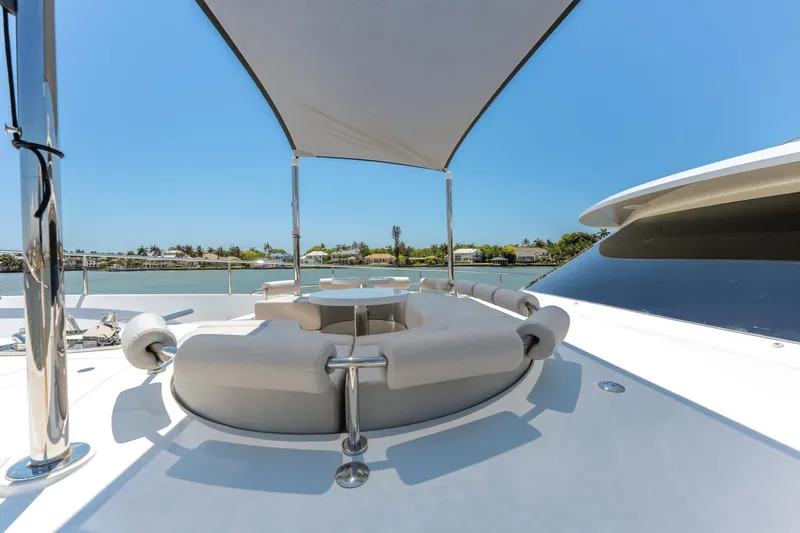

-Largest flybridge area in its class with OA "cab-fwd" design, the flybridge steering station is moved fwd to allow for better visibility and lengths the total flybridge area available for entertaining.

-Two S/S flag poles, fore and aft.

-Teak and stainless swim ladder, foldable

-Weather-tight door on transom for access to engine room/ crew quarters

-White non-skid fly bridge decks

-Propane BBQ

-Flybridge seat with storage underneath and high gloss table

-Fiberglass stairway up to Flybridge from cockpit with teak steps

-Teak deck for aft deck and walkway to midship

-Teak swim platform with teak steps

-High bulwark with flush- mounted deck lights

-Side boarding gates in cockpit

-Recessed boarding ladder on starboard gunnel with OA logo teak steps (Unique OA standard feature)

-Sunpad at bow

-Custom exterior canvas and windshield mes covers

-Flybridge deck outboard storage increased by 54% via additional storage lockers on port and starboard where possible

-Exterior ceiling panels removable and finished with Diamond faceted edging. Provides a sharper and structured tailored look. Also allows for easy service of navigational electronics and plumbing runs.

-Custom designed fender storage at bow/chain locker/lazarette

-Bow seating (with teak sole) with concealed pop-up lighting, hi-low table converts to sun pad and exterior speakers with audio streaming ability

-Manual awning for Flybridge with custom made stainless steel poles and marine-grade exterior Batyline Creme. Includes custom designed built-in storage for poles.

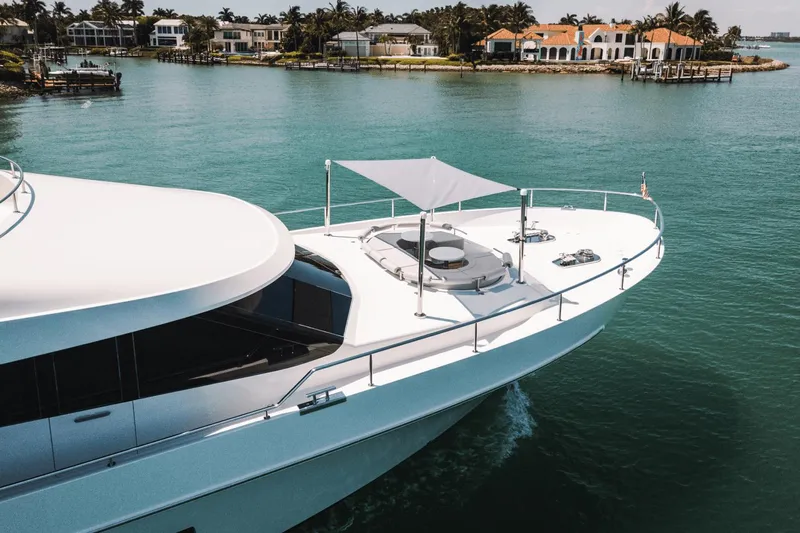

-Manual awning for Bow with custom made stainless steel poles and marine-grade exterior Batyline Creme Ferrari mesh fabric. Includes custom designed built-in storage for poles.

-Aft-deck custom ceiling feature

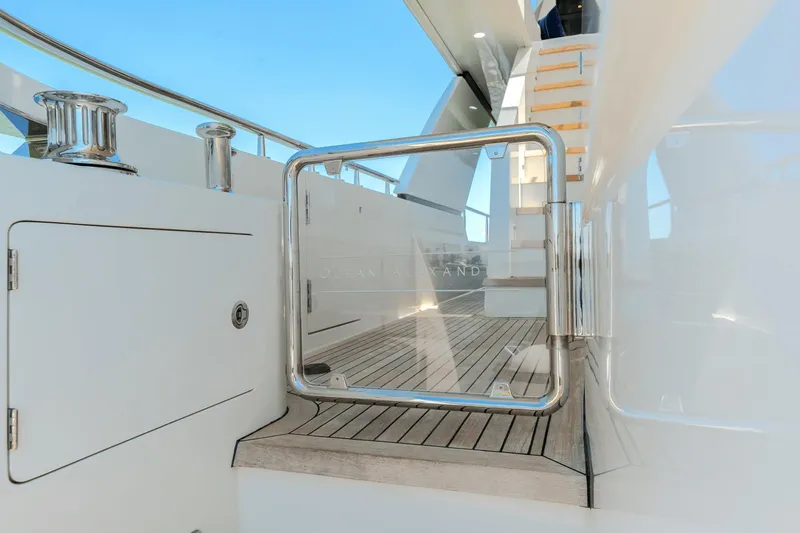

-S/S transom gates for pets/children protection from Aft-deck to swimstep

-32" flip down from ceiling TV/DVD with satellite receiver includes additional exterior speakers for full stereo effect on FB/Aft Skylounge. Includes Bluetooth streaming ability direct to exteiro Tv and speakers.

-40" flip down from ceiling TV/DVD with satellite receiver includes additional exterior speakers for full stereo effect on Aft-deck. Includes Bluetooth streaming ability direct to exterior TV and speakers

-Additional heavy duty ice machine on flybridge
