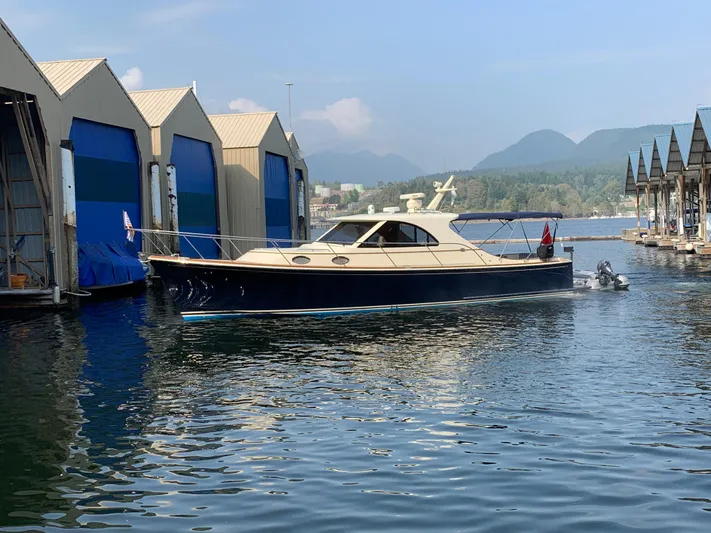

Yakamoz Yacht for Sale | 40 San Juan Yachts Vancouver, Canada

HELM & NAVIGATION

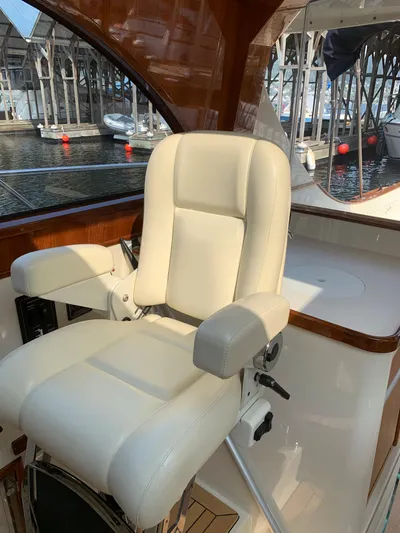

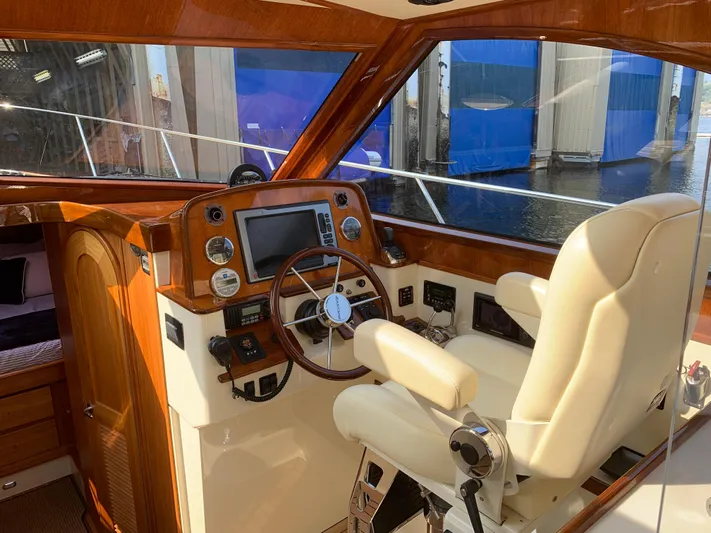

The helm station is exceptionally well designed and ergonomically laid out. The boat is a pleasure to operate and everything is in easy reach. Sight lines over the bow are never impeded regardless of speed or conditions. The 360-degree visibility maintains clear view in all directions.

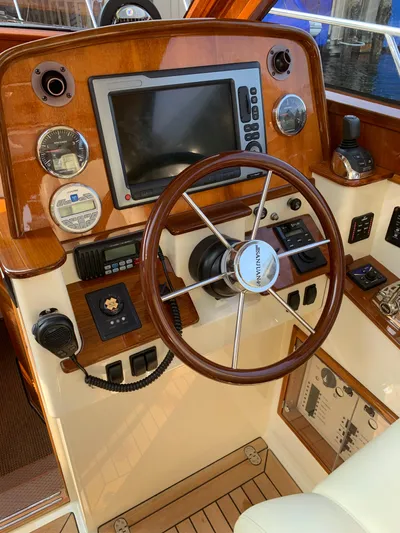

Helm & Navigation Instruments

Chart Plotter/GPS/Sounder/Radar/ Raymarine E120W
Radar dome Raymarine
Autopilot Raymarine ST70 interfaced w/ Volvo Penta IPS electronic steering
Flir Thermal Imaging night vision control
Volvo monitor 7" Color Display
Volvo EVC control
VHF Marine Radio Icom IC-M422

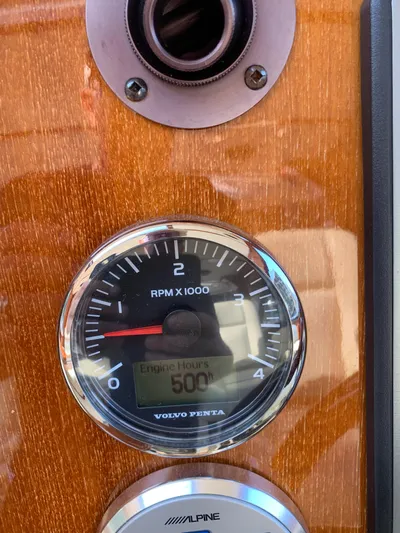

Tachometers w/ digital data display
Volvo Dynamic Positioning System
ACR Remote Spot Light
Generatror control panel / Northern Lights
AC/DC power panel
Magnum Energy Inverter/Charger/Monitor
Wiper controls
Lenco Trim Tab Controls
Tank Tender Monitor
Volvo Shift/throttle controls
Volvo IPS Joystick
Steering Wheel Mahogany w/ tilt
Ritchie Compass
Alpine stereo remote touch control
Air Conditioning directional ducts

CABIN & HEAD

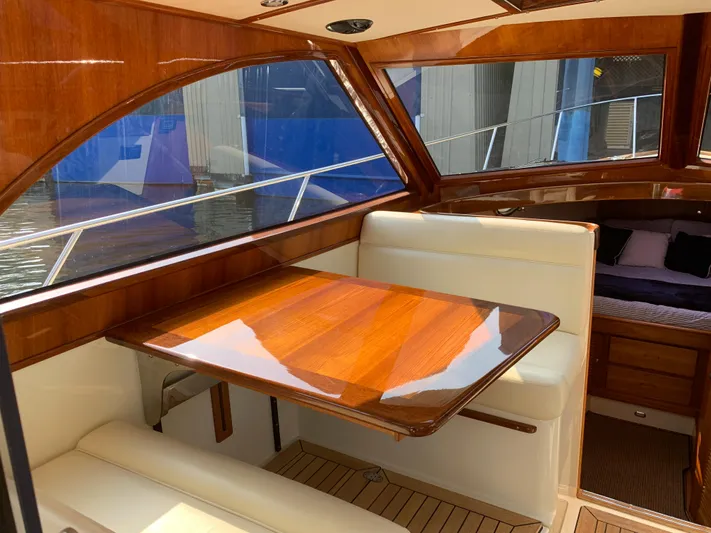

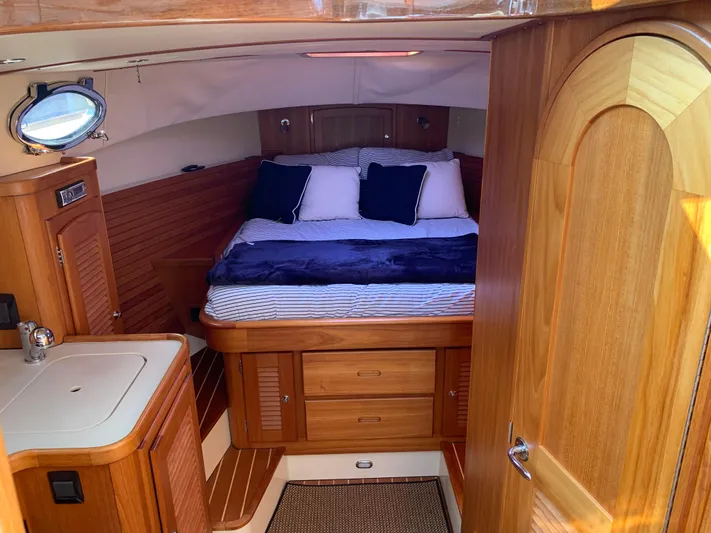

The interior is trimmed with Teak and finished to a satin sheen. The hull sides forward are sheathed with hardwood "hull ceiling" strips. The galley and forward cabin sole is Teak & Holly. Countertops are surfaced with Corian. Forward of the galley is a walk around queen size berth which lifts for access to storage below. Solid wood drawers are supplied at the foot of the bed. The forward stateroom boasts two hanging lockers port and starboard. Ventilation and daylight are provided via a screened Lewmar overhead hatch and four opening screened portlights. Berth mattress is 5" foam composite with upholstery. Overheads are Majelite with wood trim supports. Reverse cycle air conditioning is offered for cabin and pilothouse heating and cooling.

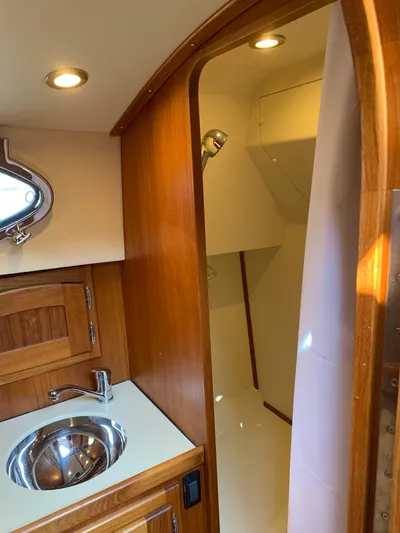

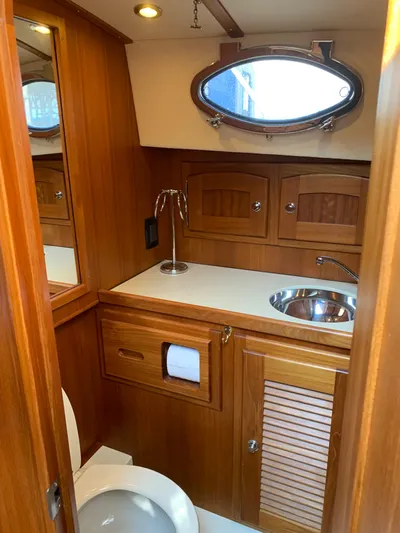

The head, with separate shower, is designed to be easily cleaned and maintained. A Sealand head is connected to a holding tank with shore side pump out fitting on deck. A discharge pump is provided for overboard use where allowed. The holding tank is sounded with a Tank Tender gauge. A stainless-steel sink is supplied with hot and cold water. The separate shower with seat drains to a sump and is discharged via a drain pump. A mirror and lockers with shelves are provided. The head has an opening portlight with a screen.

GALLEY

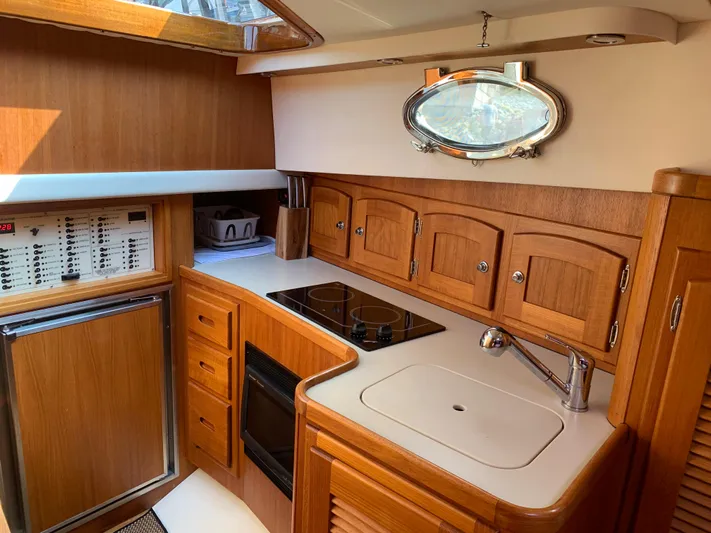

The below decks galley is open to the pilothouse with an abundance of daylight provided by the pilothouse windshield directly above. There is a two-burner electric stove and built-in micro- convection oven, stainless steel sink with hot and cold water through a Scandvik mixer with a pullout-extending faucet. An abundance of storage is provided in above counter cabinets, below counter cabinets and drawers. The refrigerator is a custom stainless-steel refrigerator/freezer. An opening portlight with screen above the galley provides ventilation. Drawers and overhead cabinets provide ample storage for galley supplies

DECK

The deck is a one piece infused composite molding using E-glass and Corecell® with vinylester resin. The hull is joined to the deck using an engineered flanged box joint and is bonded using a high strength adhesive with mechanical fasteners. This provides a permanent, watertight hull/ deck joint. Teak toe-rails and stainless steel half-round guards are fastened through the hull and deck flange. Six polished stainless-steel deck cleats are provided for bow, stern, and spring lines along with custom stainless-steel bow chocks and chafe guards. A stainless-steel deck fuel fill is located starboard side amidships. The water tank fill and holding tank discharge are located on the starboard side forward. The foredeck anchor handling system consists of a stainless-steel bow roller concealed below deck with a 22 lb. stainless steel anchor and 20 feet of 5/16" galvanized chain spliced to 200 feet of 9/16" nylon rope. A Muir anchor windlass is standard and also concealed below deck accessible buy deck hatch. A Lewmar Low Profile 40 deck hatch is located over the forward stateroom. Four opening stainless-steel port lights with screens provide ventilation to the cabin area. A Teak Ensign staff with stainless steel socket is supplied aft with a stainless-steel burgee staff supplied forward at the bow. Four stainless steel handrails provide handholds when moving forward on the side decks.

Teak Decking cockpit side and foredecks and helm deck
Stainless Steel Bow Rail
Teak Toe Rail
Cleats (6) polished Stainless Steel
Chocks (4) polished Stainless Steel
Deck Hatch, Lewmar
Anchor Locker w/ Muir Windlass, Anchor & Rode

COCKPIT

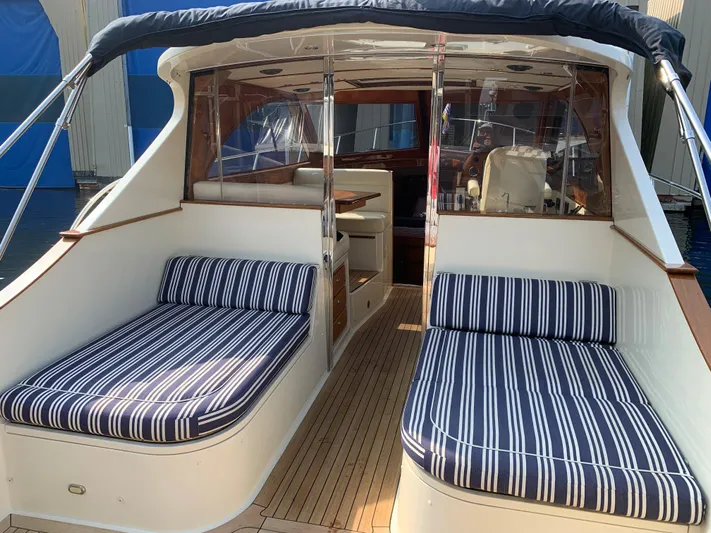

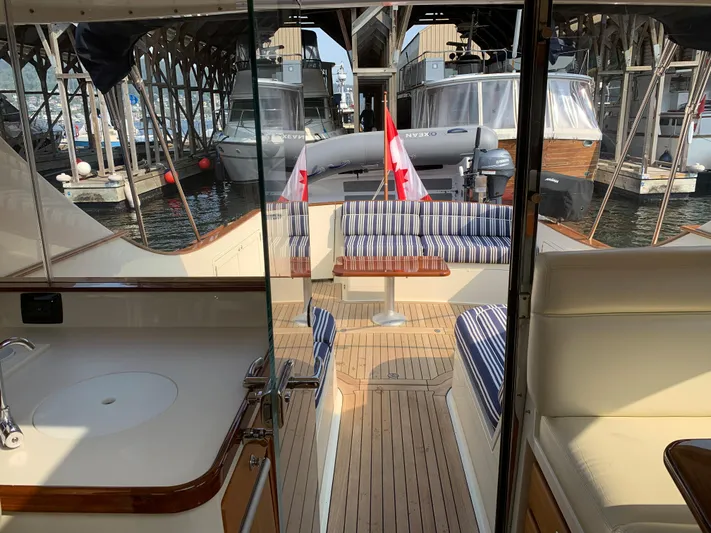

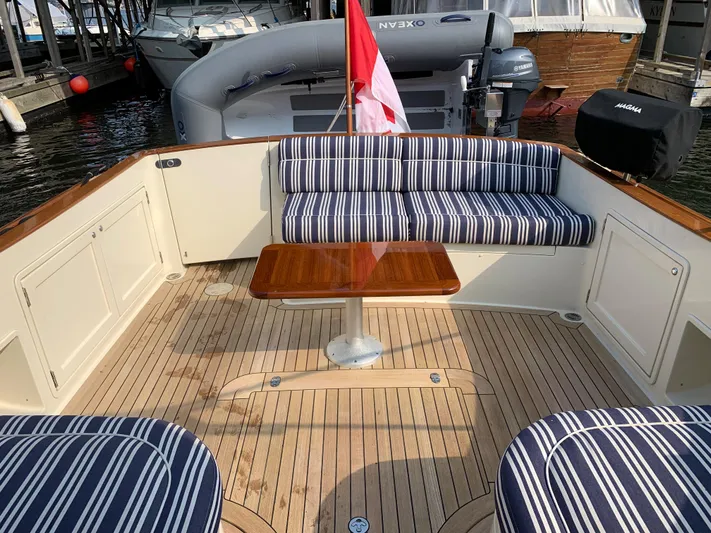

The large cockpit was designed to allow ample room for sitting, dining, fishing and sunbathing for example. An opening walk through transom door provides easy access on and off the boat and to the water via the swim step. The built-in transom seat provides both seating and underside bin storage. Storage bin is removable to provide additional storage space below in the lazarette. Bin may be used as a cooler or may be set up as bait locker as an option for fishing.

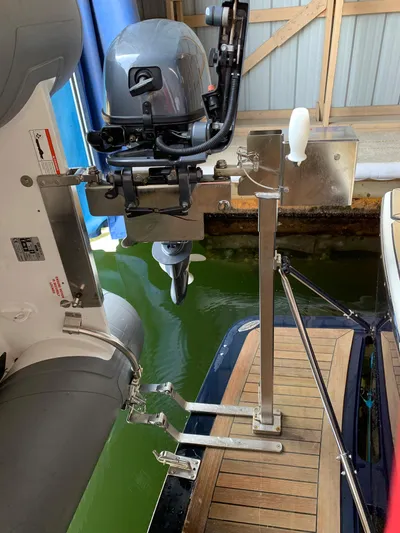

Sitting and sunbathing space is also available on the port and starboard engine compartment boxes with hatches that lift with the aid of electric lifting cylinders for engine access. Engine compartment hatches are supplied with teak decking. The cockpit deck is molded with 1" waterways. Teak decking is standard for the cockpit, pilothouse and on the composite swim step. A flush hatch in the deck provides easy access to the bilge storage. Port and starboard cockpit bulwark lockers allow for storage of fenders and mooring lines and will accommodate up to a nine-foot roll-up inflatable tender and small outboard.

·A Teak cockpit table with Stainless Steel base is provided.

Transom Door
Swim Platform w/ ladder
Transom Seat w/ Ultraleather cushions
Lift out bins in transom seat
Engine Boxes w/ Ultraleather lounge cushions
Bulwark storage lockers
Deck hatch to bilge storage
Wash Down
Transom Shower Hot/Cold

ELECTRICAL

A bank of two 8D AGM batteries provides ship's power. Two 8D AGM batteries provide starting power. Isolation is provided between the lighting and house circuits and the starting bank with the provision for emergency starting if necessary. Charging of the system is done through 85 amp alternators mounted on each engine as well as a magnum battery charger/inverter.

Two 30 Amp ea. shore power receptacles are provided amidships on the starboard side to provide 110 V power to outlets in each cabin as well as the galley, head, pilothouse. A Northern Lights 6.0 kw M673L2 marine generator is standard with switching located at the main distribution panel. Switching for both the 12V and 110V are provided at the main distribution panel located at eye level in the galley and is equipped with both a voltmeter and ammeter. All circuits are protected with circuit breakers and main disconnects. All hull penetrating marine hardware is bonded and connected to a sacrificial zinc plate located at the transom below the swim platform.

Interior lighting is Imtra LED lighting for low power draw and extended bulb life.. Overhead recessed lights are positioned in the pilothouse and cabin areas and are controlled by bulkhead- mounted dimmer switches. Two bulkhead mounted reading lights are located forward over the queen berth. Courtesy lights illuminate the walkway from the cockpit to the cabin sole. Lights are located in the engine compartments, mechanical compartment and lazarette. LED navigation lights meeting International Rules are provided. Two Roca pilothouse windshield wipers with washers are supplied. An ACR spotlight with remote control is included.

Northern Lights 6kw Genset in sound enclosure
Magnum Energy Inverter/Charger
Air Conditioning/Heat

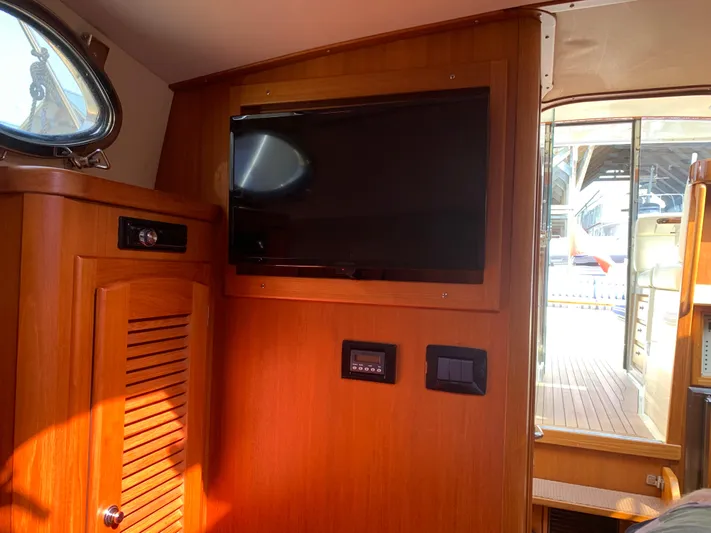

TV in Master w/ DVD
Stereo Alpine
AC/DC Distribution Panel
Helm DC Breaker Panel

HULL

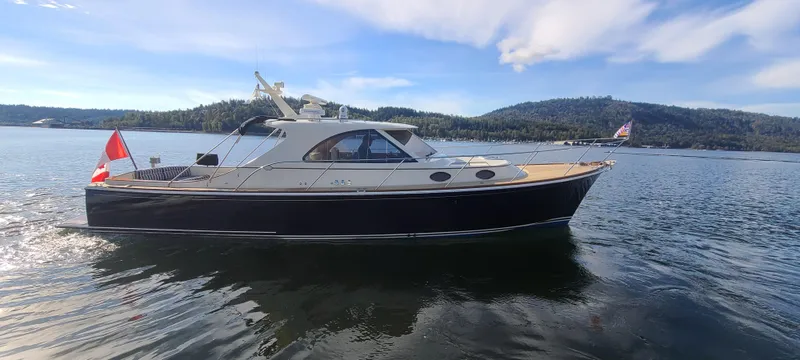

The SJ40 hull was designed and computer modeled to be both handsomely styled and capable in a broad range of sea conditions. The traditional flared bow with fine entry and tumble home aft is complemented by the hydro-dynamically efficient underbody. Tooling for the entire boat was modeled and cut by a computer controlled 5-axis router creating the most fair and precise parts available in the industry today. The SJ40 hull is formed using a Kevlar® / E-glass and Corecell® foam core composite infused with vinylester resin. Dupont Kevlar® / E-glass hybrid is used to greatly increase the strength of the hull against damage caused by impact. The infusion process yields strong lightweight parts with high glass to resin ratios. The core is removed and replaced with solid glass and extra laminations in areas of major penetrations and high stress.

Three composite watertight structural bulkheads separate the hull into damage control zones with dedicated bilge pumps. Structural bulkheads are built using Corecell® foam core with E- glass skins infused with vinylester resin. Longitudinal and transverse stringers are an E glass Corecell® foam core composite. The entire structure of the boat is built using wood free composites. The hull is painted Flag Blue with Linear polyurethane Alexseal.

Infused Vinylester Resin, E-Glass, Kevlar, Corecell

Flag Blue Alexseal Paint finish Topsides
Transom Door
Swim Platform
Swim Ladder

ENGINES & MECHANICAL

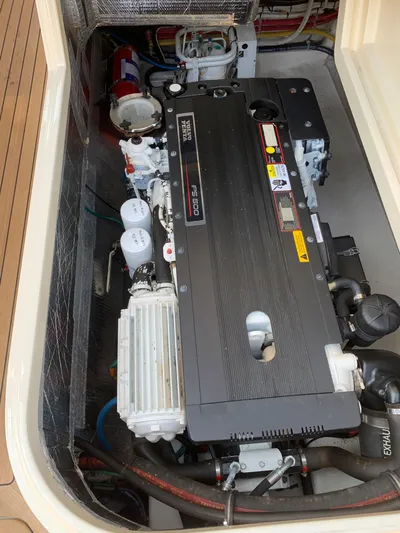

This boat is equipped with optional twin Volvo Penta IPS 500 common rail aftercooled diesel engines rated at 370 H.P each. The engines are equipped with IPS drives for exceptional performance and maneuvering. The engines are painted white and come with Nibral bronze, counter rotating propellers.

The engine compartment is protected by an automatic fire extinguisher system. An oil transfer pump system is standard for main engine and transmission oil changes.

The single 300-gallon capacity aluminum fuel tank is fully baffled and has a starboard side deck fill. The tank is sounded with a Tank Tender gauge. In-line Racor fuel / water separators are provided for each engine. Ventilation is provided via side deck vents in the aft cockpit bulwarks. The engine compartment is well lit and is easily accessed via a flush cockpit hatch and the large twin-engine hatches opening with lift cylinders.

The cored hull, deck and superstructure construction provides for excellent sound and vibration damping. The main engines and machinery are isolation mounted to reduce noise and vibration. The engine compartment is lined with sound insulation to reduce noise levels providing quiet operation. Engine compartment hatches are lined with sound insulation and are gasketed to reduce noise levels.

80 gal. of fresh water are stored in a baffled stainless steel tank with a Tank Tender sounding gauge. A water pump system provides water pressure. Hot water is supplied by a stainless steel six-gallon hot water heater. The shower has a sump pump system for discharge overboard. Three Rule 2000 GPH electric bilge pumps with Rule Ultra automatic float switches are located forward in the cabin, aft in the engine compartment and in the lazarette. Bronze thru hull fittings throughout are U.L. listed, and fitted with seacocks.
